Multigroomer 5 MGK5380 - Grass trimmer BRAUN - Free user manual and instructions

Product type	Trimmer (Multigroomer)
Brand	Braun
Model	Multigroomer 5 MGK5380
Power supply	Rechargeable battery, cordless use, charging via special mains cord
Charging time	Approximately 1 hour
Runtime	Up to 100 minutes
Cutting heads	Trimmer, ear and nose, precision, body, mini foil shaver
Adjustable combs	Sliding beard comb (3-11 mm, 2 mm steps), sliding hair comb (13-21 mm, 2 mm steps), fixed combs 1 mm and 2 mm
Shower use	Yes, cordless only
Safety	Travel lock (press 3 seconds), automatic shut-off not specified
Cleaning	Heads and combs washable under running water, brushing, regular oiling of blades
Warranty	2 years
Repairability	Braun Authorized Service Centers, parts available via after-sales service
Recommended charging temperature	5 to 35 °C
Recommended operating temperature	15 to 35 °C

Frequently Asked Questions - Multigroomer 5 MGK5380 BRAUN

How to charge the Multigroomer 5 MGK5380?

Plug the switched off device directly into a power outlet using the special cord provided. Full charge takes about 1 hour and provides up to 100 minutes of runtime. The charging indicator blinks green during charging and stays solid green for a few seconds after full charge.

Can I use the device in the shower?

Yes, the device can be used in the bath or shower, but only cordless (unplugged). Never use it plugged in water.

Which combs are included with the device?

Included: a sliding beard comb (3 to 11 mm, 2 mm steps), a sliding hair comb (13 to 21 mm, 2 mm steps), a fixed 1 mm comb and a fixed 2 mm comb. Other accessories may vary by model.

How to clean the Multigroomer?

Turn off the device, remove the head and comb. Use the brush to clean the heads and device. Heads and combs can be rinsed under running water. Let them dry completely before reassembly. Regularly apply a drop of light oil to the trimmer and foils.

What to do if the battery does not charge?

Check that the ambient temperature is between 5 and 35 °C. Make sure you are using the special cord provided. If the indicator remains red flashing, the device needs to be charged. If the problem persists, contact a Braun Authorized Service Center.

How to activate the travel lock?

Press the on/off button for 3 seconds. A beep confirms activation. To unlock, press again for 3 seconds. If three beeps sound, try again or plug the device into the mains.

Can I use the device while it is charging?

No, the device is designed for cordless use only. It cannot be used while plugged in. Charge it when switched off.

How to replace the cutting heads?

Turn off the device. Remove the current head by gently pulling it. Insert the new head by snapping it onto the handle. Make sure it is firmly attached before use.

What is the warranty period?

Braun provides a 2-year warranty from the date of purchase, covering manufacturing defects. In France, the legal warranty for hidden defects applies (Articles 1641 and following of the Civil Code).

Where can I find spare parts or have the device repaired?

Visit www.service.braun.com or call 0 800 944 802 (free consumer service) to find the nearest Braun Authorized Service Center. Use only genuine Braun parts.

USER MANUAL Multigroomer 5 MGK5380 BRAUN

Black and white photo of a Braun-branded hairbrush with a power button and grille (no text or symbols on the device itself)

Type 5544

www.braun.com

Deutsch 5

English 10

Français 17

Español 22

Português 27

Italiano 32

Nederlands 37

Dansk 41

Norsk 45

Svenska 49

Suomi 53

Ελληνικά 57

DE / AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

GR 210-9478700

HK (852) 2986 9886

(DKSH Consumer Service

Centre)

Braun GmbH

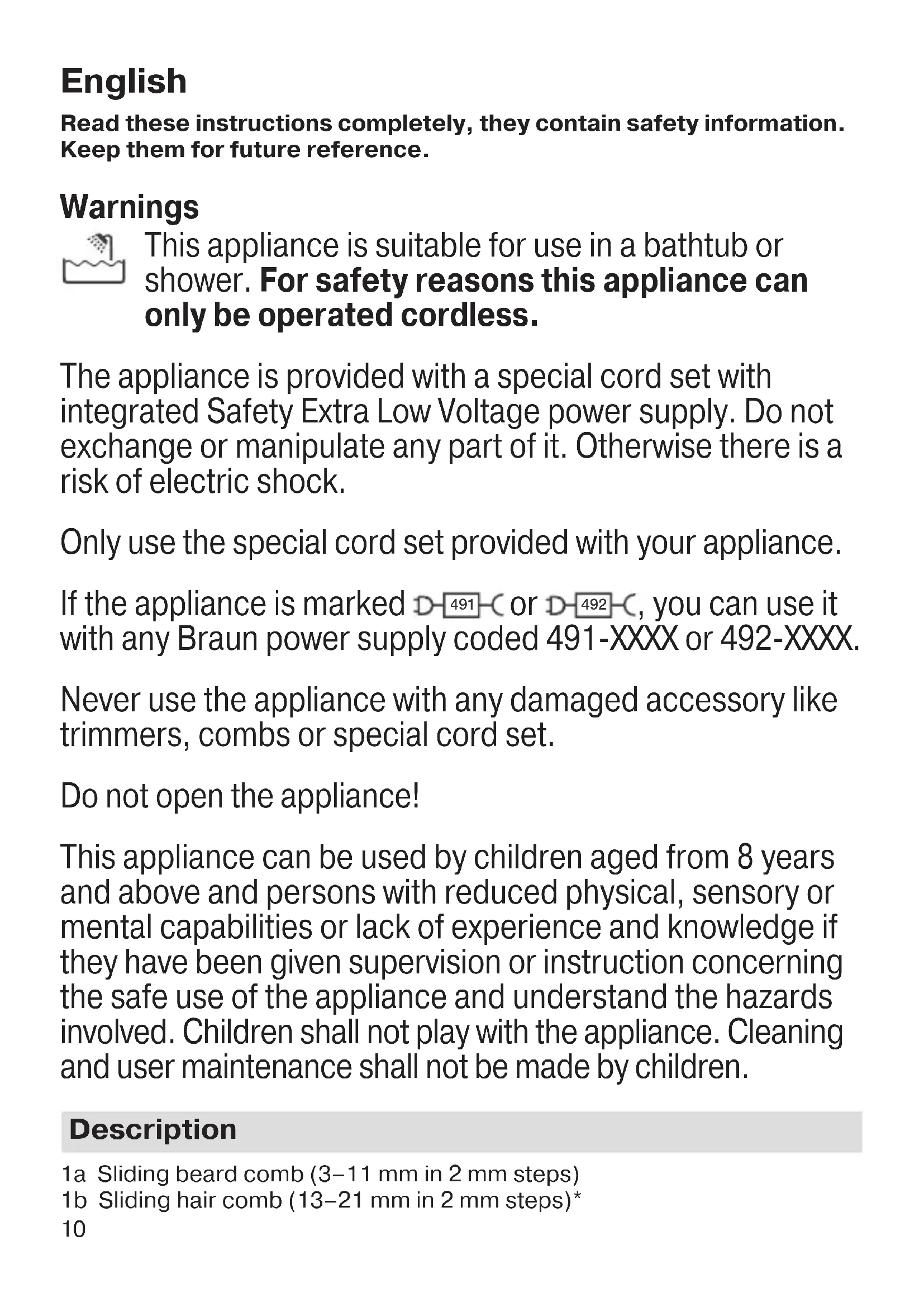

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

This appliance is suitable for use in a bathtub or shower. For safety reasons this appliance can only be operated cordless.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked D-491-C or D-492-C, you can use it with any Braun power supply coded 491-XXXX or 492-XXXX.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Do not open the appliance!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

Description

1a Sliding beard comb (3–11 mm in 2 mm steps)

1b Sliding hair comb (13–21 mm in 2 mm steps)*

1c Release button sliding combs
1d Fix comb 1 (1 mm) ^
1e Fix comb 2 (2 mm) ^
2a Trimmer head
2b Ear & nose trimmer head*
2c Detailed trimmer head*
2d Body groomer head*
2e Mini foil shaver head*
3 On/off button
4 Charging indicator
5 Power socket
6 Special cord set (design can differ)
7 Charging stand*

* not with all models

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C . Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance (switched off) via the special cord set (6) to an electrical outlet.
• A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Charging indicator (4)

• The charging indicator blinks green when the appliance is being charged.
• It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.
• The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains.

Usage

Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button (3).

Travel lock

Press the on/off button (3) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains.

Beard Trimming / Hair Clipping

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a).

Press the release button (1c) and slide the comb to your desired length.

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.
• Do not force the appliance through the hair faster than it can be cut.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

Use the trimmer head (2a) without comb attachment, the detailed trimmer head (2c) or the mini foil shaver (2e) for shaping sideburns, moustaches and partial short beards.

Ear/Nose Trimming

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.
• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4") into nose or ear.

Body grooming

Remove any head and click the body groomer head (2d) onto the handle. It is designed for shaving and trimming of hair on legs, chest and underarms. Use it on dry skin only.

Cleaning and maintenance

• Switch off the appliance.
  • Take off any head and comb.
• Use the brush to clean the heads, combs and the appliance. Do not clean the foil of the body groomer head and mini foil shaver head with the brush as this may damage it.
• The mini foil shaver head can be disassembled for proper cleaning. In case the foil frame is pulled out, it can just be clicked into the housing again.
• The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.

- To keep the attachments working properly, oil the trimmer and the foils with a drop of light machine oil (not included) regularly.

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. Depending on availability replacement might result in a different color or an equivalent model. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.

B. Breakages to shaver foils, glass jars, etc.

C. Normal wear due to moving parts.

D. Repairs undertaken by unauthorised service personnel or use of non-genuine parts.

E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. [phone] Fax. [phone] Email: [e-mail]

QUEENSLAND

Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. [phone] Fax. [phone] Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. [phone] Fax. [phone] Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd Shop 4, 9 Evans Road, Rooty Hill, NSW 2766 Tel. [phone] Fax. [phone] Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre

Shop B2,

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

Adelaide, SA 5043

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW ZEALAND

Key Service Ltd

34A Cryers Road

East Tamaki

Auckland

New Zealand

(PO Box 38569, Howick, Auckland,

New Zealand)

Tel. [phone]

Fax. [phone]

Email: [e-mail]
