Product type	Beard and hair trimmer
Brand	Braun
Model	BT3420
Power supply	Rechargeable battery with special TBTS power cable
Recommended charging temperature	5 to 35 °C
Recommended operating temperature	15 to 35 °C
Trimmer head	Included depending on model
Precision trimmer head	Included depending on model
Mini foil shaver head	Included depending on model
Precision beard comb	0.5 to 10 mm
Precision hair comb	10.5 to 20 mm
Length adjustment	Rotary knob
Charge indicator	Yes
Maintenance	Regularly apply a drop of light oil to the trimmer and foils
Safety	Use only the supplied cable, do not open, keep dry, charging temperature 5-35°C
Warranty	2 years
Use	Household only
Recycling	Batteries and electrical waste are recyclable, do not dispose of in household waste
Approximate weight	150 g

Frequently Asked Questions - BT3420 BRAUN

How to charge the BT3420?

Plug the special power cable supplied into the device socket and into a mains socket. The charge indicator lights up. Make sure the device is switched off during charging. The ambient temperature should be between 5 and 35 °C.

Can I use the device while charging?

No, it is recommended to switch off the device during charging. Use during charging is not intended.

How to adjust the cutting length?

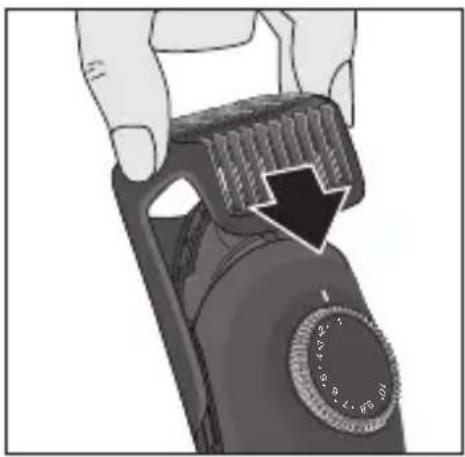

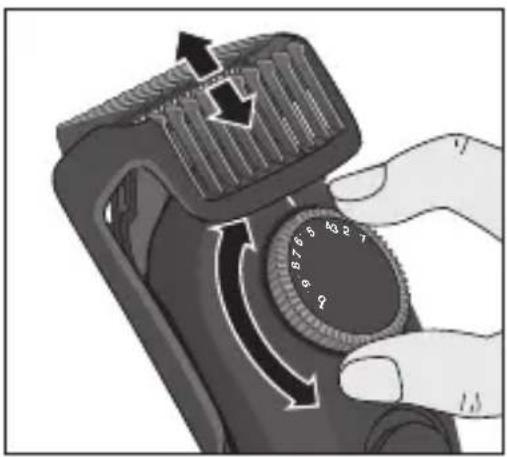

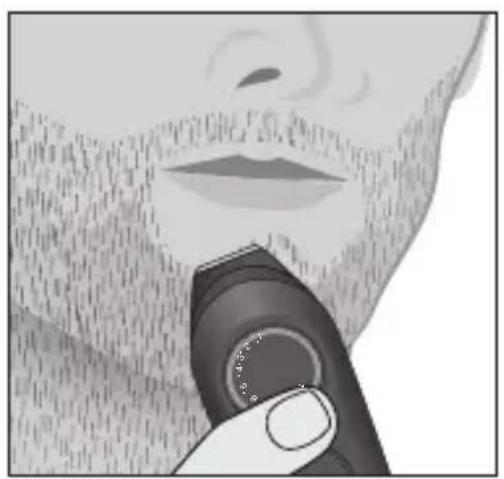

Use the length adjustment knob (item 2) to adjust the cutting height. With the precision beard comb, you can adjust from 0.5 to 10 mm; with the hair comb, from 10.5 to 20 mm.

What to do if the device does not turn on?

Check that the battery is charged. If the device still does not turn on, make sure the ambient temperature is within the recommended range (5-35 °C for charging, 15-35 °C for use). If the problem persists, contact a Braun authorized service center.

How to clean the blades?

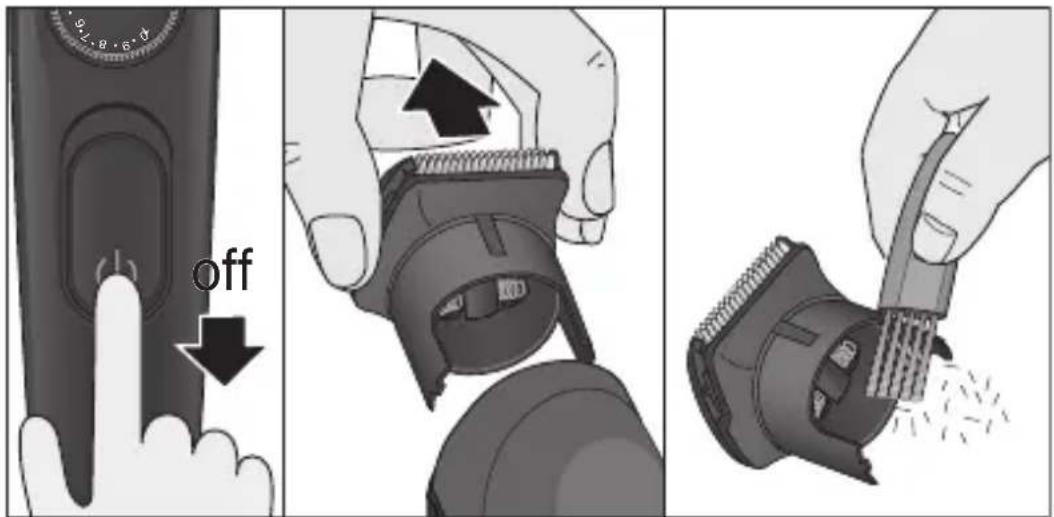

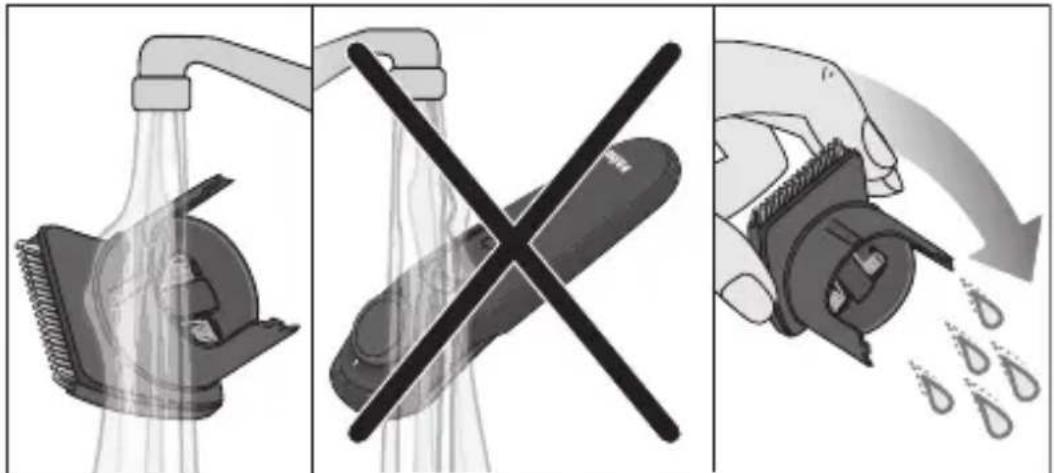

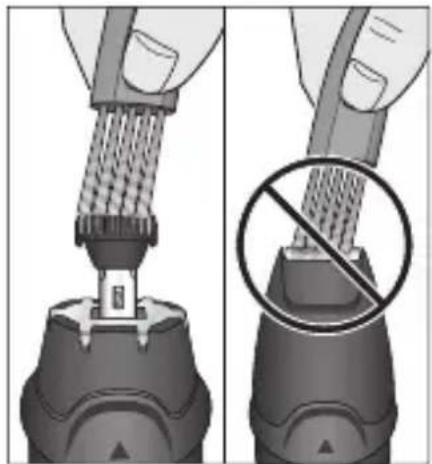

After use, remove the head and brush off hair residues. For regular maintenance, apply a drop of light oil (not supplied) to the trimmer and foils. Do not immerse the device in water.

Can I use the hair comb on the beard?

Yes, the hair comb (10.5-20 mm) can be used on the beard if you want a longer length. However, the beard comb (0.5-10 mm) is more suitable for precise trimming.

What to do if the battery does not hold a charge?

Make sure to charge within the recommended temperature range (5-35 °C). If the battery still does not hold, it may be at the end of its life. The device contains non-user-replaceable batteries; contact a Braun authorized service center.

Is the device waterproof?

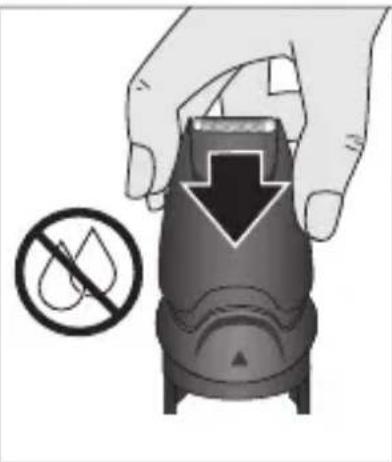

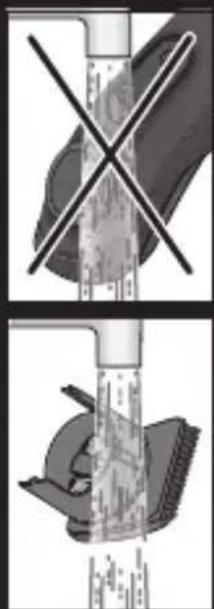

No, the device must be kept dry. Do not use it underwater and do not clean it with running water. Use a brush for cleaning.

How to know if charging is complete?

The charge indicator (item 6) lights up during charging and turns off or changes color when charging is complete. Refer to the manual for more details.

Where to find spare parts?

Spare parts and accessories are available from Braun authorized service centers or on the website www.service.braun.com. Use only Braun parts to ensure safety and performance.

USER MANUAL BT3420 BRAUN

Braun Infolines

English 10

French 13

Polish 16

Czech 20

Slovak 23

Hungarian 26

Croatian 29

Slovenian 32

Turkish 35

Romanian 40

Bulgarian 43

Russian 46

Ukrainian 51

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & call free)

BE 0 800 14 592

PL 801 127 286

801 1 BRAUN

CZ 221 804 335

SK 02/5710 1135

HU (06-1) 451-1256

HR 01/6690330

SI 080 2822

TR 0850 220 0911

RO 021.224.30.35

BG 0800 11 003

RU 8 800 200 20 20

UA 0 800 505 000

HK (852)2986 9886

(Customer Service Center)

Type 5516

Braun GmbH

6 Charging indicator * not with all models ** design can differ

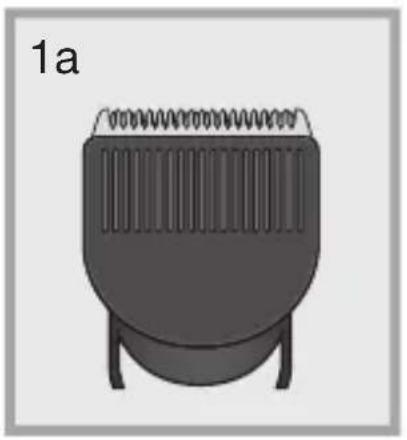

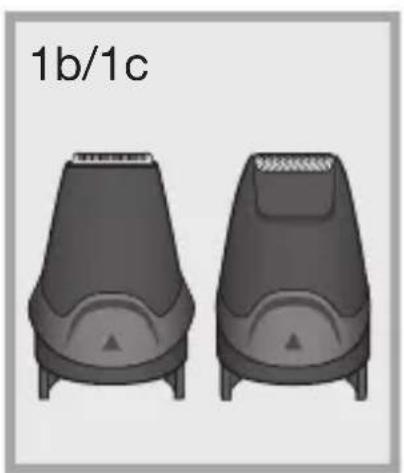

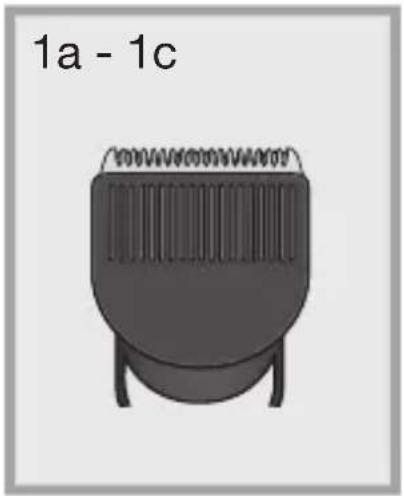

1a Trimmer head*/**

1b Detail trimmer head*/**

1c Mini foil shaver head*

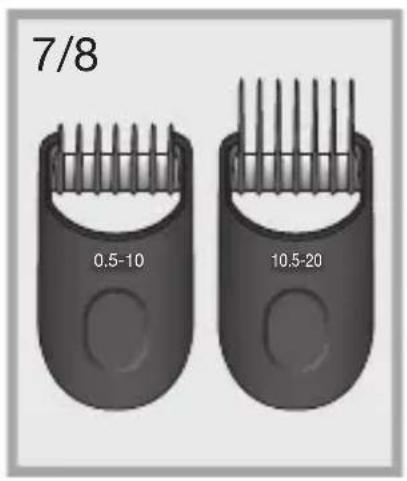

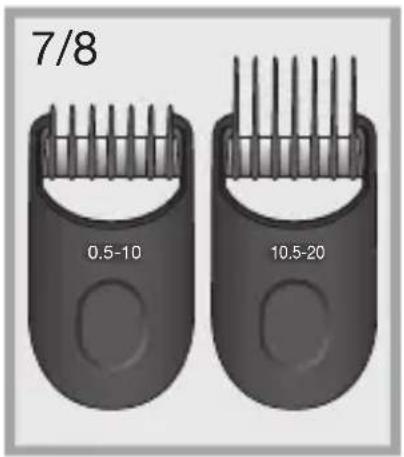

7 Precision beard comb * (0.5-10 mm)

8 Precision hair comb */** (10.5-20 mm)

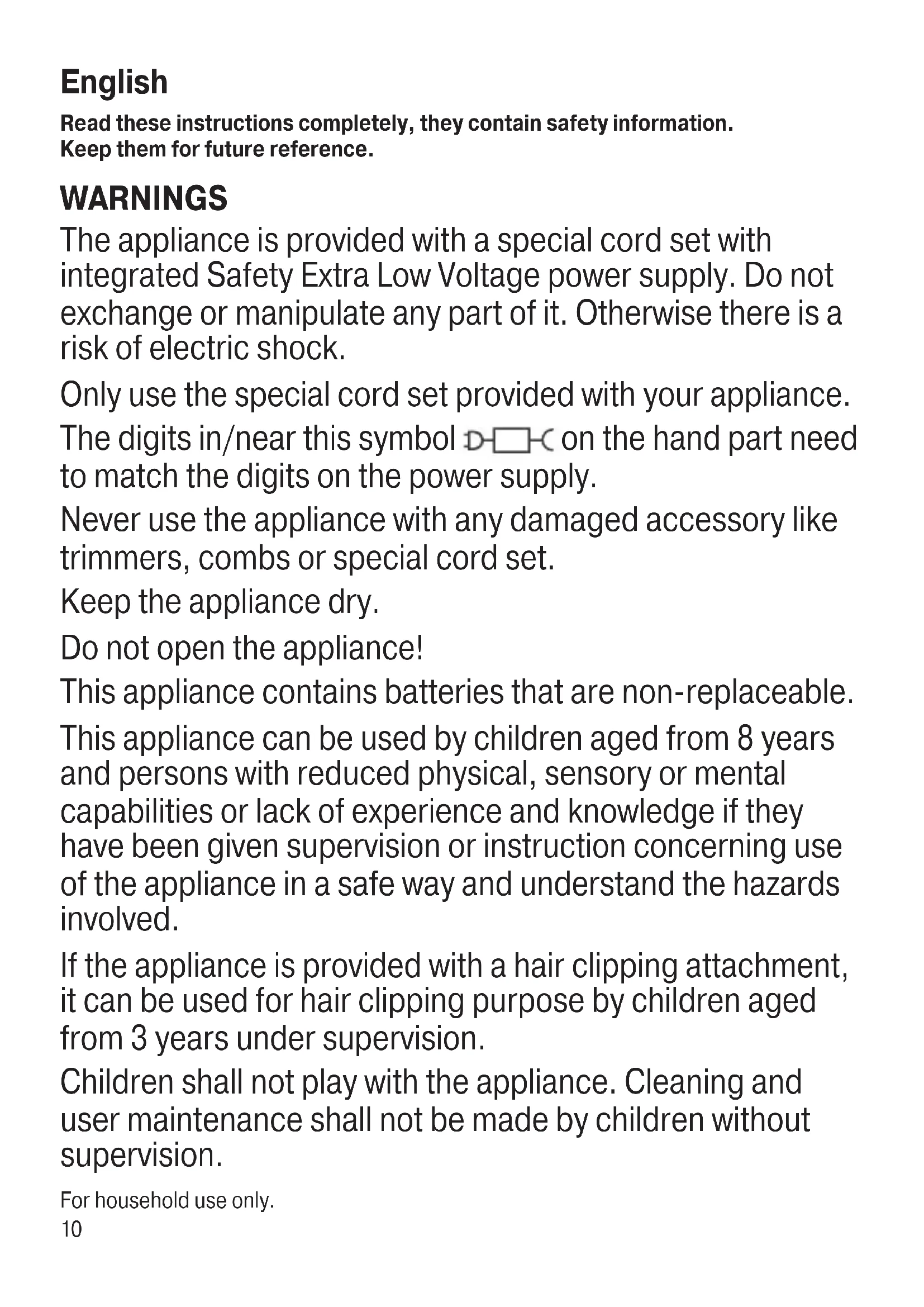

English

Read these instructions completely, they contain safety information. Keep them for future reference.

WARNINGS

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

The digits in/near this symbol D-□-C on the hand part need to match the digits on the power supply.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Keep the appliance dry.

Do not open the appliance!

This appliance contains batteries that are non-replaceable.

This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

For household use only.

Caution

When charging, make sure that the appliance is switched off.

Important

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures.

Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

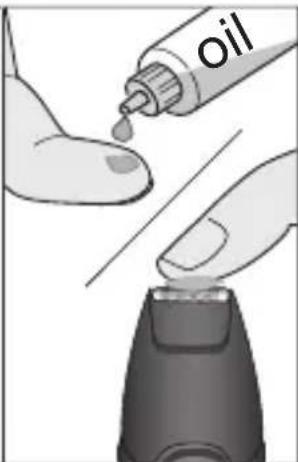

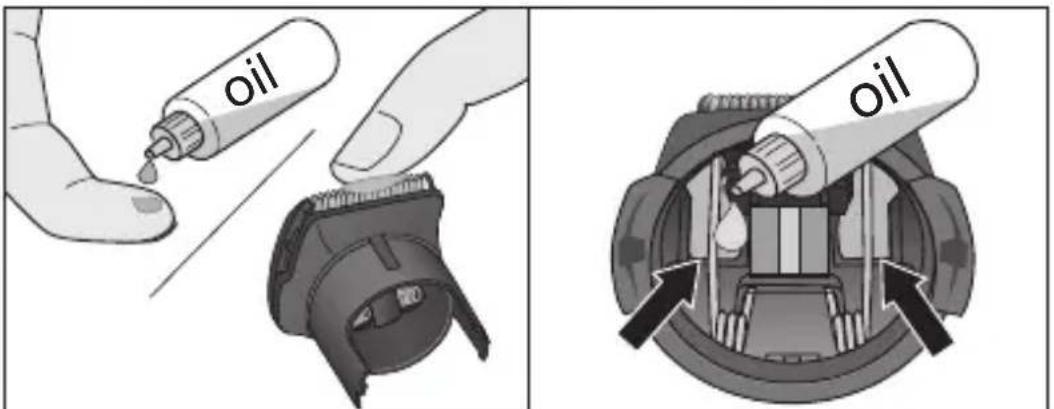

To keep the attachments working properly, oil the trimmer and the foils with a drop of light machine oil (not included) regularly.

Description

1a Trimmer head*/** 1b Detailed trimmer head*/** 1c Minifoil shaver head* 2 Length selector 3 On/off button 4 Power socket 5 Power supply** 6 Charging indicator 7 Precision beard comb (0.5-10 mm)*/** 8 Precision hair comb (10.5-20 mm)*/**

* not with all models

** design can differ

For electric specifications, see printing on the special cord set.

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

ELMIN, Đurđevac 48 350,

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski Brod 35 000,

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000,

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000,

Krešimira Filića 9, Tel. [phone], [e-mail]

RADAN ELEKTRONIK CENTAR d.o.o., Dubrovnik 20 000,

Ob. Pape I. Pavlall. 17, Tel. [phone], [e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000,

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone] (within the business premises of ROBOT COMMERCE d.o.o. (TTTS)), [e-mail], or call the Singuli call center: 072 700 707

Slovenian

Country of origin: China

To determine the year of manufacture, remove the head and find the 3-digit production code located inside the housing. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: “527” –

The product was manufactured in week 27 of 2015.

Country of origin: China

5 presents the protection of the source material.

6 Charging indicator

www.service.braun.com
