BT7441 - Grass trimmer BRAUN - Free user manual and instructions

Product Type	Beard and hair trimmer
Brand	Braun
Model	BT7441
Power source	Rechargeable battery, special cable, 1 hour charge
Runtime	Up to 100 minutes cordless
Charge time	Approximately 1 hour
Cutting lengths	1 to 20 mm in 0.5 mm steps
Included heads	Trimmer head, precision trimmer head, mini foil shaver head (depending on model)
Included combs	Precision beard comb (1-10 mm), precision hair comb (11-20 mm), sensitive areas comb, fixed 1 mm comb
Cleaning	Head and combs washable under running water
Maintenance	Regularly oil the trimmer and blades with a drop of light oil
Safety	Travel lock, use by children aged 8 and above under supervision
Warranty	2 years
Weight	Approximately 200 g
Dimensions	Approximately 5 x 15 x 4 cm
Charge indicator	Green LED (full charge), red (low battery)
Included accessories	Special power cable, cleaning brush

Frequently Asked Questions - BT7441 BRAUN

How long does it take to fully charge the BT7441?

Full charge takes approximately 1 hour. Recommended ambient temperature is between 5 and 35 °C.

What is the runtime after a full charge?

Runtime can be up to 100 minutes of cordless shaving.

How to clean the BT7441 trimmer?

Turn off the device, remove the head and combs. You can clean them under running water. Use the supplied brush for the device. Let dry completely before reassembling.

Can I use the device while it is charging?

No, the device must be used cordless after charging. It cannot operate while plugged in.

How to activate the travel lock?

Press the on/off button for 3 seconds. A beep confirms activation. To unlock, press again for 3 seconds.

What to do if the battery does not charge?

Check that the temperature is between 5 and 35 °C. If it is too low or too high, the battery may not charge. Connect the special cable correctly.

What accessories are included with the BT7441?

Depending on the model, the package may contain: precision beard comb (1-10 mm), precision hair comb (11-20 mm), sensitive areas comb, fixed 1 mm comb, trimmer head, precision trimmer head, mini foil shaver head, special power cable, and cleaning brush.

How to adjust the cutting length?

Attach a precision comb, then turn the wheel to the desired length. The comb slides automatically. Lengths range from 1 to 10 mm (beard) and 11 to 20 mm (hair) in 0.5 mm steps.

Does the warranty cover the blades and foil?

The 2-year warranty does not cover normal wear, including the foil and blade block. It covers manufacturing defects.

Can I use the device in the shower?

The device can be cleaned under running water, but it is not designed for use in the shower. Unplug it before any water cleaning.

USER MANUAL BT7441 BRAUN

Line drawing of a Braun brand hairpin with two circular buttons and a handle (no text or symbols on the device itself)

Deutsch 7

English 12

Français 18

Español 23

Português 28

Italiano 33

Nederlands 38

Dansk 42

Norsk 46

Svenska 50

Suomi 54

Ελληνικά 58

DE / AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

GR 800 801 3458

Type 5542

Braun GmbH

Two 3D-rendered mechanical components with textured surfaces, no visible text or symbols

Diagram showing how to adjust the main button of a digital camera, with labeled adjustment arrows indicating rotation and reset.

Illustration showing a person using a hairbrush to trim the neck, with step-by-step instructions and a magnified detail of the hair being cut.

3D rendered image of a hairpin with serrated edges and a labeled button (no text or symbols on the object itself)

Three-panel illustration showing a hairbrush with a brush tip, a close-up of the brush tip being cut, and a prohibition symbol (no text or symbols present)

Close-up of a black hairbrush with a circular dial and textured toe, labeled '2a' (no other text or symbols visible)

Illustration showing a person with no smoking and two hands holding face masks, alongside a warning symbol.

2a+1c BODY sensitive

BODY s click! BODY sensitive

Simple line drawing of a fish and a faucet (no text or symbols)

Illustration showing two hand positions: one holding a handheld device, the other with a pointed tip and dashed lines indicating motion or pressure (no text or symbols)

off

Diagram illustrating three-step cleaning process: first to clean a showerhead, then to wash a brush with oil droplets, and finally to apply.

oil

Three-step illustration of a hair dryer being washed into a showerhead, showing fluid flow and droplet discharge (no text or symbols)

Three-step diagram showing a hairdryer being inserted into a device, then using a filter to clean the product (no text or symbols present)

Illustration showing a hand holding a water droplet being removed, with a no-smoking symbol indicating water release.

oil

Deutsch

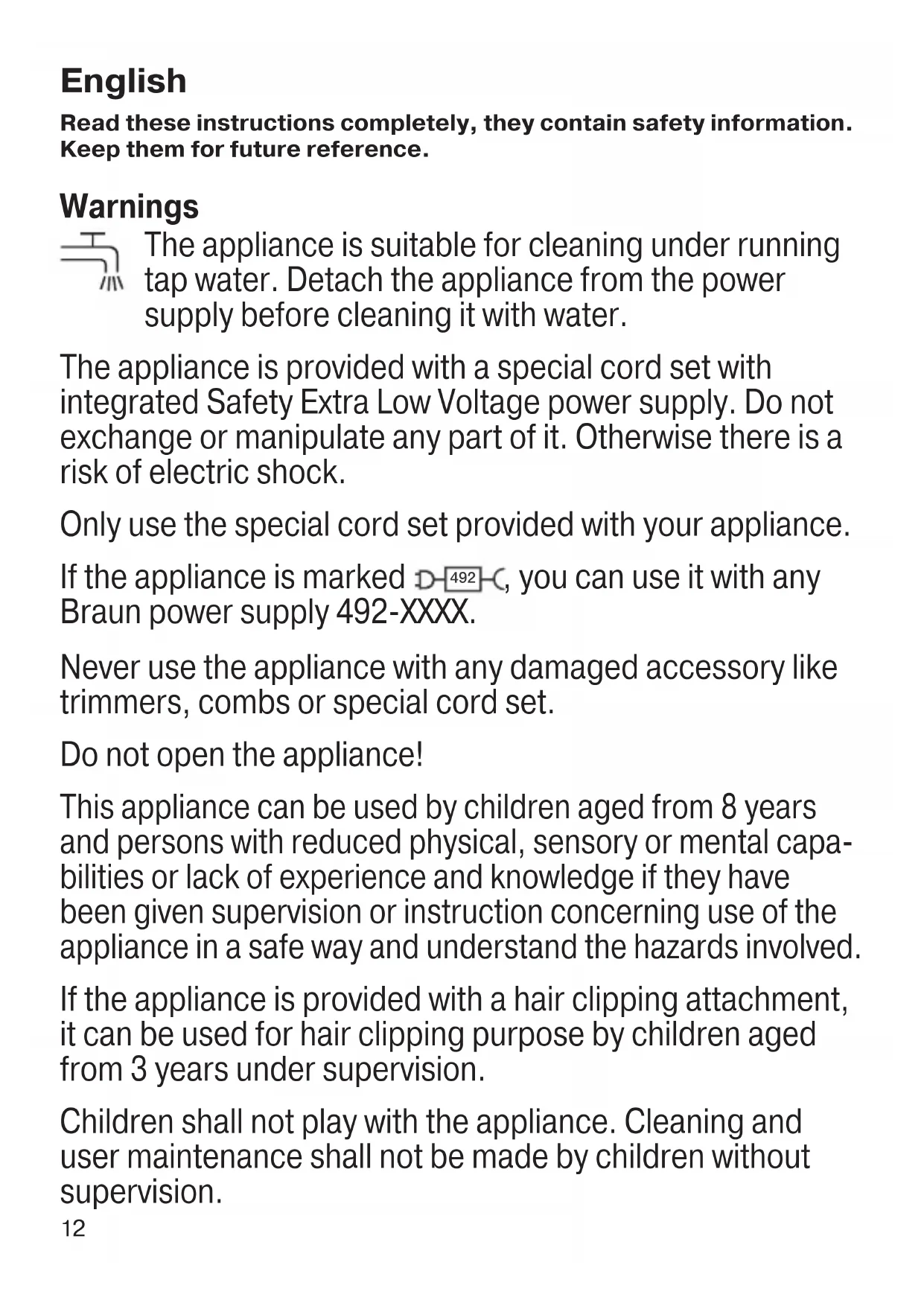

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

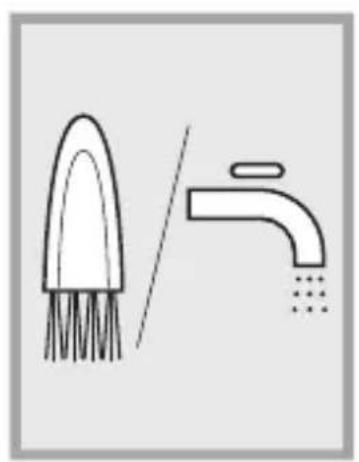

The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked D-492-C, you can use it with any Braun power supply 492-XXXX.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Do not open the appliance!

This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Description

1a Precision beard comb (1–10 mm)
1b Precision hair comb (11–20 mm) ^
1c Sensitive comb*

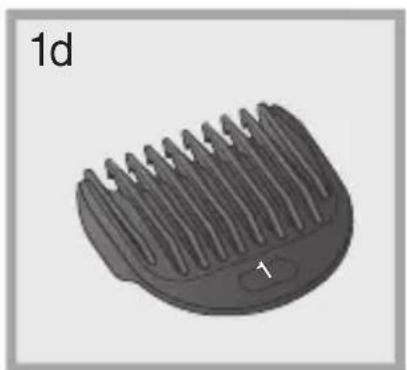

1d Fix comb 1 (1 mm) ^
2a Trimmer head**
2b Detailed trimmer head*
2c Mini foil shaver head*
3 Length selector
4 On/off button
5 Charging indicator
6 Power socket
7 Special cord set**
8 Charging stand*
* not with all models
** design can differ

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C . Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance via the special cord set (7) to an electrical outlet.
• A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Charging indicator

• The charging indicator blinks green when the appliance is being charged.
• It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.
• The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains.

Usage

- Exchange the attachments only when the appliance is switched off.

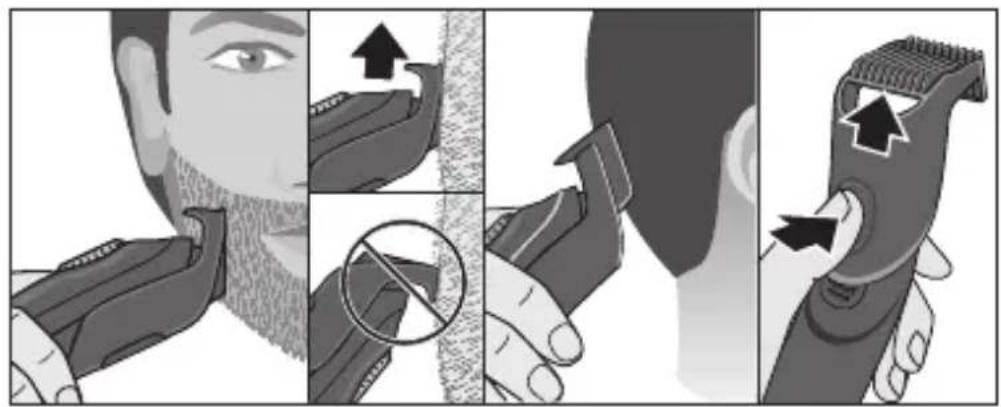

Beard Trimming / Hair Clipping

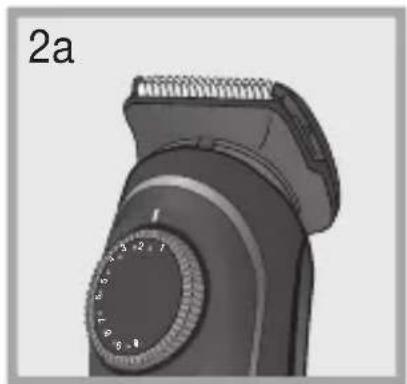

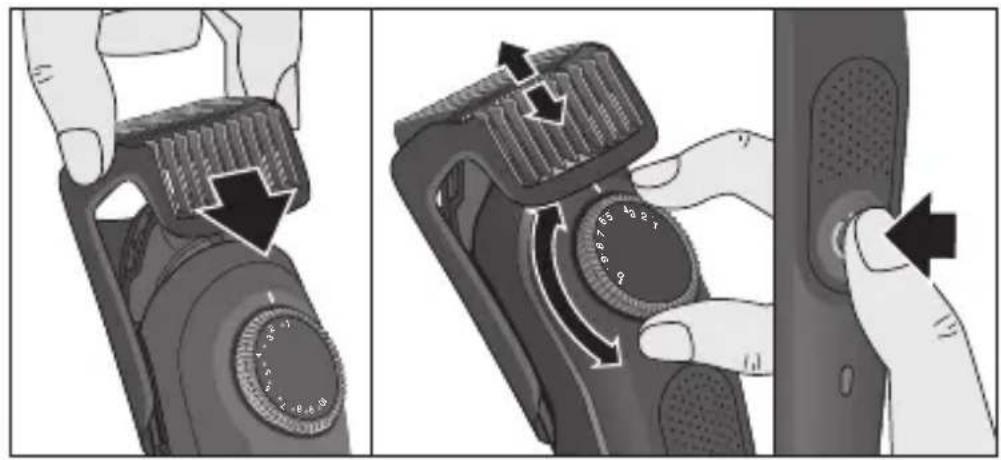

Precision combs (1a, 1b): Place one of the precision combs (1a, 1b) over the trimmer head (2a).

• Turn the length selector (3) to your desired cutting length. The comb slides automatically up or down.
• Length settings precision beard comb (1a): 1 to 10 mm in 0,5 mm steps.
• Length settings precision hair comb (1b): 11 to 20 mm in 0,5 mm steps.

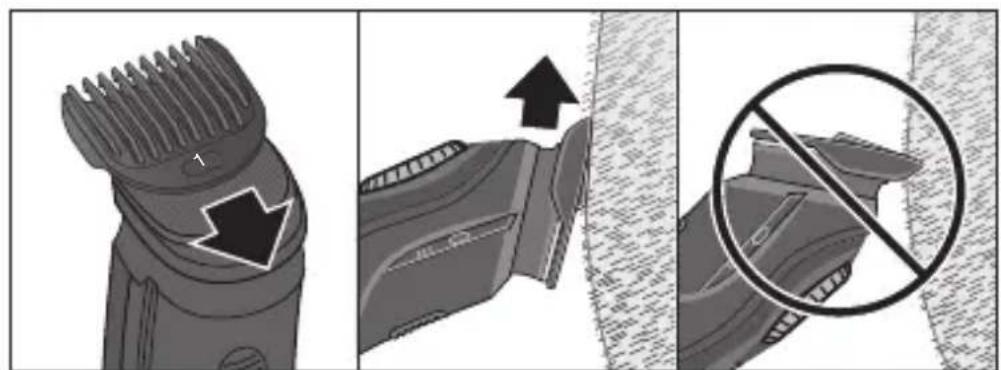

Fixed comb (1d): Click the comb onto the trimmer head (2a).

• Push the on/off button (4) to turn the appliance on.
• Trim against hair growth by guiding the flat comb part over the skin.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

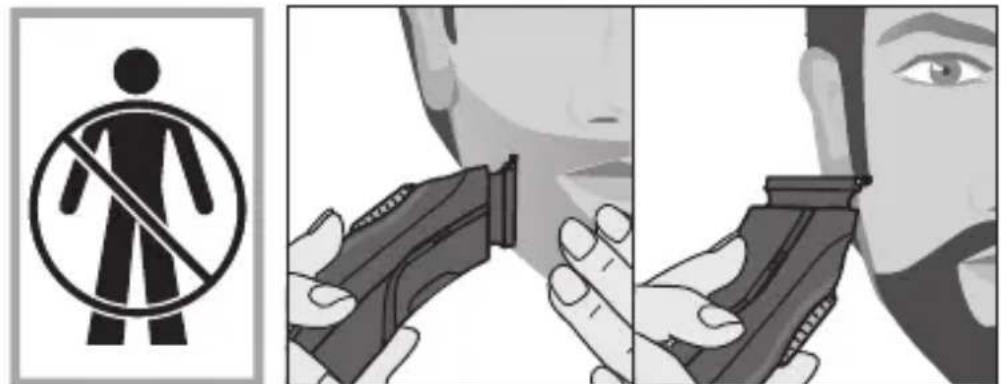

Precision and Contour Trimming

- Use the trimmer head (2a) without comb attachment, the detailed trimmer head (2b) or the mini foil shaver head (2c) for shaping sideburns, moustaches and partial short beards.

Travel lock

Press the on/off button (4) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains.

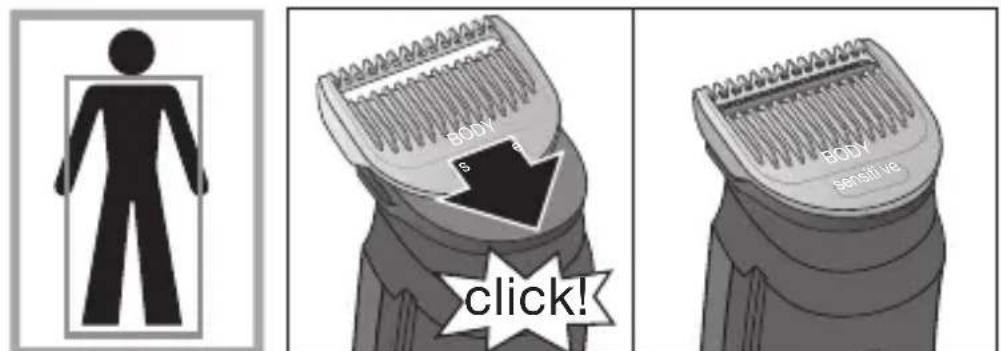

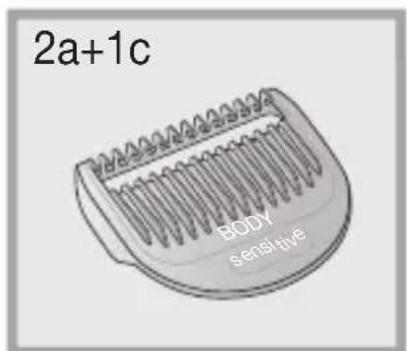

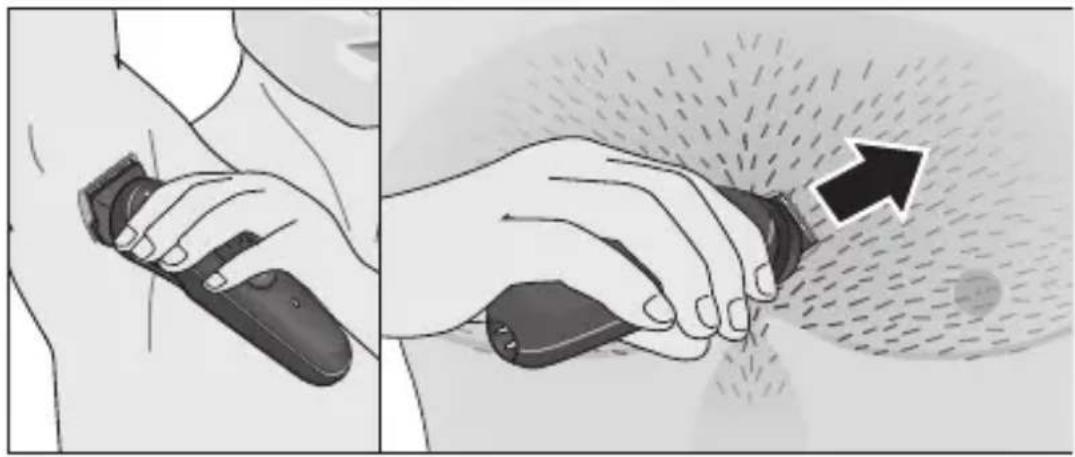

Body grooming

Use the trimmer head only with the sensitive comb attached.

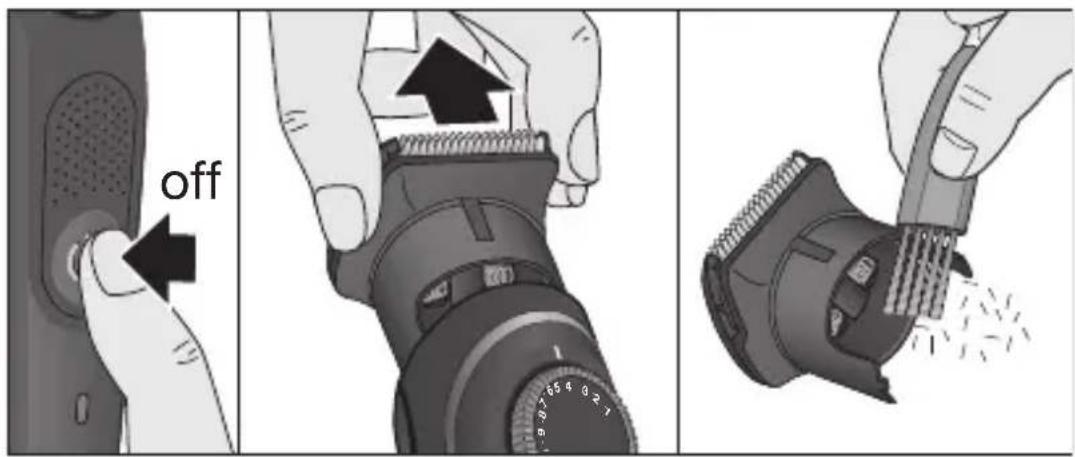

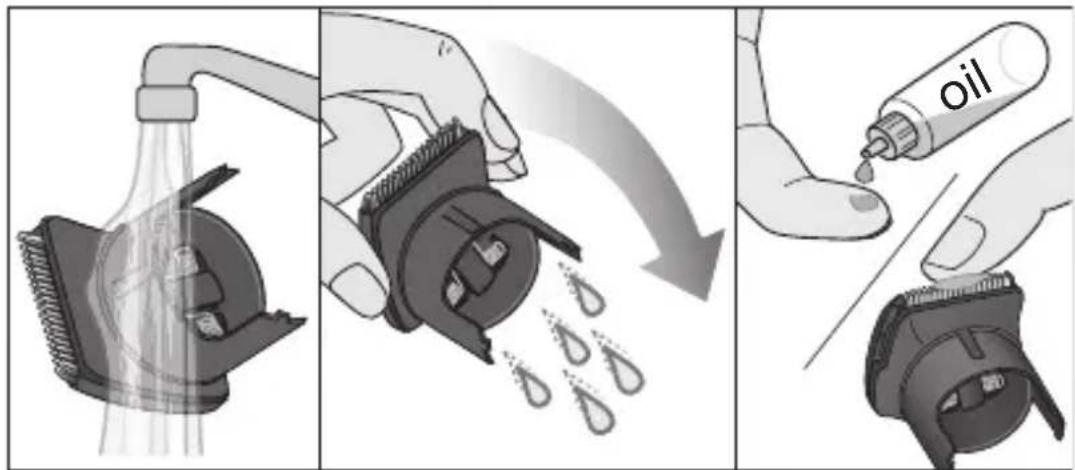

Cleaning and maintenance

• Switch off the appliance.
  • Take off the head and combs.
• Use the brush to clean the head, combs and the appliance.
• Do not clean the foil of the mini foil shaver head with a brush as this may damage it.

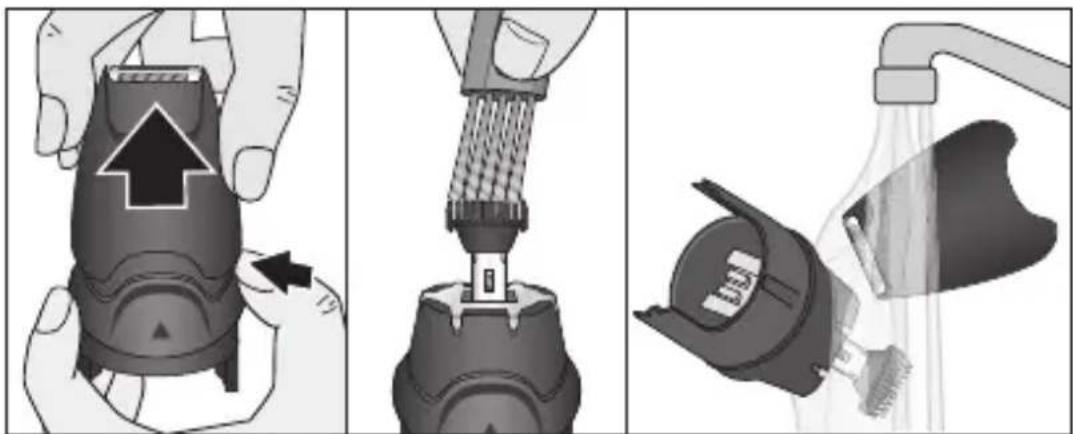

• The mini foil shaver head can be disassembled for proper cleaning. In case the foil frame is pulled out, it can just be clicked into the housing again.

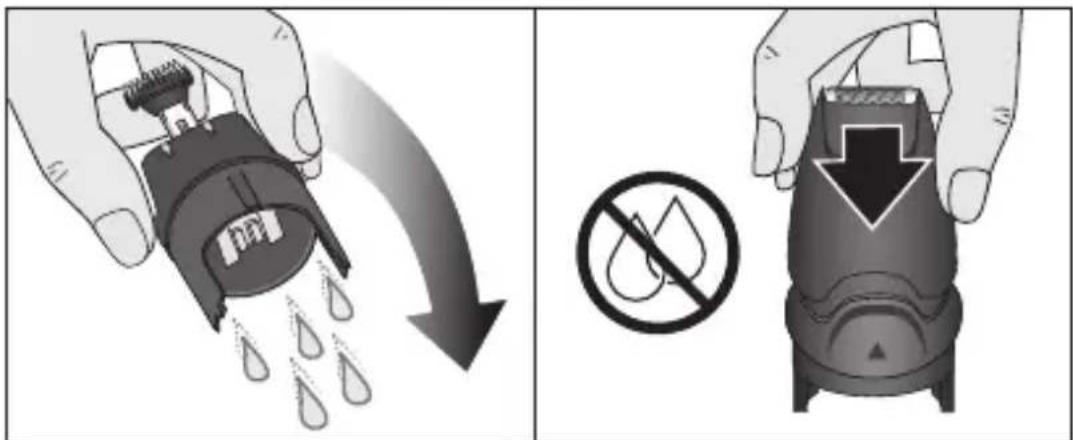

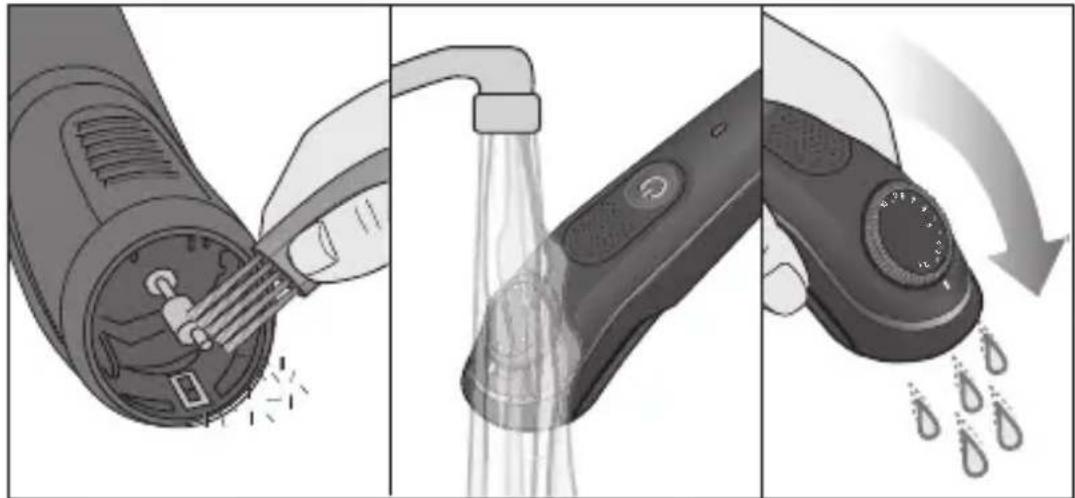

• The handle, heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let dry completely before reassembling them.

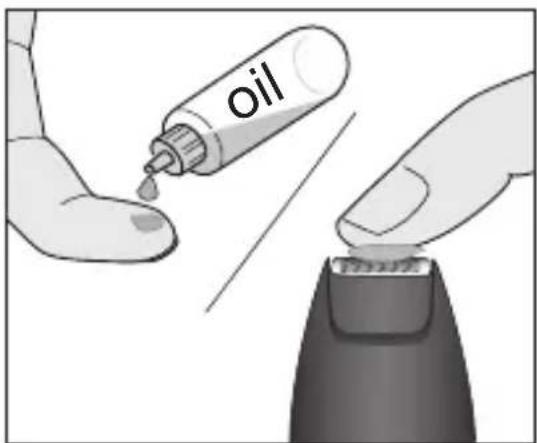

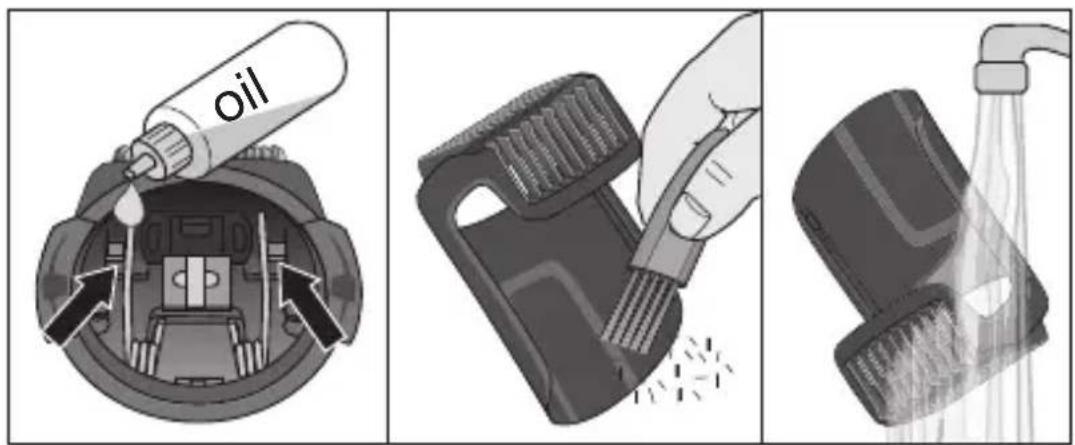

• To keep the attachments working properly, oil trimmers and foils with a drop of light machine oil (not included) regularly.

Environmental notice

Product contains a battery and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non-genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. Should your Braun product require service, please call (free call) for Australia 1800 641 820 or New Zealand 0800 108 909 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.
