| Product type | Trimmer (multigroomer for beard, hair, ears and nose) |
| Brand | Braun |
| Model | Multigroomer 5 MGK5355 |
| Power supply | Rechargeable battery, charges via included special cable |
| Charging time | Approx. 1 hour |
| Runtime | Up to 100 minutes cordless |
| Main trimmer head | Universal trimmer head (2a) |
| Sliding combs | For beard (3-11 mm, 2 mm steps) and hair (13-21 mm, 2 mm steps) |
| Fixed combs | 1 mm and 2 mm |
| Additional accessories | Ear and nose trimmer head, precision trimmer head (depending on model) |
| Adjustable cutting lengths | 1 mm, 2 mm, 3-11 mm, 13-21 mm |
| Cleaning | Heads and combs washable under running water; use the included brush |
| Safety | Travel lock (press and hold on/off for 3 seconds) |
| Recommended charging temperature | 5 °C to 35 °C |
| Recommended operating temperature | 15 °C to 35 °C |
| Charge indicator | Green flashing when charging, solid green when charged, red when low |
| Warranty | 2 years |
| Cordless use | Yes, after full charge |
| Maintenance | Oil regularly with light oil (not included) |
| Repairability | Authorized Braun service centers (ref. www.service.braun.com) |
Frequently Asked Questions - Multigroomer 5 MGK5355 BRAUN
User questions about Multigroomer 5 MGK5355 BRAUN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grass trimmer in PDF format for free! Find your manual Multigroomer 5 MGK5355 - BRAUN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Multigroomer 5 MGK5355 by BRAUN.
USER MANUAL Multigroomer 5 MGK5355 BRAUN
English 10
Français 16
Español 21
Português 25
Italiano 30
Nederlands 34
Dansk 38
Norsk 42
Svenska 46
Suomi 50
Ελληνικά 54
DE / AT 00 800 27 28 64 63
00 800 BRAUNINFOLINE
CH 08 44 - 88 40 10
UK 0800 783 7010
IE 1 800 509 448
FR 0 800 944 802
(service & appel gratuits)
BE 0 800 14 592
ES 900 814 208
PT 808 20 00 33
IT 800 440 017
NL 0 800-445 53 88
DK 70 15 00 13
NO 22 63 00 93
SE 020 - 21 33 21
FI 020 377 877
GR 800 801 3458
Type 5541
Braun GmbH


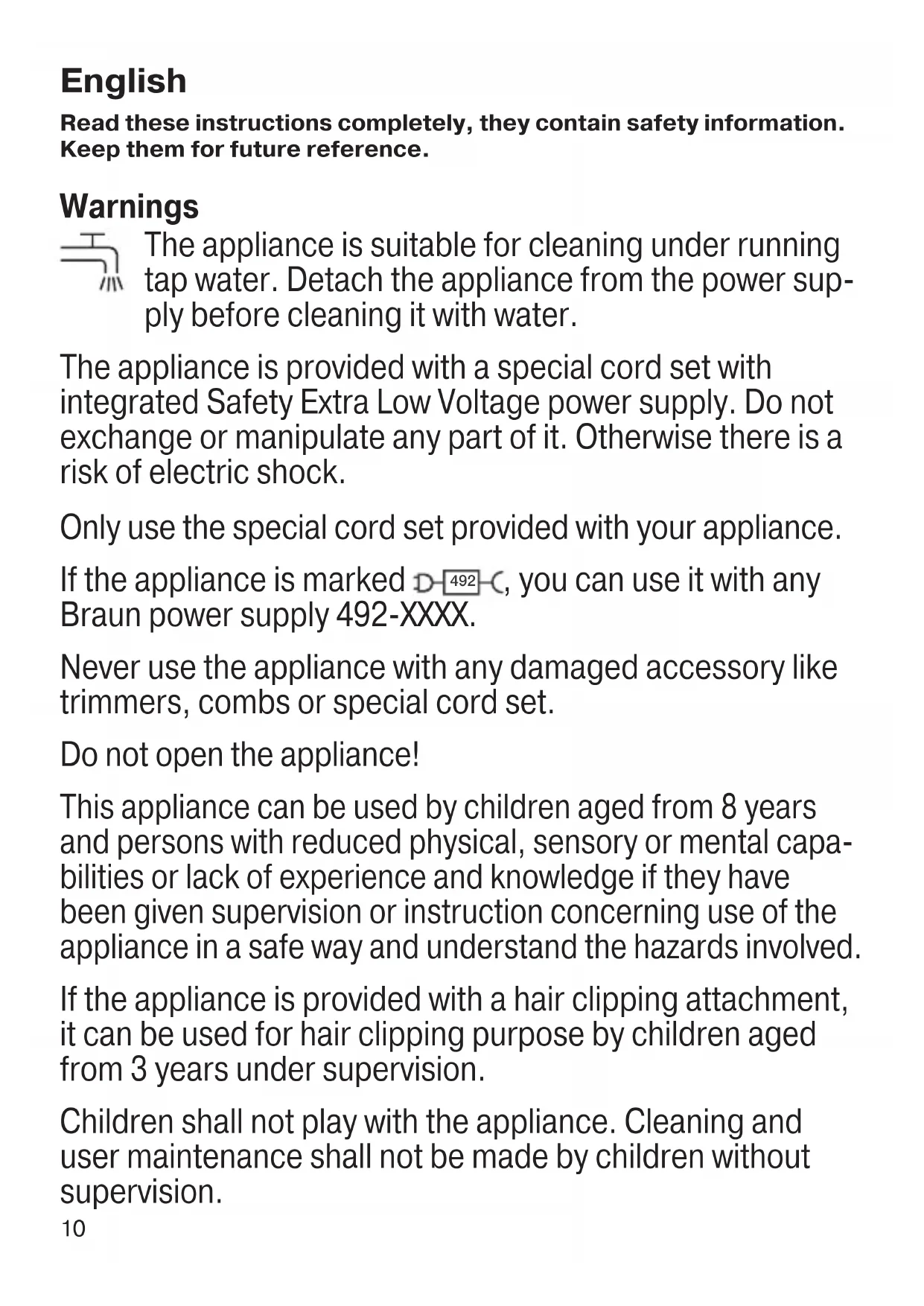

Read these instructions completely, they contain safety information. Keep them for future reference.
Warnings

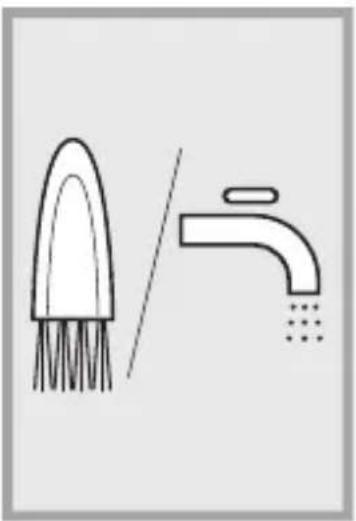

The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.
The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.
Only use the special cord set provided with your appliance.
If the appliance is marked D-492-C, you can use it with any Braun power supply 492-XXXX.
Never use the appliance with any damaged accessory like trimmers, combs or special cord set.
Do not open the appliance!
This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Description
1a Sliding beard comb (3–11 mm in 2 mm steps)
1b Sliding hair comb (13–21 mm in 2 mm steps) ^
1c Release button sliding combs

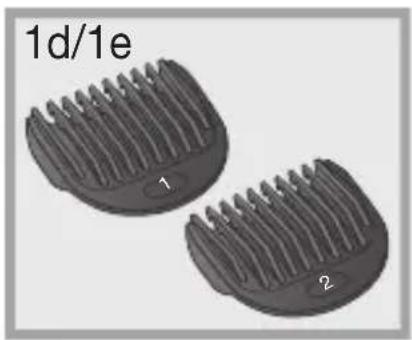

1d Fix comb 1 (1 mm)*
1e Fix comb 2 (2 mm) ^
2a Trimmer head
2b Ear & nose trimmer head*
2c Detailed trimmer head*
3 On/off button
4 Charging indicator
5 Power socket
6 Special cord set (design can differ)
* not with all models
For electric specifications, see printing on the special cord set.
Charging
Recommended ambient temperature for charging is 5 °C to 35 °C.
The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C . Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.
- Connect the appliance (switched off) via the special cord set (6) to an electrical outlet.
- A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.
- Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.
Charging indicator (4)
- The charging indicator blinks green when the appliance is being charged.
- It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.
- The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains.
Usage
Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button (3).
Travel lock
Press the on/off button (3) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains.
Beard Trimming / Hair Clipping

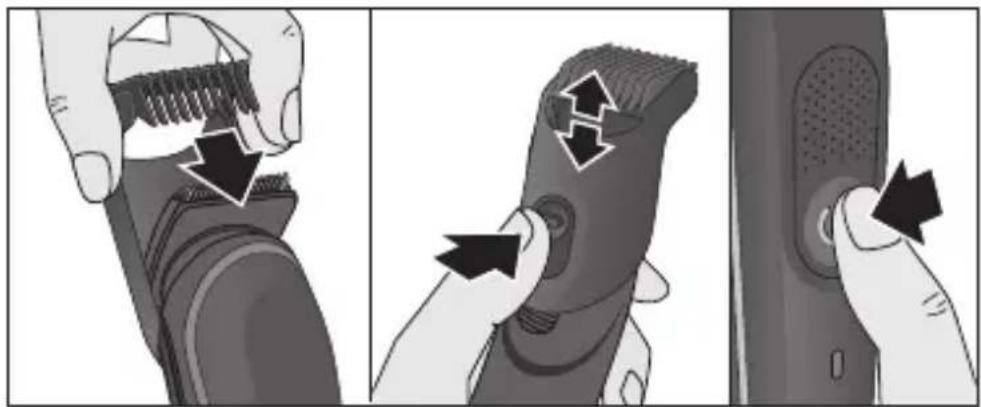

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length.

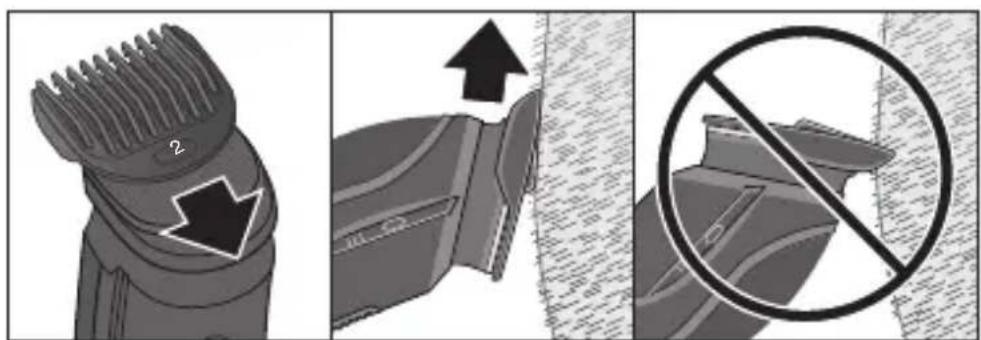

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

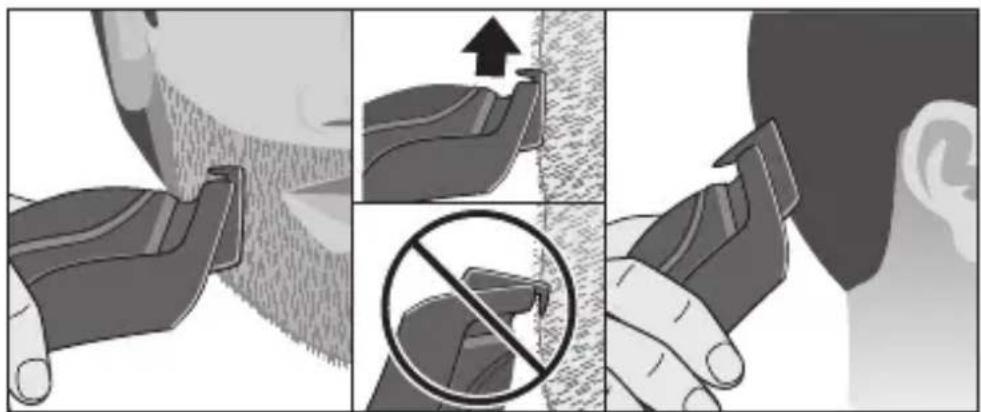

- Trim against hair growth by guiding the flat comb part over the skin.
- Do not force the appliance through the hair faster than it can be cut.
- Avoid clogging the comb with hair. Remove and clean it from time to time.

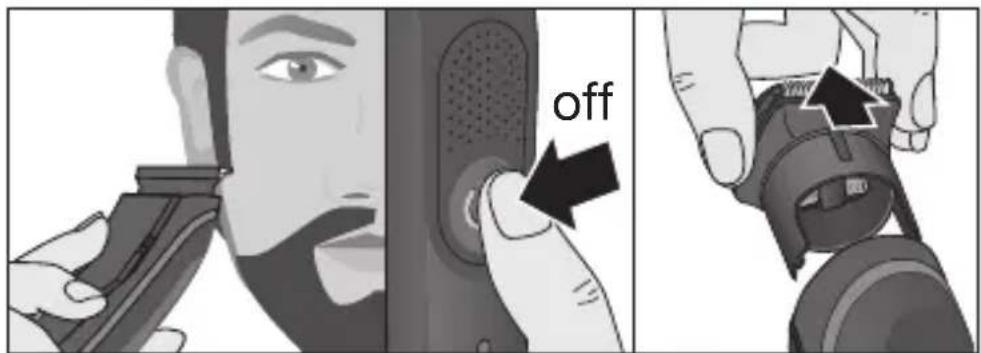

Precision and Contour Trimming
Use the trimmer head (2a) without comb attachment or the detailed trimmer head (2c) for shaping sideburns, moustaches and partial short beards.

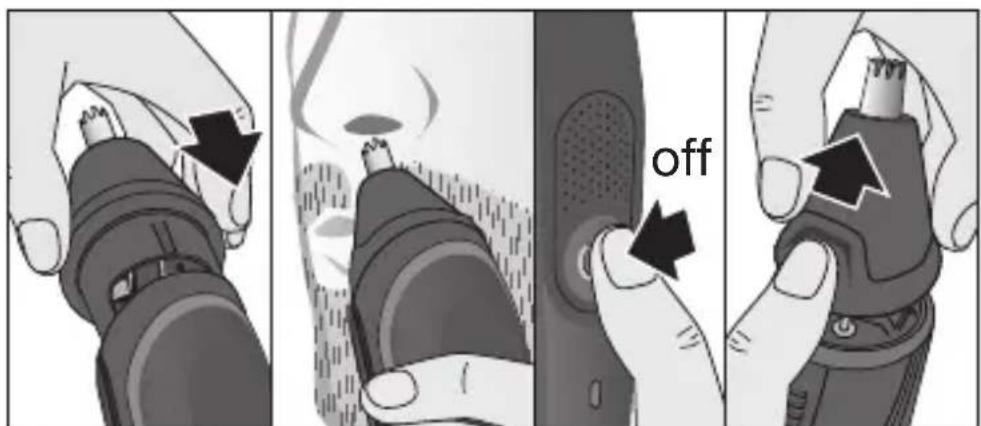

Ear/Nose Trimming
- Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.
- Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4") into nose or ear.

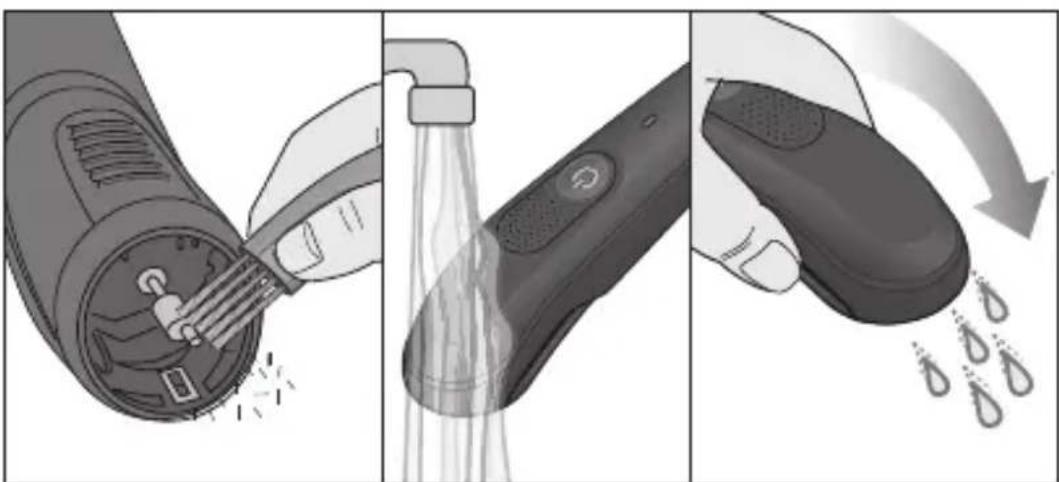

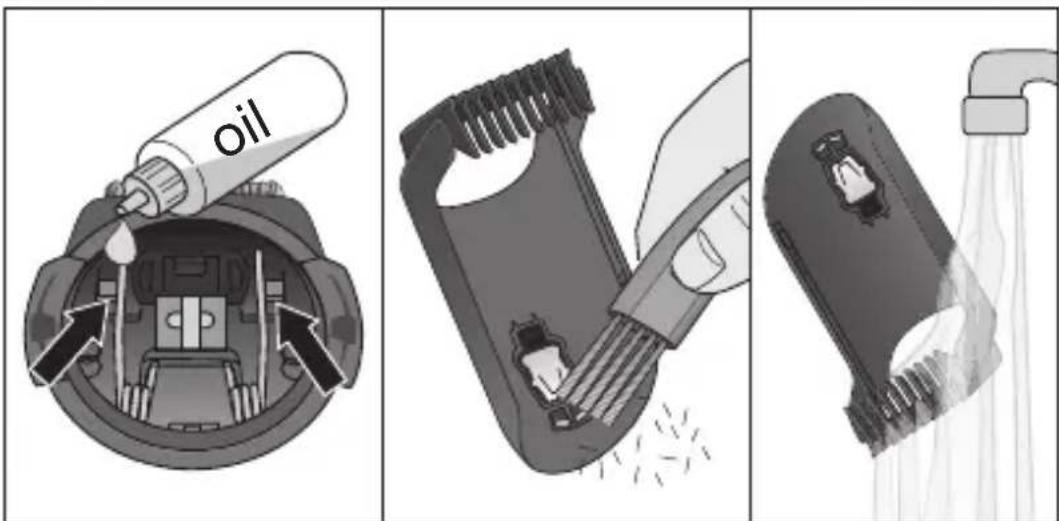

Cleaning and maintenance

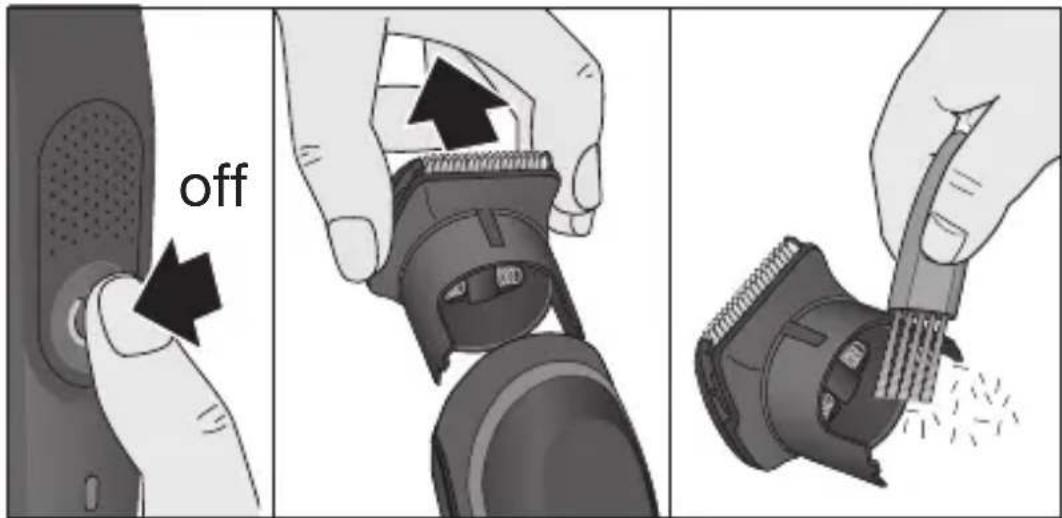

- Switch off the appliance.
• Take off any head and attachment. - Use the brush to clean the heads, combs and the appliance.

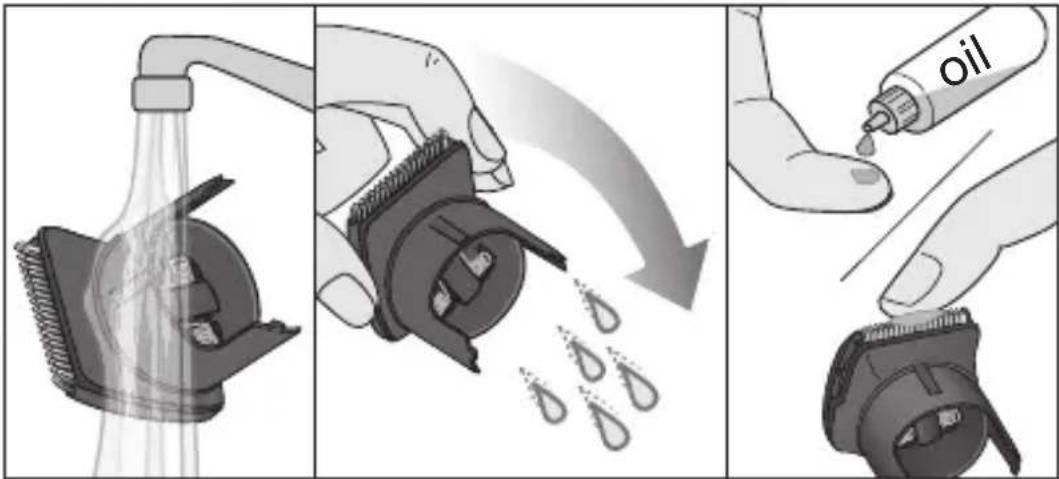

- The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.
- To keep the trimmer working properly, oil it with light machine oil (not included) regularly.
Environmental notice
Product contains batteries and/or recyclable electric waste.
For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.
Subject to change without notice.
Guarantee
We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.
Depending on availability replacement might result in a different color or an equivalent model.
This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.
This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.
To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).
For UK only:
This guarantee in no way affects your rights under statutory law.
For Australia & New Zealand only:
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits given by this warranty are in addition to other rights and remedies of the consumer law.
For warranty claims please contact:
Procter & Gamble Australia Pty Ltd
Level 4, 1 Innovation Road
Macquarie Park, NSW 2113
Telephone (AU): 1 800 641 820
Telephone (NZ): 0 800 108 909
Email (AU and NZ): Visit link
https://pgconsumersupport.secure.force.com/ContactUs/emailus
Our Warranty
This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).
Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.
Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.
Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.
Our Warranty does not cover:
A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non-genuine parts.
E. Appliances that are outside the warranty period or are not faulty.
This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.
To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.
Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).
If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.
Repairs and service
If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. Should your Braun product require service, please call (free call) for Australia 1800 641 820 or New Zealand 0800 108 909 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.
