Guide to using and installing your ceramic hob/hood duo.

FR

Using your duo in complete safety. 3

Installing your duo in complete safety. 4

Using your hob in all simplicity. 8

Using your hood in all simplicity. 10

Preserving and maintaining your hob. 12

Preserving and maintaining your hood 14

Cooking. 16

In this Manual,

displays safety instructions

displays tips and hints

Dear Customer,

You have just purchased your BRANDT hob and hood set and we would like to thank you for that.

Our research teams have designed for you a new generation of appliances for pleasurable cooking every day.

This automatic set comprising a hob and a hood ensures that everything is cooked to perfection with no smells, and no smoke whatever dishes you are preparing. With its simple lines and modern design, your new BRANDT set blends perfectly with your kitchen and combines optimum ease of use and high cooking performance.

You will also find in the Brandt range a wide selection of ovens, extractor hoods, dishwashers and refrigerators that you can coordinate with your new Brandt hob. Of course, constantly concerned with better satisfying your requirements, our consumer department can answer all your questions and welcomes all your suggestions (details at the end of this booklet).

At the cutting edge of innovation, Brandt contributes to the quality of daily life by giving you constantly improving products that are simple to use, respect the environment and are well-designed and reliable

BRANDT.

For any information on our products please contact us at :

Brandt UK Ltd

Intec 4

Wade Road

Basingstoke

RG24 8NE

tel:[phone]

Fax:[phone]

Using your duo in complete safety

We have designed this duo for private use in homes.

We have designed this duo for private use in homes.

With a view to constantly improving our products, we reserve the right to make any changes to their technical, program or aesthetic features connected with their technical evolution.

These hobs are exclusively designed for cooking drinks and foodstuffs and contain no asbestos based components.

The hood is completely automatic and controlled by the hob to adjust to your cooking power. You only need to clean it regularly and change the recycling carbon filters (see the chapter on maintenance).

If a crack appears in the glass surface, disconnect the appliance immediately to avoid any risk of electric shock. For disconnecting, remove the fuses or use the cutout switch.

Do not re-use your hob until the glass surface has been changed.

Your hob must never be used as a storage space for any products whatsoever.

When cooking never use aluminium foil and never place products wrapped in aluminium foil or products deep-frozen in aluminium packs on the hob. The aluminium will melt and damage your appliance irreparably.

Do not connect electrical appliances on plugs close to the hob. Make sure that the power cable is not in contact with any heating zones.
Leave pans on your frame or plate (depending on the model).

Do not stare fixedly at the halogen lamps on the cooking zone

A steam cleaner should never be used

You must not flambé dishes (flames drawn into the unit could cause damage to it). Any frying done under the unit must be watched constantly.

Repairs must only be carried out by an approved specialist. If your kitchen is heated by an appliance connected to a chimney (stove, range etc.), you must install the hood in recycling mode.

Do not use the hood without the metal filters.

Choice of installation

Hood

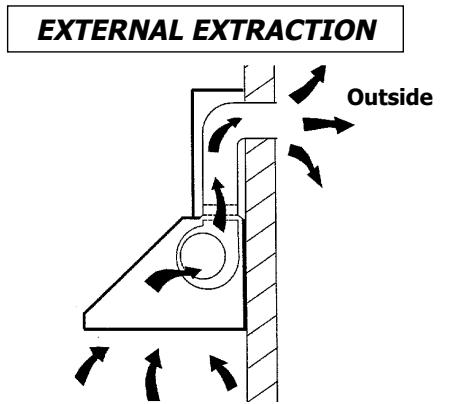

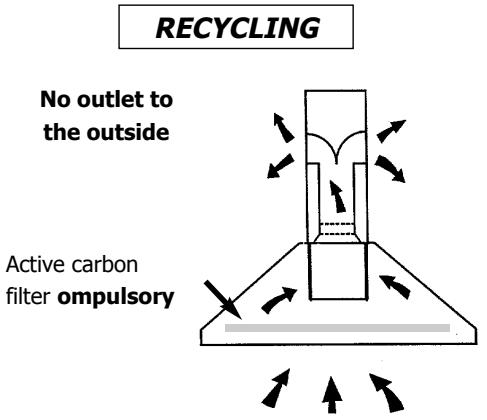

All our appliances can operate in the following modes:

Extraction duct internal diameter 15cm (or if this is not available you may use a duct with an internal diameter of 12.5cm using the adapter supplied with your hood).

Not supplied with the unit:

• The evacuation duct: it may be in Sheet enamel, aluminium, flexible or any non-inflammable material and should be 15 ~cm or, if necessary, 12.5 ~cm in diameter.
• The active charcoal filter needed for hoods set up for air recycling These filters are available at your retailers under the reference marked on the identity plate (see inside the hood).

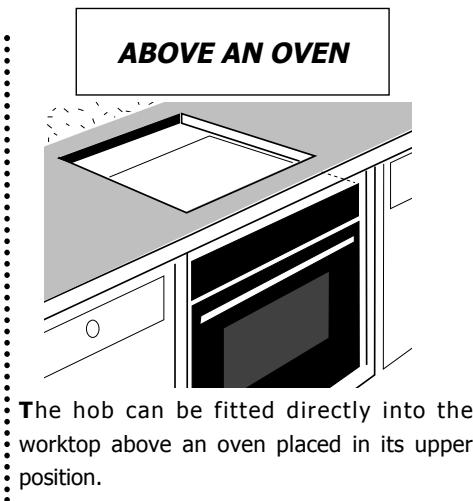

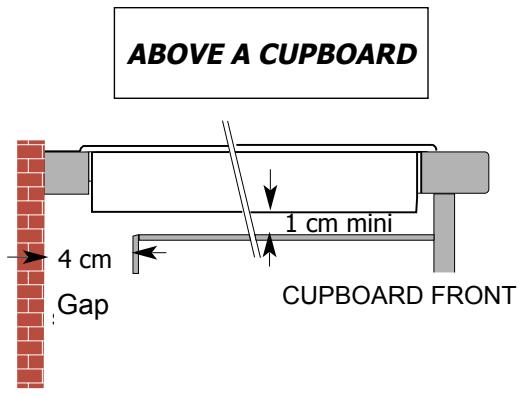

Hob

Installing your duo in complete safety

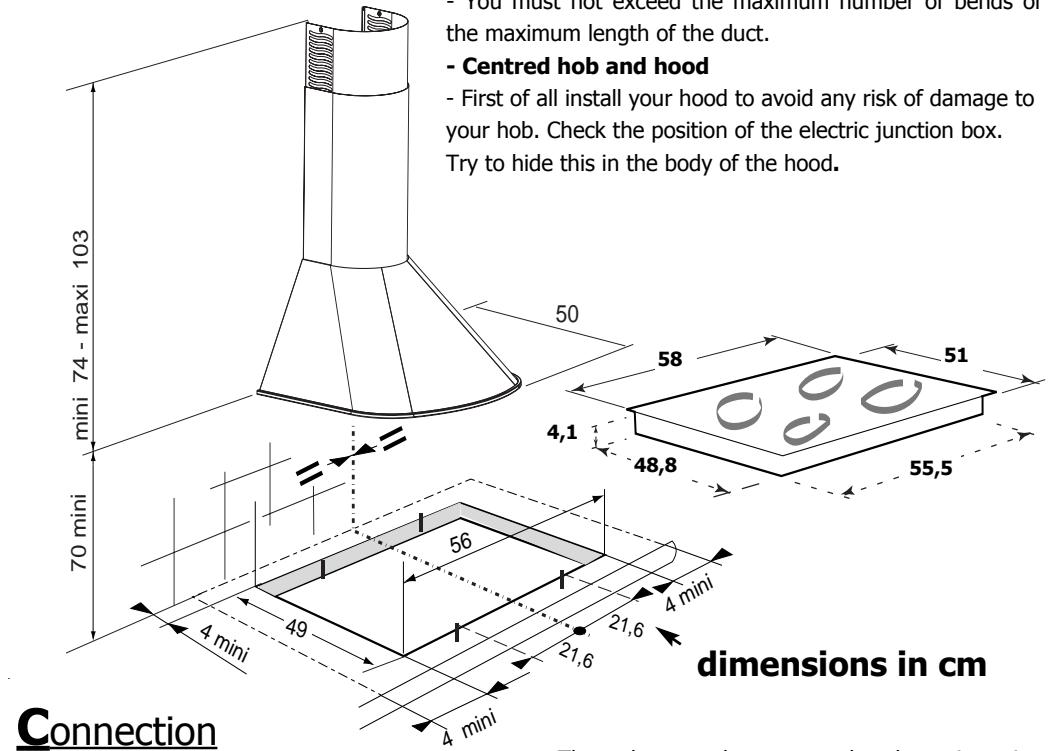

Positioning

Your hob (220-240 V~ 50 Hz, 6,9 kW) must be connected to the mains with :

• A H05RRF type cable with three 2.5 ~mm^2 conductors or five 1.5 ~mm^2 conductors (including a yellow / green earth wire).

Your hood (220-240V~ 50 Hz-240 W) eis supplied with an H05 VVF cable with 3 0.75mm wires (negative, positive and earth).

10 or 16 amp fuse

These duo must be connected to the mains using a plug in compliance with the publication CEI 60083 or an omnipolar circuit braking device at least 3mm from the contact opening.

When the power is switched on, or after a long power failure, a light code appears on the control panel. This disappears automatically after about 30 seconds or as soon as any touch control is touched on the panel. This is normal, as the display is for use by the after-sales service when required. The user must not take this into account under any circumstances. If the unit has a 3 phase 400 V2N connection, and is not working correctly, check that the neutral wire is correctly connec-ted. This precaution should also be taken for all your other electronic apparatus.

The unit must be installed so that the mains plug is easily accessible.

When installing the cooktop, great care should be taken to prevent sharp edges from damaging the power cable.

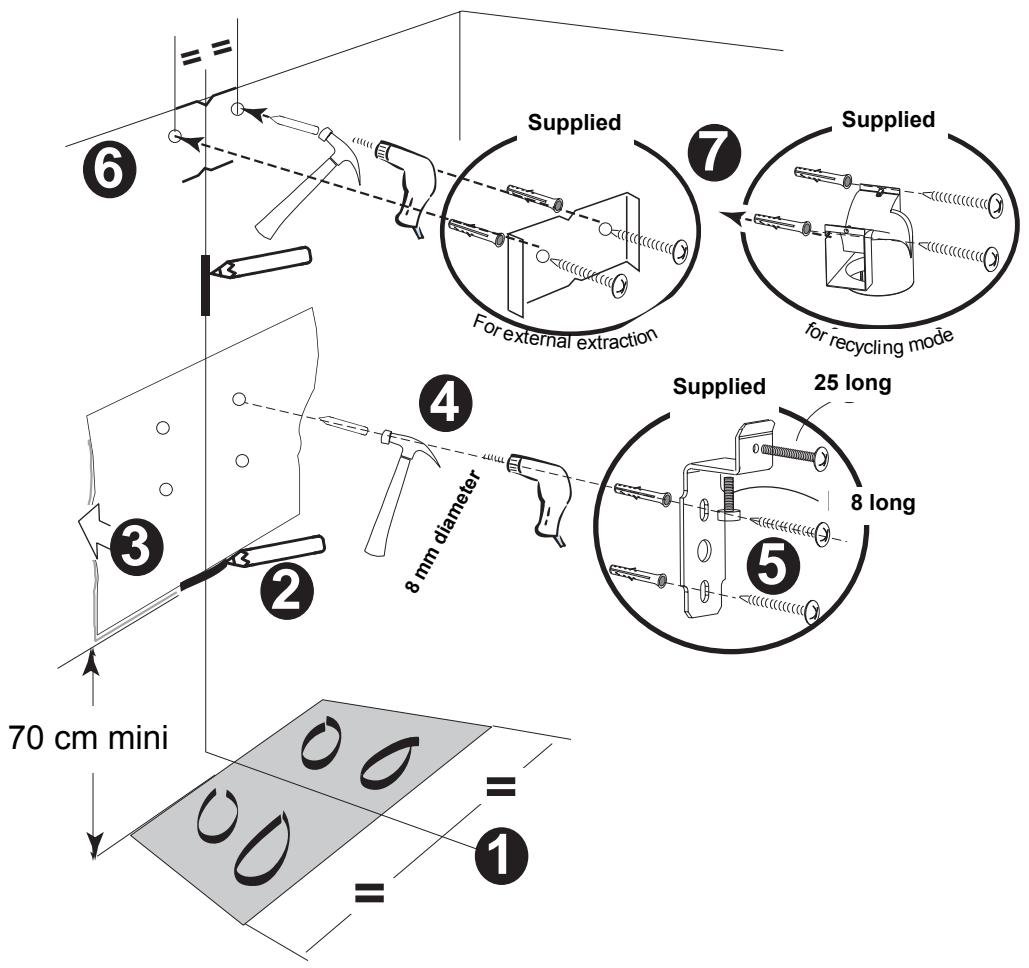

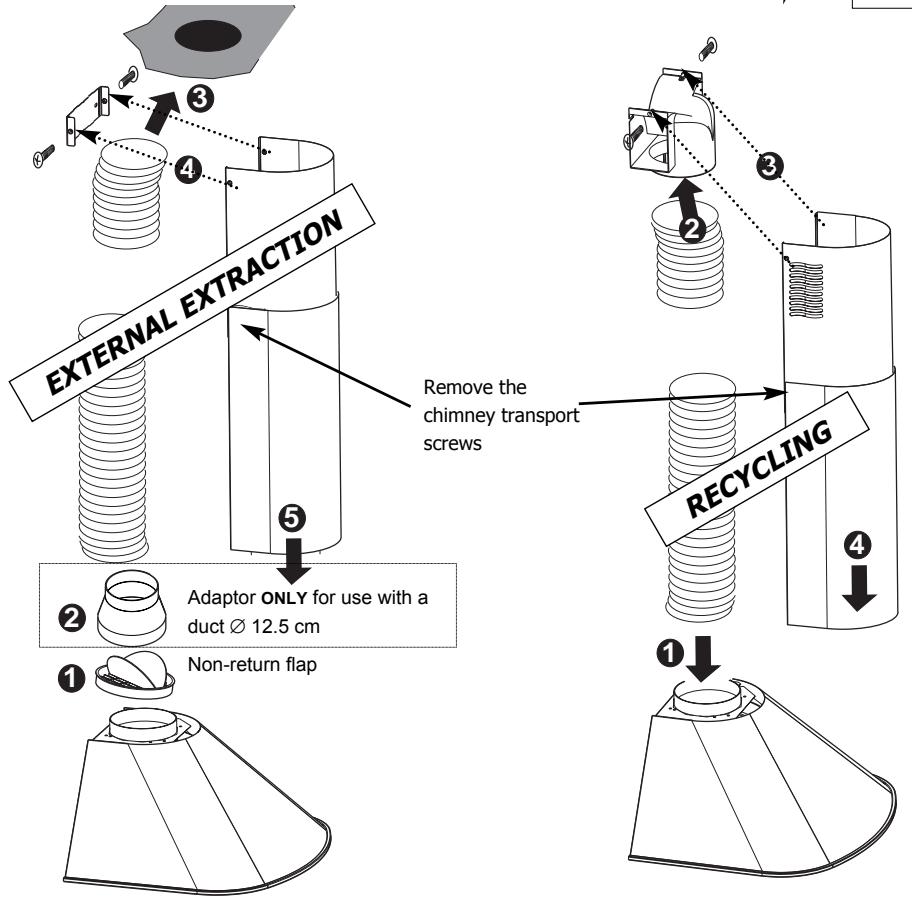

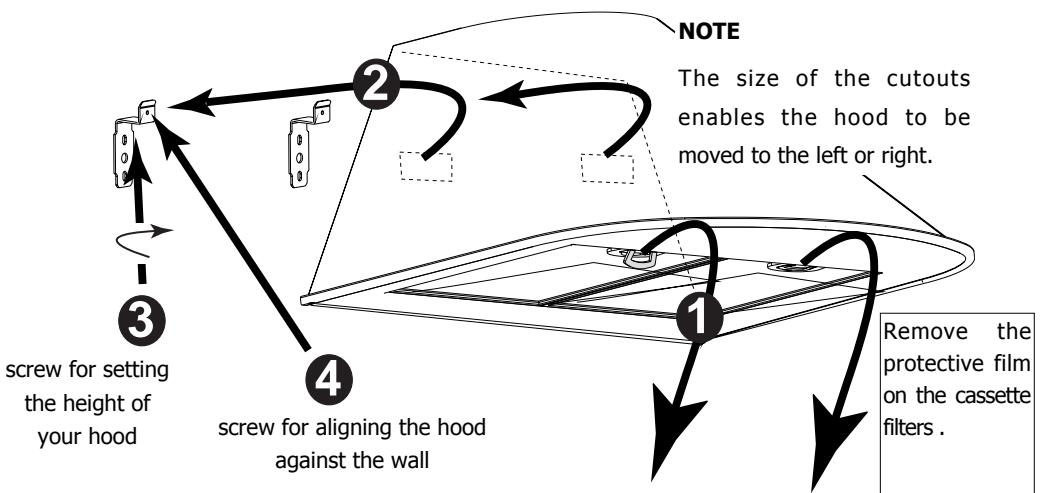

Assembling the main body of the hood

The unit must be installed in compliance with regulations in force concerning ventilation of inside premises. In France, these regulations are to be found in DTU 61.1 of the CSTB. In particular, any fumes evacuated must not be blown into ventilation, hot air, or fume removal conduits.

Disused conduits are only to be used after approval from a specialist.

Using your hob in all simplicity

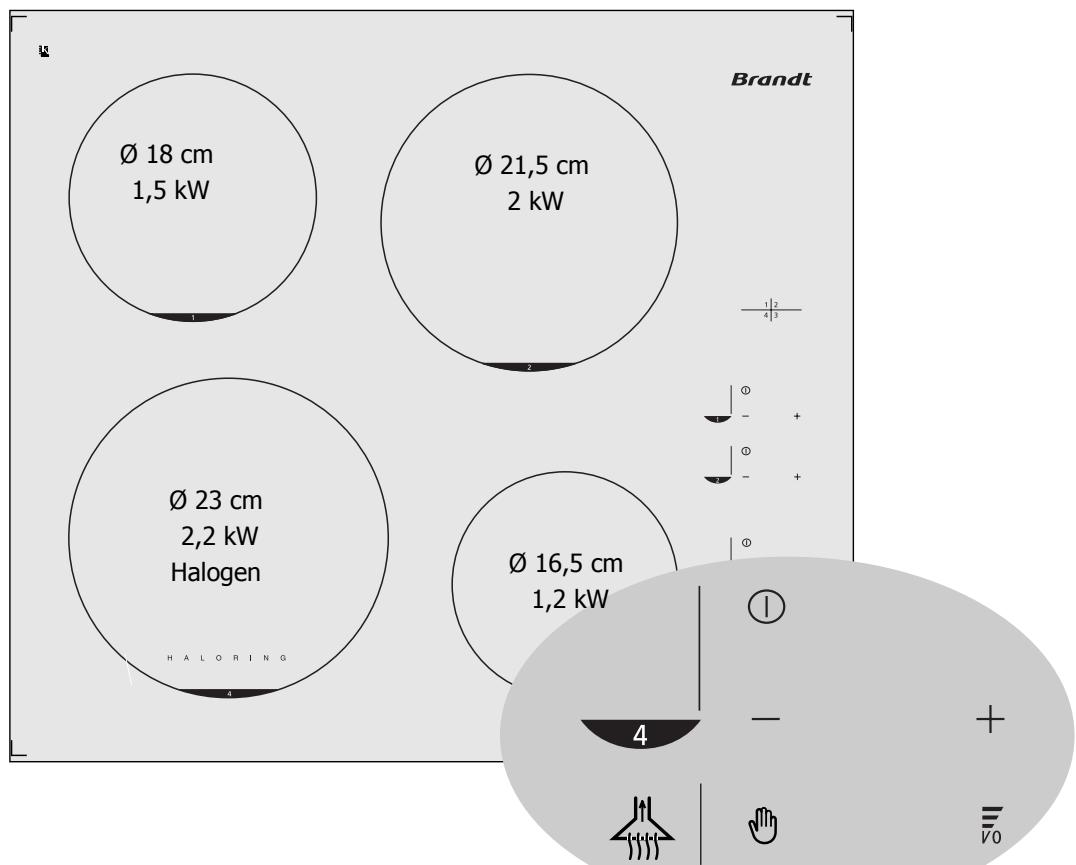

Start/Stop_

Setting manual power

A "0" show that the zone concerned has been lighted.

You can then choose the desired power.

If you do not set the power, the cooking zone will turn itself off automatically.

Child safety

Locked
3,4secs

Unlocked
3,4secs

Controls can be locked:

• Either when turned off (cleaning)
• Or during use (the operations in progress continue and the settings displayed stay active). However when in the locked position, the "STOP" touch control has priority and cuts off the power to the oven.

General stop button

The general stop button turns off all cooking zones.

Residual heat indicator

The display shows H.

After a prolonged power cut, a light display may appear. It will turn itself of after pressing any key for a while. However, the temperature of the cooking areas may remain high.

Automatic-Stop

Automatic stop is a safety function for your hob. It starts up automatically if ever you forget to turn off your cooking.

Power consumed automatically after	The heating zone goes out
Between 1....4	8 hours
Between 5....7	2 hours
Between 8....9	1 hour

The letter A is displayed for the heating zone concerned and the hob will bleep for about 2 minutes. The A will continue to be displayed until any control of the zone in question is touched. The hob will then bleep twice to confirm your action.

Using your hood in all simplicity

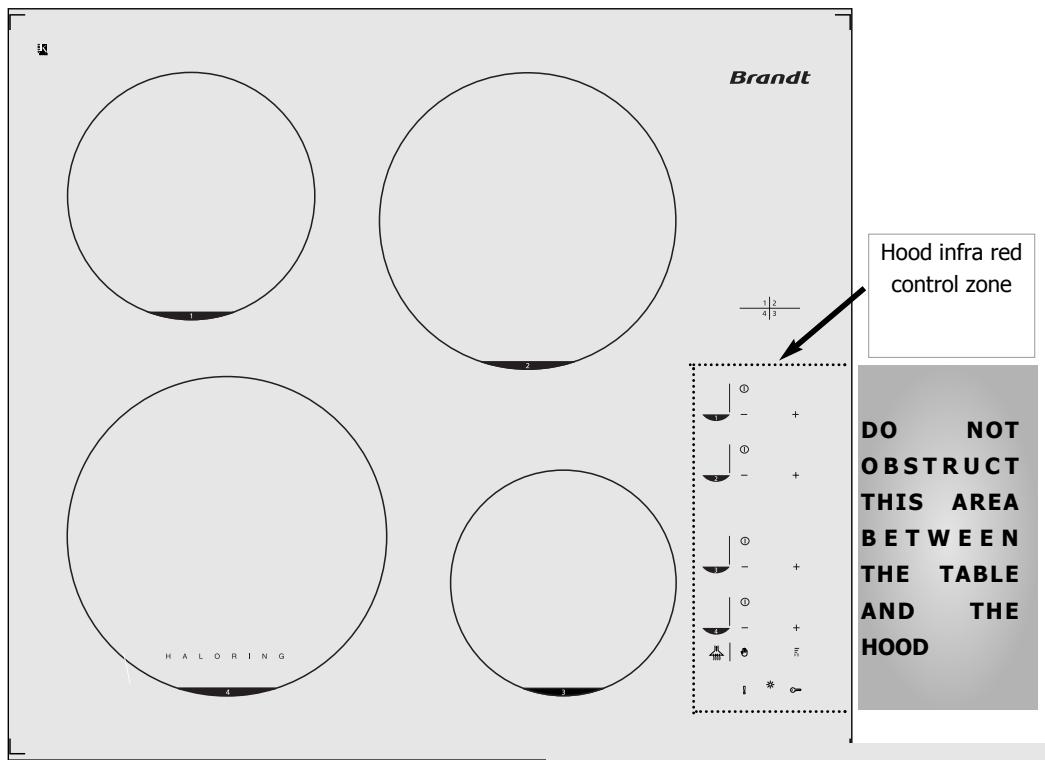

The hob has an infra red system (specially designed for the hood) which controls the extraction power automatically.

When the hob is switched on the light goes on and the hood is in automatic mode: An A is displayed on the hob.

The extraction speed of your hob changes automatically depending on the cooking power you have chosen.

In this mode you can change the setting on your hood at any time depending on the specific requirements of particular types of cooking (frying, excessive steam etc.).

You can also use your hood in manual mode.

The extraction speed is entirely under your control. You just need to choose the extraction setting by pressing the buttons on your hob.

It is preferable to use the back cooking areas of your cooker.

In manual mode:

We recommend that you use this from the time you start cooking. When all the burners are off the hood stops automatically after 1 - 4 minutes depending on the extraction speed you have chosen.

In automatic mode:

These criteria are taken into consideration by the hob as the hood starts working as soon as the cooking areas start to warm up.

Using your hood in all simplicity

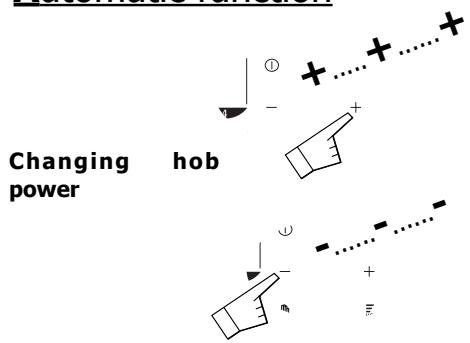

Automatic function

Extraction speed:

Off.... mini.....medium....maxi

Turning off one burner
Turning off all burners

The hood automatically recalculates the extraction speed depending on the other burners.

The hood automatically calculates the stopping time (depending on the cooking you have been doing it will stop after 1 - 4 minutes).

Keep the button pressed down until you reach the required setting.

Changing the power or turning the hood off

Turning off the hood light
Manual operation
Switching to manual operation

(or going back to automatic operation)

changing the power or turning the hood off

Keep the button pressed down until you reach the required setting.

Turning the hood light on and off

Preserving and maintaining your hob

• You must:

Avoid any shocks with recipients etc.:

The glass surface is highly resistant but not unbreakable.

Avoid rubbing with recipients etc. as in time this will deteriorate the markings on the top of your ceramic hob.

Avoid using recipients with rough or dinted bases:

They may hold and transport matter liable to stain or scratch the hob.

Place your recipient in the middle of the heating zone.

Use a pan of the right size. The diameter of the base must be as big as, or bigger than the cooking zone surface area marked on the ceramic plate.

Any such faults, which are not the cause of breakdowns nor make the hob impossible to use, are not included in the guarantee conditions.

• You must not

Put plastic utensils on the cooking surface when it is hot.

Store MAINTENANCE or INFLAMMABLE products in the cupboard under your hob.

Leave an empty recipient on a heating zone.

Heat up a closed can. It may burst; this recommendation applies to all methods of cooking.

Leave a casserole or a pan containing hot fat or oil unattended on the cooking zone.

TYPE OF STAIN	WHAT TO DO	ACCESSORIES EMPLOYED
Minor	Soak the area to be cleaned with hot water, then wipe it.	Cleaning sponges
Accumulated burnt-on stains	Soak the area to be cleaned with hot water, use a special ceramic hob scraper to remove the worst, finish off with the rough side of a cleaning sponge, then wipe it clean.	Cleaning sponges special ceramic hob scraper
Rings and traces of limescale	Apply hot white spirit vinegar on the stain, leave to act then wipe off with a soft cloth.- Use a commercial cleaner.	Special ceramic hob cleaning paste
Burnt-on stains following sugar spillage, melted aluminium or plastic.	- Apply a special ceramic hob cleaner on the surface, preferably one which contains silicone (protective action).	Special ceramic hob cleaner

The best way to use your ceramic hob

Pans and casseroles must be designed for use with electric hobs.

Use pans with flat bases that have good surface contact with the cooking zone surface. They must be made out of:

• Stainless steel with a thick tri-metal or "sandwich" bottom.
• In aluminium with a thick smooth bottom.
• In enamelled steel.

For easy use, we have provided cooking zones specially adapted to your needs, nevertheless:

However, higher temperatures may be required for:

Large quantities
- Cooking with a non-covered casserole.
- Using a glass or ceramic casserole.

And lower temperatures are required for:

• Cooking food products that tend to burn easily (start with a low temperature that can always be increased if possible).
• In case of overflowing (take the lid off, or remove the pan from the heat, then lower the temperature).

Energy saving:

To finish off cooking turn the knob back to 0 and leave the pan in place to use up all the accumulated heat (which saves energy).

Use a lid whenever possible to reduce any loss of heat through evaporation.

Automatic cooking zone temperature adjustment

The radiant cooking zone is self-regulating, It switches itself on and off so as to remain at the programmed power. Under these conditions the temperature remains constant and is correctly adapted to the food you are cooking.

The frequency of self-regulation depends on the power being used.

Minor troubleshooting

IF YOU REALIZE THAT	POSSIBLE-CAUSES	WHAT SHOULD YOU DO?
When you switch on, the fuse blows	Your hob is connected incorrectly	Check the connection and make sure it complies with requirements.
When you switch on, only one side of the hob works.	Your hob is connected incorrectly
When you switch on, the display lights up	The hob is working normally	NOTHING: see chapter Remarks on connections
The hob doesn't work. The display lights don't come on	The apparatus is not under power.There is a power or connection problem.	Inspect the fuses and the cut-out switch.
The hob has stopped during use and is giving out a bleep	- Something has overflowed and or an object is touching the control panel.	Clean the hob or remove the object in question and start cooking again.
The display reads Message E	The electronic circuits have overheated. The hob has gone into its overheating protection mode.	Leave to cool.

Preserving and maintaining your hood

	Cassette filter Before using the cassette filter for the first time remember to remove the protective film	Active charcoal filter For hoods set up for recycling
MAINTENANCE	ESSENTIAL ONCE A MONTH To avoid any risks of fire	YEARLY changes at least once a year.
REASON	This filter retains all the fatty vapours and dust. It is the most important element for keeping your hood efficient.	This filter retains odours and, depending on its use, should be changed at least once a year.
HOW	Wash using a standard household product, rinse thoroughly and leave to dry.Put the filter in your dishwasher vertically for cleaning. (Do not allow it to come into contact with any dirty dishes).	Order these filters from your local retailer (using the reference marked on the identity plate inside the hood) and note down the date you have changed it.
Never use steel-wool pads, abrasive products or over-stiff brushes. To clean the outside of the hood and the light cover, use any standard household product diluted in water and wipe with a clean soft cloth.

The hood must be disconnected from the mains before removing the filter cassettes and after cleaning the filter cassettes must be fitted again according to the instructions.

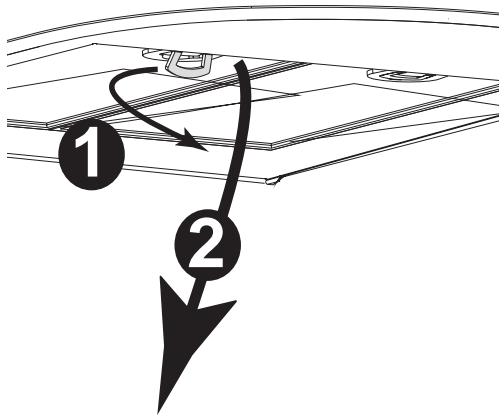

• Removing the cassette filter

• Removing the charcoal filter

After cleaning replace the filter by carrying out the procedure in reverse.

1. Remove the cassette.

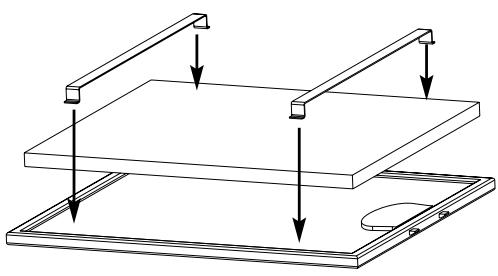

2. Put the new charcoal filter on the cassette that goes at the back of the hood.
3. Slot the two support rods into position.
4. Carry out the same operation on all the cassette filters.

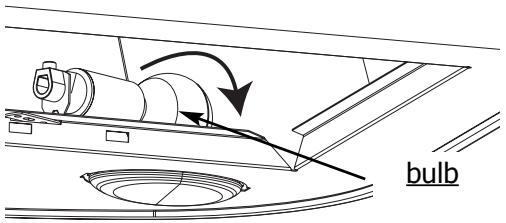

- Changing the bulbs

1. Remove the cassettes.
2. Put your hand inside the front of the hood and unscrew the faulty bulb.
3. Screw in a new bulb (E14 40 W).
4. Replace the cassettes.

Make sure your hood is disconnected or switched off at the mains before servicing.

Cooking

DISHES		MAXI	VERY HOT	HOT	MEDIUM	REHEATING	SIMMERING	KEEPING
SOUPS	BROTH THICK SOUP	9	8 7	6	5 4	3	2	1
FISH	STOCK FROZEN
SAUCES	THICK, MADE WITH FLOUR MADE WITH BUTTER AND EGGS (BEARNAISE, HOLLANDAISE)
VEGETABLES	CHICORY, SPINACH PULSES, BOILED POTATOES FRIED POTATOES SAUTE POTATOES DEFROSTING VEGETABLES
MEAT	THINLY SLICED MEAT FRYING STEAKS GRILLING (OASTRONIGRILLAN)
DEEP FRYING	FROZEN CHIPS FREESH CHIPS
MISCELLANEOUS	PRESSURE COOKER STEVED FRUIT PANCAKES CUSTARD MELTING CHOCOLATE JAM MILK FRIED EGGS PASTA

slow cooking
fast cooking

boil or fry

add food.

boil with cover

maxmum power is reserved for frying and quick boiling
