USER MANUAL ActiFry Essential FZ3010 TEFAL

PROBLÈMES CAUSES SOLUTIONS

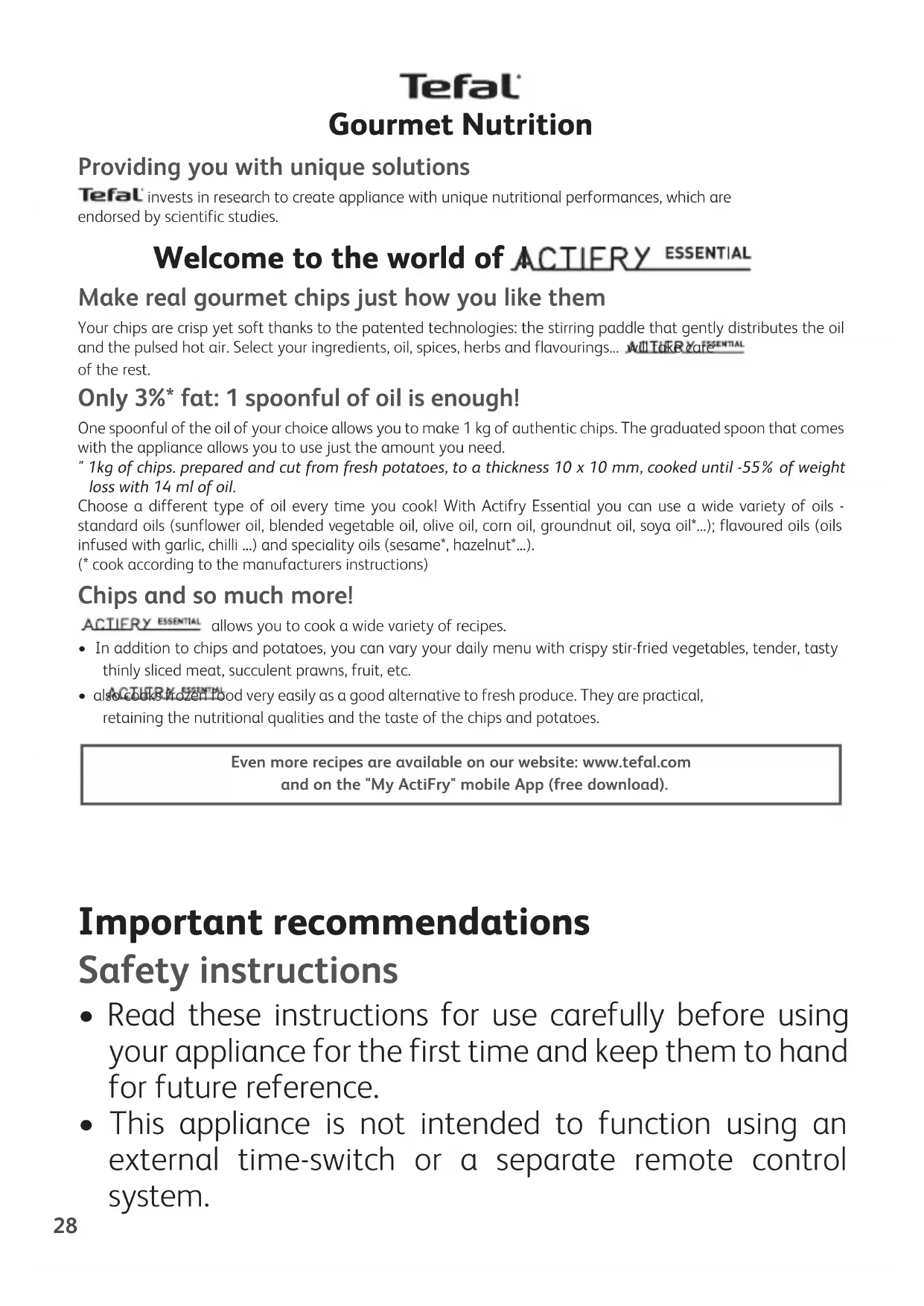

TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page2728 Gourmet Nutrition Providing you with unique solutions invests in research to create appliance with unique nutritional performances, which areendorsed by scientific studies. Welcome to the world of ! Make real gourmet chips just how you like them Your chips are crisp yet soft thanks to the patented technologies: the stirring paddle that gently distributes the oiland the pulsed hot air. Select your ingredients, oil, spices, herbs and flavourings... will take careof the rest. Only 3%* fat: 1 spoonful of oil is enough! One spoonful of the oil of your choice allows you to make 1 kg of authentic chips. The graduated spoon that comeswith the appliance allows you to use just the amount you need." 1kg of chips. prepared and cut from fresh potatoes, to a thickness 10 x 10 mm, cooked until -55% of weightloss with 14 ml of oil.Choose a different type of oil every time you cook! With Actifry Essential you can use a wide variety of oils - standard oils (sunflower oil, blended vegetable oil, olive oil, corn oil, groundnut oil, soya oil*...); flavoured oils (oils infused with garlic, chilli ...) and speciality oils (sesame*, hazelnut*...).(* cook according to the manufacturers instructions) Chips and so much more! allows you to cook a wide variety of recipes.• In addition to chips and potatoes, you can vary your daily menu with crispy stir-fried vegetables, tender, tastythinly sliced meat, succulent prawns, fruit, etc.• also cooks frozen food very easily as a good alternative to fresh produce. They are practical,retaining the nutritional qualities and the taste of the chips and potatoes.Even more recipes are available on our website: www.tefal.comand on the "My ActiFry" mobile App (free download). Important recommendations Safety instructions

• Read these instructions for use carefully before using your appliance for the first time and keep them to hand for future reference.

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.

• Children should not be allowed to play with the appliance.

• Keep the appliance and its cord out of the reach of children less than 8 years.

• This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• It is not intended to be used in the following cases, which are not covered by the guarantee. - In kitchens reserved for staff use in shops, offices and other professional environments; - On farms; TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page2930 - By hotel or motel clients, or in other residential premises; - In bed and breakfast accommodation and other similar environments.

• To ensure safety, if the power cord is damaged, it must be replaced by either the manufacturer or its approved service centre to avoid any danger. Never take the appliance apart yourself.

• For models with detachable power cords, only use original parts supplied by the manufacturer.

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs the appliance must be sent to an Approved Service Centre.

• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

• Certain parts of the appliance can become hot when it is operating, which could cause burns. Do not touch the hot surfaces of the appliance (the lid, visible metal parts, etc.).

• Please refer to the instructions booklet before cleaning or servicing your appliance.

• Never place or use the appliance below or close to easily inflammable objects (e.g. curtains, etc.).

• Never place or use the appliance on or close to a cooking hob or other sources of heat.

• For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.). TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3031

• This appliance is designed to function on AC current only. Before using it for the first time, check that your mains supply voltage matches that indicated on the appliance data plate.

• Any connection error will invalidate your guarantee.

• Always plug the appliance into a dedicated socket outlet with an earth connection. Do not use a socket adaptor or connect any other appliance into the same socket simultaneously, to avoid electrical overloading and risk of fire.

• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

• Take all necessary precautions to prevent anyone tripping over an extension cord.

• Unwind the power cord fully before use.

• The appliance must be placed and used on a flat, stable, heat-resistant work surface, away from water splashes.

• Do not let the power cord hang where children may reach it.

• The power cord must never be close to or in contact with hot parts of the appliance, close to sources of heat or resting on sharp edges.

• Never disconnect the plug by pulling on the power cord.

• Switch off and disconnect the appliance from the TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3132 power supply when not in use, when moving or cleaning it.

• Never immerse the appliance or its power cord in water or any other liquid.

• If parts of the appliance should catch fire, never try to extinguish flames with water. Disconnect the appliance and smother the flames with a damp cloth.

• Never place or use the appliance close to a wall or below a wall cupboard.

• Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.

• Never move the appliance as long as it is hot.

• Allow the appliance to cool down completely before you clean and store it.

• Never operate the appliance when empty.

• Before first use remove all packaging materials, stickers and accessories from inside and outside of the appliance. TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3233

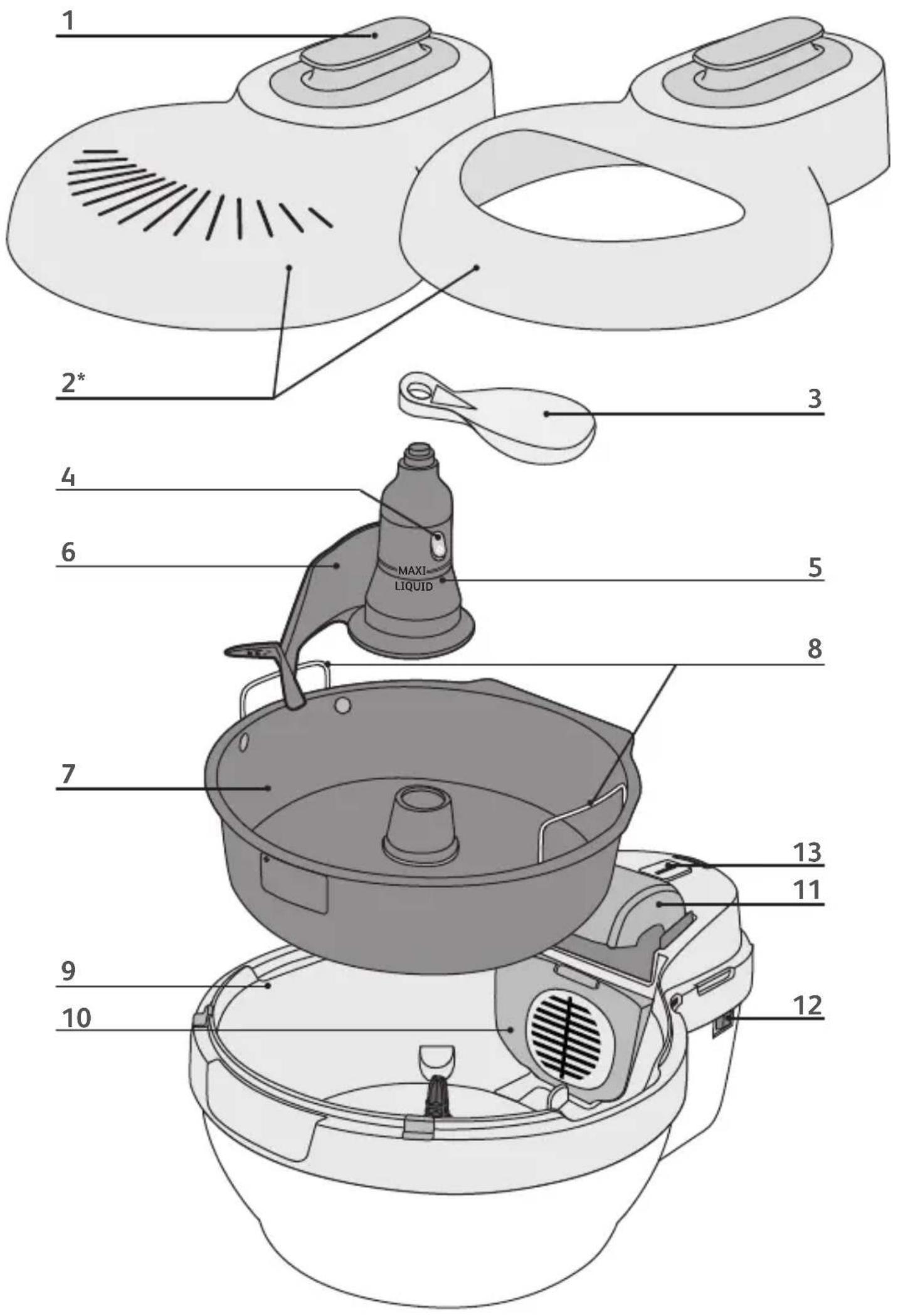

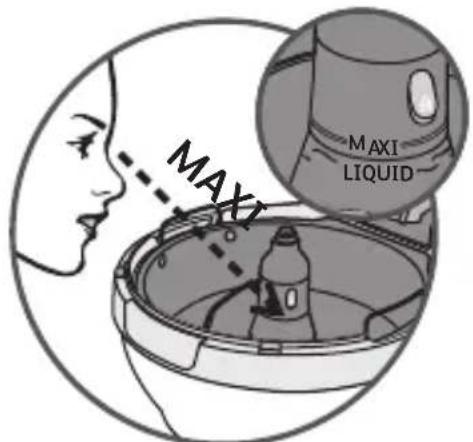

5. Maximum filling level (for liquid recipes)

6. Removable mixing paddle

7. Removable cooking pan

10. Removable filter

Description Important recommendations Cooking

• Never operate the appliance without the removable cooking pan.• Do not overload the pan, keep to the recommended quantities.• Read the safety instruction booklet.* with viewing window depending on model Protect the environment

• Your appliance has been designed to run for many years. However, when you decide to replace it, remember to think about how you can contribute to protecting the environment.

• Before discarding your appliance you should remove the battery from the timer and dispose of it at a local civic waste collection centre (according to model).

• The Approved Service Centres will take back any old appliances you may have so that they can be disposed of in accordance with environmental regulations. Environment protection first! i Your appliance contains valuable materials which can be recovered or recycled. ‹ Leave it at a local civic waste collection point. Household and similar electrical appliances - Safety - Part 1: General requirements (IEC 60335-1:2010, modified) "7.12.Z1 The specific instructions related to the safe operation of this appliance (as given in 7.12 of this standard) shall be collated together in the front section of the user instructions. The height of the characters, measured on the capital letters, shall be at least 3 mm. These instructions shall also be available in an alternative format, e.g. on a website. TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3334 Quick start guide Before using for the first time

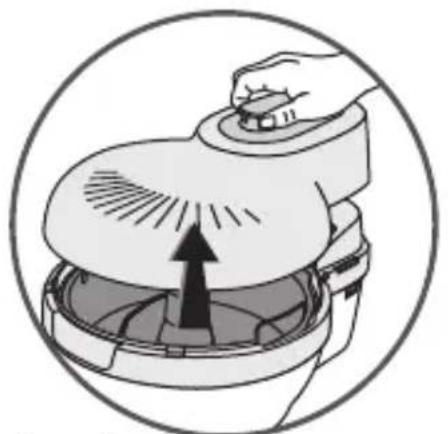

• Remove the lid - fig.1.

• Remove the polystyrene block and the measuring spoon.

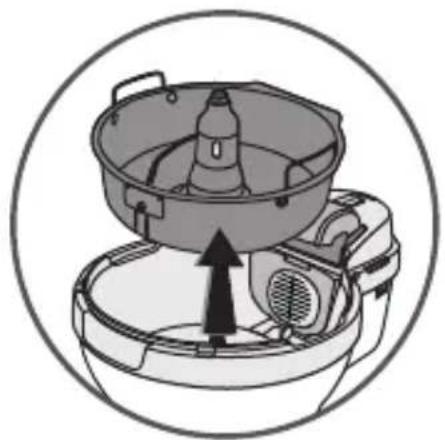

• Take the cooking pan out carefully using the handles located on each side - fig.2.

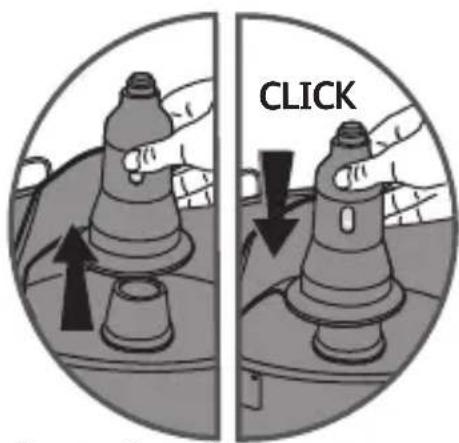

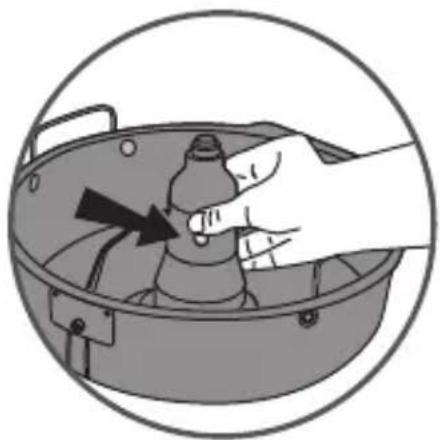

• Remove the paddle by pushing the unlock button - fig.3 - 4a.

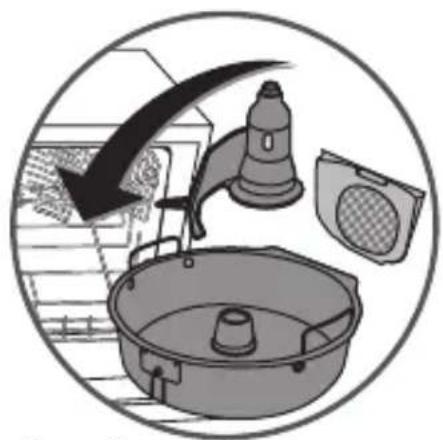

• All removable parts are dishwasher safe - fig.5 or can be cleaned with a non- abrasive sponge and washing-up liquid.

• Wipe the base of the appliance with a damp non-abrasive sponge and a few drops washing-up liquid.

• Dry the parts carefully before putting everything back in its place.

• Reposition the paddle until you hear a "CLICK" - fig.4b.

• The first time the appliance is used there may be some fumes and smell but this is not harmful. This will not affect your use of the appliance and will disappear quickly. Prepare the food

• Put the food in the pan and keep to the quantities stated in the cooking guide table on page p. 35 and the recipes.

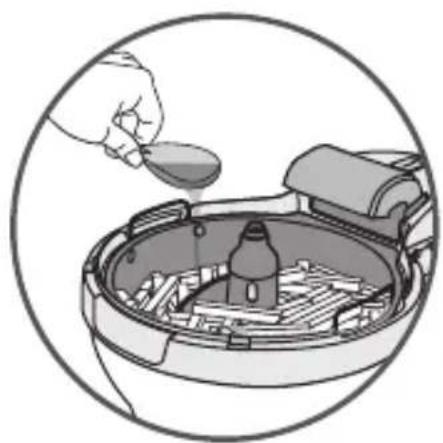

• Add oil to the pan measured with Actifry spoon - fig.8 (see cooking table page 35 for quantity of oil) (1 spoonful of oil = 14 ml of oil).

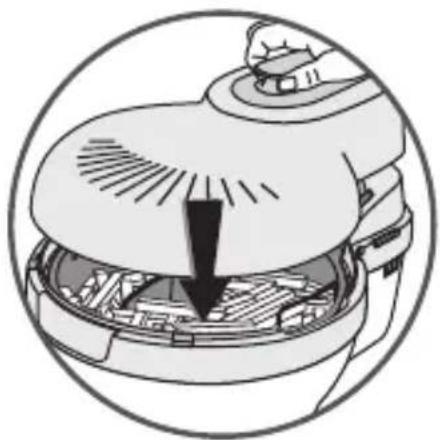

• Close the lid - fig.9. Cooking Start cooking

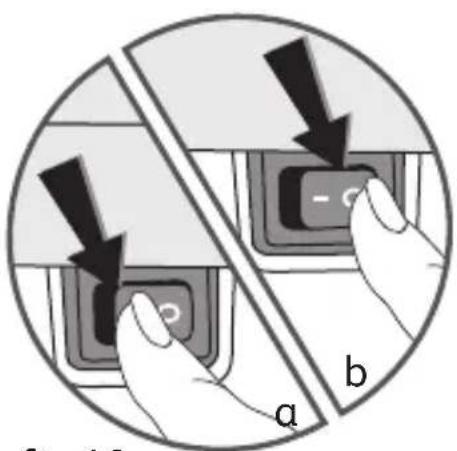

• Press the On/Off (|/O) button, cooking starts thanks to the circulation of hot air in the cooking chamber - fig.10a.

• Follow the cooking times recommended in the cooking table on page 35. Remove the food

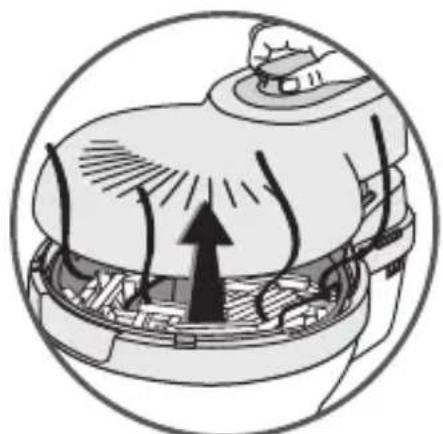

• When cooking has ended, press the On/Off (|/O) button - fig.10b and open the lid - fig.11. During certain types of cooking, some steam may be released which lifts the lid. Remove the lid with caution.

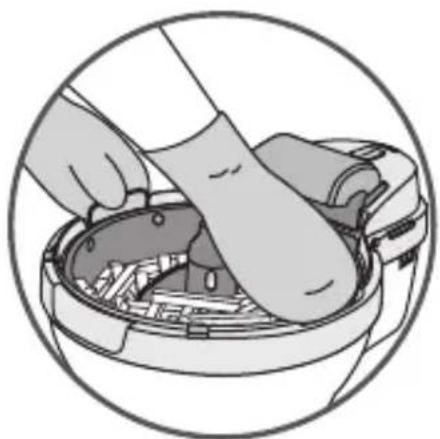

• Remove the pan from the base of the appliance using oven gloves holding it by the metal handles

fig.12 and serve the food at once. Remove all stickers and packaging. Never hold the appliance under a running tap. When removing the cooking pan avoid all contact with the heating unit - fig.12. To obtain the best performance with your Actifry Essential, for the first use we recommend using your appliance for at least 30 minutes with 500 ml of cold water added to the pan. For the liquid recipes, never exceed the maximum level indicated on the removable paddle - fig.7. Never leave the measuring spoon in the cooking pan. To avoid any risk of burns, do not touch the lid outside the area of the handle provided for this purpose and use oven gloves to remove the pan from the base. Do not touch the heating unit either. Leave to cool for 30 minutes. When removing the cooking pan avoid all contact with the heating unit - fig.12. When you remove the lid, the appliance stops automatically. TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3435

Cooking times The cooking times given are a guide only, they may vary depending on whether the food items are in season, their size, how well done you like your food and the electrical voltage used. The quantity of oil indicated may be increased in accordance with your tastes and needs. If you like your chips even more crispy, try cooking for a few extra minutes. Other vegetables

TYPE QUANTITY OIL COOKING TIME

Courgettes Fresh, in slices 750 g 1 spoonful oil + 150 ml cold water 25 - 35 min Peppers Fresh, in slices 650 g 1 spoonful oil + 150 ml cold water 20 - 25 min

TYPE QUANTITY OIL COOKING TIME

Chips standard thickness 10 mm x 10 mm length up to 9 cm Fresh 1000 g ** 1 spoonful oil 40 - 45 min Fresh 500 g ** ½ spoonful oil 28 - 30 min Frozen* 750 g ** without oil 30 - 32 min Potato wedges Frozen 750 g without oil 14 - 16 min*** Potatoes Meats - Poultry To give extra taste to your meat, feel free to mix the spices in the oil (paprika, curry, basil, thyme, oregano, cumin…).

• Turn halfway through cooking

• Frozen preparations not available in all countries

TYPE QUANTITY OIL COOKING TIME

Chicken nuggets Fresh 750 g without oil 18 - 20 min Chicken drumsticks Fresh 4 to 6 without oil 30 - 32 min Chicken breast (boneless) Fresh 6 chicken breasts (about 750 g) without oil 10 - 15 min Pork chops (2.5 cm thick) Fresh 2 to 4 1 spoonful oil 15 - 18 min* Sausages Fresh 4 - 8 without oil 10 - 12 min Fish – Shellfish

TYPE QUANTITY OIL COOKING TIME

Battered calamari Frozen 300 g without oil 12 - 14 min Prawns Cooked 400 g without oil 10 - 12 min Desserts

Ratatouille* Frozen 750 g without oil 20 - 25 min Mountain pan-fry* Frozen 750 g without oil 20 - 25 min Chilli con Carne (free flow type meat only)* Frozen 750 g without oil 12 - 15 min

• For the UK only: For thicker cut frozen chips (13 mm x 13 mm) increase the cooking time slightly. For American Style Thin Cut frozen chips (8 mm x 8 mm) cook for the same time as 10 mm x 10 mm frozen chips. ** Weight of unpeeled potatoes *** For the UK only: For 2 cm thick frozen potato wedges cook 18-20 minutes. For 3 cm thick frozen potato wedges cook for 20-22 minutes. For UK only: The cooking times for chips are only a guide and may vary according to the variety, season and batch of potatoes used. We recommend using varieties such as King Edward and Maris Piper for chips and potato recipes. TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3536 Easy to cleaning Cleaning the appliance

• Leave it to cool down completely before cleaning.

• Lift the lid - fig.1 and take out the cooking pan.

• Take out the removable filter and clean it.

• All removable parts are dishwasher safe - fig.5 or can be cleaned with a non- abrasive sponge, warm water and washing-up liquid.

• Clean the body of the appliance with a damp sponge and a few drops of washing-up liquid.

• Dry carefully before putting everything back in its place.

• The appliance is fitted with a removable cooking pan: any browning and scratches that may appear after long use do not present any problem.

• We guarantee that the cooking pan COMPLIES WITH THE REGULATIONS concerning materials in contact with foodstuffs.

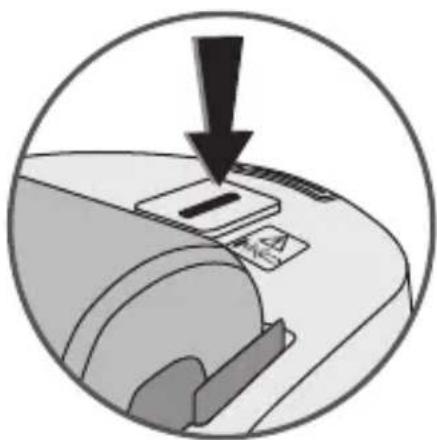

• Make sure that you never insert any cooking utensils in the closing slot of the lid - fig.6.

• During cleaning, make sure not to introduce any liquid in the closing slot of the lid - fig.6. Never immerse the base of the appliance in water. Do not use harsh or abrasive cleaning products. The removable filter should be cleaned regularly and replaced correctly. To retain the cooking pan in good condition for as long as possible, do not use metal utensils when serving or stirring food. TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3637

A few tips in case of problems… The appliance won't work. The appliance isn't correctly plugged in. Check that the appliance is correctly plugged in. You haven't yet pressed the ON / OFFbutton (|/O).Press the ON / OFF button (|/O).You've pressed the ON / OFF button(|/O) but the appliance won't work.Close the lid.The appliance won't heat up.Bring your appliance to an Approved ServiceCentre.The paddle is not turning correctly.Check that it is correctly in place otherwisetake your appliance to an Approved ServiceCentre.The paddle won't turn. The paddle isn't locked.To clip the paddle correctly back in place,reposition the paddle in the centre of thecooking pan and then push it. The food is not cooked evenly. You haven't used the paddle. Fit the paddle.The food has not been cut in thesame size and thickness pieces.Cut the food to the same size and thickness.The chips have not been cut in piecesthe same size and thickness.Cut the chips to the same size and thickness.The paddle is in the right position butit won't turn.Check that it has been pushed down and isfitted correctly.Bring the appliance to an Approved ServiceCentre. The chips are not crispy enough. You are using the wrong variety ofpotatoes. Only use potatoesrecommended for making chips. Choose a variety recommended for chips.For the UK: We recommend using Maris Piperor King Edward Varieties.The potatoes haven't been sufficiently washed and dried.Wash the potatoes for a long time under cold,running water to remove excess starch. Thendrain and dry them in a clean absorbent teatowel before cooking. They must becompletely dry.The chips are too thick.Cut the chips thinner. The maximum thicknesschip dimensions are 13 mm x 13 mm. There's not enough oil for the quantity of chips. Increase the quantity of oil (see “Cooking table”). The filter is blocked. Clean the filter.The chips break up whilst theyare being cooked.The potatoes used are recentlyharvested and hence have a high watercontent.Reduce the quantity of potatoes and adjust the cooking time. The food remains on the edge of the dish. Maximum level exceeded. Reduce the quantities. Liquids from the cooking have seeped into the body of the appliance. The maximum liquid level has beenexceeded.Make sure the paddle is correctly positioned.Don't exceed the maximum level mark. Donot use your Actifry for making recipes with ahigh liquid e.g soups. If the leaking problemcontinues take the appliance to an ApprovedService Centre.The appliance is making anabnormal amount of noise.You suspect that the appliance'smotors are not working properly.Take the appliance to an Approved ServiceCentre.

PROBLEMS CAUSES SOLUTIONS

TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3738 Recipes Real Homemade Chips FOR 4 PEOPLE PREPARATION 15 mins • COOKING TIME 40 mins 1 kg potatoes (peeled, washed)* 1 oil, salt 1 Cut the potatoes into chips the size of your choice: 8 x 8 mm, 10 x 10 mm or 13 x 13 mm. Wash the cut chips well under cold running water, drain and dry carefully with a clean absorbent tea towel. 2 Put the chips in the ActiFry

. Pour the oil evenly over the chips. 3 Cook for 40-45 minutes depending on the thickness of the chips.

• For UK only: Use Maris Piper or King Edward variety potatoes. Turkey breast with three Peppers FOR 4 PEOPLE PREPARATION 15 mins • COOKING TIME 25 mins 600 g turkey breast (1 cm x 3 cm) 3 peppers (1 red, 1 green, 1 yellow) deseeded and cut into strips or diced 1 onion sliced 2 garlic cloves chopped 2 olive oil 100 ml white port ½ cider vinegar 100 ml water salt, pepper 1 Slice the peppers into 2 cm strips. Put them in the Actify

with the onion, add the olive oil and cook for 10 mins. 2 Add the garlic and cook for 5 mins. Season with salt and pepper. 3 Add the turkey strips, port, water, cider vinegar to the vegetables and cook for 10 to 15 mins. Provencale style King Prawns FOR 4 PEOPLE PREPARATION 20 mins • COOKING TIME 12 mins 800 g uncooked king prawns, shelled 1 onion diced 5 garlic cloves, chopped (or 2-3 if you prefer less garlic flavour) ½ bunch of parsley chopped 3 olive oil 1 lemon salt, pepper 1 Wash and dry prawns. Put the prawns in a bowl, add garlic, onion, parsley and oil. Cover and leave to marinate for 15 mins. 2 Cook the prawns with the marinade for 12 to 15 mins. The prawns are cooked once they have turned a nice orange colour, add salt and pepper. 3 Serve with lemon wedges. TEFAL903B-ACTIFRY_Essential_1505087843_Mise en page 1 20/12/12 18:54 Page3839

Mediterranean Vegetables FOR 4 PEOPLE PREPARATION 10 mins • COOKING TIME 25 mins 1 zucchini (200 g) 150 g fresh mushrooms 1 aubergine 1 red pepper 1 green pepper 100 ml white wine 2 garlic cloves parsley 2 olive oil salt, pepper 1 Cut the courgette and aubergine into cubes. Slice the mushrooms and cut the peppers into strips. 2 Put the vegetables in the ActiFry

together with the oil and cook for 15 mins. 3 Chop the garlic and the parsley and add them to the ActiFry

with the white wine. Season and cook for a further 10 to 15 mins or until tender but still crisp. Crispy Banana and Chocolate Packets FOR 4 PEOPLE PREPARATION 30 mins • COOKING TIME 8-10 mins 4 bananas (not too ripe) 20 g milk chocolate chips 8 sheets brick pastry (also called “feuilles de brick”)* 1 egg (beaten) Dipping chocolate sauce: 50 g good quality plain chocolate (70% cocoa solids) 30 ml skimmed milk 1 Cut the bananas into slices 1 cm thick. Cut the circular brick pastry sheets in four. 2 Put chocolate chips in the centre of each piece of brick pastry and top with a banana slice. Brush the edges with beaten egg to seal and fold the edges over to form a neat square shape packet. For this recipe only, remove the paddle. Cook in two batches. Put half the packets in the ActiFry

, sealed side down, and cook for 8-10 mins. Cook the remaining packets. 3 Meanwhile, heat the milk in a saucepan. Remove from the heat and add the chocolate a piece at time, whisking after each addition. Whisk until smooth. Serve the warm chocolate dipping sauce in individual glasses.
