Product type	Battery tester
Brand	VOLTCRAFT
Model	MS229
Dimensions (L x W x H)	133 x 63 x 22 mm
Weight	Approx. 85 g
Operating voltage	3 V DC
Current consumption	Max. 5 mA
Power supply	2 LR44 button cells (1.5 V each)
Test voltage range	1.2 V to 12 V DC
Test current	30 mA (1.2/1.5 V), 6-24 mA (3/12 V), 30-40 mA (6/9 V)
Display	LCD screen with voltage and remaining charge percentage
Main functions	Battery test under load, voltage selection, polarity indicator, auto shut-off
Care and cleaning	Clean with a soft dry cloth, avoid abrasive products
Safety	Respect polarity, do not recharge non-rechargeable batteries, keep out of reach of children
Spare parts and repairability	Replacement LR44 batteries available, repairs by a specialist
General information	Suitable for rechargeable and non-rechargeable batteries from 1.2 to 12 V

Frequently Asked Questions - MS229 VOLTCRAFT

How to test a battery with the Voltcraft MS229?

Turn on the device with the ON/OFF switch. Use the MODE/START button to select the appropriate voltage (e.g., 1.5V). Confirm with SET. Set the load switch according to the voltage. Insert the battery respecting the indicated polarity. The screen displays the voltage under load and the remaining percentage.

What types of batteries can I test?

You can test 1.2 V (rechargeable), 1.5 V (alkaline or high capacity), 3 V, 6 V, 9 V and 12 V batteries. Make sure to set the correct voltage before testing.

What does the percentage display mean?

The percentage indicates the estimated remaining capacity of the battery compared to a new battery. For example, for a 1.5 V battery, 0% corresponds to 1.14 V and 100% to 1.50 V.

How to replace the tester's internal batteries?

Turn off the device and remove the tested batteries. Open the battery compartment on the back. Insert two LR44 button cells (1.5V) respecting polarity: the + pole to the left. Close the compartment.

Why won't the tester turn on?

Check that the internal batteries are correctly installed and not discharged. Replace the LR44 batteries if necessary. Make sure the ON/OFF switch is in the ON position.

Can I test a battery under load?

Yes, the tester applies a predefined load (test current) according to the selected voltage. This gives a more realistic indication of remaining capacity than a simple no-load test.

What if the screen displays "LO" or "HI"?

"LO" means the battery is low or polarity reversed. Check polarity and selected voltage. "HI" indicates a voltage higher than the test range. Select a higher voltage.

Is the tester suitable for button cells?

Yes, the device can test button cells. Use the positive terminal with the appropriate contact for button cells, as shown in the manual.

How to clean the tester?

Use a soft dry cloth. Do not use solvents or abrasive products. Avoid pressing too hard on the screen. Let it dry completely before reuse.

What to do in case of malfunction?

First check the internal batteries and connections. If the problem persists, contact technical support. Repairs must be carried out by a professional.

USER MANUAL MS229 VOLTCRAFT

These Operating Instructions accompany this product. They contain important information on setting up and using the device. You should refer to these instructions, even if you are buying this product for someone else.

Please retain these Operating Instructions for future use! A list of the contents can be found in the Table of contents, with the corresponding page number, on page 17.

1 2 3456789 CNFE SET + + 10

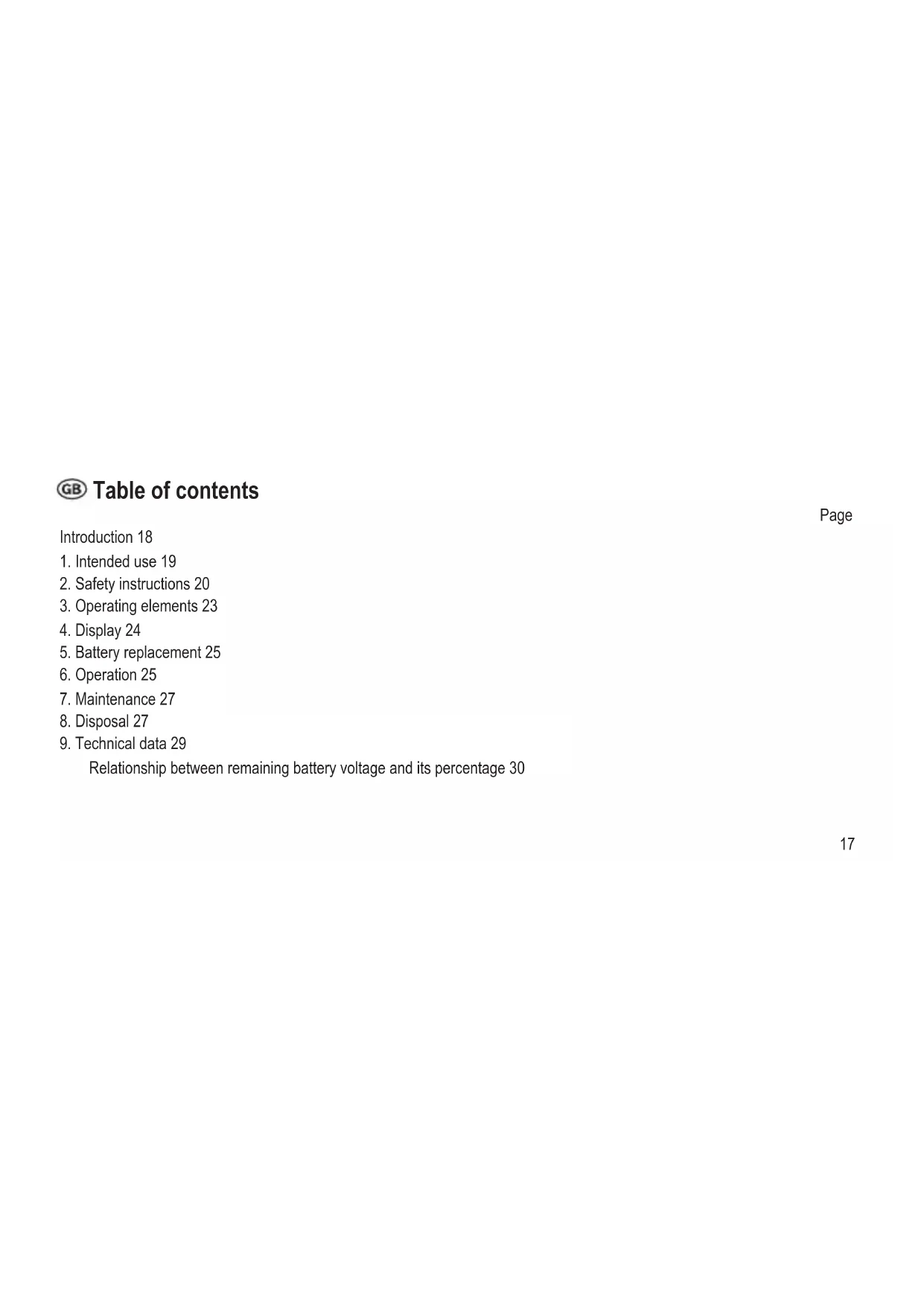

1. Intended use 19
2. Safety instructions 20
3. Operating elements 23
4. Display 24
5. Battery replacement 25
6. Operation 25
7. Maintenance 27
8. Disposal 27
9. Technical data 29

Relationship between remaining battery voltage and its percentage 30

Introduction

Dear Customer,

Thank you very much for making the excellent decision to purchase a Voltcraft® product.

You have acquired an above-average quality product from a brand family which has distinguished itself in the field of measuring, charging and network technology by particular competence and permanent innovation.

Whether your are a sophisticated do-it-yourself electronics enthusiast or a professional user, with a Voltcraft® product you always have the optimal solution at hand, even for solving the most difficult problems. Along with the remarkable feature that we offer the advanced technology and the robust quality of our Voltcraft® products at a favourable cost-performance ratio that is almost unbeatable. We are certain that using Voltcraft® will be the beginning of a long, successful relationship.

We hope you will enjoy using your new Voltcraft® product!

1. Intended use

The product is intended for testing the common batteries within a voltage range of 1.2 V/DC to 12 V/DC. For an objective measuring result, the batteries/rechargeable batteries are tested under load. The current under load has to be preset depending on the type of battery/storage battery.

The battery voltage under load and the percentage of remaining battery voltage are indicated on the display. Two 1.5 V button cells (LR44) are required for operation.

For safety and approval purposes (CE), you must not rebuild and/or modify this product. If you use the product for purposes other than those described above, the product may be damaged. In addition, improper use can cause hazards such as short circuiting, fire, electric shock etc. Read the instructions carefully and keep them. Make this product available to third parties only together with its operating instructions.

This product complies with the statutory national and European requirements. All company names and product names are trademarks of their respective owners. All rights reserved.

2. Safety instructions

We do not assume liability for resulting damages to property or personal injury if the product has been abused in any way or damaged by improper use or failure to observe these operating instructions. The warranty will then expire!

An exclamation mark in a triangle indicates important information in the operating instructions. Carefully read the whole operating instructions before operating the device, otherwise there is risk of danger.

Product safety

• The product must not be subjected to heavy mechanical stress or intense vibration.
  • The product must not be exposed to electromagnetic fields, extreme temperatures, direct sunlight or dampness.
• The manufacturer's instructions for the respective batteries must be observed before measurement.
• The product should not be used immediately after it has been brought from an area of cold temperature to an area of warm temperature. Condensed water might destroy the product. Wait until the product adapts to the new ambient temperature before use.

Battery safety

• Correct polarity must be observed while inserting the batteries. The correct polarity is indicated inside the charging compartment ("+" = positive; "-" = negative).
• Batteries should be removed from the device if it is not used for a long period of time to avoid damage through leaking. Leaking or damaged batteries might cause acid burns when in contact with skin, therefore use suitable protective gloves to handle corrupted batteries.
• Batteries must be kept out of reach of children. Do not leave the battery lying around, as there is risk, that children or pets swallow it.
• All the batteries should be replaced at the same time. Mixing old and new batteries in the device can lead to battery leakage and device damage.
• Batteries must not be dismantled, short-circuited or thrown into fire. Never recharge non-rechargeable batteries. There is a risk of explosion!

Miscellaneous

• The product is not a toy and should be kept out of reach of children and pets!
• On commercial premises, the accident prevention regulations of the Association of Industrial Professional Associations with respect to electrical systems and operating equipment must be observed.
• In schools, training centres, Hobby and DIY workshops, the handling of measuring appliances must be responsibly supervised by trained personnel.
• Repair works must only be carried out by a specialist/ specialist workshop.
• If you are not sure about the correct connection or use, or if questions arise which are not covered by these operating instructions, please do not hesitate to contact our technical support or another qualified specialist.

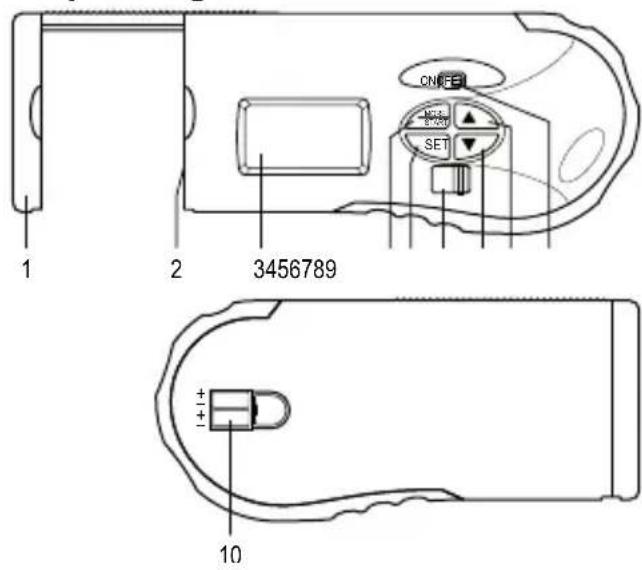

3. Operating elements

1 2 3456789 CNFE SET + + 10

1 Positive battery terminal
2 Negative battery terminal
3 Display
4 "MODE/START" button
5 "SET" button
6 Load selection switch
7 “▼” button
8 " ▲" button
9 "ON/ OFF" switch
10 Battery compartment

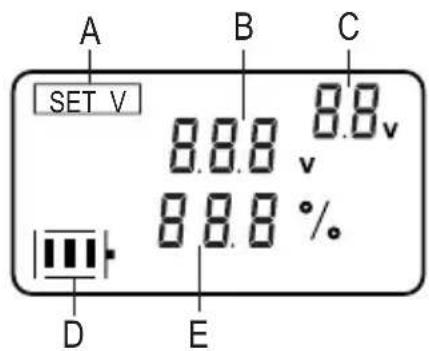

4. Display

A B C SET V 8.8.8 v 8.8.8 % D E

A Voltage selection indicator
B Remaining battery voltage
C Preset battery voltage
D Low battery icon
E Percentage of remaining battery voltage

5. Battery replacement

When the low battery icon flashes in the display (3), replace the battery.

1. Switch off the tester through the "ON/OFF" switch (9) and remove all batteries under testing.
2. Open the battery compartment (10).
3. Insert two LR44/AG-13/L1154 button cells into the battery compartment (10) while observing the polarity (“+” = positive). The positive pole of the button cells should face left.
4. Close the battery compartment (10).

6. Operation

Test batteries should be removed from the appliance before measurement.

1. Switch on the tester through the "ON/OFF" switch (9).
2. Press the "MODE/START" button (4) to set the rated voltage of the test battery. The voltage selection indicator will flash.
3. Press “▼” (7) or “▲” (8) button to choose the battery voltage (1.2, 1.5, 3, 6, 9, 12V).

4. Press the key "SET" to confirm the selected test voltage.

5. Set the load selection switch (6) to set the test current. Please refer to the following table for correct setting.

Switch position Left Centre Right
Battery voltage 1.2V/ 1.5V 3V/ 12V 6V/ 9V
Test current 30mA 6 – 24mA 30 – 40mA

1. Insert the test battery as indicated in the following diagram.

For round cells or button cells For 9V battery

Quit the stand-by mode by either pressing and holding the "MODE/START" button (4) for 3 seconds or operating the "ON/OFF" switch (9).

7. Maintenance

Clean the exterior housing with a clean, soft and dry cloth or a slightly damped cloth for concentrated dirt.

Never use aggressive cleaning agents or chemical solvents as the exterior housing could be damaged. Do not apply excessive pressure to the display, which may lead to damages or scratches.

After cleaning, allow the product to dry completely before operating it again!

8. Disposal

Product

Electronic devices are recyclable waste and must not be disposed of in the household waste.

At the end of its service life, dispose of the product according to the relevant statutory regulations.

Remove any inserted (rechargeable) batteries and dispose of them separately from the product.

(Rechargeable) batteries

You as the end user are required by law (Battery Ordinance) to return all used batteries/rechargeable batteries. Disposing of them in the household waste is prohibited.

Contaminated (rechargeable) batteries are labelled with this symbol to indicate that disposal in the domestic waste is forbidden. The designations for the heavy metals involved are: Cd = Cadmium, Hg = Mercury, Pb = Lead (name on (rechargeable) batteries, e.g. below the trash icon on the left).

Used (rechargeable) batteries can be returned to collection points in your municipality, our stores or wherever (rechargeable) batteries are sold.

You thus fulfil your statutory obligations and contribute to the protection of the environment.

1. Technical data

Operating voltage: 3 V/DC
Current consumption: max. 5 mA
Battery Type: 2 LR44 button cell (item no. 652044)
Operating temperature: 0 to +50 °C
Operating humidity: relative humidity <80 %, non-condensing
Weight: approx. 85 g
Dimensions (L x W x H): 133 x 63 x 22 mm

Relationship between remaining battery voltage and its percentage

Type of battery 0% 100%
1.2V Rechargeable battery 0.90V 1.29V
1.5V Heavy duty	1.14V 1.50V
1.5V Alkaline
3.0V 2.00V 3.00V
6.0V 3.58V 6.00V
9.0V Heavy duty	7.50V 9.00V
9.0V Alkaline
12.0V 6.00V 11.90V
