1. Introduction

Dear customer,

Thank you for purchasing this product.

This product complies with statutory, national and European regulations.

To ensure that the product remains in this state and to guarantee safe operation, always follow the instructions in this manual.

These operating instructions are part of this product. They contain important information on setting up and using the product. Do not give this product to a third party without the operating instructions. Keep these operating instructions in a safe place for future reference.

If there are any technical questions, please contact:

www.conrad.com/contact

2. Explanation of symbols

The symbol with the lightning in a triangle indicates that there is a risk to your health, e.g. due to an electric shock.

The symbol with an exclamation mark in a triangle is used to highlight important information in these operating instructions. Always read this information carefully.

The arrow symbol indicates special information and tips on how to use the product.

This product must only be used in dry, enclosed indoor areas. It must not become damp or wet, as this may cause a fatal electric shock!

This symbol reminds you to read the operating instructions included with the product.

3. Intended use

This product is designed to charge round cell AA, AAA, C and SC batteries. It can charge batteries with different chemical compositions, including NiCd, NiMH, Li-ion and LiFePO4 batteries. The charging current can be set to 500 mA or 1000 mA (normal and quick charging). In addition, mobile devices can be charged using Li-ion or LiFePO4 rechargeable batteries inserted into the charger (power bank function). For Li-ion and LiFePO4 batteries, the charging status is automatically detected (25%, 50%,

75%, 100%). The product features a built-in reverse polarity and short-circuit protection system with overcharge, overdischarge and overvoltage protection. It is operated via a push button. The product comes with a USB-C ^® cable that powers the charger via an external USB power adapter or a computer. The maximum input power is 6 W. This product is intended for indoor use only. Do not use it outdoors. Contact with moisture (e.g. in a bathroom) must be avoided under all circumstances.

For safety and approval purposes, do not rebuild and/or modify this product. Using the product for purposes other than those described above may damage the product. In addition, improper use can cause hazards such as a short circuit, fire or electric shock. Read the instructions carefully and store them in a safe place.

Only make this product available to third parties together with its operating instructions.

All company and product names are trademarks of their respective owners. All rights reserved.

USB Type-C ^® and USB-C ^® are registered trademarks of USB Implementers Forum.

4. Package contents

• Round cell charger
• USB-C ^ cable (approx. 60 cm)
• Operating instructions

Up-to-date operating instructions

To download the latest operating instructions, visit www.conrad.com/downloads or scan the QR code on this page. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

5. Features and functions

• Suitable for 1.2 V NiMH/NiCd batteries, 3.2 V/3.7 V LiFePO4/Li-ion batteries and high-performance batteries
• Power bank function (charges via an inserted rechargeable battery)

6. Safety instructions

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

Read the operating instructions and safety information carefully. If you do not follow the safety information and information on proper handling in these operating instructions, we will assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

Warning symbols for electrical hazard, showing a lightning bolt and an exclamation mark

a) General information

• This device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. It may become a dangerous plaything for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.

• If it is no longer possible to operate the product safely, stop using it and prevent unauthorised use. Safe operation can no longer be guaranteed if the product:

• is visibly damaged,

• is no longer working properly,
• has been stored for extended periods in poor ambient conditions or

• has been subjected to any serious transport-related stress.

• Handle the product carefully. Jolts, impacts or a fall even from a low height may damage the product.

• Consult a technician if you are not sure how to use or connect the product, or if you have concerns about safety.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

• Maintenance, modifications and repairs must be carried out by a technician or a specialist repair centre.
• If you have any questions which are not answered in these operating instructions, contact our technical support service or other technical personnel.

b) Installation location

• The product may only be used in dry, enclosed spaces. The product must not get damp or wet.
• Place the charger on a clean, level surface of a sufficient size.
• Do not place the charger on flammable materials (e.g. a carpet or tablecloth). Always use a non-flammable, heatproof surface. Keep the charge away from flammable or combustible materials (e.g. curtains).
• Do not place any containers filled with liquid (e.g. vases or plants) on or next to the charger. Liquids that come into contact with the interior components may destroy the charger and cause a fire or explosion.
• If liquids get inside the charger, immediately disconnect the charger from the power supply and remove any inserted batteries. Discontinue use and take the charger to a specialist repair centre.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

• Always use suitable protection when placing the charger on valuable furniture, otherwise the charger may cause scratches, pressure points or discolouration.

• Children must only use this charger when supervised by an adult.

- Only use the product in temperate climates. It is not suitable for use in tropical climates. F the "Technical data" section for information on the permitted ambient conditions.

- Never insert other rechargeable batteries or non-rechargeable batteries into the charger. This may cause a fire or explosion!

- Ensure there is sufficient ventilation during t never cover the charger. Leave sufficient distance (at least 20 cm) between the charger and other ob-jects. The charger may cause a fire if it overheats!

- The charger must only be powered with a stabilised 5 V/DC direct current (e.g. using a USB power adapter).

- Never leave the product unattended during use. The charger comes with a range of safety mechanisms to ensure safe use. However, malfunctions may still occur from time to time.

- Never wear metal or conductive objects (e.g. jewellery such as necklaces, bracelets or rings) when handling the charger or rechargeable batteries. This may result in a short circuit, which can cause a fire or explosion.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

• Never place metallic leads and contacts between the rechargeable battery and the charging slot! Insert the batteries directly into the battery charger.
• Only use the product in temperate climates. It is not suitable for use in tropical climates. F the "Technical data" section for information on the permitted ambient conditions.
• Do not use the product in the immediate vicinity of strong magnetic or electromagnetic fields, transmitter aerials or HF generators. These may affect the electronic control system.
• Never use the product immediately after it has been brought from a cold room into a warm one. This may generate condensation, which can cause the product to malfunction or damage the interior components.
• Allow the product to reach room temperature before connecting it and putting it into use. This may take several hours.
• If you do not plan to use the product for an extended period (e.g. storage), disconnect the product from the power supply.

c) Notes on rechargeable batteries

• Keep rechargeable batteries out of the reach of children.
• Do not leave batteries lying around, as they constitute a choking hazard for children and pets. Seek

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

immediate medical advice if a battery is swallowed.

• Rechargeable batteries must never be short-circuited, dismantled or thrown into fire. This may cause an explosion!
• Remove the batteries from the charger at the end of the charging process.
• When handling leaking or damaged batteries, always use suitable protective gloves to avoid burning your skin.
• Liquids that leak from batteries are very corrosive and may cause serious damage to objects or surfaces that come into contact with them. Always store batteries in a suitable location that is not prone to damage.
• Do not attempt to recharge disposable, non-rechargeable batteries. This may cause a fire or explosion! Only recharge compatible batteries that are marked as rechargeable.
  • Always observe the correct polarity (positive/+ and negative/-) when inserting batteries into the charger.
• This product is only compatible with NiMH, NiCd, Li-Ion and LiFePO4 batteries.

d) Connected devices

• Always observe the safety information and operating instructions of any other devices which are connected to the product.

7. Product overview

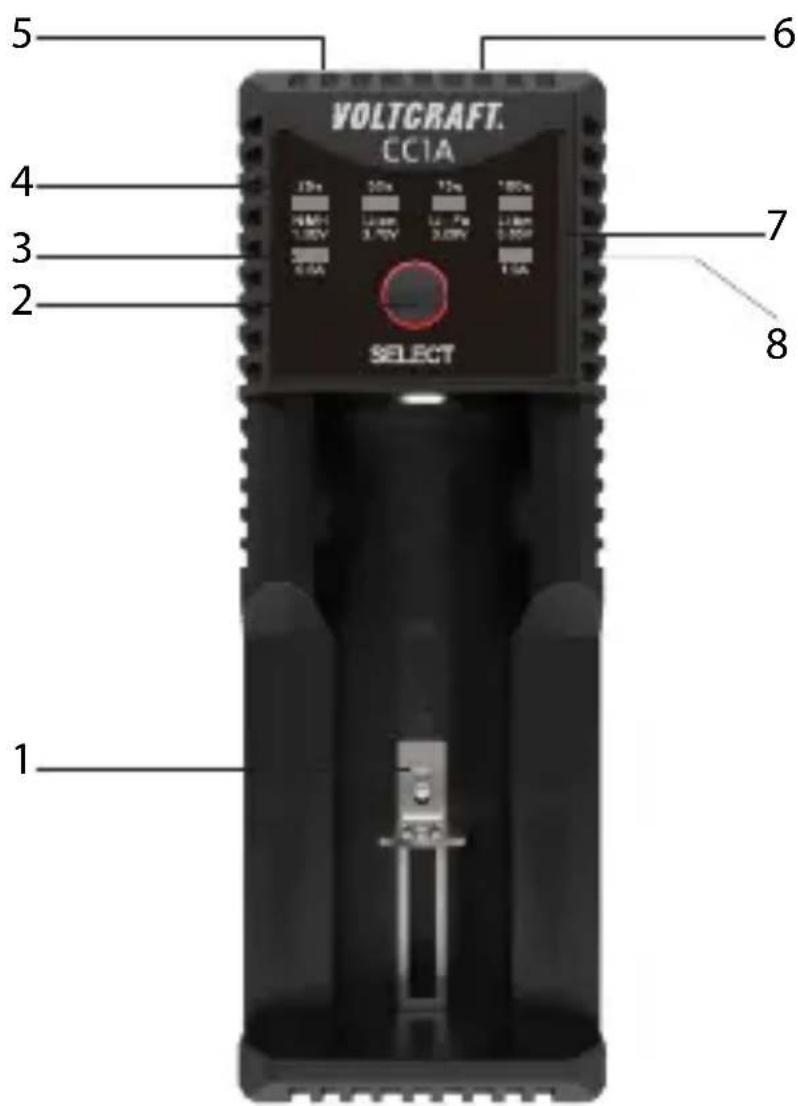

VOLTGRAFT. CCIA SELECT 1 2 3 4 5 6 7 8

1 Battery slot
2 SELECT button
3 0.5 A charging current indicator
4 Battery type LED indicator
5 USB-C ^® port

6 USB-A output (power bank)
7 LED capacity and status
8 1 A charging current indicator

a) Connection

- Use the USB cable to connect the USB-C ^ port (5) on the charger to a USB port (computer, charging hub or charger with a USB voltage of 5 V/DC). The LEDs (4/7) will turn on briefly.

Connect the charger to a USB 3.1 (or above) port. The currents delivered by USB 3.0 and USB 2.0 ports are not sufficient to power the charger. To use the fast charging function, a USB power source with an output current of at least 1 A is required (e.g. USB power adapter).

b) Inserting rechargeable battery / set the battery type

Insert a suitable rechargeable battery into the battery slot (1), ensuring that it is inserted in the correct polarity (see positive/+ and negative/- markings in the battery slot and on the battery).

- By default, NiMH and NiCd rechargeable batteries and 3.7 V Li-ion batteries are automatically charged with a charging current of 500 mA.

- To switch to quick charge mode (with a 1 A charging current), press the SELECT button (2). The 1 A charging current indicator (8) will turn on.

• If you want to charge a 3.85 V/4.4 V battery (from Samsung, Panasonic or LG) or a 3.2 V LiFePO4 battery, you must press the SELECT button (2) within 5 seconds of inserting the battery in order to select the battery type. Press repeatedly until the LED indicator (4) shows the corresponding battery type.
• The charger automatically detects the charging status of all compatible batteries, except for NiMH and NiCD batteries.
• The charging status LEDs flash to indicate the charging process.

After charging is complete, trickle charging is used to keep NiMH and NiCd batteries at maximum capacity when they are inserted in the battery slot.

- Remove the batteries from the charger at the end charging process.

c) Power bank function

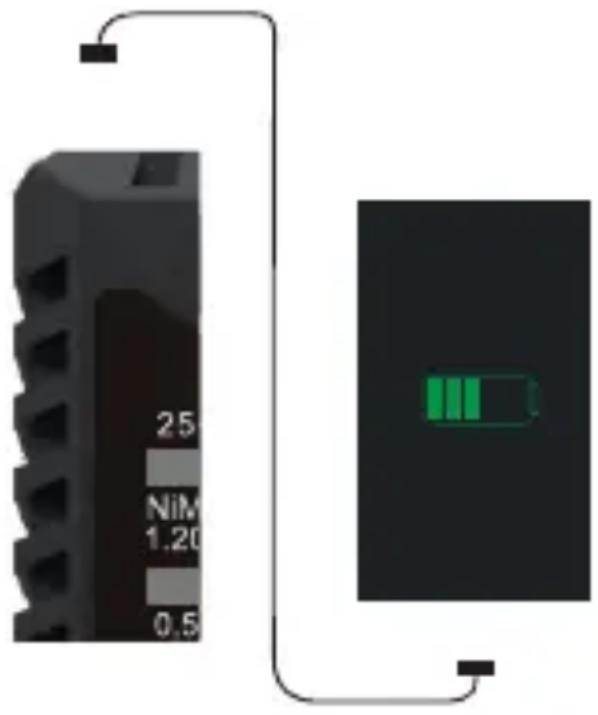

25 NiM 1.20 0.5

• To charge a mobile device, connect it to the charger via the USB cable provided.
• Use the USB cable to connect the USB-A-output (6) to the USB-C® port on the mobile device that you want to charge.
• Insert a fully charged Li-ion battery or LiFePO4 battery into the battery slot (1) to charge your mobile device.

9. Care and cleaning

Never use aggressive detergents, rubbing alcohol or other chemical solutions, as these could damage the housing or stop the product from functioning properly.

• Disconnect the product from the mains before cleaning.
• Use a dry, lint-free cloth to clean the product.

a) Product

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

This symbol must appear on any electrical and electronic equipment placed on the EU market. This symbol indicates that this device should not be disposed of as unsorted municipal waste at the end of its service life.

Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose of it separately from unsorted municipal waste. Spent batteries and accumulators, which are not enclosed by the WEEE, as well as lamps that can be removed from the WEEE in a non-destructive manner, must be removed by end users from the WEEE in a non-destructive manner before it is handed over to a collection point.

Distributors of electrical and electronic equipment are legally obliged to provide free take-back of waste. Conrad provides the following return options free of charge (more details on our website):

in our Conrad offices
at the Conrad collection points

at the collection points of public waste management authorities or the collection points set up by manufacturers or distributors within the meaning of the ElektroG

End users are responsible for deleting personal data from the WEEE to be disposed of.

It should be noted that different obligations about the return or recycling of WEEE may apply in countries outside of Germany.

b) (Rechargeable) batteries

Remove batteries/rechargeable batteries, if any, and dispose of them separately from the product. According to the Battery Directive, end users are legally obliged to return all spent batteries/rechargeable batteries; they must not be disposed of in the normal household waste.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Batteries/rechargeable batteries containing hazardous substances are labelled with this symbol to indicate that disposal in household waste is forbidden. The abbreviations for heavy metals in batteries are: Cd = Cadmium, Hg = Mercury, Pb = Lead (name on (rechargeable) batteries, e.g. below the trash icon on the left).

Used (rechargeable) batteries can be returned to collection points in your municipality, our stores or wherever (rechargeable) batteries are sold. You thus fulfil your statutory obligations and contribute to environmental protection.

Batteries/rechargeable batteries that are disposed of should be protected against short circuit and their exposed terminals should be covered completely with insulating tape before disposal. Even empty batteries/rechargeable batteries can contain residual energy that may cause them to swell, burst, catch fire or explode in the event of a short circuit.

11. Technical data

Input voltage/current.....5 V/DC, max. 1 A

Output values 4.2 V 1000 mA/500 mA,

3.65 V 1000 mA/500 mA,

1.48 V 1000 mA/500 mA (normal for quick charging)

Battery length ......Max. 71 mm

USB output .... 5 V/1 A (Powerbank function only available with Li-ion or LiFePO4 batteries)

Maximum charging voltages... 1.2 V Ni-MH/Cd: 1.53 V ±0.05 V

3.2 V Li-FePO4: 3.65 V ±0.05 V

3.7 V Li-ion: 4.20 V ±0.05 V

3.85 V Li-ion: 4.35 V ±0.05 V

Compatible rechargeable

batteries	1.2 V NiMH/NiCd, 3.2 V/ 3.7 VLiFePO4/Li-Ion
	3.85 V high-performance rechargeable batteries
	(26650, 26500, 22650, 21700, 18650, 17670, 17335, 17500, 16340(RCR123A), 14500, 10340)

Size..... AA, AAA, C, SC

Protection features ......Reverse polarity and short circuit protection, overload, overdischarge and overvoltage protection

Operating conditions.... 0 to +40 °C, ≤85 % relative humidity (non-condensing)

Storage conditions...... -20 to +80 °C,≤85 % relative humidity (non-condensing)

Dimensions (L x W x H).....120 x 43 x 29.5 mm

Weight

52 g (without cable)

Page

France (email) : [e-mail]

QR code image containing encoded data, no visible human-readable text

Two warning symbols: a lightning bolt and an exclamation mark inside a triangle

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

VOLTCRAFT. CC1A SELECT 1 2 3 4 5 6 7 8

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

(26650, 26500, 22650, 21700,

18650, 17670, 17335, 17500,

16340(RCR123A), 14500, 10340)

Taille ...... AA/Mignon, AAA/Micro, C, SC

QR code image containing encoded data, no visible human-readable text

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark symbol.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

Warning symbols for electrical hazard, showing a lightning bolt and an exclamation mark

b) Plaatsing

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

Two warning symbols: a lightning bolt and an exclamation mark, commonly used in safety or hazard prevention contexts.

26500, 22650, 21700, 18650,

17670, 17335, 17500,

16340(RCR123A), 14500, 10340)

Accuformaat .... AA/mignon, AAA/micro, C, SC

Copyright 2024 by Conrad Electronic SE.

This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).

All rights including translation reserved. Reproduction by e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.

Copyright 2024 by Conrad Electronic SE.

Copyright 2024 by Conrad Electronic SE.

Copyright 2024 by Conrad Electronic SE.
