Product type	Infrared ear and forehead thermometer
Brand	Tefal
Model	Disney TD1400
Power supply	1 CR2032 3V lithium battery
Battery life	Approximately 5000 measurements
Measuring range	20°C to 42.2°C
Accuracy	±0.2°C for 32°C-42°C, ±0.3°C elsewhere
Display resolution	0.1°C
Memory	Last 10 measurements
Main functions	Ear and forehead measurement, power on/off, mode selection, memory, auto off (60s)
Dimensions (approx.)	15 × 4 × 3 cm
Weight (approx.)	60 g
Care and cleaning	Clean the body with a soft cloth, the probe and lens with a cotton swab moistened with alcohol. Do not immerse in water.
Safety	Avoid shocks and falls. Do not expose to heat, dust, moisture. Keep out of reach of children. Do not use in case of otitis.
Spare parts and repairability	CR2032 battery available commercially or from Tefal approved service centers. Protective cap.
General information	CE 0120 compliant, European Directive 93/42 (Medical Devices). Made in China by Hubdic CNS. Imported and distributed by TEFAL SAS.

Frequently Asked Questions - Disney TD1400 TEFAL

How to use the thermometer in ear mode?

Remove the protective cap. Hold down the power button until the display appears, then the device automatically switches to ear mode. Pull the ear up and back, insert the probe, press the measurement button. Wait for the confirmation beep before removing the thermometer.

How to take forehead temperature?

Remove the cap. Turn on the device, then press the mode selection button to switch to forehead mode. Place the probe in the middle of the forehead, press the measurement button, slide slowly to the temple. Release the button and wait for the beep.

What does 'Err' display mean?

The 'Err' display indicates that the measured temperature is outside the possible range. Place the thermometer in a room between 16°C and 35°C for at least 30 minutes before taking another measurement.

How to clean the thermometer lens?

Clean the lens with a cotton swab lightly moistened with alcohol. Do not use abrasive products and do not touch the lens with fingers.

Which battery to use and how to replace it?

Use a 3V lithium battery type CR2032. Open the battery compartment, remove the old battery, insert the new one with the + pole facing up, then close. Wait 30 minutes before using the device.

How to view temperature memory?

The device must be off. Hold down the measurement button until 'MEMORY' appears. Briefly press repeatedly to browse the 10 memories. The ear or forehead mode is indicated.

How to delete all memory?

Go into memory reading mode, then press and hold the button until 'MEMORY DEL' appears. The device turns off and memories are deleted.

The thermometer displays 'Hi' or 'Lo', what to do?

'Hi' means the temperature is above the range (higher than 42.2°C), 'Lo' means below (lower than 20°C). Repeat the temperature reading under normal conditions.

What precautions to take before a measurement?

Wait 30 minutes after changing rooms, physical activity, a bath, or a meal. Make sure the lens is clean and the ear is not obstructed by earwax. In case of otitis, do not use the thermometer.

How to turn off the thermometer?

Press and hold the power button until 'OFF' appears. The device also turns off automatically after 60 seconds of inactivity.

USER MANUAL Disney TD1400 TEFAL

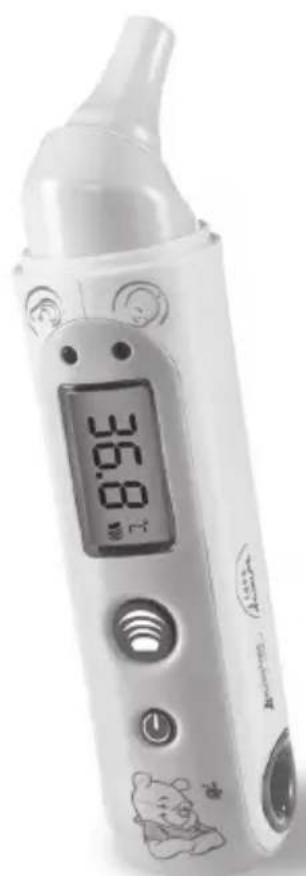

THERMOMÈTRE AURICULAIRE ET FRONTAL Ear and forehead thermometer

Black-and-white photo of a baby holding a baby's hand, with a teddy bear illustration in the background (no text or symbols)

fig. 2fig. 1

fig. 3

fig. 5 fig. 6 fig. 4

Illustration of a baby receiving a medical procedure with a hand using a tool (no text or symbols present)

Illustration of a baby receiving a medical procedure with a needle inserted (no text or symbols)

fig. 8fig. 7

Description

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Hergestellt in China von Hubdic CNS – Made in China by Hubdic CNS

Prodotto in Cina da Hubdic CNS – Made in China by Hubdic CNS

Importato e distribuito da TEFAL SAS – Imported and distributed by TEFAL SAS

Symbol of a trash bin with no visible text or numbers

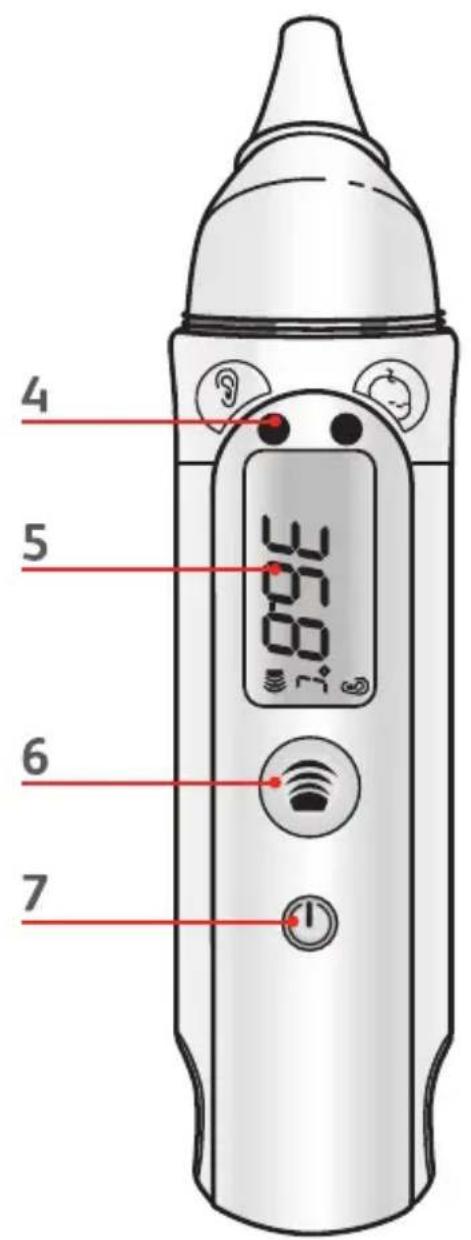

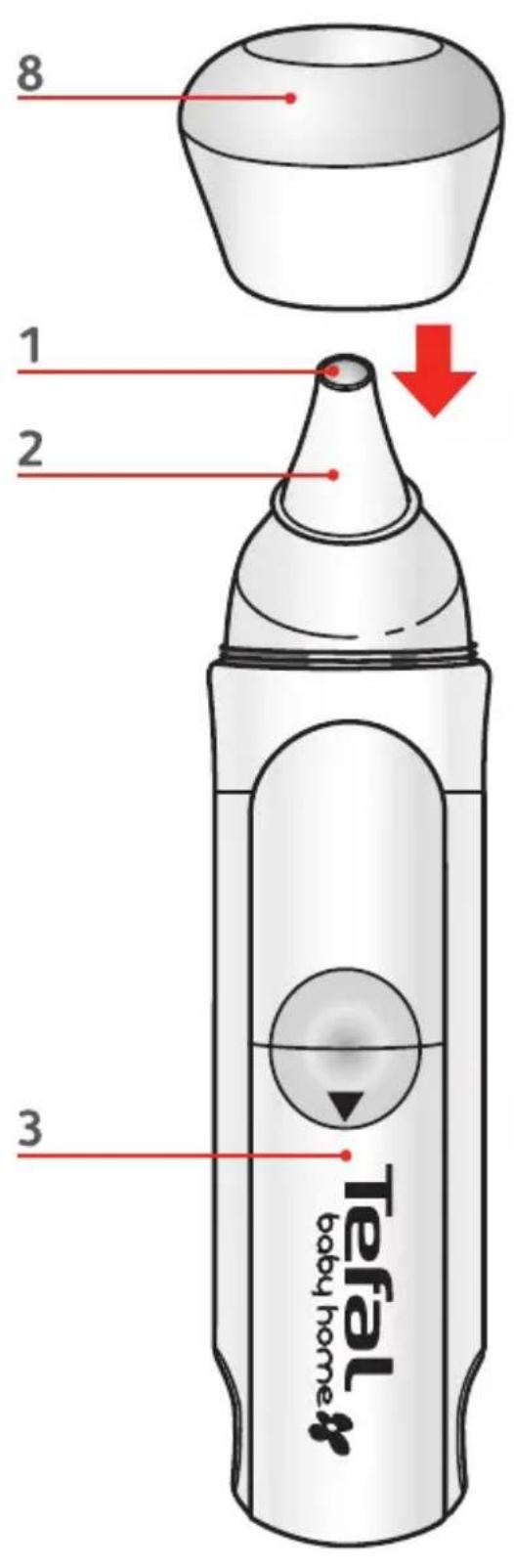

1 – Lens
2 - Probe
3 – Battery compartment
4 – Luminous diodes to show temperature mode : ear or forehead
5 – Screen
6 - Take temperature and memory function button
7 – On/Off and Ear or forehead temperature Mode button

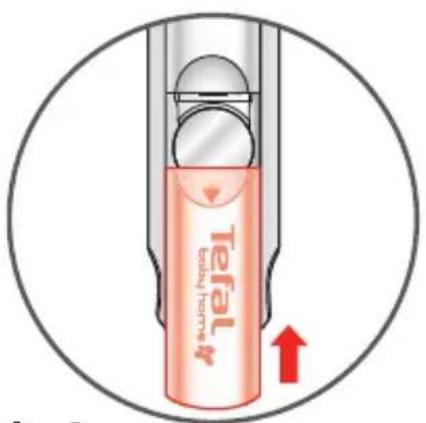

8 – Protection/vertical storage cap.

Precautions for use

This ear and forehead thermometer receives the infra-red rays emitted by the skin's surface and in the ear drum area. It allows you to check your child's temperature easily. This is how to use the appliance:

- The TEFAL thermometer is exclusively dedicated to take ear or forehead temperatures. We would like to re-iterate that this appliance does not replace the advice of a doctor. In case of doubt or fever, contact your doctor. TEFAL cannot be held responsible for poor interpretation of results

The simple take of temperature cannot be considered as a medical advice, DO NOT modify the proportion of any drugs prescribed by your doctor without seeking medical advice first.

- To ensure the reading is accurate, the probe and the lens must be absolutely clean.

- Do not use the thermometer if it has been dropped or shows any signs of damage

- Always place the protection cap back after use.

- In cases of movement from one room to another, wait for half an hour minimum before using the appliance.

- Wait for half an hour after physical training, bathing or eating before measuring temperature.

- Keep the thermometer out of reach of children.

- Do not expose the thermometer: - To any warm sources (radiator, sun rays, ...) - To dust or humidity.

- Never immerse the thermometer in liquid.

- Do not touch the lens with your fingers.

BODY TEMPERATURE: the normal human body temperature varies during the day. It is measured along a scale of values defined according to the part of the body where the temperature is taken:

- Rectal measurement: 36,6^ - 37,8^

– Axillary measurement (under the arm): 34,7^-37,3^

- Oral measurement (in the mouth) or forehead: 35,5^ - 37,5^

– Ear measurement: 35,8° – 37,8°C

Warning, this appliance is not suitable for detecting hypothermia.

Average temperatures

Forehead Ear temperature temp	Rectal Oral Axillary temperature temperature temperature	temperature
36,1°C 36,4°C	37,0°C 36,6°C 36,1°C

Technical specifications

Measurement range 20°C / 42,2°C
Screen resolution 0,1°C
Precision from 32°C to 42°C: +/- 0,2°C	< 32°C and > 42°C: +/- 0,3°C
Operation conditions – +16°C / +35°Croom temperature Relative humidity less than 85%
Storage conditions – 20°C / +80°C	Relative humidity less than 95%
Energy source 1 lithium battery 3V type CR2032Service life : approximately 5000 measures

In compliance with the European directive 93/42 (Medical appliances) and EN 12470-5 (medical thermometer).

CE 0120 marking.

Comments: these technical specifications may be subject to modifications to improve the appliance, without prior warning.

Made in China by Hubdic CNS

Imported and distributed by TEFAL SAS

Italia - EC Representative : Bremed Italia S.r.l. Via Alviano 4/1 Gorizia – Italia

TEFAL SAS BP 89 74156 RUMILLY Cedex FRANCE

Before first use

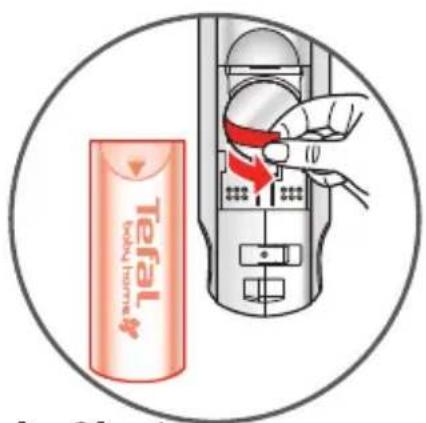

Installing the battery

The appliance is delivered with a lithium battery 3V (CR2032) already in place.

At the first use, open the battery cover then remove the strip which ensures the protection of the battery (fig. 1/fig. 2). Replace the cover (fig. 3).

Functionning

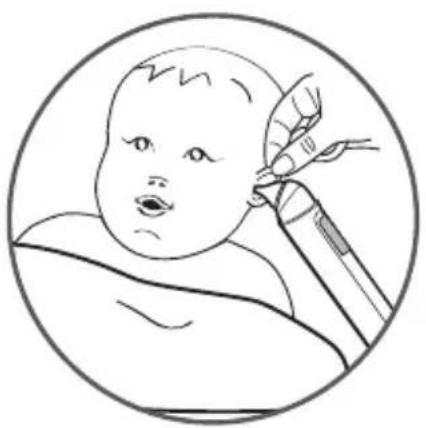

Ear measurement

• Remove the protection cap.

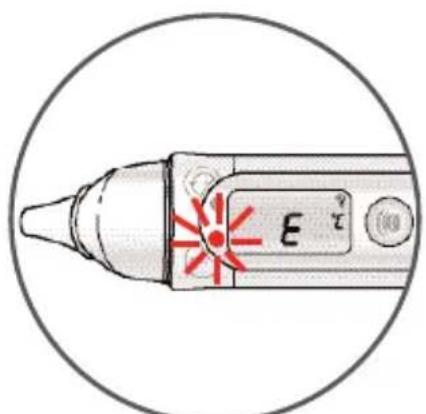

• To switch on press and hold the button ⏻ until the indications in fig. 4 are displayed in the screen the appliance automatically displays the Ear mode. The screen shows the corresponding function fig. 5 and the luminous diode corresponding to the symbol ⏱ blink 5 times.
• Gently pull the ear upwards and backwards to straighten the ear canal. Insert the thermometer into the ear canal fig. 6.

- While continuing to hold the ear, press indicates ____.

During the taking of temperature, the screen

• Wait for the validation sound beep before releasing the button and removing the thermometer.
• Read the temperature on the screen.
• The temperature is automatically recorded.

Notice:

• For optimal precision, the ear should not be obstructed by wax or a plug.
• Do not use this thermometer with an ear infection (otitis). Moreover, if your child has had several ear infections, the measurement will be less accurate.

As for all thermometers, slight variations in temperature may be displayed one after another: it is therefore recommended to take several readings (removing the thermometer from the ear between each reading) and take the highest reading into account.

Forehead measurement

• Remove the protection cap.
• To switch on press and maintain the button ⏻ until the indications in fig. 4 are displayed in the screen the appliance comes automatically displays the Ear mode.

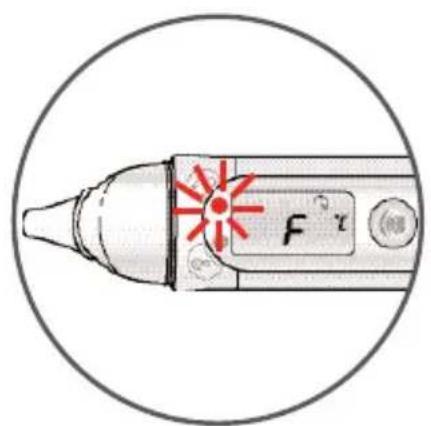

• Press the button ⏻ to select the forehead mode. The screen shows the corresponding function fig. 7 and the luminous diode corresponding to the symbol ⚙ blink 5 times.

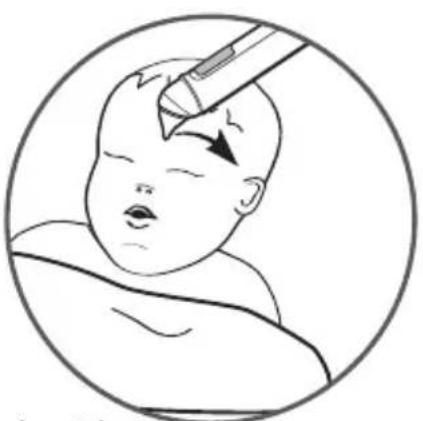

• Place the probe in the middle of the forehead. Press the button Slowly slide the probe on the skin to the temple fig. 8.
• While taking the temperature, the screen indicates - - - and audible bips sound.
• As soon as the probe is placed on the area of the temple, release the button 📤, wait for the validation sound beep before removing the thermometer.
• Read the temperature on the screen.
• The temperature is automatically recorded.

Notice:

This temperature reading must be considered as an estimation.

The temperature reading of the forehead can be influence by environmental conditions because the probe is more sensitive to perspiration, sebum, physical activity and environmental temperature.

It is recommended that you wipe the forehead before taking a reading. In case of important differences or if in any doubt, the ear measurement must be pointed out. We remind you that there is a significant difference between an ear temperature reading and a forehead temperature reading.

Switching off

To switch the appliance off:

Press the button ⏻ until the screen displays OFF.

Or the appliance switches off automatically after 60 seconds.

Memory function

This thermometer has a memory for 10 readings.

After each reading, the temperature is automatically recorded in the first empty memory.

If all the memory space is used, the first memory is automatically deleted and replaced by the new reading and so on.

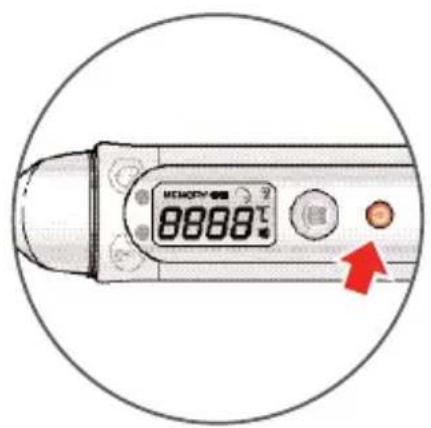

To read the memorised temperatures: The product must be switched off.

- Press the button 📤 until MEMORY appears on the screen. The information appears on the screen alternately.

example :

- To read all of the 10 temperature readings in the memory, press briefly and successively (a) the different temperatures are displayed one after another as the ear or forehead mode in which they have been taken.

- To exit the memory mode, press the button ⏻ or wait for the thermometer to switch off automatically.

To delete the memorised temperatures:

- Enter in memory mode.

- Press until MEMORY appears. The thermometer switches off automatically.

Specific messages

The ear and forehead thermometer has been designed to give precise information.

If the following messages appear on the screen, refer to the table below and follow the instructions :

	Battery energy is low.	Change the battery.
	The battery is dead.	Change the battery. If the screen remains white, contact a TEFAL after sales service center.
HI	The temperature reading exceeds the range of possible temperatures.	Take the temperature reading again.
Lo	The temperature reading is below the range of possible temperatures.	Take the temperature reading again.
Err	The temperature reading is out the range of possible temperatures.	Place the thermometer in a room where the temperature is between 16°C and 35°C and wait at least 30 minutes before taking the temperature again.

Battery change

The battery is available in the stores or in our TEFAL service centers.

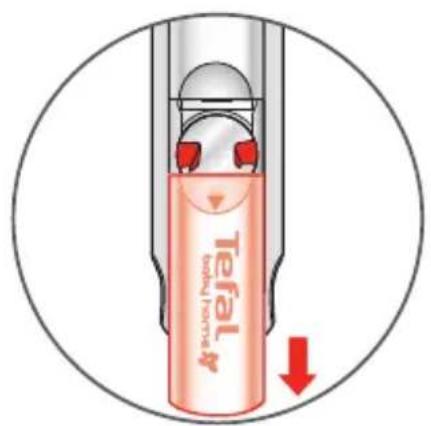

Open the battery compartment and place a new button lithium battery CR2032 3 volts polarity + on the top. Replace the cover.

Keep the battery out of reach of children.

IMPORTANT: When installing a new battery, always wait half an hour before using the appliance.

Never throw used battery into the dustbin: consider them as chemical residue.

Cleaning

• Clean the body of the thermometer using a soft cloth.
• The probe can be cleaned with cotton soaked in disinfectant.
• The lens can be cleaned with cotton gently soaked in disinfectant.

Warning:

• Do not immerse in water or in any other liquid.
• Do not use any abrasive products.

Environment protection first!

• Your appliance contains valuable materials which can be recovered or recycled.
• Leave it at a local civic waste collection point.

Descripción

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or numbers present)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or numbers present)

Symbol of a trash bin with no text or numbers present

Proizvedeno u Kini od strane Hubdic CNS – Made in China by Hubdic CNS

Uvozi i distribuira TEFAL SAS – Imported and distributed by TEFAL SAS

Zastupnik za JIE: Bremed Italia S.r.l. Via Alviano 4/1 Gorizia – Italija

Zastupnik za EC: Bremed Italia S.r.l. Via Alviano 4/1 Gorizia – Italija

TEFAL SAS BP 89 74156 RUMILLY Cedex FRANCUSKA

Prije prve uporabe

Postavljanje baterije na mjesto

Ovaj uređaj snabdjeven je već umetnutom baterijom od litija 3V (CR2032).

Kod prve uporabe otvorite poklopac za baterije a potom izvucite plastični jezičak kojim se osigurava zaštita baterije (fig. 1/fig. 2). Vratite poklopac na mjesto (fig. 3).

Funkcioniranje

Ušno mjerenje

• Skinite zaštitni poklopac.
• Kod stavljanja u rad, pritisnite i držite potisnut gumb 📄dok se na zaslonu ne pojave oznake (fig. 4) a potom se uređaj automatski prebacuje na ušni režim. Prikaz pokazuje odgovarajuću funkciju (fig. 5), a svjetlosna dioda koja odgovara simbolu

- Lagano povucite uho prema gore i unatrag da biste ispravili slušni kanal. Uvedite toplomjer u njega (fig. 6).
