USER MANUAL FY3009U1 PANASONIC
Trouble shooting..................................................................................12 Specifications .......................................................................................13 Please read these installation and operating instructions carefully before attempting to install, operate or service the Panasonic product. Please carefully read the “Installation cautions” (P.2
3) of this installation and operating instructions before

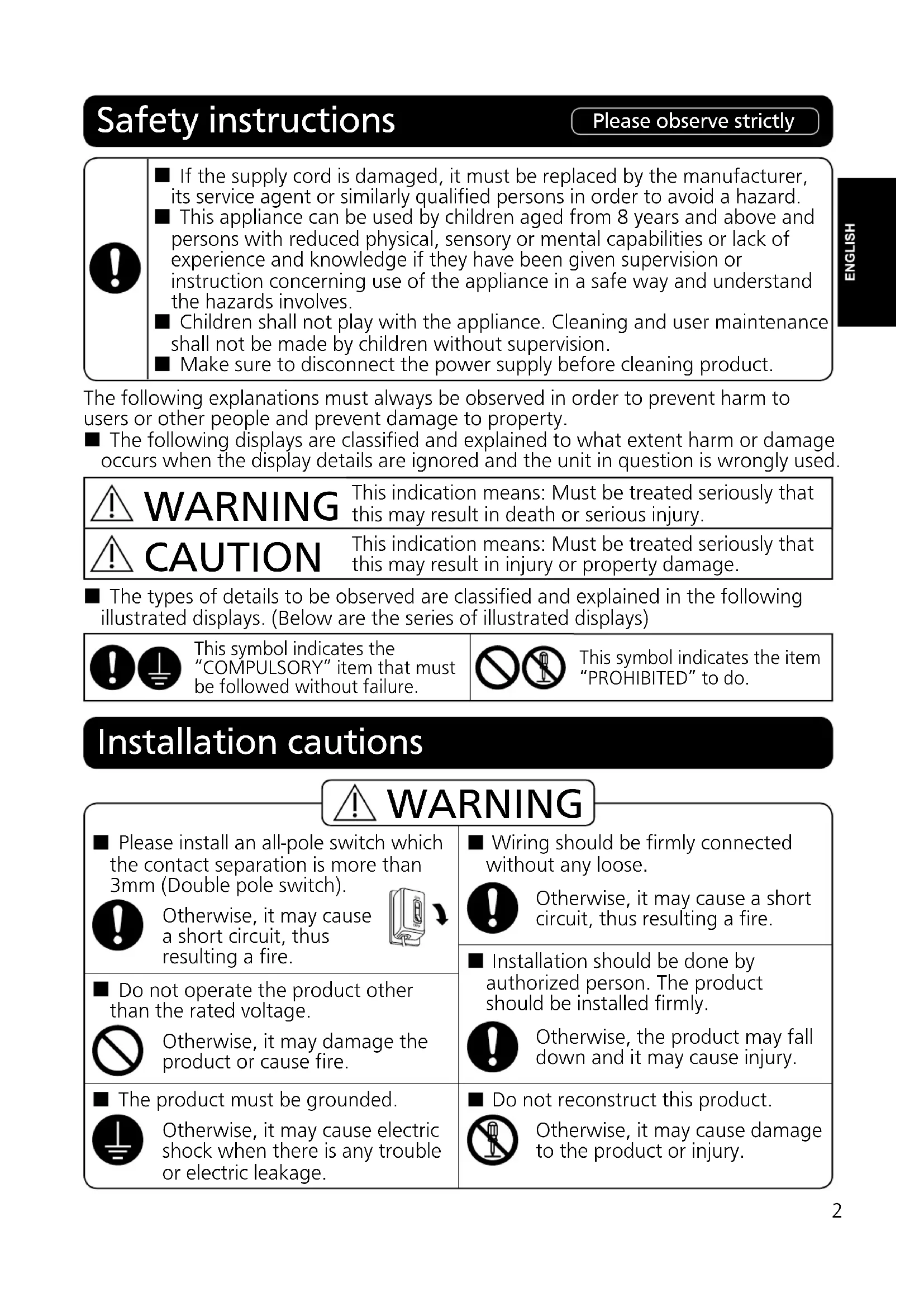

installation. Failure to comply with installation and operating instructions could result in personal injury or property damage. Please explain to users how to operate and maintain the product after installation, and this booklet should be presented to users. Please retain this booklet for future reference. 1If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involves. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Make sure to disconnect the power supply before cleaning product. The following explanations must always be observed in order to prevent harm to users or other people and prevent damage to property. The following displays are classified and explained to what extent harm or damage occurs when the display details are ignored and the unit in question is wrongly used. WARNING This indication means: Must be treated seriously that this may result in death or serious injury. CAUTION This indication means: Must be treated seriously that this may result in injury or property damage. The types of details to be observed are classified and explained in the following illustrated displays. (Below are the series of illustrated displays) This symbol indicates the “COMPULSORY” item that must be followed without failure. This symbol indicates the item “PROHIBITED” to do. Safety instructions Please observe strictly Installation cautions Please install an all-pole switch which the contact separation is more than 3mm (Double pole switch). Otherwise, it may cause a short circuit, thus resulting a fire. Do not operate the product other than the rated voltage. Otherwise, it may damage the product or cause fire. The product must be grounded. Otherwise, it may cause electric shock when there is any trouble or electric leakage. Wiring should be firmly connected without any loose. Otherwise, it may cause a short circuit, thus resulting a fire. Installation should be done by authorized person. The product should be installed firmly. Otherwise, the product may fall down and it may cause injury. Do not reconstruct this product. Otherwise, it may cause damage to the product or injury. WARNING 2Installation cautions Product must be installed by 2 persons. Otherwise, the product may fall down and it may cause injury. The special-purpose or dedicated parts, such as mounting fixtures, must be used if such parts are provided. Otherwise, the product may fall down and it may cause injury. The product must be mounted on a building which is strong enough. To ensure it can bear over 5 times of product weight. The building must be reinforced if its strength can not be ensured. Otherwise, the product may fall down and it may cause injury. Please wear the gloves when installing the product. Otherwise, it may cause damage. CAUTION The product must be installed tightly. Components must be installed tightly. Otherwise, it may injury person caused by product’s falling off. Do not install the product as the method which is not approved in the installation and operating instructions. Otherwise, the product any fall down and it may cause injury. It’s prohibited to install the product in locations such as machinery, chemical plants or research facilities where it will be exposed to noxious gases containing acids, alkali, organic solvents, paint fumes, etc., to gases contaning corrosive ingredients. It could cause gas poisoning, corrosion and degradation of product that results in a fire. WARNING It’s prohibited to install in the following locations. Do not install the product where there is steam. Location with combustible gas or emission of exhaust gas. Do not install the product out of the window and wall. Indoor Outdoor Otherwise, it may cause a short circuit, thus resulting in a fire. Otherwise, it may cause a short circuit, thus resulting in a fire. Otherwise, the product may get wet in the rain and cause a short circuit. 3The following attachments are enclosed in the packing box of product. Be sure to check if they are complete after unpacking, and if anything is missed, contact our After-Sales Service Centre or the dealer. No. Drawing Name Quantity No. Drawing Name Quantity Washer 6 Bolt M8×60L 6 Spring washer
Installation and operating instructions
Front view Back view Power supply cord 6 holes (M8 bolts are used) 8 holes ( 8mm wooden screws are used) Right view Direction
Air outlet Model No. A B FY-3009U1 900 50 FY-3012U1 1200 200 FY-3015U1 1500 350 No. Part name Classification No. Part name Classification Front panel Resin ABS Motor support Steel SGCC Air outlet Resin ABS Cross-flow impeller Steel plate + ResinAS + Glass fiber Mounting plate Steel SGCC Back panel Steel SGCC Push–button switch Assembly part Motor Assembly part Guide plate Resin ABS Notice Please refer to the table above to recycle the materials as much as possible when discarding this product. Parts name and dimensions Supplied accessories 4Requirement of installation The applicable ambient temperature of this product is in the range of -10°C
40°C. Do not install the product where it is exposed to oil fumes. It’s prohibited to install in the uneven surface. (Flatness shall be 3mm below.) Distortion results in reducing the separation performance. Locations where freezing could happen. Otherwise, it may damage the product or cause fire. Do not install the product in the place with many dust. Impeller deformation may be caused by sand and dust piling up, which may affect the performance. Please observe the following requirement. Otherwise, it may cause the product aging and breakdown. The lowest surface of this product should be installed above 2.3m from the floor after installation. Avoiding any accident. Please install the product horizontally, don’t vertically install the product. It could affect the performance of bearing. The distance between product and ceiling must be 50mm above. The ceiling is excessively close to air inlet that may reduce the separation performance. Ensure the space among products is
40mm when multiple products operate in row.
40mm Easy for installation. Please block the clearance between wall and product. Prevent product from sucking in outdoor air from clearances. 2.3m above 50mm above 5How to install
1. Fix the mounting plate
Mounting on concrete wall. 1. Remove mounting plate from product. Taking the mounting plate by removing the 3 screws.2. Firmly fix the bolts in the proper position.· Determine the position on the wall and drill into the wall.· Fit the bolts into the holes.· Fill the holes with concrete.· Install the mounting plate and check if it’s secured when the concrete solidifies. Notice Distance of bolt head away from wall should be 13 15mm.3. Fix the mounting plate with washers, spring washers and nuts. 2.Preparation before wiring Carry out this step if the distance between top face of product and ceiling is less than 150mm. Pre-hang up the product into the bottom holes of mounting plate. 150mm above Bottom holesMountingPlateScrewConcrete Bolt M8×60L13-15mmAbout 70mmDiameter: 40-50mmWasher Wall Nut Spring washerMounting plate Please use the mounting plate provided with product to avoid the dropping caused by insufficient strength. CAUTION Other installation methods M8 bolt15mm below100mm abovePartition plate (not supply) is installed at four sides.Ceiling350mm aboveWoodenscrew ( 8×60L)Mounting on steelhanger Notice 1. It’s prohibited to install the product on hollow wall, otherwise it may produce noises.2. Conduct the necessary reinforcement, depending on the particular condition to avoid noise resonance and vibration.1. The inside space of ceiling should exceeding the dimensions as indicated above to ensure the space of air inlet, please select the larger model if space of air inlet can’t be reserved.2. Don’t place the substances near the air inlet or outlet grille (include the grille). It could affect the performance.Mounting on woodenframeMounting inside the ceiling 6How to install
Wiring is required to follow the local wiring regulations. Otherwise, it may cause fire. Please select 60227 IEC 53 ordinary polyvinyl chloride sheathed cord. Nominal cross-sectional area of conductors is 3×1.0mm
Otherwise, it may cause fire. The product is not provided with Double pole switch and leakage protection switch. Please purchase them in market. It is required to use terminal (not supply) that complies IEC 60998 and wiring box (not supply) that complies local regulation. Wiring should be firmly connected without any loose. WARNING Wiring box (not supply) Neutral (N) Live (L) Brown (L) Blue (N) Power cord of the product Green/Yellow (Earth) Terminal block (not supply) Earth wire Power supply cord Lead wire from source Air curtain Power cord of the product Connect the power cord (included earth) of product to lead wire in accordance with the wiring diagram. Make sure all connections are fastened firmly after finishing wiring.
4. Installation of product
1. Remove the product from the bottom holes.
2. Fixing the product.
Align the groove of back panel with both sides of mounting plate. Fit the hooks into the top holes of mounting plate. Groove Mounting plate Back panel
3. Fasten the screws. (3 places)
Notice The torque is suggested to be 1.2N·m. Bottom holes Top holes 7Multiple products operate in group Please purchase necessary parts following with local electrical requirements, except the power supply cord. Power supply cord Please select the switch of whose capacity has 1.2
1.5 times total current,
when multiple products operate. Earth leakage breaker protector should be equipped, otherwise it may cause an electrical shock. The number of interlocking operation is not more than 6. WARNING Wiring diagram Motor Red OrangeBlack BlackGreen/Yellow Blue BrownDouble Pole SwitchCustomer Provide(Contact Point Separate Distance Over 3mm)SwitchWhiteWhite(H)Yellow(L) Yellow Operation of Control panel
Operation methods Representative model
Select the mode of operation Press “HI” or “LO” button to start the product as shown in left figure.Press “HI” button if high air velocity is required.Press “LO” button if quiet and low velocity is required.Capacitor 8Guide vane in air outlet can be adjusted according to service environment to reach the ideal separation performance.
While strong wind in outdoor Air outlet Guide vane Strong wind in outdoor
While light wind in outdoor Air outlet Guide vane Light wind in outdoor
Stop operating Notice The product is in stand-by mode after pressing the “OFF”, it’s still connected to the power. Press “OFF” button to stop the product.
2. Room is air tight
(no opening) 9Routine maintenance Make sure to disconnect power supply before cleaning product. Otherwise, the product might operate with the possibility of electric shock or injury. Please contact entrusted distributor where you purchased or qualified persons to service the product. Otherwise, it may damage the product or cause fire. It’s prohibited to insert fingers or sticks into the product, air inlet or outlet. Impeller at high speed rotation may cause injuries. Do not let water flow into the motor. Otherwise, it may damage the product or cause fire. If you will not use this product any more, remove the product. Otherwise, the product may fall down and it may cause injury. Once flammable gas leaks, do not start any function of this product. Otherwise, it may generate sparkle and this leads to explosion. Don’t turn on or off the power with wet hands. It may cause a electrical shock. Immediately stop to wait for repair if abnormities happen (noise, vibration, smell). It may cause the unexpected accidents. It’s prohibited to place the burning appliances in a position where product directly blows. It may result in carbon monoxide poisoning caused by incomplete combustion. WARNING 2 persons are required to conduct the maintenance. Otherwise, the product may fall down and it may cause injury. It’s forbidden to hang anything on the product. Product may drop due to the increased weight. Please wear the gloves when cleaning the product. Otherwise, it may cause damage. Do not directly spray this product with water and other liquids. Otherwise, it may cause short circuit or electric shock. CAUTION 10Routine maintenance Eyes should not be faced to the air outlet (specially when the product stars up). The blowing substance could damage your eyes. Please don’t place the substances near to the air outlet or inlet grille. It may result in personal injuries due to blowing out or sucking in. The strong air from air curtain may cause the sand and dust. It may result in personal injuries. Never use petrol, benzene, thinner or any other such chemicals for cleaning the product. Metallic brush Otherwise, dropping caused by corrosion of product, which may result in personal injuries. CAUTION Notice Make sure to disconnect power supply before cleaning product. Disassembly of part This part can be easily taken out by removal of 7 screws as indicated in the right figure. 11Trouble shooting Check according to the following table and take measures. If the product still does not work normally, disconnect the power and contact After-Sale Service Centre or the dealer. Condition 1st Possible reason 2nd Possible reason 3rd Possible reason Primary Period Can’t operate. Check the voltage. Wiring is not correct. ( P7) With large noise or significant vibration. Installed not properly. ( P6 P7) Poor separation performance. Not suitable model. Guide vane is not in proper position. ( P9) Product is installed vertically. During operation Can’t operate. Wiring is not fixed. Double pole switch became off. Poor separation performance. Air inlet grille is blocked. With large noise or significant vibration. Dust piles up in impeller. Any other substances fell into the product. Motor runs abnormally. 12Voltage: 1 phase 220V Frequency: 50Hz Model Outlet Velocity m/s Power Consumption
1. The parameters as shown in above table are measured at ambient temperature of 20°C.
2. The noise value is measured 1.5m away from the product at angle of 45° below the air outlet.
3. Because the above-mentioned velocity is measured in test laboratory where it’s empty, without air flow and
obstacle, after actual installation the velocity may vary depending on different service environment.
