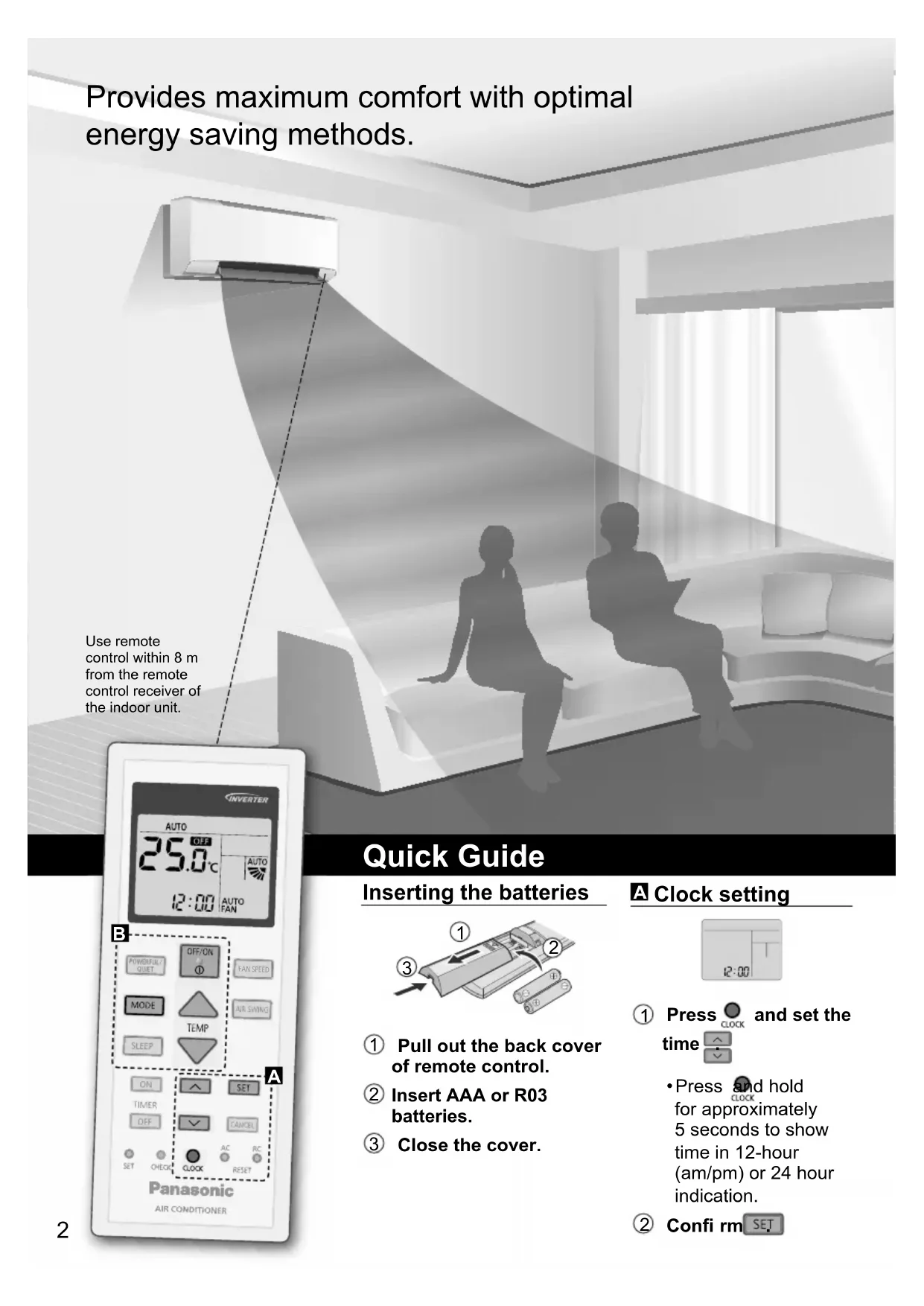

Pull out the back cover of remote control.

Press and set the time .

• Press and hold for approximately 5 seconds to show time in 12-hour (am/pm) or 24 hour indication.

English Table of contents Safety precautions

Cleaning instructions

• Remote control holder

• Screws for remote control holder × 2 The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

Press to start/ stop the operation. POWER

• Please note that the indication is on display to start the unit.

Select the desired temperature.

• Press and hold for approximately 10 seconds to switch the temperature indication in °C or °F. Thank you for purchasing Panasonic Air Conditioner.4 Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classifi ed as below: This appliances is not intended for accessibility by the general public. WARNING This sign warns of death or serious injury. CAUTION This sign warns of injury or damage to property. The instructions to be followed are classifi ed by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote actions COMPULSORY. WARNING Indoor unit and outdoor unit This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fi re. Confi rm with authorised dealer or specialist on usage of any specifi ed refrigerant type. Using refrigerant type other than the specifi ed may cause product damage, burst and injury etc. Do not use means to accelerate the defrosting process or to clean, other than those recommended by manufacturer. Any unfi t method or using incompatible material may cause product damage, burst and serious injury. Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re. Indoor unitOutdoor unitPower supplyRemote control Air inlet Air inlet Air inlet Air inlet Air outlet Air outlet Air outlet Air outlet5 EnglishSafety precautions Do not insert your fi ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Do not expose yourself directly to cold air for a long period to avoid excess cooling. Do not sit or step on the unit, you may fall down accidentally. Remote control Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries. Power supply Do not use a modifi ed cord, joint cord, extension cord or unspecifi ed cord to prevent overheating and fi re. To prevent overheating, fi re or electric shock:

Do not share the same power outlet with other equipment.

Do not operate with wet hands.

Do not over bend the power supply cord.

Do not operate or stop the unit by inserting or pulling out the power plug. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualifi ed persons in order to avoid a hazard. It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fi re. To prevent overheating, fi re or electric shock:

Insert the power plug properly.

Dust on the power plug should be periodically wiped with a dry cloth. Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fi re/electric shock) Examples of abnormality/failure

The ELCB trips frequently.

Burning smell is observed.

Abnormal noise or vibration of the unit is observed.

Water leaks from the indoor unit.

Power cord or plug becomes abnormally hot.

Fan speed cannot be controlled.

The unit stops running immediately even if it is switched on for operation.

The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/repair. This equipment must be earthed to prevent electrical shock or fi re. Prevent electric shock by switching off the power supply and unplug: -Before cleaning or servicing, -When extended non-use, or -During abnormally strong lightning activity.6 Safety precautions CAUTION Indoor unit and outdoor unit Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airfl ow outlet to avoid fi re propagation. Do not expose plants or pet directly to airfl ow to avoid injury, etc. Do not touch the sharp aluminium fi n, sharp parts may cause injury. Do not switch ON the indoor unit when waxing the fl oor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during operation, it may lead to ineffi cient power usage and uncomfortable temperature changes. Prevent water leakage by ensuring drainage pipe is: -Connected properly, -Kept clear of gutters and containers,

-Not immersed in water After a long period of use or use with any combustible equipment, aerate the room regularly. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. Remote control Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control. To prevent malfunction or damage of the remote control:

Remove the batteries if the unit is not going to be used for a long period of time.

New batteries of the same type must be inserted following the polarity stated. Power supply Do not disconnect the plug by pulling the cord to prevent electric shock.7 English Safety precautions / How to use How to use To adjust airfl ow direction To adjust fan speed To switch between powerful/quiet POWERFUL: To reach the preset temperature quickly

• This operation stops automatically after 20 minutes. QUIET: To enjoy quiet operation

• This operation reduces airfl ow noise.

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

• To have low noise priority operation, select the lowest fan speed (

• Do not adjust the fl ap by hand. To maximise comfort while sleeping

This operation can be set together with timer. Sleep operation has the priority over OFF timer.

This operation can be cancelled by pressing the respective button when the sleep timer reaches 0.0h. This operation provides you with a comfortable environment while sleeping. It will automatically adjust the sleep pattern temperature during the activation period. The indoor unit indicator will dim when this operation is activated. This is not applicable if the indicator brightness has been manually dimmed. SLEEP (Cancel) This operation is incorporated with the activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 hours). To adjust airfl ow direction AIR SWING Upper direction

• For lateral direction, it is manually adjustable as shown. FAN SPEED Not used in normal operations. Press to restore the remote control to default setting. POWERTIMER8 To set the timer Note

• Can be activated in all modes and can be cancelled by pressing the respective button again.

• Cannot be selected at the same time.

• Each time pressed: Cancel 2 Set the time 3 Confi rm

• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing or to select respective or then press .

• The nearest timer setting will be displayed and will activate in sequence.

• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick Guide. 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times. Operating conditions Use this air conditioner in the temperature range indicated in the table. Temperature °C (°F) Indoor Outdoor

DBT WBT DBT WBT DBT WBT

How to use9 EnglishHow to use / To learn more... Operation mode AUTO : During operation, the POWER indicator will blinks at initial. Unit selects operation mode every 10 minutes according to the setting and room temperatures. HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while to warm up.

• For system which HEAT mode has been locked, if operation mode other than HEAT is selected, the indoor unit stops and the POWER indicator blinks. COOL : Provides effi cient comfort cooling to suit your needs. DRY : Unit operates at low fan speed to give a gentle cooling operation. Energy saving temperature setting Operating the unit within the recommended temperature range may save energy.

79 °F ~ 82 °F. Air fl ow direction In COOL/DRY mode: If AUTO is set, the fl ap swings up/down automatically. Auto restart control If power is resumed after a power failure, the operation will restart automatically after a period of time with previous operation mode and airfl ow direction.

• This control is not applicable when TIMER is set. To learn more...10 Cleaning instructions To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code “H 99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.

• Do not touch the aluminium fi n, sharp parts may cause injury.

• Do not use benzine, thinner or scouring powder.

• Use only soap ( pH 7) or neutral household detergent.

• Do not use water hotter than 40 °C / 104 °F. Indoor unit Wipe the unit gently with a soft, dry cloth. Coils and fans should be clean for at least every 6 months by authorised dealer. Outdoor unit Clear debris that surround the unit. Clear any blockage from the drain pipe. Air fi lters Once every 2 weeks

• Wash/rinse the fi lters gently with water to avoid damage to the fi lter surface.

• Dry the fi lters thoroughly under shade, away from fi re or direct sunlight.

• Replace any damaged fi lters. Remove air fi lter Attach air fi lter Insert into the unit Front panel Wash gently and dry. Remove the front panel Close it securely

Release the hooks at both ends.

Pull out and lift up. POWERTIMER

Insert at both sides.

Press both ends and center of the front panel. Indoor unit Air Purifying Filter

• Do not wash/rinse the fi lter with water.

• Replace the fi lter every 2 years or replace any damaged fi lter. Part no.: CZ-SA31P Air Purifying Filter Aluminium fi n POWERTIMER Front panel Air fi lters Air Purifying Filter (CS-FE25/35UKE) Air Purifying Filter (CS-FE50UKE)11 EnglishCleaning instructions / Troubleshooting Troubleshooting The following symptoms do not indicate malfunction. Symptom Cause POWER indicator blinks before the unit is switched on.

• This is a preliminary step in preparation for the operation when the ON timer has been set. When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time. POWER indicator blinks during HEAT mode with no warm air supply (and fl ap is closed).

• The unit is in defrost mode (and AIR SWING is set to AUTO). POWER indicator blinks and stops when operate COOL/DRY mode.

• The system has locked to operate in HEAT mode only. TIMER indicator is always on. • The timer setting repeats daily once set. Operation is delayed a few minutes after restarting.

• The delay is a protection to the unit’s compressor. Cooling/heating capacity reduced during the lowest fan speed setting.

• The low fan speed is low noise priority operation, so cooling/heating capacity may be reduced (depending on the condition). Increase the Fan Speed to increase the capacity. Indoor fan stops occasionally during heating operation.

• To avoid unintended cooling effect. Indoor fan stops occasionally during automatic fan speed setting.

• This helps to remove the surrounding odour. Airfl ow continues even after operation has stopped.

• Extraction of remaining heat from the indoor unit (maximum 30 seconds). The room has a peculiar odour. • This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Cracking sound during operation. • Changes of temperature caused the expansion/ contraction of the unit. Water fl owing sound during operation. • Refrigerant fl ow inside the unit. Mist emerges from indoor unit. • Condensation effect due to cooling process. Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes. Dusts accumulated on the wall. • Due to air circulation or static electricity generated by the air conditioner. Some types of wall paper may collect dusts easily (recommended to clean the area around the air conditioner frequently). Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic parts, accelerated when exposed to heat, sun light, UV light or environmental factor. Check the following before calling for servicing. Symptom Check Operation in HEAT/COOL mode is not working effi ciently.

• Set the temperature correctly.

• Close all doors and windows.

• Clean or replace the fi lters.

• Clear any obstruction at the air inlet and air outlet vents. Noisy during operation. • Check if the unit has been installed at an incline.

• Close the front panel properly. Remote control does not work. (Display is dim or transmission signal is weak.)

• Insert the batteries correctly.

• Replace weak batteries. The unit does not work. • Check if the circuit breaker is tripped.

• Check if timers have been set. The unit does not receive the signal from the remote control.

• Make sure the receiver is not obstructed.

• Certain fl uorescent lights may interfere with signal transmitter. Please consult authorised dealer.12 Troubleshooting When... ■ The remote control is missing or a malfunction has occurred 1.Raise the front panel. 2.Press the button once to use in AUTO mode.

3. Press and hold the button until you hear 1 beep, then release to use in

4. Repeat step 3. Press and hold the button until you hear 2 beeps, then

release to use in forced HEAT mode. 5.Press the button again to turn off. ■ The indicators are too bright

• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds. ■ Conducting a seasonal inspection after extended non-use

• Check the remote control batteries.

• Check that there is no obstruction around the air inlet and outlet vents.

• Use Auto OFF/ON button to select COOL/HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between the air inlet and outlet vents:

■ The units are not going to be used for a long period of time

Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.

• Turn off the power supply and unplug.

• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised dealer when in following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

Press for 5 seconds Press for 5 seconds to quit checking Press until you hear beep sound, then write down the error code Turn the unit off and reveal the error code to authorised dealer

For certain errors, you may restart the unit for limited operation if there are 4 beeps when operation starts. Diagnostic displayAbnormality/Protection controlH 00 No memory of failure H 11 Indoor/outdoor abnormal communicationH 12 Indoor unit capacity unmatched H 14 Indoor intake air temperature sensor abnormality H 15 Outdoor compressor temperature sensor abnormality H 16 Outdoor current transformer (CT) abnormality H 17 Outdoor suction temperature sensor abnormalityH 19 Indoor fan motor mechanism lock H 21 Indoor fl oat switch operation abnormality H 23 Indoor heat exchanger temperature sensor 1 abnormality H 24 Indoor heat exchanger temperature sensor 2 abnormality H 25 Indoor ion device abnormalityH 26 Minus ION abnormality H 27 Outdoor air temperature sensor abnormality H 28 Outdoor heat exchanger temperature sensor 1 abnormality H 30 Outdoor discharge pipe temperature sensor abnormalityH 31 Abnormal swimming pool sensor H 32 Outdoor heat exchangertemperature sensor 2 abnormality H 33 Indoor/outdoor misconnection abnormality H 34 Outdoor heat sink temperature sensor abnormality H 35 Indoor/outdoor water adverse current abnormality H 36 Outdoor gas pipe temperaturesensor abnormality H 37 Outdoor liquid pipe temperaturesensor abnormality H 38 Indoor/outdoor mismatch (brand code) H 39 Abnormal indoor operating unit orstandby unitsDiagnostic displayAbnormality/Protection control H 41 Abnormal wiring or pipingconnectionH 50 Ventilation fan motor lockedH 51 Ventilation fan motor locked H 52 Left-right limit switch fi xing abnormalityH 58 Indoor gas sensor abnormalityH 59 Eco sensor abnormality H 64 Outdoor high pressure sensorabnormalityH 67 nanoe abnormalityH 70 Light sensor abnormality H 71 DC cooling fan inside control board abnormalityH 72 Abnormality tank temperature sensorH 97 Outdoor fan motor mechanism lockH 98 Indoor high pressure protectionH 99 Indoor operating unit freeze protectionF 11 4-way valve switching abnormalityF 16 Total running current protection F 17 Indoor standby units freezingabnormalityF 18 Dry circuit blocked abnormalityF 87 Control box overheat protection F 90 Power factor correction (PFC)circuit protectionF 91 Refrigeration cycle abnormality F 93 Outdoor compressor abnormal revolution F 94 Compressor discharge pressureovershoot protection F 95 Outdoor cooling high pressure protection F 96 Power transistor module overheating protectionF 97 Compressor overheating protectionF 98 Total running current protection F 99 Outdoor direct current (DC) peak detection
