Product type	Wall-mounted split air conditioner
Brand	Panasonic
Model	CSXE7LKEW
Category	Reversible air conditioner (heat/cool)
Operating modes	Auto, Heating, Cooling, Dehumidification
Temperature range (cooling)	16 °C to 32 °C (indoor)
Temperature range (heating)	16 °C to 30 °C (indoor)
Fan speed	5 options + Auto
Airflow direction	Vertical and horizontal (adjustable via remote control)
Special functions	e-ion (purification), Patrol (air quality detection), ECO, Quiet, Powerful, MILD DRY
Timer	2 daily schedules (on/off)
Remote control	Wireless, max range 8 m
Power supply	Single phase, 230 V, 50 Hz (standard estimate)
Sensor	ECO PATROL (presence detection)
Filters	e-ion filters (regular cleaning recommended)
Maintenance	Clean the filter and e-ion generator every 6 months
Safety	Residual current circuit breaker recommended, grounding mandatory
Installation	Call a certified professional
Repairability	Original parts available from the manufacturer

Frequently Asked Questions - CSXE7LKEW PANASONIC

How do I adjust the temperature on my Panasonic CSXE7LKEW air conditioner?

Use the TEMP ▲/▼ buttons on the remote control to set the temperature between 16°C and 30°C. For energy savings, it is recommended to set heating between 20°C and 24°C and cooling between 26°C and 28°C.

What should I do if the remote control does not work?

First check the batteries: insert them correctly, respecting the polarities. If the display is weak, replace with new batteries of the same type. Make sure the receiver on the indoor unit is not obstructed and that you are within 8 meters.

How do I clean the filters of the indoor unit?

Remove the front panel, take out the filters and wash them with clean water (max 40°C) without harsh detergent. Dry them completely in the shade before putting them back. Do not use benzene, thinner, or scouring powder.

What does the flashing of the power indicator mean?

In heating mode, flashing may indicate automatic defrosting (no hot air). If the indicator flashes before start-up, it is preparing for the timer. If the problem persists, contact an authorized dealer.

How do I activate the e-ion function?

Press the PATROL/e-Ion button on the remote control. The blue indicator lights up. The function can operate even when the air conditioner is off. To stop it, press again.

Can I use rechargeable batteries in the remote control?

No, do not use rechargeable batteries (Ni-Cd) as they may damage the remote control. Use only standard alkaline batteries.

Why does the outdoor unit emit steam?

This is normal: condensation or evaporation occurs in the pipes during operation. Do not worry, this is not a malfunction.

How do I program the on/off timer?

Press TIMER ON or TIMER OFF to select, set the time using the ▲/▼ buttons, and confirm with SET. You can program two schedules per day. To cancel, press CANCEL.

What should I do if the unit displays an error code?

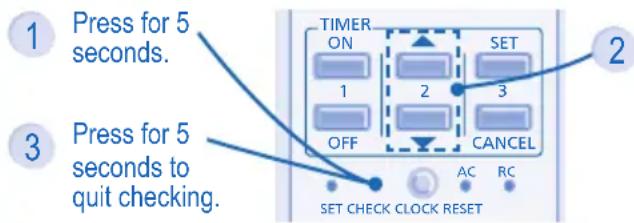

Use the remote control: hold down the SET button for 5 seconds to display the code. Note it down, then press SET again to exit. Unplug the unit and contact customer service with the code.

What is the outdoor temperature range for operation?

For cooling: from 5°C to 43°C (dry). For heating: from -15°C to 24°C (dry) depending on the model. Refer to the manual for the exact values of your outdoor unit.

USER MANUAL CSXE7LKEW PANASONIC

Illustration of a blue air conditioner unit with a sprouting plant and water droplet, set against a snowy landscape background (no text or symbols)

QUICK GUIDE

GUIDE RAPIDE

GUÍA RÁPIDA

KURZANLEITUNG

GUIDA RAPIDA

Panasonic®

Operating Instructions Air Conditioner

Indoor Unit	Single Split Outdoor Unit
INVERTER DELUXE XE	CU-E7LKE
CS-XE7LKEW	CU-E7LKE-3
CS-XE9LKEW	CU-E9LKE
CS-XE12LKEW	CU-E9LKE-3
CS-XE15LKEW	CU-E12LKE
CS-XE18LKEW	CU-E12LKE-3
CS-XE21LKEW	CU-E15LKE
INVERTER DELUXE E	CU-E18LKE
CS-E7LKEW	CU-E21LKE
CS-E9LKEW	Multi Split Outdoor Unit
CS-E12LKEW	CU-2E15LBE
CS-E15LKEW	CU-2E18LBE
CS-E18LKEW	CU-3E18LBE
CS-E21LKEW	CU-4E23LBE
	CU-4E27CBPG

ENGLISH 2\~9

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

FRANÇAIS 10 \~ 17

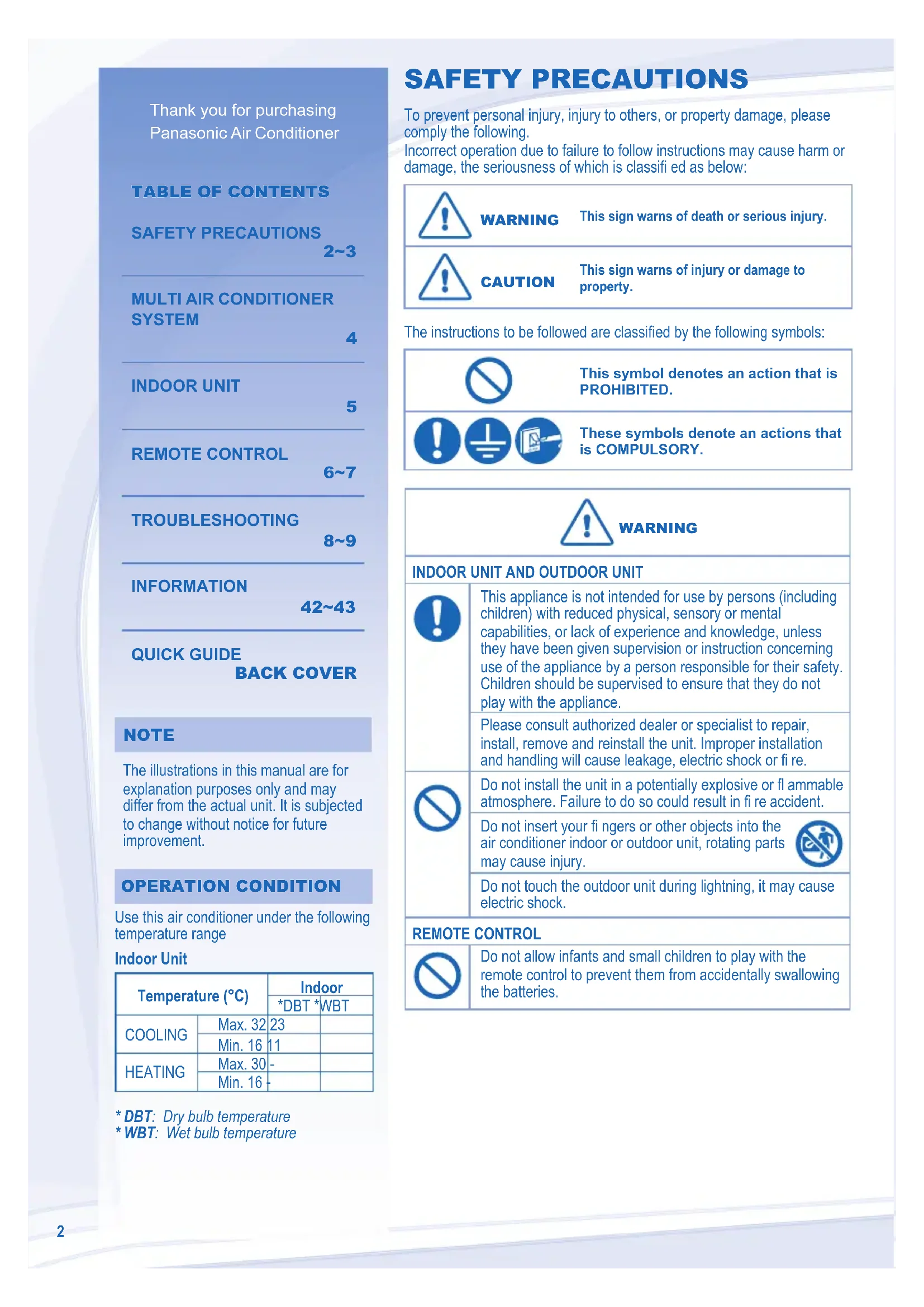

Thank you for purchasing Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS 2\~3

MULTI AIR CONDITIONER SYSTEM 4

INDOOR UNIT 5

REMOTE CONTROL 6\~7

TROUBLESHOOTING 8\~9

INFORMATION 42\~43

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

OPERATION CONDITION

Use this air conditioner under the following temperature range

Indoor Unit

Temperature (°C)		Indoor
		*DBT *	WBT
COOLING	Max. 32	23
	Min. 16	11
HEATING	Max. 30	-
	Min. 16	-

* DBT: Dry bulb temperature

* WBT: Wet bulb temperature

SAFETY PRECAUTIONS

To prevent personal injury, injury to others, or property damage, please comply the following. Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an actions that is COMPULSORY.

WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fi re.

Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re accident.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

REMOTE CONTROL

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

OPERATION CONDITION

Use this air conditioner under the following temperature range

Single Split Outdoor Unit

Temperature (°C)		Outdoor Outdoor
		CU-E7LKE, CU-E9LKE, CU-E12LKE, CU-E15LKE, CU-E18LKE, CU-E21LKE		CU-E7LKE-3, CU-E9LKE-3, CU-E12LKE-3
		*DBT *WBT *DBT		*WBT
COOLING	Max. 43 26 43 26
	Min. 5 4 5 4
HEATING	Max. 24 18 24 18
	Min. -5 -6 -15 -16

(CU-E7LKE, CU-E9LKE, CU-E12LKE, CU-E15LKE, CU-E18LKE, CU-E21LKE)

NOTICE: • This model is not suitable for 24 hours non-stopping operation in heating mode below -5°C. When the outdoor temperature is below -5°C and you use this model out of above conditions, the outdoor unit might be frozen up and stop operation for protection control.

(CU-E7LKE-3, CU-E9LKE-3, CU-E12LKE-3)

NOTICE: • This model is not suitable for 24 hours non-stopping operation in heating mode below -15°C. When the outdoor temperature is below -15°C and you use this model out of above conditions, the outdoor unit might be frozen up and stop operation for protection control at -18°C.

* DBT: Dry bulb temperature
* WBT: Wet bulb temperature

CAUTION
INDOOR UNIT AND OUTDOOR UNIT
	Do not wash the indoor unit with water, benzene, thinner or scouring powder.
	Do not use for other purpose such as preservation of food.
	Do not use any combustible equipment in front of the airflow outlet to avoid propagate fire.
	Do not expose directly to cold air for a long period.
	Do not sit or step on the unit, you may fall down accidentally.
	Do not touch the sharp aluminium fi n, sharp parts may cause injury.
	Do not switch ON the indoor when waxing the floor. After waxing, aerate the room properly before operating the unit.
	Do not install the unit in oily and smoky areas.
	Ensure drainage pipe is connected properly. Otherwise, leakage may occur.
	Aerate the room regularly.
	After long period of use, make sure the installation rack is not deteriorate to prevent the unit falls down.
REMOTE CONTROL
	Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.
	Remove the batteries if the unit is not going to be used for a long period of time.
	New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.

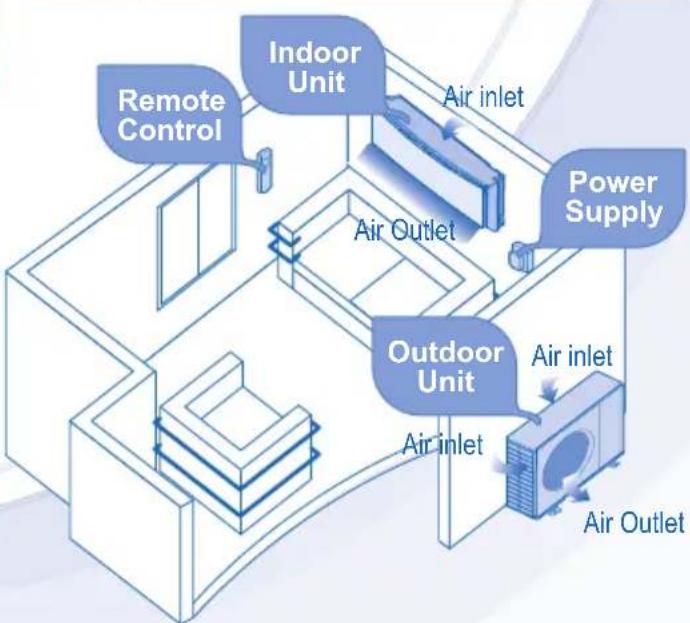


MULTI AIR CONDITIONER SYSTEM

DEFINITION

Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit.

INDOOR UNIT

• It is possible to operate the indoor units individually or simultaneously. The operation mode priority is given to the first unit that turned on.
• During operation, heating and cooling mode could not be activated at the same time for different indoor unit. The power indicator blinks to indicate the indoor unit is standing by for different operation mode.

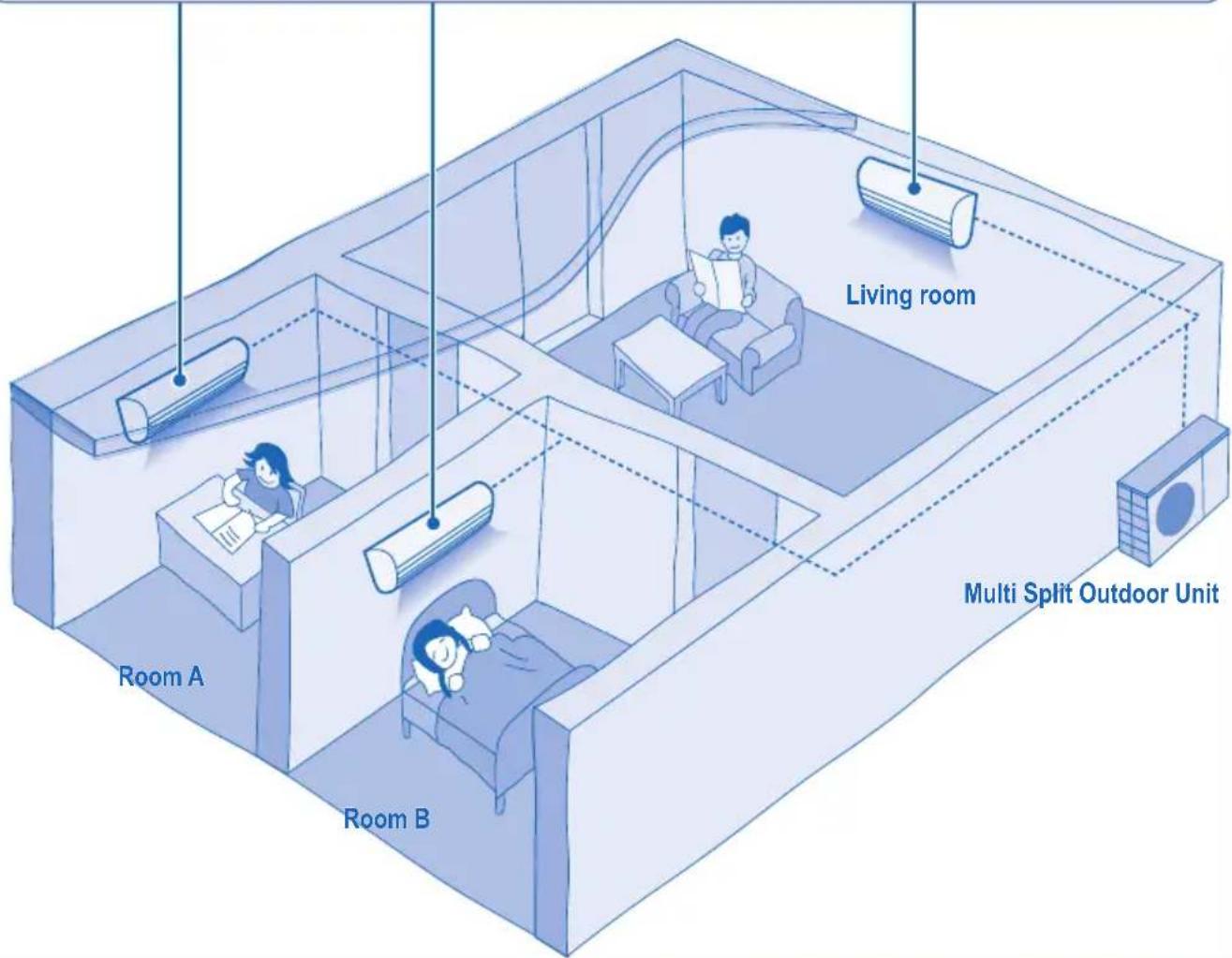

Living room Multi Split Outdoor Unit Room A Room B

Caution

PATROL/e-ion

operations could be activated even when the air-conditioner is turned off. In this condition, once e-ion indicator is ON, the unit will operate with AUTO fan speed and air swing. However, this operation could not be activated or will be deactivated if other indoor unit is activating heating mode.

OPERATION CONDITION

Multi Split Outdoor Unit

(CU-2E15LBE, CU-2E18LBE, CU-3E18LBE, CU-4E23LBE, CU-4E27CBPG)

Temperature (°C)		Indoor		Outdoor Outdoor
				CU-2E15LBE, CU-2E18LBE, CU-4E27CBPG CU-3E18LBE, CU-4E23LBE
		*DBT *WBT *DBT *WBT *DBT *WBT
COOLING	Max. 32	23	43	26	46	26
	Min. 16	11	16	11	-10	-
HEATING	Max. 30	-		24	18	24	18
	Min.	16		-	-10	-11	-11

* DBT: Dry bulb temperature
* WBT: Wet bulb temperature

- Switch off the power supply before cleaning. - Do not touch the aluminium fin, sharp parts may cause injury.

WASHING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.
  • Use only soap (pH7) or neutral household detergent.
• Do not use water hotter than 40^ .

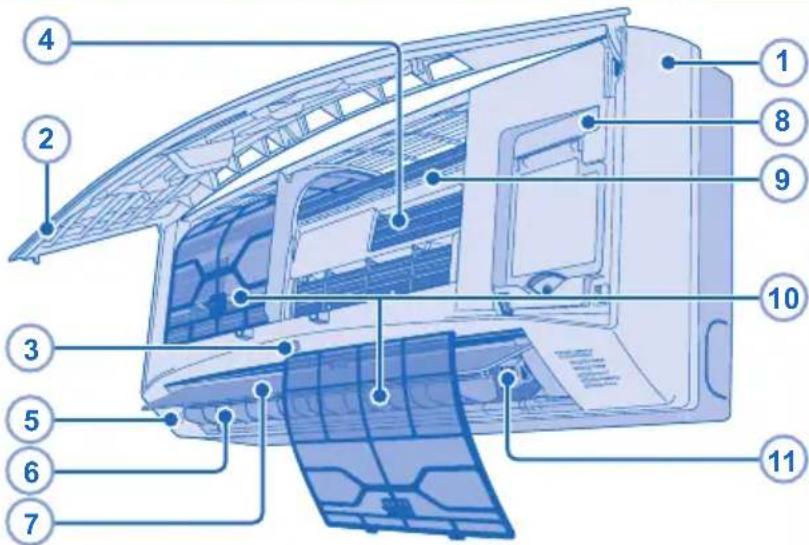

Labeled diagram of an air conditioner internal structure with numbered components

HINT

- To ensure optimal performance of the unit, cleaning maintenance have to be carried out at regular intervals. Dirty unit may caused malfunction and you may retrieve error code "H99". Please consult authorized dealer.

e-ion AIR PURIFYING SYSTEM

- Do not touch during operation

5 ECO PATROL SENSOR

- Do not hit or violently press the sensor or poke it with a sharp object. This can lead to damage and malfunction. - Do not place large objects near the sensor and keep heating unit or humidifiers of the sensor's detection area. This may lead to sensor malfunction.

1 INDOOR UNIT

- Wipe the unit gently with a soft, dry cloth.

2 FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.
• Wash gently and dry.

Close Front Panel

- Press down both ends of the front panel to close it securely.

3 RECEIVER

4 ALUMINIUM FIN

5 ECO PATROL SENSOR

6 HORIZONTAL AIRFLOW DIRECTION LOUVER

XE7/9/12/15LKEW, E7/9/12/15LKEW

- Manually adjustable.

XE18/21LKEW, E18/21LKEW

- Do not adjust by hand.

7 VERTICAL AIRFLOW DIRECTION LOUVER

- Do not adjust by hand.

8 AUTO OFF/ON BUTTON

- Use when remote control is misplaced or malfunction.

Action Mode
Press once. Auto
Press and hold until 1 beep is heard, then release.	Cooling
Press and hold until 1 beep is heard, then release.Press again until 2 beeps, then release.	Heating
Press the button to turn off.

9 e-ion CHARGING WIRE

10 e-ion FILTERS

• Clean the filters regularly.
• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under the shade, away from fire or direct sunlight.
• Replace any damage fi iter.

11 ACTIVE e-ion GENERATOR

Clean with dry cotton bud.

• Active e-ion generator cleaning is recommended every 6 months.

REMOTE CONTROL

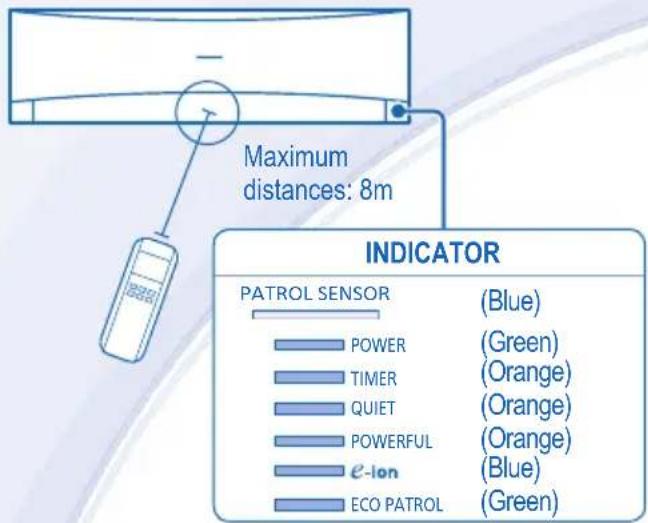

Maximum distances: 8m INDICATOR PATROL SENSOR (Blue) POWER (Green) TIMER (Orange) QUIET (Orange) POWERFUL (Orange) E-Ion (Blue) ECO PATROL (Green)

Press the remote control's button

TO TURN ON OR OFF THE UNIT

POWER

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping improperly.

TO SET TEMPERATURE

• Selection range: 16^ 30^ .
• Operating the unit within the recommended temperature could induce energy saving.
  HEAT mode : 20°C \~ 24°C.
  COOL mode : 26°C \~ 28°C.
  DRY mode: 1°C \~ 2°C lower than room temperature.

• During operation mode selection the power indicator blinks.
• Unit selects operation mode every 10 minutes according to temperature setting and room temperature (For single Split System).
• Unit selects operation mode every 3 hours according to temperature setting, outdoor and room temperature (For Multi split system).

HEAT mode - To enjoy warm air

- Unit takes a while to warm up. The power indicator blinks during this operation.

COOL mode - To enjoy cool air

- Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

TO SELECT FAN SPEED (5 OPTIONS)

FAN'SPEED

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

TO ADJUST VERTICAL AIRFLOW DIRECTION (5 OPTIONS)

AIR SWING

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing up/down automatically.
• In HEAT mode, if AUTO is set, the louver fi x at predetermined position.

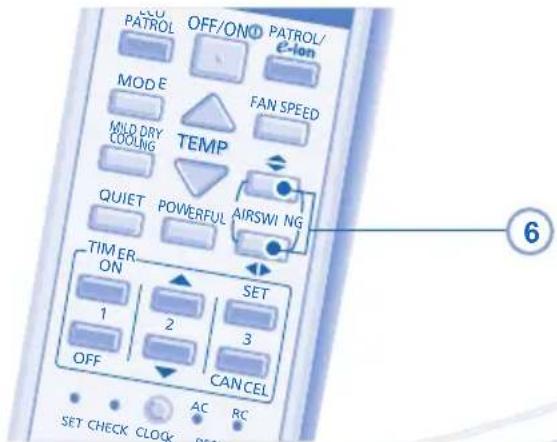

TO ADJUST AIRFLOW DIRECTION (5 OPTIONS)

(PAGE 7)

AIR SWING

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver fi x at predetermined position. The vertical louver swing left/right after the temperature rises.

TO IMPROVE HUMIDITY AND MOISTURE LEVEL (For Single Split System)

• This operation reduces air dryness and provides you with a comfortable living environment during COOL mode only.
• When vertical airflow direction is set to AUTO, it stops at lower position to avoid cold air contact. However, you can adjust the louver direction manually.

TO ENJOY QUIET ENVIRONMENT

• This operation reduces airflow noise.

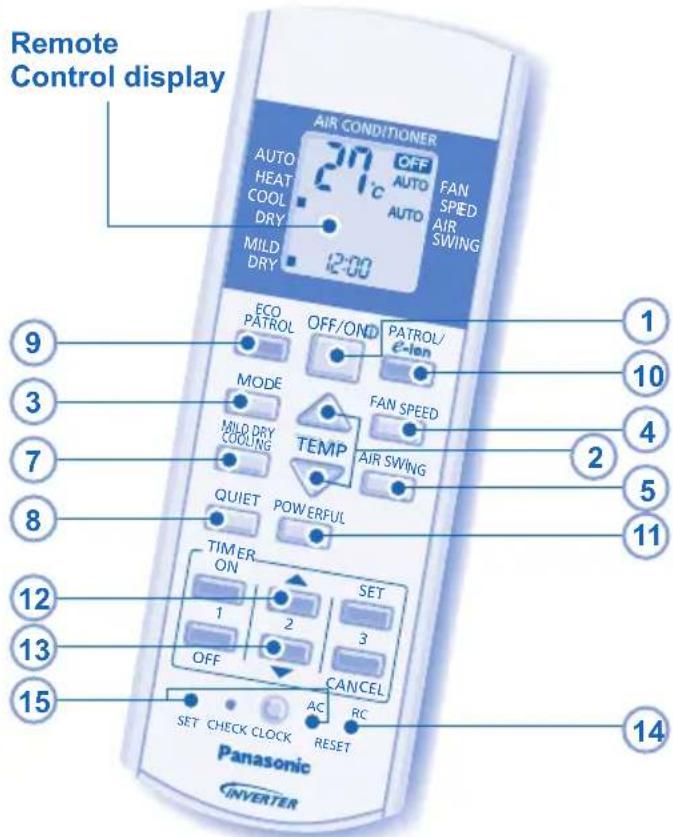

Remote Control display AIR CONDITIONER AUTO HEAT COOL DRY MILD DRY 20°C OFF AUTO FAN SPIED AIR SWING 12:00 ECO PATROL OFF/OND PATROL/ ε-ion MODE FAN SPEED MILD DRY COOLING TEMP AIR SWING 2 9 3 7 8 11 12 13 15 QUIET POWERFUL TIMER ON SET 1 2 3 OFF CANCEL AC RC SET CHECK CLOCK RESET Panasonic INVERTER

XE7LKEW, XE9LKEW, XE12LKEW, XE15LKEW, E7LKEW, E9LKEW, E12LKEW, E15LKEW

9

TO MONITOR HUMAN PRESENCE & ACTIVITY FOR ENERGY SAVING

ECO PATROL

ECO PATROL

Heat Source & Movement	Low	High	None
Set Temperature		-1°C	+3°C +2°C COOL/ DRY Mode HEAT Mode -2°C -3°C
Set Fan Speed		+1 tap	*≤ Medium Fan

- — ECO 1 - To optimize comfort and energy saving.

- --- ECO 2 - To maximize energy saving.

*Applicable during COOL/DRY Mode only.

10

TO ENJOY CLEAN & FRESH AIR

PATROL/e-ion

PATROL - To monitor air quality

• Detects air quality; e-ion operation activates when air quality is at dirty level.
• Can be activated even when the unit is turned off.
  • Patrol starts automatically with the unit switched on with

e-ion - To freshen and purify the air

• Generates negative ions to produce fresh air effect and attract dust which will then be captured at the positively charged e-ion filters.
• Can be activated even when the unit is turned off. In this condition, fan speed and air swing can not be adjusted.

11

TO ACHIEVE TEMPERATURE QUICKLY

POWERFUL

- This operation will stop automatically after 20 minutes (For Single Split System).

CCD PATROL OFF/ONO PATROL/ e²-ion MODE MILD DRY COOLING FAN SPEED TEMP QUIET POWERFUL AIRSWI NG TIM ER ON SET 1 2 3 OFF CANCEL AC RC SET CHECK CLOCK REC 6

XE18LKEW, XE21LKEW, E18LKEW, E21LKEW

12

Press and hold for 5 seconds to dim or restore the unit's indicator brightness.

13

Press and hold for approximately 10 seconds to show temperature setting in °C or °F.

14

Press to restore the remote control's default setting.

15

Not used in normal operations.

NOTES

- Can be activated in all modes and can be cancelled by pressing the respective button again.

• Can not be selected at the same time.
• Can not be activated during "MILD DRY COOLING" operation is activated.

TO SET THE TIMER

• 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset time.
• Complete below procedures to set each timer:

Select ON or OFF timer

Set the time

Confirm

• Example of application at living room:

Morning: ON 1 at 07:00 (Wake up) OFF 1 at 08:00 (Out for work) Evening: ON 2 at 17:00 (Back home) OFF 2 at 22:00 (Sleep)

• To cancel ON or OFF timer, press ON or OFF to select respective or then press CANCEL.
• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing ON or TO select respective OR then press SET.
• Upcoming timer will be displayed and will be activated in sequence.
• When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control Preparation at back cover.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM	CAUSE
Mist emerges from indoor unit. ▶• Condensation effect due to cooling process.
Water flowing sound during operation.	▶• Refrigerant flow inside the unit.
The room has a peculiar odour. ▶• This may due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.	▶• This helps to remove the surrounding odours.
Airflow continues even after operation has stopped.	▶• Extraction of remaining heat from the indoor unit (maximum 30 seconds).
Operation is delayed a few minutes after restart.	▶• The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. ▶• Condensation or evaporation occurs on pipes.
Timer indicator is always on. ▶• The timer setting repeats daily once set.
Power indicator blinks during HEAT mode with no warm air supply (and louver is closed).	▶• The unit is in defrost mode (and AIR SWING is set to AUTO).
Indoor fan stops occasionally during heating operation.	▶• To avoid unintended cooling effect.
Power indicator blinks before the unit is switched on.	▶• This is a preliminary step in preparation for the operation when the ON timer has been set.
Cracking sound during operation. ▶• Changes of temperature cause the expansion/contraction of the unit.

Check the following before calling for servicing.

SYMPTOM	CHECK
Heating/Cooling operation is not working efficiently.	Set the temperature correctly.Close all doors and windows.Clean or replace the fl iters.Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation.	Check if the unit has been installed at an incline.Close the front panel properly.
Remote control does not work.(Display is dim or transmission signal is weak.)	Insert the batteries correctly.Replace weak batteries.
The unit does not work.	Check if the circuit breaker is tripped.Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver not obstructed.Certain fl fluorescent lights may interfere with signal transmitter. Please consult authorized dealer.
Patrol sensor or e-ion indicator on the indoor unit is blinking.	Stop Patrol or e-ion operation then restart. If the patrol sensor or e-ion indicator still blinking, please consult authorized dealer.

Notes on "ECO PATROL SENSOR"

• Sensor may not detect moving objects further than 7m away or beyond detection angle.
• Sensor sensitivity is influenced by indoor unit location, movement speed, temperature range, etc.
• The sensor may mistakenly detects pets, sunlight, certain lighting, fluttering curtains and light reflection as human being.

The unit stops and the timer indicator blinks.

Use remote control to retrieve error code.

1 Press for 5 seconds. 2 3 Press for 5 seconds to quit checking. SET CHECK CLOCK RESET

Press until you hear beep sound, then jot down the error code.

Note:

- For certain error, you may restart the unit with limited operation with 4 beeps during operation starts.

4 Turn the unit off and reveal the error code to authorized dealer.

FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE

• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating operation, after 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:
  Cooling: ≥ 8°C Heating: ≥ 14°C

FOR EXTENDED NON-USE

• Activate Heat mode for 2\~3 hours as an alternative to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
- Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.

(CU-E7LKE, CU-E9LKE, CU-E12LKE, CU-E15LKE, CU-E18LKE, CU-E21LKE)

(CU-2E15LBE, CU-2E18LBE, CU-3E18LBE, CU-4E23LBE, CU-4E27CBPG)

Température (°C)		Unité intérieure		Unité extérieure Unité extérieure
				CU-2E15LBE, CU-2E18LBE, CU-4E27CBPG CU-3E18LBE, CU-4E23LBE
		*DBT *WBT *DBT *WBT *DBT *WBT
REFROIDIS-SEMENT	Max. 32 23 43 26 46 26
	Min. 16 11 16 11 -10 -
CHAUFFAGE	Max. 30 -			24 18 24 18
	Min.	16	-	-10	-11	-15	-16

Labeled diagram of an air conditioner internal structure with numbered parts for identification

SYSTÈME DE PURIFICATION D'AIR e-ion

XE7/9/12/15LKEW, E7/9/12/15LKEW

XE7LKEW, XE9LKEW, XE12LKEW, XE15LKEW, E7LKEW, E9LKEW, E12LKEW, E15LKEW

9

POUR SURVEILLER LA PRÉSENCE HUMAINE ET L'ACTIVITÉ POUR ÉCONOMISER L'ÉNERGIE

ECO PATROL

ECO PATROL

XE18LKEW, XE21LKEW, E18LKEW, E21LKEW

12

(CU-E7LKE, CU-E9LKE, CU-E12LKE, CU-E15LKE, CU-E18LKE, CU-E21LKE)

(CU-2E15LBE, CU-2E18LBE, CU-3E18LBE, CU-4E23LBE, CU-4E27CBPG)

Temperatura (°C)		Interior		Exterior Exterior
				CU-2E15LBE, CU-2E18LBE, CU-4E27CBPG CU-3E18LBE, CU-4E23LBE
		*DBT *WBT *DBT *WBT *DBT *WBT
ENFRIAMIENTO	Máx. 32 23 43 26 46 26
	Mín. 16 11 16 11			-10	-
CALENTAMIENTO	Máx. 30 - 24 18 24 18
	Mín.	16	-	-10	-11	-15	-16

Labeled diagram of an air conditioner internal structure with numbered components

XE7/9/12/15LKEW, E7/9/12/15LKEW

XE7LKEW, XE9LKEW, XE12LKEW, XE15LKEW, E7LKEW, E9LKEW, E12LKEW, E15LKEW

9

XE18LKEW, XE21LKEW, E18LKEW, E21LKEW

12

(CU-E7LKE, CU-E9LKE, CU-E12LKE, CU-E15LKE, CU-E18LKE, CU-E21LKE)

(CU-2E15LBE, CU-2E18LBE, CU-3E18LBE, CU-4E23LBE, CU-4E27CBPG)

Temperatur (°C)		Innen		Außen Außen
				CU-2E15LBE, CU-2E18LBE, CU-4E27CBPG		CU-3E18LBE, CU-4E23LBE
		*TK *FK *TK *FK		*TK *FK
KÜHLEN	Max. 32	23	43	26	46	26
	Min. 16	11	16	11	-10	-
HEIZEN	Max. 30	-		24	18	24	18
	Min.	16		-	-10	-11	-11

Labeled diagram of an air conditioner internal structure with numbered parts for identification

9 10 11 e-ion LUFTREINIGUNGSSYSTEM

XE7/9/12/15LKEW, E7/9/12/15LKEW

XE7LKEW, XE9LKEW, XE12LKEW, XE15LKEW, E7LKEW, E9LKEW, E12LKEW, E15LKEW

9

XE18LKEW, XE21LKEW, E18LKEW, E21LKEW

12

UNITÀ INTERNA E UNITÀ ESTERNA

(CU-E7LKE, CU-E9LKE, CU-E12LKE, CU-E15LKE, CU-E18LKE, CU-E21LKE)

UNITÀ INTERNA E UNITÀ ESTERNA

(CU-2E15LBE, CU-2E18LBE, CU-3E18LBE, CU-4E23LBE, CU-4E27CBPG)

Temperatura (°C)		Interna		Esterna Esterna
				CU-2E15LBE, CU-2E18LBE, CU-4E27CBPG CU-3E18LBE, CU-4E23LBE
		*DBT	*WBT *DBT *WBT *DBT *WBT
RAFFREDDAMENTO	Max.	32	23	43	26	26
	Min.	16	11	16	11	-10	-
RISCALDAMENTO	Max.	30		-24	18	24	18
	Min.	16		-		-10	-11

Labeled diagram of an air conditioner unit with numbered parts for identification

XE7/9/12/15LKEW, E7/9/12/15LKEW

XE7LKEW, XE9LKEW, XE12LKEW, XE15LKEW, E7LKEW, E9LKEW, E12LKEW, E15LKEW

9

PER MONITORARE LA PRESENZA UMANA E L'ATTIVITÀ PER IL RISPARMIO ENERGETICO

ECO PATROL

ECO PATROL

XE18LKEW, XE21LKEW, E18LKEW, E21LKEW

12

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Diagram of a battery pack assembly with labeled components and directional arrows indicating flow or movement.

1 Pull out • Retirez • Quite • Nach unten ziehen • Estrarre
2 Insert AAA or R03 batteries (can be used \~ 1 year) • Placez des piles AAA ou R03 (valables environ 1 an) • Inserte pilas AAA o R03 (puede ser usado \~ 1 año) • Batterien einlegen (AAA oder R03) (Betriebsdauer etwa ein Jahr) • Inserire batterie AAA o R03 (può essere utilizzato per circa 1 anno)

3 Close the cover • Fermez le couvercle • Cierre la tapa • Batteriefach schließen • Chiudere il coperchio

4 Press CLOCK • Appuyez sur CLOCK • Presione CLOCK • CLOCK drücken • Premere CLOCK

5 Set time • Réglez l'heure • Ajuste la hora • Uhrzeit einstellen • Impostare l'ora

6 Confirm • Confirmez • Confirmar • Bestätigen • Confermare

1

MODE

Select the desired mode. Sélectionnez le mode de fonctionnement souhaité. Seleccione el modo deseado. Wählen Sie die gewünschte Betriebsart aus. Selezionare la modalità desiderata.

2

OFF/ON

XE7LKEW, XE9LKEW, XE12LKEW, XE15LKEW, E7LKEW, E9LKEW, E12LKEW, E15LKEW
XE18LKEW, XE21LKEW, E18LKEW, E21LKEW

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany
