USER MANUAL UVE123109.2 Emerio

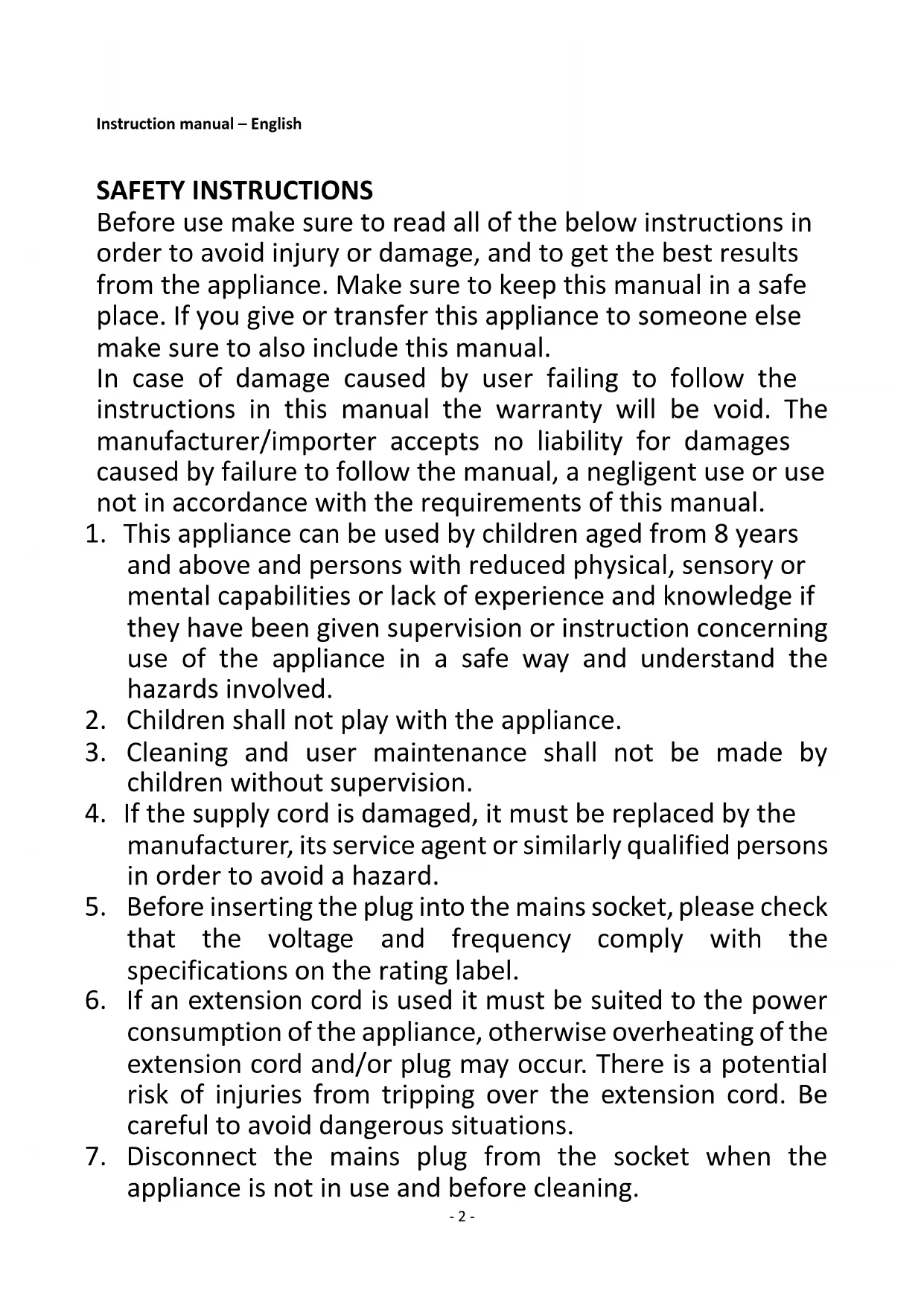

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Before inserting the plug into the mains socket, please check

that the voltage and frequency comply with the specifications on the rating label.

6. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

7. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.- 3 -

8. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

9. Do not immerse the appliance or the mains plug in water or

other liquids. There is danger to life due to electric shock!

10. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

11. Do not touch the appliance if it falls into water. Remove the

plug from its socket, turn off the appliance and send it to an authorized service center for repair.

12. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

13. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

14. Never leave the appliance unattended during use.

15. This appliance is not designed for commercial use. For

16. Do not use the appliance for other than intended use.

17. Do not wind the cord around the appliance and do not bend

18. Close supervision is necessary for any appliance being used

by or near children. Do not leave the system unattended while connected. Keep hair, loose clothing, fingers and all parts of body away from opening and moving parts.

19. Do not use to pick up flammable or combustible liquids such

as gasoline or use in areas where they may be present.

20. Do not pick up anything that is burning or smoking such as

cigarettes, matches or hot ashes.

21. Use extra care when cleaning on stairs.

22. Do not use the appliance without the dust cup filter in place.

23. The use of accessory attachment not recommended by the

appliance manufacturer may cause injuries.

24. Do not put any objects into openings. Do not use with any

opening blocked. Keep free of dust, lint, hair and anything else that may reduce air flow.- 4 -

25. To reduce the risk of electric shock, do not use outdoors or

on wet surfaces. Use only on dry surfaces.

26. To reduce the risk of injury from moving parts or electric

shock, unplug before servicing and cleaning.

27. Important: If the suction opening in the unit is blocked,

switch off the appliance and remove the blocking substance before you start the unit again.

28. Do not operate the appliance too close to heaters, radiators

29. Before inserting the power plug into the wall outlet, make

sure that your hands are dry.

30. Before you start vacuuming, make sure to remove large or

sharp objects that might damage the dust cup filter.- 5 - UVE-123109.2 EN

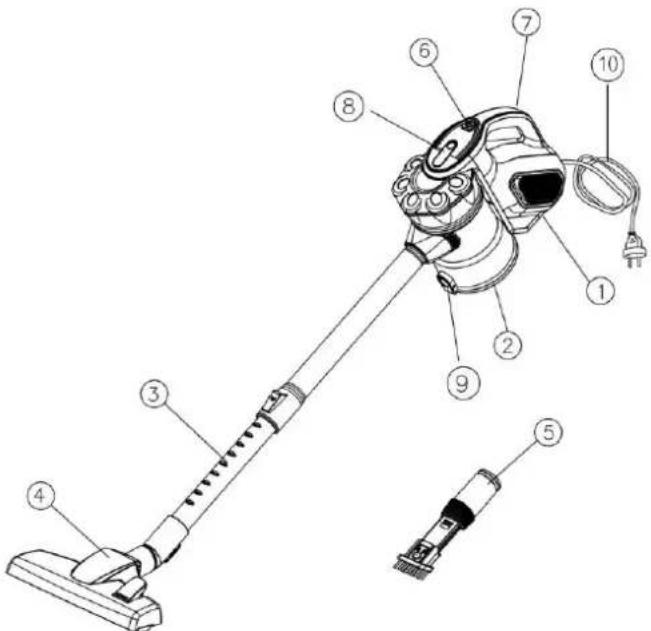

10. Power cord and plug

USE NOTE: Always remove the power plug from the wall outlet before assembling or removing accessories.

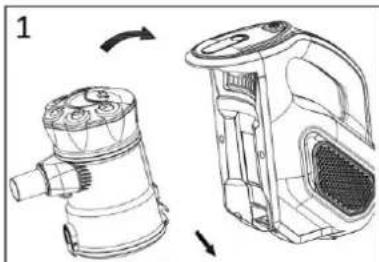

1. Install the dust cup by inserting the clip into the main body, then attach together until you hear a “click” sound.

2. Insert the extension tube into the suction hole opening; make sure it fits firmly. (Fig.2)

3. The length of the extension tube can be adjusted by pushing the locking and pulling out the bottom section

of the tube to a suitable length at the same time. (Fig.3)

4. Connect combi nozzle / floor brush to the tube for different cleaning purposes. (Fig.4)

The floor brush has two positions, one for hard and one for soft/textile surfaces – Choose the right one. Combi nozzle can be directly attached to the suction hole opening, and it is for radiators, corners, skirtings, etc.

5. Plug in the appliance.

6. Press the on/off button to turn on the appliance. Press it again, the unit will be turned off.

NOTE: During use, please pay attention to the dust capacity and do not exceed the “MAX” level indicated on the dust cup. This appliance is for dry suction only. Caution: The suction hole opening must be open and free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

CLEANING AND MAINTENANCE

1. Except for the main unit, other parts can be cleaned in warm soapy water (<40℃). Rinse and dry them

completely before reassembly. Do not immerse the main unit in water or any other liquids.

2. Use only a soft moist cloth to clean the outside of the unit. Do not allow any kind of liquid to enter the unit.

3. Do not use aggressive chemicals or abrasives.

4. Do not use the device if the filter is broken or worn out.

5. The unit does not contain parts serviceable by you, do not disassemble it and do not try to repair it yourself.

In order to achieve the best performance, empty the dust cup and clean the dust cup filter after each use.

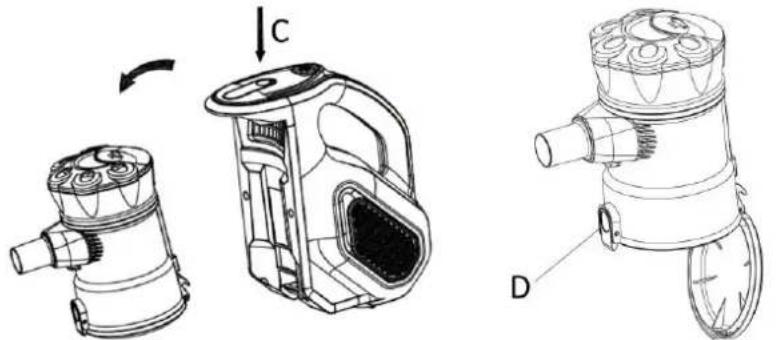

1. Press the dust cup release button (C) to remove the container from the main unit.- 6 -

2. Press down the locking clip (D) on low end of the dust cup to empty dust from the container.

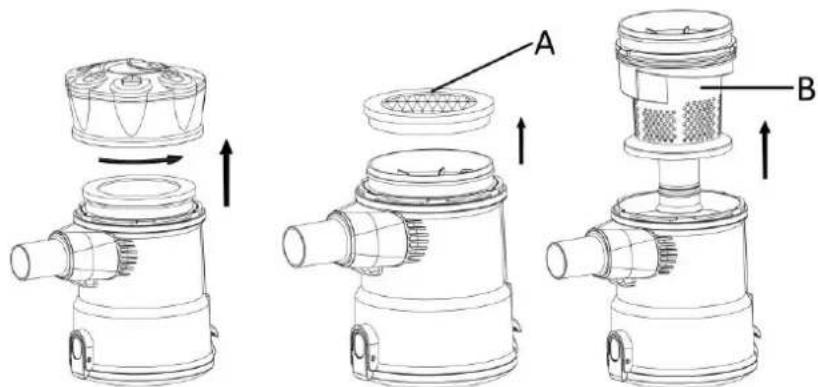

3. Detach the upper part from the dust cup. Gently pull the dust cup filter (A) and dust filter (B) out of the dust

cup. Rinse them in warm water, and then air dry completely before placing them back in the dust cup. Important Note: DO NOT use a washing machine to clean the dust cup filter. Do not use a hair dryer to dry it. AIR DRY ONLY.

4. Put the dust cup filter and dust filter carefully into the dust cup. Never operate the appliance without the

5. Attach the dust cup to the main body of the unit.

Note: It is recommended that the dust cup filter be replaced every three months (depending on usage) to ensure peak performance of the unit. TROUBLESHOOTING PROBLEM POSSIBLE REASON SOLUTION Appliance does not operate No power in electrical outlet. Check fuse or breaker. Replace fuse/reset breaker. Appliance does not pick up or suction power is weak

1. Dust cup is full.

2. Dust cup filter needs cleaning

2. Remove dust cup filter and check for

object(s) in air duct and remove. Clean or replace dust cup filter. Dust escaping from appliance

1. Dust cup is full.

2. Dust cup filter is not installed

2. Check and install the dust cup filter

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:- 7 - For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
