USER MANUAL Essential Limited Edition Luvion

ESSENTIAL & ESSENTIAL LIMITED EDITION

Line drawing of a LUVION® optical instrument with no visible text or symbols on the body itself

HANDLEIDING

INSTRUCTION MANUAL

MANUAL D'INSTRUCTIONS

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Fig. 4

2. MONITOR INSTALLEREN/ MONITOR SETUP / INSTALLATION DU MONITEUR / CONFIGURA- CIÓN DEL MONITOR / MONITOREINRICHTUNG / NASTAVENÍ MONITORU

2.1 Stroomvoorziening / Power Supply / Alimentation / Fuente de alimentación / Stromversorgung / Napájení

Batterij Laden / Loading the Battery / Installation de la batterie / Insertar las pilas/ Akku einlegen / Vložení akumulátoru

Gebruik van netstroom / Using AC Power / Utilisation de l'alimentation secteur / Uso de la alimentación de CA / Netzstrom verwenden / Napájení ze sítě

2.2 Volume instellen / Volume Setting / Réglage du volume/ Configuración del volumen / Lautstärkeeinstellung / Nastavení hlasitosti

Illustration of a handheld device connected to a circular display unit, showing hand tool and control panel (no text or symbols)

2.3 Helderheid instellen / Brightness Setting / Réglage de la luminosité/ Configuración del brillo / Helligkeitseinstellung / Nastavení jasu

Diagram showing a device being processed with a CD and then connected to an electronic device (no text or symbols present)

Illustration of a device being processed with a rotary knob, showing the process from screen to display (no text or symbols)

VOX (Voice-Operated Transmission) Function

Fonction TCV (Transmission de Commande Vocale)

Illustration of a handheld device with a hand interacting with a screen, showing its control panel and battery icons (no text or symbols on the device itself)

2.6 Muziek Functie / Music Function / Fonction de musique / Función de música / Musikfunktion / Funkce spuštění melodií

2.6 Terugspreek Functie/ Talkback Function / Fonction de réponse/ Función de intercomunicador

Fig. 12

1. MENU OPTIONS / MENU OPTIONS / OPTIONS DU MENU / OPCIONES DEL MENÚ / MENÜOPTIONEN / MOŽNOSTI MENU

Fig. 13

3.1 Camera Selecte / Camera Selection / Sélection de la caméra / Selección de la cámara / Kameraauswahl / Volba kamery

Fig. 14

3.2 Voedingstijden timer instellen / Feed Timer Setting / Paramètre du minuteur d'alimentation / Configuración del temporizador de fuentes/ Fütterungstimer-Einstellung / Nastavení časovače krmení

Fig. 15

3.3 Temperatuur instellen / Temperature Setting / Réglage de la température/ Configuración de la temperatura / Temperatureinstellung / Nastavení teploty

3.4 Camera instellen / Camera Setting / Paramètre caméra/ Configuración de la cámara / Kameraeinstellung / Nastavení kamery

3.5 VOX gevoeligheid / VOX Sensitivity / Sensibilité VOX / Sensibilidad de VOX / VOX

4. BEELDSCHERM WEERGAVE

SCREEN DISPLAY

AFFICHAGE DE L'ÉCRAN

PANTALLA

BILDSCHIRMANZEIGE

OBRAZOVKA

Fig. 19

INHOUD DOOS:

PROBLEEM & OPLOSSING

Er is geen signaal

This device is far indoor use only.

One Camera
One Monitor
• Two Power Adapters
• Battery for Monitor (3.7V 1100mAh Li-ion)
- Two Cable Clips
• One Screw and One Wall Anchor
• This User's Manual

Product Layout

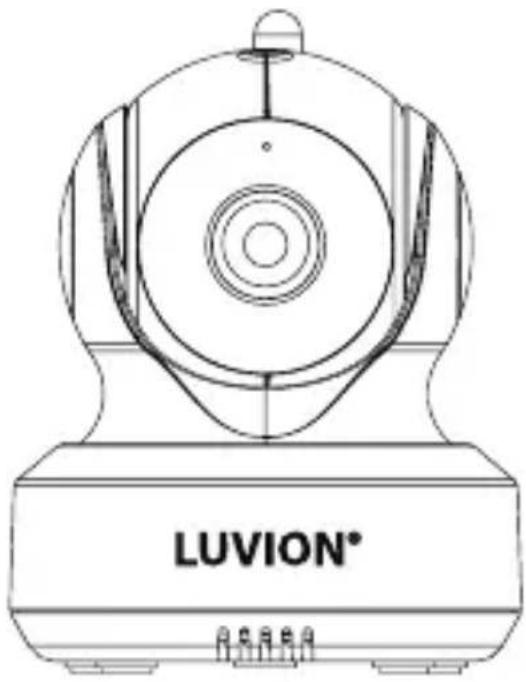

Camera (Fig. 1)

1. Light sensor
2. Microphone
3. Lens
4. Infrared LEDs
5. Speaker
6. Power adapter plug
7. Power/Pairing button
8. Antenna
9. Temperature sensor
10. Power indicator LED

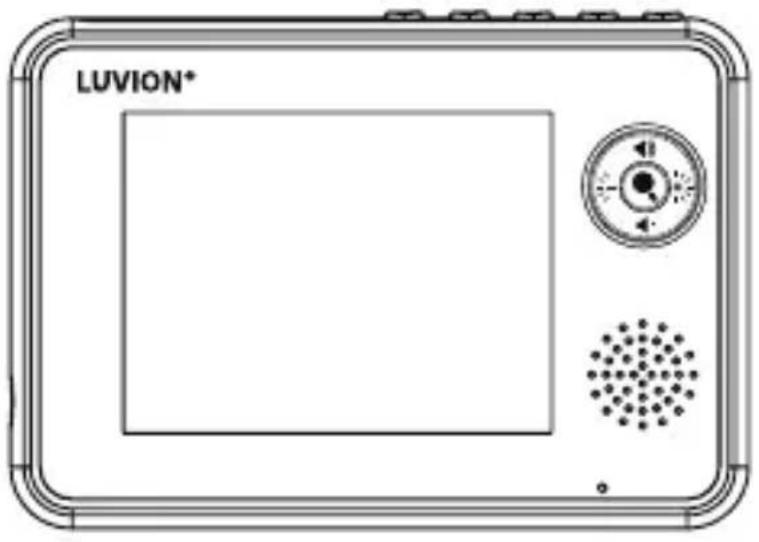

Monitor (Fig. 2)

1. LCD screen
2. Brightness down button
3. Volume up button
4. Zoom/OK button
5. Brightness up button
6. Volume down button
7. Speaker
8. Microphone
9. Power indicator LED
10. VOX indicator LED
11. Volume indicator LEDs
12. Power/VOX button
13. Music button
14. VOX button
15. Talkback button
16. Menu button
17. Battery compartment
18. Holder
19. Power adapter plug

Setup

1 Camera Setup

1.1 Power Supply - Using AC Power

1. Plug one end of the provided power adapter into a wall outlet and the other end into the back of the camera. See Fig. 3.

Note : Use the adapter labeled OUTPUT: 6V DC with the camera.

1. Press the POWER button ⏻ and keep it around 3 seconds to turn on the camera. The LED on the camera will light up (green light). See Fig. 3.

Note : Press the POWER button and keep it around 3 seconds to turn off the camera.

1.2 Fine Tuning

Place the camera in a convenient location, point the lens toward the observation area and adjust the angle by rotating the lens head. See Fig. 4.

1.3 Night Vision

The camera has eight high-intensity LEDs for picking up clear images in the dark. When the light sensor detects low ambient light levels, the LEDs will be automatically activated.

1.4 Room Temperature Measurement

Temperature sensor can measure room temperature on camera side and the room temperature indicator will be displayed on the screen of the monitor unit.

2 Monitor Setup

2.1 Power Supply

The monitor uses 3.7V 1100mAh (Li-ion) battery or the household AC power current.

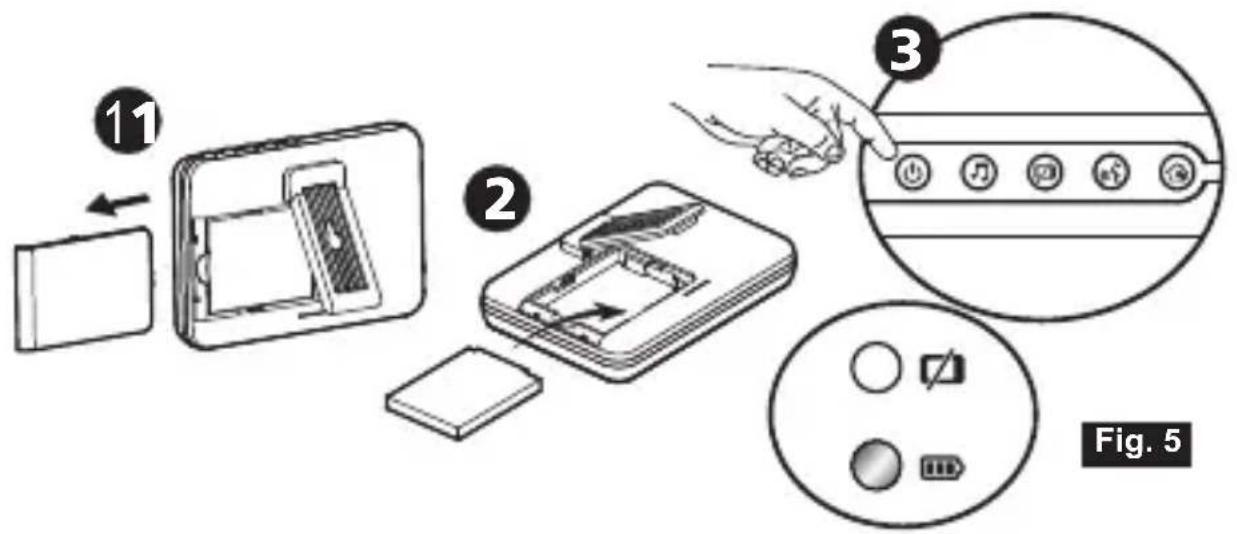

Loading the Battery

1. Open the battery compartment cover on the rear of the monitor. See Fig. 5.
2. Insert the battery with the metal facing the battery compartment. See Fig. 5.
3. Close the battery compartment cover, and make sure it is locked securely.
4. Press the POWER button ⏻ and keep it around 3 seconds to turn the monitor on. See Fig. 5.

Note 1: When power is sufficient, the "Power/Charging" LED will light up (green light); When battery is low, the red LED light will start blinking.

Note 2: Press the POWER button and keep it around 3 seconds to turn off the monitor.

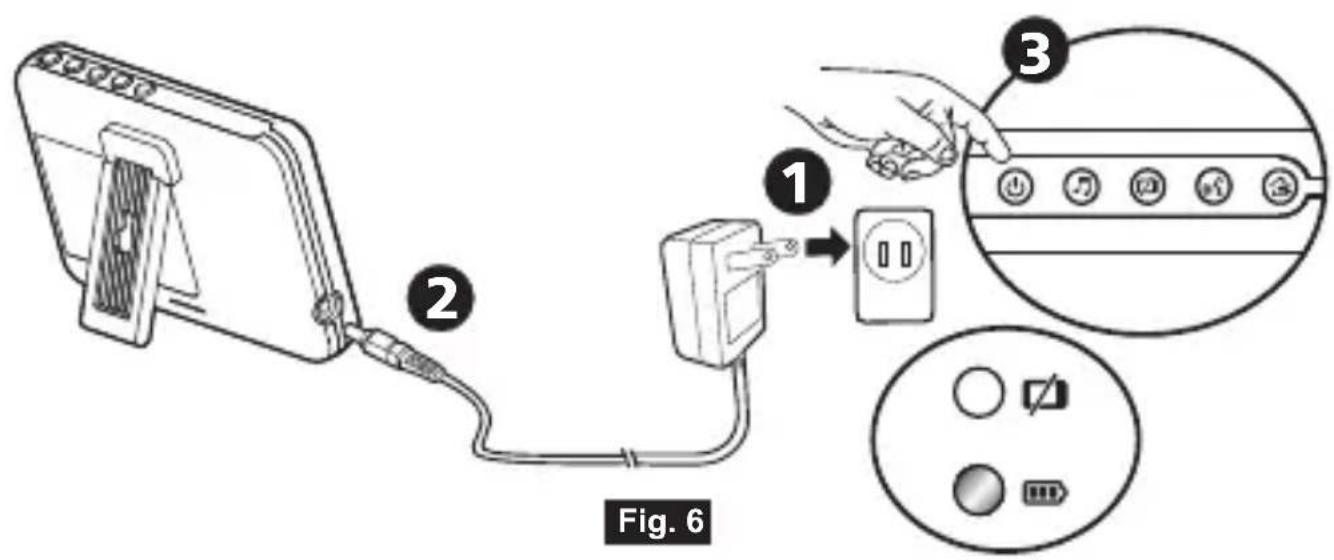

Using AC Power

1. Plug one end of the provided power adapter into a wall outlet and the other end into the monitor. See Fig. 6.

Note : Use the adapter labeled OUTPUT: 6V DC with the monitor.

1. Press the POWER button ⏻ and keep it around 3 seconds to turn the monitor on. See Fig. 6.

Note 1: When charging starts or power on the monitor, "Power/Charging" LED will light up (green light).

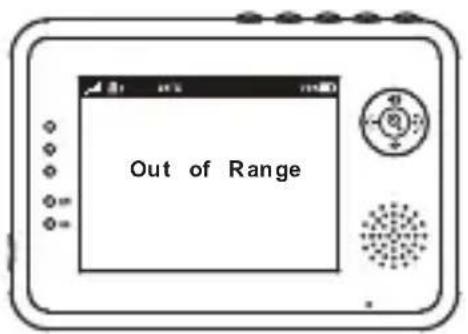

Note 2: "Out of Range" will be displayed on the LCD screen if the monitor exceeds the range (unlink).

Note 3: Press the POWER button and keep it around 3 seconds to turn off the monitor.

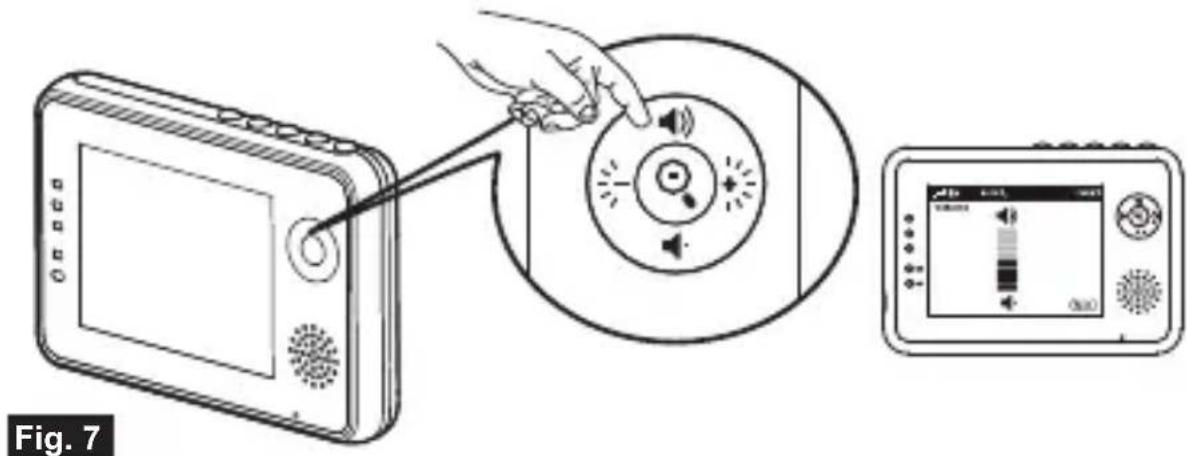

2.2 Volume Setting

Press the volume selection button & to adjust volume level, and then press the Zoom/OK button to confirm the setting. See Fig. 7.

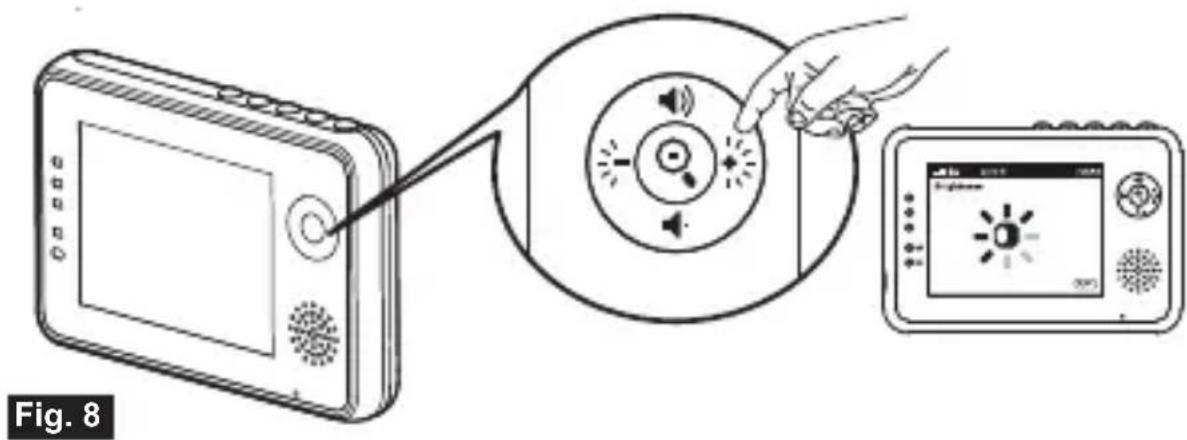

2.3 Brightness Setting

Press the brightness selection button & to adjust brightness level, and then press the Zoom/OK button to confirm the setting. See Fig. 8.

2.4 Zoom in Function

Press the Zoom/OK button 🔒 on monitor once for a 2X zoom of image and press again to change back to normal view. See Fig. 9.

2.5 VOX (Voice-Operated Transmission) Function

1. Press the VOX button ☑ on the monitor unit. This will turn off the screen but VOX LED ☑ will remain ON (green). See Fig. 10.

2. When the sound from the camera reaches the setting level (See Fig. 18), the screen will turn ON automatically. It will turn OFF again after 30 seconds. If the sound from the camera still reaches the setting level during the 30 seconds, it will extend 30 seconds to turn OFF the screen from the last voice event.

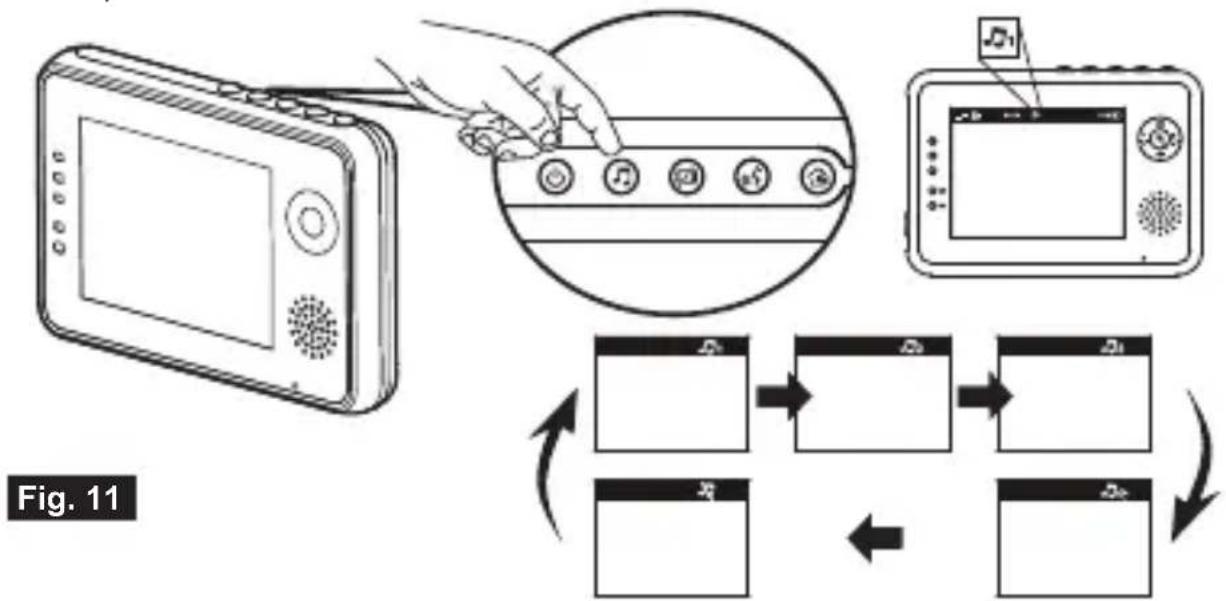

2.6 Music Function

You can play the music with the camera (three pieces of music).

1. Press the music button, the camera will play music. See Fig. 11.

2. Press the music button 🎯 again, the camera will play the next song.

2.7 Talkback Function

Press the talkback button wξ to speak through the camera unit, and the wξ icon will then be displayed on the screen. See Fig. 12.

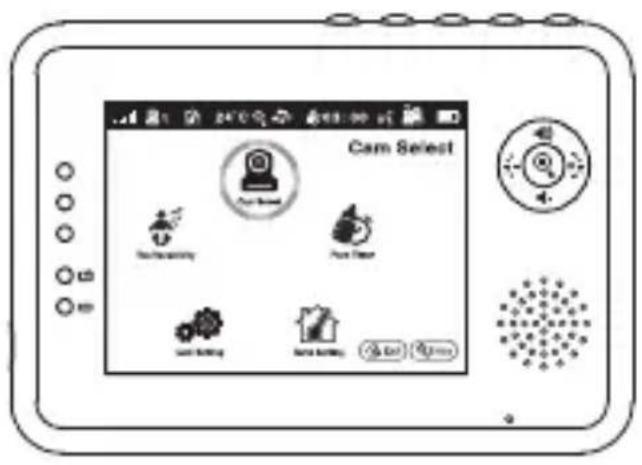

3 Menu Options

1. Press the menu button on the monitor unit to display the main menu on the screen. See Fig. 13.
2. Use the brightness down and brightness up buttons to navigate through the menu.
3. Press the Zoom/OK button to confirm a setting.
4. The main menu contains 5 submenus.

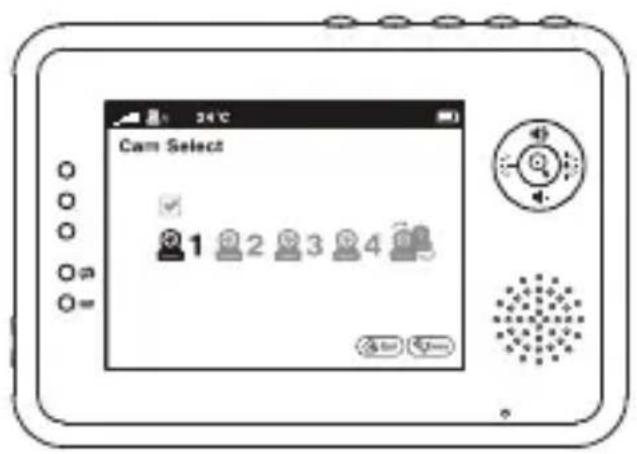

3.1 Camera Selection (Camera Select)

In this submenu you can switch between multiple cameras if the cameras have been paired. See Fig. 14.

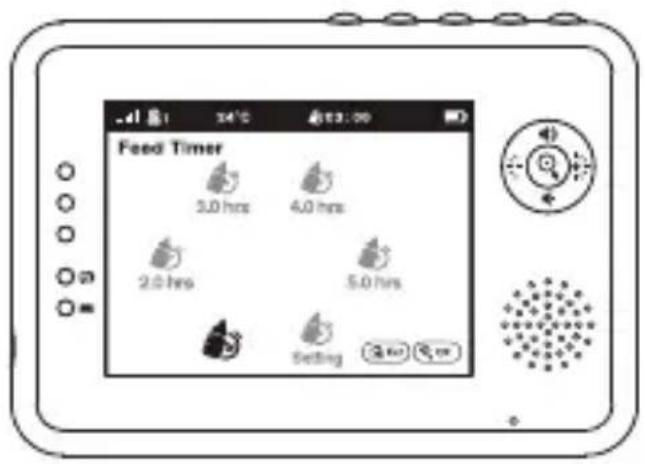

3.2 Feed Timer Setting (Feed Timer)

In this submenu you can set up feed timer to remind you the timing. See Fig. 15.

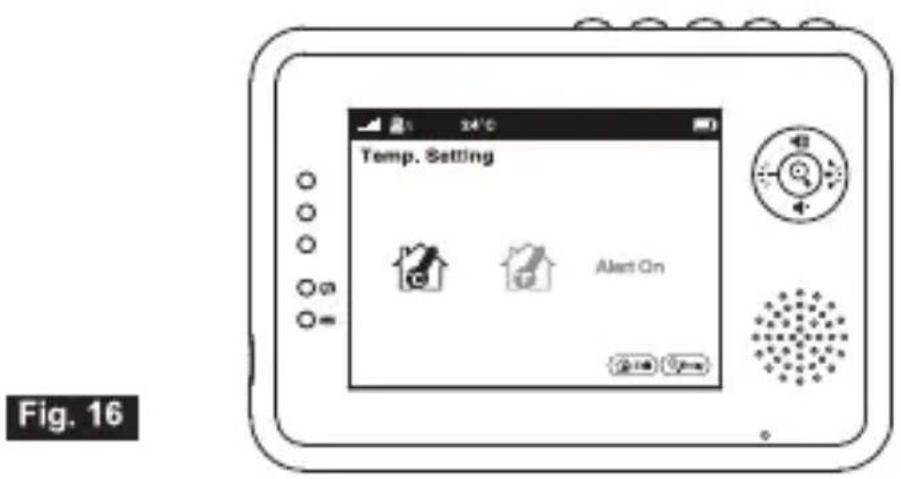

3.3 Temperature Setting (Temp. Setting)

1. In this submenu you can choose the temperature unit between degrees Celsius or degrees Fahrenheit. See Fig. 16.
2. You can set the temperature range of the temperature alert. If you select "Alert On" to enable the temperature alert and the temperature is outside the range, a warning sound will be emitted from the monitor unit.
   See Fig. 16.

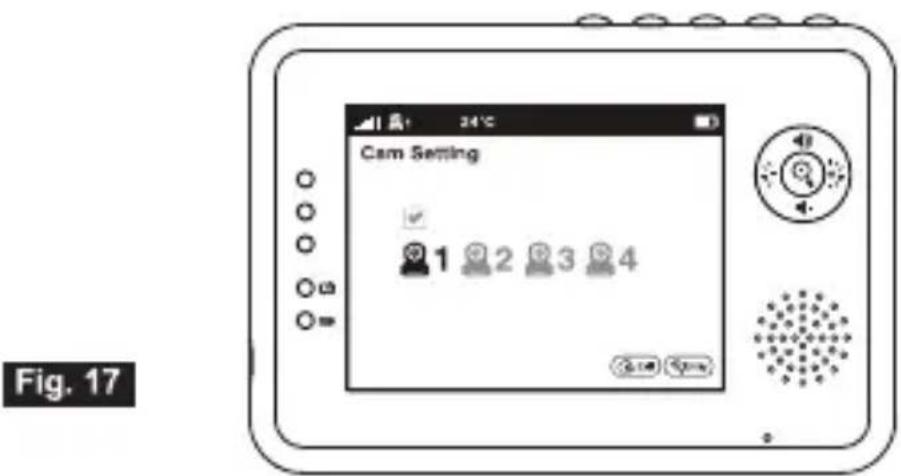

3.4 Camera Setting (Camera Setting)

The system comes with a camera unit that has already been paired with the monitor unit. The "Cam Setting" function gives each baby unit a separate channel on the monitor unit. This is necessary for configuring additional camera units.

1. If you want to add a new camera, please choose which number of cameras you want to add, and then select add camera icon 🔒 and press the 🔒 button to confirm your selection (See Fig. 17).

The screen will show "Press the pairing button on the Baby unit", and then moment immediately press and hold the power button on the camera side for at least three seconds. If not done in time you'll see 'time out', in that case try again.

1. If you want to delete a paired camera, please choose which number of cameras you want to delete, and then select delete camera icon 📄 to delete the camera (See Fig. 17).

3.5 VOX Sensitivity (VOX Sensitivity)

This submenu lets you choose the VOX (voice activation) sensitivity level. When the level set to high, the screen will turn on by lower sounds.

See Fig. 18.

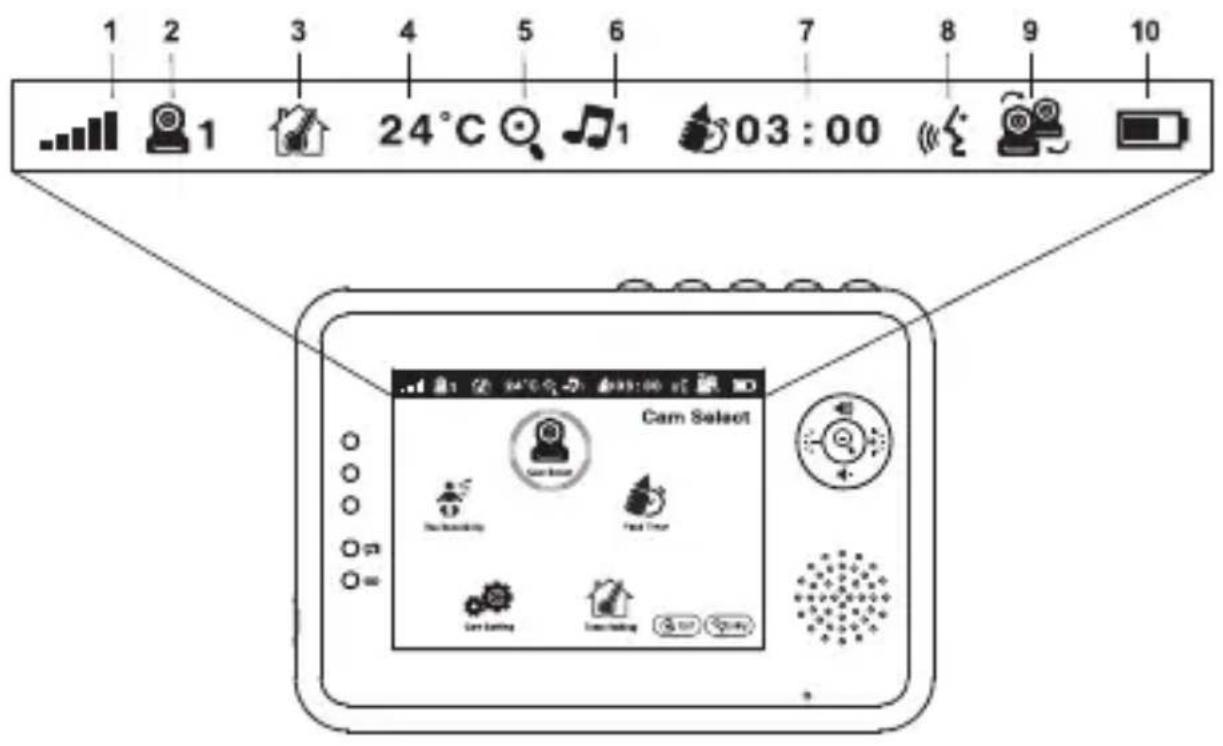

4 Status Information

The status bar will be displayed on the top of the screen. See Fig. 19.

1. Signal strength indicator
2. Camera number indicator
3. Temperature alert on/off indicator
4. Room temperature indicator
5. Zoom in indicator
6. Music indicator
7. Feed timer
8. Talkback indicator
9. Auto-scan indicator
10. Battery status/Charging indicator

Troubleshooting

You don't getting any signal at all

• Make sure the camera and the monitor are turned on.
• Make sure the power plugs are pushed all the way in.

If the signal is poor, or there is interference

• If there is a microwave oven in use in the path between the camera and monitor, remove the microwave oven or turn it off.
  • Make sure the camera and the monitor are within range of each other (range of approximately 500 feet; 250 meters in a clear line of sight).
• If the power LED is on but only voice signal input is detected, the monitor can be in voice-activated mode. Press the VOX button to turn on the screen.

Care and Maintenance

• Keep all parts and accessories out of children's reach.
• Fingerprints or dirt on the lens surface can adversely affect camera performances. Avoid touching the lens surface with your fingers.
• Should the lens become dirty, use a blower to blow off dirt and dust, or a soft, dry cloth to wipe off the lens.
• Keep the camera dry. Precipitation, humidity, and other liquids contain minerals will corrode electronic circuits.
  • Do not use or store in dusty, dirty areas.
• Do not store in hot areas. High temperatures can shorten the life of electronic devices and warp or melt certain plastics.
• Do not store in very cold areas. When the system warms up (to its normal temperature), moisture can form inside the case, which may damage electronic circuit boards.
• Do not attempt to open the case. Non-expert handling of the device may damage the system.
• Avoid dropping or strong shocks.
• Operate this product using only with the power supply included or provided as an accessory.
• Do not overload electrical outlets or extension cords this can result in fire or electric shocks.
• Do remember that you are using public airwaves when you use the system and that sound and video may be broadcast to other 2.4 GHz receiving devices. Conversations, even from rooms near the camera, may be broadcast. To protect the privacy of your home, always turn the camera off when not in use.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution

• o comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.
• This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

Following the safety tips

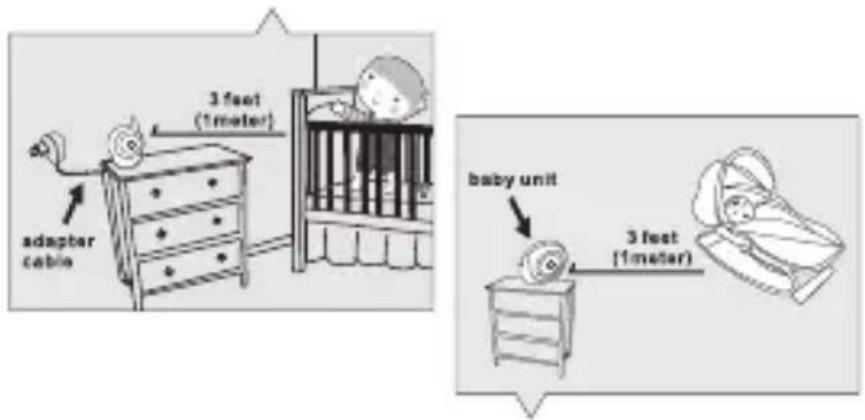

To prevent deaths and injuries associated with baby monitor cords :

• Make sure the baby unit and AC adapter cords are always out of reach of the baby at least 3 feet (1 meter) away.

Note: It's important even if your baby is not yet standing or mobile.

• Use a wireless baby monitor to avoid risk of strangulation.
- Never use extension cords with AC adapters. Only use the AC adapters provided.

Specifications

Camera		Monitor
Frequency	2.4 GHz	Frequency	2.4 GHz
Antenna	Dipole antenna	Antenna	Magnetole antenna
Transmission distance	250 M (Line of Sight)	Modulation	GPSK, FISS
Modulation	GPSK, FISS	Display	3.5" LCD panel
Image Sensor	CMOS image sensor	Display colors	Full-color
Lens	f 3.0mm, F 2.4	Brightness Control	8 levels
IR LED	8 pos	VOX	Voice activation
Dimensions	8.5(W) x 11(H) x 10(D) cm	Dimensions	12(W) x 8.3(H) x 2.6(D) cm
Weight	140g	Weight	154g
Power	DC 6V, 800mA	Power	DC 6V, 800mA or Li battery
Operating temperature	0°C - 40°C (32°F - 104°F)	Operating temperature	0°C - 40°C (32°F - 104°F)

Specifications subject to change without notice

This device is for indoor use only

This item is in compliance with the essential requirements and other relevant provisions of European Directives. The declaration of conformity is available through: https://www.luvion.nl/doc/Essential-Limited

Luvion Premium Babyproducts

Delft, The Netherlands

Visit us on www.Luvion.com
