Product type	Cordless pole hedge trimmer
Brand	Einhell
Model	GCHH 1845 Li T
Blade length	450 mm
Max. cutting length	410 mm
Tooth spacing	18 mm
Cutting speed	1400 cuts/min
Operating voltage	18 V DC
Power supply	Li-Ion Power-X-Change batteries (not included)
Sound pressure level LpA	82.8 dB(A) (K=3 dB)
Guaranteed sound power level	102 dB(A)
Vibration emission – front handle	2.774 m/s² (K=1.5 m/s²)
Vibration emission – rear handle	2.008 m/s² (K=1.5 m/s²)
Intended use	Trimming hedges, bushes and scrub
Number of tilt positions	7
Handle rotation	90° left or right
Included equipment	Handle with tube, extension tube, hedge trimmer attachment, blade protector, shoulder strap, instruction manual
Wear parts	Blade, battery
Warranty	24 months
Cleaning	Damp cloth, no water inside the device, brush the blades and oil them
Storage	Dark, dry, frost-free, temperature 5-30 °C, with blade protector

Frequently Asked Questions - GCHH 1845 Li T EINHELL

Which battery to use with the GCHH 1845 Li T?

Only use Li-Ion batteries from the Power-X-Change series by Einhell. The device is supplied without battery and charger.

How to attach the shoulder strap?

Hook the carabiner hooks of the shoulder strap onto the provided attachments (fig. 3). Adjust the length so that the attachment is at hip height (fig. 7). To quickly remove the shoulder strap, press the hooks (fig. 8).

How to assemble the tube of the device?

You may use the extension tube or not. For assembly, insert the tubes and screw with the locking nut (fig. 4-6). Ensure that the mounting screws are on the same side.

How to adjust the tilt of the cutting head?

Press the locking button (fig. 9, pos. 10a) and adjust the tilt to one of the 7 positions.

How to start the device?

Before starting, install the battery correctly. Press and hold the start lock (pos. 3), then set the on/off switch (pos. 2) to the on position. Release the start lock.

How to maintain the hedge trimmer blade?

After each use, clean the blade with a brush to remove residues. Then apply a thin layer of oil (fig. 20). Be careful not to get oil on the handles.

What are the essential safety precautions?

Always wear eye, head and hearing protection. Use sturdy shoes and gloves. Keep a distance of at least 10 metres from electrical cables. Read the instruction manual before use.

What to do if the device does not start?

Check that the battery is charged and correctly inserted. If the problem persists, consult a specialist workshop. Do not attempt to repair the interior yourself.

How to store the device after use?

Clean and oil the blade. Store the device in a dark, dry, frost-free place with the blade protector on. The ideal temperature is between 5 and 30 °C.

Where to find spare parts?

Spare parts (blade, battery, etc.) are available on the website www.einhell-service.com. To order, specify the type, article number and identification number of the device.

USER MANUAL GCHH 1845 Li T EINHELL

GB Original operating instructions Cordless pole hedge trimmer

3 5 5a 6a 5a 6b 6

4 A A A 8 9 10

Simple line drawing of a person sitting on a long horizontal bar with three small blocks, no text or symbols present

6 11 8 9

Close-up of a garment with a black V-neck belt and a numbered measurement marker (5), no visible text or symbols.

Close-up of a hand adjusting a belt buckle with two arrows pointing to the buckle (no text or symbols visible)

9 10 10a

10 4 4 1

11 T Klick

Close-up of a black handheld electronic device with a black arrow pointing to its top panel (no visible text or symbols)

13 4 L G M T

Diagram of a handheld device with labeled parts 2 and 3, showing mechanical components and wiring.

15 15° 15°

Close-up of a hairpin with serrated edge and chain, showing motion arrows (no text or symbols)

Black-and-white sketch of a vehicle with a large pile of papers or documents, no visible text or symbols

Black-and-white photo of a person pruning a leafy shrub with a long tool in the background (no visible text or symbols)

Close-up of a leafy plant with two white arrows indicating vertical movement, labeled '19 20' in top-left corner (no other text or symbols)

Technical line drawing of a mechanical assembly with a conical component inserted into a shaft (no text or symbols)

21

1 2 3 4 5 6 7 8 9 10 m

D

Gefahr!

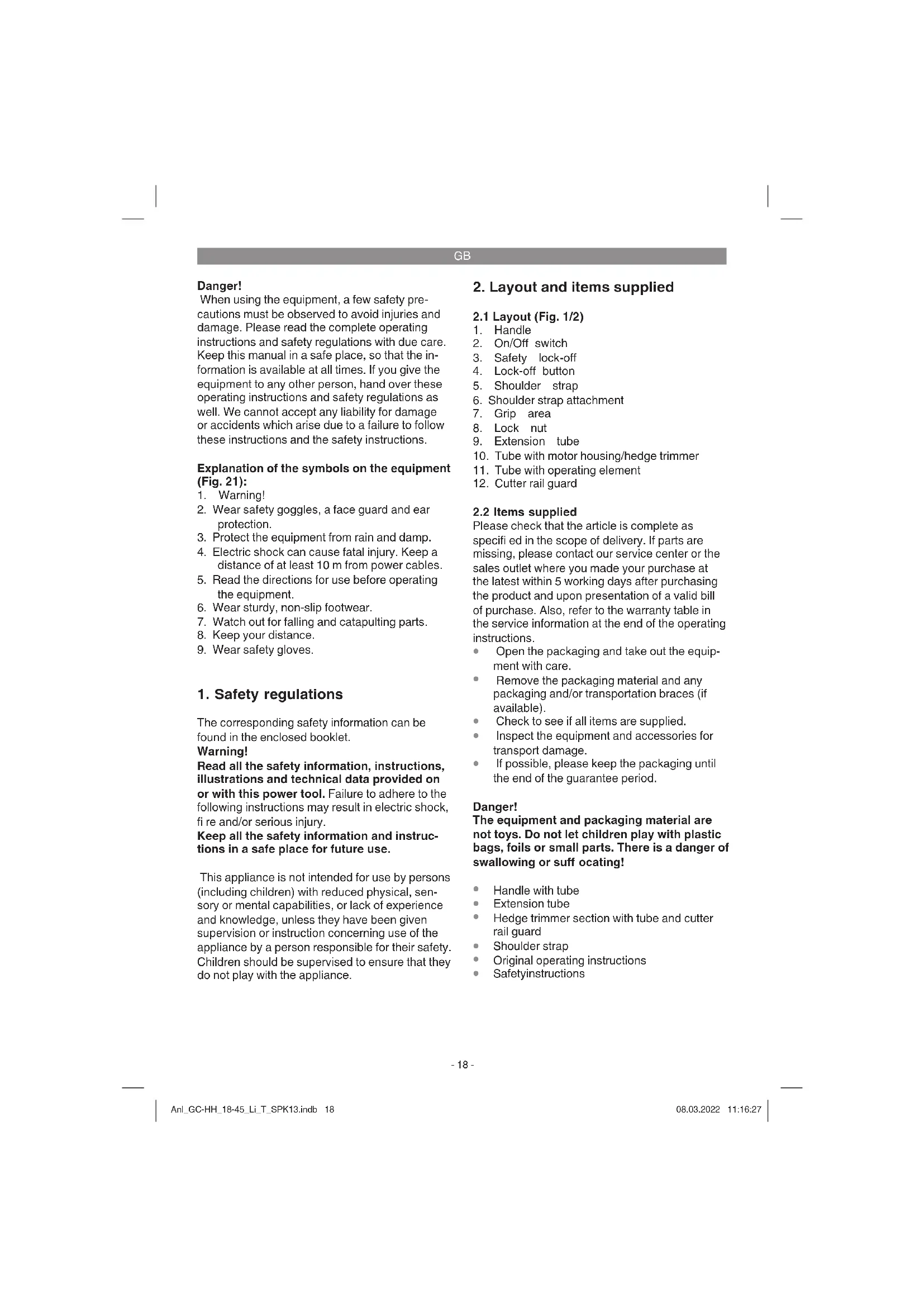

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

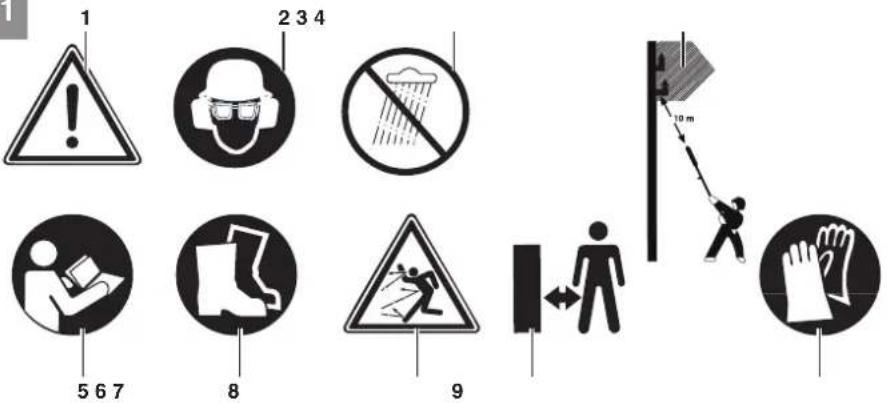

Explanation of the symbols on the equipment (Fig. 21):

1. Warning!
2. Wear safety goggles, a face guard and ear protection.
3. Protect the equipment from rain and damp.
4. Electric shock can cause fatal injury. Keep a distance of at least 10 m from power cables.
5. Read the directions for use before operating the equipment.
6. Wear sturdy, non-slip footwear.
7. Watch out for falling and catapulting parts.
8. Keep your distance.
9. Wear safety gloves.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1. Handle
2. On/Off switch
3. Safety lock-off
4. Lock-off button
5. Shoulder strap
6. Shoulder strap attachment
7. Grip area
8. Lock nut
9. Extension tube
10. Tube with motor housing/hedge trimmer
11. Tube with operating element
12. Cutter rail guard

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Handle with tube
  • Extension tube
• Hedge trimmer section with tube and cutter rail guard
• Shoulder strap
  • Original operating instructions
  • Safetyinstructions

GB

3. Proper use

This cordless pole hedge trimmer is suitable for cutting hedges, bushes and shrubs. Caution! Do not use this equipment to cut grass.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Operating voltage: 18V DC

Cutter bar length: 450 mm

Max. cutting length: 410 mm

Tooth spacing: 18 mm

Cuts/min: 1400

Caution!

The equipment is supplied without batteries and without a charger and is allowed to be used only with the lithium-ion batteries of the Power-X-Change series!

The lithium-ion batteries of the Power-X-Change series are allowed to be charged only with the Power-X charger.

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with ISO 22868.

Sound pressure level L_pA 82.8 dB(A)

Uncertainty K_pA .....3 dB

Measured sound power level L_WA ..... 91.1 dB(A)

Uncertainty K_WA .....3 dB

Guaranteed sound power level L_WA ..... 102 dB(A)

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with ISO 22867.

Handle under load

Handle (front)

Vibration emission value a_n=2.774 m/s^2

Uncertainty K = 1.5 m/s ^4

Handle (rear)

Vibration emission value a_h = 2.008 m/s^2

Uncertainty K = 1.5 m/s²

The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
  • Wear protective gloves.

5. Before starting the equipment

The equipment is supplied without batteries and without a charger and is allowed to be used only with the lithium-ion batteries of the Power-X-

Change series!

Caution! Do not fit the battery until the equipment has been fully assembled and all the settings have been actuated. Always wear protective gloves when working on the equipment to protect yourself against injury.

GB

Use the cutter rail guard (Fig. 2, Item 12)

5.1 Fitting the shoulder strap

(Fig. 3): Attach the carabiner hooks (Item 5a) of the shoulder strap (Item 5) to the shoulder strap attachments (Item 6/6a).

5.2 Fitting the tubes

The cordless pole hedge trimmer can be assembled either with or without the extension tube (Fig. 2 / Item 9).

5.2.1 Assembly with extension tube

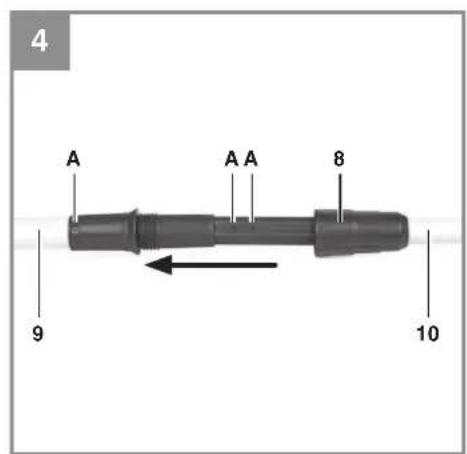

1. (Fig. 4-5) Make sure that the mounting screws (Item A) are on the same side and insert the tube with motor housing/hedge trimmer (Item 10) into the extension tube (Item 9). Screw the two tubes together with the lock nut (Item 8).
2. (Fig. 6) Insert the extension tube (Item 9) into the tube with the operating element (Item 11) and screw the two tubes together with the lock nut (Item 8). The cordless pole hedge trimmer has now been screwed together (Fig. 1). To dismantle, proceed in reverse order.

5.2.2 Assembly without extension tube

Insert the tube with the motor housing/hedge trimmer (Fig. 2 / Item 10) into to tube with the operating element (Fig. 2 / Item 11) and screw the two tubes together with the lock nut (Item 8). The cordless pole hedge trimmer has now been screwed together. To dismantle, proceed in reverse order.

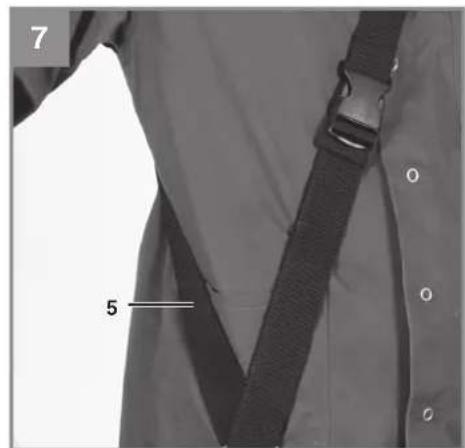

5.3 Using the shoulder strap

Warning! Always use the shoulder strap when working with the equipment. Switch off the equipment before you take off the shoulder strap (risk of injury).

1. Slip the shoulder strap (Fig. 7/Item 5) over your shoulder.
2. Adjust the length of the shoulder strap so that the strap attachment is at waist level (Fig. 7).

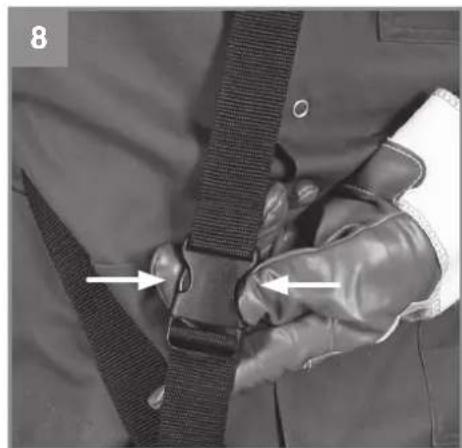

3. The shoulder strap is equipped with a buckle. Press the hooks together (Fig. 8) if you need to put down the equipment quickly.
4. To change the strap position on the equipment, slacken the wing nuts (Fig. 3/Item 6b) by turning them counterclockwise and move the strap attachment to the desired position on the tube. Then retighten the wing nuts (Fig. 3/Item 6b) by turning them clockwise.

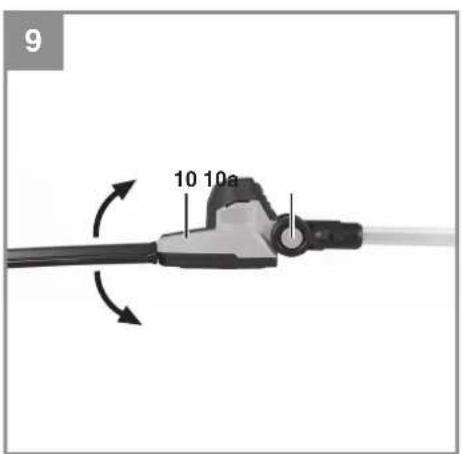

5.4 Adjusting the angle of the motor housing/hedge trimmer (Fig. 9)

Press the lock-off button (Item 10a) and adjust the angle of the hedge trimmer head (Item 10) to any of 7 latching positions.

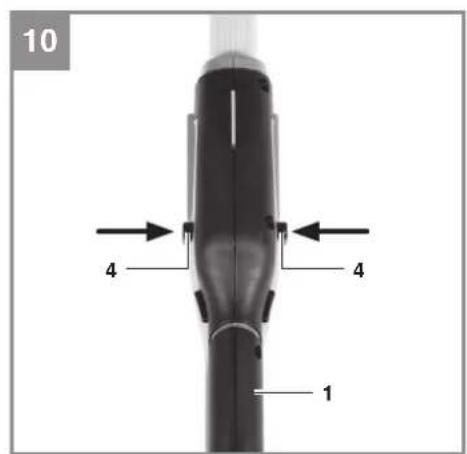

5.5 Turning the handle (Fig. 10)

Press the two lock-off buttons (Item 4) and turn the handle (Item 1) 90° to the left or 90° to the right.

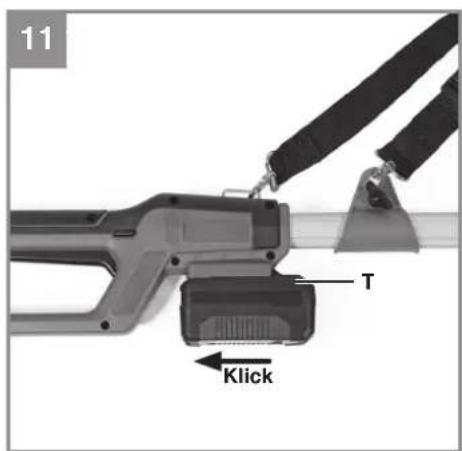

5.6 Fitting the battery (Fig. 11)

Press the pushlock button (T) of the rechargeable battery and push the battery into the battery mount provided. When the battery pack is positioned as in Fig. 11, make sure that the pushlock button latches in place! To remove the battery pack, proceed in reverse order.

5.7 Charging the battery (Fig. 11-12)

1. Take the battery pack out of the equipment. Do this by pressing the pushlock button (T).
2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger into the mains socket outlet. The green LED will then begin to flash.
3. Insert the battery pack into the battery charger.
4. In the section entitled „Charger indicator“ you will find a table with an explanation of the LED indicator on the charger.

The battery pack can become a little warm during the charging. This is normal.

If the battery pack fails to charge, check:

• whether there is voltage at the socket outlet
- whether there is good contact at the charging contacts.

If the battery pack still fails to charge, send

• the charging unit

• and the battery pack

to our customer service center.

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent

GB

short circuits and fi res.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

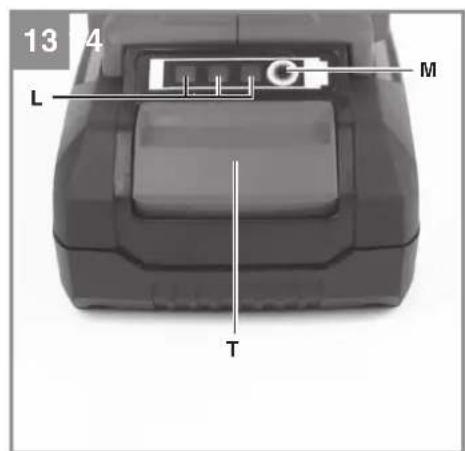

5.8 Battery capacity indicator (Fig. 13)

Press the button for the battery capacity indicator (M). The battery capacity indicator (L) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:

The battery is fully charged.

2 or 1 LED(s) are lit:

The battery has an adequate remaining charge.

1 LED fl ashes:

The battery is empty, recharge the battery.

All LEDs blink:

The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

6. Operation

Please note that the statutory regulations governing noise abatement may differ from one location to another.

Caution! Always use the shoulder strap when working with the equipment. Always switch off the equipment before you take off the shoulder strap. Otherwise there is a risk of injury.

Put on the shoulder strap as described above, fi t the required mounting kit and adjust the equipment to suit your needs.

Switching on/off

Switching on (Fig. 14)

• Hold the equipment firmly by the handle and grip surface with both hands
  • Press and hold the safety lock-off (Item 3).
  • Switch on the equipment with the On/Off

switch (Item 2). You can then release the safety lock-off.

Switching off

Release the On/Off switch (Fig. 14/Item 2).

7. Using for work

• Before you start work, inspect the cordless pole hedge trimmer for damage. Never use equipment which is obviously damaged.
• Check that the cutters work properly. The twin-bladed cutters rotate in opposite directions, thus guaranteeing high cutting performance and smooth operation.
• Take care to maintain a steady foothold and hold the equipment firmly in both hands away from your body. Before you switch on, make sure that the equipment is not touching any objects.

Work practice

• A hedge trimmer can be used to cut shrubs and bushes as well as hedges.

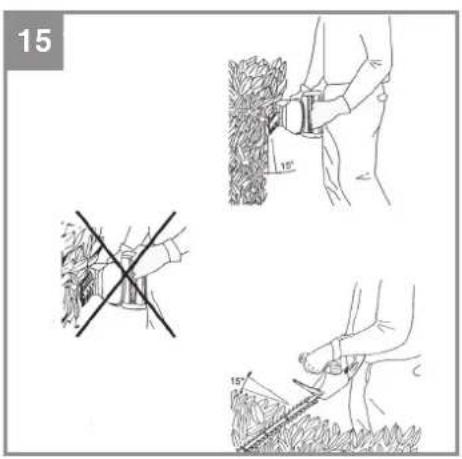

• To obtain the best cutting results, hold the hedge trimmer so that the cutter teeth are at an angle of approx. 15^ in relation to the hedge (see Fig. 15).
• The twin-bladed cutters rotate in opposite directions, thus enabling cutting in both directions (see Fig. 16).

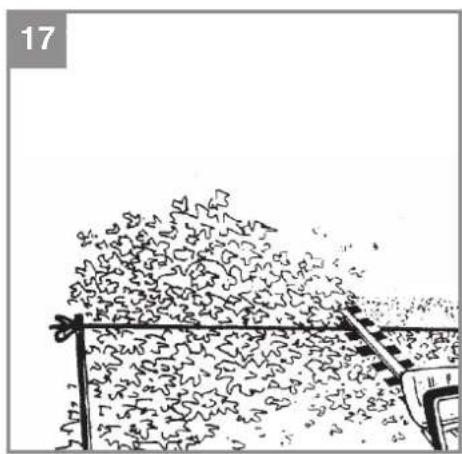

• It is recommended to tie a guide line of string or the like along the hedge so that you cut the hedge to a level height. Cut off all branches which protrude beyond the guide line (see Fig. 17/18).

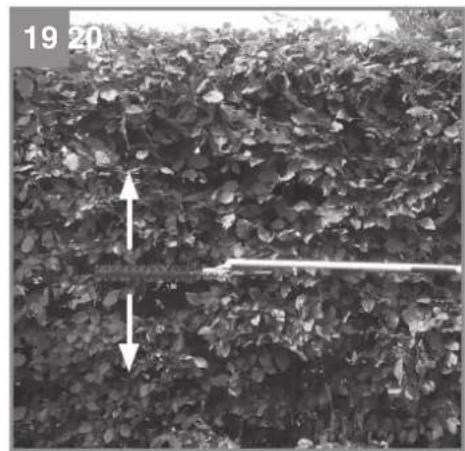

• Cut the sides of the hedge with curve-shaped movements from the bottom up (see Fig. 19).

8. Cleaning, maintenance and ordering of spare parts

Danger!

Remove the battery pack before doing any cleaning and maintenance work.

8.1 Cleaning

• Keep the handles free of grease so that you can maintain a firm grip.
• Clean the equipment as required with a damp cloth and, if necessary, mild washing up li- quid.

GB

• Never immerse the equipment in water or other liquids in order to clean it.
• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Maintenance

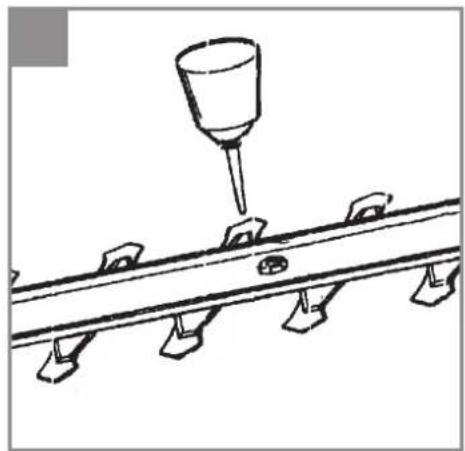

The cutters should be cleaned and lubricated at regular intervals in order to ensure best performance at all times. Remove deposits with a brush and apply a thin film of oil (Fig. 20).

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.Einhell-Service.com

9. Storage

• Clean and maintain the equipment before putting it into storage
• Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
  • Use the cutter rail guard

10. Transport

Secure the equipment during transportation in order to prevent damage or injuries. Use the cutter rail guard.

11. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

GB

12. Troubleshooting guide

Danger!

Before troubleshooting, switch off the equipment and remove the battery.

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Problem Possible cause Remedy
The equipment does not work	- Battery empty- Battery is not correctly inserted	- Charge battery- Remove battery and insert again
Equipment operates intermittently	- Loose connection (external)- Loose connection (internal)- ON/OFF switch defective	- Consult a specialist workshop.- Consult a specialist workshop.- Consult a specialist workshop.

GB

13. Charger indicator

Indicator status Explanations and actions
Red LED Green LED
Off	Flashing	Ready for useThe charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger.Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge.
Off	On	The battery is charged and ready for use. (READY TO GO)The unit then changes over to gentle charging mode until the battery is fully charged.To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer.Action:Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging	The charger is in gentle charging mode.For safety reasons the charging is performed less quickly and takes more time. The reasons can be:- The rechargeable battery has not been used for a very long time.- The battery temperature is outside the ideal range.Action:Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective.Action:Never charge a defective battery pack.Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0^ ).Action:Remove the battery pack and keep it at room temperature (approx. 20^ ) for one day .

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

Please note that batteries and lamps (e.g. light bulbs) must be removed from the tool before it is disposed of.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Blade guide, Battery
Consumables* Blade
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Negotovost K _pA 3 dB

Negotovost K _wA 3 dB

Sap K_pA .....3 dB

X 2006/42/EC
□ Annex IV
Notified Body:
Reg. No.:

X 2000/14/EC_2005/88/EC

X Annex V

□ Annex VI

Noise: measured L_WA = 96,2 dB (A); guaranteed L_WA = 102 dB (A)

P = kW; L/∅ = 41 cm

Notified Body:

2012/46/EU_(EU)2016/1628 Emission No.:

Standard references: EN 62841-1; EN 62841-4-2; EN 55014-1; EN 55014-2

Subject to change without notice

Archive-File/Record: NAPR027504

Documents registrar: Josef Landauer

Wiesenweg 22, D-94405 Landau/Isar

* 1. SBC Cordless telefascic hedge trimmer - F Bille-nelos e acumulator - C Osserie per sepi a belfeira - DKN Akuluhelukkelpler - S Betarditnden nidesk - CZ Akulaherowki potlovni nicky - SK Akulaherowki zadradnice ochnice - NL Acuneggschaan - E Tijna rescortasetes de pias recogabies. FIN Akuklyttolstis pensassakset - SLO Batierjke skljat - Z hno meu - G AKUR- kiti olo - RO Pafalota penitu gara viu acumulator - GP Opokoscimne jmuorace - P Cora-sorbes sem fič - NR/BH Akumalotiske skare za živou - RS Akumalotiske mazze za živou - PL Akumalotowe - R KU Akumalotowe - L KU Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akumalotowe - LV Akunlomerja radinose noviana - UK NK Uemiluri osod noviana - MK NK Uemili za jena oprada na baterija

EH 03/2022 (02)
