USER MANUAL Sineax I538 Camille Bauer

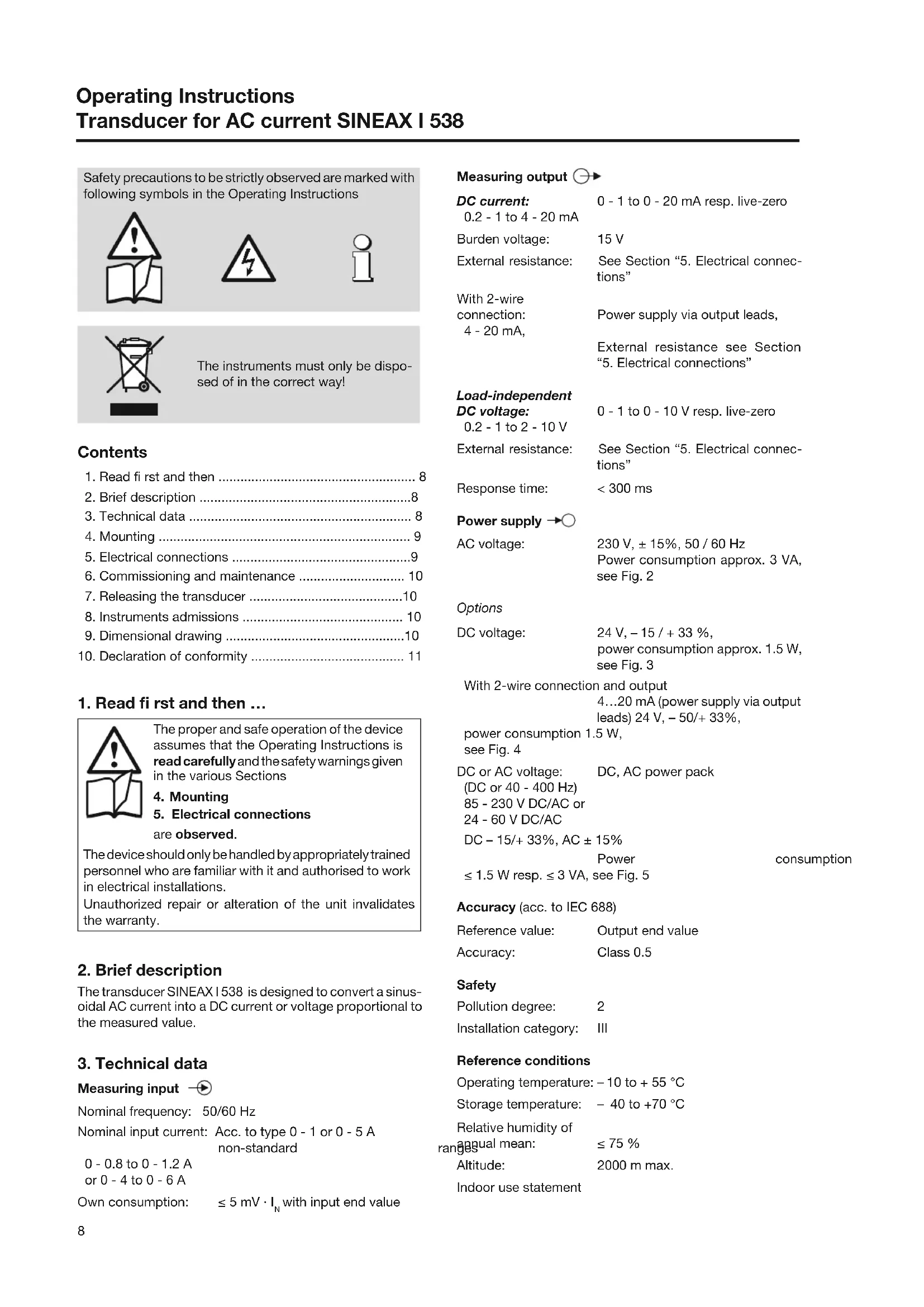

Operating Instructions

Transducer for AC current SINEAX I 538

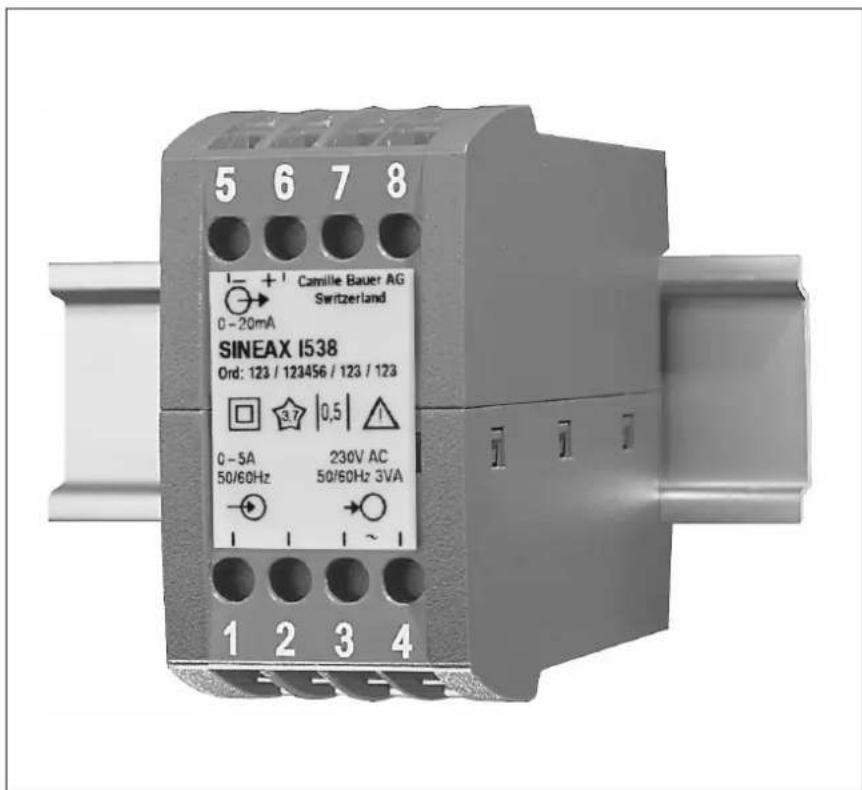

5 6 7 8 + +' Camille Bauer AG Switzerland 0-20mA SINEAX I538 Ord: 123 / 123456 / 123 / 123 0-5A 230V AC 50/60Hz 50/60Hz 3VA 1 2 3 4

I 538 B d-f-e 136 467-04 11.14

Camille Bauer Metrawatt AG

Aargauerstrasse 7

CH-5610 Wohlen/Switzerland

Telefon [phone]

Telefax [phone]

[e-mail]

www.camillebauer.com

(AC): 230 V, ± 15%, 50 / 60 Hz

Illustration of a hand holding a rectangular object with a downward arrow indicating motion (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component, showing tool path and force direction (no text or symbols)

Bild 7

8. Gerätezulassung

Tension continue (CC): 24 V, -15 / + 33 %, consommation env. 1,5 W,

voir Fig. 3

Tension continue (CC)

ou tension alternative

Illustration of a hand holding a rectangular object with an arrow indicating downward motion (no text or symbols)

Diagram of a screwdriver inserted into a mechanical component, showing tool path and force direction (no text or symbols)

Fig. 7

Safety precautions to be strictly observed are marked with following symbols in the Operating Instructions

The instruments must only be disposed of in the correct way!

Contents

1. Read first and then 8
2. Brief description ....8
3. Technical data 8
4. Mounting 9
5. Electrical connections .....9
6. Commissioning and maintenance 10
7. Releasing the transducer ....10
8. Instruments admissions .... 10
9. Dimensional drawing .....10
10. Declaration of conformity .... 11

1. Read first and then ...

The proper and safe operation of the device assumes that the Operating Instructions is read carefully and the safety warnings given in the various Sections

4. Mounting

1. Electrical connections are observed.

The device should only be handled by appropriately trained personnel who are familiar with it and authorised to work in electrical installations.

Unauthorized repair or alteration of the unit invalidates the warranty.

2. Brief description

The transducer SINEAXI 538 is designed to convert a sinusoidal AC current into a DC current or voltage proportional to the measured value.

3. Technical data

Measuring input

Nominal frequency: 50/60 Hz

Nominal input current: Acc. to type 0 - 1 or 0 - 5 A non-standard

0 - 0.8 to 0 - 1.2 A

or 0 - 4 to 0 - 6 A

Own consumption: ≤ 5 mV · I_N with input end value

Measuring output

DC current: 0 - 1 to 0 - 20 mA resp. live-zero 0.2 - 1 to 4 - 20 mA

Burden voltage: 15 V

External resistance: See Section "5. Electrical connections"

With 2-wire connection: Power supply via output leads, 4 - 20 mA,

External resistance see Section "5. Electrical connections"

Load-independent

DC voltage: 0 - 1 to 0 - 10 V resp. live-zero 0.2 - 1 to 2 - 10 V

External resistance: See Section "5. Electrical connections"

Response time: < 300 ms

Power supply →○

AC voltage: 230 V, ± 15%, 50 / 60 Hz Power consumption approx. 3 VA, see Fig. 2

Options

DC voltage: 24 V, -15 / +33 %, power consumption approx. 1.5 W, see Fig. 3

With 2-wire connection and output 4...20 mA (power supply via output leads) 24 V, -50/+33%,

power consumption 1.5 W, see Fig. 4

DC or AC voltage: DC, AC power pack

(DC or 40 - 400 Hz)

85 - 230 V DC/AC or

24 - 60 V DC/AC

DC - 15/+ 33%, AC ± 15%

Power consumption

≤ 1.5 W resp. ≤ 3 VA, see Fig. 5

Accuracy (acc. to IEC 688)

Reference value: Output end value

Accuracy: Class 0.5

Safety

Pollution degree: 2

Installation category: III

Reference conditions

Operating temperature: -10 to +55 °C

Storage temperature: - 40 to +70 °C

Relative humidity of annual mean: ≤ 75 %

Altitude: 2000 m max.

Indoor use statement

4. Mounting

The SINEAX I 538 can be mounted on a top-hat rail.

Note "Environmental conditions" in Section "3. Technical data" when determining the place of installation!

Simply clip the device onto the top-hat rail (EN 50 022) (see Fig. 1).

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols)

Fig. 1. Mounting onto a top-hat rail 35 × 15 or 35 × 7.5 mm.

5. Electrical connections

Connect the leads acc. to the instructions on nameplate.

Make sure that all cables are not live when making the connections! Impending danger by high power supply voltage! Take care of current transformers!

Also note that, ...

... the data required to carry out the prescribed measurement must correspond to those marked on the nameplate of the SINEAX I 538 (-measuring input, measuring output and power supply, see Fig. 6)!

... the resistance in the output circuit

- may not overrange the value

$$ R _ {\text { ext }} \max. [ k \Omega ] \leq \frac {1 5 \mathrm{V}}{I _ {\mathrm{AN}} [ \mathrm{mA} ]} $$

$$ \left(I _ {A N} = \text { current output end value }\right) $$

- with power supply via output leads (2-wire connection, output 4 - 20 mA) dependent on power supply H (12 - 32 V DC)

4 3 2

$$ R _ {\text { ext }} \max. [ k \Omega ] = \frac {H [ V ] - 1 2 V}{2 0 m A} $$

- may not underrange the value

$$ R _ {\text { ext }} \min. [ k \Omega ] \geq \frac {U _ {A N} [ V ]}{1 0 m A} $$

$$ \left(U _ {A N} = \text { voltage output end value }\right) $$

... the measurement output cables should be twisted pairs and run as far as possible away from heavy current cables!

In all other respects, observe all local regulations when selecting the type of electrical cable and installing them!

- + 5 6 7 8 1 2 3 4 I

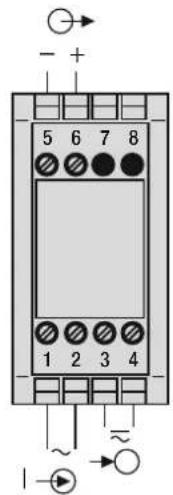

Fig. 2. AC power supply

- + 5 6 7 8 1 2 3 4 ~ - + + -

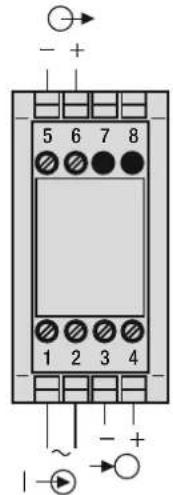

Fig. 3. DC power supply.

Rext + - + 5 6 7 8 1 2 3 4 I

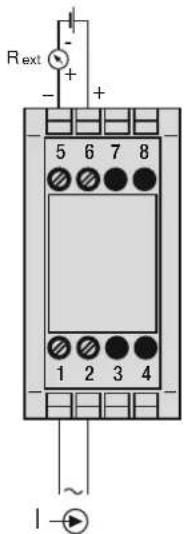

Fig. 4. Power supply via output leads.

- + 5 6 7 8 1 2 3 4 ~ ~

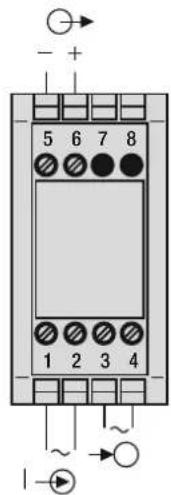

Fig. 5. DC, AC power supply, in version with built-in DC, AC power pack.

I → Current measuring input

= Measuring output

→○ = Power supply

Measuring output Test marks on device rear side CE SR 6L Works No. 5 6 7 8 Candle Baser AG Switchband 0-25mA SINEAX I 538 Unit: 123 / 123/465 / 123 / 123 0-5A 50/8Hz 230V AC 50/8Hz 30V Manufacturer 1 2 3 4 Measuring input → Power supply →

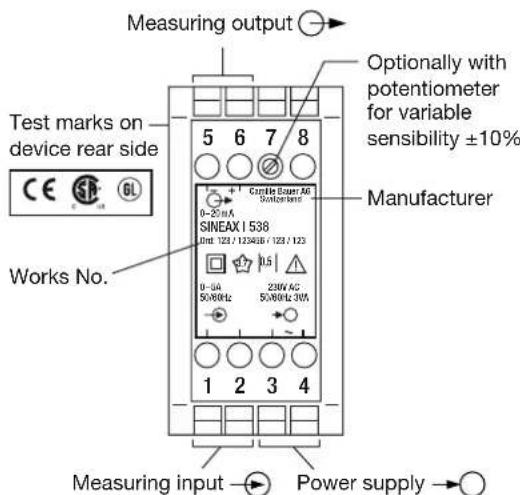

Fig. 6. Declaration to type label.

6. Commissioning and maintenance

Switch on the power supply and the measuring input. No maintenance is required.

7. Releasing the transducer

Release the transducer from a top-hat rail as shown in Fig. 7.

Diagram of a screwdriver inserted into a mechanical component with an arrow indicating direction (no text or symbols present)

Fig. 7

8. Instruments admissions

Germanischer Lloyd Type approval certifi cate: 12 259-98 HH

CSA approved for USA and Canada fi le-nr. 204767

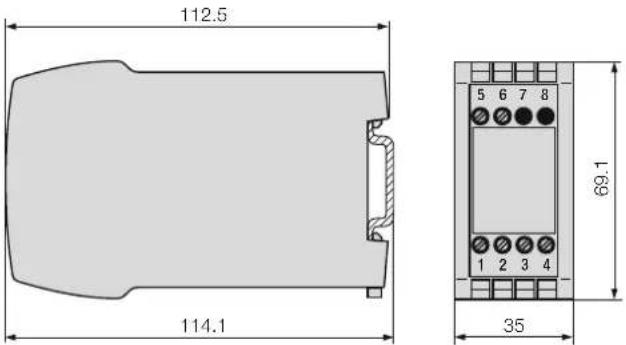

1. Dimensional drawing


112.5 114.1 69.1 35

Fig. 8. Housing type P8/35 onto a top-hat rail (35 ×15 mm or 35 ×7.5 mm) acc. to EN 50 022.

FCC Compliance and Canadian DOC Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to both part 15 of the FCC Rules and the radio interference regulations of the Canadian Department of Communications: These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is like to cause harmful interference in which case the user will be required to correct the interference at his own expense.

10. Konformitätserklärung / Certifi cat de conformité / Declaration of conformity

EG - KONFORMITÄTSERKLÄRUNG EC DECLARATION OF CONFORMITY

CAMILLE BAUER

Hersteller/ Manufacturer: Camille Bauer Metrawatt AG Switzerland

Anschrift / Address: Aargauerstrasse 7 CH-5610 Wohlen

The above mentioned product has been manufactured according to the regulations of the following European directives proven through compliance with the following standards:

Leiter Technik / Head of engineering

i.0.78 J. Brem

Qualitätsmanager / Quality manager
