Product type	5.1 Home cinema system
Brand	Focal
Model	Bird Pack 5.1
Configuration	5 satellites + 1 active subwoofer Cub3
Satellite speakers	2-way sealed: 14 cm Polyflex woofer/midrange, aluminium dome tweeter
Subwoofer driver	21 cm polypropylene, BASH® amplifier 150 W RMS
Satellite frequency response	70 Hz – 25 kHz (±3 dB)
Subwoofer frequency response	40 Hz – 120 Hz (±3 dB)
Subwoofer low cut-off	35 Hz (-6 dB)
Satellite sensitivity	89 dB (2.83 V/1 m)
Satellite nominal impedance	8 Ohms
Recommended amplifier power	15 – 100 W per satellite
Subwoofer power RMS / peak	100 W RMS / 150 W peak
Crossover frequency	2500 Hz
Satellite dimensions (H x W x D)	283 x 166 x 181 mm
Subwoofer dimensions (H x W x D)	333 x 300 x 300 mm
Satellite weight	2.1 kg
Subwoofer weight	11 kg
Power supply	Mains 230 V / 50 Hz
Subwoofer power modes	On / Off / Auto (signal detection)
Subwoofer phase	0° / 180°
Inputs	Stereo RCA line, LFE input
Subwoofer construction	MDF (medium-density fibreboard)
Maintenance and cleaning	Dry cloth only
Safety	Do not expose to water, do not open the device
Warranty (France)	2 years

Frequently Asked Questions - Bird Pack 5.1 FOCAL

How to install the Bird Pack 5.1 satellites?

Place each satellite at equal distance from your listening position, at a minimum height of 80 cm for a coherent soundstage. You can place them on a piece of furniture or mount them on the wall using the optional Tulipe, Cocotte, or Super Bird brackets.

Where to place the Cub^3 subwoofer?

For optimal performance, place the subwoofer in a corner of the room. This excites resonances linearly and increases the bass level by +6 dB. Avoid placing it far from walls.

How to connect the subwoofer to my amplifier?

Use the stereo RCA line inputs (Line Inputs) if your amplifier has pre-out outputs. For a home cinema amplifier, connect the subwoofer's LFE input to the amplifier's Subwoofer output. In this case, the subwoofer's settings (phase, frequency) are managed by the amplifier.

What to do in case of prolonged absence?

Set the subwoofer power switch to Off. In case of a thunderstorm, also unplug the power cord.

How to clean the speakers?

Use a dry, soft cloth. Never use liquid or abrasive products. Avoid letting water enter the speakers.

Can I use wall mounts for the satellites?

Yes, Focal offers three types of brackets: Tulipe (for Little Bird or Bird), Cocotte (for Bird), and Super Bird (for Super Bird). Follow the mounting instructions provided with the bracket.

How long does the subwoofer break-in take?

The break-in of the Cub^3 subwoofer driver takes about 20 hours at medium volume, with music programs rich in bass. Once stabilized, you will enjoy its full performance.

What to do in case of a technical problem?

Contact your Focal dealer. Do not attempt to repair the device yourself, as opening it exposes you to dangerous voltages. Only qualified personnel should perform repairs.

How to register the warranty?

You can register your product online at www.focal.com/garantie or return the completed warranty coupon to Focal-JMlab within 10 days of purchase.

Can I replace the remote control batteries?

If your system includes a remote control, use the same type of battery as the original. Observe polarity and dispose of used batteries according to local regulations.

USER MANUAL Bird Pack 5.1 FOCAL

pack 5.1 Home Cinema

Line drawing of a vintage-style portable radio unit with two speakers and a circular fan (no text or symbols)

English page 16

日本人の P49

	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.	Caution: to prevent yhe risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
1. Read these instructions.2. Keep these instructions.3. Take these warnings into consideration.4. Follow all the instructions.5. Do not use this equipment around water.6. Only clean with a dry cloth.7. Do not cover ventilation outlets. Follow manufacturer's instructions when installing the equipment.8. Do not install the equipment near a source of heat, a cooker, a heating duct or other equipment (including amplifiers) which gives off heat.9. Respect safety instructions for power cable. The power cable has two prongs, one of which is larger than the other. A grounded cable has two prongs as well as a third which is the grounding prong. The largest or third prong is there for your safety. If the power cable doesn't fit your power socket, seek the advice of an electrician and replace the old power socket.10. Make sure the cable cannot be stepped on, crushed or pinched. Extreme care must be paid to the plug and the connection of the cable to the equipment.11. Only use accessories recommended by the manufacturer.12. Only use handling equipment, legs, tripods, supports or tables recommended by the manufacturer or those sold with the equipment. When using a cart, take extra care when moving the cart and equipment to avoid injury in case something falls.13. Disconnect the equipment in case of a thunderstorm or if left unused for extended periods of time.	14. All maintenance must be carried out by a qualified professional. Maintenance is required following any damage caused to the equipment such as deterioration of the power cable or plug, spillage of liquid or insertion of objects inside the equipment, exposure to rain or humidity, poor functioning or physical damage.15. Do not use any accessories which aren't recommended by the manufacturer to avoid any risk.16. This product should only be connected to the type of power supply as indicated on the label on the equipment. In case of uncertainty as to the type of power supply of your electrical installation, consult the manufacturer of the product or your electricity provider. For equipment requiring a battery or another power source, consult the user manual.	17. Do not overload power sockets, extension cables or power strips. This could lead to fire or electric shock.18. Never insert objects in the ventilation outlets of the equipment. The object may come in contact with components exposed to high voltages or cause short-circuiting and lead to fire or electric shock. Never spill liquid on the equipment.19. Never try to repair this equipment yourself; opening the equipment may expose you to high voltages or other risks. For all maintenance, consult a qualified professional.20. In case a replacement part is required, make sure the maintenance technician uses parts specified by the manufacturer or which have identical specifications to the original part. Non-compliant parts may lead to fire or have other risks.21. Following any intervention or repair to the equipment, ask the technician to carry out tests to verify the product works safely.22. The equipment must not be mounted to the wall or ceiling unless the manufacturer has intended it to, and only depending on antenna cables.23. The ON/OFF switch situated at the back of the subwoofer is the power supply cut-off device. The equipment must always be accessible to the user.24. Do not expose to dripping water or splashing.25. CAUTION: May cause an explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

CAUTION

Symbolic icon of a person using a ladder to lift a weight, enclosed in a circle (no text or symbols)

Thank you for choosing Focal loudspeakers. We are pleased to share with you our philosophy: "the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to enjoy the maximum of their performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later.

ES

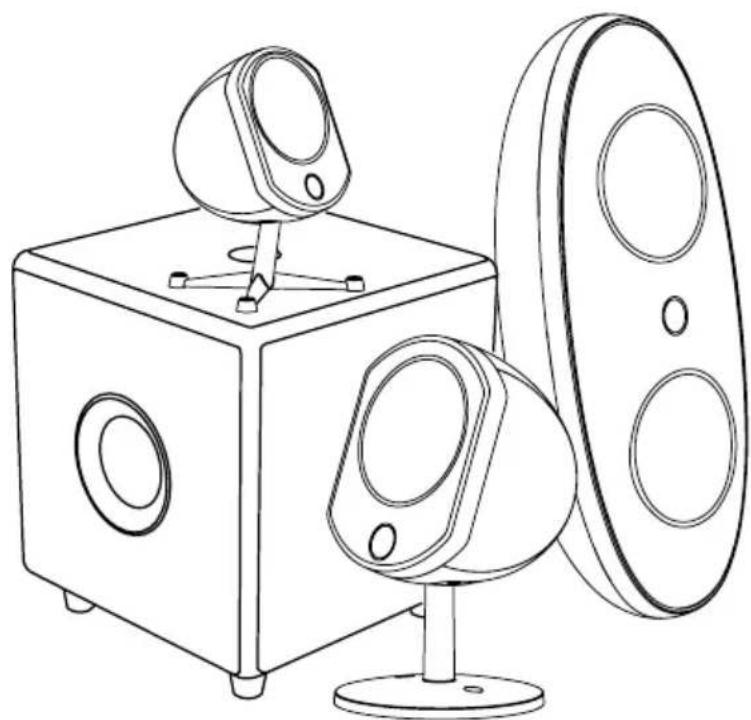

Line drawing of three standing speakers with circular headsets, labeled 'Stands' at the bottom (no other text or symbols)

Bird/Little Bird

Placement

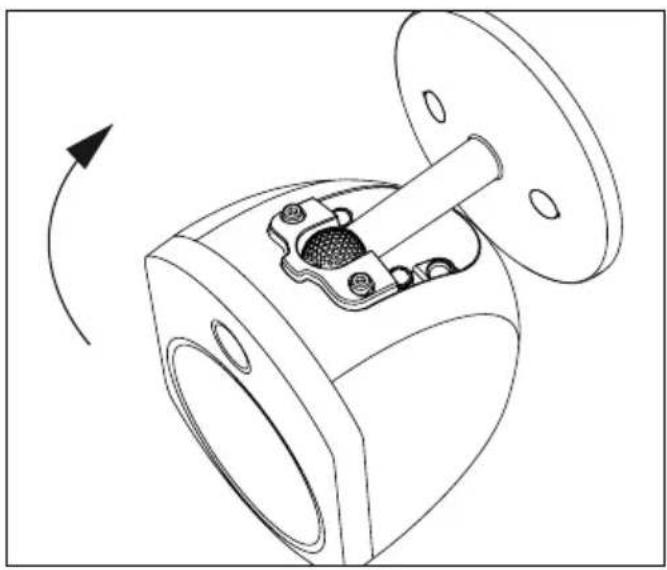

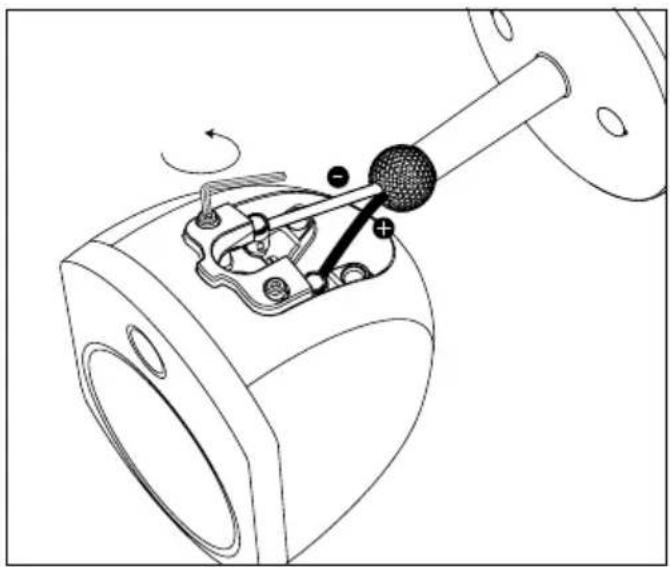

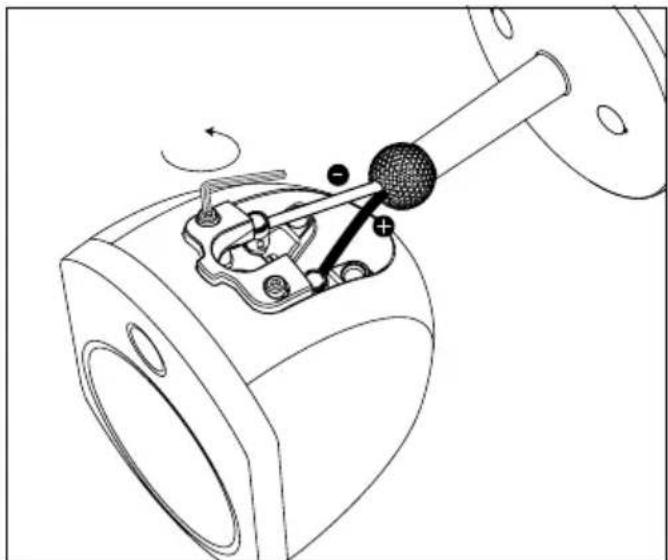

A - On a shelf

Place the loudspeakers equally spaced either side of the listening position. It is advisable to place Sib at least 80cm from the floor for a better sound stage.

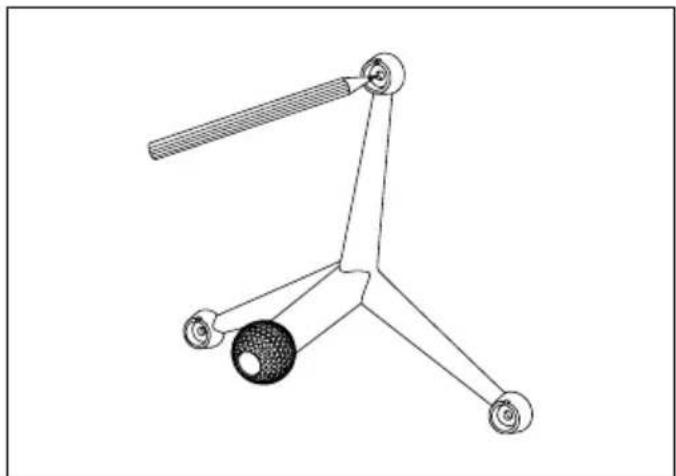

Diagram of a mechanical or scientific apparatus with spherical components and curved elements, no visible text or symbols

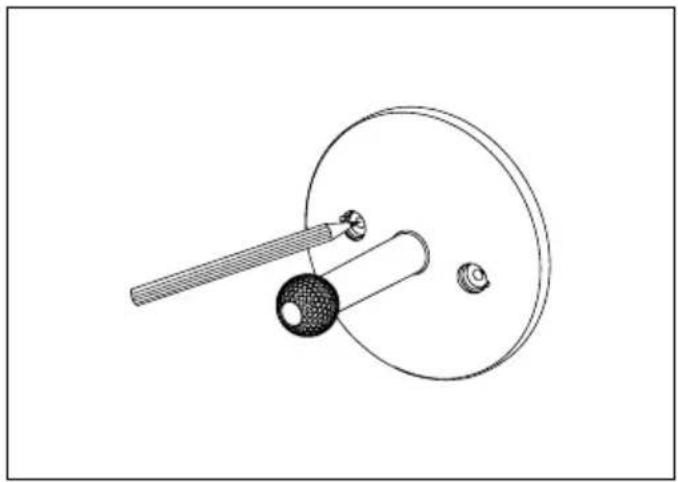

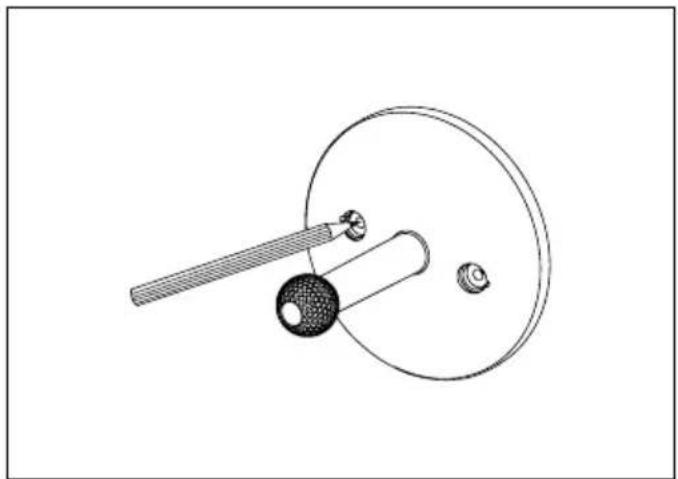

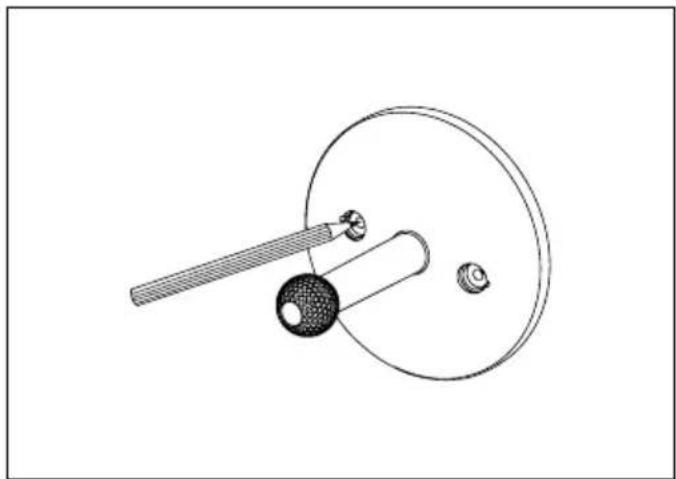

Technical line drawing of a mechanical component with a circular base and cylindrical shaft (no text or symbols)

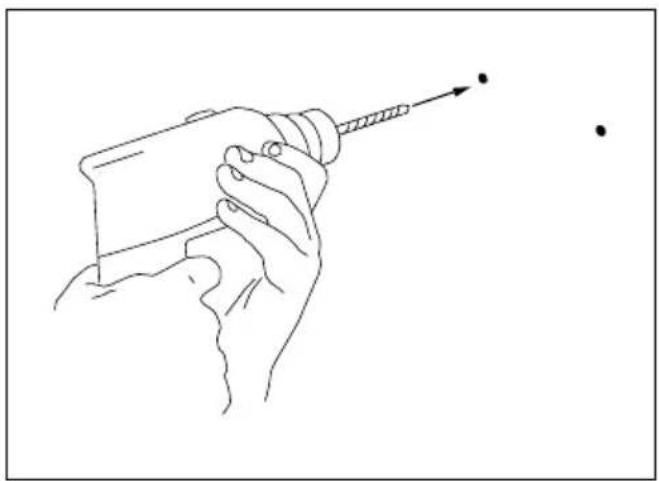

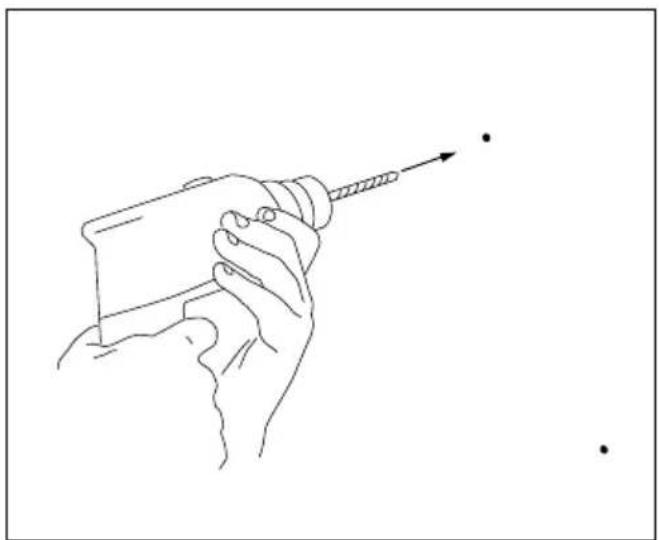

Line drawing of a hand holding a pen with a pointed tip, projecting a dot (no text or symbols)

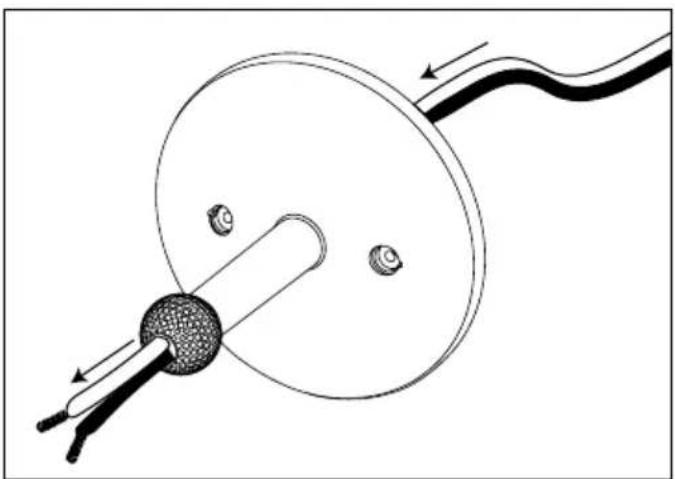

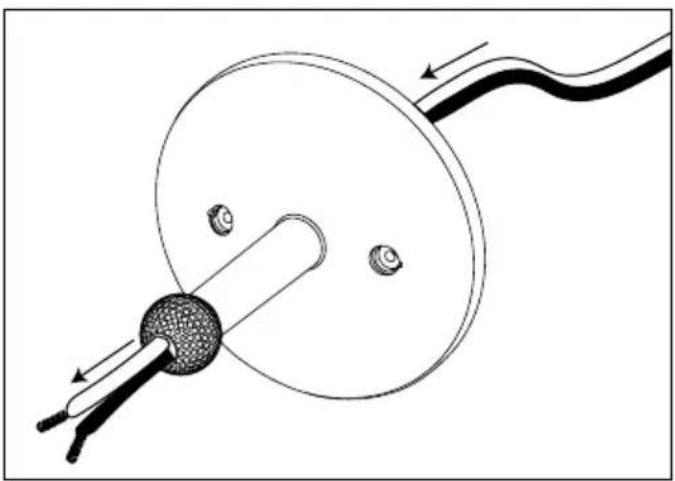

Diagram of a mechanical or electrical component with a central shaft and cable, showing directional arrows indicating motion (no text or symbols present)

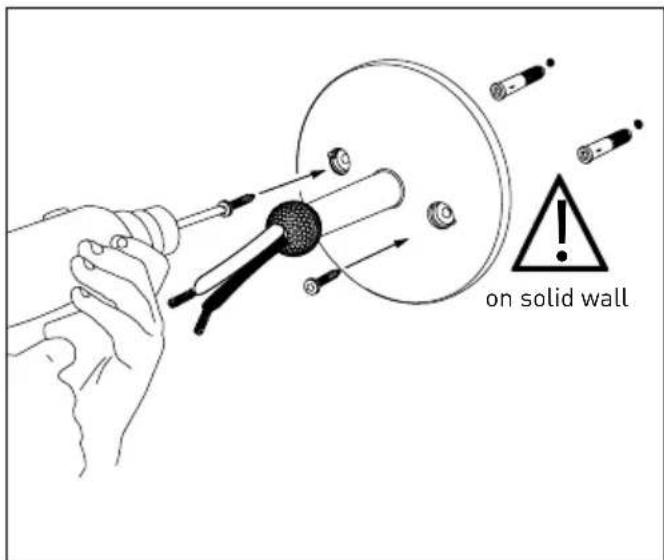

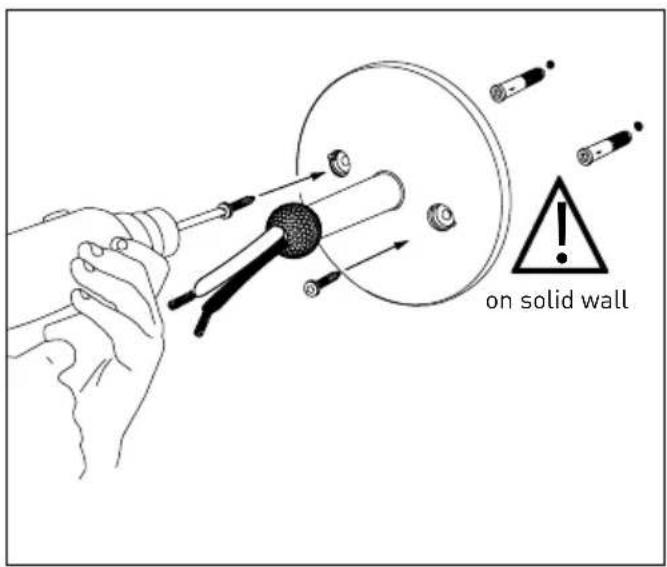

on solid wall

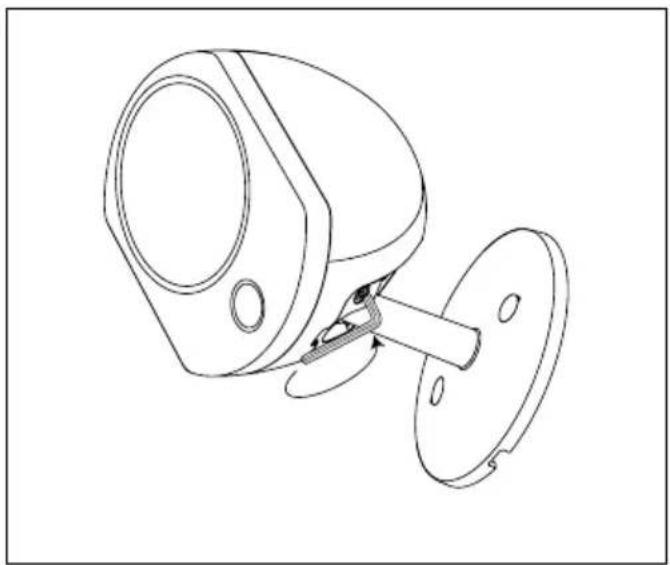

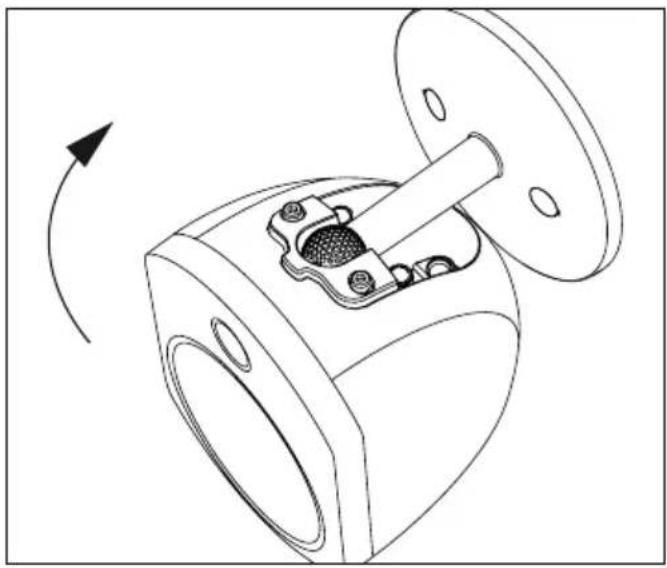

Mechanical assembly diagram showing a rotating shaft and housing mechanism (no text or labels)

BIRD® PACK 5.1 HOME CINEMA

User manual

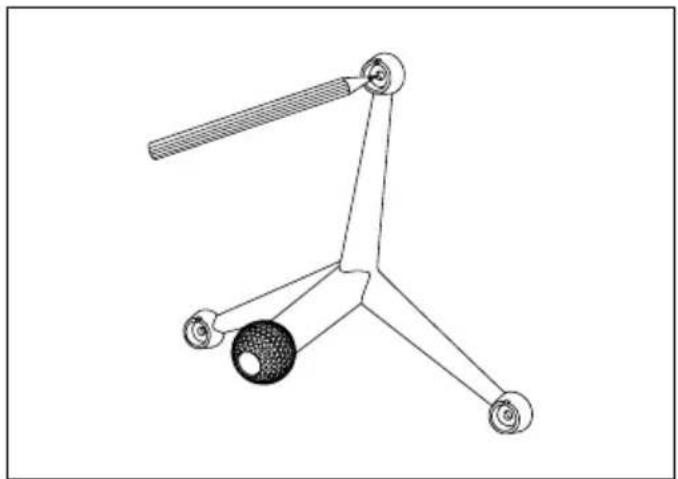

Technical line drawing of a mechanical device with rotating components and a central housing (no text or symbols)

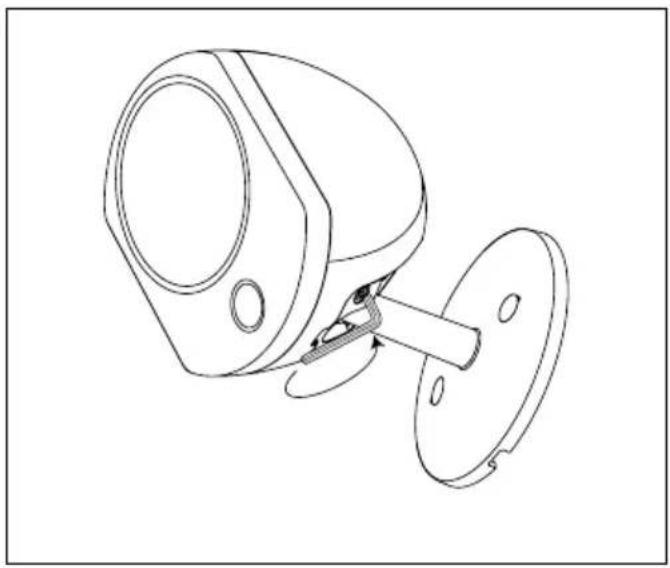

Technical line drawing of a mechanical component with flanges and a central shaft (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

BIRD® PACK 5.1 HOME CINEMA

User manual

C - Cocotte stand wall fixing

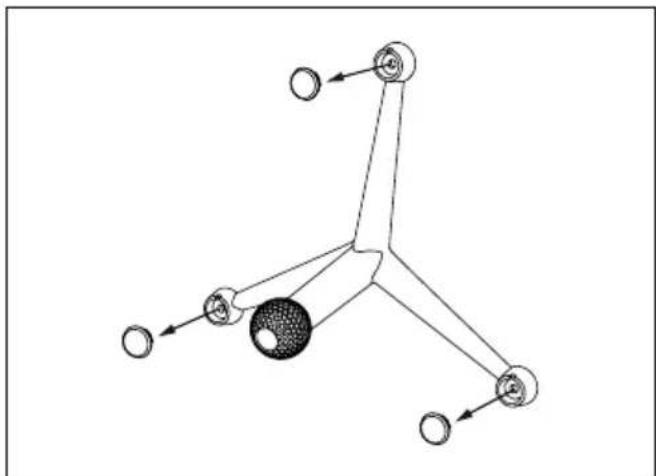

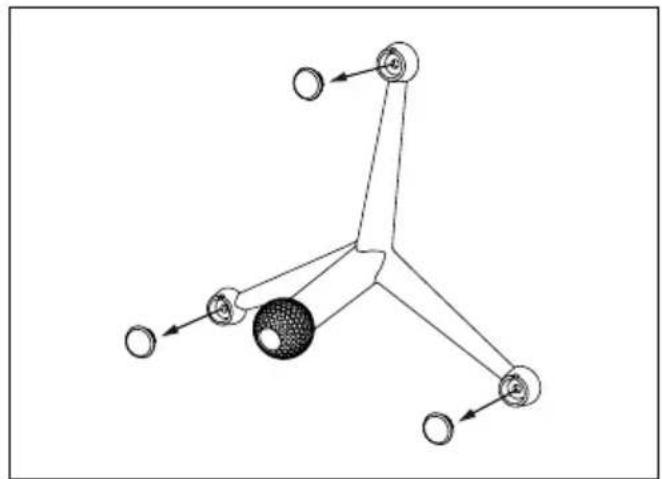

Simple line drawing of a three-legged support structure with a spherical base and four legs (no text or symbols)

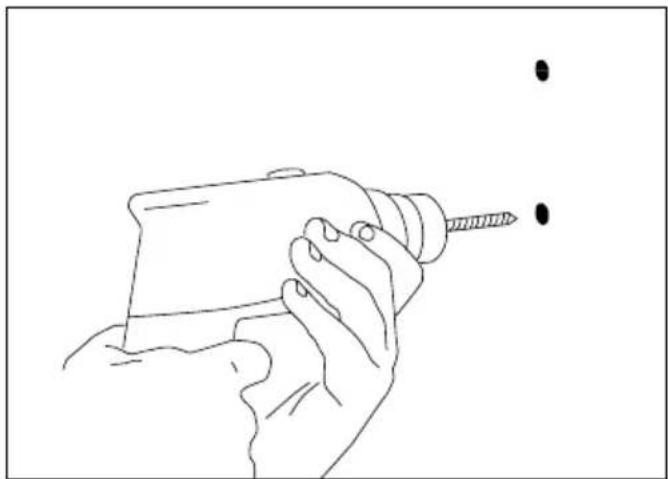

Line drawing of a hand holding a screwdriver with two dots nearby (no text or symbols)

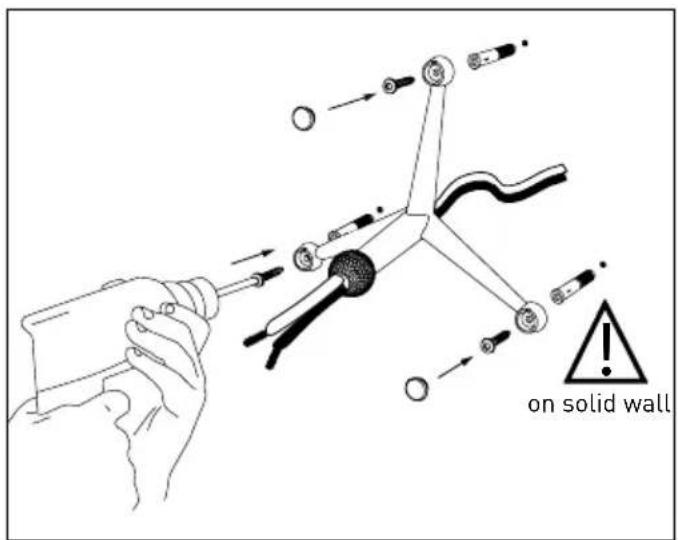

on solid wall

BIRD® PACK 5.1 HOME CINEMA

User manual

D - Super Bird wall mounting

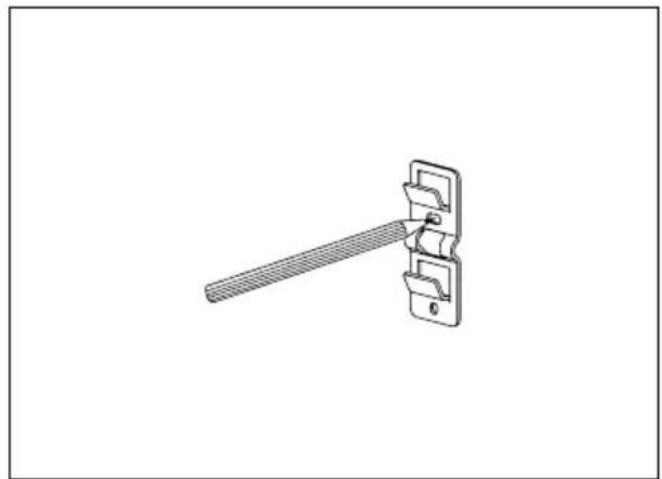

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

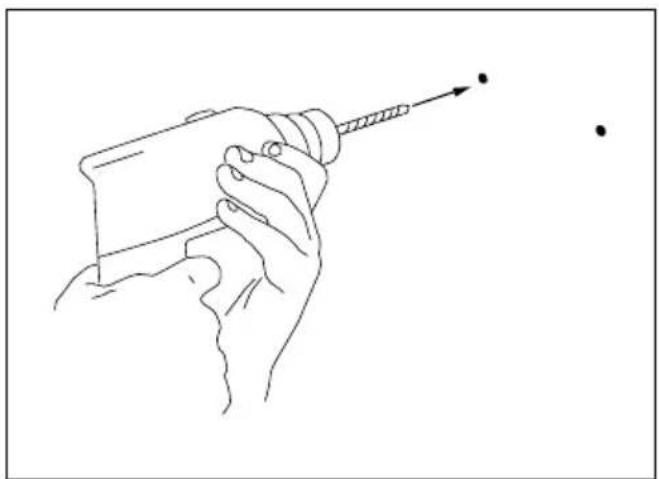

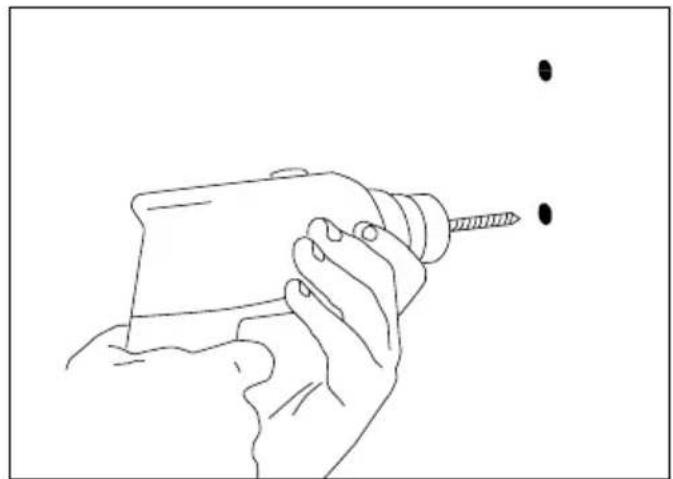

Line drawing of a hand holding a screwdriver, with two dots above indicating measurement or alignment points (no text or symbols present)

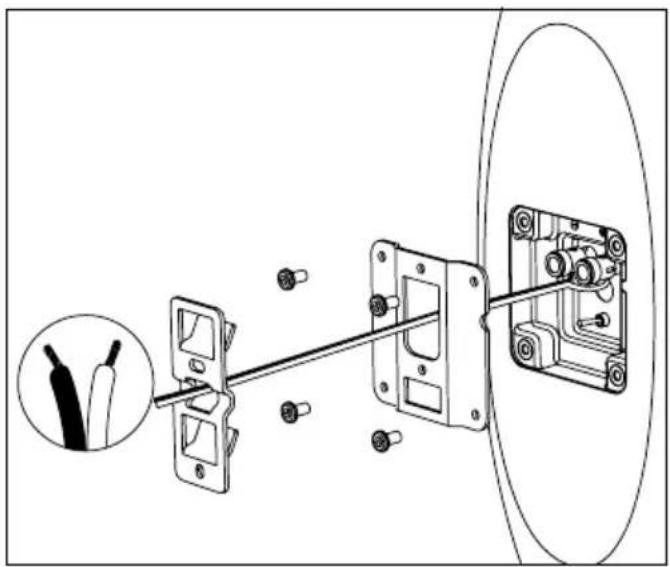

Line drawing of a hand holding a tool with a cable inserted into a connector (no text or symbols)

Technical diagram of a mechanical assembly with exploded view and close-up inset (no text or symbols)

Technical line drawings of two electronic components with circular cutouts and mounting brackets (no text or symbols)

Specifications
Little Bird Bird

Type Ultra compact 2-way sealed speaker Compact 2-way sealed speaker
Drivers 4" (10cm) Polyflex cone midbass	5 ^1/2 " (14cm) Polyflex cone midbass
	Aluminum dome tweeter	Aluminum dome tweeter
Frequency response (±3dB) 89Hz - 25kHz 70Hz - 25kHz
Low frequency point (-6dB) 81Hz 64Hz
Sensitivity (2.83V/1m) 87dB 89dB
Nominale impedance 8 Ohms 8 Ohms
Minimum impedance 3,5 Ohms 3 Ohms
Crossover frequency 2500Hz 2500Hz
Recommended amplifier power	15 - 75W	15 - 100W
Dimensions (HxWxD) Tulipe: 8x4 ^11/16 x5" (202 x 119 x 130mm)Cocotte: 7^11/16 x 6^1/4 x 5^16/16 " (195 x 159 x 147mm)	Tulipe: 11x 6^9/16 x7" (283 x 166 x 181mm)Cocotte: 10^13/16 x 8^11/16 x8" (274 x 221 x 205mm)
Net weight	1.65lb (0.75kg) 4.63lb (2.1kg)

Super Bird

Type	2-way compact speaker, with passive radiator
Drivers 5	^1/2 " (14cm) Polyflex cone passive radiator 5^1/2 " (14cm) Polyflex cone midbass Aluminum dome tweeter
Frequency response ( ± 3dB) 55Hz – 25kHz
Low frequency point (-6dB) 49Hz
Sensitivity (2.83V/1m) 90dB
Nominale impedance 8 Ohms
Minimum impedance 3 Ohms
Crossover frequency 2500Hz
Recommended amplifier power	15 - 150W
Dimensions (HxWxD) 18	^13/16 x 8^1/8 x5" (478 x 207 x 128mm)
Net weight	6.94lb (3.15kg)

BIRD® PACK 5.1 HOME CINEMA

User manual

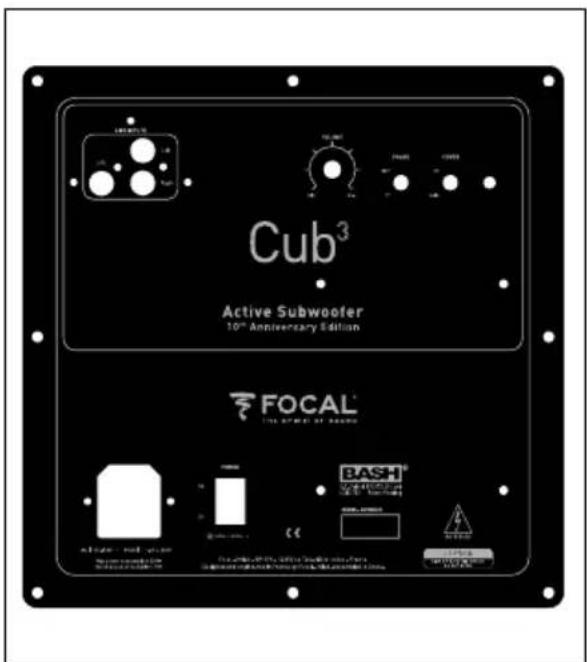

Cub3

Specifications

21cm (11") subwoofer: polypropylene cone.

BASH® 150Wrms amplifier: high-performance digital amplification technology for high power and high quality sound.

Phase selector: subwoofer/loudspeaker coupling optimization.

Auto on/standby system: the BASH® amplifier automatically switches on or off (standby).

Soft clipping: avoids saturation.

LFE direct input: direct mono input to connect to the subwoofer output of home theatre amplifiers.

MDF manufactured enclosure: rigid cabinets free of internal resonance.

Profiled vent port: vigorous bass reproduction, no distortion effect.

Line drawing of a square box with a circular vent and four legs (no text or symbols)

Settings

Autopower

The Cub ^3 features an automatic audio signal detector.

When the power control is set on auto-mode, the subwoofer will automatically switch on as soon as an audio signal is detected. When set to power on, the signal detector is disable and the subwoofer is continuously on.

Conversely, if no signal is detected during a period of about 3 minutes, the detector automatically set the subwoofer to standby mode.

If you expect not to use the subwoofer for a long period, it is recommended to set the power selector to "off".

In case of stormy weather, unplug the power cable.

Cub³ Active Subwoofer 10th Anniversary Edition FOCAL® 10TH SPRING OF BANCO BASH® ©

BIRD® PACK 5.1 HOME CINEMA

User manual

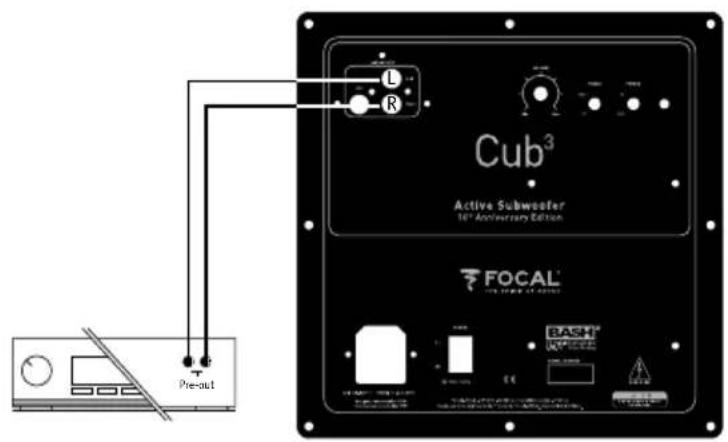

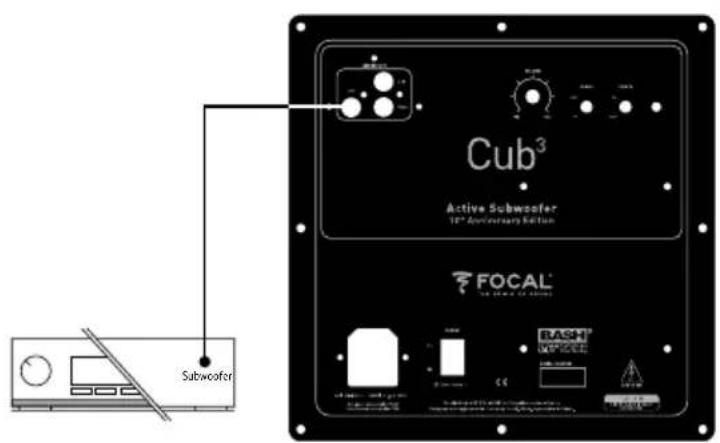

Connections

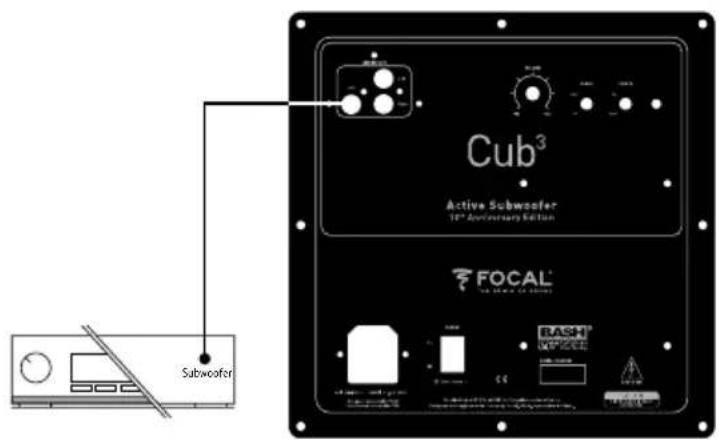

Low-level inputs on RCA

When using a two-channel amplifier with pre-out line outputs, the Cub ^3 must be connected through RCA stereo inputs "line inputs Right/Left" (fig. A).

LFE input

When using an audio/video multi-channel amplifier, the single LFE input of the Cub ^3 should be connected to the mono "Subwoofer" output of the audio/video amplifier (fig. B). In that case, all controls of the Cub ^3 will be off, except the volume control. Considering the fact that the audio/video amplifier already features all the necessary functions, this configuration is recommended for home theatre use only.

Cub³ Active Subwoofer 10th Anniversary Edition FOCAL® THE WORLD OF CUB3 Pre-out L R BASH® WALAWA E

Cub³ Active Subwoofer 12th Anniversary Edition FOCAL® Subwoofer RASH® UPPER 0.5V 0.5V 0.5V 0.5V 0.5V

BIRD® PACK 5.1 HOME CINEMA

User manual

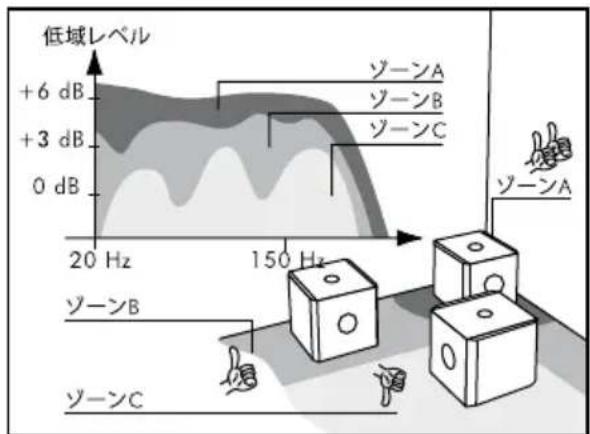

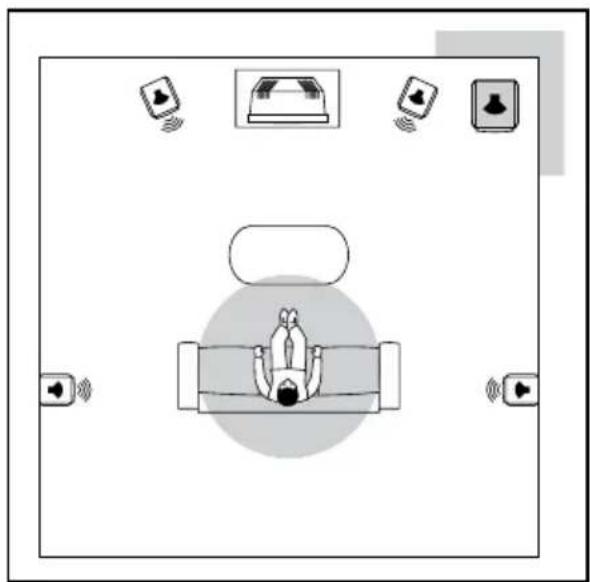

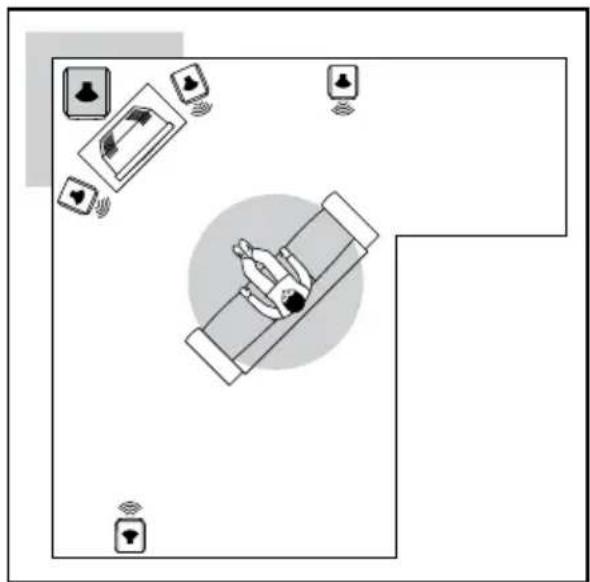

Cub ^3 Positioning

Contrary to conventional high fidelity loudspeakers which have to be placed at a reasonable distance from walls and the listening area corners, we advise you to place your Cub ^3 subwoofer in a corner of the listening area. If the subwoofer is placed against only one wall or too far from the walls, the very large wavelength of the bass delivered by the subwoofer will excite the resonance of the listening room in an unpredictable way. Frequency response linearity will then be damaged and therefore the sound rendition will be affected (lack of depth, "boomy sound", poor bass, difficult or impossible coupling with the other used loudspeakers).

If you put the Cub ^3 in a corner, the resonant frequencies of the room will be more linear and predictable. In such a configuration, you will not only benefit from an optimum perception of the bass frequency range but the bass level will also be increased by 6dB.

If a particular disposition of the room does not allow to place the subwoofer in a corner, we recommend you to try different configurations until you find the best possible disposition.

Generally, the subwoofer should be placed along the front wall of the listening room.

Because the bass frequency waves are omni-directional, the sound dispersion will not be affected if a piece of furniture or an object is placed between the subwoofer and the listening area.

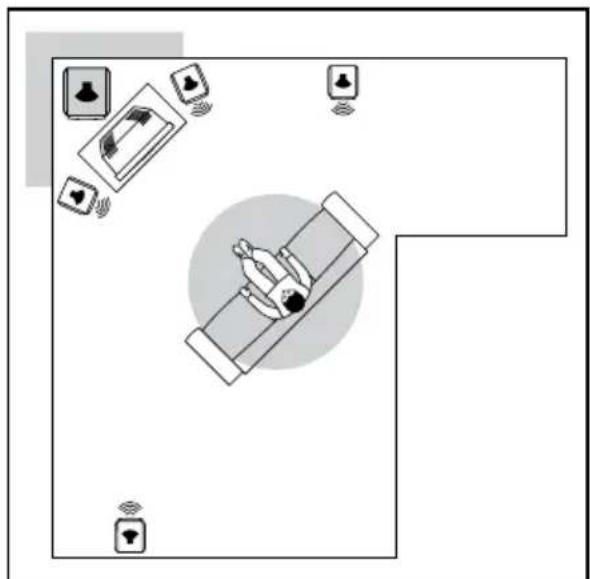

Top-down diagram of a person reclining in bed with sound wave indicators above, no text or symbols present

Top-down diagram of a person sleeping in bed with surrounding devices and icons (no text or symbols)

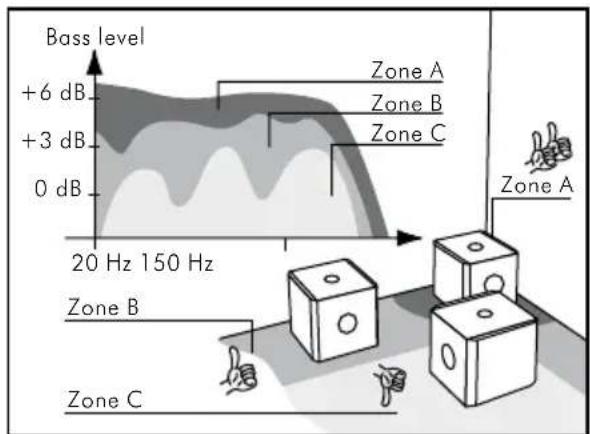

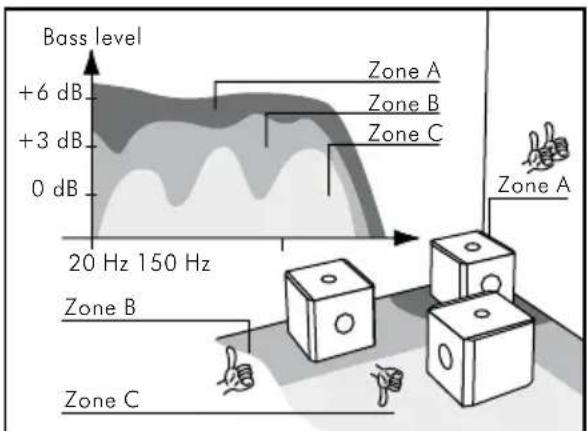

Bass level +6 dB +3 dB 0 dB 20 Hz 150 Hz Zone A Zone B Zone C Zone A

BIRD® PACK 5.1 HOME CINEMA

User manual

25

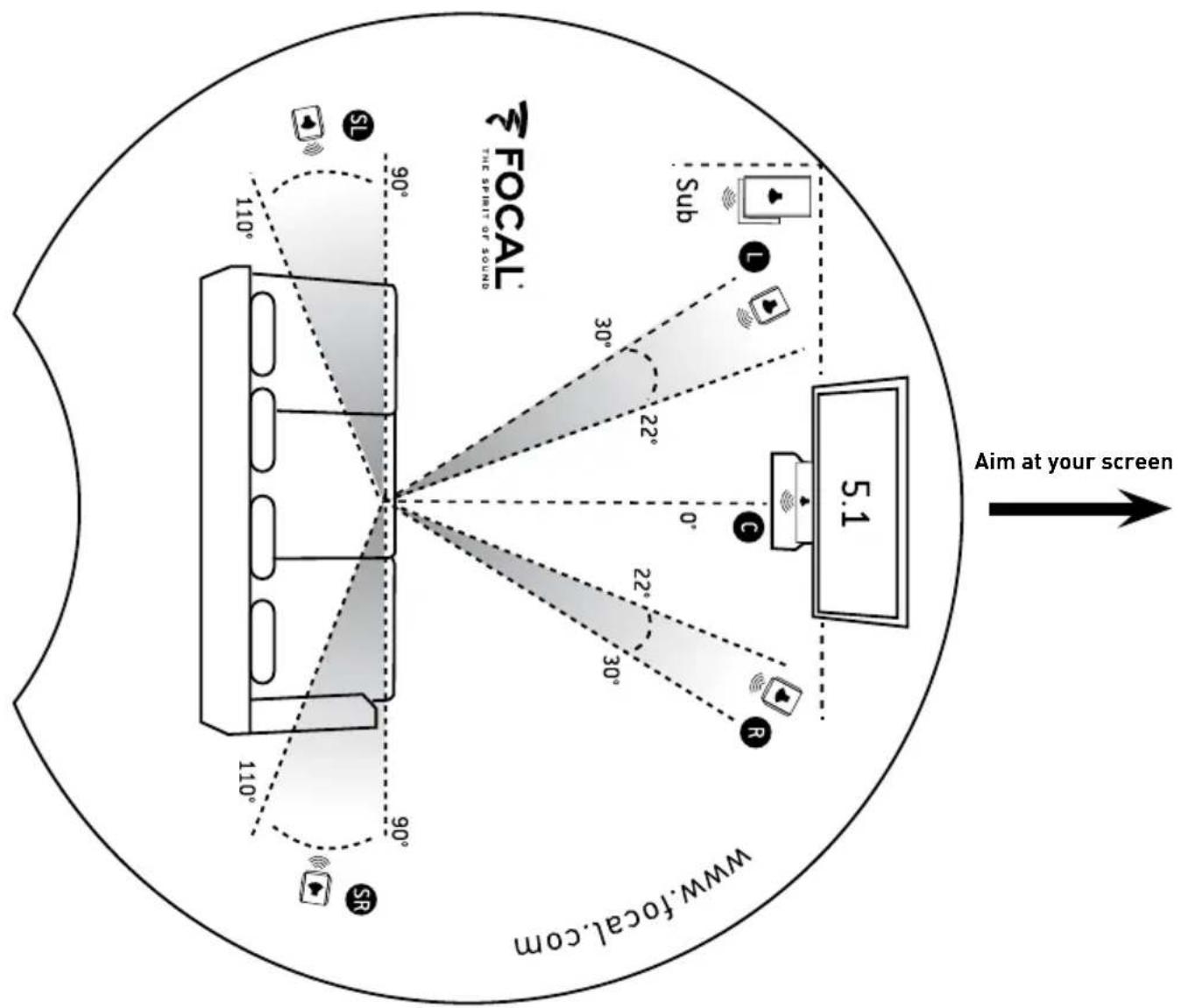

Satellites positioning

• Use the positioning tool below
• Go at your listening spot
• Aim at your screen
• It gives you the best positions for your speakers

FOCAL THE SPIRIT OF SOUND 90° 110° 30° 22° 0° 22° 30° SR 110° 90° 5.1 Aim at your screen WWW.FOCAL.COM

Running-in period

The driver used in the Cub ^2 is made up of complex mechanical elements and requires an adaptation period before it delivers the best of its performances. They must get adapted to the temperature and humidity conditions of their environment. This breaking-in period depends upon the encountered conditions and can last several weeks. In order to shorten this period, we advise you to let your subwoofer operate for about twenty hours at medium level, playing standard music programs, but with a large amount of bass. Once the components of the speaker are completely stabilized, it is possible to enjoy the true performances of your self powered subwoofer.

Specifications

Description compact bass-reflex active subwoofer,150W BASH® built in amplifier,
Driver 8" (210mm)
L.F. (-6dB) 35Hz
Frequency response (+/- 3dB) 40Hz - 120Hz
Crossover frequencies 120Hz
Inputs line-in stereo	direct line-in (LFE)
Nominal power (RMS) 100W
Peak power 150W
Phase 0°/180°
Power function on/off/standby
Total dimensions (HxWxD) 333mm x 300mm x 300mm13.1"x12"x12"
Net weight 11kg (22.lbs)

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

BIRD® PACK 5.1 HOME CINEMA

Line drawing of three vertical stands with circular cutouts, labeled 'Pieds' at the bottom (no other text or symbols)

Bird / Little Bird

Placement

Diagram of a mechanical or scientific apparatus with spherical components and curved elements, no visible text or symbols

Technical line drawing of a mechanical component with a circular base and cylindrical shaft (no text or symbols)

Line drawing of a hand holding a screwdriver with an arrow pointing to a dot (no text or symbols)

Diagram of a mechanical or electrical component with a central shaft and cable, showing directional arrows indicating motion (no text or symbols present)

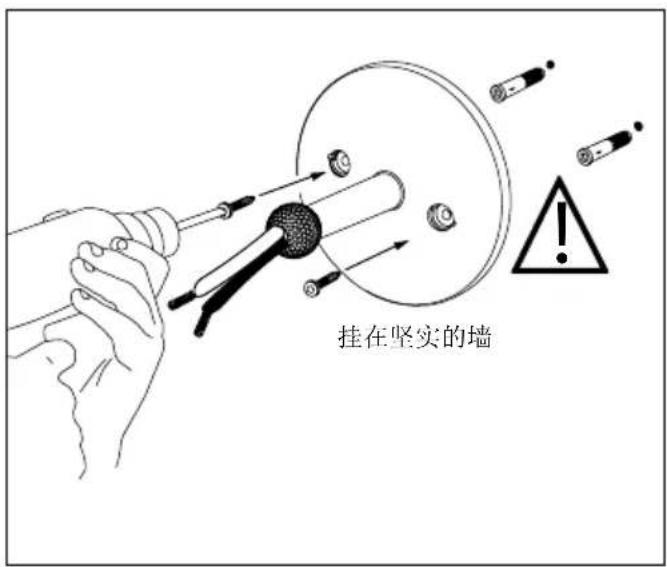

on solid wall

Mechanical assembly diagram showing a rotating shaft and housing mechanism (no text or labels)

BIRD® PACK 5.1 HOME CINEMA

Technical line drawing of a mechanical device with rotating components and a central housing (no text or symbols)

Technical line drawing of a mechanical component with flanges and a central shaft (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

BIRD® PACK 5.1 HOME CINEMA

Simple line drawing of a three-legged support structure with a spherical base and four legs (no text or symbols)

Line drawing of a hand holding a screwdriver with two dots nearby (no text or symbols)

on solid wall

BIRD® PACK 5.1 HOME CINEMA

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a screwdriver, with two dots above indicating measurement or alignment points (no text or symbols present)

Line drawing of a hand holding a tool with a cable inserted into a connector (no text or symbols)

Technical diagram of a mechanical assembly with exploded view and close-up inset (no text or symbols)

Technical line drawings of two electronic components with circular cutouts and mounting brackets (no text or symbols)

Line drawing of a square box with a circular vent and four legs (no text or symbols)

Mise en route

Cub³ Active Subwoofer 10th Anniversary Edition FOCAL® THE WORLD OF CUB3 Pre-out L R BASH® WALAWA E

Cub³ Active Subwoofer 17th Anniversary Edition FOCAL® Subwoofer RASH® RASH®

BIRD® PACK 5.1 HOME CINEMA

Top-down diagram of a person reclining in bed with sound wave indicators and play buttons above (no text or symbols)

Top-down diagram of a person sleeping in bed with surrounding devices and icons (no text or symbols)

Bass level +6 dB +3 dB 0 dB 20 Hz 150 Hz Zone A Zone B Zone C Zone A Zone B Zone C

BIRD® PACK 5.1 HOME CINEMA

Line drawing of three vertical stand holders with circular tops, labeled '支架' (支架) at the bottom (no other text or symbols)

Bird / Little Bird

安装说明

A - 放在搁板上

Diagram of a mechanical or scientific apparatus with a central sphere and surrounding circular components (no text or symbols)

Technical line drawing of a mechanical component with a central shaft and spherical base (no text or symbols)

Line drawing of a hand holding a pen with a pointed tip, projecting a dot (no text or symbols)

Diagram of a mechanical or electrical component with a central shaft and cable, showing directional arrows indicating motion (no text or symbols present)

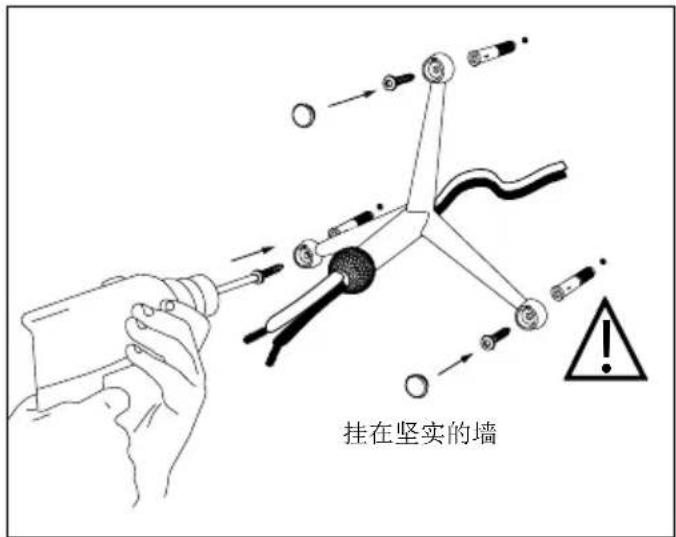

挂在坚实的墙

Mechanical assembly diagram showing a rotating shaft and gear mechanism (no text or labels)

BIRD® 5.1 家庭影院套装

用戶手冊

Technical line drawing of a mechanical device with rotating components and a central housing (no text or symbols)

Technical line drawing of a mechanical component with flanges and a central shaft (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

BIRD® 5.1 家庭影院套装

用戶手冊

41

C - 挂墙圆座支架

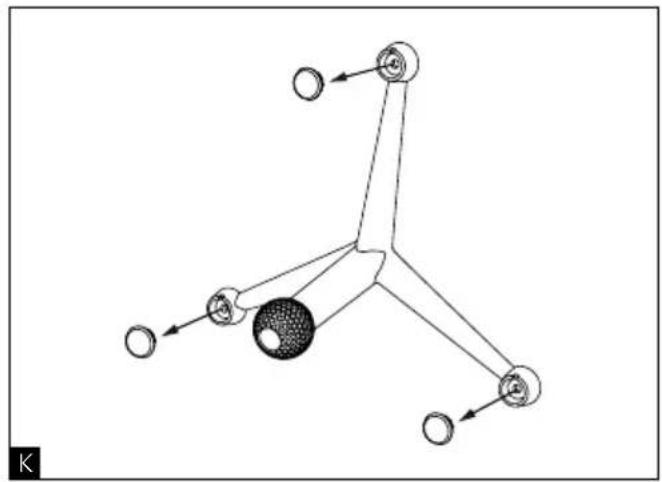

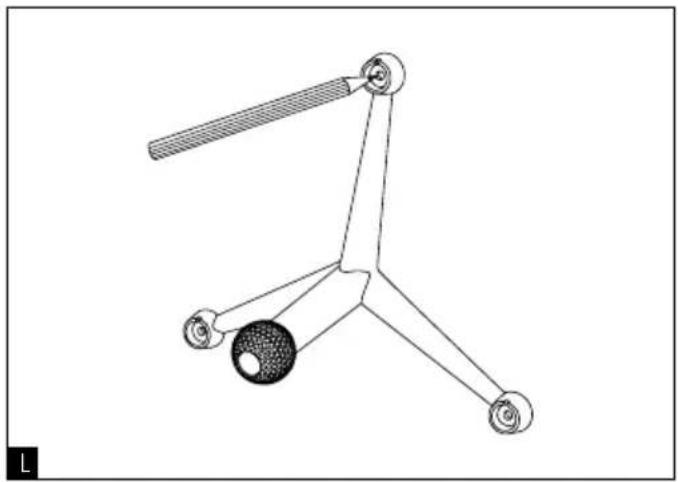

Simple line drawing of a mechanical lever system with three legs and a central spherical component (no text or symbols)

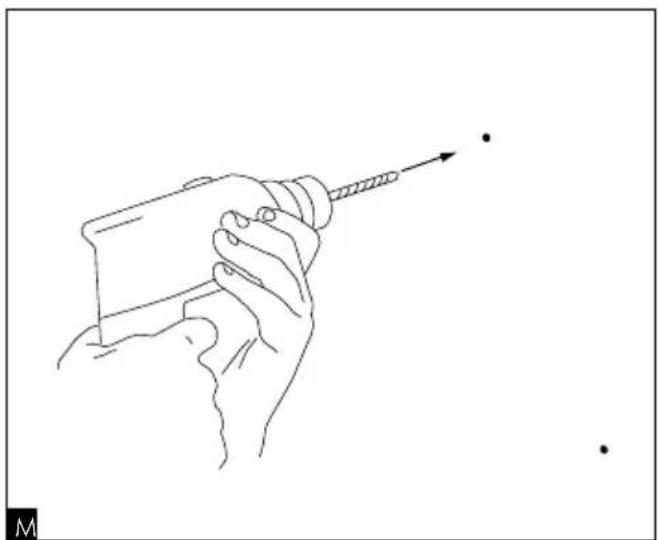

Line drawing of a hand holding a screwdriver with two dots above, no text or symbols present

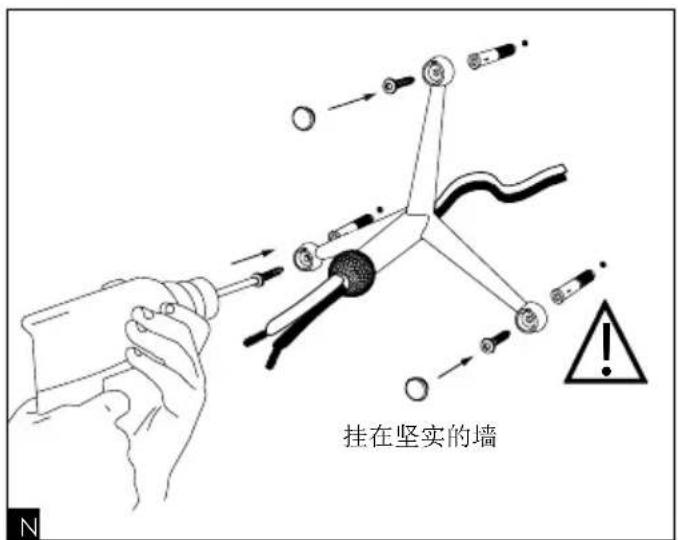

挂在坚实的墙 N

BIRD® 5.1 家庭影院套装

用戶手冊

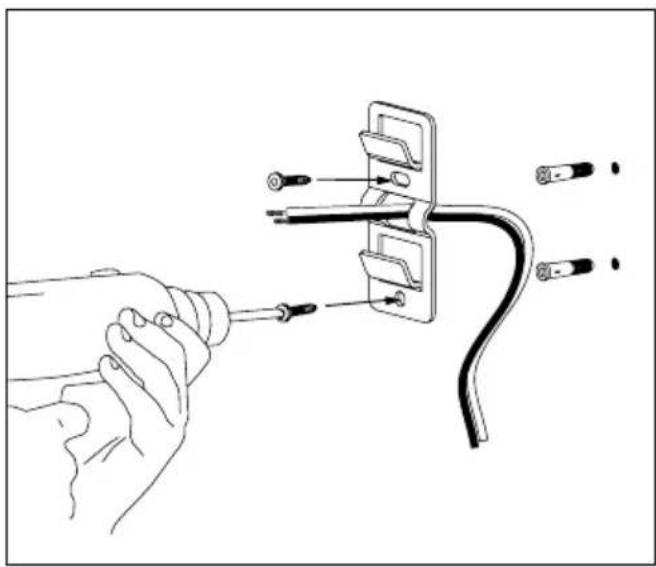

D - 大鸟挂墙支架

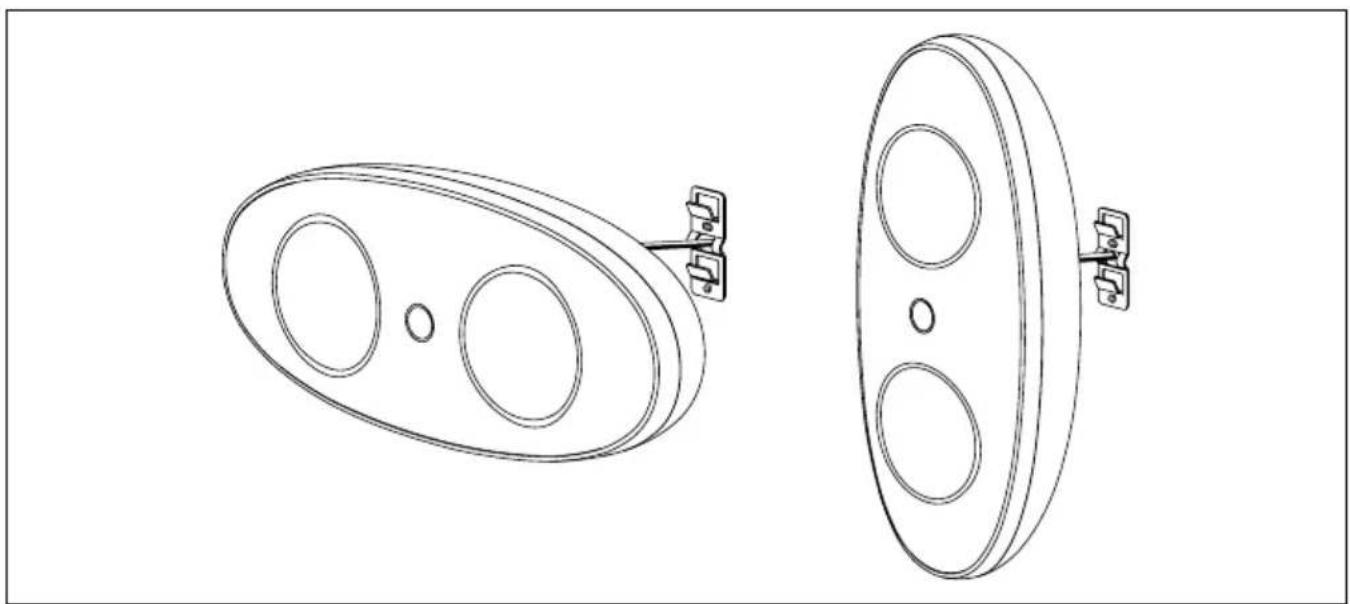

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

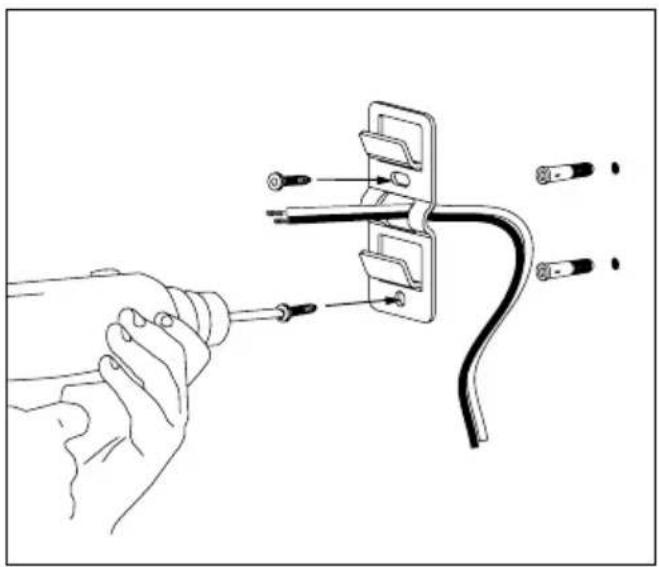

Line drawing of a hand holding a pen, with two dots above indicating measurement or alignment points (no text or symbols present)

Line drawing of a hand holding a tool with a cable inserted into a connector (no text or symbols present)

Technical diagram of a mechanical assembly with exploded view and close-up inset (no text or symbols)

Technical line drawings of two electronic components with circular cutouts and mounting brackets (no text or symbols)

Line drawing of a square box with a circular vent and four legs (no text or symbols)

设置

自动电源

Cub³ Active Subwoofer 10th Anniversary Edition FOCAL® THE WORLD OF CUB3 Pre-out L R BASH® WALAWA E

Cub³ Active Subwoofer 17th Anniversary Edition FOCAL® Subwoofer RASH® RASH®

BIRD® 5.1 家庭影院套装

用戶手冊

Top-down diagram of a person reclining in bed with sound wave indicators and play buttons above (no text or symbols)

Top-down diagram of a person sleeping in bed with surrounding devices and icons (no text or symbols)

Bass level +6 dB +3 dB 0 dB 20 Hz 150 Hz Zone A Zone B Zone C Zone A Zone B Zone C

BIRD® 5.1 家庭影院套装

用戶手冊

卫星箱安装位置

Diagram of a mechanical or scientific apparatus with a central circular component and three spherical elements, no visible text or symbols.

Technical line drawing of a mechanical component with a central shaft and circular base (no text or symbols)

Line drawing of a hand holding a pen with a pointed tip, projecting a small dot (no text or symbols)

Diagram of a cable being inserted into a circular component with a bulb, showing motion arrows (no text or symbols)

挂在坚实的墙

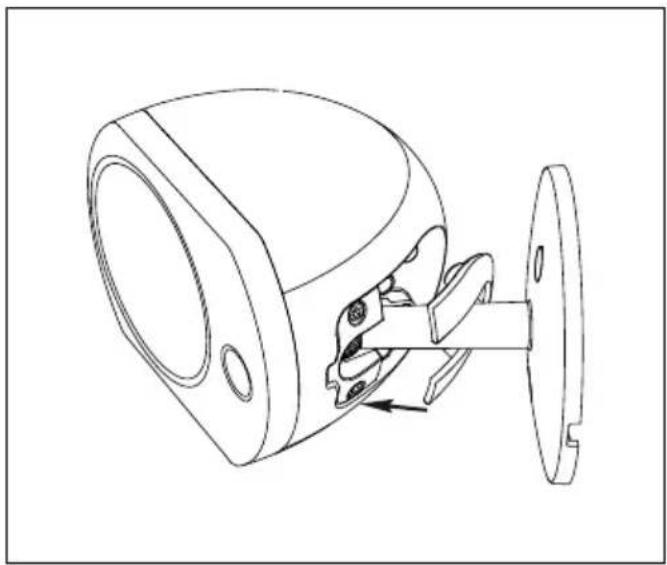

Mechanical assembly diagram showing a rotating shaft and housing mechanism (no text or labels)

バード パック 5.1 ホームシネマ

取扱説明書

Technical line drawing of a mechanical device with rotating components and a central housing (no text or symbols)

Technical line drawing of a mechanical component with flanges and a central shaft (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

バード パック 5.1 ホームシネマ

取扱説明書

52

Simple line drawing of a mechanical lever system with three legs and a central wheel (no text or symbols)

Line drawing of a hand holding a pen with a screwdriver, pointing at three dots (no text or symbols)

挂在坚实的墙

バード パック 5.1 ホームシネマ

取扱説明書

固体壁に設置してください

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a screwdriver, with two dots above indicating measurement or alignment points (no text or symbols present)

Illustration of a hand using a tool to connect two cables to a connector (no text or symbols present)

Technical diagram showing assembly of a mechanical component with labeled parts and an inset image of a connector detail.

Technical line drawings of two electronic components with circular cutouts and mounting brackets (no text or symbols)

バード パック 5.1 ホームシネマ

取扱説明書

製品仕様
リトルバード バード

Line drawing of a square box with a circular vent and four base legs (no text or symbols)

セッティング

オートパワー

Cub³ Active Subwoofer 10th Anniversary Edition FOCAL® THE WORLD OF CUB3 Pre-out L R BASH® WALAWA E

Cub³ Active Subwoofer 17th Anniversary Edition FOCAL® Subwoofer RASH® RASH®

バード パック 5.1 ホームシネマ

取扱説明書

Cub3の設置場所

従来ハイファイスピーカー

Top-down diagram of a person reclining in bed with sound wave indicators and play buttons above (no text or symbols)

Top-down diagram of a person reclining in bed with playing cards and music equipment around (no text or symbols)

Line drawing of three speakers standing on stands, one with a circular head and two others with circular heads, labeled '스텐드' at the bottom (no other text or symbols)

Bird/Little Bird

배치

A-선반설치

Diagram of a mechanical or scientific apparatus with spherical components and curved elements, no visible text or symbols

Technical line drawing of a mechanical component with a central shaft and circular base (no text or symbols)

Line drawing of a hand holding a screwdriver with an arrow pointing to a dot (no text or symbols)

Diagram of a mechanical or electrical component with a central shaft and cable, showing directional arrows indicating movement (no text or symbols present)

on solid wall

Mechanical assembly diagram showing a rotating shaft and gear mechanism (no text or labels)

BIRD® PACK 5.1 HOME CINEMA

사용설명서

62

Technical line drawing of a mechanical device with rotating components and a central housing (no text or symbols)

Technical line drawing of a mechanical component with flanges and a central shaft (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

BIRD® PACK 5.1 HOME CINEMA

사용설명서

Simple line drawing of a three-legged support structure with a spherical base and four legs (no text or symbols)

Line drawing of a hand holding a screwdriver with two dots nearby (no text or symbols)

on solid wall

BIRD® PACK 5.1 HOME CINEMA

사용설명서

D-슈퍼 버드 벽 고정

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a pen, with two dots above indicating measurement or alignment points (no text or symbols present)

Line drawing of a hand holding a tool with a cable inserted into a connector (no text or symbols)

Technical diagram showing assembly of a mechanical component with labeled parts and a magnified inset view.

Technical line drawings of two electronic components with circular cutouts and mounting brackets (no text or symbols)

기술 명세서
리틀 버드 버드

Line drawing of a square box with a circular vent and four legs (no text or symbols)

셋팅

Cub³ Active Subwoofer 10th Anniversary Edition FOCAL® 10TH SPRING OF SOUND BASH® ©

BIRD® PACK 5.1 HOME CINEMA

사용설명서

연결

Cub³ Active Subwoofer 10th Anniversary Edition FOCAL® THE WORLD OF CUB3 Pre-out L R BASH® WALAWA E

Cub³ Active Subwoofer 17th Anniversary Edition FOCAL® Subwoofer RASH® RASH®

BIRD® PACK 5.1 HOME CINEMA

사용설명서

CUB ^3 위치

Top-down diagram of a person reclining in bed with sound wave indicators and play buttons (no text or symbols)

Top-down diagram of a person relaxing in bed with playing cards and devices, no text or symbols present

Bass level +6 dB +3 dB 0 dB 20 Hz 150 Hz Zone A Zone B Zone C Zone A

BIRD® PACK 5.1 HOME CINEMA

사용설명서

위성 스피커 위치

Description compact bass-reflex active subwoofer,150W BASH® built in amplifier,
Driver 8" (210mm)
L.F. (-6dB) 35Hz
Frequency response (+/- 3dB) 40Hz - 120Hz
Crossover frequencies 120Hz
Inputs line-in stereo	direct line-in (LFE)
Nominal power (RMS) 100W
Peak power 150W
Phase 0°/180°
Power function on/off/standby
Total dimensions (HxWxD) 333mm x 300mm x 300mm13.1"x12"x12"
Net weight 11kg (22.lbs)

보증

International Guarantee

The Focal guarantee only applies if this page is returned to us within 10 days purchase, to the following address:

Now it's possible to register on line : www.focal.com/warranty

Model: Serial number:

Name of dealer: Town:

Date of purchase: Purchase price: ____

Your name: Age: Occupation: ____ ____

Your complete address:

Your email address:

Details of your installation (brand, model):

• iPod, iPad, iPhone®: ____ - Other music players: ____
• Tuner / Web Radio: ____. - DVD: ____.
  ■ Blu Ray: ____ ■ CD / SACD: ____
  ■ Satellite / TNT: ____, ■ Flat screen: ____.
  ■ Amplifier: ____ ■ Others: ____

Your decision for purchasing this Focal model was made according to:

□ Dealer's advice Friend's advice □
□ Visit to an exhibition, show Press article □
□ Listening in auditorium Already own Focal products
□ Reliability / Quality Documentation □
□ Reputation French produce □
□ Guarantee Quality / Price ratio □
□ Design / Finishes Other □ ____
Sound

In case of purchase of new equipment, what were your former speakers?

Explain in a few words why you choose Focal...

Further comments: ____
