Spirit Classic - Earphones FOCAL - Free user manual and instructions

Product type	Closed circum-aural headphones
Weight	310 g
Power source	Passive (wired headphones)
Main features	40 mm transducers with Mylar/Titanium composite diaphragm and neodymium motor; closed design; memory foam earpads and headband; two detachable cables (4 m without remote and 1.4 m with remote); 3.5/6.35 mm jack adapter; carrying pouch
Care and cleaning	Wipe with a soft, dry cloth; do not use products containing solvents; avoid any liquid penetration into the transducer openings
Safety	Do not drive or use machinery with the headphones; set the volume to a moderate level before listening; avoid exposure above 85 dB for more than one hour; do not press on the earcups to avoid damaging the diaphragm
Spare parts and repairability	Two detachable cables (compatible), jack adapter and pouch included; in case of damage, contact the retailer; 2-year warranty (France); online registration recommended
General information	Brand: Focal Model: Spirit Classic Impedance: 32 Ohms Sensitivity: 102 dB SPL / 1 mW @ 1 kHz Frequency response: 5 Hz - 22 kHz THD: <0.3% @ 1 kHz / 100 dB SPL Type: closed, circum-aural Weight: 310 g

Frequently Asked Questions - Spirit Classic FOCAL

How to connect the headphones?

Insert the cable's jack plug into the headphone jack on the left earpiece. Use the 4 m cable without remote for optimal audio quality, or the 1.4 m cable with remote for on-the-go use. Make sure the plug is fully inserted.

Which cable to use for better sound quality?

The straight 4 m cable without remote provides extreme respect for the audio signal and guarantees the best performance. It is recommended for critical listening.

How to clean the headphones?

Use a soft, dry cloth to wipe the headphones. Do not use solvents or harsh cleaning products. Avoid letting liquid penetrate the transducer openings.

Can I use these headphones while driving?

No, it is dangerous and illegal to drive a motor vehicle while wearing headphones. Do not use them with heavy machinery either.

What to do if I hear no sound?

Check that the jack plug is correctly inserted into the audio source and the headphones. If the problem persists, try the other supplied cable. On some phones, the cable with remote may not be compatible; use the cable without remote in that case.

What is the warranty on the headphones?

The warranty is 2 years from the date of purchase in France (non-transferable). In case of defect, contact your Focal retailer. Damage due to misuse is not covered.

How to register my product?

Register your headphones online at www.focal.com/garantie to obtain a warranty certificate.

How to adjust the volume correctly?

Set the volume on your device to minimum before plugging in the headphones. Then gradually increase to a moderate, comfortable level. Avoid listening above 85 dB for more than one hour to protect your hearing.

What to do if the diaphragm is damaged?

Avoid pressing on the earcups to prevent overpressure. If the diaphragm is damaged, contact your Focal retailer for repair. Do not attempt to repair it yourself.

Is the headphones compatible with my phone?

The cable with remote is compatible with many mobile phones, but not all. If you experience poor sound quality or no sound, use the cable without remote. The 3.5/6.35 mm jack adapter is included for larger jacks.

USER MANUAL Spirit Classic FOCAL

Close-up of a black and white electronic headboard with attached audio cable (no visible text or symbols)

Thank you for choosing Focal headphones. We are pleased to share with you our philosophy: “the Spirit of Sound”. We advise you to read this user’s manual and to keep it carefully so that you can consult it later.

Register your product online at www.focal.com/warranty to receive your warranty certificate.

IMPORTANT SAFETY INFORMATION

1) READ these instructions
2) KEEP these instructions.
3) HEED all warnings.
4) FOLLOW all these instructions.
5) If you hear ringing or experience pain or discomfort in your ears during or after using any headphones audio product, that is a sign you are listening too loud. When your ears are exposed to high volumes (in excess of 85dB) for over an hour, you may be permanently damaging your hearing.
6) Turn down your listening device's volume to zero before you insert the headphones and turn on the device. Once you have the headphones in, gradually increase the volume to a comfortable, moderate volume.
7) NEVER operate a motor vehicle while listening to or wearing your headphone. Not only dangerous, it is illegal in many places.
8) NEVER operate heavy machinery while listening to or wearing your headphones.
9) We don't recommend you use the headphones while riding a bicycle, running, or walking in heavy traffic areas. If you do, listen at a lower volume so you can hear ambient noise.

All of the functions of the remote control or some of them are compatible with different models or brands of

current or coming mobile phones.

On some mobile phones, the cord is not compatible. It results in a bad quality sound or no sound at all. In that case, please use the removable cord without remote control.

The Spirit Classic headphones benefit from Focal's years of expertise. Focal has been designing and manufacturing speaker drivers and loudspeakers since 1979. These headphones have been designed for audiophiles and music lovers. A warm sound combined with the dynamics of the transducers will enable you to find the pleasure of listening to all of your music with wonderful details. The memory foam ear cups provide excellent insulation and outstanding comfort.

Description of the headphones:

• 2 x matched 40mm transducers featuring mylar/titanium composite membranes and neodymium magnet
• Closed-back design
  • Memory foam ear cups and headband

Package contents:

• 1 x pair of headphones
• 1 x detachable 4m straight cable

• 1 x user manual
  • Accessories included in the packaging:

• 1 x straight detachable cable with remote control (calls management and microphone)

• 1 x jack connector 3.5 / 6.35mm
• 1 x carrying bag

Two cables are supplied with the Spirit Classic headphones.

- A 4m straight cable providing extremely faithful reproduction of the audio signal and optimal performance. We recommend using this cable.

- A 1,4m straight cable with built-in remote control. This enables you to use your headphones in hands-free mode with your telephone or other devices equipped with remote-control functions compatible with this remote control.

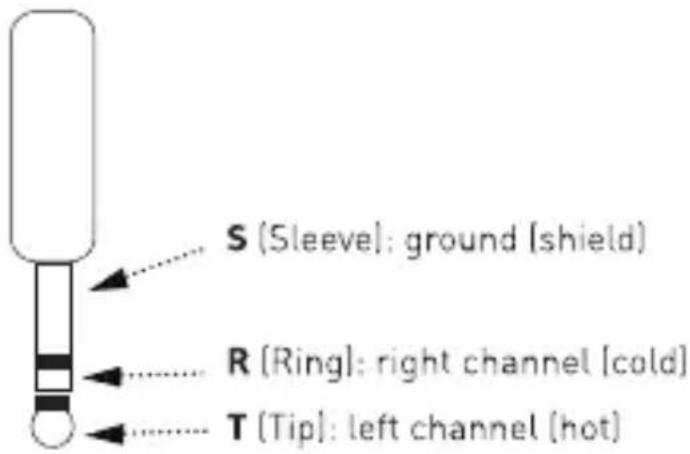

TRS

S (Sleeve): ground (shield) R (Ring): right channel [cold] T (Tip): left channel [hot]

Technical specifications

Type Closed back,	circumaural headphones
Impedance 32 Ohms
Sensitivity 102dB SPL / 1mW @ 1kHz
THD <0,3% / 1kHz / 100dB SPL
Frequency response 5Hz - 22kHz
Driver matched 40mm (1	9/16"); Mylar/Titanium
Net weight 0.68lb (310g)

WARNING!

Transport and handling of the headphones

The Focal headphones include high performance cones. They are made of mylar and titanium in highly reduced thicknesses in order to reproduce the most tiny details with the greatest dynamic. A bad use can damage and even break the cone. Please take care of it and avoid any falls or excessive pressures in the earpieces. Thus, your headphones will offer you performances all along its lifespan. In case of damage, please contact your local dealer to repair it.

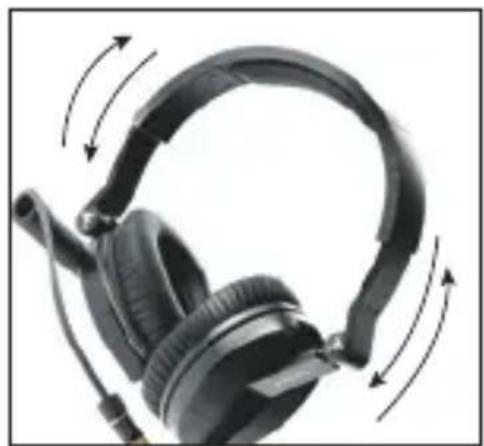

Close-up of a black headboard with earbuds and motion arrows indicating rotation (no text or symbols)

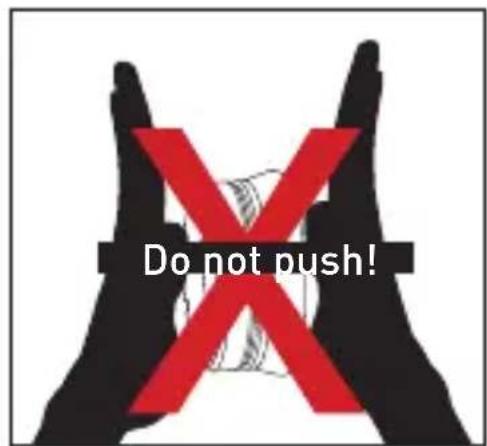

Do not push!

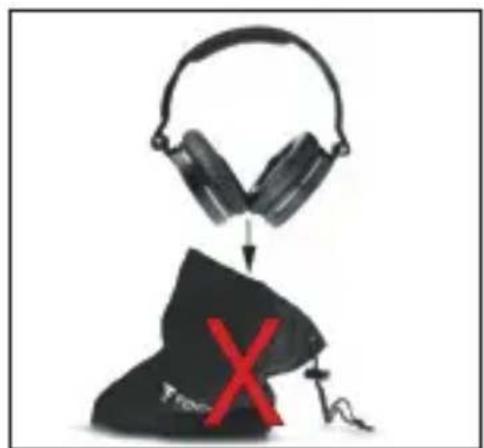

Illustration of headphones above a black object with a red 'X' symbol, indicating a warning or rejection (no text or symbols present)

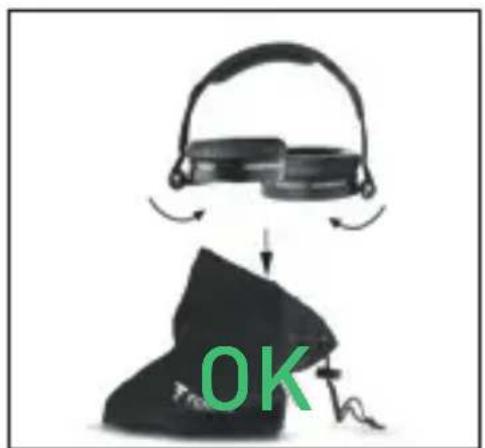

Illustration of a black hard hat with head turned down, showing motion arrows and a green 'OK' text overlay (no other text or symbols)

Push this way increase the pressure inside the ear cup and can damage the driver.

Maintenance

Clean the headphones with a soft dry cloth.

Do not use cleaning agents containing solvents. Avoid the ingress of any liquid or foreign matter into the transducer openings.

Conditions of guarantee

All Focal products are covered by guarantee drawn up by the official Focal distributor in your country.

Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Register your product online at

www.focal.com/warranty to receive your warranty certificate.

Your Focal product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

S (Sleeve): ground (shield) R (Ring): right channel (cold) T (Tip): left channel (hot)

技术参数

Black and white photo of a headband ear with motion arrows indicating rotation (no text or symbols)

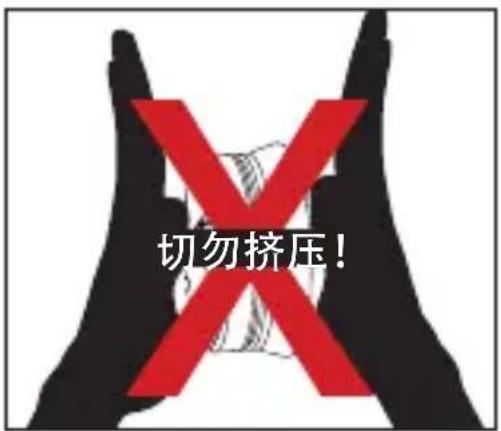

切勿挤压！

Illustration of headphones above a black bag with a red X symbol, symbolizing music or music competition (no text or symbols present)

OK
