Product Type	Professional Haze Machine
Brand	Chauvet
Model	Amhaze Stadium
Power Supply	120 VAC, 60 Hz or 230 VAC, 50 Hz depending on model
Preheat Time	Approximately 30 seconds
Control	Manual, Timer, DMX (2 channels)
DMX Channels	2: fan and haze volume
Interval Range (Timer)	10 to 300 seconds
Duration Range (Timer)	10 to 255 seconds
Fan Speed Adjustment	1 to 100%
Haze Volume Adjustment	1 to 100%
Recommended Fluid	Chauvet PHF or Grignard Pure
DMX Connection Type	3 or 5 pins
Included Power Cord	Seetronic Powerkon IP65
Protection Rating	IP20 (indoor use only)
Maximum Ambient Temperature	45 °C
Safety Distance	50 cm from adjacent surfaces
Mounting	Mounting with M13 clamp and safety cable
Floor Installation	4 rubber feet
Warranty	Limited, see terms on Chauvet website
Package Contents	AmHaze Stadium, power cord, reference manual

Frequently Asked Questions - Amhaze Stadium Chauvet

What fluid to use in the Amhaze Stadium?

Use only Chauvet (PHF) or Grignard Pure haze fluid. Using other fluids may damage the unit or cause hazards.

How to clean the Amhaze Stadium?

Always unplug the unit before cleaning. Do not open the housing. For the exterior, use a dry cloth. Never use solvents.

Why is my machine not producing haze?

Check that the tank is full, that hoses are not kinked, and that preheating is complete (about 30 seconds). If the problem persists, check the fuse or contact support.

How to reset the circuit breaker after overheating?

Unplug the unit, let it cool for 15 minutes, then press the reset button. Plug back in and use normally.

Can I use the Amhaze Stadium outdoors?

No, this unit is designed for indoor use only (IP20). Exposure to rain or moisture may cause fire or electric shock.

How to set the DMX address?

Navigate the menu using the buttons, select the 'DMX' option, and set the starting address from 001 to 512 using the up/down buttons.

What to do if the output nozzle is too hot?

The nozzle becomes very hot during operation and may remain so for several hours after shutdown. Do not touch it and wait until it has completely cooled before any maintenance.

How to install the unit overhead?

Use a suitable support, secure it with M13 clamps and attach a safety cable. Ensure the structure can support the weight and maintain a distance of 50 cm from surfaces.

What are the timer settings?

The interval (time between hazes) can be set from 10 to 300 seconds and the duration (length of each haze) from 10 to 255 seconds.

Where to find the full version of the manual?

The reference manual is included in the packaging. For detailed information, download the full manual at www.chauvetprofessional.com.

USER MANUAL Amhaze Stadium Chauvet

Technical line drawing of a mechanical device with control panel and external frame (no text or symbols)

About This Guide

The AmHaze Stadium Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

Depending on the amount of haze generated, all haze machines may set off smoke detectors.

• Drain the tank before transporting the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
  • Always disconnect from power before cleaning or replacing the fuse.
• Replace the fuse with the same type and rating.
• Do not operate this product if the housing, fluid tank, or cables appear damaged.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.

- Do not use for space heating purposes.

• Never disconnect this product from power by pulling on the cord.

• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- USE a safety cable when mounting this product overhead.

- Do not touch the output nozzle on this product. It is very hot during operation and it may remain hot for several hours after turning the product off.

- Do not leave any flammable material within 50 cm of this product while operating or connected to power.

- Only use Chauvet (PHF) haze fluid or Grignard Pure.

- Do not add anything to the fluid.

- Do not drink the fluid.

- Do not allow the fluid to touch your skin or eyes.

- Do not connect this product to a dimmer or rheostat.

- Only connect this product to a grounded and protected circuit.

- Only use the handles to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

Contact

Outside the U.S., U.K, Ireland, France, Germany, Mexico, or Benelux contact your distributor to request support or return a product. Visit www.chauvetprofessional.com for contact information.

What is Included

• AmHaze Stadium
• Seetronic Powerkon IP65 power cord
• Quick Reference Guide

AC Power

This product has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model purchased.

AC Plug

Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Resetting the Breaker

This product is equipped with a resettable circuit breaker. If the breaker trips, all sections of this product will lose power.

1. Remove the power cord from mains power.
2. Allow unit to cool for 15 minutes.
3. After 15 minutes, you may attempt to reset the breaker by pressing the button with your finger.
4. Plug the product's power cord into the power outlet and continue using as recommended.

DMX Linking

The AmHaze Stadium will work with a DMX controller using a 3- or 5-pin DMX data connection for its 2-channel DMX personality. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The AmHaze Stadium uses a 3- or 5-pin DMX data connection for its 2-channel DMX personality. See the User Manual for information about connecting and configuring the product for DMX operation.

Preparing for Operation

To prepare the AmHaze Stadium for operation:

1. Open the flight case.
2. Pull out the fluid tank and remove the cap.
3. Verify that the two plastic hoses attached to the inside of the cap are in place and in good condition.
4. Pour Chauvet (PHF) haze fluid or Grignard Pure inside the tank, and re-cap.
5. Reinsert the tank.
6. Make sure that the plastic hose that goes from the cap to the hazer is not bent.
7. Plug in power and wait approximately 30 seconds for warm-up to complete.

When storing the product, ALWAYS be sure to store the fluid tank with the cap up as seen on the Product Mounting Diagram above before installing the front cover to avoid tube damage that may cause leakage.

Only use Chauvet approved (PHF) haze fluid or Grignard Pure. Otherwise, you might not have satisfactory results. In addition, unapproved fluid can damage the AmHaze Stadium or cause harm to humans or animals.

Mounting

Before mounting this product, read the LIMITED WARRANTY. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

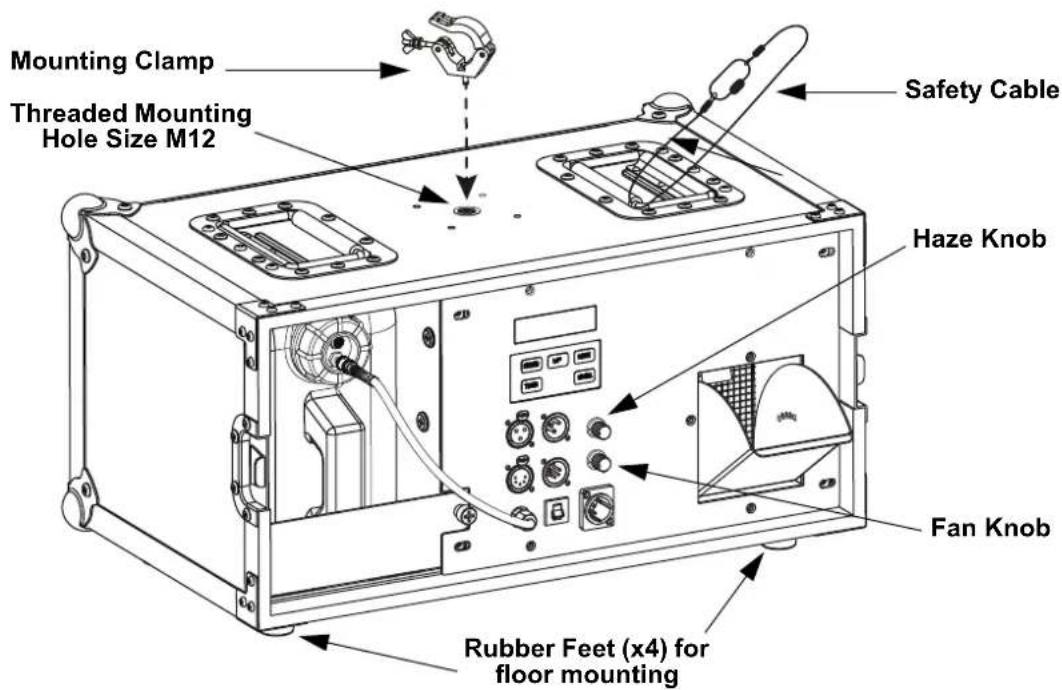

Mounting Diagram

Mounting Clamp Threaded Mounting Hole Size M12 Safety Cable Haze Knob Fan Knob Rubber Feet (x4) for floor mounting

Control Panel Description

BUTTON/ KNOB	FUNCTION
	Enters the programming mode
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Starts the timer controlled operation
	Manual haze output
	Controls the haze volume,1-100%
	Controls the fan speed, 1-100%

Menu Map

Refer to the AmHaze Stadium product page on www.chauvetprofessional.com for the latest menu map.

Main Level Programming Levels Description
Interval Set	10-300 Seconds	Sets the interval between haze output
Duration Set	10-255 Seconds	Sets the duration of the haze output
DMX 001-512 Selects the DMX starting address

DMX Values - 2CH

Channel	Function	Value	Percent/Setting
1	Fan Speed	000 ⇔ 005 No function
		006 ⇔ 255	Fan speed (slow to fast)
2	Haze Volume	000 ⇔ 005 No function
		006 ⇔ 255	Haze volume 1-100%
