Brand	Chauvet
Model	Data Stream 4
Product Type	DMX-512 Optic Splitter / DMX Controller
Width	48.26 cm (19 inches)
Height	4.45 cm (1U)
Power Supply	Universal 100-240 VAC, 50/60 Hz
Power Consumption	Not specified, standard low consumption power supply
Number of DMX Outputs	4 isolated outputs
Connectors	XLR 3-pin and XLR 5-pin (input, output, Link Out)
Indicators	Power indicator, DMX signal indicator
DMX Protocol	DMX-512
Output Isolation	Yes, each output is electrically isolated
Link Out Function	Allows daisy-chaining multiple Data Stream 4 units
Rack Mount	Yes, 1U with included mounting ears
Overhead Installation	Possible with safety cable and appropriate support
Protection Rating	IP20 (indoor use only)
Max Ambient Temperature	40 °C (104 °F)
Fuse	Replaceable (fuse holder on rear panel)
Maintenance and Cleaning	Disconnect before cleaning; use a dry cloth; avoid solvents and liquids
Safety	Use safety cable; do not expose to rain or humidity; follow ventilation instructions
Repairability	Do not repair yourself; contact a qualified technician

Frequently Asked Questions - Data Stream 4 Chauvet

How to connect the Data Stream 4?

Connect the DMX input of the controller to the output of the DMX console via a 3-pin or 5-pin XLR cable. The outputs distribute the signal to 4 devices. To daisy-chain, use the Link Out connector.

What is the required power voltage?

The unit operates on a universal power supply of 100 to 240 VAC, 50/60 Hz. Ensure the voltage matches your region.

Can I use DMX cables with 3-pin and 5-pin connectors?

Yes, the Data Stream 4 is equipped with XLR 3-pin and 5-pin connectors for input, outputs, and Link Out. You can use either depending on your equipment.

How to replace the fuse?

Disconnect the unit. Use a flat-head screwdriver to pry open the fuse holder cover, remove the old fuse, and replace it with an equivalent fuse. Close the fuse holder and reconnect.

Can the Data Stream 4 be rack mounted?

Yes, it occupies one rack space 1U (4.45 cm). Use the included mounting ears to secure it in a standard 19-inch rack.

What to do if the DMX indicator does not light up?

Check that the DMX cable is properly connected and that the controller is sending a signal. Ensure the power is on. If the problem persists, consult the manual or contact customer service.

Can I daisy-chain multiple Data Stream 4 units?

Yes, use the Link Out connector to link several units in cascade. This increases the number of available DMX outputs.

Is the unit suitable for outdoor use?

No, the Data Stream 4 is designed for indoor use only (IP20). Do not expose it to rain, humidity, or extreme temperatures.

How to install a safety cable?

Attach a safety cable (e.g., Chauvet CH-05) to the appropriate attachment point on the unit (M10 holes) and anchor it securely to the supporting structure. This prevents falls if the main support fails.

Where to find the complete manual or additional information?

The complete manual is available for download on Chauvet's website at http://www.chauvetlighting.com/product-manuals-literature/. You will find detailed guides on DMX configuration and advanced use.

USER MANUAL Data Stream 4 Chauvet

Front view of a rack-mounted server unit with multiple ports and mounting holes (no text or labels visible)

Abstract black-and-white gradient pattern with diagonal dotted lines forming a triangular shape (no text or symbols)

CHAVET3

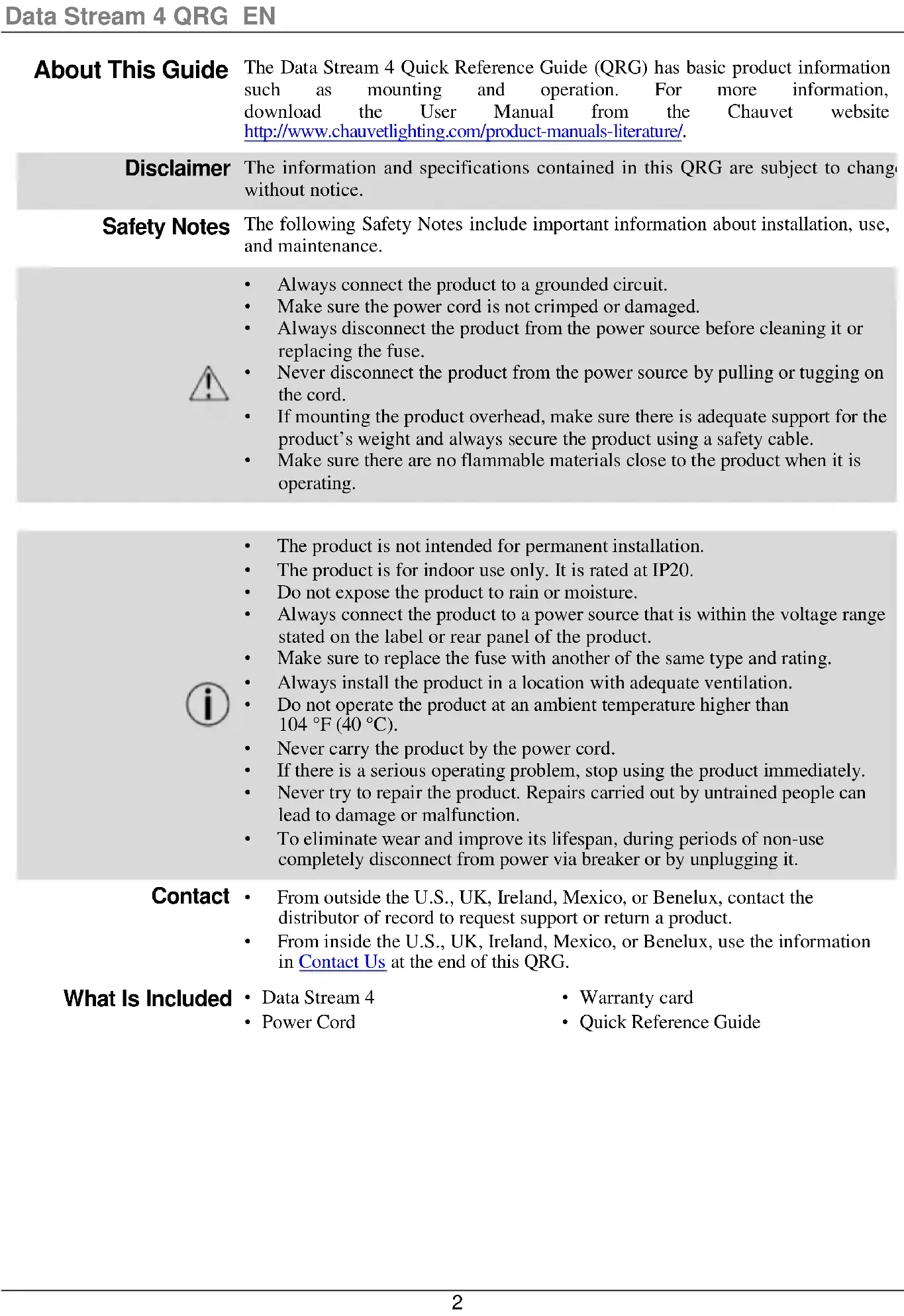

About This Guide

The Data Stream 4 Quick Reference Guide (QRG) has basic product information such as mounting and operation. For more information, download the User Manual from the Chauvet website http://www.chauvetlighting.com/product-manuals-literature/.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

The following Safety Notes include important information about installation, use, and maintenance.

• Always connect the product to a grounded circuit.
• Make sure the power cord is not crimped or damaged.
- Always disconnect the product from the power source before cleaning it or replacing the fuse.
- Never disconnect the product from the power source by pulling or tugging on the cord.
- If mounting the product overhead, make sure there is adequate support for the product's weight and always secure the product using a safety cable.
- Make sure there are no flammable materials close to the product when it is operating.

• The product is not intended for permanent installation.
• The product is for indoor use only. It is rated at IP20.
• Do not expose the product to rain or moisture.
- Always connect the product to a power source that is within the voltage range stated on the label or rear panel of the product.
• Make sure to replace the fuse with another of the same type and rating.
• Always install the product in a location with adequate ventilation.
- Do not operate the product at an ambient temperature higher than 104 °F (40 °C).
• Never carry the product by the power cord.
• If there is a serious operating problem, stop using the product immediately.
- Never try to repair the product. Repairs carried out by untrained people can lead to damage or malfunction.
- To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Contact

• From outside the U.S., UK, Ireland, Mexico, or Benelux, contact the distributor of record to request support or return a product.
• From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.

What Is Included

- Data Stream 4

- Power Cord

- Warranty card

- Quick Reference Guide

To Begin Carefully unpack the Data Stream 4 and check that all the parts are in the package, and are in good condition.

If the box, or any of the contents, appear damaged from shipping, or show signs of mishandling, save all the packaging and file a claim with the carrier immediately, do not notify Chauvet. Failure to report damage to the carrier immediately, or failure to have all the packaging available for inspection, could invalidate the claim.

For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery. For information on contacting Chauvet, see Contact Us at the end of this QRG.

Description The Data Stream 4 is a universal DMX-512 optical splitter designed to distribute/boost the incoming DMX signal into 4 separate outputs. Each of the 4 outputs is electronically isolated from the others, with the exception of the DMX Thru (throughput) or Link Out. Each output has 3- and 5-pin XLR ports. Increase operation by linking other Data Stream 4 units together.

DMX Signal Indicator DMX In 3- and 5-pin Power Indicator Link Out/DMX Throughput 3- and 5-pin Ears for Rackmount DMX Out 3- and 5-pin Front View

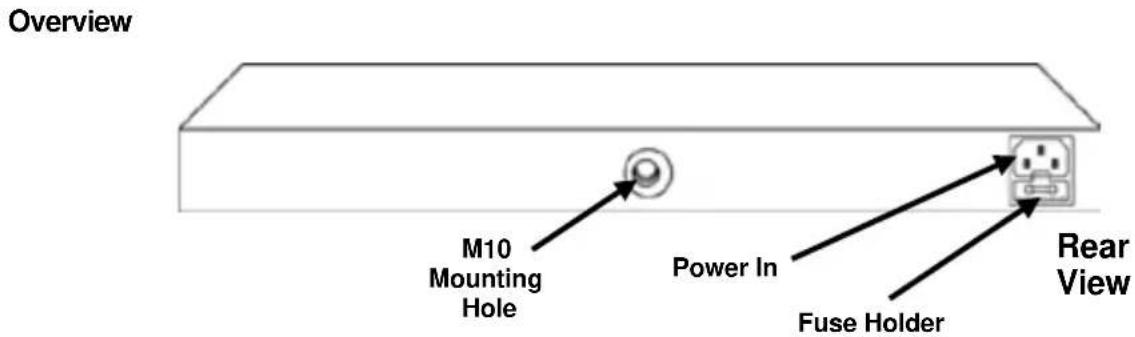

Overview M10 Mounting Hole Power In Fuse Holder Rear View

AC Power

Data Stream 4 has an auto-ranging power supply that works with a voltage range of 100–240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder from its housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Disconnect the product from power before replacing the fuse.

DMX Linking

The Data Stream 4 works with DMX controllers. For information about configuring Data Stream 4 for additional DMX operation, download the User Manual from the Chauvet website: http://www.chauvetlighting.com/product-manuals-literature/. For information about DMX download the Chauvet DMX Primer, from the Chauvet website: http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.

Mounting

Before mounting the Data Stream 4, read the Safety Notes in this QRG. The Data Stream 4 conveniently mounts in a single rack space (1U). If mounting overhead make sure the mounting clamps (such as CLP-15 clamps from Chauvet) are capable of supporting the weight of the product. Always use a mounting point and at least one safety cable per product. For the Chauvet line of mounting clamps, go to www.chauvetlighting.com/cables-clamps-main.html.

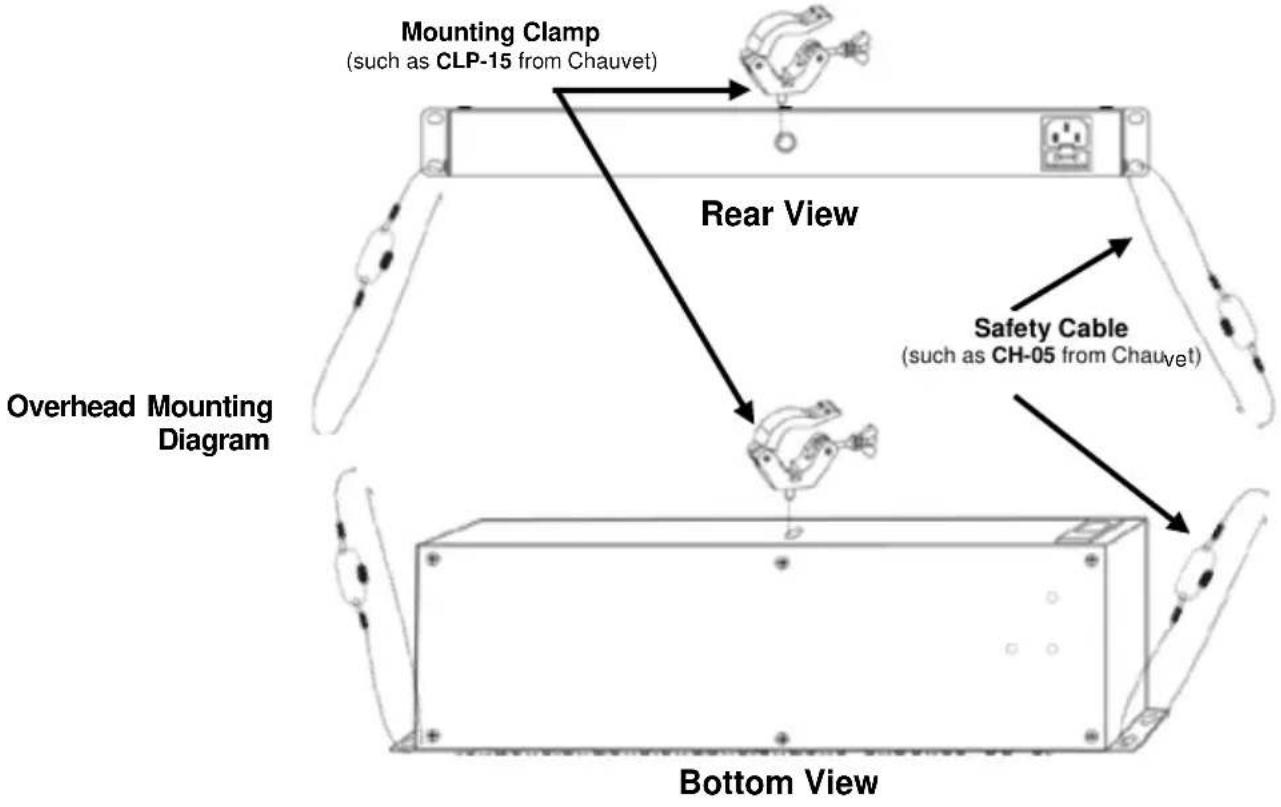

Mounting Clamp (such as CLP-15 from Chauvet) Rear View Safety Cable (such as CH-05 from Chauvet) Overhead Mounting Diagram Bottom View

Acerca de Esta Guía

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details

Data Stream 4 QRG Rev. 3 ML6

© Copyright 2018 Chauvvet

All rights reserved.

Printed in the P. R. C.
