Product type	Fast battery charger
Brand	Parkside
Model	IAN 380768 (PLG 20 C3)
Input voltage	230-240 V~
Input frequency	50 Hz
Power consumption	120 W
Output voltage	21.5 V DC
Output current	4.5 A
Charging time (2 Ah)	Approximately 30 min
Charging time (3 Ah)	Approximately 45 min
Charging time (4 Ah)	Approximately 60 min
Charging time (8 Ah)	Approximately 120 min
Compatible battery types	Parkside PAP 20 A1/A2/A3/B1/B3, PAPS 204 A1, PAPS 208 A1
LED indicators	Red LED (charging), Green LED (fully charged)
Protection class	II (double insulation)
Charging temperature range	10 °C to 40 °C
Storage temperature range	0 °C to 50 °C
Included items	1 charger, 1 instruction manual
Cleaning	Disconnect before cleaning, use a dry cloth
Warranty	3 years
Intended use	Charging Parkside PAP 20 series batteries, household use

Frequently Asked Questions - IAN 380768 PARKSIDE

Which batteries are compatible with the Parkside IAN 380768 charger?

This charger is compatible with Parkside batteries of the PAP 20 A1/A2/A3/B1/B3 and PAPS 204 A1/PAPS 208 A1 series. Check the updated list at www.lidl.de/akku.

How can I tell if the battery is fully charged?

The green LED (no. 4) lights up when charging is complete. The red LED (no. 3) stays on during charging.

What should I do if the red LED flashes?

A flashing red LED indicates that the battery is overheated and cannot be charged. Let it cool down before trying again.

Can I charge batteries of other brands with this charger?

No, this charger is designed exclusively for Parkside PAP 20 series batteries. Using other batteries may cause fire or damage.

What is the charging time for a 4 Ah battery?

The charging time for a 4 Ah battery is approximately 60 minutes with a current of 4.5 A.

How do I clean the charger?

Always unplug the charger before cleaning. Use a dry cloth or brush. Never use water or metal objects.

Where can I find after-sales service for this charger?

For France, contact 0800 919270 or email [e-mail]. Keep the receipt and the reference IAN 380768.

Is the charger protected against short circuits?

Yes, the charger has short-circuit protection and overload protection. In case of a fault, both red and green LEDs flash together.

Can I leave the battery on the charger after charging?

Yes, you can leave the battery on the charger, but it is recommended to unplug the charger if not used for an extended period.

What is the warranty on the Parkside IAN 380768 charger?

The charger has a 3-year warranty from the date of purchase, subject to proper use and presentation of the receipt.

USER MANUAL IAN 380768 PARKSIDE

PDF ONLINE www.lidl-service.com

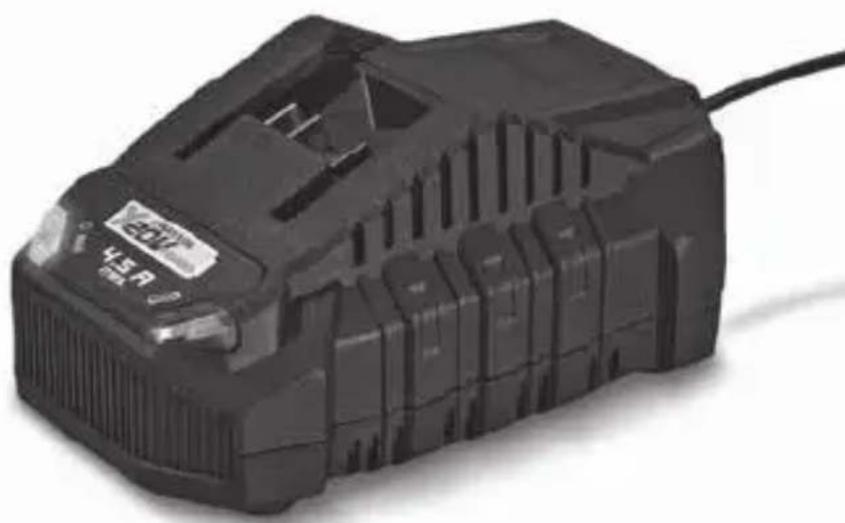

Black industrial power supply unit with visible slots and a cable (no text or symbols)

CHARGER 20V 4.5A / LADEGERÄT 20 V 4,5 A CHARGEUR 20 V 4,5 A PLG 20 C3

GB IE

CHARGER 20V 4.5A

Translation of the original instructions

FR BE

CHARGEUR 20 V 4,5 A

GB / IE Translation of the original instructions Page 1

DE/AT/CH Originalbetriebsanleitung Seite 15
FR/BE	Traduction des instructions d'origine	Page	29
NL/BE	Vertaling van de originele gebruiksaanwijzing	Pagina 49
CZ	Překlad originálního provozního návodu Strana 63
PL	Tłumaczenie oryginalnej instrukcji obsługi	Strona 77
SK	Preklad originálneho návodu na obsluhu	Strana 91
ES	Traducción del manual de instrucciones original	Página 105
DK	Oversættelse af den originale driftsvejledning Side	119
IT	Traduzione delle istruzioni d'uso originali	Pagina 133
HU	Az originál használati utasítás fordítása	Oldal 147
SI	Prevod originalnega navodila za uporabo	Stran 161

A

Technical diagram of a mobile phone casing with numbered parts labeled 1, 2, 3, and 4

6 SIDE EAM 5

All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/PAPS 208 A1 battery pack.

General safety instructions .... 4

Extended safety guidelines 5

Safety guidelines for battery chargers 6

Before use....7

Charging the battery pack (see fig. A) 7

Checking the battery charge level 8

Cleaning. 8

Maintenance and storage 8

Kompernass Handels GmbH warranty .....9

Service....12

Importer....12

Disposal 12

Notes on the EC declaration of conformity ..... 1 4

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This charger is intended exclusively for charging PARKSIDE PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/PAPS 208 A1 series batteries.

This appliance is suitable for:

PARKSIDE X20VTEAM

The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

Features

1 Battery pack (not included)
② High-speed charger
3 Red charge control LED
4 Green charge control LED
5 Battery charge level button (not supplied)
6 Battery display LED (not supplied)

Package contents

1 charger 20V 4.5A
1 set of operating instructions

Technical specifications

Charger 20V 4.5A PLG 20 C3

INPUT

Rated voltage 230-240 V \~ (AC), 50 Hz

Rated power consumption 120 W

Fuse (internal) 3.15 A

OUTPUT

Rated voltage 21.5 V (DC)

Rated current 4,5 A

Charging time approx. 30 min (2 Ah - 100%)

approx. 45 min (3 Ah)

approx. 60 min (4 Ah)

approx. 120 min (8 Ah)

Protection class II /

回 (double insulation)

General safety instructions

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged.

Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION!

Never charge non-rechargeable batteries.

Protect the rechargeable battery from

heat; for example, from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

Extended safety guidelines

• Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
  Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ C ( 265^ F) can cause an explosion.
  ■ Follow all instructions regarding charging and never charge the battery or the cordless tool outside the temperature range given in the operating instructions.

Incorrect charging or charging outside of the approved temperature range can destroy the battery and increase the risk of fire.

■ Ensure that the mains voltage corresponds to the specifications on the charger type plate.

There is a risk of electric shock.

Safety guidelines for battery chargers

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

The charger is suitable for indoor use only.

ATTENTION!

This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3/PAP 20 B1/PAP 20 B3/PAPS 204 A1/PAPS 208 A1.
▶ A current battery compatibility list can be found at www.lidl.de/akku.

WARNING!

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

Before use

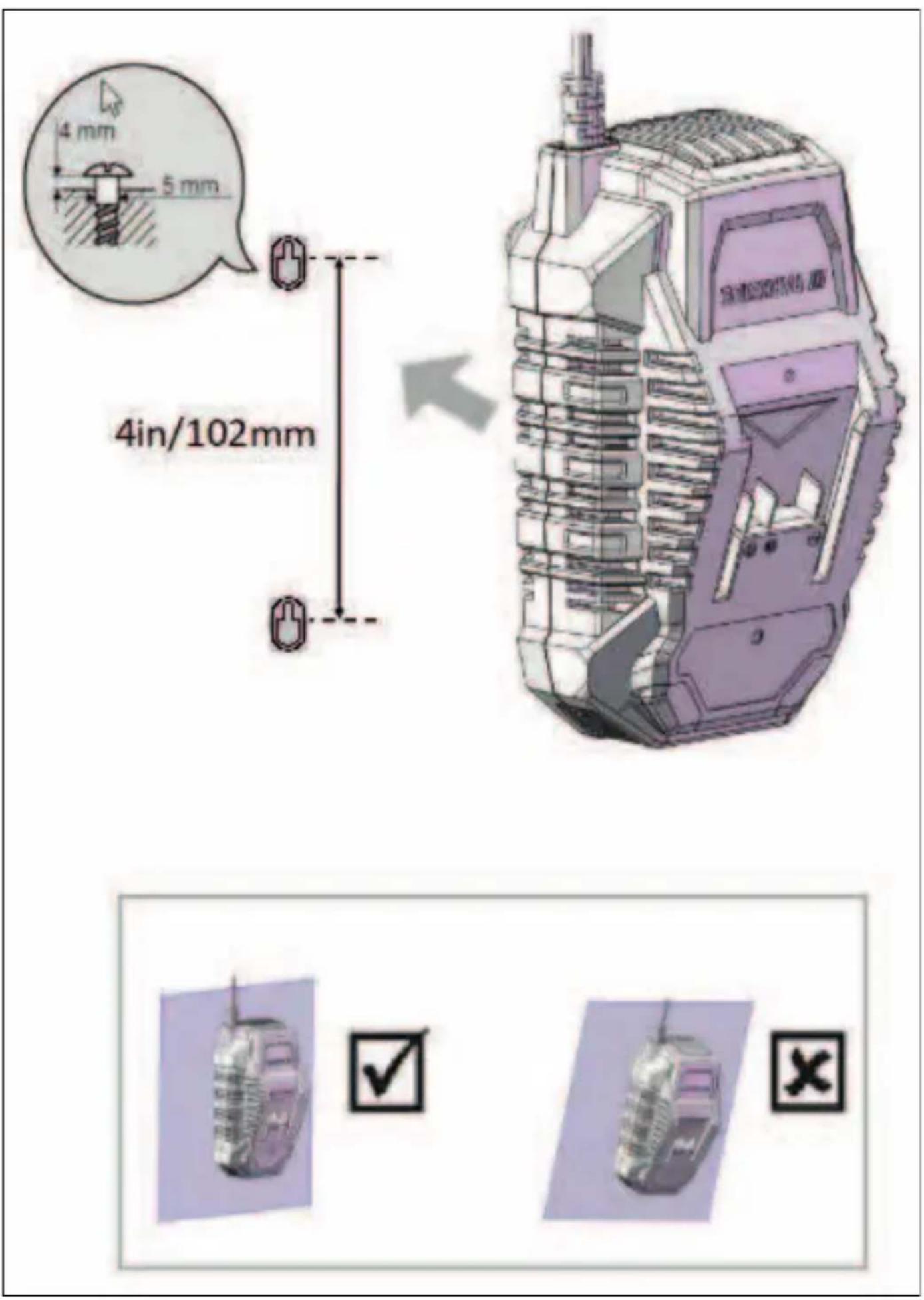

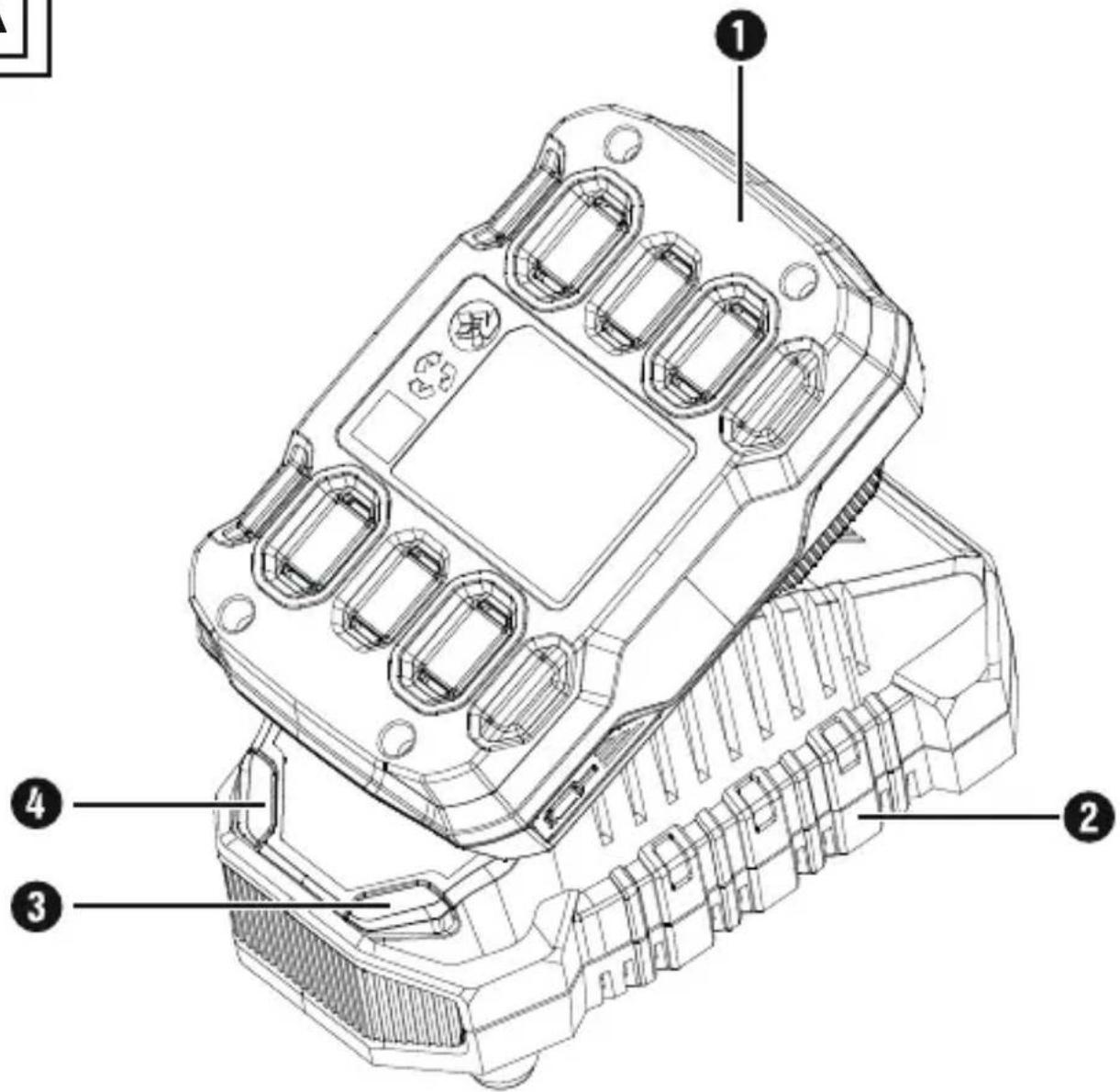

Charging the battery pack (see fig. A)

CAUTION!

▶ Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.

NOTE

▶ Never charge the battery pack at an ambient temperature of below 10^ C or above 40^ C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0^ C and 50^ C.

Connect the battery pack ① to the high-speed battery charger ② (see fig. A).
◆ Insert the power plug into the socket. The control LED ^3 lights up red.
◆ The green control LED ^4 indicates that the charging process is complete and the battery pack 1 ready.

ATTENTION!

If the red control LED ^3 flashes, this means that the battery pack 1 as overheated and cannot be charged.

If the red and green control LED 3 4 both flash, this means that the battery pack 1 defective.

♦ Push the battery pack① into the appliance.

- Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

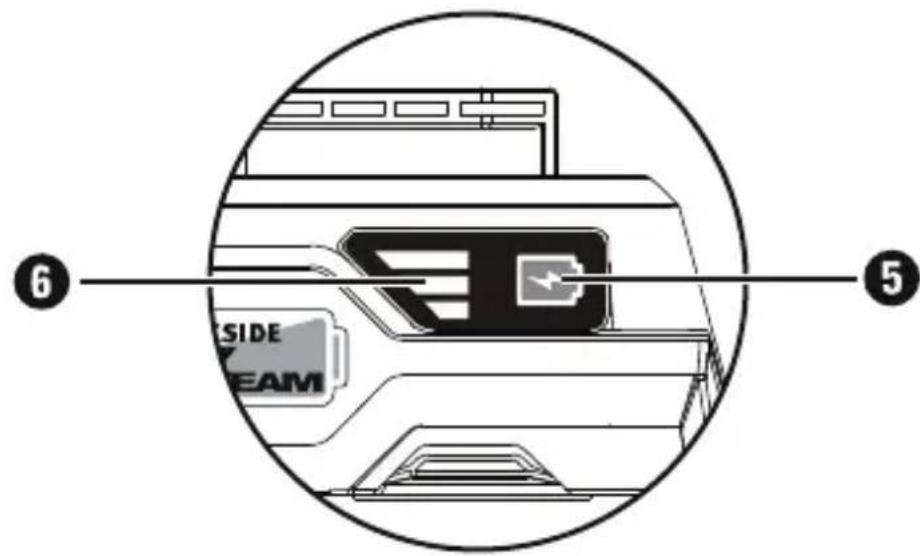

Checking the battery charge level

- Press the battery charge level button 5 to check the status of the battery (see also main diagram). The status/remaining charge will be shown on the battery display LED 3s follows:

RED/ORANGE/GREEN = maximum charge

RED/ORANGE = medium charge

RED = low charge - charge the battery

Cleaning

CAUTION!

▶ Always unplug the charger before cleaning it.

▶ Do not clean the charger with water.

■ Clean the appliance with a dry cloth or brush. Do not use water or metallic objects.

Maintenance and storage

If you do not intend to use the appliance for an extended period, remove the batteries and store it in a clean, dry place away from direct sunlight.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 380768_2110 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.tdi-service.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 380768_2110.

WARNING!

▶ Have your appliances repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

▶ Always ensure that the power plug and power cord are replaced only by the manufacturer of the appliance or the its customer service. This will ensure that the safety of the appliance is maintained.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 380768_2110

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Li-ion

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/ rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/recharge able batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Notes on the EC declaration of conformity

This appliance complies with the basic requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU and the Low-Voltage Directive 2014/35/EU.

The complete original Declaration of Conformity is available from the importer.

CE

RoHS Directive

(2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Inhaltsverzeichnis

Einleitung 16

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Entsorgung

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Recyclage

CE Directive RoHS (2011/65/EU)\*

Nominale spanning 230 - 240 V \~ (wisselstroom), 50 Hz

Nominaal vermogen 120 W

Zekering (intern) 3,15 A

UITGANG/Output

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Utylizacja

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidácia

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bortskaffelse

circa 120 min (8 Ah)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Smaltimento

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Ártalmatlanítás

pribl. 45 min (3 Ah)

pribl. 60 min (4 Ah)

pribl. 120 min (8 Ah)

Razred zaščite II /

(dvojna izolacija)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

OPOZORILO!

Svoje naprave dajte v popravilo samo servisni službi ali strokovnjaku za elektrotehniko, ki naj uporablja le originalne nadomestne dele. S tem zagotovite, da se ohrani varnost naprave.
Zamenjavo vtiča ali priključne napeljave zmeraj prepustite proizvajalcu naprave ali njegovi servisni službi. S tem zagotovite, da se ohrani varnost naprave.

Pooblaščeni serviser

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 380768_2110

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji · Stav informácií · Estado de las informaciones Tilstand af information · Versione delle informazioni · Információk állása · Stanje informacij: 02 / 2022 · Ident.-No.: PLG20C3-012022-1
