USER MANUAL Grandioso C1X Esoteric

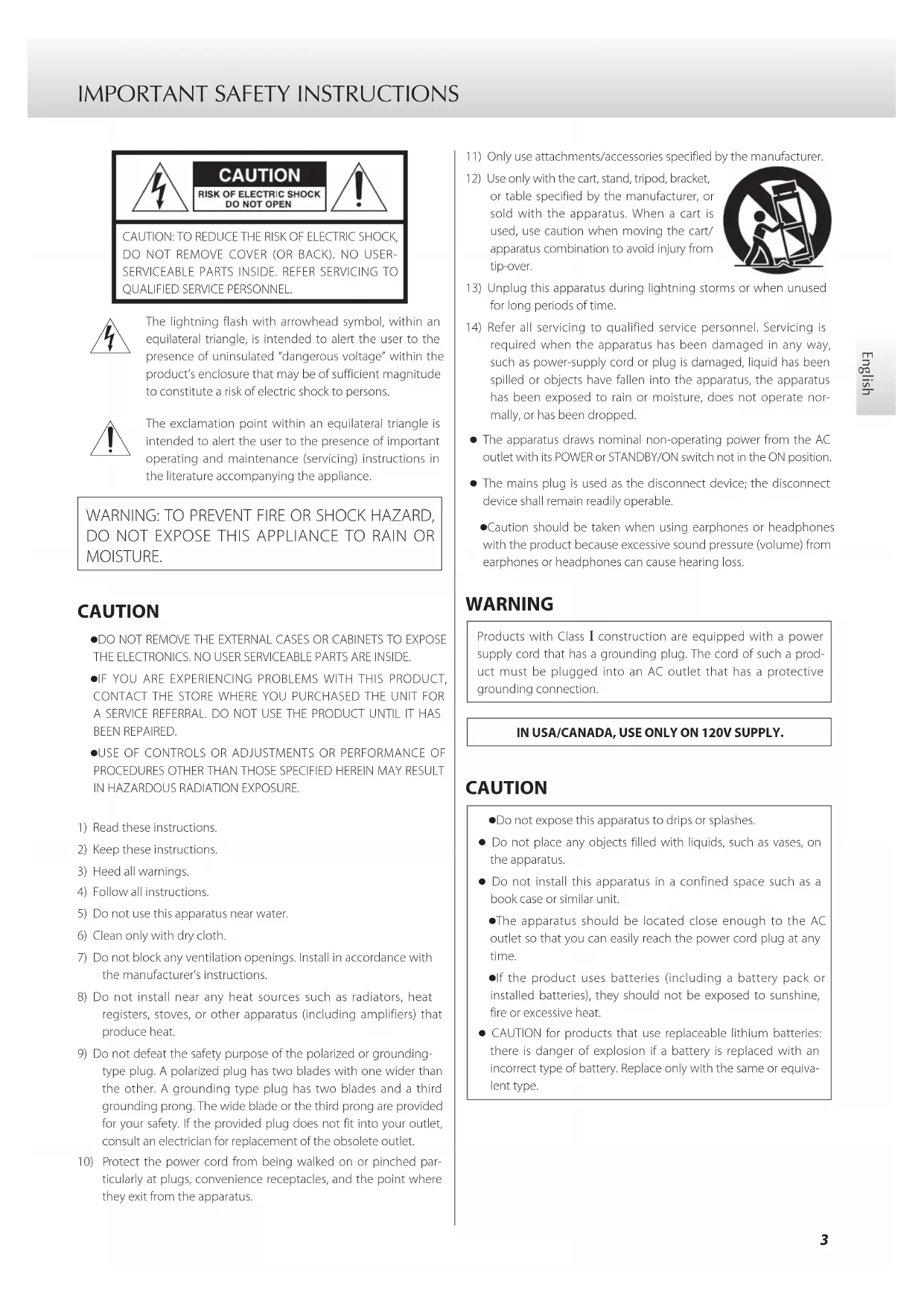

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION o DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE. o IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED. o USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched par-

ticularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use attachments/accessories specified by the manufacturer.12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13) Unplug this apparatus during lightning storms or when unused for long periods of time.14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate nor-mally, or has been dropped. o The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position. o The mains plug is used as the disconnect device; the disconnect device shall remain readily operable. o Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss. WARNING Products with Class ! construction are equipped with a power supply cord that has a grounding plug. The cord of such a prod-uct must be plugged into an AC outlet that has a protective grounding connection.IN USA/CANADA, USE ONLY ON 120V SUPPLY. CAUTION o Do not expose this apparatus to drips or splashes. o Do not place any objects filled with liquids, such as vases, on the apparatus. o Do not install this apparatus in a confined space such as a book case or similar unit. o The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time. o If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat. o CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equiva-lent type.4 IMPORTANT SAFETY INSTRUCTIONS (continued)

Precautions concerning batteries Misuse of batteries could cause them to rupture or leak leading to fire, injury or the staining of nearby things. Please read and observe the following precautions carefully. o Be sure to insert the batteries with correct positive (¥) and nega- tive (^) orientations. o Use batteries of the same type. Never use different types of batter- ies together. o If the remote control is not used for a long time (more than a month), remove the batteries to prevent them from leaking. o If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones. o Do not use batteries of types other than those specified. Do not mix new batteries with old ones or use different types of batteries together. o Do not heat or disassemble batteries. Never throw batteries into fire or water. o Do not carry or store batteries with other metallic objects. The bat- teries could short circuit, leak or explode. o Never recharge a battery unless it is confirmed to be a recharge- able type. o Do not expose batteries to extremely low air pressure as it could result in an explosion or leakage of flammable liquids or gases. Supplier’s Declaration of Conformity Model number: GrandiosoC1X Trade name: ESOTERIC Responsible party: 11 Trading Company, LLC Address: 3502 Woodview Trace #200 Indianapolis, IN 46268 U.S.A. URL: https://11tradingcompany.com/contact-us/ This device complies with Part.15 of FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference

2) This device must accept any interference received, including

interference that may cause undesired operation. Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip- ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Model for Canada Innovation, Science and Economic Development Canada’s Compliance Statement: This Class B digital apparatus complies with Canadian ICES-003. Model for Europe This product complies with the European Directives request, and the other Commission Regulations. Model for UK This product complies with the applicable UK regulations.5 English For European Customers Disposal of electrical and electronic equipment and batteries and/or accumulators a) All electrical/electronic equipment and waste batteries/accu- mulators should be disposed of separately from the municipal waste stream via collection facilities designated by the govern- ment or local authorities. b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valu- able resources and prevent any potential negative effects on human health and the environment. c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment. d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equip- ment and batteries/accumulators must be collected and disposed of separately from household waste. If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC, 2013/56/EU), then the chemical symbols for those elements will be indicated beneath the WEEE symbol. e) Return and collection systems are available to end users. For more detailed information about the disposal of old electri- cal/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment. Pb, Hg, Cd ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries. Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.6 Contents

IMPORTANT SAFETY INSTRUCTIONS ...............................3

• Before use p. 7
• Included accessories p. 7
• Note about pinpoint feet p. 7
• Precautions for use p. 7
• Connections (main unit) p. 8
• Connections (power supply unit) p. 10
• Connecting using ES-LINK Analog p. 12
• ES-LINK Analog overview p. 12
• Connecting source devices using ES-LINK Analog p. 12
• Connecting to a power amplifier using ES-LINK Analog p. 12
• Main unit parts and functions p. 13
• Power supply unit parts and functions p. 14
• Notes about the remote control p. 15
• Remote control parts and functions p. 16
• Basic operation p. 17
• Putting the GrandiosoC1X into standby p. 18
• Dimmer p. 18
• Muting the output p. 18
• Settings p. 19
• Basic operation p. 19
• MENU1 p. 20
• Left and right balance setting p. 20
• Output level p. 20
• Input source name p. 20
• MENU2 p. 21
• Volume mode p. 21
• Fade-in/out time p. 21
• Mute level setting p. 21
• Automatic display darkening setting p. 21
• Automatic power saving function p. 21
• Illumination p. 22
• Knob illumination brightness setting p. 22
• CPU operation stopped status display p. 22
• Open Settings Menu 3 p. 22
• MENU3 p. 23
• Input connector operation mode p. 23
• Through output p. 23
• Remote control input (RS-232C) connector setting p. 24
• Trigger signal output setting p. 24
• Restoring factory settings p. 24
• F/W **.** p. 24
• Troubleshooting p. 25
• Maintenance p. 25
• Specifications p. 26
• Dimensional drawings p. 27
• Main unit p. 27
• Foot placement diagram p. 27
• Power supply unit p. 28
• Foot placement diagram Thank you for purchasing this ESOTERIC product. Read this manual carefully to get the best performance from this product. After reading it, keep it in a safe place with the warranty card for future reference.7 English Included accessories Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this product if any of these accessories are missing or have been damaged during transportation. Power cords × 2 DC power cords × 2 Remote control (RC-1334) × 1 Batteries for remote control (AA) × 2 Felt pads × 8 Owner’s manual (this document) × 1 Warranty card × 1 Note about pinpoint feet High-precision metal pinpoint feet are attached to the bottom plates of the main and power supply units. The pinpoint feet and their stands are loose, but the stands support the units when they are placed, effectively dispersing vibrations. Chassis Pinpoint foot (metal) After placement Foot-stand (metal) o If there is a gap between a chassis and a pinpoint foot after place- ment, turn the pinpoint foot in the direction that tightens the screw to eliminate the gap. o Apply the included felt pads to the bottoms of the foot-stands to avoid scratching the surface where the units are placed. o These units are very heavy, so take care to avoid injury during installation. Before use Precautions for use o Do not install these units in locations that could become hot. This includes places that are exposed to direct sunlight or near a radia- tor, heater, stove or other heating equipment. Moreover, do not place them on top of amplifiers or other equipment that gener- ates heat. Doing so could cause discoloration or deformation. o Avoid locations that are subject to vibrations or exposed to exces- sive dust, cold or moisture. o In order to enable good heat dissipation, leave at least 20cm (8") between these units and walls and other equipment when install- ing them. If you put them in a rack, take precautions to prevent overheat- ing by leaving at least 5cm (2") open above and 10cm (4") open behind them. Failure to provide these gaps could cause heat to build up inside and result in fire. o Do not install these units face up or on their sides. o Place these units in stable locations near the audio system that will be used with them. o Do not put cloth on top of these units or place them on bedding or thick carpet. o Do not place anything, not even CDs, CD-Rs, LP records or cassette tapes, on top of these units. o Supply voltage to the power supply unit that matches the voltage as printed on its back. If you are in any doubt regarding this mat- ter, consult an electrician. o Do not move the units during use. o Do not open the bodies of the units as doing so might result in damage to the circuitry or cause electric shock. If a foreign object should get into a unit, contact your dealer. o When removing each power plug from an outlet, always pull directly on the plug. Never pull on the cord itself.8 Connections (main unit) XLR pin assignment p. 28

Super Audio CD player, tuner, etc. Connect using a set of only one type. XLR cables Power amplifier, etc. AUDIO IN Super Audio CD player, etc. RCA cables XLR cables

Power amplifier that supports ES-LINK Analog ES-LINK Analog input connectors ESL-A XLR cables Set the operation mode for the input connectors used (page23).9 English A Analog input (LINE IN) connectors Connect the analog output connectors of Super Audio CD play- ers, DVD players, cassette decks, tuners and other equipment to these connectors. Connect the R connector of a pair on this unit to the right (R) connector of an output device and the L connector of the same pair on this unit to the left (L) connector of the output device. XLR/ESL-A: balanced XLR cables Insert balanced XLR plugs until the connector levers lock. Press these levers and pull the plugs out to disconnect. RCA: RCA cables Connect the white pin plugs to the white (L) connectors and connect the red pin plugs to the red (R) connectors. o This unit does not have a phono equalizer, so record players cannot be connected to it directly. To use a record player with this unit, connect it through a phono equalizer, for example. o Use commercially-available cables for connections. B Trigger input (TRIG IN) connector Use this connector to control power from an external source. Do not connect anything to this connector when not using it. C SOFTWARE maintenance port This is used for maintenance. Do not connect anything to this port unless instructed to do so by our service department. D Remote control input (RS-232C) connector This control connector is for use by professionals (custom installers). E SIGNAL GND grounding terminal Using a commercially-available sheathed wire to connect this to the grounding terminal of a Super Audio CD player, power amplifier or other device might improve the audio quality. o This is not a safety grounding terminal. F Analog output (LINE OUT) connectors These output 2-channel analog audio. Connect these to the analog input connectors of a power ampli- fier, for example. Connect the R connector of a pair on this unit to the right (R) connector of an input device and the L connector of the same pair on this unit to the left (L) connector of the input device. XLR/ESL-A: balanced XLR cables Insert balanced XLR plugs until the connector levers lock. o Use commercially-available cables for connections. o In each pair, both XLR connectors output the same signals. Both connectors can be connected to power amplifiers, for example. The same is also true for the ESL-A connectors. ATTENTION The ESL-A output connectors of this unit are female-type con- nectors to prevent accidental connection with XLR output connectors.10

Precautions when making connections o Complete all other connections before connecting power plugs to power outlets. o Read the owner’s manuals of all devices that will be connected, and follow their instructions. Connections (power supply unit) Main unit Power supply unit Included power cords e Wall outlet e Wall outlet11 English G DC power input/output connectors (DC IN/DC OUT) Use the 2 included DC (direct current) power cords to connect the DC power input (DC IN) connectors of the main unit with the DC power output (DC OUT) connectors of the power supply unit. DC OUT L e DC IN L DC OUT R e DC IN R o Power cords connected to AC inlets should always be unplugged from outlets before DC (direct current) power cords are connected or disconnected. o The DC power cords have arrows printed on them. Connect them so that the arrows point in the direction shown in the illustration on page10. Check the orientation of the pins and the arrows of each DC power cord and hold it by its plug. Align the marks on the plug and the connector and push it in completely until it clicks into place. When disconnecting, hold the ring and pull it straight out. When connecting or disconnecting power cords, do not angle or wiggle the plugs. o Be careful not to pinch your fingers in the ring when con- necting or disconnecting a DC power cord. Connector Align the marks when connecting. When disconnecting, hold the ring and pull it directly out. Plug

Never connect these to anything other than a GrandiosoC1X main unit. Doing so could cause damage. H Trigger output (TRIG OUT) connectors These output trigger signals linked to power operations of this product. Do not connect anything to these connectors when not using them. o To use these connectors, the TRIG_O trigger signal output setting must be set to ON. I LED brightness adjustment knob Turn to adjust the brightness of the power indicator. J AC power inlets (~IN) Connect the included AC power cords to these AC inlets. After completing all other connections, plug the power plugs into power outlets.

Use only genuine ESOTERIC power cords. Use of other power cords could result in fire or electric shock.

Disconnect the power plugs from the outlets if you will not use the GrandiosoC1X for a long time.12 Connecting using ES-LINK Analog ES-LINK Analog overview The current transmission method utilizes the performance of HCLD buffer circuits that feature the ability to supply strong current at high speed. This suppresses the impact of impedance on signal paths, enabling pure and powerful transmission of signals. o Ordinary balanced cables (with XLR connectors) are used for connection. These connectors can only be used with compatible devices, however, because the transmission format is unique. Connecting source devices using ES-LINK Analog Source device XLR cables Analog audio output (LINE OUT) connectors ATTENTION Set the analog output setting to ESLA on the source device before connecting it. Use XLR cables to connect the analog audio output (XLR/ESL-A) connectors on the source device to the analog audio input (ESL-A) connectors on this unit. o Set the operation mode to ESLA for the input connectors on this unit that are connected to the source device (page23). o You can also connect using XLR or RCA connectors. Select the connection type that provides the audio quality you prefer. Connecting to a power amplifier using ES-LINK Analog ES-LINK Analog input (ESL-A) connectors Power amplifier that supports ES-LINK Analog XLR cables Use XLR cables to connect the analog audio output (ESL-A) connec- tors on this unit to the ES-LINK Analog input (ESL-A) connectors on the power amplifier. o Set the power amplifier input selector to ESLA. o No setting is necessary on this unit. ATTENTION The ESL-A output connectors of this unit are female-type connectors to prevent accidental connection with XLR output connectors.13 English Main unit parts and functions A INPUT knob Turn this knob to select the active input. Select the connector that is connected to the device you want to play. o You can change the names that are shown on the display for the connectors (page20). B Remote control signal receiver This receives signals from the remote control. When using the remote control, point the end of it toward this receiver panel (page15). C Display This shows the current input source name, volume, setting items, etc. D VOLUME knob Use to adjust the volume.Turn this knob clockwise to increase the volume and counter-clockwise to decrease it. o When “THRU” appears on the display, the volume cannot be adjusted on this unit (page23). Sudden loud noises might cause hearing damage and other trouble. Always minimize the volume before starting playback, and adjust it to an appro-priate level after playback begins.

B C D14 Power supply unit parts and functions

E STANDBY/ON button Press to turn the GrandiosoC1X on or put it into standby mode. F Power indicator This lights when the unit is on.15 English Notes about the remote control Precautions when using the remote control o When using the remote control, point it toward the remote con- trol signal receiver on the main unit from a distance of 7m (23ft) or less. Do not place obstructions between the main unit and the remote control. o The remote control might not work if the remote control signal receiver is exposed to direct sunlight or bright light. o Beware that use of this remote control could cause the unin- tentional operation of other devices that can be controlled by infrared rays. Installing batteries 1 Slide the bottom end of the remote control as shown in the illustration, and pull out the bat- tery holder. 2 Insert two AA batteries with ¥ and ^ ori- ented as shown in the holder, and put the holder in again. 3 Slide the bottom end of the remote control as shown in the illustration to close the battery holder. When to replace batteries If the distance required between the remote and the main unit decreases or if the main unit stops responding to the remote buttons, replace both batteries with new ones.Dispose of the used batteries according to the instructions on them or requirements set by your local municipality.

Precautions concerning batteries Misuse of batteries could cause them to rupture or leak, which might result in fire, injury or the staining of nearby materials.Please read and observe the precautions on page4 carefully.16 Remote control parts and functions a INPUT (l/;) buttons Use to switch between input sources. Select the connector that is connected to the device you want to play. When a settings menu is open, use these to change setting values. When inputting a source name, use these to select characters (page20). b SETUP button Use with MENU1, MENU2 and MENU3 (page19). When inputting a source name, use this to move the cursor left (page20). c VOLUME (+/−) buttons Use to adjust the volume. Press the + button to increase the vol- ume and the − button to decrease it. o When “THRU” appears on the display, the volume cannot be adjusted on this remote control (page23). o Press when in setting mode to complete changing settings and show the ordinary display (page19). d MUTE button Press this button to temporarily mute the sound. Press again to restore the volume setting. When inputting a source name, use this to move the cursor right (page20). o When muted, “MUTE” blinks on the screen. e ON button Press to turn the GrandiosoC1X on. f STANDBY button Press to put the GrandiosoC1X into standby mode. g DIMMER button Use to adjust the brightness of the main unit’s display (page18). o The buttons not explained here do not function with the GrandiosoC1X. o This remote control can also be used for other ESOTERIC products.17 English Basic operation 1 Turn on an input source device connected to the main unit. 2 Press the STANDBY/ON button to turn the GrandiosoC1X on. When on, the power indicator and the display light. o Turn on the power amplifier after turning on the GrandiosoC1X. 3 Turn the INPUT knob to select an input source. 4 Play the source, and then adjust the volume.

Sudden loud noises might cause hearing damage and other trouble. Always minimize the volume before starting playback, and adjust it to an appro- priate level after playback begins.18 Putting the GrandiosoC1X into standby There might be noise from the speakers if the unit is turned off sud-denly. Follow the steps below to put the unit into standby. 1 If a connected device is playing back, stop playback. 2 Turn the power amplier o. 3 Press the STANDBY/ON button to put the GrandiosoC1X into standby mode. 4 Turn o the connected input source device. Dimmer Use this to adjust the brightness of the main unit’s display.DIMMER3 DIMMER2 DIMMER1 (off)(normal brightness) o Even when the dimmer is off, the display will light at normal brightness for a few seconds when you press a button or turn a knob. o Even when set to DIMMER1 or off, setting menus and error mes- sages will be shown with normal brightness (DIMMER2). o Pressing and holding the button will set the brightness to DIMMER2 (normal brightness). Muting the output Press the MUTE button to temporarily mute the sound. Press again to restore the volume setting. o When muted, “MUTE” blinks on the screen. o You can also restore the sound by pressing the VOLUME buttons (+/−) or by turning the VOLUME knob. Basic operation (continued)19 English Settings Basic operation The settings for this unit are divided into three groups: MENU 1, MENU2 and MENU3.MENU 1, MENU 2 or MENU 3 will be shown depending on how the SETUP button is pressed.In MENU 1, settings can be made independently for each of the input connectors.In MENU 2, settings can be made for the display and the unit as a whole.In MENU 3, settings can be made related to amplifier operation. 1 Open a settings menu. Opening MENU1

1) Turn the INPUT knob to select the input source you want to set.2) Press the SETUP button to show MENU 1.

Opening MENU2 Press and hold the SETUP button. Opening MENU3 In MENU 2, select “goto MENU 3” and press and hold the SETUP button. o While making settings, MENU1, MENU2 or MENU3 appears at the top left of the display. 2 Press the SETUP button repeatedly to select the setting item to change. MENU1 MENU2 MENU3Bal> Lvl> Name Edit>VolM> Fade> MTLV> DPaOFF> APS> Light> LightLV> CPUdp> goto MENU3>XLR1> XLR2> XLR3> THRU> RS232C> TRIG_O> SETUP>

F/W 3 Use the INPUT (l/;) buttons to change the setting. The INPUT knob on the main unit can also be used to change the setting. 4 Press the VOLUME (+/−) button to end making settings. Setting mode will also end and the display will return to normal if nothing is done for ten seconds. o Settings are retained even if the power plugs are disconnected.20 Left and right balance setting Bal>*** Adjust the balance between the left and right output channels. This can be set to values between L 6.0dB and R 6.0dB in 0.1dB increments. This can also be set so that just one channel is muted. o By default, the setting is 0.0dB (no balance adjustment). Muting just one channel Press the ; button to select “Bal>R only” to output only the right channel. Likewise, press the l button to select “Bal>L only” to output only the left channel. Output level Lvl>*** Adjust the output level for the selected input connector type. This can be set to values between −18.0dB and +18.0dB in 0.1dB increments. o By default, the setting is 0.0dB. Note about settings and sound quality Bal (left-right balance) and Lvl (output level) are both settings related to volume. This unit’s microcomputer comprehensively analyzes these settings and the volume setting to conduct unified control with a volume control amplifier in one place. For this reason, unlike ordinary amplifiers that pass audio signals through multiple circuits, these settings will not degrade the audio quality. Input source name Name Edit>*** The names shown on the display when the input source is changed can be set as you like (up to five characters). Changing input source names

1) Press and hold the SETUP button when Name Edit is

2) Enter the characters.

The character being input and the cursor appear alternately. Use the INPUT (l/;) buttons or the main unit’s INPUT knob to select characters.

Press the MUTE button to move the cursor right or the SETUP button to move the cursor left.

4) When finished with input, press and hold the SETUP

button. o While entering the name, the volume and input cannot be changed. o Available characters English letters: A–Z, a–z Numbers: 0–9 Symbols: ! " # $ % & ‘ ( ) * + , − . / \ : ; < = > ? @ (blank) o Using blank spaces for all five characters will clear the input source name. MENU 121 English MENU 2 Volume mode VolM>*** This sets how the volume is adjusted. o By default, the setting is dB1. o +12dB using the dB1 setting is the same volume as 0.0dB using the dB2–dB4 settings. STEP Volume adjustment is shown as a value from 0.0 to 99.9. dB1 The volume can be set to −∞ or from −99.9 to +12.0dB and is shown in dB units. dB2 The volume can be set to −∞ or from −99.9 to 0.0dB and is shown in dB units. dB3 The volume can be set to −∞ or from −79.9 to 0.0dB and is shown in dB units. dB4 The volume can be set to −∞ or from −59.9 to 0.0dB and is shown in dB units. Fade-in/out time Fade>*** The fade-in/out time used when muting and unmuting becomes longer in order from TM1 to TM3. o By default, the setting is TM2. Mute level setting MTLV>*** This sets the volume when it is muted. o By default, the setting is −∞dB. −∞dB The volume becomes −∞dB when muted. −20dB The volume is reduced 20dB from the set level when muted. Automatic display darkening setting DPaOFF>*** Use this to set the display to darken automatically. o By default, the setting is OFF.

If no operation is conducted for ten minutes, the display automati- cally turns off. DIM If no operation is conducted for ten minutes, the display will dim to DIMMER1 brightness. OFF Automatic display darkening will not occur. o If the display is left on with the same indication for a long time, brightness irregularities can occur. For this reason, we recommend that you set the automatic display darkening function to ON. Automatic power saving function APS>*** If there is no audio input (continuous silence) from the selected input source for the set amount of time, the unit will enter standby mode automatically. o By default, the setting is OFF. o Audio input from input sources other than the one selected has no effect on the operation of the automatic power saving function. 30m 30 minutes 60m 60 minutes 90m 90 minutes 120m 120 minutes OFF The automatic power saving function is disabled.22 Illumination Light>*** How the rings around the INPUT and VOLUME knobs light can be set. o By default, the setting is AUTO. AUTO When the knobs are operated, their rings light.

The rings around the knobs are always lit. OFF The rings around the knobs are always unlit. Knob illumination brightness setting LightV>*** The brightness of the illumination around the knobs can be set. o By default, the setting is 5. 5 (normal brightness)

1 (dim) CPU operation stopped status display CPUdp>*** o By default, the setting is ON. OFF CPU operation stopped status will not be shown.

“CPU off” will be shown when operation of the CPU that controls this product stops. When the input knob, volume knob or remote control is operated, operation will resume to control the product. When done, it will automatically stop operating again. o If the APS function is not set to OFF, in order to check the operation status and measure the time, the CPU will not enter operation stopped mode. o When DPaOFF is set to ON, the CPU will not enter operation stopped mode while the time is being measured until the dis- play is turned off automatically. o When the RS232C external control setting is ON, the CPU will not enter operation stopped mode because it is waiting to receive external control. o When the illumination setting (Light>) is ON, the CPU will not enter operation stopped mode because it is constantly adjust- ing the brightness. Open Settings Menu 3 goto MENU3 Press and hold the SETUP button to open MENU3. MENU 2 (continued)23 English MENU 3 Input connector operation mode XLR1>*** XLR2>*** XLR3>*** Set the operation mode of the input connector. o By default, the setting is XLR. XLR Select this when using normal balanced connection. ESLA Select this when using ES-LINK Analog connection. Through output THRU>*** Set whether to use the input connectors as signal through connectors. o By default, the setting is OFF. OFF No through inputs are set.XLR1 (ESLA1)XLR2 (ESLA2)XLR3 (ESLA3) RCA1 RCA2 Output will occur without volume adjustment by this unit.

If you select inputs connected to an ordinary line- level device, signals that are too strong could be output to the speakers, resulting in damage to them. “THRU” appears on the display instead of the volume level set by using the VOLUME knob.For example, if you connect the pre-out connectors (for example, FRONT L/R) of an AV amplifier to this unit’s RCA 2 connectors, and set RCA2 to THRU, you can use the speakers connected to this unit as the front speakers of the AV amplifier. (The AV amplifier controls volume adjustment when the input source is set to “RCA2”.) o The volume cannot be adjusted for input connectors set to THRU, but fine adjustments can be made using Bal and Lvl settings.

Always connect a device that has a volume con- trol to the input connectors set to THRU. Use that device to minimize the volume before switching the input source, and then gradually raise the vol- ume level.24 Remote control input (RS-232C) connector setting RS232C>*** Set this to ON only when using the remote control input (RS-232C) connector. o By default, the setting is OFF. OFF The remote control input (RS-232C) connector cannot be used.

The remote control input (RS-232C) connector can be used. Trigger signal output setting TRIG_O>*** o By default, the setting is OFF. OFF Do not output trigger signals.

Output trigger signals. Restoring factory settings SETUP>*** Use to restore the factory default settings, erasing all changes in memory. Follow the procedures below to initialize the settings.

1) Use the INPUT (l/;) buttons to show “CLR”.

2) While “CLR” is shown, press and hold the SETUP button.

F/W **.** This shows the firmware version. “**.**” is the version. MENU 3 (continued)25 English Troubleshooting If you experience a problem with this product, please take a moment to review the following information before requesting service. Moreover, the problem might be caused by something other than this product. Please also check the operation of the connected units. If this product still does not operate correctly, contact the retailer where you purchased it. The GrandiosoC1X does not turn on. e Insert the power plugs into outlets. Standby mode starts automatically. e The automatic power saving function is operating to put the unit into standby. Press the power supply unit STANDBY/ON button or the remote control ON button to turn the power on. Change the automatic power saving setting if necessary (page21). Remote control does not work. e Press the power supply unit STANDBY/ON button or the remote control ON button to turn the power on. e If the batteries are exhausted, replace both of them with new ones (page15). e The remote control will not work if there are obstructions between it and the main unit. Point the remote control toward the main unit and use it within 7m (23ft) of the front panel (page15). A television or other device is operating improperly. e The use of this product’s remote control might cause some televisions with wireless remote control functions to operate incorrectly. VOLUME knob does not work. e When “THRU” appears on the display, the volume cannot be adjusted on this unit (page23). Change the through output setting as necessary. “CHK POWER!” appears on the display. e Confirm that all 4 power and DC power cords are properly con- nected (pages10 and 11). Since the GrandiosoC1X uses a microcontroller, external noise and other interference can cause it to malfunction. If this occurs, put the unit into standby mode, disconnect the power cords from the outlets, and wait about one minute before restarting operation from the beginning. Use a soft dry cloth to wipe the surfaces of the units clean. For stubborn smudges, use a damp cloth that has been thoroughly wrung out to remove excess moisture. o Never spray liquid directly on these units. o Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surfaces of the units. o Avoid allowing rubber or plastic materials to touch the units for long periods of time, because they could damage the cabinets.

Dimensions in millimeters (mm) *48mm diameter feet × 428 Dimensional drawings (continued) Power supply unit

• 4 patas de 48 mm de diámetro81821222∙MA-3158C ESOTERIC COMPANY 1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan Phone: [phone] This product has a serial number located on the rear panel. Please write it here and retain this for your records. Model name: Grandioso C1X Serial number
