USER MANUAL EZpar 64 RGBA Chauvet
Value·Innovation·Performance
It's reen Thinking.

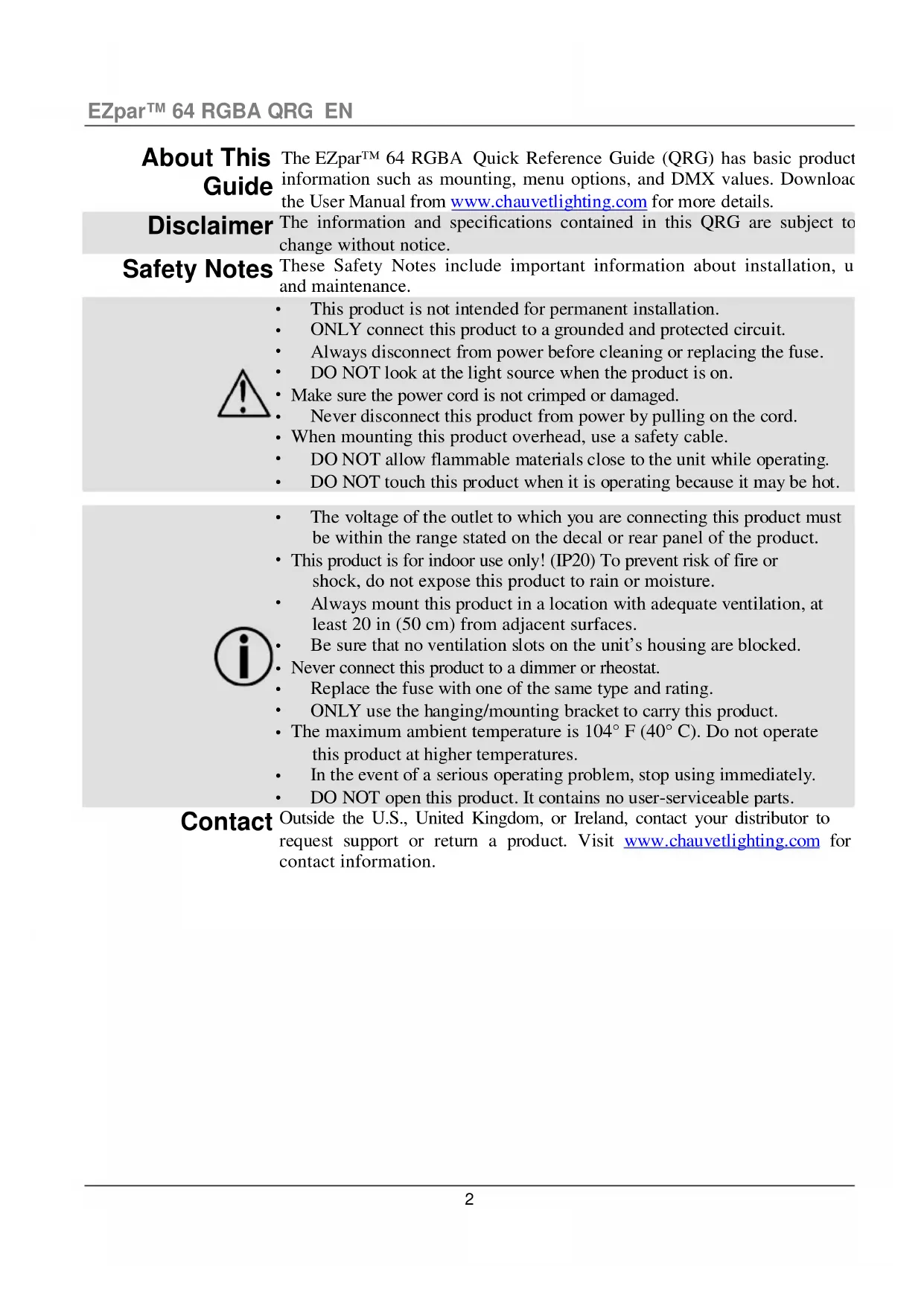

About This Guide
The EZpar™ 64 RGBA Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetlighting.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
Safety Notes
These Safety Notes include important information about installation, u and maintenance.
• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, use a safety cable.
• DO NOT allow flammable materials close to the unit while operating.
• DO NOT touch this product when it is operating because it may be hot.
- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
- This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces. - Be sure that no ventilation slots on the unit's housing are blocked.
- Never connect this product to a dimmer or rheostat.
- Replace the fuse with one of the same type and rating.
• ONLY use the hanging/mounting bracket to carry this product. - The maximum ambient temperature is 104^ (40^) . Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
Contact
Outside the U.S., United Kingdom, or Ireland, contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.
What Is Included
- EZpar™ 64 RGBA
- Warranty Card
• Infrared Remote Control (IRC) - Quick Reference Guide
- Power Cord
To Begin
Unpack your EZpar™ 64 RGBA and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not CHAUVET®.
Description
The EZpar™ 64 RGBA is a battery-operated, cable-free RGBA LED Par. The rechargeable lithium battery lasts up to 20 hours from a single charge. Two personality choices are available through 4- and 8-channel DMX modes. Control options are built-in auto programs, Sound-Active modes, Master/Slave mode, and DMX. Built-in infrared technology offers wireless control with the included Infrared Remote Control (IRC) for non-DMX operation.


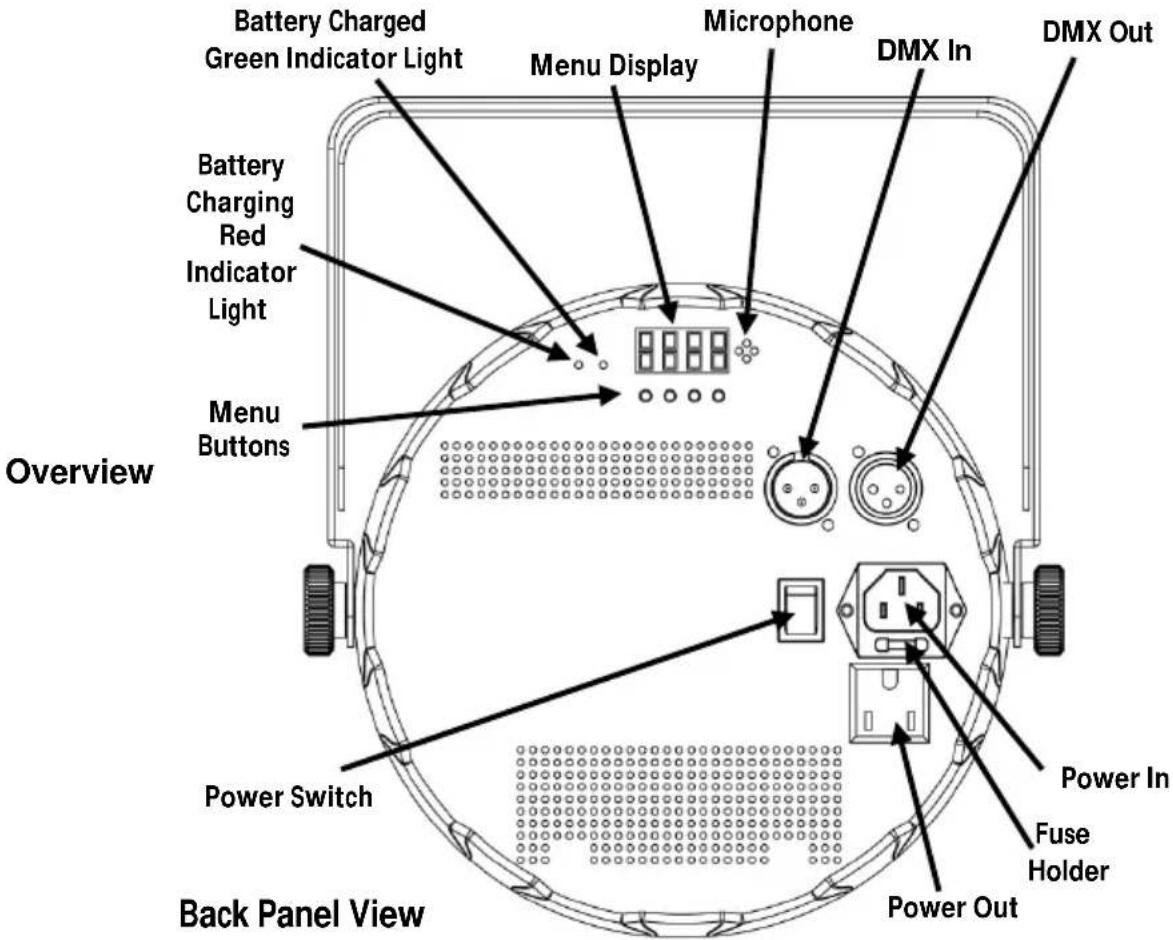

Battery Charged Green Indicator Light Menu Display Microphone DMX In DMX Out Battery Charging Red Indicator Light Menu Buttons Overview Power Switch Back Panel View Power In Fuse Holder Power OutAC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100\~240 VAC, 50/60 Hz.
Power Linking
You can link up to 55 EZpar™ 64 RGBA products at 120 VAC and 85 units at 230 VAC.
Fuse
- Disconnect the product from power.
- Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
- Pry the safety cap out of the housing.
- Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
- Re-insert the fuse holder and reconnect power.
Replacement
Charging the Battery
The EZpar™ 64 RGBA comes with a rechargeable lithium battery for cable-free operation. To charge the battery, simply plug in the power cord at any time before, during, or after operation. To charge the battery before or after operation with all the LEDs off, leave the power switch in the Off position. The red indicator light for the battery turns on while the battery is charging. The gree indicator light turns on when the battery is done charging.

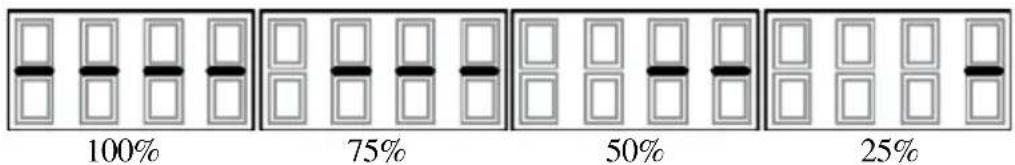

Battery Life Indicator
The battery life indicator shows the remaining amount of internal battery life when the menu buttons are inactive.
bar
| Category | Value (%) | |---|---| | Top Left Bar | 100 | | Top Right Bar | 75 | | Top Bottom Bar | 50 | | Top Right Bar | 25 |Infrared Remote Control (IRC)
The EZpar™ 64 RGBA is fully compatible with the IRC from CHAUVET®. For more information on the IRC or to download instructions, go to www.chauvetlighting.com.

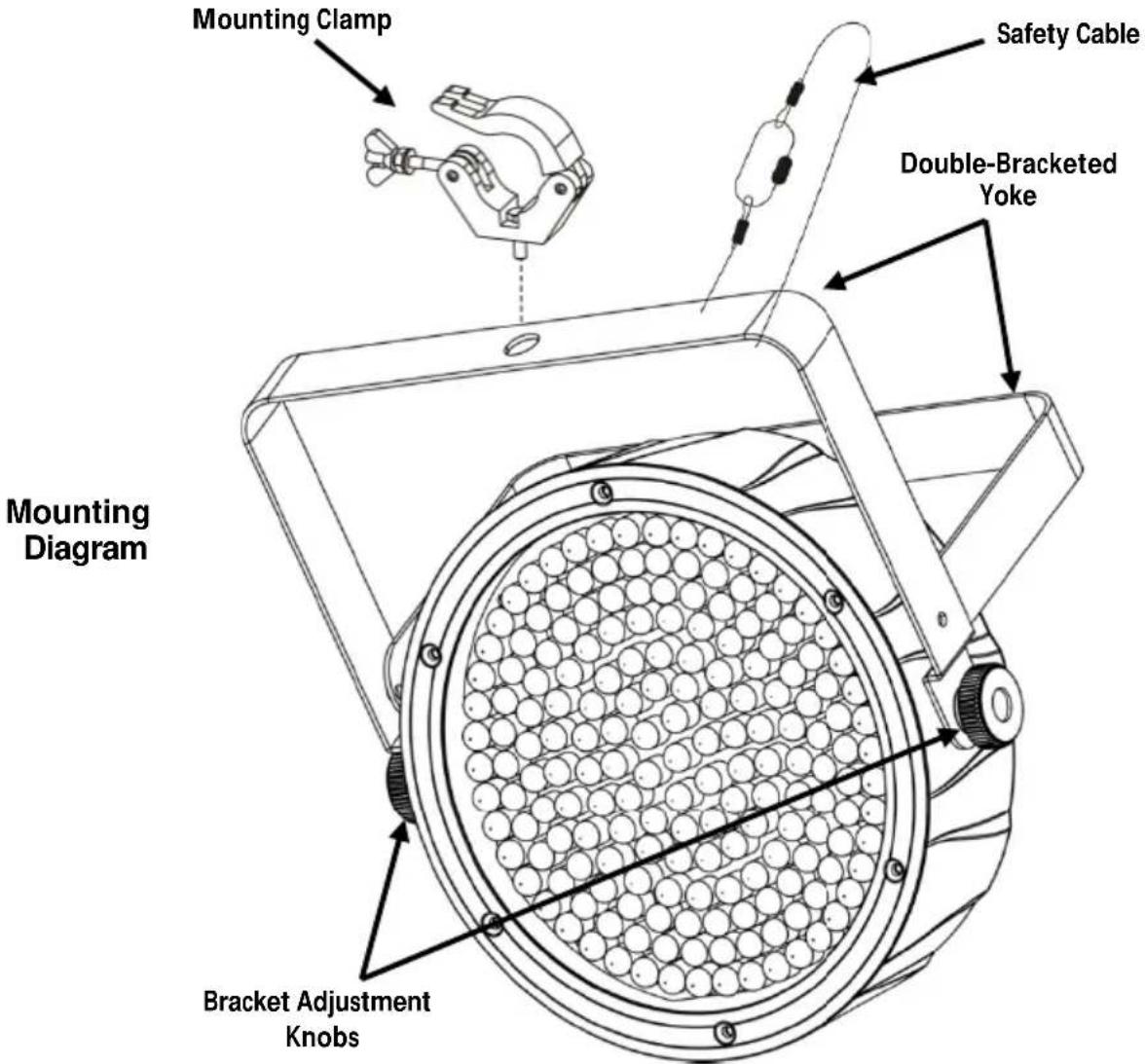

Mounting
Before mounting this product, read the Safety Notes.
| Button | Function |
| Exits from the current menu or function | |
| Navigates upwards through the menu list and increases the numeric value when in a function | |
| Navigates downwards through the menu list and decreases the numeric value when in a function | |
| Enables the currently displayed menu or sets the currently selected value into the selected function |
Menu Options
| Mode | Programming Steps | Description | |
| 4-CH | d 1-d512 | 4-channel DMX mode (RGBA) | |
| 8-CH | 8-channel DMX mode | ||
| C-- | C 1 | Red | Preset static colors |
| C 2 | Green | ||
| C 3 | Blue | ||
| C 4 | Amber | ||
| C 5 | Cyan | ||
| C 6 | Magenta | ||
| C 7 | Yellow | ||
| C 8 | White (RGB) | ||
| C 9 | Orange | ||
| C 10 | Light Green | ||
| C 11 | Violet | ||
| C 12 | Yellow | ||
| C 13 | Pink | ||
| C 14 | Light Blue | ||
| C 15 | White (RGBA) | ||
| P-- | P 1 | 4-color program (switching) | |
| P 2 | 4-color program (fading) | ||
| P 3 | 15-color program (switching) | ||
| P 4 | 15-color program (fading) | ||
| P 5 | 4-color program (sound-active) | ||
| P 6 | 15-color program (sound-active) | ||
| S-- | S 1-S100 | Program speed for P 1-P 4 | |
| SenS | u 0-u100 | Sound-sensitivity control | |
| U-- | r 0-r100 | Red (0-100%) | Custom static colorsCombines red, green, blue, and amber |
| g 0-g100 | Green (0-100%) | ||
| b 0-b100 | Blue (0-100%) | ||
| A 0-A100 | Amber (0-100%) | ||
| sET | ON | Turns infrared on or off | |
| OFF | |||
DMX Linking
The EZpar™ 64 RGBA can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.
Starting Address
To ensure full access to all channels in each DMX mode, the highest recommended DMX address is 505.
Master/Slave
The EZpar™ 64 RGBA uses the DMX data connection for its Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.
DMX Values
| 8-CH Channel | Function Value | Percent/Setting | |
| 1 | Red | 000 Ü 255 | 0–100% |
| 2 | Green | 000 Ü 255 | 0–100% |
| 3 | Blue | 000 Ü 255 | 0–100% |
| 4 | Amber | 000 Ü 255 | 0–100% |
| 5 | Color Macros(Overrides Chs. 1–4) | 000 Ü 015 | No function |
| 016 Ü 255 | Color macros | ||
| 6 | Speed(When Channel 7 is 032–223) | 000 Ü 255 | Slow to fast |
| Strobe | 000 Ü 015 | No function | |
| 016 Ü 255 | Slow to fast | ||
| 7 Mode | 000 Ü 031 | No function | |
| 032 Ü 063 | Pulse effect 0–100% | ||
| 064 Ü 095 | Pulse effect 100%-0 | ||
| 096 Ü 127 | Pulse effect 100%-0–100% | ||
| 128 Ü 159 | Auto fade transition | ||
| 160 Ü 191 | Auto snap transition (4 colors) | ||
| 192 Ü 223 | Auto snap transition (15 colors) | ||
| 224 Ü 255 | Sound-Active mode | ||
| 8 | Dimmer | 000 Ü 255 | 0–100% |
| 4-CH Channel | Function Value | Percent/Setting | |
| 1 | Red | 000 255 | 0–100% |
| 2 | Green | 000 255 | 0–100% |
| 3 | Blue | 000 255 | 0–100% |
| 4 | Amber | 000 255 | 0–100% |
Acerca de Esta Guía
Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: 954-577-4455
Fax: 954-929-5560
Toll free: 800-762-1084
U.S. Technical Support
Voice: 954-577-4455 (Press 4)
Fax: (954) 756-8015
Email: tech@chauvetlighting.com
World Wide Web
www.chauvetlighting.com
United Kingdom and Ireland
CHAUVET® Europe Ltd.
General Information
Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: +44 (0)1773 511115
Fax: +44 (0)1773 511110
U.K. Technical Support
Email: uktech@chauvetlighting.com
World Wide Web
www.chauvetlighting.co.uk
EZpar™ 64 RGBA QRG - Rev. 3 ML
© Copyright 2013 CHAUVET®
All rights reserved.
Printed in the P. R. C.
