740100 - Laser sight BUSHNELL - Free user manual and instructions

Product Type	Laser boresighting device
Brand	Bushnell
Model	740100
Category	Firearm aiming accessory
Laser class	Class 3R (IEC 60825-1:2007-03)
Wavelength	650 nm
Optical power	2.9 mW
Power supply	3 alkaline 1.5 V or silver oxide batteries LR44/SR44, AG13, A76/S76
Included adapters	Expandable adapters for calibers .22 to .50 and 12/20 shotguns
Main functions	Emission of a red dot for sight alignment (boresighting)
Recommended use	Indoor or outdoor under low light
Operating temperature	Not specified
Safety	Avoid direct eye exposure. Class 3R laser product
Warranty	2-year limited (material and workmanship defects)
Compliance	FCC Part 15b, CE, WEEE directive
Maintenance and cleaning	Clean with a soft, dry cloth. Store away from moisture and shocks.
Spare parts and repairability	Standard batteries available. Repair by return to manufacturer or authorized center.
Weight	Approximately 100 g (estimate)

Frequently Asked Questions - 740100 BUSHNELL

How to install the Bushnell 740100 boresight laser in my firearm?

Choose the expandable adapter with the largest diameter that can fit into the barrel. Screw it into the laser emitter using the center screw. Tighten the screw to expand the adapter, then insert the assembly into the barrel until it is snug against the muzzle. Ensure the firearm is unloaded before handling.

What batteries should I use for the Bushnell 740100 laser?

Use three alkaline 1.5 V or silver oxide batteries type LR44, SR44, AG13, or A76/S76. Insert them into the white plastic sleeve with the negative (-) terminals facing up, toward the cap spring. Observe the indicated polarity.

How to turn the laser on and off?

Turn the on/off switch on the battery cap clockwise to turn on the laser. A red dot appears. Turn counterclockwise to turn off.

How to adjust the sight alignment with the laser?

For adjustment at 46-91 m (50-100 yards), adjust the windage and elevation settings of your scope so that the crosshair aims at the red dot of the laser. For a shorter distance, compensate for the height of the scope center above the barrel (usually 3.75 cm). Use the provided adjustment chart.

Is the laser dangerous to the eyes?

Yes, it is a Class 3R laser product. Never look directly into the beam and do not point it at eyes. Avoid direct exposure. Always use with caution.

Can I use the laser outdoors in daylight?

The laser is designed for indoor or outdoor use under low light. In daylight, the red dot may be difficult to see. Prefer use in low light conditions.

How to clean and maintain the laser?

Clean the housing with a soft, dry cloth. Do not use harsh solvents. Store it in a dry place away from shocks. Remove batteries if not used for long periods.

What to do if the laser does not turn on?

Check the battery orientation (negative poles toward the spring) and replace them if necessary. Ensure the battery cap is tightly screwed. If the problem persists, contact customer service.

Is the laser compatible with all calibers?

The Bushnell 740100 comes with expandable adapters for calibers .22 to .50 and an adapter for 12/20 shotguns. For other calibers, it may not be compatible.

How to use the warranty?

The two-year limited warranty covers material and workmanship defects. For a return, send the product prepaid with a $10 US check for handling, proof of purchase, and a description of the defect to the address indicated in the manual.

USER MANUAL 740100 BUSHNELL

Black mechanical tool with multiple cylindrical connectors and a label, shown alongside a separate image of five metallic tools (no visible text or symbols on the tool itself).

Model #: 740100

Lit #: 98-0709/08-11

Sighting-In Chart

Congratulations on the purchase of your Bushnell Laser Boresighter. This boresighter is a precision instrument constructed of the finest materials and assembled by highly skilled craftsmen for a lifetime of trouble-free use. This laser boresighter is designed to quickly get your rifle, handgun, or shotgun “on the paper” and will save you time and money. Final sighting-in should be done by shooting the firearm and fine tuning the adjustments.

BEFORE BORESIGHTING YOUR SCOPE, MAKE SURE THAT THE FIREARM IS UNLOADED AND THE MUZZLE IS POINTED IN A SAFE DIRECTION

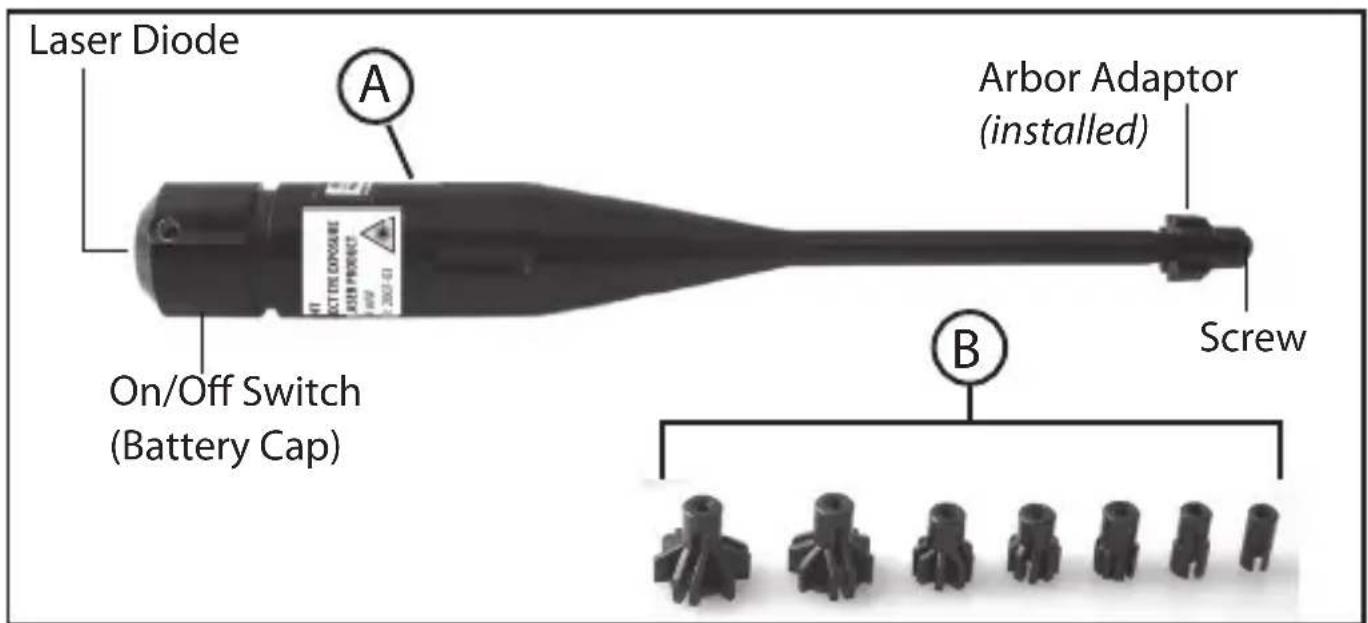

Your boresighter consists of laser emitter (A) as well as a series of expandable adaptors (B) which cover .22 to .50 caliber diameters. There is also a larger adaptor designed for 20 gauge and 12 gauge shotguns. Please note that your laser boresighter is designed for use indoors or outdoors in dimmer light.

To select the proper adaptor, find the largest-diameter adaptor that will fit in the muzzle of your firearm. Then, screw the adaptor into the small end of the laser emitter using the small screw in the center of the adaptor. As you tighten the screw, the diameter of the adaptor will expand. Once it has expanded to match the diameter of your firearm, push the adaptor and small end of the laser emitter

into the muzzle of your rifle. Make sure that the laser emitter is inserted in until it is snug with the crown of your firearm.

Turn the laser on by rotating the on/off switch (battery cap) clockwise until the small red laser dot is emitted. If you can sight in your gun at 50 to 100 yards, you can adjust your scope's windage and elevation so that your crosshairs aim at the

red dot. If you are sighting in at a shorter distance, simply adjust the point of impact so that the crosshairs compensate for the height of the center of the scope over the barrel. For example, in many typical rifle mounts, the center of the scope is about 1.5 inches above the bore. In this case, you would want the crosshairs to point 1.5 inches above the laser dot. The chart (pg. 3) is a handy tool for this.

AFTER THE FIREARM IS BORESIGHTED, BE SURE TO REMOVE THE BORESIGHTER FROM THE GUN.

Final sighting in must be done at the range. After final sighting in is done, you can use your boresighter to record the actual location of your zero relative to the crosshairs. This is a handy reference if you wish to verify your zero later.

Batteries

Your Bushnell laser boresighter uses three 1.5 volt alkaline or silver oxide batteries, type LR44/SR44, AG13 or A76/S76. To replace them, first fully unscrew the battery cap. Install the batteries in the white plastic sleeve with all of their negative (-) sides up, facing the spring in the cap (positive "flat" side down, towards the arbor end of the boresighter-see photo, right). Replace the cap (be careful not to crossthead).

Sighting-In Chart

Please use the chart (inside front cover) to sight in your firearm at shorter distances.

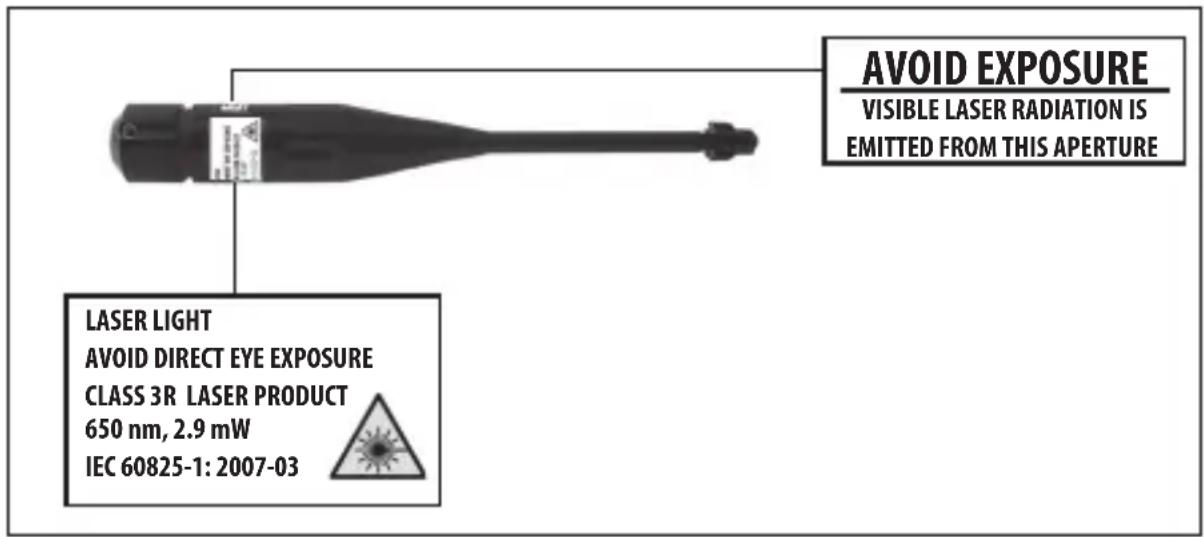

Caution!

This accessory is intended only to boresight your firearm. Any other use could be dangerous. For safe usage, please refer to the instruction manual.

Class 3R laser product: avoid direct eye exposure. IEC 60825-1: 2007-03.

Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Laser light is 650 nm, 2.9 mW, 0° beam divergence

TWO-YEar LIMITED Warranty

Your Bushnell product is warranted to be free of defects in materials and workmanship for two years after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.

Any return made under this warranty must be accompanied by the items listed below:

1. A check/money order in the amount of \$10.00 to cover the cost of postage and handling
2. Name and address for product return
3. An explanation of the defect
4. Proof of Date Purchased
5. Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the address listed below:

IN U.S.a. Send To: IN CaNaDa Send To:

Bushnell Outdoor Products Bushnell Outdoor Products

Attn.: Repairs Attn.: Repairs

9200 Cody 25A East Pearce Street, Unit 1

Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you may also contact Bushnell at: Bushnell Germany GmbH

European Service Centre

Mathias -Brüggen-Str. 80

D-50827 Köln

GERMANY

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2011 Bushnell Outdoor Products

FCC COMPLIaNCE

The Bushnell Laser Boresighter complies with Part 15b of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

FC CE
