USER MANUAL MultiSync LCD1980FXi NEC

MultiSync LCD1980FXi

User's Manual

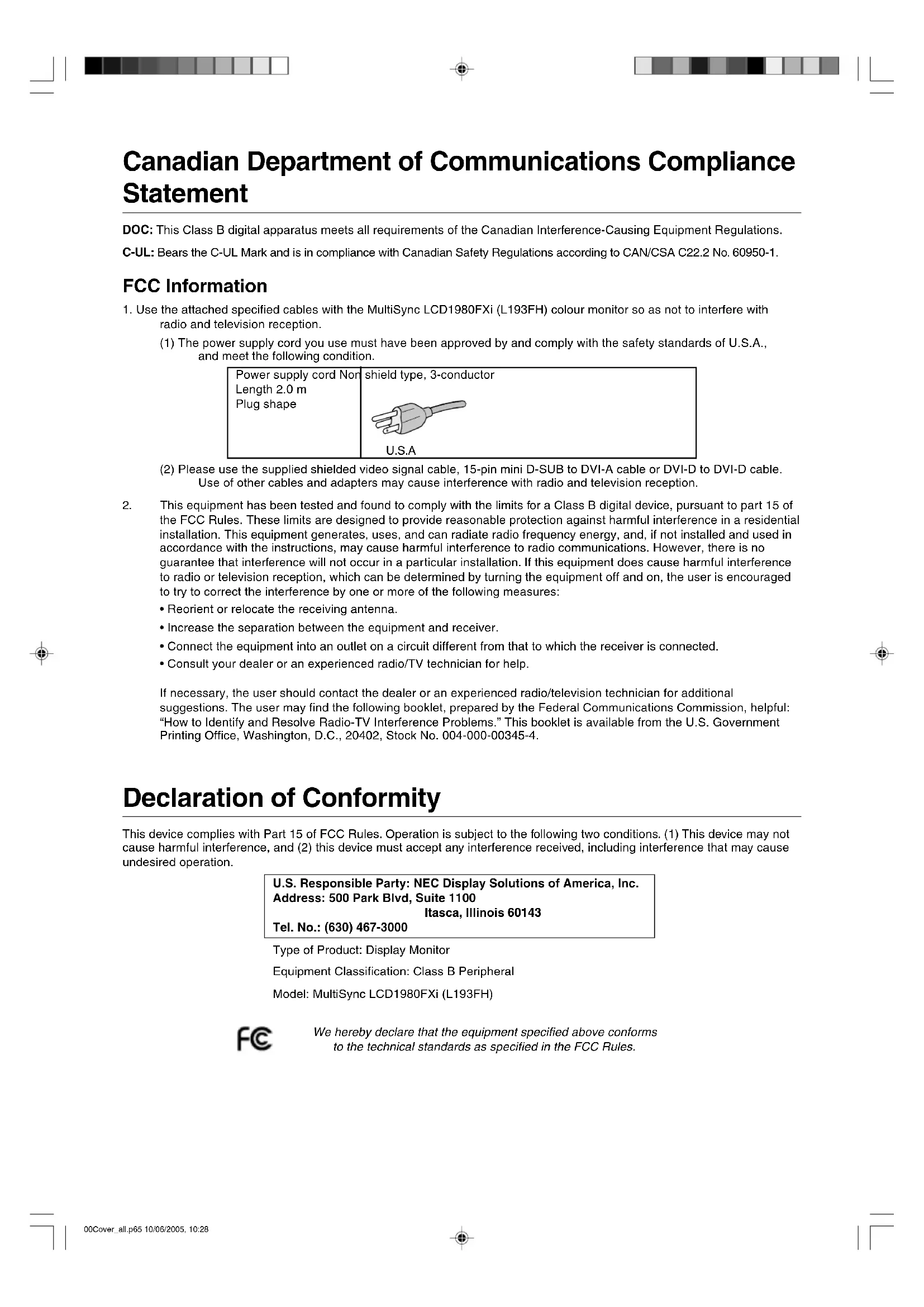

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

1. Use the attached specified cables with the MultiSync LCD1980FXi (L193FH) colour monitor so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following condition.

Power supply cord Non Length 2.0 m Plug shape

shield type, 3-conductor U.S.A

(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to DVI-A cable or DVI-D to DVI-D cable. Use of other cables and adapters may cause interference with radio and television reception.

1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.

Address: 500 Park Blvd, Suite 1100

Itasca, Illinois 60143

Tel. No.: [phone]

Type of Product: Display Monitor

Equipment Classification: Class B Peripheral

Model: MultiSync LCD1980FXi (L193FH)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

TCO'99 (Black model)

Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO'99 requirement states that batteries, the colourgenerating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system and is toxic in high doses.

TCO'99 requirement states that batteries may not contain any Mercury. It also demands that no mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO'99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing and assembly of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: [phone]

E-mail (Internet): [e-mail]

You may also obtain current information on TCO'99 approved and labelled products by visiting their website at:

http://www.tcodevelopment.com

TCO'03 (White model)

TcODevelopment

TCO Development TCO'03 DISPLAYS www.tcodevelopment.com

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

- The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001.

- Restrictions on: - chlorinated and brominated flame retardants and polymers - heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Manufacturer's Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company's top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

For more information, and for help in recycling your old NEC monitors, please visit our website at

http://www.nec-display-solutions.com (in Europe) or

http://www.nec-display.com (in Japan) or

http://www.necdisplay.com (in USA).

Country-specific recycling programmes can also be found at:

Sweden - http://www.el-retur.se

Germany - http://www.recyclingpartner.de/

This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

Mode Power consumption LED colour
Normal Operation Approx. 48W Green
Energy Saving Mode Less than 2W Amber
Off Mode	Less than 0.1W	Unlit

Disposing of your old NEC product

Pure electrical circuit lines without any symbols

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC.

The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

Index

Warning, Caution ...... English-1

Declaration ...... English-1

Contents ...... English-2

Quick Start ...... English-3

Controls ...... English-6

Recommended use ...... English-10

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the MultiSync LCD1980FXi with a 220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

When operating the MultiSync LCD1980FXi with a 220-240V AC power source in Australia, use the power cord provided with the monitor. If a power cord is not supplied with this equipment please contact your supplier.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor

MultiSync LCD1980FXi (L193FH) is in

compliance with

Council Directive 73/23/EEC:

EN 60950-1

Council Directive 89/336/EEC:

- EN 55022

- EN 61000-3-2

- EN 61000-3-3

- EN 55024

and marked with

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

ISO 13406-2

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ENERGY STAR is a U.S. registered trademark.

OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy, Norway, Spain, Sweden, U.K.

NaViSet is a trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

MultiSync is a registered trademark of NEC Display Solutions, Ltd. in the countries of U.K., Italy, Austria, Netherlands, Switzerland, Sweden, Spain, Denmark, Germany, Norway and Finland.

All other brands and product names are trademarks or registered trademarks of their respective owners.

As an ENERGY STAR® Partner, NEC Display Solutions of America, Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service.

Contents

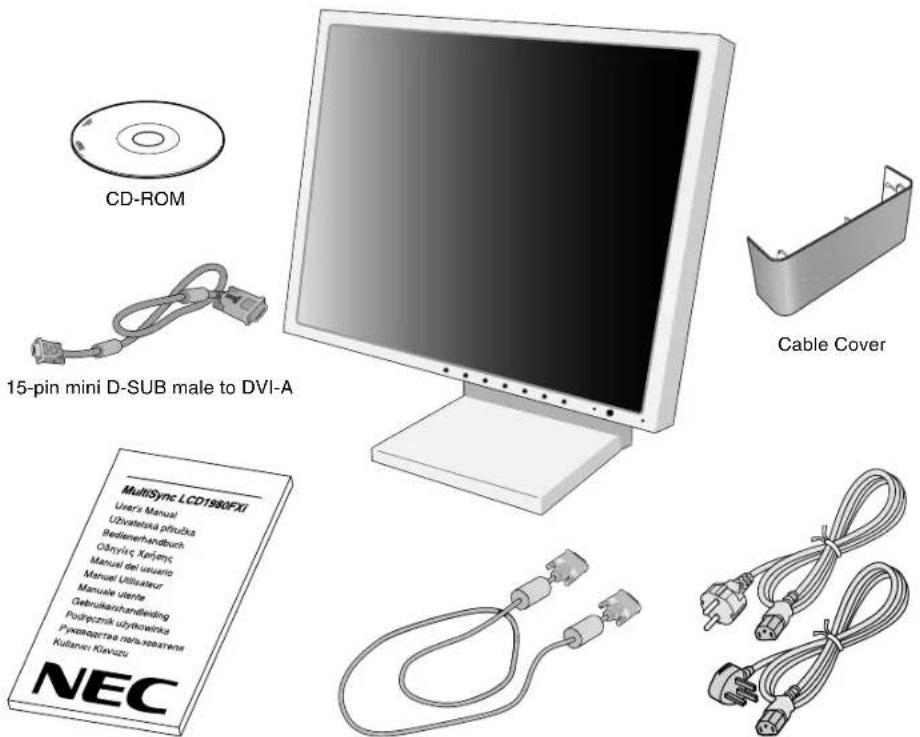

Your new NEC MultiSync LCD monitor box* should contain the following:

• MultiSync LCD1980FXi monitor with tilt/swivel/pivot/height adjust stand
  • Power Cords (European Continental and UK)
  • Video Signal Cable (15-pin mini D-SUB male to DVI-A)
  • Video Signal Cable (DVI-D to DVI-D cable)
• User's Manual
• Cable Cover
• CD ROM (includes complete User's Manual in PDF format). To see the User's Manual, Acrobat Reader 4.0 must be installed on your PC.

CD-ROM 15-pin mini D-SUB male to DVI-A MultiSync LCD1880FXI User's Manual Užvatelská předka Bedienerhandbuch Člănyić Řerjynč Manual del usuario Manuel Utilisator Manuale udite Gebruikatorhandeling Podpisznik uzytkovirka Pyxobortro naizvastavom Kullaner Kuivizu NEC

User's Manual DVI-D to DVI-D cable Power Cords

NOTE: This monitor can be equipped with optional loudspeakers: "MultiSync Sound bar". Please ask your dealer or check our website http://www.nec-display-solutions.com

Front view of a modern computer monitor with a black screen and silver bezel (no visible text or symbols)

* Remember to save your original box and packing material to transport or ship the monitor.

English-2

Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

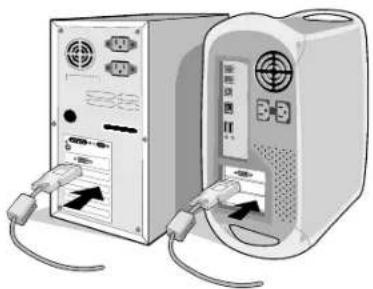

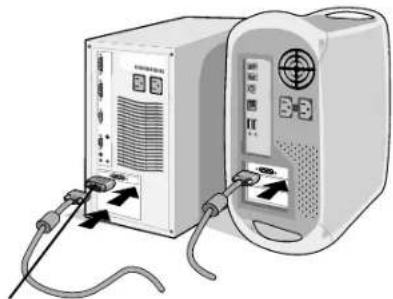

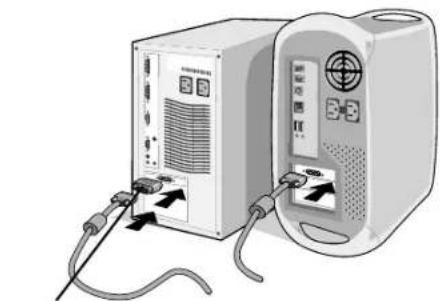

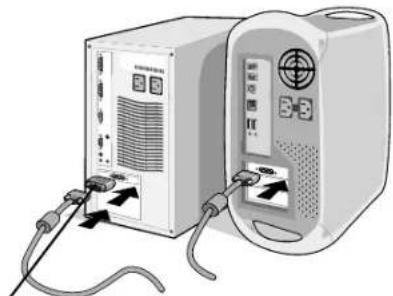

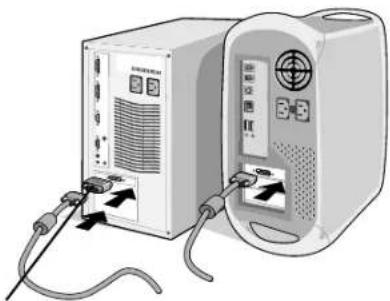

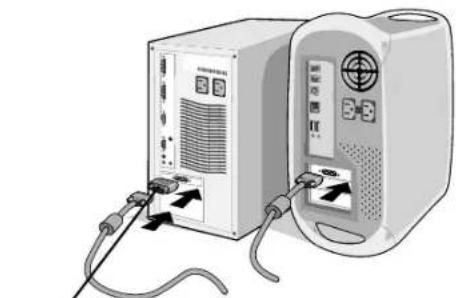

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

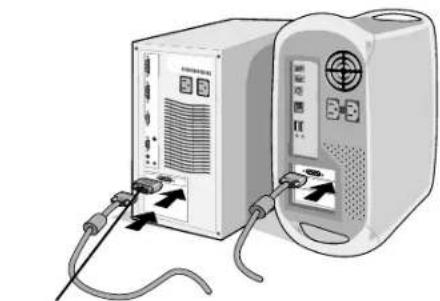

For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to the connector of the display card in your system (Figure A.2).

For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

Two computer units connected by cable, one with ports and arrows indicating data transfer (no visible text or symbols)

Figure A.1 Figure B.1

Front view of a computer tower with attached cable and ports (no visible text or labels)

Figure A.2

Illustration of two connected devices with cables and connectors, no visible text or symbols

Macintosh Cable Adapter (not included)

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

1. Connect the DVI signal cable to the connector on the back of the monitor. Place the video signal cable (Figure C.1). Connect only either VGA or DVI to input 2.

NOTE: Incorrect cable connections may result in irregular operation, damage display quality/components of LCD module and/or shorten the module's life.

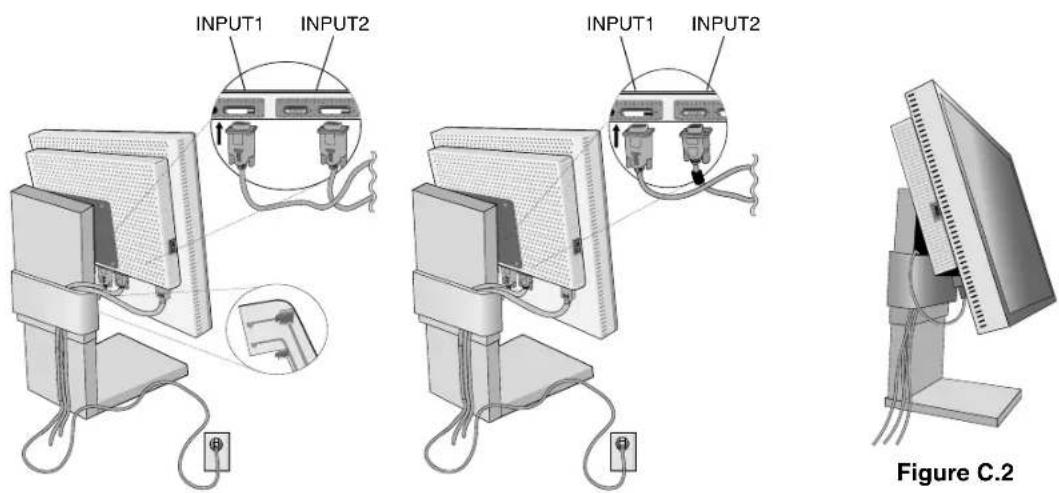

Collect cables and keep them in the stand with attached cable cover. The cable cover can be attached on the front or back side of Tilt Stand (Figure C.1, C.2).

Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables.

1. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet (Figure C.1).

NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.

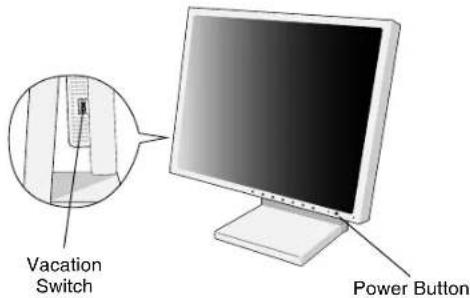

1. The Vacation Switch on the left side of the monitor must be turned on. Turn on the monitor with the front power button (Figure D.1).

NOTE: The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

NOTE: For the MAC with digital output: Before turning on the MAC, the DVI Input mode must be set to DIGITAL in "DVI SELECTION" of OSM by pressing "SELECT" button then "CONTROL" button when the DVI signal cable is connected to the DVI-I connector (Input1) of the monitor. Otherwise the MAC may not turn on.

1. Turn on the computer. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM controls:

• Auto Contrast (Analog input only)
• Auto Adjust (Analog input only)

Refer to the Controls section of this User's Manual for a full description of these OSM controls.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.

Figure C.1

Illustration of a computer monitor with ventilation slots and an external cable (no text or symbols)

NEC optional product attachment. Do not use this connector unless specified.

Vacation Switch Power Button

Figure D.1

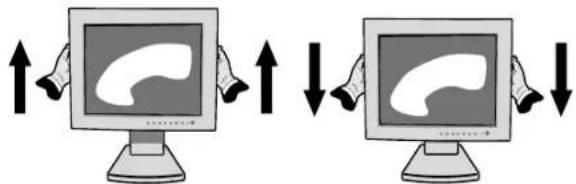

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode.

To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE: Handle with care when raising or lowering the monitor screen.

Diagram showing two computer monitors with upward and downward arrows indicating directional movement or navigation

Figure RL.1

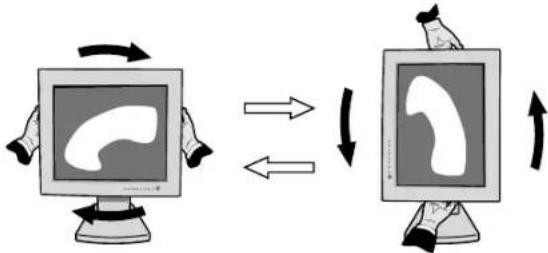

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching with your fingers.

To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counterclockwise from Portrait to Landscape (Figure R.1).

To rotate OSM menu between landscape and portrait, refer to "Controls" section, "OSM ROTATION" function.

NOTE: If the screen is rotated counterclockwise, the tilt function is not available. Rotate the screen 90° clockwise until you hear one click.

Figure R.1
English-4

Tilt

Grasp top and bottom sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

Illustration of two hands holding a computer monitor with a white telephone icon, no text or symbols present

Figure TS.1

Swivel

Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Figure TS.2).

Illustration of two hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figure TS.2

NOTE: Handle with care when tilting the monitor screen.

NOTE: If the tilt function is not available, rotate the screen 90° clockwise until you hear one click.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface. (Place the screen on a 36 mm platform so that the stand is parallel with the surface) (Figure S.1).

36 mm Figure S.1

Figure S.1

1. Remove the two top screws connecting the monitor to the stand (Figure S.2). Turn the stand to 180° counterclockwise (you will hear two clicks). Remove the screws from the bottom (Figure S.3) and lift off the stand. The monitor is now ready for mounting in an alternate manner.
2. Reverse this process to reattach stand: tighten the two bottom screws, turn stand 180° counter clockwise (you will hear two clicks), and tighten two top screws.

NOTE: Use only VESA-compatible alternative mounting method (100 mm pitch).

NOTE: Handle with care when removing monitor stand.

Diagram showing a tool interacting with a mechanical component, labeled with parts ① and ②.

Figure S.2

Diagram showing a mechanical or optical setup with labeled components and directional arrow indicating rotation or movement.

Figure S.3

NOTE: When the LCD is in Landscape mode, be sure the two round indents are at the bottom of the screen (Figure S.4).

Caution: Use the original screws (4 pcs) when mounting to avoid damage to the monitor and stand. To fulfil the safety requirements the monitor must be mounted to an arm which guarantees the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).

Diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Figure S.4
English-5

Controls

OSM (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (EXIT, ◀, ▶, −, +). To change signal input, press the SELECT button.

NOTE: OSM must be closed in order to change signal input.

Menu

EXIT

Exits the OSM controls.

Exits to the OSM main menu.

CONTROL

Moves the highlighted area left/right to select control menus.

Moves the highlighted area up/down to select one of the controls.

ADJUST - / +

Moves the bar left/right or changes the adjustment value to increase or decrease the adjustment.

SELECT

Activates the selected function. Enter the OSM controls. Enter the OSM sub menu.

Select input while OSM disappeared.

RESET

Resets the highlighted control menu to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

BLACK LEVEL (Analog input only)

Adjust the black level.

AUTO CONTRAST (Analog input only)

Adjusts the image displayed for non-standard video inputs.

AUTO BRIGHTNESS

1: Adjusts the brightness automatically, by detecting the brightness level of your environment and adjusting the monitor with the best BRIGHTNESS setting ^* ^1 .
2: Adjusts the brightness automatically for the best BRIGHTNESS setting based on the white display area. The environmental brightness sensor has no function.

OFF: No function.

NOTE: Do not cover environmental brightness sensor.

* 1: Please refer to Page 20 for full "Auto Dimming" information.

AUTO Auto Adjust (Analog input only)

Automatically adjusts the Image Position and H. Size (or V. Size) settings and Fine settings.

Image Controls

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H. SIZE (OSM ROTATION: Landscape) or V. SIZE (OSM ROTATION: Portrait) (Analog input only)

Adjusts the horizontal (or vertical) size by increasing or decreasing this setting.

If the "Auto Adjust function" does not give you a satisfactory picture setting, a further tuning can be performed manually using the "H. Size (or V. Size)" function (dot clock). For this a Moiré test pattern could be used.

This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen. If the H. Size (or V. Size) is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

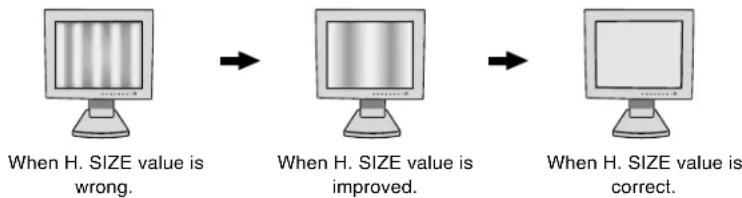


FINE (Analog input only)

Improves focus, clarity and image stability by increasing or decreasing this setting.

If the "Auto Adjust function" and the "H.Size" function do not give you a satisfactory picture setting, a fine tuning can be performed using the "Fine" function. It improves focus, clarity and image stability by increasing or decreasing this setting.

For this a Moiré test pattern could be used. If the Fine value is wrongly calibrated, the result would look like on the left drawing. The image should be homogeneous.

When FINE value is wrong. When FINE value is correct.

Colour Control Systems

Colour Control Systems: Seven colour presets select the desired colour setting (sRGB, NATIVE and PROGRAMMABLE colour presets are standard and cannot be changed). Colour temperature increases or decreases, in each preset.

R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the colour bars.

NATIVE: Original colour presented by the LCD panel that is unadjustable.

PROGRAMMABLE: The colour tone that was set up with the downloaded application software is reflected.

NOTE: To reset a poor image setting, turn on the monitor by using front power button while holding "EXIT" and "SELECT" buttons at the same time.

Tools 1

a→a

SHARPNESS: This function is digitally capable to keep crisp image at any timings. It is continuously adjustable to get distinct image or soft one as you prefer, and set independently by different timings.

EXPANSION MODE: Sets the zoom method.

FULL: The image is expanded to 1280 x 1024, regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

CUSTOM1: Zoom with center fixed. The image is expanded from the rate of 1.00 to 3.00 times individually for horizontal (H. EXPANSION) and vertical (V. EXPANSION) direction by 0.01 step.

CUSTOM2: Zoom with top left corner fixed. The image is expanded from the rate of 1.00 to 3.00 times individually for horizontal (H. EXPANSION) and vertical (V. EXPANSION) direction by 0.01 step.

VIDEO DETECT: Selects the method of video detection when more than one computer is connected.

FIRST DETECT: The video input has to be switched to "FIRST DETECT" mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

LAST DETECT: The video input has to be switched to the "LAST DETECT" mode. When the monitor is displaying a signal from the current source and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically.

NONE: The Monitor will not search the other video input port unless the monitor is turned on.

DVI SELECTION: This function selects the DVI input mode (Input 1). When the DVI selection has been changed, the computer has to be restarted.

AUTO: By using the DVI-D to DVI-D cable, the DVI SELECTION is DIGITAL.

By using the D-SUB to DVI-A cable, the DVI SELECTION is ANALOG.

DIGITAL: DVI digital input is available.

ANALOG: DVI analog input is available.

Note: For the MAC with digital output: Before turning on the MAC, the DVI Input mode must be set to DIGITAL in "DVI SELECTION" of OSM by pressing "SELECT" button then "CONTROL" button when the DVI signal cable is connected to the DVI-I connector (Input1) of the monitor. Otherwise the MAC may not turn on.

Note: Depending on the PC and Video card used, or when another Video signal cable is attached, this function may not operate.

OFF TIMER: Monitor will automatically power-down when the end user has selected a pre-determined amount of time.

IPM: Monitor will go into power-save mode automatically a few minutes after the surrounding illumination is less than the one pre-determined at the User Setting.

You can adjust this illumination setting in the Advanced menu Tag 7.

During the power-save mode, the LED is amber blinking.

During the power-save mode, push any of the front buttons, except power button or SELECT button, and the monitor will return to normal mode.

When the surrounding illumination is over than the one pre-determined at the User Setting, the monitor will return to normal mode automatically.

Tools 2

LANGUAGE: OSM control menus are available in seven languages.

OSM LEFT/RIGHT: You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left or right.

OSM DOWN/UP: You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu down or up.

OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10-120 seconds by 5 seconds step.

OSM LOCK OUT: This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out.

There are three types of OSM LOCK OUT:

OSM LOCK OUT with BRIGHTNESS and CONTRAST control: To activate the OSM Lock Out function, press SELECT, then "+" key and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then "+" key and hold down simultaneously while in the OSM menu. BRIGHTNESS and CONTRAST can be adjusted while in the lock out mode.

OSM LOCK OUT with no control: To activate the OSM Lock Out function, press SELECT, then “>” key and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then “>” key and hold down simultaneously while in the OSM menu. No controls can be adjusted while in the lock out mode.

OSM LOCK OUT with BRIGHTNESS (only) control: To activate the OSM Lock Out function, press SELECT, then “−” and “<” keys and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then “+” key and hold down simultaneously while in the OSM menu. BRIGHTNESS can be adjusted while in the lock out mode.

English-8

OSM ROTATION: To rotate OSM between Landscape and Portrait modes.

RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024.

HOT KEY: You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with or , contrast with + or - key, while the OSM menu is off. The standard OSM can be accessed with the EXIT button.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings (BRIGHTNESS, CONTRAST, BLACK LEVEL, AUTO BRIGHTNESS, IMAGE CONTROL, COLOUR CONTROL SYSTEM, SHARPNESS, EXPANSION MODE, OFF TIMER, OSM POSITION, OSM TURN OFF, DISPLAY MODE) back to the factory settings. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

i Information

MODE

DISPLAY MODE: Provides information about the current resolution display and technical data including the preset timing being used and the horizontal and vertical frequencies. Increases or decreases the current resolution.

MONITOR INFO.: Indicates the model and serial numbers of your monitor.

OSM Warning

OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no Horizontal or Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn't have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: When input signal is non-supported timing or the video signal doesn't have proper timing, the Out of Range menu will appear.

NOTE: If "i CHANGE DVI SELECTION" is displayed, switch to DVI SELECTION.

For advanced user menu see "Appendix".

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC LCD COLOUR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.
• Do not bend power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• Do not cover vent on monitor.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• If glass is broken, handle with care.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

CAUTION

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.

- Image Persistence: Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a residual or "ghost" image of a previous image remains visible on the screen.

Unlike CRT monitors, LCD monitors' image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

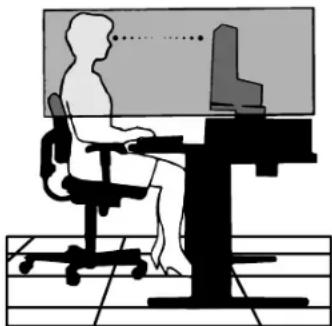

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm.
• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

- Adjust the monitor's brightness and contrast controls to enhance readability.

- Use a document holder placed close to the screen.

- Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

- Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).

- Get regular eye checkups.

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears.
• Do not position the Contrast control to its maximum setting.
• Use the preset Size and Position controls with standard signals.

- Use the preset Colour Setting.

- Use non-interlaced signals with a vertical refresh rate between 60-75 Hz.

- Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with crosshairs, both on a plain background (no text or labels)

English-12

VAROVÁNÍ

CHRAŃTE ZAŘÍZENÍ PŘED DEŠTĚM A VLHKEM. ZABRÁNÍTE TAK NEBEZPEČÍ POŽÁRU NEBO ÚRAZU ELEKTRICKÝM PROUDEM. POLARIZOVANOU ZÁSTRČKU JEDNOTKY NEPOUŽÍVEJTE VE SPOJENÍ SE ZÁSUVKOU PRODLUŽOVACÍ ŠŇŮRY NEBO JINÝMI ZÁSUVKAMI, POKUD KOLÍKY NELZE ZCELA ZASUNOUT.

UVNITŘ ZAŘÍZENÍ SE NACHÁZÍ VYSOKONAPĚTOVÉ KOMPONENTY, PROTO SKŘÍŇ NEOTEVÍREJTE. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

UPOZORNĚNÍ

UPOZORNĚNÍ: PRO SNÍŽENÍ RIZIKA ÚRAZU ELEKTRICKÝM PROUDEM ZKONTROLUJTE, ZDA JE NAPÁJECÍ ŠNŮRA ODPOJENA ZE ZÁSUVKY. PRO ÚPLNÉ ODPOJENÍ ZDROJE NAPÁJENÍ OD JEDNOTKY ODPOJTE NAPÁJECÍ ŠNŮRU Z ELEKTRICKÉ ZÁSUVKY (NEOSTRAŇUJTE KRYT). UVNITŘ SE NENACHÁZEJÍ DÍLY, DO KTERÝCH UŽIVATEL MŮŽE ZASAHOVAT. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

TÜV Rheinland Product Safety

ISO 13406-2

Front view of a modern flat-screen computer monitor (no visible text or symbols)

Rychlý start

Two computer units connected by cable, one with ports and arrows indicating data transfer (no visible text or symbols)

Front view of a computer tower with attached cable and ports (no visible text or labels)

Obrázek A.2

Two electronic devices connected by cables, one with ports and arrows indicating signal or data flow (no visible text or symbols)

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Obrázek RL.1

Otočení obrazovky

Obrázek R.1
Česky-4

Sklon monitoru

Illustration of hands interacting with a computer monitor displaying a brain icon, no text or symbols present

Obrázek TS.1

Otáčení

Illustration of hands holding a laptop with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Obrázek TS.2

Diagram showing a tool interacting with a mechanical component, labeled with parts ① and ②.

Obrázek S.2

Diagram showing a mechanical or optical setup with labeled components and directional arrow indicating rotation or movement.

Obrázek S.3

Technical line drawing of a cabinet with an inset close-up showing internal components (no text or symbols)

Obrázek S.4

Česky-5

Ovládací prvky

Silhouette of a person sitting at a desk with a computer, viewed from behind (no text or symbols)

Ergonomika

Two horizontal grayscale color swatches with a central crosshair and alignment lines, no text or symbols present.

Two isolated geometric symbols: a crosshair and a square with crosshairs, both on a white background (no text or labels)

Česky-12

WARNUNG

NEC Display Solutions, Ltd. 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, Japan

ISO 13406-2

Front view of a modern computer monitor with a black screen and stand (no visible text or symbols)

Two computer units connected by cable, one with ports and arrows indicating data transfer (no visible text or symbols)

Front view of a computer tower with ports and cables (no visible text or labels)

Abbildung A.2

Two electronic devices connected by cables, one with ports and connectors, the other with a display (no visible text or symbols)

Diagram showing two computer monitors with hand gestures and a speech bubble, indicating signal or notification.

Abbildung RL.1

Bildschirmdrehung

Illustration of hands interacting with a computer monitor displaying a brain icon, no text or symbols present

Abbildung TS.1

Drehen

Illustration of two hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Abbildung TS.2

Diagram showing a mechanical setup with labeled components, including a tool and a workpiece on a workbench.

Abbildung S.2

Diagram showing a mechanical or optical setup with labeled components and directional arrow indicating rotation or movement.

Abbildung S.3

Diagram of a cable installation or mounting bracket with an inset close-up showing internal components (no text or symbols)

Abbildung S.4

Deutsch-5

Bedienelemente

Diagram showing computer monitor transformation from left to right, indicating a change in screen layout or status.

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with crosshairs, both without any text or labels.

Deutsch-12

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Front view of a modern computer monitor with a black screen and stand (no visible text or symbols)

Two electronic devices connected by cable, one with ports and arrows indicating connection (no visible text or symbols)

Σχήμα Α.1 Σχήμα Β.1

Illustration of a computer tower with ports and cables (no text or symbols visible)

Σχήμα Α.2

Illustration of a computer setup with two connected devices, one showing ports and cables (no visible text or symbols)

Illustration of a computer monitor with ports and cable, no text or symbols present

Diagram showing two computer monitors with hand gestures and signal icons, indicating signal transmission or call reception.

Σχήμα ΡΛ.1

Illustration of two hands holding a computer monitor with a curved screen, no text or symbols present

Σχήμα ΤΣ.1

Περιστροφή

Illustration of two hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Σχήμα ΤΣ.2

Diagram showing a mechanical setup with labeled components, including a tool and a base plate.

Σχήμα Σ.2

Diagram showing a mechanical or architectural component with labeled parts and directional arrow indicating rotation or movement.

Σχήμα Σ.3

Diagram of a wall-mounted electrical panel with wires, shown in two views: one close-up and one magnified (no text or symbols)

Σχήμα Σ.4

Πλήκτρα Ελέγχου

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Εργονομία

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with crosshairs, both without any text or labels.

Ελληνικά-12

ADVERTENCIA

PARA PREVENIR EL PELIGRO DE INCENDIO O DESCARGAS ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO A LA LLUVIA O LA HUMEDAD. TAMPOCO UTILICE EL ENCHUFE POLARIZADO DE ESTE PRODUCTO CON UN RECEPTÁCULO DEL CABLE DE EXTENSIÓN U OTRAS TOMAS A MENOS QUE LAS PROLONGACIONES SE PUEDAN INSERTAR COMPLETAMENTE.

NO ABRA LA CAJA DEL MONITOR, YA QUE CONTIENE COMPONENTES DE ALTO VOLTAJE. DEJE QUE SEA EL PERSONAL DE SERVICIO CUALIFICADO QUIEN SE ENCARGUE DE LAS TAREAS DE SERVICIO.

PELIGRO:

PELIGRO

Directiva 89/336/CEE:

• EN 55022
• EN 61000-3-2
• EN 61000-3-3
• EN 55024

y lleva la marca

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Front view of a modern computer monitor with a black screen and stand (no visible text or symbols)

Two electronic devices with cables and ports, no visible text or symbols

Figura A.1 Figura B.1

Front view of a computer tower with attached cable and ports (no visible text or symbols)

Figura A.2

Illustration of a computer setup with two connected devices, one front-mounted and one back-mounted, showing ports and cables (no text or symbols visible)

Illustration of a desktop computer tower with ventilation slots and an attached cable (no text or symbols)

Diagram showing two computer monitors with directional arrows indicating movement or change, one with up/down arrows and the other with down arrows.

Figura RL.1

Diagram illustrating computer interface rotation and sound wave propagation, showing left and right views with directional arrows.

Figura R.1
Español-4

Inclinación

Illustration of two hands holding a computer monitor with a curved screen and directional arrows (no text or symbols)

Figura TS.1

Giro

Illustration of hands holding a computer monitor with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figura TS.2

Diagram illustrating a precision testing setup with labeled components and tool

Figura S.2

Diagram showing a mechanical or architectural component with labeled parts and directional arrow indicating rotation or movement.

Figura S.3

Diagram showing a person inserting a device into a wall, with an inset close-up of the device (no text or symbols present)

Figura S.4
Español-5

Controles

Two computer monitors, one showing a blank screen and the other showing an open screen, with no text or symbols present.

Silhouette of a person sitting at a desk with a computer, viewed from behind (no text or symbols)

Ergonomía

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with a dot, on a plain background (no text or labels)

Español-12

AVERTISSEMENT

POUR ÉVITER LES RISQUES D'INCENDIE OU D'ÉLECTROCUTION, N'EXPOSEZ PAS L'APPAREIL À LA PLUIE OU À L'HUMIDITÉ. DE MÊME, N'UTILISEZ PAS LA PRISE POLARISÉE DE CET APPAREIL AVEC UNE RALLONGE OU D'AUTRES PRISES SI ELLES NE PEUVENT ÊTRE TOTALEMENT ENFONCÉES.

N'OUVREZ PAS LE BOÎTIER CAR IL CONTIENT DES COMPOSANTS À HAUTE TENSION. CONFIEZ TOUS LES TRAVAUX DE DÉPANNAGE À DU PERSONNEL TECHNIQUE QUALIFIÉ.

ATTENTION:

ATTENTION

POUR RÉDUIRE LES RISQUES D'ÉLECTROCUTION, VÉRIFIEZ QUE LE CORDON D'ALIMENTATION EST BIEN DÉBRANCHÉ DE LA PRISE MURALE. POUR SUPPRIMER TOUTE ALIMENTATION DE L'APPAREIL, DÉCONNECTEZ LE CORDON D'ALIMENTATION DE LA PRISE SECTEUR. NE PAS ENLEVER LE COUVERCLE (OU L'ARRIÈRE). VOUS NE POUVEZ RÉPARER AUCUNE PIÈCE INTERNE. CONFIEZ TOUS LES TRAVAUX DE DÉPANNAGE À DU PERSONNEL TECHNIQUE QUALIFIÉ.

NEC Display Solutions, Ltd. 4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japon

ISO 13406-2

Front view of a modern computer monitor with a black screen and silver frame (no visible text or symbols)

Two electronic devices with cables and ports, no visible text or symbols

Figure A.1 Figure B.1

Front view of a computer tower with attached cable and ports (no visible text or labels)

Figure A.2

Illustration of a computer setup with two connected devices, one front-mounted and one back-mounted, showing ports and cables (no text or symbols visible)

Illustration of a computer monitor with ports and an external cable (no text or symbols)

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Figure RL.1

Rotation de l'écran

Figure R.1 Français-4

Inclinaison

Illustration of hands interacting with a computer monitor displaying a stylized face (no text or symbols)

Figure TS.1

Pivotement

Illustration of two hands holding a tablet with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Figure TS.2

Diagram illustrating a precision testing setup with labeled components ① and ②, showing tool application and measurement setup.

Figure S.2

Diagram showing a mechanical or optical setup with labeled components and directional arrow indicating rotation or movement.

Figure S.3

Diagram of a wall-mounted device with wires and a magnified inset showing internal components (no text or symbols)

Figure S.4
Français-5

Commandes

Silhouette of a person sitting at a desk with a computer, viewed from behind (no text or symbols)

Ergonomie

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with a dot, on a plain background (no text or labels)

Français-12

AVVERTENZA

PER EVITARE PERICOLO DI INCENDI O DI SCOSSE ELETTRICHE, NON ESPORRE L'UNITA' A PIOGGIA O UMIDITA'. INOLTRE, NON USARE LA SPINA POLARIZZATA DELL'UNITA' CON UNA PRESA DI CAVO DI PROLUNGA O ALTRE PRESE, A MENO CHE I POLI DELLA SPINA SI INSERISCANO COMPLETAMENTE.

NON APRIRE LA CARROZZERIA POICHÉ ALL'INTERNO VI SONO COMPONENTI SOTTO ALTA TENSIONE. PER LA MANUTENZIONE RIVOLGERSI A PERSONALE DI MANUTENZIONE QUALIFICATO.

ATTENZIONE

ATTENZIONE:

PER RIDURRE IL RISCHIO DI SCOSSE ELETTRICHE, ASSICURARSI CHE IL CAVO DI ALIMENTAZIONE SIA SCOLLEGATO DALLA PRESA DI ALIMENTAZIONE A MURO. PER TOGLIERE COMPLETAMENTE ALIMENTAZIONE ALL'UNITÀ, SCOLLEGARE IL CAVO DI ALIMENTAZIONE DALLA PRESA C.A. NON TOGLIERE IL COPERCHIO (O LA PARTE POSTERIORE). ALL'INTERNO NON VI SONO PARTI MANUTENIBILI DALL'UTENTE. PER LA MANUTENZIONE RIVOLGERSI A PERSONALE DI MANUTENZIONE QUALIFICATO.

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Front view of a modern flat-screen computer monitor (no visible text or symbols)

Two electronic devices with cables and ports, no visible text or symbols

Figura A.1 Figura B.1

Front view of a computer tower with attached cable and ports (no visible text or labels)

Figura A.2

Illustration of two connected devices with cables and ports, no visible text or symbols

Illustration of a computer monitor with ports and cable, no text or symbols present

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Figura RL.1

Illustration of a hand holding a computer monitor with a curved screen and arrows indicating rotation (no text or symbols)

Figura TS.1

Rotazione

Illustration of a person holding a tablet with a speech bubble, surrounded by curved arrows indicating rotation (no text or symbols)

Figura TS.2

Diagram showing a tool interacting with a mechanical component, labeled with parts ① and ②.

Figura S.2

Diagram showing a mechanical or electrical component with labeled parts 3 and 4, including an arrow indicating rotation or movement.

Figura S.3

Technical line drawing of a mechanical assembly with a magnified inset showing detail (no text or symbols)

Figura S.4

Italiano-5

Comandi

Diagram showing computer monitor transformation from left to right, with Chinese labels indicating 'Computer monitor' and 'Computer monitor'.

Silhouette of a person sitting at a desk with a computer, viewed from behind (no text or symbols)

Ergonomia

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with crosshairs, both without any text or labels.

Italiano-12

WAARSCHUWING

STEL DEZE EENHEID NIET BLOOT AAN REGEN OF VOCHT, OM ZO DE KANS OP BRAND OF ELEKTRISCHE SCHOKKEN TE VERMIJDEN. GEBRUIK DE GEPOLARISEERDE STEKKER VAN DEZE EENHEID NIET MET EEN VERLENGSNOER OF CONTACTDOOS OF ANDERE STOPCONTACTEN TENZIJ U DE POLEN VOLLEDIG IN HET CONTACTPUNT KUNT PLAATSEN.

OPEN DE BEHUIZING NIET. DEZE BEVAT ONDERDELEN DIE ONDER HOGE SPANNING STAAN. HET ONDERHOUD MAG ALLEEN WORDEN UITGEVOERD DOOR BEVOEGDE EN HIERVOOR OPGELEIDE ONDERHOUDSTECHNICI.

LET OP!

LET OP!

CONTROLEER OF HET UITEINDE VAN DE VOEDINGSKABEL WEL DEGELIJK UIT HET STOPCONTACT IS GEHAALD, OM DE KANS OP ELEKTRISCHE SCHOKKEN TE BEPERKEN. HAAL HET UITEINDE VAN DE VOEDINGSKABEL UIT HET STOPCONTACT VAN DE WISSELSTROOMBRON OM DE STROOMVOORZIENING VOLLEDIG TE ONDERBREKEN. VERWIJDER DE KLEP NIET (NOCH DE ACHTERZIJDE). BEVAT GEEN INTERNE ONDERDELEN DIE DOOR DE GEBRUIKER KUNNEN WORDEN VERVANGEN OF ONDERHOUDEN. HET ONDERHOUD MAG ALLEEN WORDEN UITGEVOERD DOOR BEVOEGDE EN HIERVOOR OPGELEIDE ONDERHOUDSTECHNICI.

MultiSync LCD1980FXi (L193FH) in

overeenstemming is met

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Front view of a modern flat-screen computer monitor (no visible text or symbols)

Two electronic devices with attached cables and ports, no visible text or symbols

Front view of a computer tower with attached cable and ports (no visible text or labels)

Illustratie A.2

Two electronic devices connected by cables, one with ports and arrows indicating signal or connection (no visible text or symbols)

Illustration of a computer monitor with ports and cable (no text or symbols)

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Illustratie RL.1

Scherm roteren

Illustration of hands using a computer monitor to interact with a curved interface (no text or symbols)

Illustratie TS.1

Illustration of hands holding a computer monitor with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Illustratie TS.2

Diagram showing a mechanical setup with labeled components, including a tool and a base plate.

Illustratie S.2

Diagram showing a mechanical assembly with labeled components and directional arrow indicating rotation or movement.

Illustratie S.3

Diagram showing cable routing between a wall-mounted device and a close-up of a cable attachment (no text or symbols)

Two computer monitors, one showing a grid pattern and the other a blank screen, both with an arrow indicating transformation (no text or symbols present)

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Three horizontal grayscale color swatches with a central crosshair target (no text or symbols)

Two isolated geometric symbols: a crosshair and a target symbol, both without any text or labels.

Nederlands-12

Front view of a modern computer monitor with a black screen and stand (no visible text or symbols)

Two computer units connected by cable, one with ports and arrows indicating data transfer (no visible text or symbols)

Front view of a computer tower with attached cable and ports (no visible text or symbols)

Rysunek A.2

Illustration of a computer setup with two connected devices, one front-mounted and one back-mounted, showing ports and cables (no text or symbols visible)

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Rysunek RL.1

Obroty ekranu

Illustration of hands holding a computer monitor with a curved screen, no text or symbols present

Rysunek TS.1

Illustration of a person holding a tablet with a speech bubble, surrounded by curved arrows indicating rotation (no text or symbols)

Rysunek TS.2

Diagram showing a tool interacting with a mechanical component, labeled with parts ① and ②.

Rysunek S.2

Diagram showing a mechanical or structural assembly with labeled components and directional arrow indicating rotation or movement.

Rysunek S.3

Diagram of a computer monitor with cable routing and a magnified inset showing internal components (no text or symbols)

DOWN/UP (POZYCJA PIONOWA)

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Ergonomia

NEC Display Solutions, Ltd. 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, Japan

BZ 02

Front view of a modern computer monitor with a black screen and stand (no visible text or symbols)

Two electronic devices with cables and ports, no visible text or symbols

Front view of a computer tower with attached cable and ports (no visible text or labels)

Рисунок А.2

Illustration of a computer setup with two connected devices, one front-mounted and one back-mounted, showing ports and cables (no text or symbols visible)

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Рисунок RL.1

Поворот экрана

Illustration of hands using a computer monitor to interact with a curved arrow (no text or symbols)

Рисунок TS.1

Поворот

Illustration of hands holding a computer monitor with a speech bubble icon, surrounded by curved arrows indicating rotation (no text or symbols)

Рисунок TS.2

36 MM Tension Oil

Рисунок S.1

Diagram showing a mechanical setup with labeled components, including a tool and a base plate.

Рисунок S.2

Diagram of a mechanical assembly with labeled components (no text or symbols present)

Рисунок S.3

Diagram showing a wall-mounted device connected to a wall-mounted cable, with an inset close-up of the cable being inserted (no text or symbols present)

Рисунок S.4

Русский-5

Органы управления

ПРИМЕЧАНИЕ. OSM must be closed in order to change signal input.

Меню

Diagram showing computer monitor transformation from left to right, indicating change in image quality or resolution.

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Эргономика

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with a dot, on a plain background (no text or labels)

Русский-12

DİKKAT

YANGIN VE SOK TEHLIKELERINI ÖNLEMEK IÇIN CIHAZ YAGMUR YA DA NEME MARUZ KALMAMALIDIR. AYRICA BU CİHAZIN POLARİZE FİŞİNİ UÇLAR TAM OTURMADIĞI SÜRECE BİR UZATMA KABLOSU YA DA BAŞKA PRİZLERDE KULLANMAYIN.

İÇERİSİNDE YÜKSEK VOLTAJLI BİLEŞENLER BULUNDUĞU İÇİN KASAYI AÇMAKTAN KAÇININ SERVİS İÇİN YETKİLİ SERVİS PERSONELİNE BAŞVURUN.

UYARI

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japonya

ISO 13406-2

Illustration of a coiled cable or connector with two connectors (no text or symbols)

Illustration of two types of electrical connectors tied with coiled wires (no text or symbols)

Front view of a modern computer monitor with a black screen and stand (no visible text or symbols)

Two electronic devices with cables and ports, no visible text or symbols

Şekil A.1 Şekil B.1

Front view of a computer tower with attached cable and ports (no visible text or labels)

Şekil A.2

Illustration of two connected devices with cables and ports, no visible text or symbols

Illustration of a computer monitor with ports and cables (no text or symbols)

Diagram showing two computer monitors with hand gestures and directional arrows indicating movement or interaction.

Şekil RL.1

Ekranın Dönmesi

Şekil R.1
Türkçe-4

Eğim

Illustration of two hands holding a computer monitor with a curved screen and directional arrows (no text or symbols)

Şekil TS.1

Açıklık

Illustration of hands holding a computer monitor with a speech bubble, surrounded by curved arrows indicating rotation (no text or symbols)

Şekil TS.2

Diagram showing a tool interacting with a mechanical component, labeled with parts ① and ②.

Şekil S.2

Diagram showing a mechanical or optical setup with labeled components and directional arrow indicating rotation or movement.

Şekil S.3

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Şekil S.4
Türkçe-5

Kontroller

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with crosshairs, both without any text or labels.

Türkçe-12

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a circle with crosshairs, both without any text or labels.

xx_Back 10/06/2005, 10:301

NEC
