621535 - Pool GRE - Free user manual and instructions

Product type	Summer cover reel
Brand	GRE
Model	621535
Usage	Above-ground pool (rectangular, round or oval)
Compatible pool dimensions	From 2.44 m to 6.32 m
Tube material	Steel
Cover material	PVC
Winding type	Manual
Installation	On coping or full retraction for swimming
Adjustable tube length	Yes, can be cut with hacksaw (minimum 50 cm in tube D)
Warranty	2 years
Safety	Warnings against drowning and injury risks; follow instructions
Maintenance	Periodic cleaning; follow the maintenance schedule for parts
Spare parts	Available on request from retailer
Repairability	Repair or replacement under warranty by retailer; out of warranty, contact after-sales service
Instruction manual	Included manual (52 pages)
Available languages	French, English, German, Spanish, Italian, Dutch, Polish, Portuguese, Romanian, Slovak, Swedish, Czech, Danish, etc.
Warranty coverage countries	European Union
Included accessories	C and D tubes, J and K parts, summer cover, fastening system
Weight	Approximately 8 kg (estimate)

Frequently Asked Questions - 621535 GRE

How to install the reel on a rectangular pool?

Refer to step 2 of the manual. Position the reel parallel to the pool edge. Adjust the length of tubes C by cutting them if needed, ensuring a minimum of 50 cm inside tube D. Securely fasten the brackets.

Can I use this reel on a round or oval pool?

Yes, the reel is compatible with rectangular, round and oval above-ground pools. The installation varies slightly: for round pools, position the reel so that it rests on the opposite edge. See step 2 of the manual for diagrams.

How to remove the reel to enjoy swimming?

Step 4 describes two options: if your pool has a long enough coping, you can tilt the reel onto it. Otherwise, completely remove the reel from the pool by disassembling it.

What to do if the cover is too long or too short?

C tubes are adjustable: you can cut them to your pool width using a hacksaw. Make sure to keep at least 50 cm of tube D to ensure fastening.

What is the warranty period of the reel?

The warranty is 2 years from the delivery date. It covers conformity defects. To benefit from the warranty, keep the proof of purchase and follow the maintenance instructions.

How to maintain the reel and the cover?

Regularly clean the tubes and cover with clean water. Check the condition of parts J and K. Follow the maintenance schedule indicated in the manual for removable parts.

Can I order spare parts?

Yes, spare parts are available on request from the retailer or manufacturer. Use only original parts to preserve the warranty.

Is the reel safe for children?

The reel must be used under adult supervision. Never let children play with the mechanism. Follow all safety warnings in the manual to avoid drowning or injury risks.

What to do if a tube is damaged?

If the defect is covered by warranty (within 2 years), contact the retailer for a free replacement. Out of warranty, you can order a replacement tube. Do not attempt to repair yourself if it involves welding or modifying the structure.

Is the manual available in other languages?

Yes, the manual is available in several languages: French, English, German, Spanish, Italian, Dutch, Polish, Portuguese, Romanian, Slovak, Swedish, Czech, Danish, etc. You can request a translation by email.

USER MANUAL 621535 GRE

Circular logo with stylized white 'Gre' lettering on black background, no additional text or symbols

www.grepool.com

Instruction Manual - Manual de Instrucciones

Pure electrical circuit lines without any symbols

Ref. 621535

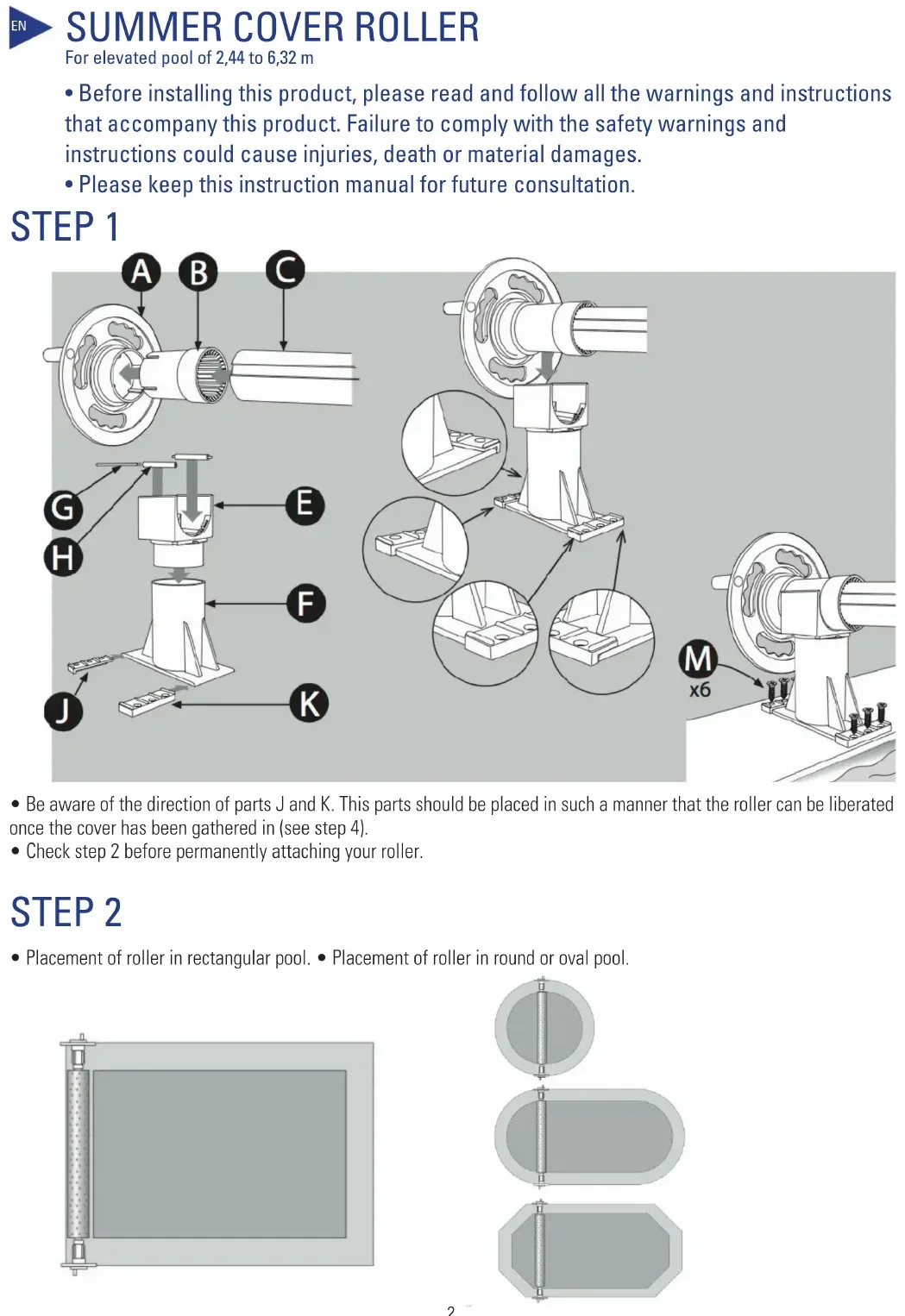

SUMMER COVER ROLLER

For elevated pool of 2,44 to 6,32 m

- Before installing this product, please read and follow all the warnings and instructions that accompany this product. Failure to comply with the safety warnings and instructions could cause injuries, death or material damages. - Please keep this instruction manual for future consultation.

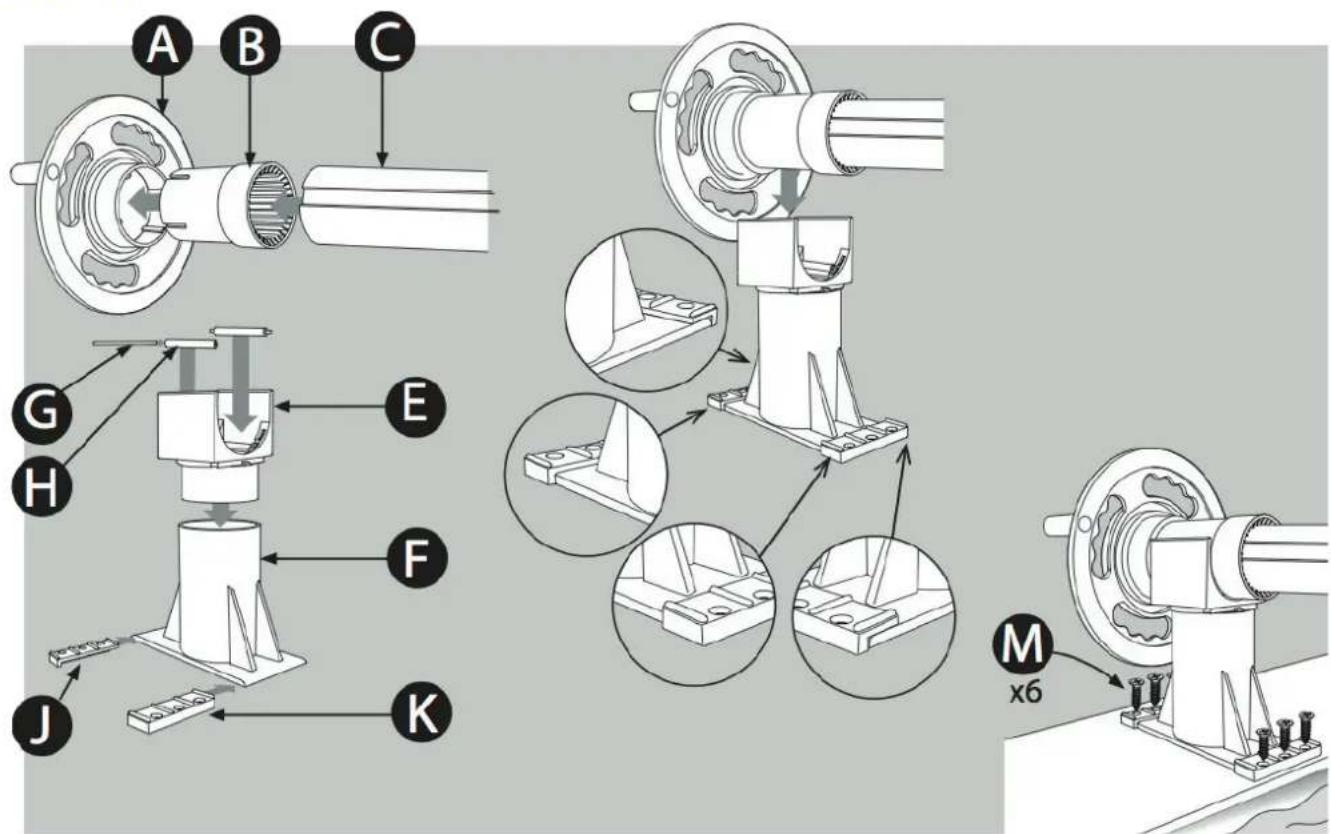

STEP 1

A B C G H E F J K M x6

• Be aware of the direction of parts J and K. This parts should be placed in such a manner that the roller can be liberated once the cover has been gathered in (see step 4).
• Check step 2 before permanently attaching your roller.

STEP 2

- Placement of roller in rectangular pool. • Placement of roller in round or oval pool.

Pure diagram of a rectangular block with a vertical column and mounting feet, no text or symbols present.

Three abstract geometric shapes with vertical and horizontal lines, no text or symbols present

STEP 3

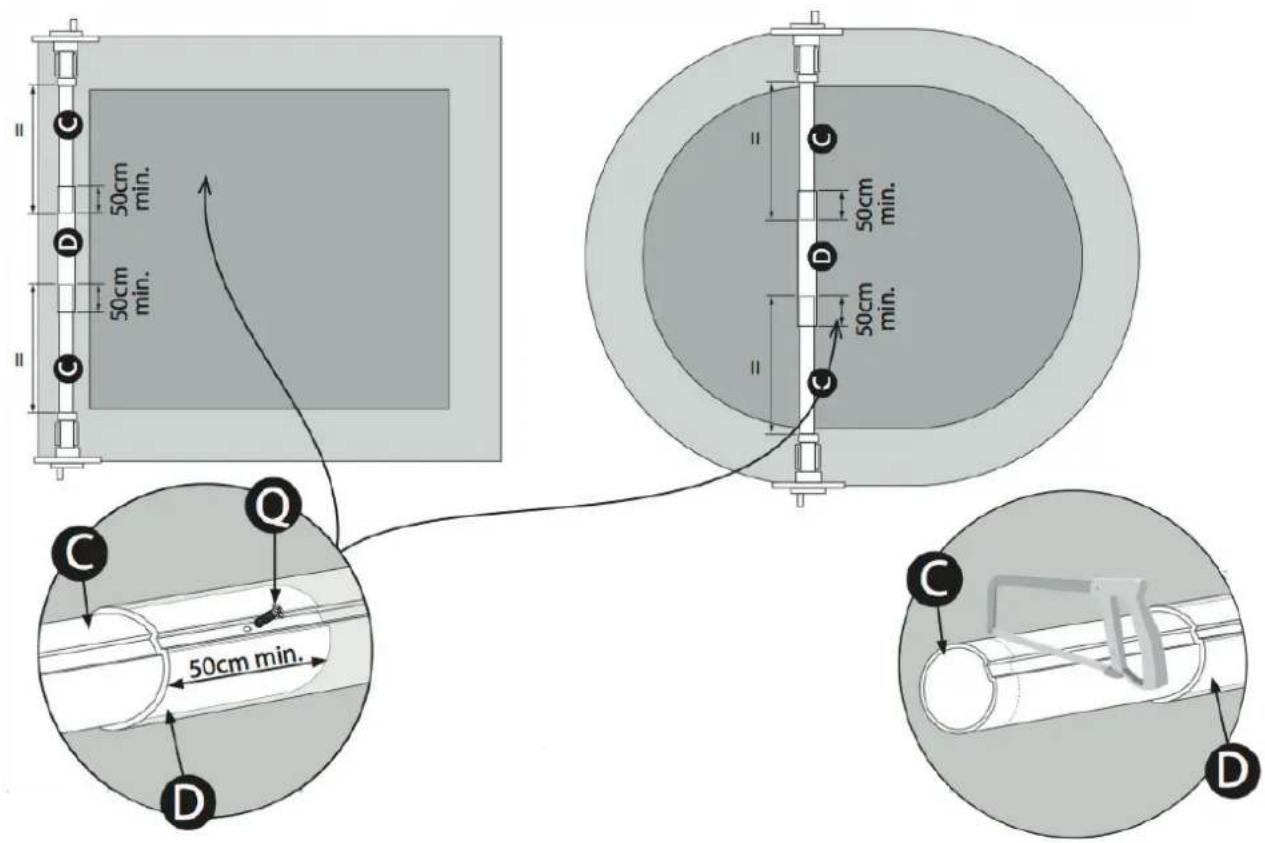

- Depending on the width of the pool, adjust the length of both C tubes in the intersection, with the help of a hacksaw. Please ensure you respect the minimum measurement of 50~cm in the tube D.

STEP 4

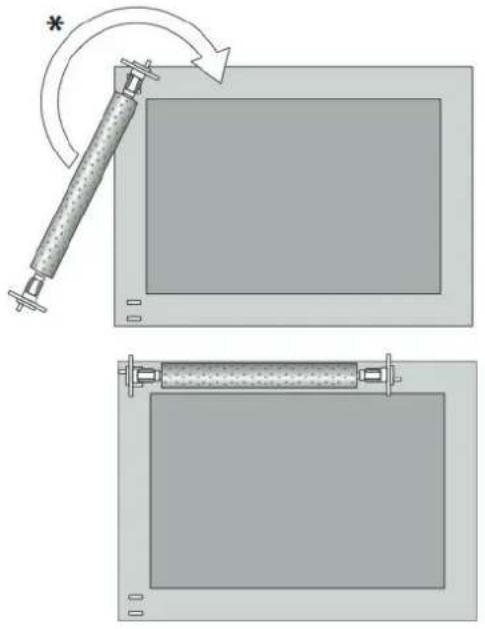

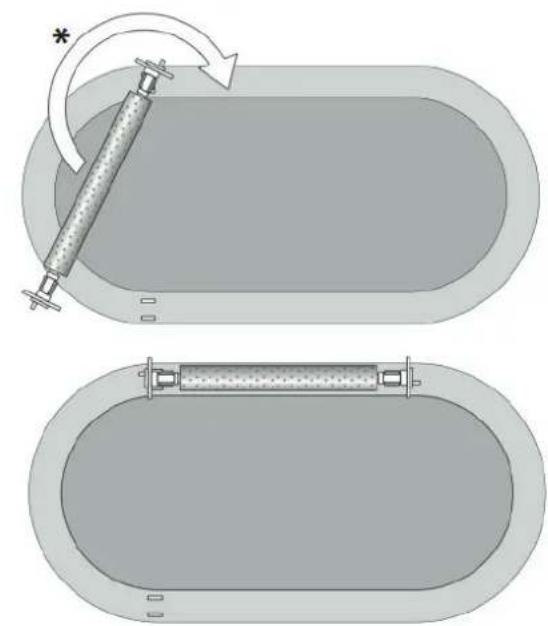

- Instructions during swim time (rectangular pool) • Instructions during swim time (round or oval pool)

Diagram showing a mechanical device with a rotating shaft and a rectangular panel, no text or symbols present

Diagram showing a mechanical device with rotating arm and housing, no text or symbols present

* If the pool is not long enough to be able to rest the roller on the edge during swim time, remove roller completely from pool.

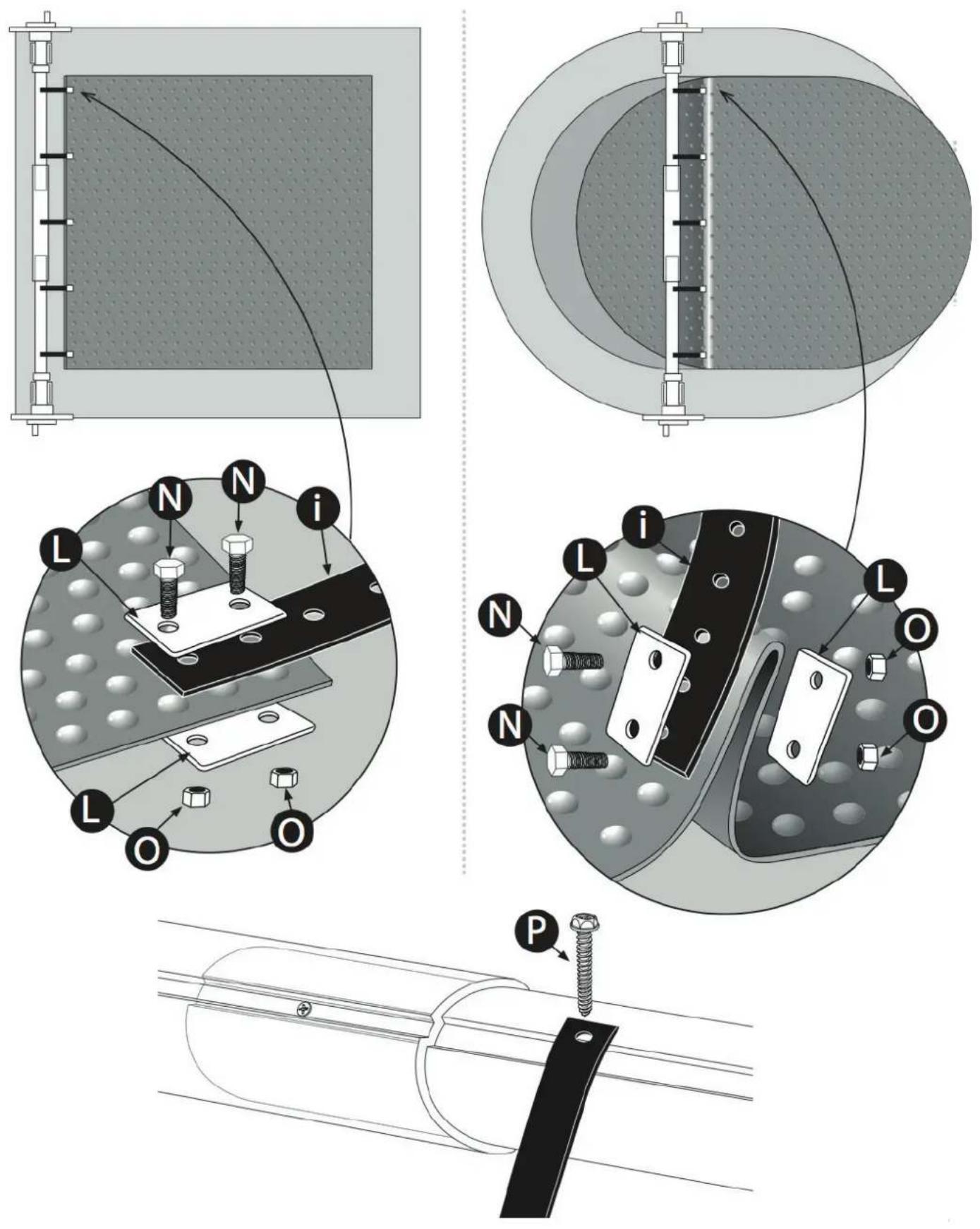

STEP 5

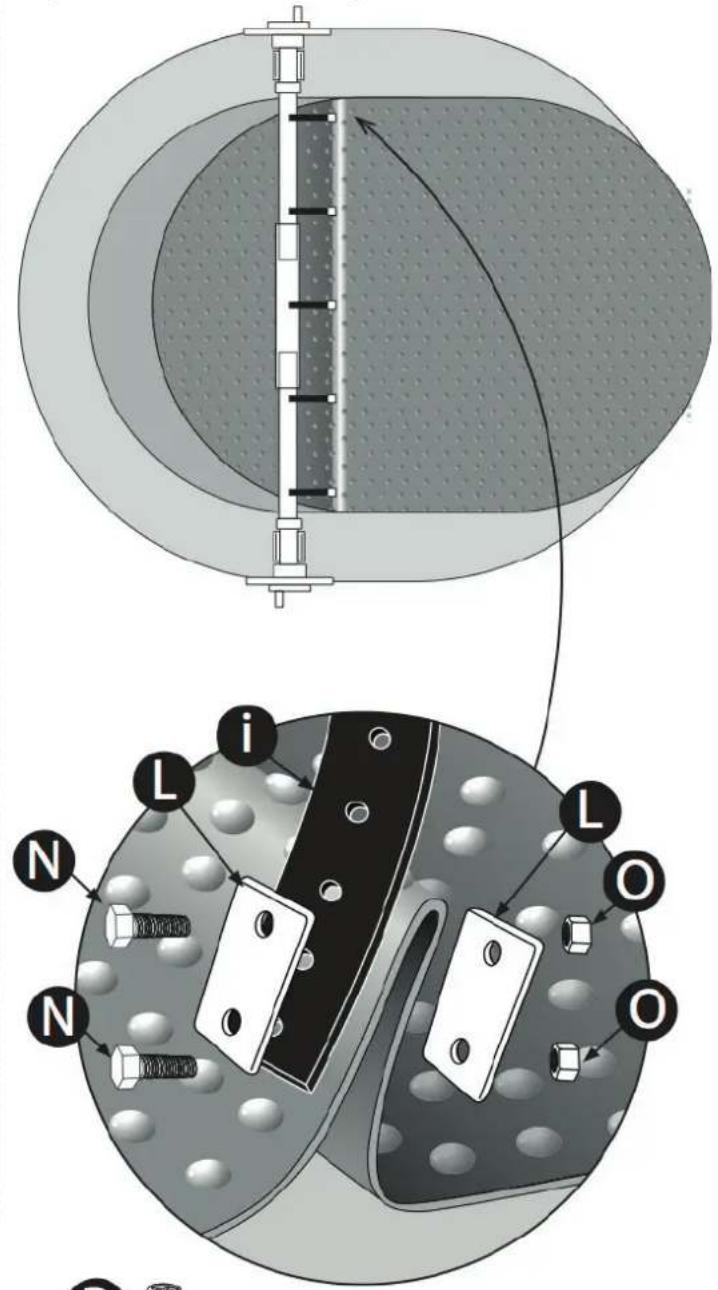

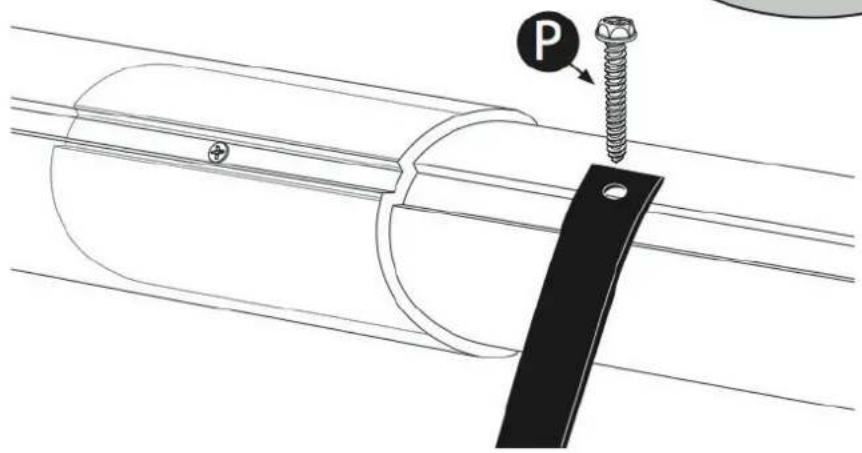

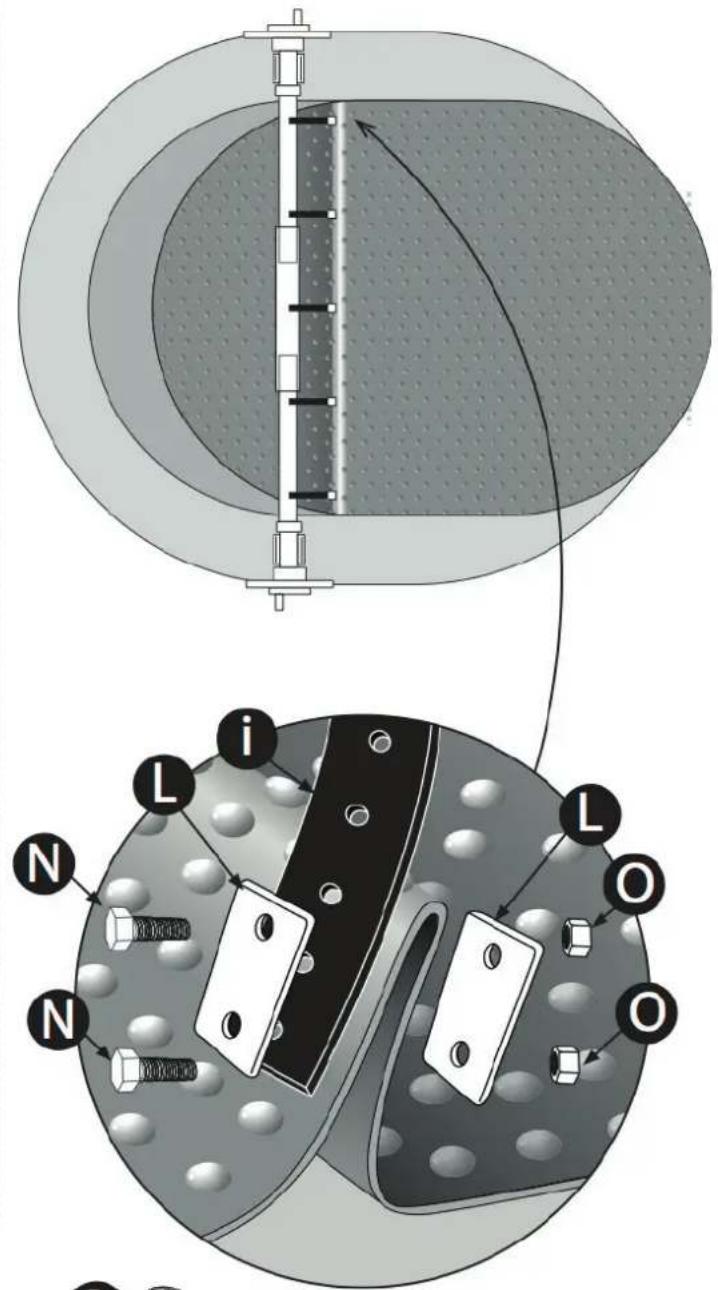

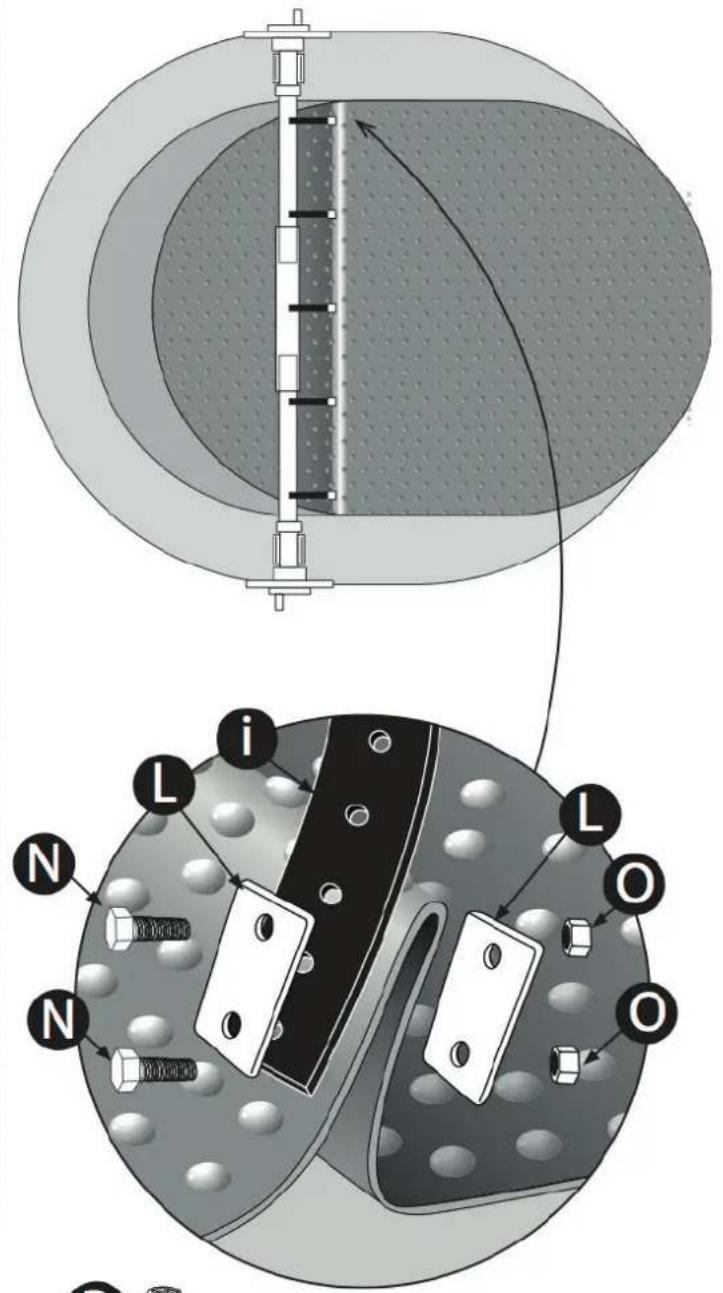

- Placement of cover on roller, rectangular pool - Placement of cover on roller for round or oval pool

A B C G H E F J K M x6

Pure diagram of a rectangular block with a vertical column and mounting feet, no text or symbols present.

Three abstract geometric shapes with vertical and horizontal lines, no text or symbols present

PASO 3

Diagram showing a mechanical device with a rotating shaft and roller, no text or symbols present

Diagram showing a mechanical device with rotating arm and housing, no text or symbols present

Diagram illustrating a magnetic field interaction with a solenoid, showing coil, magnet poles, and labeled components.

Diagram illustrating electromagnetic induction with labeled components including a current-carrying coil, magnetic poles, and a device with labeled parts.

P

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three vertical oval shapes with internal vertical bars, no text or symbols present

ETAPE 3

Diagram showing a mechanical device with a rotating shaft and roller, no text or symbols present

Diagram showing a mechanical device with rotating arm and housing, no text or symbols present

Diagram illustrating a magnetic field interaction with a solenoid, showing coil, magnet, and plate assembly with labeled parts.

Diagram illustrating electromagnetic induction with labeled components including a current-carrying coil, magnetic poles, and a device with labeled parts.

P

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with circular and oval outlines, no text or symbols present

SCHRITT 3

Diagram showing a mechanical device with a rotating shaft and a rectangular frame, no text or symbols present

Diagram showing a mechanical component being inserted into two oval chambers, with no text or symbols present.

Diagram illustrating a magnetic field interaction with labeled components including N, L, and O poles, showing directional flow and structural details.

Diagram illustrating electromagnetic induction with labeled components including a current-carrying coil, magnetic poles, and a device with labeled parts.

P

AVVOLGITORE PER COPERTURE ESTIVE

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with vertical and horizontal lines, no text or symbols present

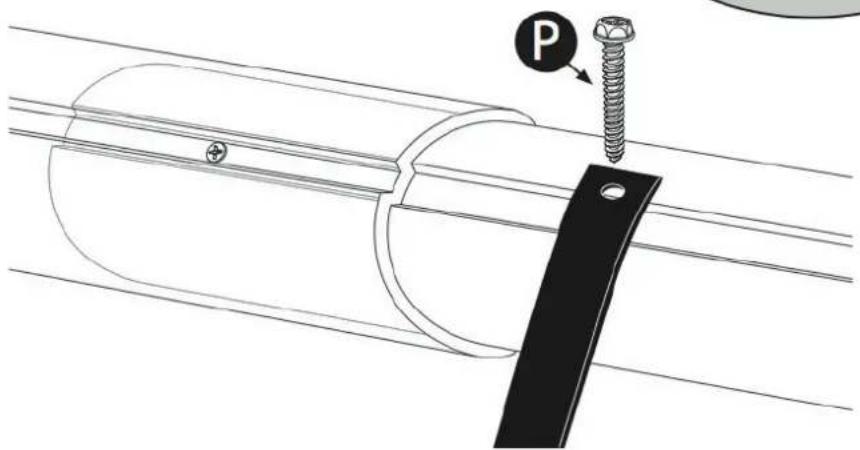

FASE 3

Diagram showing a mechanical device with a rotating shaft and roller, no text or symbols present

Diagram showing a mechanical device with rotating arm and housing, no text or symbols present

Diagram illustrating a magnetic field interaction with a solenoid, showing coil, magnet, and plate assembly with labeled poles and current direction.

Diagram illustrating electromagnetic induction with labeled components including a current-carrying coil, magnetic poles, and a device with labeled parts.

P

OPROLLER VOOR ZOMERZEILEN

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with vertical and horizontal lines, no text or symbols present

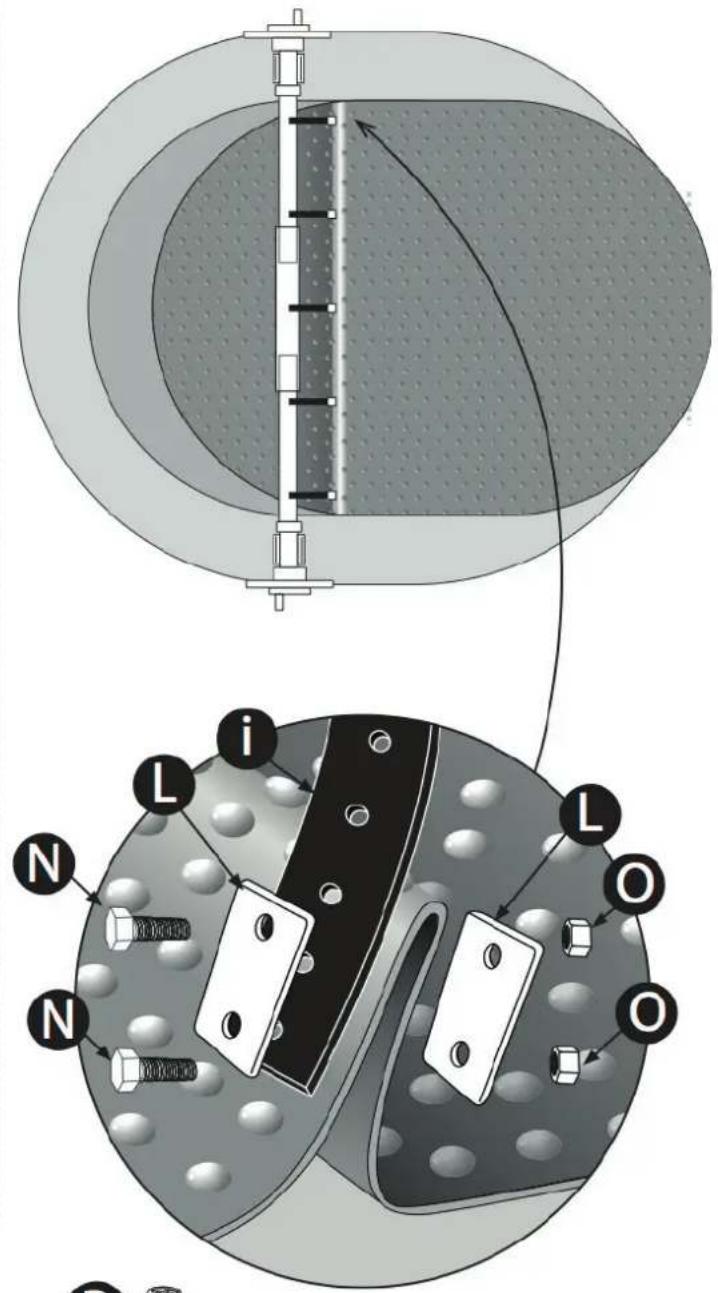

STAP 3

Diagram showing a mechanical device with a rotating shaft and roller, no text or symbols present

Diagram showing a mechanical device with rotating arm and housing, no text or symbols present

Diagram illustrating a magnetic field interaction with a solenoid, showing coil (L), magnet (N), and current (i) vectors.

Diagram illustrating electromagnetic induction with labeled components including a magnetic field, coil, and magnet poles (N, L, O)

Technical diagram showing a screw fastening tool inserted into a cylindrical component with a labeled 'P' indicator.

ENROLADOR DE COBERTURAS DE VERÃO

Para piscina elevada de 2,44 a 6,32m

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with vertical and horizontal lines, no text or symbols present

PASSO 3

Diagram showing a mechanical device with a rotating shaft and roller, no text or symbols present

Diagram showing a mechanical device with rotating arm and mounting base, no text or symbols present

Diagram illustrating a magnetic field interaction with a solenoid, showing coil (L), magnet (N), and current (i) vectors.

Diagram illustrating electromagnetic induction with labeled components including a current-carrying coil, magnetic poles, and a device with labeled parts.

P

ZWIJACZ DO BASENOWEJ FOLII SOLARNEJ

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with circular and rounded forms, no text or symbols present

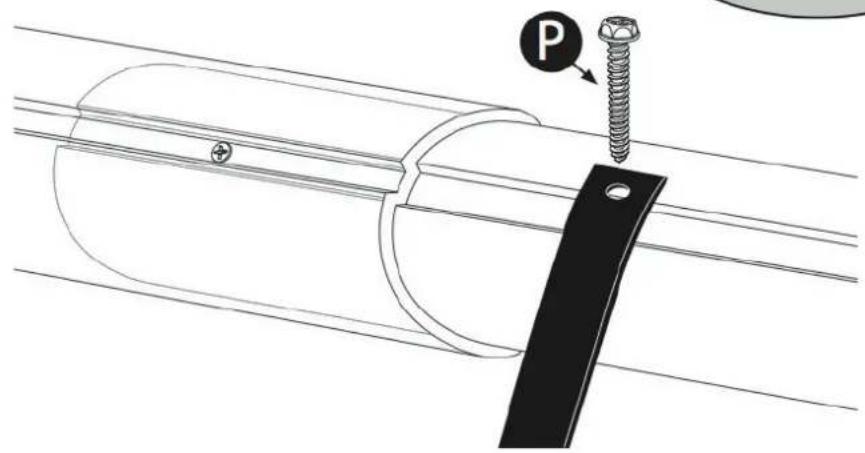

KROK 3

Diagram illustrating a magnetic field interaction with a solenoid, showing coil (L), magnet (N), and current (i) vectors.

Diagram illustrating electromagnetic induction with labeled components including a coil, magnetic poles, and a device with coils L and O.

Technical diagram showing a screw fastening tool inserted into a cylindrical component with a labeled 'P' indicator.

ROLOVACÍ LETNÍ KRYT

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with circular and rounded forms, no text or symbols present

KROK 3

Diagram illustrating a magnetic field interaction with a solenoid, showing coil (L), magnet (N), and current (i) vectors.

Diagram illustrating electromagnetic induction with labeled components including a coil, magnetic poles, and a device with two coils (L and O).

Technical diagram showing a screw fastening tool inserted into a cylindrical component with a labeled 'P' indicator.

LETNÝ VALČEKOVÝ KRYT

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with circular and rounded forms, no text or symbols present

KROK 3

Four-panel diagram showing a mechanical assembly with a cylindrical rod and two oval frames, each with an arrow indicating rotation (no text or symbols)

Diagram illustrating a magnetic field interaction with a solenoid, showing coil (L), magnet (N), and current (i) vectors.

Diagram illustrating electromagnetic induction with labeled components including a current-carrying coil, magnetic poles, and a device with labeled parts.

P

ROLĂ DE ACOPERIRE PENTRU VARĂ

Pentru bazin elevat de 2,44 până la 6,32 m

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with vertical measurement markings, no text or symbols present

PASUL 3

Diagram illustrating a magnetic field interaction with a solenoid, showing coil (L), magnet (N), and current (i) vectors.

Diagram illustrating electromagnetic induction with labeled components including magnets, coils, and a magnetic field line

Technical diagram showing a screw fastening tool inserted into a cylindrical component with a labeled 'P' indicator.

TÄCKNINGSRULLE SOMMAR

A B C G H E F J K M x6

Simple diagram of a rectangular block with a vertical column and two corner fasteners (no text or symbols)

Three abstract geometric shapes with vertical and horizontal lines, no text or symbols present

STEG 3

Diagram illustrating a magnetic field interaction with labeled components including N, i, L, and O poles, showing directional flow and structural details.

Diagram illustrating electromagnetic induction with labeled components including a coil, magnetic poles, and a device with two coils (L and O).

Technical diagram showing a screw fastening tool inserted into a cylindrical component with a labeled 'P' indicator.

1- GENERAL TERMS

• In accordance with these provisions, the seller guarantees that the product corresponding to this guarantee (“the Product”) is in perfect condition at the time of delivery.
  • The Guarantee Term for the Product is two (2) years from the time it is delivered to the purchaser.
• In the event of any defect in the Product that is notified by the purchaser to the seller during the Guarantee Term, the seller will be obliged to repair or replace the Product, at his own cost and wherever he deems suitable, unless this is impossible or unreasonable.
• If it is not possible to repair or replace the Product, the purchaser may ask for a proportional reduction in the price or, if the defect is sufficiently significant, the termination of the sales contract.
• The replaced or repaired parts under this guarantee, will not extend the guarantee period of the original Product, but will have a separate guarantee.
• In order for this guarantee to come into effect, the purchaser must provide proof of the date of purchase and delivery of the Product.
• If, after six months from the delivery of the Product to the purchaser, he notifies a defect in the Product, the purchaser must provide proof of the origin and existence of the alleged defect.
• This Guarantee Certificate is issued without prejudice to the rights corresponding to consumers under national regulations.

2- INDIVIDUAL TERMS

• This guarantee covers the products referred to in this manual.
• This Guarantee Certificate will only be applicable in European Union countries.
• For this guarantee to be effective, the purchaser must strictly follow the Manufacturer's instructions included in the documentation provided with the Product, in cases where it is applicable according to the range and model of the Product.
• When a time schedule is specified for the replacement, maintenance or cleaning of certain parts or components of the Product, the guarantee will only be valid if this time schedule has been followed.

3- LIMITATIONS

• This guarantee will only be applicable to sales made to consumers, understanding by "consumer", a person who purchases the Product for purposes not related to his professional activities.
• The normal wear resulting from using the product is not guaranteed. With respect to expendable or consumable parts, components and/or materials, such as batteries, light bulbs, etc. the stipulations in the documentation provided with the Product, will apply.
• The guarantee does not cover those cases when the Product; (I) has been handled incorrectly; (II) has been repaired, serviced or handled by non- authorised people or (III) has been repaired or serviced not using original parts. In cases where the defect of the Product is a result of incorrect installation or start-up, this guarantee will only apply when said installation or start-up is included in the sales contract of the Product and has been conducted by the seller or under his responsibility.

Circular logo with stylized white 'Gre' and swoosh design on black background (no text or symbols beyond logo)

www.grepool.com

We reserve to change all of part of the articles or contents of this document, without prior notice.
