USER MANUAL Antimite UV JV35 JIMMY

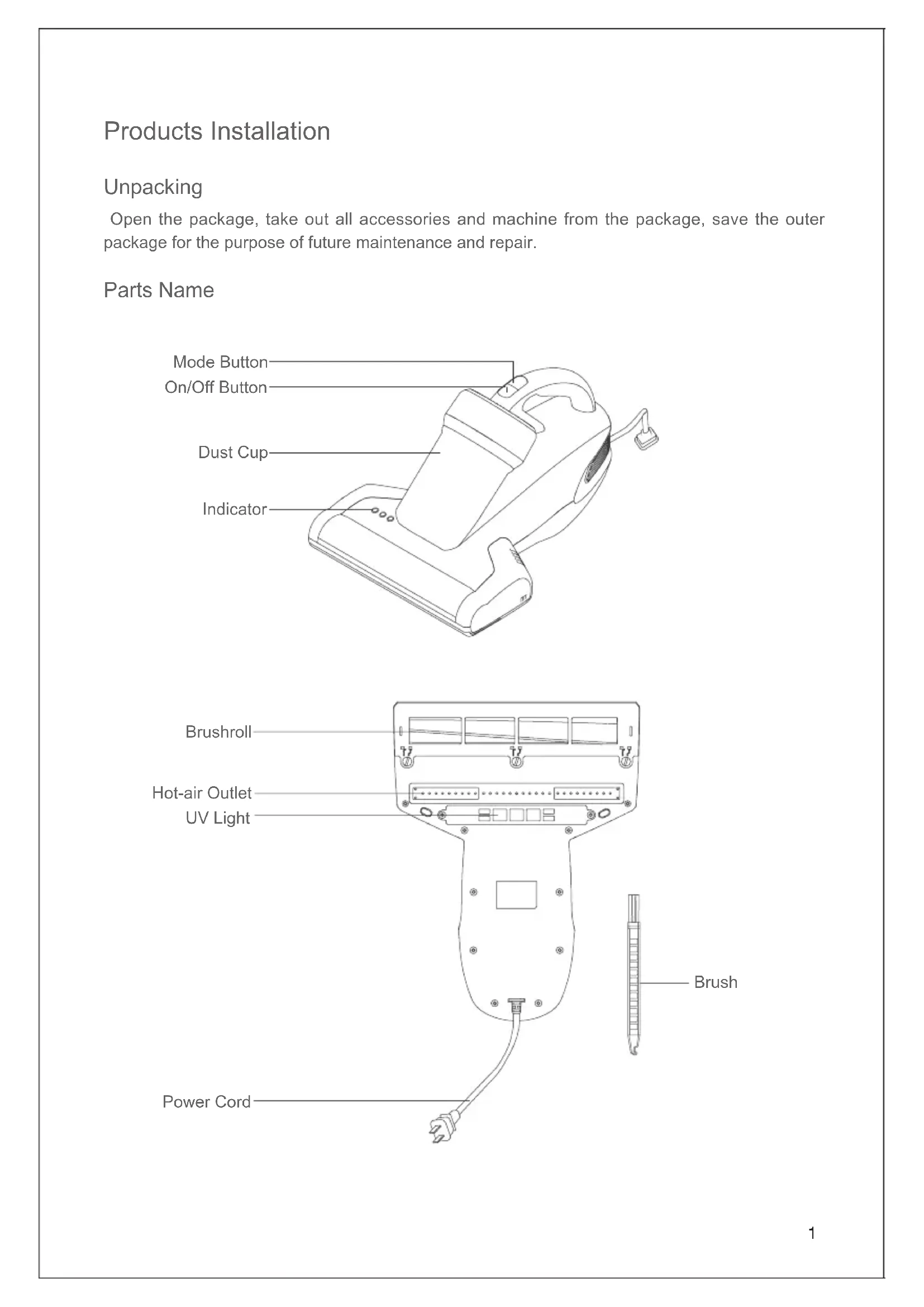

Use of the Product Vacuuming + Tapping + UV Mode When turn on vacuum cleaner, the machine is in vacuuming + tapping + UV mode, all indicators light up. Vacuuming + Tapping Mode When the machine is in vacuuming + tapping+UV mode, press mode button once, machine changes to vacuuming + tapping mode and relevant indicators light up. Vacuuming + UV Mode When the machine is in vacuuming + tapping mode, press mode button once, machine changes to vacuuming + UV mode and relevant indicators light up. When machine is in vacuuming + UV mode, press mode button once, the vacuum cleaner goes back to vacuuming + tapping + UV mode. The three modes cycles in turn by pressing mode button. Turn off the machine by pressing on/off button. Notice:

1. For safety reasons, the UV light only works within 5cm above object as well as less than 30 inclination

degrees. Otherwise, the UV light will automatically turn off. 2.Do Not touch the air outlet off the bottom of the machine in case of hand scald. Mode Button On/Off Button UV Indicator Tap Indicator Vacuum Indicator3 Cleaning and Maintenance Notice:

1. Filters are available at dealers.

2. It is recommended to clean the dust cup after each

use. when the lter is blocked due to excessive dust accumulation, it needs to be cleaned and replaced if necessary. Dust Cup Cleaning

1. Turn off the machine and unplug the power

cord. Then press the release button and lift upward (Figure 1).

2. Twist dust dust lid anticlockwise (Figure 2) and

remove it from dust cup to clean (Figure 3).

3. Do Not tap the lter in reverse in case of dust

clog. Clean filter and cyclone regularly for better use.

4. After cleaning, assemble parts in reverse

order. Do Not miss the lter, lter missing can cause product failure. Notice: Use water or neutral reagents to clean dust cup and wipe with dry cloths. The filter cannot be washed. Make sure the lter and dust cup are completely dry before another use. Brushroll Cleaning Turn off the machine and unplug the power cord, rotate the lock knob with a coin or flat- blade screwdriver from locked position to unlock position (Figure 5) to remove the cover and roller brush (Figure 6). After cleaning, snap the hex-gear side into the base first (Figure 7) and press the other side (Figure 8). Install the cover in reverse order of removing. Notice: For safety reasons, please turn off the machine and unplug power cord before cleaning brushroll. Dust Cup Release Button

Tapping Downward 7-2 8 Belt Hex-side Four-corner Side 6 7-1 Hex-gear4 UV Light Maintenance Turn off the machine and unplug the power cord , wipe the UV light with dry cloths. Notice: Turn off the machine and unplug the power cord before cleaning UV light in case of electric shock. Maintenance and Storage

1. Please clean dust cup and lter after each use for further use. It is recommended to replace a

lter after 30-50 hours of working time(depending on specic situation) for better use.

2. Any paper, lead glass, plastic will greatly affect the effect of UV light. Please wipe and clean

the UV tube regularly for better use. 3.Do Not touch the UV tube as dirt will affect UV light effect.

4. Put the machine in cool and dry places if the machine is to be idled. Do Not leave it in direct

sunlight or humid environment. Cautions Please read this instruction manual carefully before use and keep it properly for future use. Never leave the machine working without supervision. Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock. Cut the power source in maintenance or off-service. Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage. For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, ammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or re. Do not use this product to clean water or wet dust. Do Not operate it in humid places (such as bathroom, toilet, laundry room, etc.) to avoid malfunction. Do Not place the machine near heating appliances or expose it to direct sunlight in case of re hazard. Keep this product beyond the reach of special individual such as children without adult’s supervision. Do Not operate this machine with suction port blocked in case of product damage. The product has UV light, for safety reasons, Do Not look at the bottom of the machine when the power is on in case of ultraviolet rays harming. Do Not apply this product to plants. Excessive use of UV may cause object damage. Do Not sit on this product in case of personal injury and product damage. Do Not remove the brushroll cover or force the cover outward when the machine is powered on for safety reasons.5 This product can ONLY use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc. If the power cord is damaged, please ask for professional help of the manufacturer and other professionals for safety reasons. Trouble Shooting If fault remains after adopting the following solutions, contact after sale service or local distributor immediately. Problems Possible Reasons Solution Power Failure Power cord is not rmly inserted. Insert the power cord rmly. No power on socket. Check the socket. Power switch not pressed. Press the On/Off button. Low suction power Suction port clogged. Clean up suction port. Dust accumulation on lter. Clean up the lter. Dust accumulation on cyclone. Clean up cyclone. Dust accumulation on lter. Clean up lter. UV tube failure The UV function is automatically off for safety reasons or weak reection of object. The UV function operates on the condition of less than 5CM height from the object. The machine operates on the same position for a long time. Move the machine forward and backward The machine is placed upright. Machine tilted no more than 30 degrees. Sensor window is contaminate. Clean the sensor window with a half-dry cloth. UV light damage. Contact after-sale service. Automatically turned off Dust cup full. The machine will automatically turn off to prevent the motor under long operation. If the machine automatically turned off , please clean up the dust cup and filter, unplug power cord and reuse if after 2 hours. Suction port clogged. Filter blocked. Brushroll failure Brushroll tangled with foreign matter. Remove the cover and clean up brushroll according to user guide. Belt broken. Remove the cover according to user guide and check the belt. If broken, contact after-sale to repair.6 Product Specication Parameter Model JV35 Rated voltage 220V-240V~ Rated frequency 50Hz Rated power 700W Circuit Diagram

UV Light Vacuum Motor Brushroll Motor Power supply PCB Main PCB Button PCB Heater Left Infrared PCB Right Infrared PCB7 Manufacturer Kingclean Electric Co., Ltd Address No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009,China Manufacturer Information Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. Subject to change without notice. Warranty Information This product enjoys one year warranty for the machine service starting from the date of purchase. Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries.8 Installation des produits Déballage Ouvrez l'emballage, tirez tous les accessoires et la machine de l'emballage, conservez l'emballage extérieur pour la maintenance et la réparation. Nom des pièces Bouton du mode Bouton marche / arrêt Coupe de poussière Indicateur Rouleau de brosse lumière UV Ligne d'alimentation Brosse Sortie d'air chaud9 Liste de colisage Aspirateur Filtre Brosse Instruction d’utilisation
