USER MANUAL XM 3008e VOX 1224 STABO

Please read this booklet carefully to make yourself familiar with the various functions of your radio set.

Beep sound, Roger beep

Mode Taste AM / FM

TOT (Time Out timer)

EMG / ANL/NB (5) Emergency channel/Notufkanal

Automatic-Noise-Limiter/Noise Blanker (automatischer Storbegrenzer/Storaustaster)

01-09 total: 9 levels

VOX Empfindlichkeit

Vox L 03

01-09 total: 9 levels

300 Hz - 3 kHz in AM/FM

C Charlie J Juliett Q Quebec XX-ray

D Delta K Kilo R Romeo Y Yankee

E Echo L Lima S Sierra Z Zulu

F Foxtrot M Mike T Tango

G Golf N November U Uniform

1 ON/OFF - Volume (volume control with On/Off switch)
SQUELCH (squelch)/ASC(Automatic Squelch Control)
2 VOX key Press once: switch VOX function On/Off Press and hold: MENU
3 Display screen
4 AM/FM Select modulation
5 EMG emergency key, can be freely assigned Press once first press EMG1, 1st memory slot second press EMG2, 2nd memory slot Press and hold ANL/NB, automatic noise limiter/noise blanker
6 Microphone socket (6-pin)
7 Channel selection keys (or UP/DOWN keys on microphone)
8 PTT key
9 UP/DOWN keys, channel selection on microphone

A Power supply (12/24 V)
B Antenna connection (SO-239)
C Connection for external speaker (2 W, 0.3.5 mm)
D Connection for optional VOX microphone (Ø 2.5 mm)

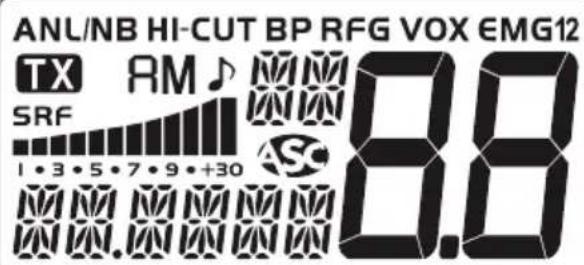

Display (when activated)

TX

Transmission display

FM

Modulation type FM

AM

Modulation type AM

UK

MPT 1382 FM mode

ANL/NB

Automatic noise limiter

HI-CUT

Hi-cut filter, switchable

BP

Key acknowledgement sound (beep)

RFG

RF gain

Vox

VOX mode

EMG12

Emergency channel 1 or 2, 2 memory slots, freely assignable

Automatic squelch control ASC

Roger beep

5

DX

RF

TX

Signal level display and display of relative transmission power

Welcome to the fascinating world of CB radio and congratulations on your new stabo xm 3008e VOX 12/24 CB radio. You have opted for a user-friendly top device with numerous additional functions which can be used both in the car and as a fixed station at home. It is also characterised by simple operation and a robust construction.

Please read the operating instructions carefully and in full so that you can get the most out of all of the options of your stabo xm 3008e VOX 12/24. Pay particular attention to the instructions for connection and installation. We hope you have a lot of fun with your stabo xm 3008e VOX 12/24 and many pleasant radio calls.

Product description / Proper use

The stabo xm 3008e VOX 12/24 is a mobile CB radio device for installation in motor vehicles. Using a suitable power unit, the device can also be used as a fixed station. You have opted for a user-friendly top device with numerous functions:

Functions

Vox function switchable (5 levels)

Noise gate amplifier

XL multifunctional LCD (7 background colours)

EU Multinorm 40 channels AM/FM

6 switchable frequency tables

Energy-efficient 12 / 24V operation without switching (no converter required)

Manual squelch & ASC automatic squelch control (patented by President)

Emergency key (EMG1/2), programmable

ANL filter (AM), switchable / NB filter, hi-cut filter, switchable

Microphone booster, RF gain function, adjustable

RX audio compander, switchable

Beep sound, Roger beep

Mode key AM/FM

TOT (timeout timer)

Important information

Safety notes

• We urgently recommend that wearers of pacemakers first consult a doctor to check whether there are any fundamental concerns with regard to the use of radio equipment and whether any special rules of conduct must be observed.
• Do not under any circumstances touch the antenna when transmitting!
• Before you use the device in a vehicle, it is imperative that you familiarise yourself with the functions and operation! Do not under any circumstances allow yourself to be distracted from the traffic by the use of the device or by radio calls!
• Never transmit without a connected antenna!
• Never open the housing of a radio device or the accessories and do not make any modifications. Have repairs carried out by qualified persons only. Modifications or interventions on the radio device automatically render the approval for use and the warranty null and void!
• Prevent children from playing with the radio device, accessories and the packaging material.
• Do not use the device if you discover damage to the housing or the antenna: contact a specialist workshop.
• Protect your radio device and the accessories from moisture, heat, dust and strong vibrations. Avoid operating temperatures below -10^ and above +50^ .

Legal regulations

Operating CB radio devices:

In Germany this device is not subject to compulsory registration or fees.

However, in other countries other regulations apply: before using the device abroad, obtain information on the current valid national regulations. Adhere to the respective regulations and register the device as necessary - otherwise you risk incurring heavy fines or even the confiscation of your radio device!

Installing a radio device in a motor vehicle:

For almost all motor vehicles the manufacturer provides installation guidelines for radio devices and antennas: therefore, contact your car dealer for the respective manufacturer guidelines for your vehicle model. When installing, it is imperative that you adhere to these guidelines as the approval for use for your vehicle can otherwise be rendered null and void!

Use of voice radio in the vehicle:

Whereas the driver of a motor vehicle is only permitted to use mobile phones with hands-free equipment or with the vehicle motor shut off, the German "StVO" (highway code) includes an explicit exception for radio devices up until 30 June 2020 (before travelling abroad, obtain information on any different regulations which may apply!). With activated hands-free equipment (VOX), the radio device will fulfil the regulations from 1 July 2020. However, only use your device if the traffic conditions allow it (see also safety notes)!

In the box

CB radio device

Electret microphone with up/down function

Mounting bracket and fastening screws

Microphone mount

Operating instructions

Installation

Installation in the car

a) Adhere to the instructions provided by your motor vehicle manufacturer.
b) Make sure that all cables and connection lines are routed through the vehicle without any problems. Do not route cables in the vicinity of the heater!

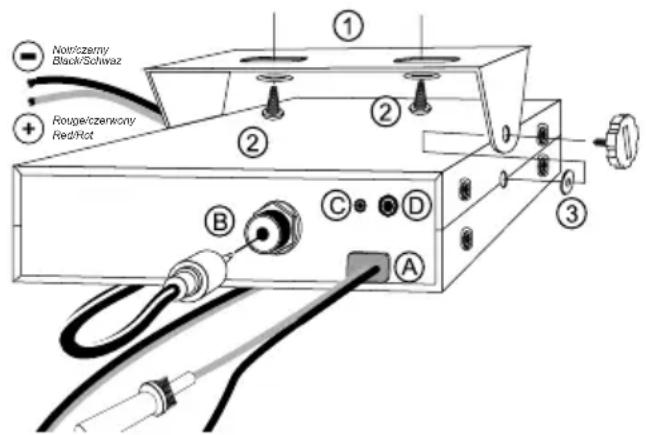

c) Fasten the mounting bracket (1) (see fig.) in a suitable position using the self-taping screws (2) (diameter of the drilled hole: 3.2mm ). Make sure beforehand that the fastening will not damage any lines inside the car! The mounting bracket should be fitted in a suitable position which allows the radio device to be fastened firmly and securely with as little vibration as possible.
d) Select a place for the microphone mount in which the microphone is close to hand at all times and does not get in the way of its connection cable to the radio device.

Note: If there is so little space available for installation of the radio device that the sound emitted from the speaker (on the base of the radio device) is obstructed, you should install an external mobile speaker, as available in the stabo range of accessories. It is connected to the EXT.SP socket (C) at the rear of the radio device, shutting off the internal speaker automatically in the process.

Connecting the antenna

Selecting the antenna:

In CB radio the following applies: the better the antenna the greater the range of the station.

Make your choice based on the following recommendations.

Mobile antenna:

Tuned and tunable antennas are available.

Tuned antennas should only be mounted on a large metal surface, for example on the car roof or on the boot lid.

In the process, make sure that there is a short connection to ground.

If you drill a hole in the bodywork for the antenna, the sheet metal must be sanded down flat to do so in order for the fastening screw and the seal to rest properly in place.

Route the coaxial cable so that it is not kinked and does not rest on sharp edges (otherwise: risk of short circuit!).

Fasten the antenna cable to the connection (B).

Fixed station antenna:

With a fixed station antenna you achieve the maximum range for your radio device. For outdoor antennas it is imperative that you adhere to the valid VDE regulations (lightning protection!), structural analysis and building legislation! Ideally, in this case you should have the antenna system installed by a specialist.

The stabo range of accessories includes the ideal fixed station antenna.

Tuning the antenna

Do not under any circumstances transmit without the antenna as this will destroy the device.

Tuning the antenna means that your antenna is adjusted to the output impedance of the transmitter, i.e. 50

The actual wave impedance of the antenna does not only depend on its length but also from the environment in which it is installed. Therefore, the manufacturer can only supply a roughly tuned antenna. In general it is constructed so that there is always enough margin for calibration to the existing conditions. In practice this means that a new antenna is usually too long.

To tune, loop in a VSWR testing bridge (e.g. President TOS-1, art. no. 50004) between the stubo xm 3008e VOX 12/24 and the antenna and shorten or extend the antenna in accordance with the manufacturer's specifications so that the VSWR is as low as possible on your favourite channel or one of the middle channels. To do so, set FM modulation in order to work with a constant transmission power when measuring.

You should in any case achieve a value of ≤ 1:2.0 . However, it is not of any use to aim to set a value of 1:1 for mobile operation as other environments, changes in the cable etc. can change this value again anyway. We do though recommend that you check the tuning regularly because a poor value is an indication of problems with plug connectors and cables.

Power supply

Your radio device is supplied with a maximum of 26.4 volts DC voltage. It is equipped with reverse polarity protection.

Nevertheless, you should make sure that the polarity is correct! Reversing the polarity will destroy your CB radio device.

The supply voltage must not under any circumstances exceed 30V

The negative pole is connected to ground (= chassis), like on practically all modern cars.

Before connecting, check the polarity and the voltage: on older cars the positive pole may be connected to ground. In case of any doubt consult a specialist workshop.

Once you have made sure that the voltage and polarity are correct, proceed as follows:

a) You radio device is supplied with a cable for the power supply (A) with a 5 A fuse in the circuit. Connect the free ends of the power supply cable directly to the respective terminals on the battery:
Red = positive pole, black = negative pole (ground).
b) Connect the cable directly to the vehicle battery. If connected, e.g. to the cigarette lighter, the radio device would no longer be supplied with the necessary buffer voltage once the ignition is switched off.
c) Route the power supply cable in the car so that it can absorb as little interference from the ignition system as possible.

CAUTION: If the fuse in the power supply cable blows: a) locate and eradicate the cause, b) replace it with another 5 A fuse.

Always switch off the device before you exit the vehicle so that you do not find an empty battery next time.

External speaker

The stabo xm 3008e VOX 12/24 is equipped with a connection (C) for an external speaker with and impedance of 8

You can connect a speaker with a 3.5mm mono jack plug to improve reproduction. Install the speaker so that it cannot injure you or your passengers in case of an accident.

Microphone connection

Connect the supplied microphone to the microphone connection at the front left of the device. Make sure that the recess on the plug connector points down.

Country programming (6)

The stabo xm 3008e VOX 12/24 has six different channel configurations.

In Germany this device is not subject to compulsory registration or fees.

Before you use your radio device abroad, familiarise yourself with the regulations in the respective countries and register the device as necessary.

The frequency band and transmission power of your device must match the national regulations in the country in which it is being used.

EU 40 FM (4 W), 40 AM (4 W) 1)
PL 40 FM (4 W), 40 AM (4 W) 2 With a carrier offset of -5 KHz
d 80 FM (4 W), 40 AM (4 W) 3)
E[ 40 FM (4 W) 4)
U 40 FM/AM (4 W) CEPT 40 FM (4 W) MPT 1382 5
40 FM (4 W), 40 AM (4 W) With a carrier offset of 0/-5 KHz, switchable
1) Not subject to compulsory registration or fees in BE, CH, CY, DE, DK, EE, IS, LT, LU, NO, PT, SE Subject to compulsory registration or fees in ES, IT
2) Only permitted in PL
3) Not subject to compulsory registration or fees in DE, CZ, SK
4) Use approved in all CEPT states, subject to compulsory registration in individual countries
5) Only permitted in GB
6) Permitted in Russia

In order to switch the configuration, proceed as follows:

1. Switch off the radio device.
2. Press and hold the VOX key while you switch on the device.
3. The previously used channel configuration then flashes on the display screen.
4. Now select one of the six configurations using the / keys (7).
5. Press and hold the VOX key for approximately 1 second until you hear the confirmation sound.
6. Switch the device off and back on again.

The device is then ready for operation with the new channel configuration.

Operation

Operation of the stabo xm 3008e VOX 12/24 is practically self-explanatory. After establishing all connections, switch your CB radio device on using the right-hand control knob 1 (OFF/VOL) which also regulates the volume. The display should now light up. If the display screen remains dark, check the power supply and the fuse. You must be able to hear noise from the speaker. If this is not the case, check whether the microphone is connected and turn the right-hand outer control knob 1 (SQ) anti-clockwise until you hear noise.

KEY BEEP key acknowledgement sound For setting see Menu (page 10)

BP is shown on the display screen to indicate that the Key Beep function is switched on, and all operating inputs on the device are confirmed by a short beep sound.

ROGER BEEP For setting see Menu (page 10)

A is shown on the display screen to indicate that the Roger Beep function is switched on. A short beep sound is made when you release the PTT key. This signals to the conversation partner that he/she can now transmit.

Reception

Channel selection (7)

You can use the / keys (7) to set the desired channel on which you wish to listen or speak.

Squelch (1)

The stabo xm 3008e VOX 12/24 has a circuit for noise suppression (squelch) which suppresses the reproduction if the signal is missing or too weak. The signal level at which the circuit takes effect, is set using the SQ control knob (1). Turn to the left to reduce this level. Turn to the right to increase it.

In case of variable reception conditions, such as in mobile operation, it may be necessary to readjust regularly.

ASC (Automatic Squelch Control) (1)

ASC is a circuit patented by Groupe President Electronics SA, France. This circuit analyses what is referred to as the signal-to-noise ratio (ratio of the desired signal to the interference signal). The desired signal is only connected to the speaker if it is worthy of reception, i.e. largely noise-free. Constant readjustment, as is often necessary with the field strength-based squelch circuit, is therefore no longer necessary, which is beneficial for road safety. ASC can be used with AM and FM. It is activated when the squelch knob is set all the way to the left.

is shown on the display screen to indicate that it is activated.

VOX (2) For settings see Menu (page 10)

Press VOX (2) once to switch VOX on or off. VOX is shown on the display screen to indicate that VOX is activated

VOX is an automatic, voice-controlled transmit/receive switcher.

When VOX is switched on, you can transmit hands-free. You do not need to press the microphone transmit key in VOX mode.

Position the microphone at a max. distance of 40 to 50~cm and avoid loud ambient noises in order to prevent unintentional transmission.

The sensitivity setting depends on the volume of your voice, the positioning of the microphone and the ambient noises.

In order for VOX to work you must set squelch correctly or switch on ASC.

Open squelch or ASC blocks VOX while a signal is being received and the VOX display flashes.

VOX is reactivated after approximately one second once squelch or ASC has been closed. This prevents unintentional transmissions caused by the reception signal.

The activated VOX function can only transmit if squelch or ASC is activated.

AM/FM (4) modulation types

In program positions 40/40 and 80/40 you can operate in both FM and AM. Your preferred modulation type of the two depends on your conversation partners and your own requirements. However, bear in mind that there is compulsory registration for AM operation in many countries!

In general, frequency-modulated signals (FM) are less sensitive to interferences from ignition sparks etc. than amplitude modulated signals (AM). If you hear an unintelligible, distorted sounding signal in the speaker, it is advisable to try to receive using another modulation type.

Press the AM/FM key 4 once to switch between AM and FM. The modulation type is shown on the display screen as AM or FM. Switch between AM, FM and FM UK in frequency band U.

EMG / ANL/NB (5) Emergency channel

Automatic Noise Limiter/Noise Blanker

The device is equipped with an automatic noise limiter.

Press EMG once to switch to EMG1; EMG1 appears on the display screen. Press EMG a second time to switch to EMG2; EMG2 appears on the display screen

Press and hold EMG to switch ANL on/off. ANL is shown on the display screen when it is activated.

Note: ANL/NB works in AM mode. In FM mode only NB works.

Signal level

The bar display to the left of the channel display indicates the signal level in S-levels when receiving. S-values of 1, 3, 5, 7, 9 +30 are displayed.

Transmitting

To transmit, press the PTT key (push-to-talk key) 8 on the left-hand side of the microphone and speak into the microphone at a normal volume while you hold the key. Do not speak too loud. This way your voice will sound natural on the outstation. It is advisable to try it once and receive a modulation report. Please do not forget that you should not transmit without a connected and tuned antenna as your radio device will otherwise become damaged.

Wait for a moment before you begin transmitting in order to hear whether the channel is free so that you do not "double-up" with another station. Also bear in mind that the transmitter takes a certain amount of time to start up. Therefore, do not start talking immediately but rather wait for a second.

TOT (timeout timer)

If the PTT key remains pressed for longer than 3 minutes, the transmission ends automatically and the channel display flashes.

Power display

When you press the PTT key, the bar display indicates the relative output power of the transmitter instead of the S-value. In AM mode more or fewer bars are displayed depending on the modulation.

Display screen back lighting For settings see Menu

The default colour is: r (orange).

In the Menu you can change the colour and the brightness of the display screen background lighting.

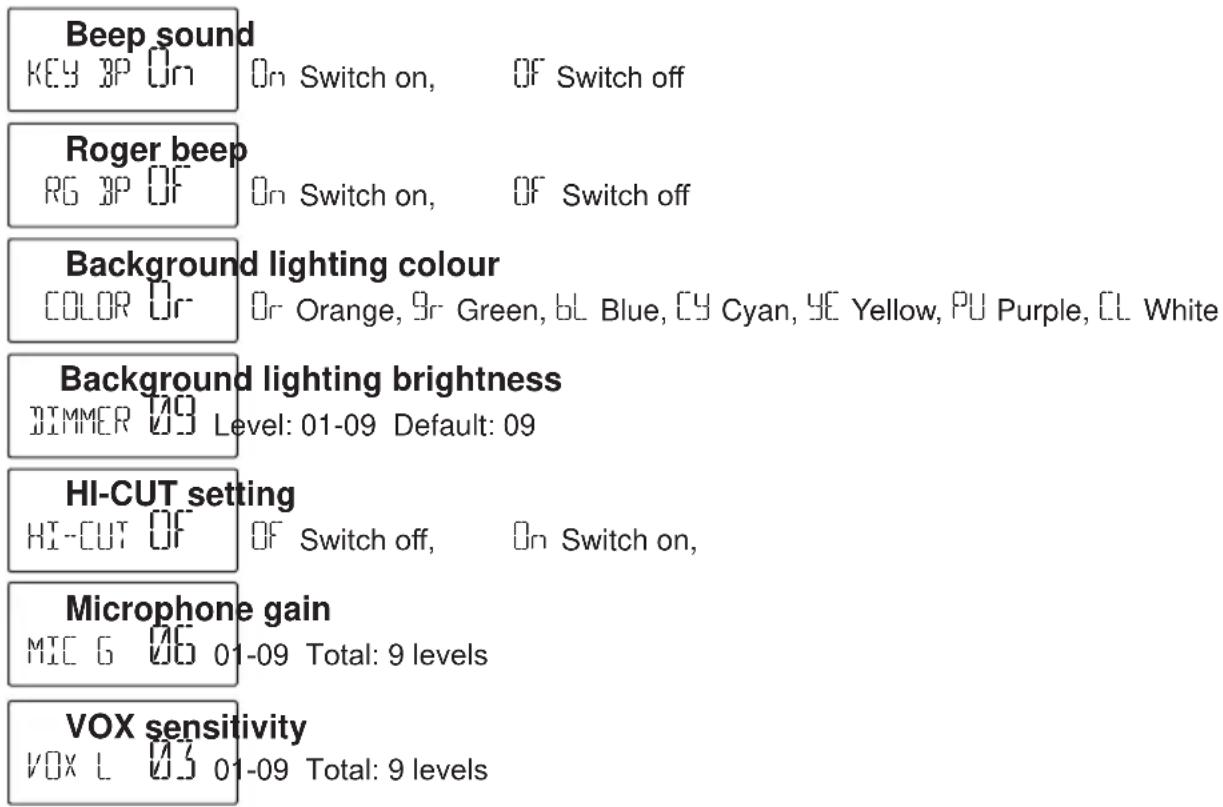

Menu operation

Press and hold the VOX key (2) to open the menu list.

Press the or key (7) or the UP/DOWN keys on the microphone once to select the parameter which you wish to change.

Once you have pressed the VOX key (2) once, the value of the set parameter flashes on the LCD.

You can press the or key (7) once to change the value.

Press the VOX key (2) once to confirm the value and exit the setting.

Press and hold the VOX key (2) to save the setting and exit the menu.

LCD display

(Default value)

LCD display

(Default value)

RF Gain

RF GAIN Level 01-10

Noise gate amplifier setting

NG.AMP UF OF Switch off On Switch on

RX audio_compaander setting

COM UF OF Switch off On Switch on

TOT timeout timer

TOT Un OF Switch off On Switch on

Emergency channel setting

FMM

EMG 1 U9

Press the VOX key to confirm the selected channel. The first parameter (the channel) flashes.

Use the or key on the device or the UP/DN key on the microphone to set the channel.

Press the VOX key to confirm the selected channel. The second parameter (mode) flashes.

RM EU

EMG 2 19

Use the or key on the device or the UP/DN key on the microphone to select AM or FM mode.

Press the VOX key to confirm.

Reset

RESET RL

Press the VOX key, FL flashes.

Press the VOX key again to reset all the parameters and exit MENU mode.

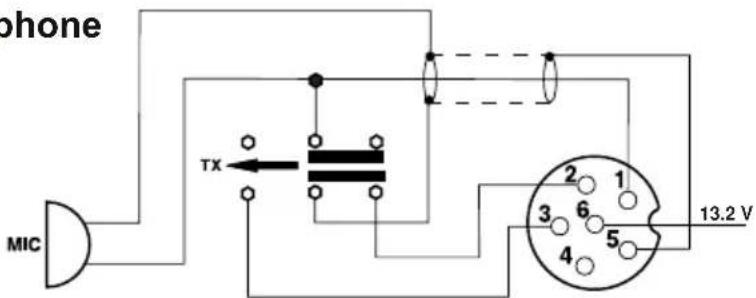

Configuration of the microphone plug connector (six-pin)

1 Modulation
2-
3 TX
4 -
5 Ground
6 Power supply

Technical data

General

Channels: 40 (80)

Operating modes: AM/FM

Frequency range: 26.565 MHz to 27.99125 MHz

Antenna impedance: 50 ohms

Supply voltage: 13.2 / 26.4 V DC voltage

Dimensions (WxHxD): 115 x 35 x 165 mm

Weight: Approx. 0.6kg

In the box: Radio device,

hand-held electret microphone with

mount, mounting bracket, mounting material

Transmitter

Frequency stability: +/- 600Hz

Transmission power: 4 W AM / 4 W FM

FM deviation: ≤ 2kHz

Modulation depth: ≥ 85%

Spurious emissions: Under 4 nW (-54 dBm)

Frequency response:

300 Hz - 3 kHz in AM/FM

Adjacent channel power:

Under 20~ W

Microphone sensitivity:

<3mV

Power consumption:

2 A max.

Receiver

Sensitivity (20 dB SINAD): ≤ -107 dBm

Frequency response: 300 Hz - 3 kHz

Adjacent channel selection: 60 dB

LF output power: 2 W

Squelch sensitivity: Minimum < 1 V

Image frequency suppression: 70 dB

Power consumption: 300 mA nominal /750 mA max.

In case of problems

You cannot transmit or can only transmit in poor quality:

Check the standing wave ratio of your antenna and the supply line for any breaks or loose contacts.

Check whether the microphone is connected properly and that the connection does not have any loose contacts.

When you press the transmit key on the microphone, TX must be displayed and your transmitter must transmit. When you release the key, this display must disappear again and your radio device must switch to receiver again.

You do not receive a response to your transmission or the reception is poor:

Set the SQUELCH controller correctly!

Set the VOLUME controller to a suitable reproduction volume.

Check whether the microphone is connected properly and that the connection does not have any loose contacts.

Check the standing wave ratio of your antenna and the supply line for any breaks or loose contacts.

Make sure that you are using the same operating mode (AM or FM) as your conversation partner!

The displays do not light up:

Check your power unit: is it switched on?

Have you reversed the connections for positive (= RED) and negative (= black)? If this is the case, swap the connections around.

Tips for radio communication:

In order to enjoy uninterrupted radio communication, you should take the following six rules of CB radio to heart:

1. After switching on the device, always listen first to determine whether the channel is free.
2. To do so, open the squelch so that you do not miss stations transmitting with a weaker signal.
3. Only start your own call if the channel is completely free.
4. Only ever transmit brief calls.
5. Listen carefully after every call to hear whether a station responds. Do not repeat the call until you have done so.
6. Always wait a few seconds after each transmission from the outstation before speaking yourself so that other stations can also respond ("switchover pause").

Call channels

We recommend the following call channels:

Channel 1 (FM) as call channel in FM,

Channel 4 (AM) as call channel in AM,

Channel 9 (AM) as emergency channel and trucker channel

Channel 19 (FM) as long distance driver channel abroad

It is of course possible to deviate from this.

In case of poor connections or heavy interference it is often problematic to properly transmit words which are difficult to understand, such as proper names and place names.

The international spelling alphabet, as used in air traffic (ICAO) and by NATO, helps in this case:

International Phonetic Alphabet

A Alfa H Hotel O Oscar V Victor

B Bravo | India P Papa W Whiskey

C Charlie J Juliet Q Quebec XX-ray

D Delta K Kilo R Romeo Y Yankee

E Echo L Lima S Sierra Z Zulu

F Foxtrot M Mike T Tango

G Golf N November U Uniform

Assessing reception quality

In order to be able to tell the respective conversation partner how loud and clear you are receiving him/her, the numbers of the R/S code are used. The R value ("Radio") stands for readability and the S value ("Santiago") stands for the reception and volume of the outstation. The letters R and S are abbreviations for the terms "readability" and "signal strength".

R/S code

R = readability

1 Unreadable, unintelligible
2 Barely readable, occasional words distinguishable
3 Readable with considerable difficulty
4 Readable with practically no difficulty
5 Perfectly readable

S = signal level

1 Faint - signals barely perceptible
2 Very weak signals
3 Weak signals
4 Fair signals
5 Fairly good signals
6 Good signals
7 Moderately strong signals
8 Strong signals
9 Extremely strong signals

Abbreviations

CB radio also has its own "specialist language" which features numerous specialist terms which are derived from amateur radio and professional radio communication, for instance.

They are mostly used for relaying messages quickly and clearly, even in cases in which transmission is difficult or subject to interference. The following is a list of common abbreviations and their meanings, as they are usually used in CB radio:

Break: Please wait a moment, I would like to join the conversation

Cheerio: Goodbye

CQ: General call

CL: End of radio communication, station being switched off

DX: Long-distance radio connection

Fading: Signal is fluctuating

HI: I'm laughing

Mike: Microphone

QRM/QRN: Interferences

Negative: No, I did not understand

OK: Understood, correct, okay

Roger: I understood, everything perfectly received.

Handle: Radio nickname

Standby: Remain in receive mode

Stereo: Two stations transmitting simultaneously

TVI: Television interference

Q groups

Abbreviations are often used for CB radio communication. Many of them have been adopted from the internationally binding Q code, which is also used in maritime radio or in amateur radio. These three-letter codes are used to relay information quickly. Given that particularly "CB newbies" are not familiar with these abbreviations, we have put together a list of those most commonly used and their meanings in CB radio:

QRA: My station name is...

QRG: Frequency, operating channel

QRL: Occupation, workplace

QRM: Interference from other stations

QRN: Atmospheric interference

QRP: Operating with low power

QRT: End of radio communication

QRU: There are no more messages

QRV: Ready to transmit and receive

QRX: Interruption in radio communication, pause, please wait

QRZ: You are being called, call from a certain station

QSB: Fluctuations in the field strength, losses, fading

QSL: Reception confirmation

QSO: Radio connection, radio conversation

QSP: Relaying by two stations for a third

QST: Message to all users

QSY: Frequency change, channel change

QTH: Location

Touchedurgence (EMG1/2),programmable

Filtre ANL (AM), commutable / fille NB, fille Hi-Cut, commutable

d 80 FM (4 W), 40 AM (4 W)3

EC 40 FM (4 W) 4)

U 40 FM/AM (4 W)CEPT

40 FM (4 W) MPT 13825

rU 40 FM (4 W), 40 AM (4 W)6

Dimensions (I x H x P): 115 x 35 x 165 mm

Poids:0,6kgenv.

C Charlie J Juliett Q Quebec X X-ray

D Delta K Kilo R Romeo Y Yankee

E Echo L Lima S Sierra Z Zulu

F Foxtrot M Mike T Tango

G Golf N November U Uniform

Beep sound, Roger beep

EU 40 FM (4 W), 40 AM (4 W)

U 40 FM/AM (4 W) CEPT 40 FM (4 W) MPT 1382 5

rU 40 FM (4 W), 40 AM (4 W) 6

Moc nadawania: 4 W AM / 4 W FM

C Charlie J Juliett Q Quebec XX-ray

D Delta K Kilo R Romeo Y Yankee

E Echo L Lima S Sierra Z Zulu

F Foxtrot M Mike T Tango

G Golf N November U Uniform

6-pin microphone plug

Prise micro 6 broches

The frequency band and the transmission power of your transceiver must correspond with the configuration authorized in the country where it is used.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, stabo Elektronik GmbH declares that theradio equipment type stabo xm 3008e VOX 12/24

is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://stabo.de/fileadmin/DoC/DoC_RED_xm3008e_VOX.pdf

DECLARATION UE DE CONFORMITE SIMPLIFIEE

Errors and technical modifications reserved.
