Thank you for choosing Zepter Edel Wasser. Zepter International has a worldwide reputation for quality, style and value. We strive daily to ensure our products adhere to the highest standards and that they are ethically informed to upgrade the user’s quality of life. Please read this Users’ Manual to use and maintain the product correctly. If you encounter a problem while using the product, you may solve the problem referring to the Users’ Manual. As this manual contains the product warranty card, please keep it in a safe place. This system conforms to NSF/ANSI 42 for aesthetic chlorine reduction and NSF/ANSI 53 for VOC reduction as verified and substantiated by test data. This system conforms to NSF/ANSI 58 for the reduction of pentavalent arsenic, barium, cadmium, selenium, radium 226/228, trivalent chromium, hexavalent chromium, lead, copper as verified and substantiated by test data. See performance data sheet for individual contaminants and reduction performance. Continuous extraction function By fully depressing the lever the water will flow from the Edel Wasser continuously. Convenient for filling larger receptacles, e.g. for cooking.EN Uniform water pressure function In areas of high water pressure, Edel Wasser regulates its internal water pressure to ensure no damage is done to the workings of the device. Closed tank prevents the secondary pollution Edel Wasser provides extra sanitary protection with a closed structure of the inner water tank. This protects against secondary pollution such as dust, parasites or other foreign bodies. Hygienic filter in the water tank The Hygienic filter contains silver, which is known to inhibit the propagation of microorganisms and to maintain the integrity of the filter. Compact, slim design The compact, slim design fits any tight space in your kitchen.

Danger: if not observed, serious injury or even death may occur

• Do not install the water filtration system close to a heat source as fire may occur.

• If the device leaks water or water gathers in a pool around the device close the mains water supply and contact a Zepter Service Centre.

• Do not expose the device to any naked flame (such as candles or lit cigarette).

• Do not place any containers of water, medicine, food or any metallic objects, or any flammable material on top of the product.

• Do not disassemble, repair, or modify the product. All repairs must be carried out by a Zepter Service Centre only.

Warning: If not observed, serious physical injury or property

damage may occur as a result.

• Do not install the product on a sloped surface. SAFETY INFORMATIONEN

• Don’t apply force to the device or allow it to suffer impact.

• Do not clean by spraying water directly on the surface.

• Don’t clean the product using benzene or thinners. The filtration device installation shall comply with applicable state and local regulations. Caution: If not observed, minor physical injury or property damage may occur as a result.

• For clean drinking water, please change the filter according to the replacement cycle.

• Filters at end-of-life will hamper the filtration performance.

• Close the water tank cover completely after use to prevent secondary pollution.

• When the device has been unused for a long time, drain the water tank completely, refill and drain again before using.

• Purified water is not suitable for fish tanks and aquariums.

• After moving the product or replacing the post-carbon block filter, black powder may collect on the bottom of the water tank. This is harmless.

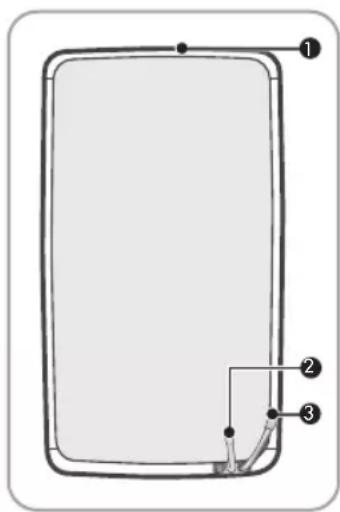

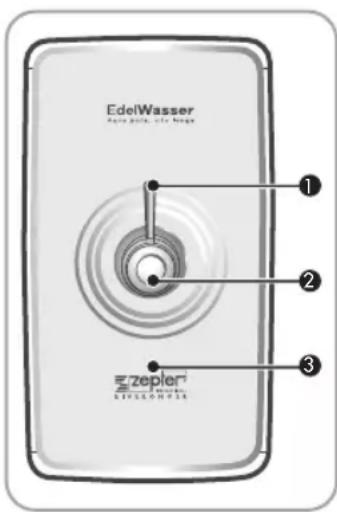

• Do not rotate or lift the device by grasping the purified water tap as damage may occur. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. ➊ Extraction lever ➋ Extraction tap ➌ Front cover ➊ Top cover ➋ Mains water inlet hose (Orange) ➌ General use water outlet hose (Blue)

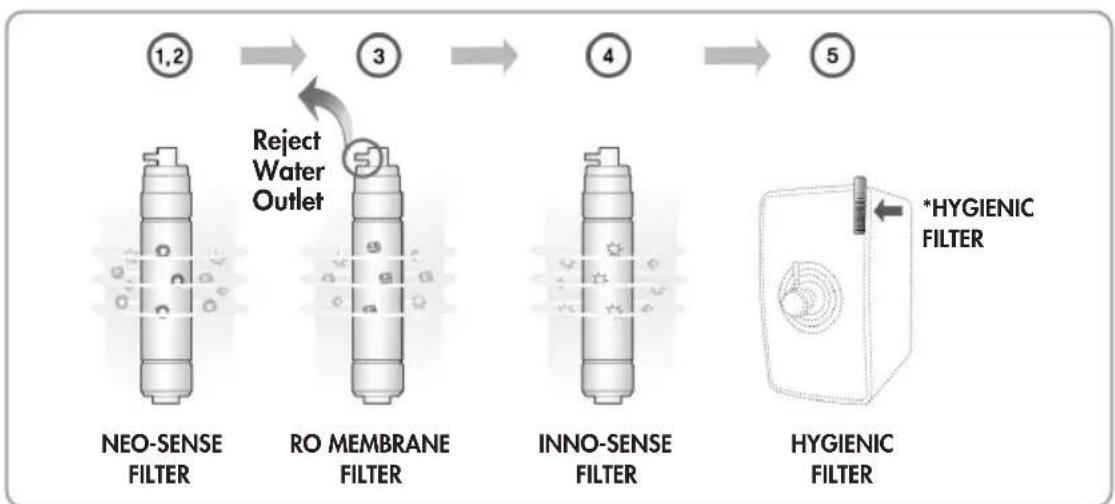

The filter is the core technology of the filtration system. If you use a non- Zepter supplied filter or if you use an old filter that has expired, the system performance may degrade.

This neo-sense filter has the function to reduce aesthetic chlorine, odor, volatile organic compounds (VOC’s). 4 STEP 3: MEMBRANE FILTER (RO) RO membrane filter has the function to reduce water contaminants such as pentavalent arsenic, barium, cadmium, selenium, radium 226/228, trivalent chromium, hexavalent chromium, lead, copper.

4 STEP 4: INNO-SENSE FILTER

This Inno-sense filter has the functions to reduce smell induction material and to improve water taste. It also has the function to reduce aesthetic chlorine, volatile organic compounds (VOC’s).

4 STEP 5: HYGIENIC FILTER*

*The Hygienic filter contains silver, which is known to inhibit the propagation of microorganisms and to maintain the integrity of the filter. NEO-SENSE FILTER RO MEMBRANE FILTER INNO-SENSE FILTER HYGIENIC FILTER *HYGIENIC FILTER Reject Water OutletEN

Tips Uses of the General use water - The General Use water should be used only for cleaning or purposes other than drinking. - Never use the general use water for drinking or for cooking.

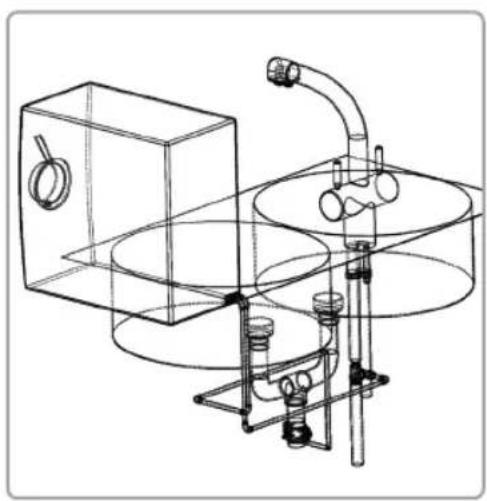

INSTALLATION Follow the instruction for installation Main water supply valveInlet tubing (Orange)Outlet tubing (Blue) Possibility 1 Possibility 2EN Be cautious!

• Water filtration device installation place 1 Please install the water filtration system not at a rough place, a damp place, a place where the unit is exposed to the direct sunlight, a place where dust is present, or a place that the water drops.

• Water filtration device installation place 2 Please install at the place where it is 10 cm or more off from the wall and the bottom is flat and firm.

• After installing the water filtration system Please empty the water tank filled with filtered water two times after the product installation.

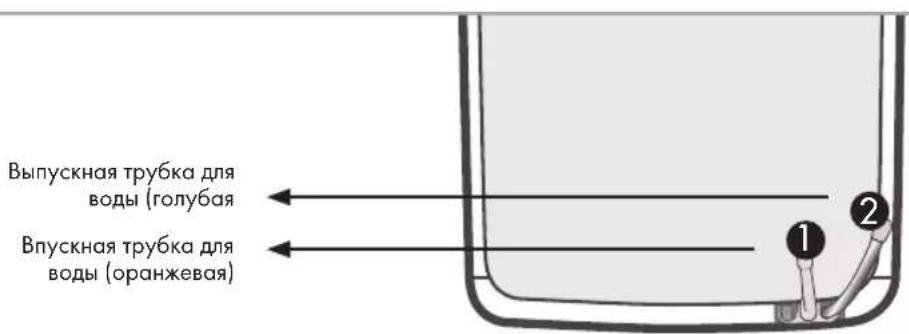

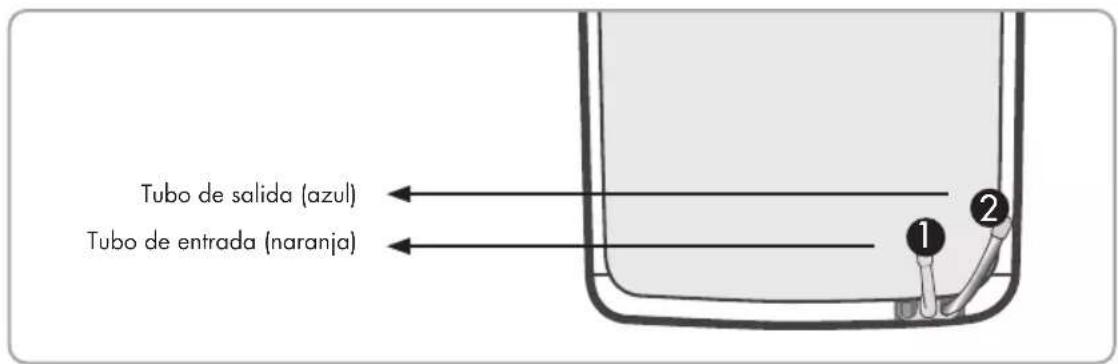

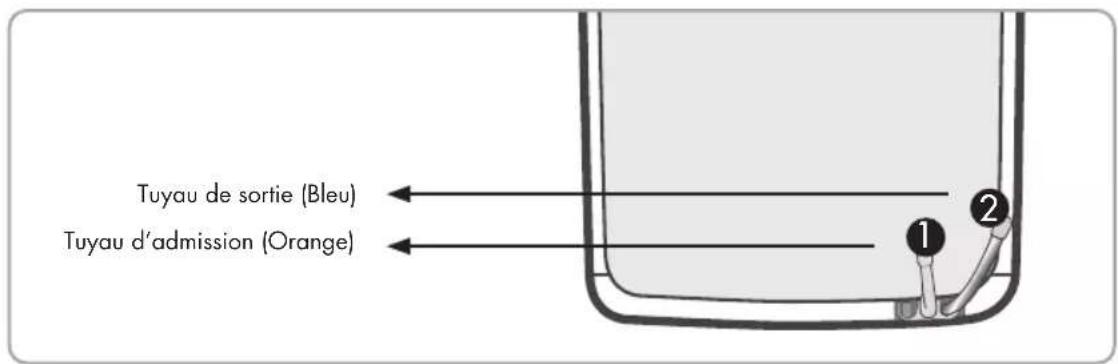

• Cold water plumbing Please connect the source water. Make sure that the source water is not from hot water line. If you use hot water as source water, then it will cause permanent damages to RO membrane and severely degrade the product performance.

• Filters installation NEO-SENSE Filter, RO MEMBRANE Filter and INNO-SENSE Filter are already installed inside of the device To install Hygienic filter follow next steps:

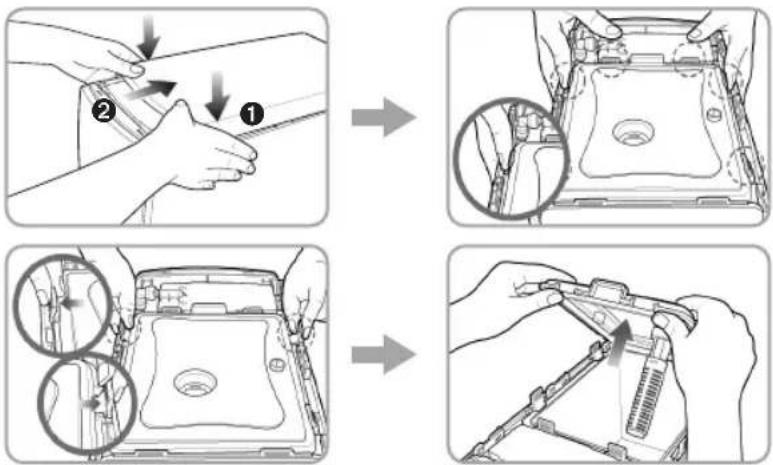

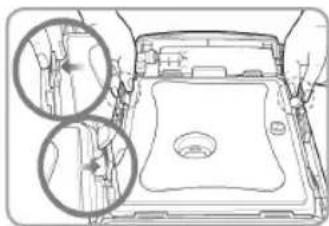

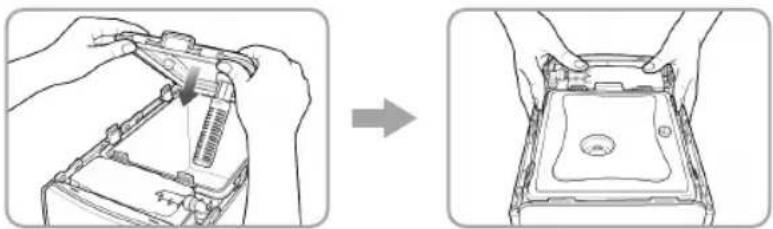

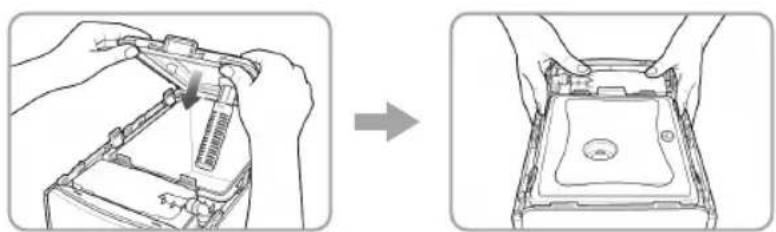

1) Please remove the top cover, and then un-hook the fixed clip holding the

top cover of the water tank. Now open the tank cover.

2) Unpack the Hygienic filter from foil.

3) Apply the Hygienic filter on the water tank cover.

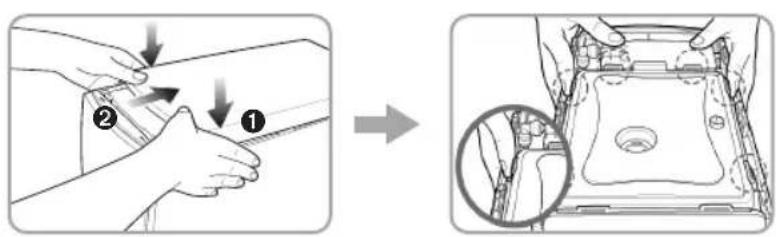

4) Close the water tank cover and assemble the fixing clip.

Tips - There may be some water remaining inside of the filter which was used to test the product during inspection process at the factory. Please feel at ease and use as it isn’t a used product. - Don’t reuse the main water supply valve and hose that was previously used when you re-install the product. - System and installation shall comply with local laws and regulations.EN Installation of inlet tubing (orange) ATTENTION Plumbing and carpentering work is needed Ensure, whether the main water supply is turned off before any plumbing work is started. POSSIBILITY 1 Precautions

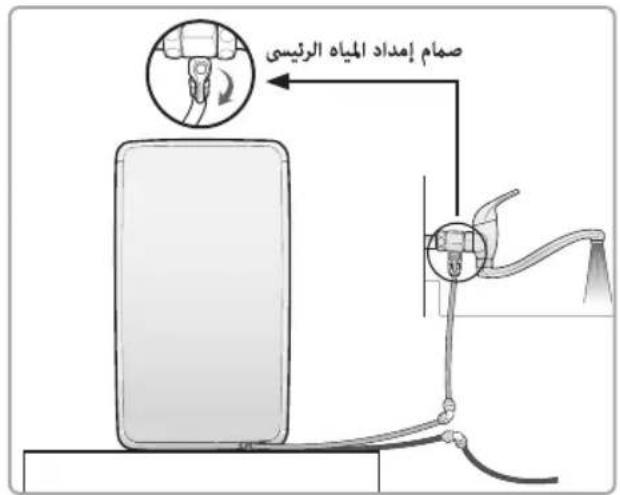

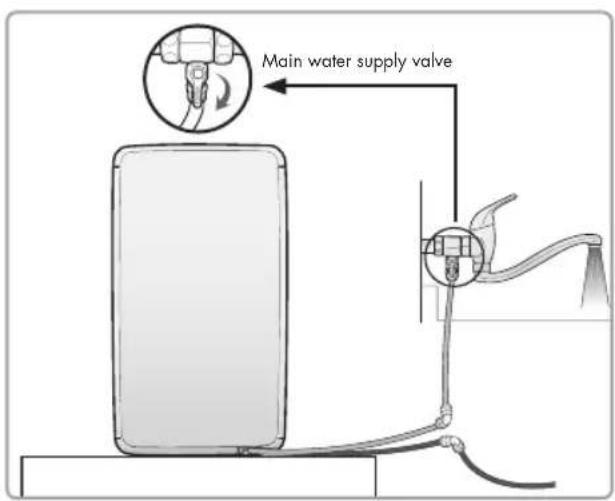

1. Close the mains water supply valve to separate

2. Apply the Teflon tape onto the adaptor and fit it

to the pipe. Do not turn the water pipe.

3. Connect the tap to the adaptor.

Install the adaptor with connector on the cold water pipe.

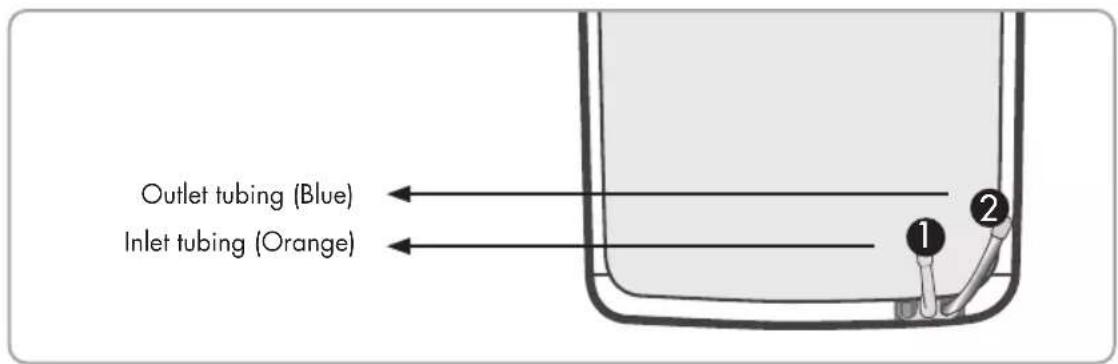

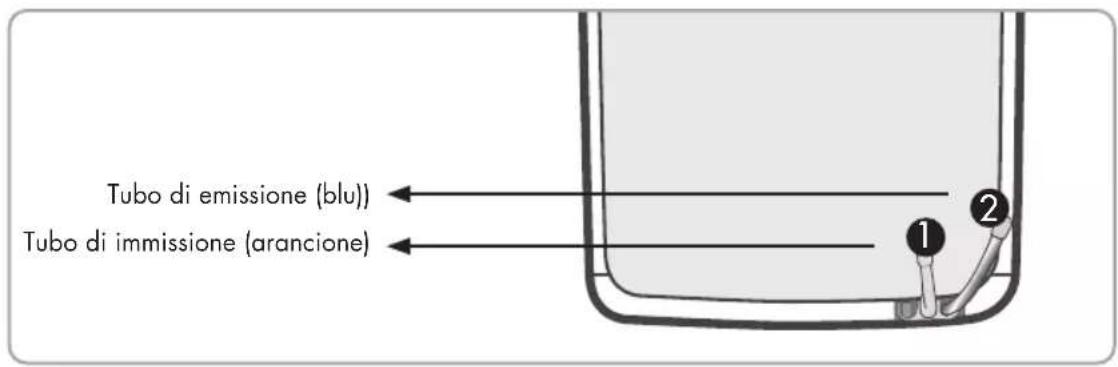

4. Connect 1/4 inch orange tubing with the connector

on the adaptor. Flush water through each filter for at least 5 minutes before connection.

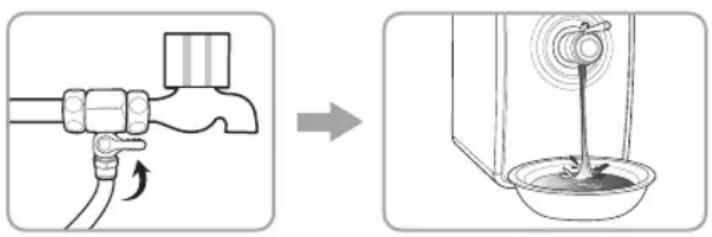

5. Open the feed valve to supply water to the

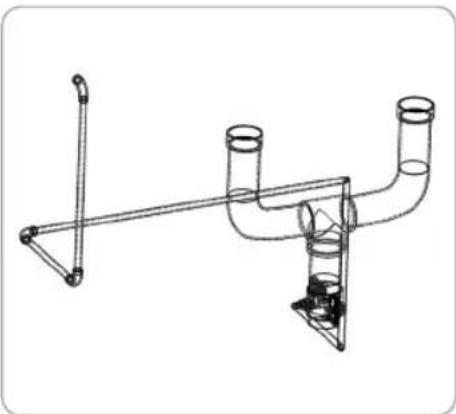

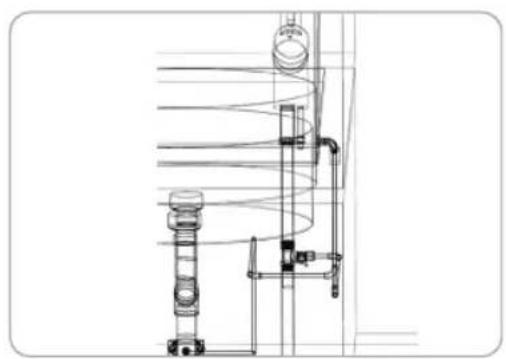

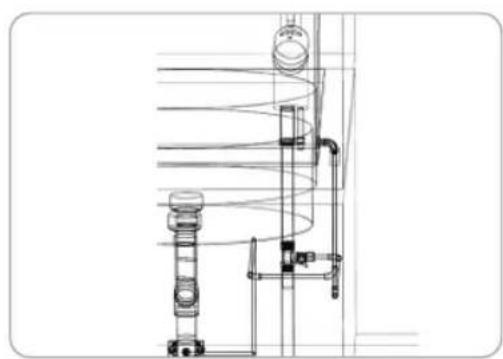

POSSIBILITY 2 It can be use in case when the customer prefer installation of inlet tube under the sink.

1. Close the main water supply.

2. Install the adaptor with connector on the cold

3. Connect the inlet tube (orange) with the

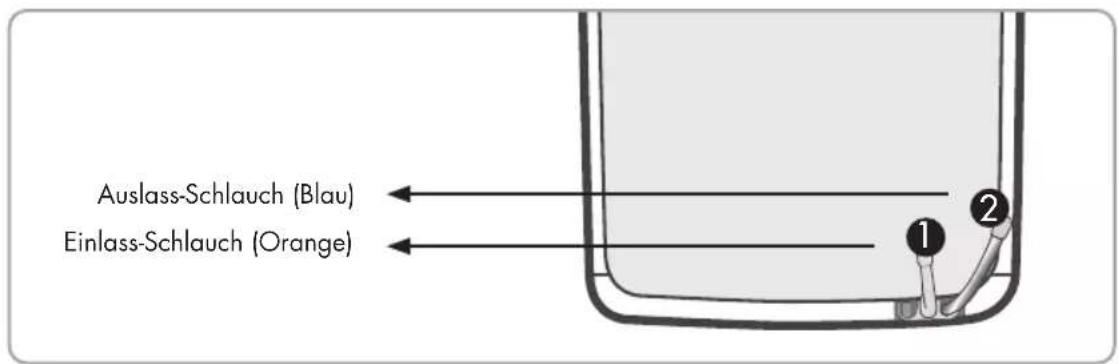

4. Plug orange inlet tube to the main device.

5. Open the feed valve to supply water to the filtration system.

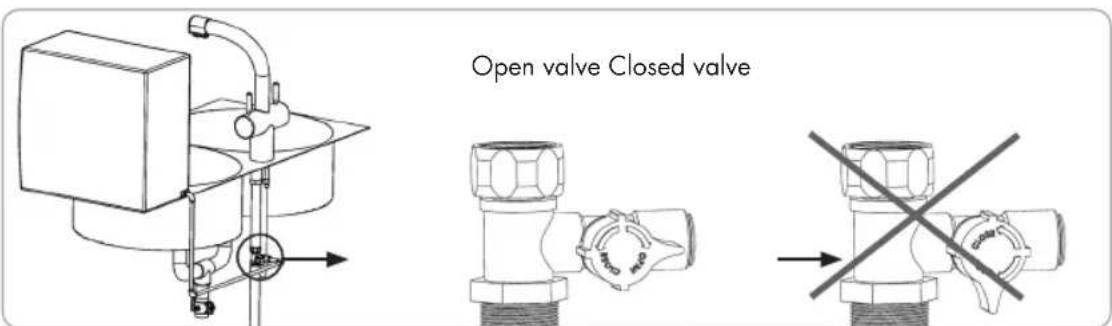

Open valve Closed valveEN Installation of outlet tubing (blue) ATTENTION Plumbing and carpentering work is needed Ensure, whether the main water supply is turned off before any plumbing work is started. Following installation can be use in case when the customer prefer to connect outlet tube for waste water to the drain under the sink.

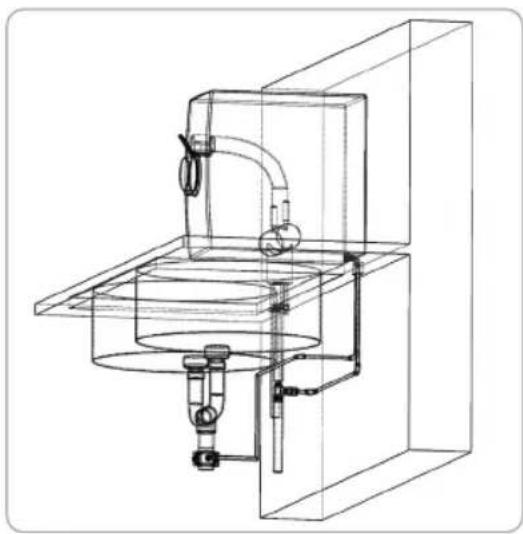

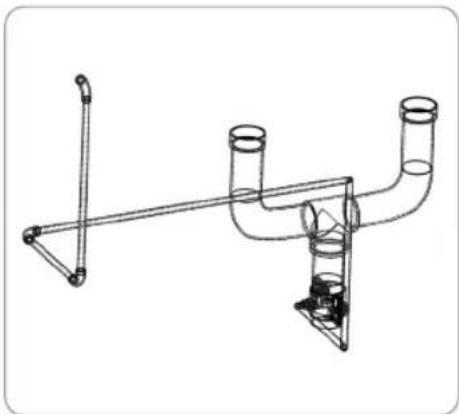

1. Cut a square 16x25mm in the kitchen desk

(if is needed) and put the blue outlet tube trough.

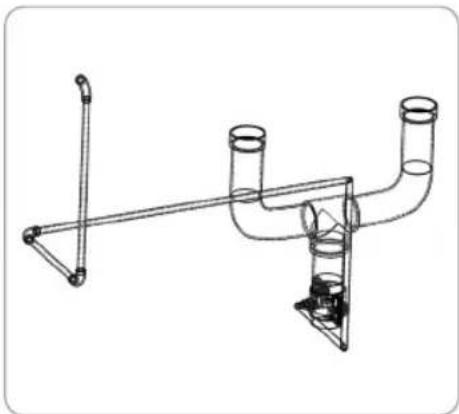

2. Use the “drain clamp” for better outlet tube

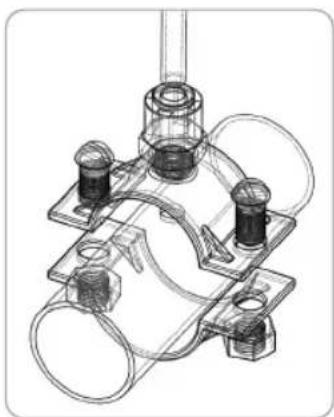

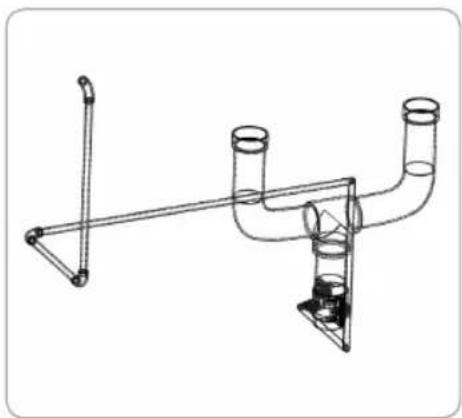

3. Drill the hole 6.5 – 7 mm in to drain pipe

4. Insert the blue tube in to upper part of the clamp (blue outlet tube should

be inserted inside of the drain pipe) and screw the clamp togetherEN

properly and water does not leak.

• After installing the product Get rid of the saved water above the full water in the inner water tank 2 times or more to use.

• When you haven’t used for a long time If you saved the water for a long time or you didn’t use, drain the water inside of the water filtration device completely and remove the newly filtered water one time to use.

• Regular filter replacement It is important to replace the filter regularly to maintain water quality as it is designed. If the filter is overused beyond its service life, the performance of the water filtration device deteriorate. Do not miss the filter replacement cycle. Tip When you aren’t going to use Edel Wasser for a long time, close the main water supply valve.EN

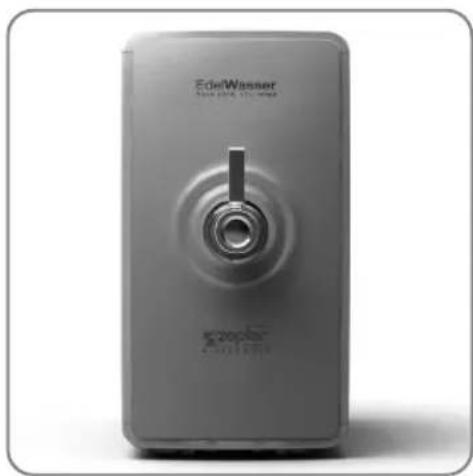

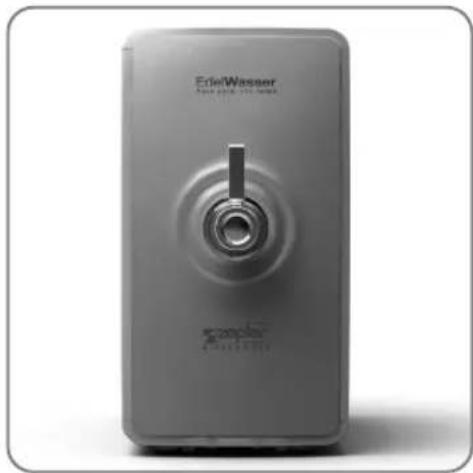

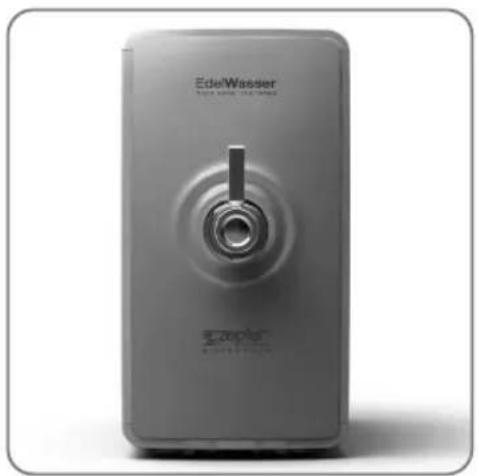

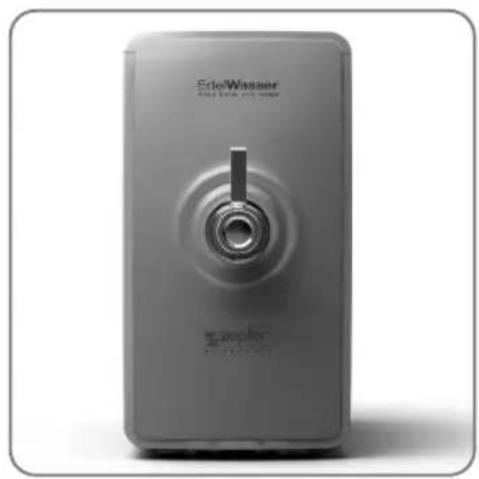

FOR PURIFIED WATER: place your drinking vessel under the extraction tap and pull the extraction lever downward. FOR CONTINUOUS WATER FLOW: fix the extraction lever by turning it down about 90˚ Tips - Don’t grasp, rotate or shake from side to side, the extraction tap or extraction lever. The product may break. - Don’t raise or move the product holding the extraction tap or extraction lever. Product damage may occurr. FILTER Filter Use only Edel Wasser’s authorised filters and parts. Filter is a critical component for a water filtration system. Replacing authorised filters at a specified replacement cycle is important to maintain the water quality, and a proper system operation. Please replace filters at a specified replacement cycle. For replacement filters, please contact a Zepter Service Centre. Filter replacement cycle If the filter is not regularly replaced, it may degrade the water quality from the product. The source water quality can shorten the filter replacement period.EN

*The Hygienic filter contains silver, which is known to inhibit the propagation of microorganisms and to maintain the integrity of the filter. The filter replacement cycle described is not the filter quality warranty period but the expected cycle (life) that the filter shows its original performance. (Based on the tap water) Therefore, the filter change cycle may be reduced for the area with poor water quality or more applications. Middle East & North African countries Following filter replacement cycle is recommended for countries where feed water contains high level of suspended solids (particles, sediment, etc.) Filter replacement method

1) Close the main water supply valve and drain the water inside of the water

filtration device completely. Filter name Expected replacement cycle Neo-sense filter Code: PWC-670-01 Every 6 months Inno-sense filter Code: PWC-670-02 18 months Membrane filter (RO) Code: PWC-670-03 20 months Hygienic filter* Code: PWC-670-09N 12 months Filter name Expected replacement cycle Neo-sense filter Code: PWC-670-01 4-6 months Inno-sense filter Code: PWC-670-02 10-12 months Membrane filter (RO) Code: PWC-670-03 12 months Hygienic filter* Code: PWC-670-09N 12 monthsEN

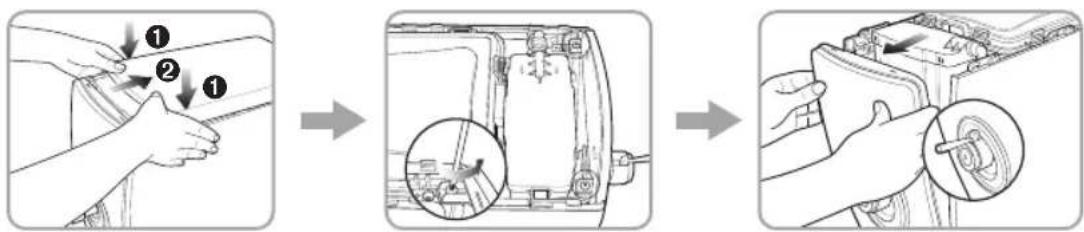

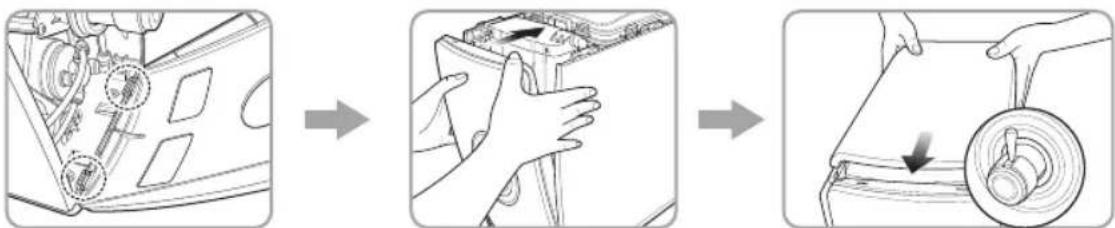

2) Open the top cover of the product and open the front cover. (Loosening

two screws with a screwdriver, lift off the front cover). Tip - Don’t push the extraction lever with excessive force. You may damage the product as a result.

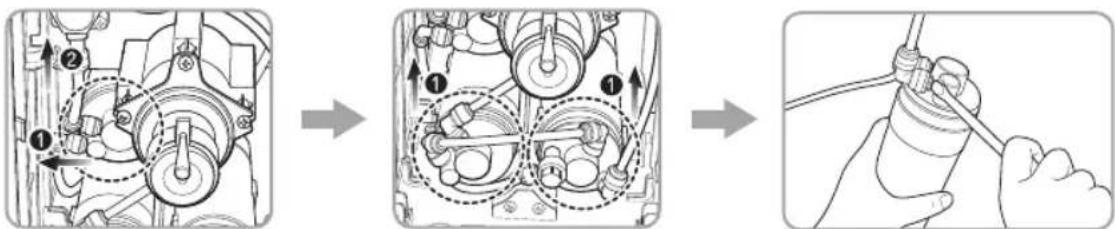

3) Separate the fitting connected to the specific filter and then replace the

filter. (Separate the fitting with an appropriate tool). Tip - Change the filter and connect the fitting and the hose carefully, check that there is no leakage and drain the first purified water.

4) Close the front cover by fitting into the grooves. Tighten the two screws

on the front cover with a screwdriver. Close the top cover. Tip - If several filters are being replaced, perform cleaning of three minutes in between filter replacement.

Neo-sense filter 30 seconds Inno-sense filter 3 minutes Please use Neo-sense filtered water for cleansing Membrane filter 3 minutes Please use Neo-sense filtered water for cleansingEN

1) Close the main water supply valve.

2) Please empty the water tank completely using the continuous extraction

method (See Chapter ‘How to Use’).

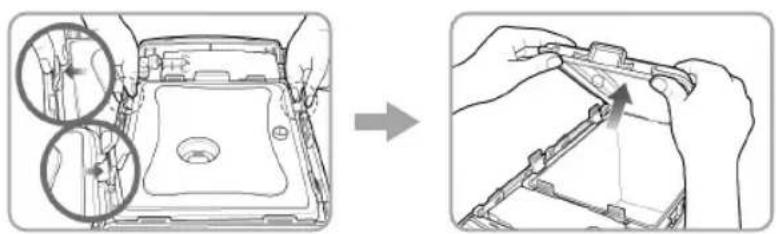

3) Please remove the top cover, and then un-hook the fixed clip holding the

top cover of the water tank. Now open the tank cover.

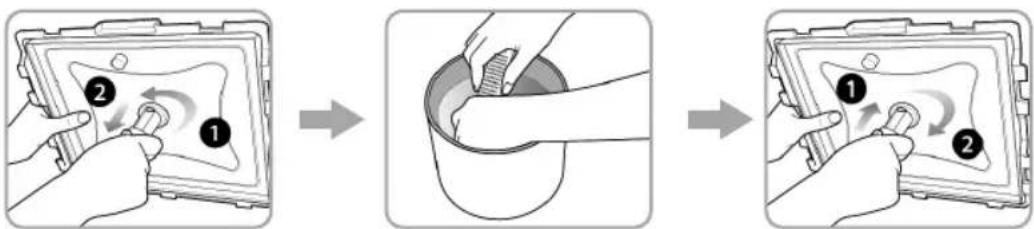

4) Separate the Hygienic filter from the water tank cover and shaking and

cleaning it in the drained water. Install again after cleaning.

5) Please wipe the surface of the storage tank with soft clothes.

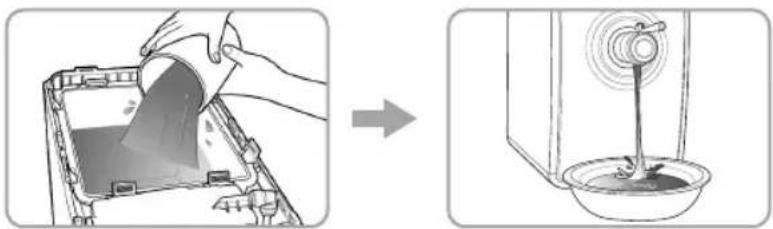

6) Use the storage tank after cleaning it with the drained water, and empty

the water tank using the continuous extraction method.

7) Close the water tank cover and assemble the fixing clip.

8) Close the upper cover, and open the main water supply valve.

Tips - Close the storage tank cover completely to prevent insects or other foreign particles entering. Do not use chemicals or detergent when cleaning the storage tank as if they are not rinsed completely from the device they may damage your health. - Keep the surroundings clean and clean the storage tank once every two months.EN

TECHNICAL SPECIFICATIONS Zepter International reserves the right to change all parts of the product for the purpose of improving performance.

• The water amount can be differentiated according to the water pressure and the water temperature.

• The water tank capacity is the amount by the size and can be different from the extraction capacity.

• Without any prior notice, all or parts of the product are subject to change for the purpose of improving the performance of the product.

• Refer to Performance data sheet for individual contaminants Reduction performance and general Operating information.

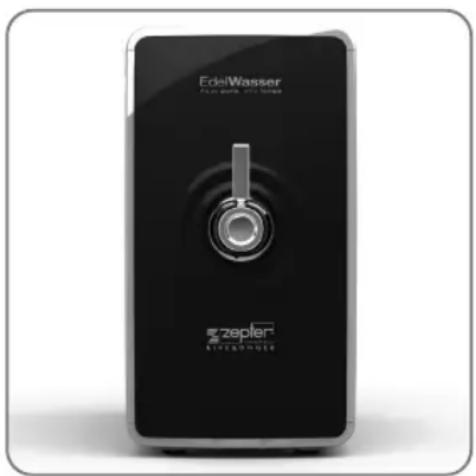

PWC-670-BLACK PWC-670-GOLD

PRODUCT NAME: ZEPTER EDEL WASSERModel2 models: PWC-670-BLACK / PWC-670-GOLDPurified Method` Reverse OsmosisTank Capacity3.9 L (1.03 gal)Dimension200 mm (Width) X 390 mm (Depth) X 370 mm (Height)Net Weight4.5 kg Working Pressure138 kPa - 827 kPa (20 psi - 120 psi)Working Temperature 5 °C - 35 °C (41 °F - 95 °F)Rated Service Flow0.26 L/min (0.07 GPM)Daily Water Production Rate*168.5 L/d (44.5 GPD)Product Efficiency Rating*20.7 %*Daily Water Production Rate and Product Efficiency Rating can be differentiated according to the inlet water pressure and water temperature.EN TROUBLESHOOTING SYMPTOM CHECK

• You did not clean the storage tank. Clean the storage tank.

• You have not used the water filter for a long time. Get rid of the saved water and clean the storage tank.

• It is time to change the filter. Replace filters. No water comes out of the extraction tap.

• The water supply is cut off.

• The water supply valve is closed. Open the main water supply valve.

• The water extraction tap is not working. Contact a Zepter Service Centre.

• The filter replacement times have been missed. Replace filters. Water flows slowly from the extraction tap.

• It is time to change the filter. Replace filters.

• The main water supply valve is not closed. Open the main water supply valve.

• The mains pipes are frozen. Call a pipe system specialist. A leakage has occurred.

• The water flow from the storage tank is blocked. Check the opening of the upper cover. Contact a Zepter Service Centre.EN

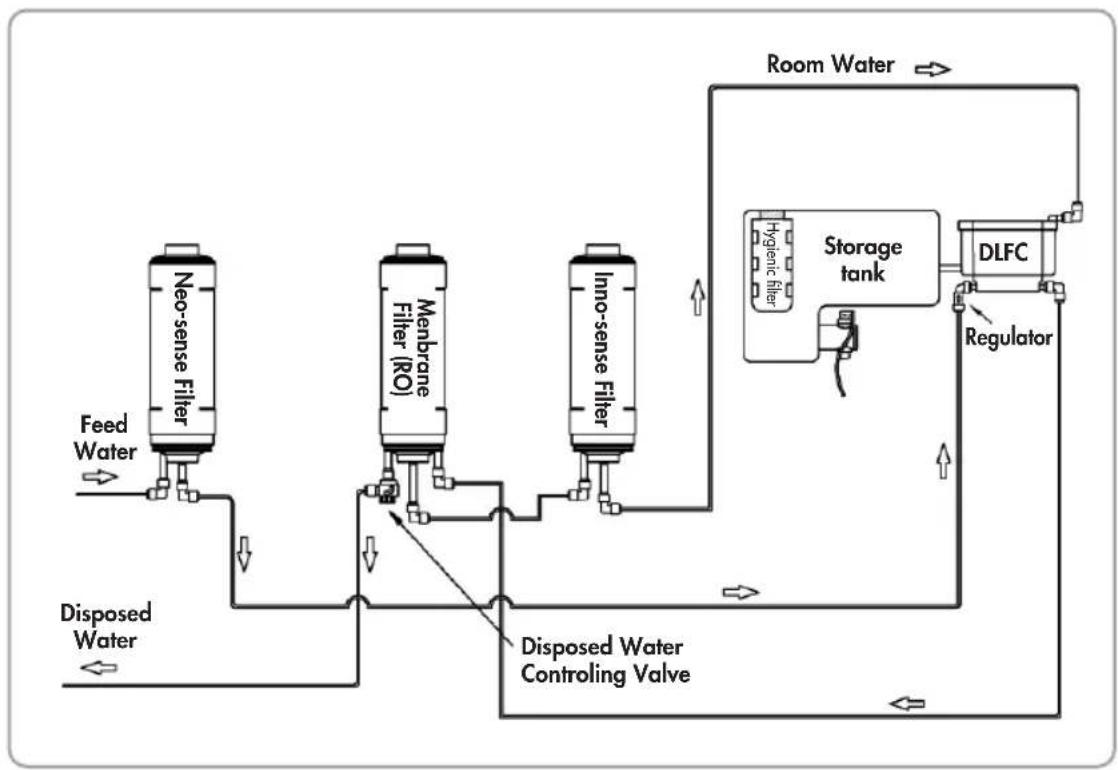

Feed Water Disposed Water Disposed Water Controling Valve Room Water Neo-sense Filter Inno-sense Filter Hygienic filter Menbrane Filter (RO) Regulator DLFC Storage tank

The Hygienic filter contains silver, which is known to inhibit the propagation of microorganisms and to maintain the integrity of the filter.EN

WARRANTY CARD AND SERVICE INFORMATION

Please fill in the blanks and save this in order to request service. WARRANTY CARD SERVICE INFORMATION Product Name Authorized service centre Name and address Filling time: EDEL WASSER

SERVICE BOOK Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

Filter replaced: Next replacement: Service man stamp and signature:

GUARANTEE PRODUCT WARRANTY All our appliances have undergone strict inspection tests and are guaranteed against manufacturing defects. The Warranty is valid from the date of purchase, as indicated on the invoice issued by the dealer upon delivery of the appliance. The manufacturer undertakes to repair or replace, free of charge, those parts that are found to have a manufacturing defect within the Warranty period. Those defects that are not clearly attributable to either the material or the manufacturing will be examined at one of our Zepter Service Centres or at our headquarters and charged according to the outcome. The warranty is only valid if:

1. The machine is found to have material or product defects.

2. No signs of breakage by the customer, or of original pieces having been

fitted by an unauthorised person have been found.

3. Original accessories have been used.

4. The machine has not been overloaded or caused to crash.

The Warranty does not apply to:

1. Components subject to wear and tear.

2. Damage caused by transport, incorrect use, negligence or faulty

installation, as per the warnings set out in the product catalogue.

3. Consumables (including filters which have to be replaced periodically).

This Warranty does not affect the consumer’s statutory rights applicable under in-force national legislation, or the consumer’s entitlements vis à vis the retailer as set out in the sales/purchase agreement. In the absence of applicable national legislation, this Warranty will constitute the consumer’s sole and exclusive legal recourse. In this case, the manufacturer will not be liable for any accidental or consequential damage arising from the breach of any express or implied guarantee of this product. The manufacturer’s liability will be limited to and will not exceed the product purchase price paid by the consumer. This Warranty does not cover damage to the product resulting from mistreatment or misuse of same, inappropriate packaging, accidents, or maintenance and repair operations carried out by unauthorised service centres. The manufacturer reserves the right to withdraw its Warranty if the label containing the product serial number has been removed or rendered illegible after purchase.EN Rated Capacity681.4 L (180 gallons) - (for VOC)16655.8 L (4 400 gallons) - (for Aesthetic Chlorine)Min-Max operating pressure: 138kPa ~ 827kPa (20 psi ~ 120 psi)Min-Max feed water temperature: 5 ºC ~ 35 ºC (41ºF ~ 95 ºF)Rated Service Flow 0.26 L/min (0.07 GPM)Daily Water Production Rate* 168.5 L/d (44.5 GPD)Product Efficiency Rating* 20.7 % Substance Max. Allowable Concentration (mg/L) Average Influent (mg/L) Average Effluent (mg/L) Minimum Percent Reduction (%) Average Percent Reduction

This system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, and 58 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI, 53, and 58. While testing was performed under laboratory conditions, actual performance may vary. GENERAL OPERATING INFORMATION: *Daily Water Production Rate and Product Efficiency Rating can be differentiated according to the inlet water pressure and water temperature. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.EN

• Refer to the owners manual for specific installation instructions, manufacturer’s limited warranty, user responsibility, and parts and service availability.

• The influent water to the system shall include the following characteristics: - No organic solvents - Chlorine: < 2 mg/L - pH: 7 - 8 - Temperature: 5 ºC ~ 35 ºC (41 ºF ~ 95 ºF) - Iron: < 2 mg/L - Turbidity: < 1 NTU - Hardness: < 1 000 mg/L

• For parts and service availability, please contact your local Zepter dealer.

• This system has been tested for the treatment of water containing pentavalent arsenic (also know as As(V), As(+5), or arsenate) at concentrations of 0.050 mg/L or less. This system reduces pentavalent arsenic, but may not remove other forms of arsenic. This system is to be used on water supplies containing a detectable free chlorine residual at the system inlet or on water supplies that have been demonstrated to contain only pentavalent arsenic. Treatment with chloramines (combined chlorine) is not sufficient to ensure complete conversion of trivalent arsenic to pentavalent arsenic. Please see the Arsenic Facts section of this Performance Data Sheet for further information.

• Efficiency rating means the percentage of the influent water to the system that is available to the user as reverse osmosis treated water under operating conditions that approximate typical daily usage.

• The product water should be tested every 6 months to ensure that the contaminants are being reduced effectively. Please contact your local Zepter dealer. to initiate this service.

• This reverse osmosis system contains a replaceable treatment components, critical for the effective reduction of total dissolved solids and that product water shall be tested periodically to verify that the system is performing properly. Replacement of reverse osmosis component should be with one of identical specifications, as defined by the manufacturer, to assure the same efficiency and contaminant reduction performance.

• The estimated replacement time of filter, which is a consumable part, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. Accordingly, the estimated time of filter replacement may be shortened in case it is used in an area of poor water quality.EN Middle East & North African countries ARSENIC FACTS Arsenic (abbreviated As) is found naturally in some well water. Arsenic in water has no color, taste or odor. It must be measured by a lab test. Public water utilities must have their water tested for arsenic. You can get the results from your water utility. If you have your own well, you can have the water tested. The local health department or the state environmental health agency can provide a list of certified labs. The cost is typically $15 to $30. Information about arsenic in water can be found on the Internet at the US Environmental Protection Agency website: www.epa.gov/safewater/arsenic.html There are two forms of arsenic: pentavalent arsenic (also called As(V), As(+5), and arsenate) and trivalent arsenic (also called As(III), As(+3), and arsenite). In well water, arsenic may be pentavalent, trivalent, or a combination of both. Special sampling procedures are needed for a lab to determine what type and how much of each type of arsenic is in the water. Check with the labs in your area to see if they can provide this type of service. Reverse osmosis (RO) water treatment systems do not remove trivalent arsenic from water very well. RO systems are very effective at removing pentavalent arsenic. A free chlorine residual will rapidly convert trivalent arsenic to pentavalent arsenic. Other water treatment chemicals such as ozone and potassium permanganate will also change trivalent arsenic to pentavalent arsenic. A combined chlorine residual (also called chloramine) may not convert all the trivalent arsenic. If you get your water from a public water utility, contact the utility to find out if free chlorine or combined chlorine is used in the water system. The PWC-670 system is designed to remove pentavalent arsenic. It will not convert trivalent arsenic to pentavalent arsenic. The system was tested in a lab. Under those conditions, the system reduced 0.050 mg/L pentavalent arsenic to 0.010 mg/L (ppm) (the USEPA standard for drinking water) or less. The performance of the system may be different at your installation. Have the treated water tested for arsenic to check if the system is working properly. The RO component of the PWC-670 system must be replaced every 20 months to ensure the system will continue to remove pentavalent arsenic. The component identification and locations where you can purchase the component are listed in the installation/operation manual. Model of Filter Type Usable period (months) Code: PWC-670-01 NEO-SENSE FILTER 6 Code: PWC-670-03 RO MEMBRANE FILTER 20 Code: PWC-670-02 INNO SENSE FILTER 18 Code: PWC-670-09N HYGIENIC FILTER* 12 Model of Filter Type Usable period (months) Code: PWC-670-01 NEO-SENSE FILTER 4-6 Code: PWC-670-03 RO MEMBRANE FILTER 10-12 Code: PWC-670-02 INNO SENSE FILTER 12 Code: PWC-670-09N HYGIENIC FILTER* 12

• The Hygienic filter contains silver, which is known to inhibit the propagation of microorganisms and to maintain the integrity of the filter.EN
