PS 120 - Sharpener Genie - Free user manual and instructions

Product Type	Battery-Powered Electric Sharpener
Brand	Genie
Model	PS 120
Dimensions (L x W x H)	75 x 74 x 77 mm
Weight	140 g
Power Supply	4 AA batteries (not included)
Sharpening diameter (small hole)	6 to 8 mm
Sharpening diameter (large hole)	9 to 12 mm
Main Function	Sharpen pencils
Additional Functions	Large hole for thick pencils, emptying the collector container, blade replacement
Safety Mechanism	Safety flap for the large hole
Required battery type	AA, 1.5 V, non-rechargeable
Battery polarity	Observe the (+/-) markings in the compartment
Maintenance	Clean with a dry cloth, do not immerse, do not use solvents
Emptying the container	Empty when the container is about half full
Blade replacement	Slide the blade stoppers upward, remove the blades with a screwdriver
Warranty	Return the device in its original packaging with the receipt
Recycling	Device and batteries are recyclable, do not dispose of with household waste
Temperature and exposure	Do not expose to sunlight, heat, water, or humidity
Intended use	Sharpen pencils only

Frequently Asked Questions - PS 120 Genie

How to insert the batteries into the Genie PS 120 sharpener?

Open the battery compartment cover located under the device. Insert 4 AA batteries respecting the indicated polarity (+ and -). Close the cover. Use only the recommended battery type.

How to sharpen a pencil with the small hole?

Insert a pencil with a diameter of 6 to 8 mm into the small hole and push it down. The sharpener starts automatically. Once sharpened, remove the pencil.

How to use the large hole for thick pencils?

Push the safety flap backward to release the large hole. Insert a pencil with a diameter of 9 to 12 mm and sharpen as with the small hole. The flap closes automatically after use.

How to empty the shavings collector container?

Gently press the sides of the transparent container and pull it forward to remove it. Empty it and put it back until it clicks. Empty it when the container is half full.

What to do if the sharpener does not work?

First check that the batteries are properly inserted and charged. If the problem persists, contact customer service. Do not attempt to repair the device yourself.

How to change the sharpener blades?

Slide the blade stoppers upward and remove them. Use a screwdriver to unscrew the used blades. Replace them with new blades (reference not provided). Caution: do not touch the blade with your fingers.

Can I sharpen colored pencils with this sharpener?

Yes, the Genie PS 120 sharpener is designed to sharpen all types of pencils, including colored pencils, within the indicated diameters (6-8 mm for the small hole, 9-12 mm for the large).

How to clean the sharpener?

Clean the exterior with a dry cloth. Never immerse the device in water. Do not use solvents like alcohol, benzene, or thinner. Empty the shavings container regularly.

What safety precautions should be followed?

Never insert fingers into the holes. Do not sharpen without the collector container in place. Keep the device out of reach of children. Do not expose to water, heat, or humidity. In case of battery leakage, wear gloves.

How to dispose of the sharpener at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for waste electrical and electronic equipment. Used batteries must be recycled separately in the designated containers.

USER MANUAL PS 120 Genie

Exterior view of a modern office building (no signage)

GB Operating instructions 6 - 8

Line drawing of a hand inserting a small component into a mechanical housing (no text or symbols)

Hand holding a small mechanical component with internal parts, no visible text or symbols

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and a close-up view (no text or symbols)

1.

Cutting mode small hole

Change of the blades

changer les lames

cambiare le lame

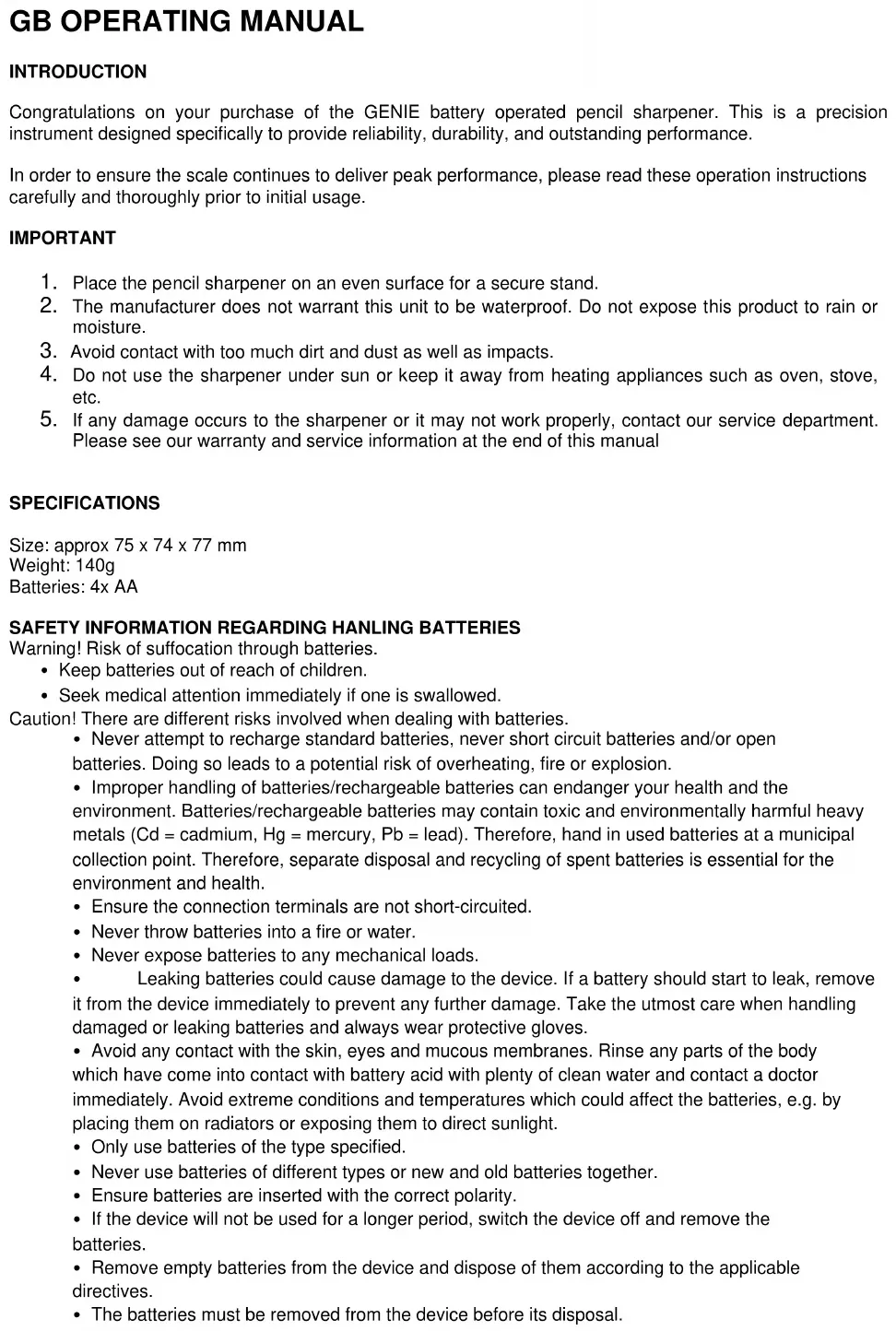

Congratulations on your purchase of the GENIE battery operated pencil sharpener. This is a precision instrument designed specifically to provide reliability, durability, and outstanding performance.

In order to ensure the scale continues to deliver peak performance, please read these operation instructions carefully and thoroughly prior to initial usage.

IMPORTANT

1. Place the pencil sharpener on an even surface for a secure stand.
2. The manufacturer does not warrant this unit to be waterproof. Do not expose this product to rain or moisture.
3. Avoid contact with too much dirt and dust as well as impacts.
4. Do not use the sharpener under sun or keep it away from heating appliances such as oven, stove, etc.
5. If any damage occurs to the sharpener or it may not work properly, contact our service department. Please see our warranty and service information at the end of this manual

SPECIFICATIONS

Size: approx 75 x 74 x 77 mm

Weight: 140g

Batteries: 4x AA

SAFETY INFORMATION REGARDING HANLING BATTERIES

Warning! Risk of suffocation through batteries.

• Keep batteries out of reach of children.
• Seek medical attention immediately if one is swallowed.

Caution! There are different risks involved when dealing with batteries.

• Never attempt to recharge standard batteries, never short circuit batteries and/or open batteries. Doing so leads to a potential risk of overheating, fire or explosion.
• Improper handling of batteries/rechargeable batteries can endanger your health and the environment. Batteries/rechargeable batteries may contain toxic and environmentally harmful heavy metals (Cd = cadmium, Hg = mercury, Pb = lead). Therefore, hand in used batteries at a municipal collection point. Therefore, separate disposal and recycling of spent batteries is essential for the environment and health.

- Ensure the connection terminals are not short-circuited.

- Never throw batteries into a fire or water.

- Never expose batteries to any mechanical loads.

• Leaking batteries could cause damage to the device. If a battery should start to leak, remove it from the device immediately to prevent any further damage. Take the utmost care when handling damaged or leaking batteries and always wear protective gloves.

- Avoid any contact with the skin, eyes and mucous membranes. Rinse any parts of the body which have come into contact with battery acid with plenty of clean water and contact a doctor immediately. Avoid extreme conditions and temperatures which could affect the batteries, e.g. by placing them on radiators or exposing them to direct sunlight.

• Only use batteries of the type specified.
• Never use batteries of different types or new and old batteries together.
• Ensure batteries are inserted with the correct polarity.
• If the device will not be used for a longer period, switch the device off and remove the batteries.

- Remove empty batteries from the device and dispose of them according to the applicable directives.

- The batteries must be removed from the device before its disposal.

- You are legally obliged to dispose of batteries at your dealer or at the collection points provided by the responsible waste disposal authority.

HOW TO USE

1 Insert the battery
Open the battery cover and insert the batteries and close the cover. Pay attention, to the right polarity.
2. Cutting mode small hole
Insert the pencil (6-8mm diameters) in the small hole and press down. The sharpener catches in to work. If the pencil is sharpened pull it out of the hole
3. Cutting mode big hole
Push back the security flap, the big hole is released and the pencil (9-12mm diameters) can be sharpened as described.
4. Container cleaning
Push in the transparent container on both sides firmly and pull it backwards. After cleaning insert the waste box back in place.

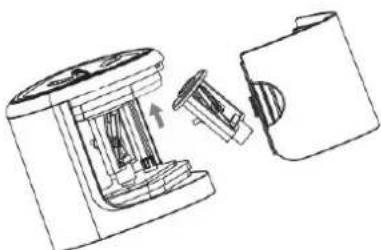

5. To the change of the blades push the blade holder upwards and take it out. Now the blades can be changed by a screwdriver.

CAUTION

DO NOT immerse main unit in water while cleaning.

DO NOT use any solvents such as alcohol, benzene or thinner to clean the unit.

Never insert hand or finger into pencil or receptacle tray opening.

• Always empty the pencil shavings when the receptacle is approximately half full.
• When the receptacle is removed, do not touch the cutter.
• Do not attempt to sharpen pencils while the receptacle cover is open.
• If the receptacle breaks, dispose of the entire unit.

Service

Dear customer,

we are delighted that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Disposal:

Packaging materials must be disposed of according to local regulations.

The Triman logo is only relevant for France.

The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.

		The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.
		Defective or empty batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and the device via the collection points provided.
		Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials.
		The logo is only applicable to Italy.
		Find out about the possibilities of taking back old appliances and used batteries free of charge from your dealer.

Declaration of Conformity

The CE Mark on the device confirms conformity.

The Declaration of Conformity can be read online at www.go-europe.com.

FR MODE D'EMPLOI

INTRODUCTION

45527 Hattingen (Germany)
