USER MANUAL NV7B5775WAK SAMSUNG

NV7B564**** / NV7B565**** / NV7B566**** / NV7B567**** / NV7B568**** /

NV7B564**C* / NV7B566**C* / NV7B568**C* / NV7B574**** / NV7B575**** /

NV7B576**** / NV7B577**** / NV7B578****

Tabla de contenidos

Simple line drawing of a rectangular tray with two circular ends, no text or symbols present.

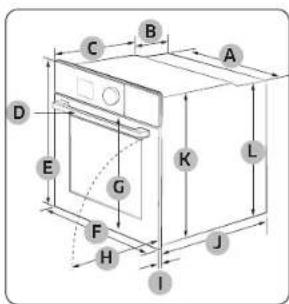

Horno (mm)

A 560 G 503
B 165 H 481
C 383 I 21
D 45 J 549
E 595 K 579
F 595 L 559

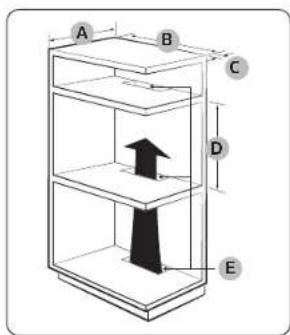

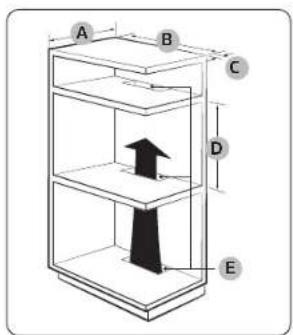

Armario empotrado (mm)

A Min. 550

B Min. 560

C Min. 50

D Min. 590 / Máx. 600

E Min. 460 x Min. 50

NOTA

Pure technical line drawing of a rectangular frame with a circular indicator and arrow, no text or symbols present.

Pure geometric diagram showing a circle intersected by two lines, with a labeled point A inside (no text or symbols beyond the label)

Technical line drawing of a structural frame with an inset magnified detail (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Illustration of four electronic components: a square enclosure, a rectangular tray, a small battery with indicator lights, and a grid-patterned case (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting a specific feature (no text or symbols present)

Illustration of a rectangular container with internal mesh pattern and decorative elements (no text or symbols)

Illustration of a hand inserting a device into a washing machine (no text or symbols)

Illustration of a hand pouring liquid into a container with a small mouth (no text or symbols)

Technical diagram of a mechanical component with labeled section A and centerline (no readable text or symbols)

NOTA

Line drawing of a hand using a tool to brush or mark a surface, with no text or symbols present.

Pure technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a tool near a window, with no visible text or symbols

1. Presione completamente la palanca del tirador.

Diagram of a door with an arrow indicating direction, showing a handle or lever (no text or symbols present)

1. Tire de la palanca.

Technical line drawing of a rectangular electronic component or panel with internal channels (no text or symbols)

Line drawing of a hand using a tool to clean or install a door panel (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

PRECAUCIÓN

Simple line drawing of a cabinet or wardrobe layout with shelves and a central shelf (no text or symbols)

Three identical diagrams showing a hand cursor clicking a circle on the right, with no text or symbols present.

Two identical rectangular panels with circular symbols, no text or labels present

Illustration of a hand pouring liquid into a tray inside an oven (no text or symbols)

Interior view of an oven with two stacked food items on the side (no text or symbols visible)

Line drawing of a minimalist room layout with bookshelves and a central table (no text or symbols)

Line drawing of a room with a central table and symmetrical doors (no text or symbols)

Diagram of a two-tiered storage unit or rack system (no text or symbols)

Illustration of a single shoe inside a bag (no text or symbols)

Diagram of a mechanical assembly inside a rectangular frame, showing internal components and no text or symbols.

Two identical rectangular panels, each with a hand hovering over a circle, no text or symbols present.

Simple line drawing of a cabinet or storage unit with shelves and doors (no text or symbols)

NOTA

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

Simple line drawing of a hand cleaning a rectangular container (no text or symbols)

Diagram showing a hand pressing down on a device inside a vehicle (no text or symbols present)

Diagram of a kitchen appliance with an open door and directional arrows indicating motion (no text or symbols)

Illustration of a car seatbelt with a magnified inset showing the wheel (no text or symbols)

Diagram of a wooden shelf with a magnified inset showing a hand holding a tool (no text or symbols present)

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

3D diagram of a square frame with an arrow and label '02' indicating direction (no text or symbols beyond labels)

Diagram of a mechanical or architectural component with no visible text, numbers, or symbols

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

ADVERTENCIA

Simple line drawing of a cylindrical object with a protruding rod (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a door or panel with a labeled component '01' (no other text or symbols)

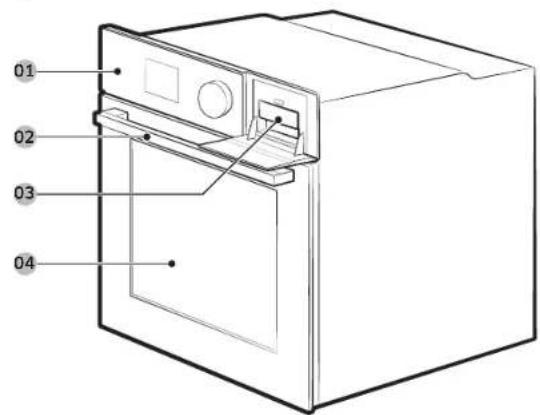

01 Colector de agua

Technical line drawing of a mechanical component with an inset showing a downward force or load (no text or symbols present)

Diagram of a ladder inside a frame with an arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small object inside a circular frame (no text or symbols)

ADVERTENCIA

Illustration of a hand holding a tool inside a circular frame, no text or symbols present

NV7B564**** / NV7B565**** / NV7B566**** / NV7B567**** / NV7B568**** /

NV7B564**C* / NV7B566**C* / NV7B568**C* / NV7B574**** / NV7B575**** /

NV7B576**** / NV7B577**** / NV7B578****
