Product type	Outdoor infrared heater
Brand	Etherma
Model	Solamagic SMD22000ARCT (D2 2000 W)
Power	2000 W
Power supply	230 V~50 Hz, safety plug
Protection rating	IP65 (dust and water tight)
Protection class	I (earthing required)
Dimensions (W x D x H)	Approx. 800 x 150 x 100 mm
Weight	Approx. 5 kg
Heating type	Halogen tube infrared
Number of heat levels	3 (33%, 66%, 100%)
Timer function	Yes (auto shut-off after 30, 60 or 90 minutes)
Remote control	Radio 433.92 MHz (manual transmitter FUS6 SOLAMAGIC)
Remote control range	Approx. 20 m in open air
Remote control battery	CR2032, 3V
Minimum mounting height	1.80 m above ground
Mounting	Hard and fire-resistant surface (wall or ceiling)
Beam orientation	Swivelling (horizontally adjustable)
Cleaning	Soft damp cloth (no detergent)
Warranty	5 years (12 months for heating tubes, max 5000 h)
Use	Outdoor only (terrace, balcony, etc.)

Frequently Asked Questions - Solamagic SMD22000ARCT Etherma

How to install the Solamagic SMD22000ARCT heater?

Installation must be carried out by a qualified professional. Attach the T-supports 400 mm apart on a hard, fire-resistant surface, at a height of at least 1.80 m. Hang the heater onto the adaptation claws and tighten the eccentric tensioner with an Allen key SW5. Observe the safety distances indicated in the appendix.

How to program the radio remote control?

Ensure only the device to be programmed is powered on. Briefly press a button (1-4) on the transmitter to start programming. The LED A flashes. Press again to confirm. To add a timer, double-click the same button (30, 60 or 90 min). A long press ends programming.

What are the available power levels?

Three levels: 33%, 66% and 100% of the nominal power (2000 W). You can select them via the remote control (long press) or via the button on the back of the device.

How to clean the heater?

Unplug the device and let it cool down. Wipe the housing with a soft damp cloth without detergent. Never immerse the device in water or spray it.

What safety distances must be observed?

Maintain a minimum distance of 1.80 m from the ground, 0.5 m from side walls, 1 m from the ceiling, and keep the device away from any flammable material. The radiating surface must not be directed towards an electrical outlet.

What to do if the remote control stops working?

Check the battery (CR2032) and replace it if necessary. Ensure no other radio device (mouse, keyboard) is interfering. If the problem persists, reset the receiver by powering the device off and on, and reprogram the transmitter.

Can this heater be used indoors?

No, this heater is designed for outdoor use only. It is not suitable for comfortably heating an indoor space and could pose a fire or burn hazard.

How to replace a defective halogen tube?

Tube replacement must be carried out by the manufacturer's after-sales service or an authorized dealer. Do not attempt to do it yourself, as the tubes are sensitive to skin contact and mechanical stress.

What to do if the device no longer heats?

First check the power supply (fuse, outlet). Ensure the remote control is programmed and the batteries are good. If LED C flashes, it indicates a radio transmission fault. Reset the device and reprogram it.

How to activate the auto shut-off timer?

After basic programming, double-click the transmitter button to program a duration of 30, 60 or 90 minutes. LED B flashes according to the chosen duration. An additional double-click deactivates the timer.

USER MANUAL Solamagic SMD22000ARCT Etherma

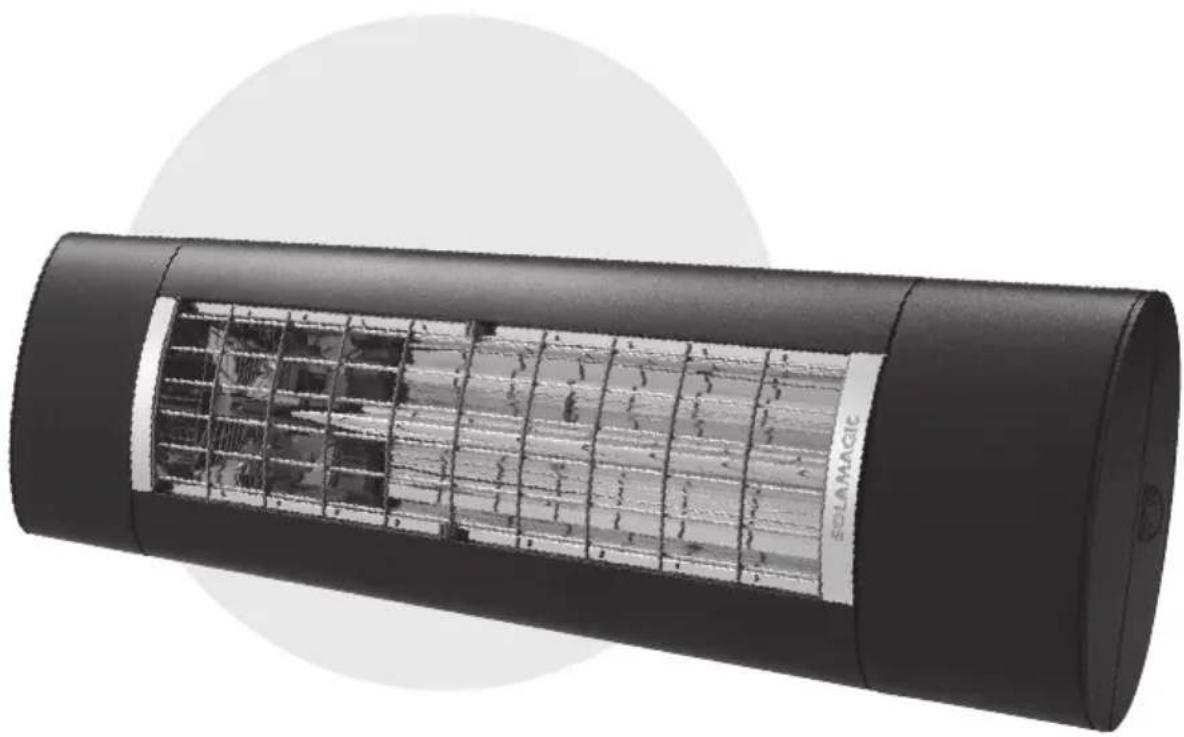

Exterior view of a cylindrical electronic device with visible internal grid structure and 'SOLA MAGIC' branding (no additional text or symbols)

SOLAMAGIC

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Isometric line drawing of a mechanical bracket with mounting holes (no text or symbols)

Schritt 1: T-Halter montieren

Diagram of a mechanical assembly with a tray, circular component, and paper (no text or symbols)

Reinigungshinweise

Black cylindrical device with grid pattern and 'SOLAMAGIC' label, no readable text or symbols beyond branding

SOLAMAGIC

Technical line drawing of a mechanical device with three circular insets showing close-ups of components (no text or symbols)

Isometric line drawing of a 3D mechanical bracket with labeled points C and O (no text or symbols beyond labels)

Stap 1: T-houder monteren

Diagram of a mechanical assembly with a tray, circular component, and paper (no text or symbols)

Exterior view of a cylindrical device with grid pattern and 'SOLA MAGIC' label (no other text or symbols)

Monterings- og brugsanvisning

S2 infrarød radiator 2500 W med varmetrin switch, IP65 (IR05007-WSI)

D2 infrarød radiator 2000 W med varmetrin switch, IP65 (DS05003-WSI)

05/2018

Indholdsfortegnelse

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Ved montering altid opad

Ved montering altid nedad

Isometric line drawing of a mechanical bracket with mounting holes (no text or symbols)

Diagram of a mechanical assembly with a tray, circular component, and directional arrows (no text or symbols)

Exterior view of a black cylindrical device labeled 'SOLAMAGIC' with internal grid structure (no additional text or symbols)

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Isometric line drawing of a 3D mechanical bracket with labeled points C and O (no text or symbols beyond labels)

Diagram of a mechanical device with a circular component and labeled parts, showing internal structure without any text or symbols.

Rengjøring

3D rendering of a cylindrical device with a grid pattern and 'SOLA MAGIC' label, no readable text or symbols beyond the label.

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Isometric line drawing of a mechanical bracket with mounting holes (no text or symbols)

Driftsindikator: Vid D2 Lysdioder A, B, C

Fjärrkontrollen

Diagram of a mechanical assembly with a tray, central component, and paper (no text or symbols)

Rengöringsinformation

3D rendering of a cylindrical device with a grid pattern and 'SOLA MAGIC' label, no readable text or symbols beyond the label.

Technical line drawing of a mechanical device with three circular insets showing close-ups of components (no text or symbols)

Isometric line drawing of a mechanical bracket with mounting holes (no text or symbols)

Diagram of a mechanical assembly with a tray, central component, and paper (no text or symbols)

Puhdistusohjeita

Exterior view of a black cylindrical device with a grid pattern and 'SOLAMAGIC' label (no other text or symbols visible)

Installation and operating manual

S2 Infrared radiator 2500 W with multi-point switch, IP65 (IR05007-WSI)

D2 Infrared Radiator 2000 W with multi-point switch, IP65 (DS05003-WSI)

05/2018

Contents

Safety and operating instructions 99

Scope of supply....100

Installation instructions....101

Initial operation....104

Wireless remote control 104

Operation 108

Changing the battery of the hand-held transmitter ..... 110

Cleaning instructions....110

Guarantee conditions.... 111

Additional instructions....112

Appendix

• Technical data
• Safety distances
• Radiation patterns

AX

AX

AX

Safety and operating instructions

Please observe the following instructions:

Carefully read through the instruction manual prior to installation and store the manual safely.

This heater is meant for outside use by adults. It is not meant to be used for indoor heating to create a pleasant temperature level.

Children must not play with the heater.

Children younger than 3 years old must be kept away from the heater unless they are continuously monitored.

Caution – Some parts of this product can become very hot and cause burns. Special care is required when children and vulnerable persons are present.

• Installation tasks must be properly carried out by a qualified person in accordance with VDE 0100 installation instructions (if applicable, also including Parts 559 and 701).
• When carrying out any work, always switch the system to a zero-volt state (disconnect mains plug; circuit-breaker off). Switch on the heater only after all the cables have been completely connected.
• The domestic installation for the power supply of the heater must be designed with a switch and secured with a fuse of at least 16A slow (type C16A).
• Do not install directly under sockets, junction boxes, switches or electrical cabling.
• Electrical sockets may only be located in the positions specified in Appendix 2.
• Do not mount the radiant heater close to curtains or combustible materials in accordance with VDE 0100, Part 559.
• The device meets the requirements for protection type IP 65, if all connectors (device plug, plugs for expansion components) are plugged in and it is approved for outdoor use.
• Never leave the heater unattended.
• The heater must always be switched off via the house installation switch when not in use.
• Do not cover the heater when it is switched on or still hot; there is a risk of fire.
• The wireless receiver is equipped with an overtemperature protection which will temporarily limit the heating function in the event of an overtemperature.
• To adjust the radiation direction, switch the heater off and allow to cool.
• Do not look directly at an operating IR halogen lamp for a long period and from a short distance.

• IR halogen lamps are sensitive to direct skin contact (do not touch with bare fingers). Grease or other contamination can be removed with an alcohol-soaked cloth.

• To maintain the service life of the IR halogen lamp, it must be protected against vibrations, impacts and contaminants such as acids, ammonia, cement dust, etc.

• The IR halogen lamp must be protected against mechanical loading. It must be replaced if changes (dark spots, deformation) become apparent or the rated life time is reached.
• Damaged equipment elements such as lead, rocker switch, sealing collar or heating tube must always be replaced. The unit must be immediately dismantled and stored dry.
• Repair work (replacement of a defective power lead, a defective heating tube or similar) must only be carried out by the customer service of the manufacturer or an authorised dealer.
• Cleaning and maintenance work must only be carried out by adults with sufficient expertise.

Scope of supply

IR heat radiator with mains lead

Mounting bracket including fastenings (supplied)

Manual

Installation instructions

• The infrared radiator may only be installed and operated horizontally!
• If radiator and socket are not installed on the same surface, it must be ensured that the field of radiation cannot be directed towards the socket. Failing this, it must be ensured that the socket cannot heat up to more than 70°C during heater operation.
• The safety distances given in Appendix 2 must be observed.
• The area in which the heat acts can be estimated from the radiation diagram (Appendix 3). The diagram shows the sizes of the irradiated areas at various distances from the radiant heater and in each case the maximum radiation intensity.
  • Installation height: at least 1.80 m above the ground
• The radiator must be installed with the hammer groove upwards.
• The hammer groove can be seen opposite to the connecting lead in view of the housing side.

Technical line drawing of a mechanical device with three circular insets showing close-ups of components (no text or symbols)

During mounting always up

During mounting always down

Step 1: Installing the T-bracket

Isometric line drawing of a 3D mechanical bracket with mounting holes (no text or symbols)

• Install the radiant heater using 2 T brackets at a separation of 400 mm while observing the safety distances and safety instructions (see Appendix 2).

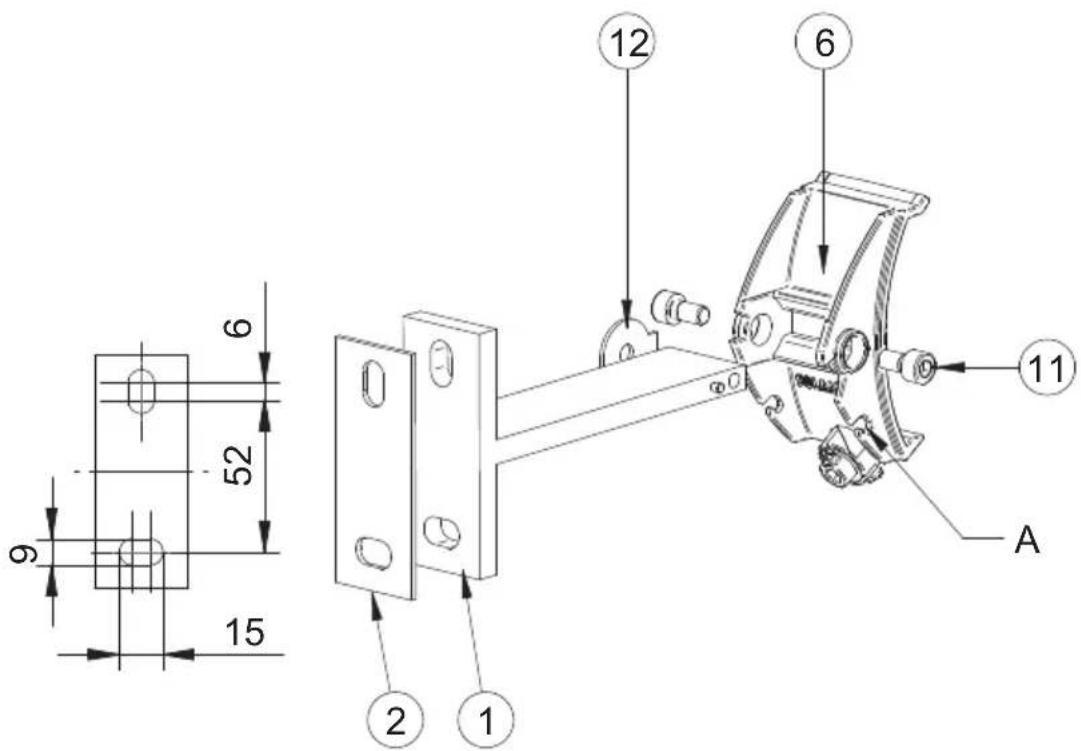

- Secure the T-bracket (1) with the silicone plate (2) below it on the fastening surface with 2 screws each according to the following figure. When wall-mounted the heater swivels to the horizontal, lower longitudinal hole side. When mounting on the ceiling/roof, the swivel range must be aligned for optimum heating effect towards the opposing longitudinal hole side (in contrast to the image below, swivel range 30^ ).

Step 2: Installing adapter claws on the T-brackets

- Fit adapter claws (6) at the two T-brackets mounted on the fastening surface, fit safety washer (12) between the T-bracket and adapter claw and screw in M6 socket cap screws (11) from outside into the T-bracket.

Step 3: Installing the heater on the T-brackets

- Push the securing lugs (3) with the ring (4) from the left side into the dovetail groove for approx. 530 mm and 130 mm.

- Tighten the 3.5 × 6.5 screws (5).

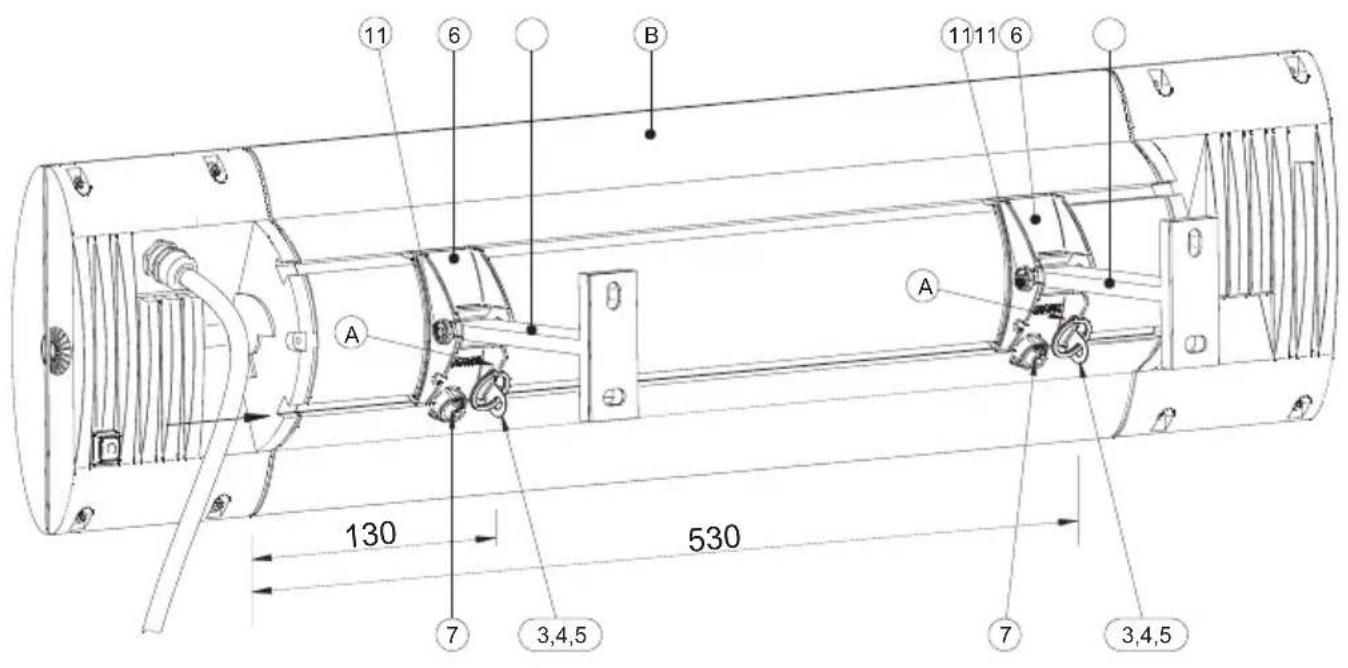

- Mount the heater (B) in the adapter claws (6). The securing lugs must now be located directly alongside the adapter claws (6).

- Use a 5 mm Allen key to tighten the eccentric tensioner (7) in a clockwise direction; the radiant heater must be firmly connected to the adapter claws without any play. Attention: no screwing stop – do not over-tighten the eccentric tensioner!

- Hang each retaining ring (4) in the adapter claw (A).

- To set or adjust the direction of radiation, use a 5 mm Allen key to loosen the screws (11), shift the heater into the required direction and re-tighten the screws (11).

Initial operation

Warning: Completely remove the transport protection on the reflector.

Make the connection to the power supply (Schuko/mains plug).

The tube has switched off, for device type D2 LED C flashes.

The wireless remote control must be programmed for operation, see the "Initial programming" section.

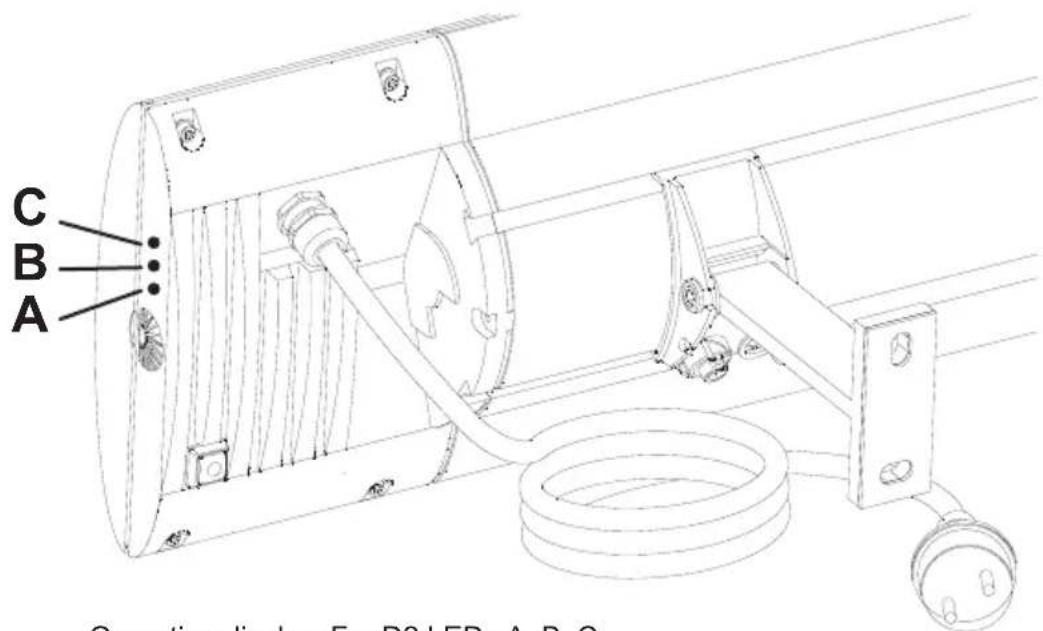

Operating display: For D2 LEDs A, B, C

Wireless remote control

For the device to be operated, you need the SOLAMAGIC FUS6 wireless remote control which can be purchased from your distributor.

Assign a key on the hand-held transmitter for heat regulation.

Key assignment: Keys 1-4: Wireless channel keys

Remote control: Transmission frequency: 433.92 MHz

Range: approx. 20 m with an unimpeded path through air

Programming the wireless remote control

Important:

• Only those heaters should be connected to the mains that are to undergo programming to a hand-held transmitter key. This allows the programming of several receivers (multi-power). Previously programmed devices can remain connected to the mains.
• Use of other components with a wireless-signal interface (e.g. wireless PC mouse and keyboard) may result in faulty operation of the wireless receiver. Switch off all other wireless components, particularly when programming.
• For device type D2, the LED operating display supports program progress:
  LED A: Programming mode
  LED B: Time switching
  LED C: Wireless transmission blocked
• The wireless receiver is briefly disabled after command entry using the hand-held transmitter.

Initial

programming: The heater to be programmed is connected to the mains (LED C flashes quickly). Brief pressing of the desired key 1 to 4 on the hand-held transmitter triggers wireless receiver programming, heating tube starts at low level (LED A flashes quickly). Repeated pressing of the same key confirms the programming, heating tube switches to top level (LED A flashes quickly). If desired, time-out switching can be programmed by double-clicking: If the programmed key is pressed briefly twice in succession, the heater will switch off in 30 minutes, the heating tube activates for 2 seconds (LED B flashes quickly). Double-clicking again increases the heating duration to 60 minutes, heating tube illuminates for 4 seconds (LED B flashes at medium speed). Double-clicking again increases the shut-down to 90 minutes, heating tube illuminates for 6 seconds (LED B flashes slowly). Double-clicking once more switches the time control off. The programming cycle for time-out switching begins again from the beginning. Programming is ended by long pressing of the programmed key of the hand-held transmitter. The heating tube confirms that programming is completed by operating for two seconds (all three LED's light up briefly).

Multiple

programming: It is possible to program radiant heaters on up to eight keys on one or more hand-held transmitters (multi-control).

Connect the relevant heaters to the mains. As described under „Initial programming“, the key to be programmed is briefly pressed, heating tube starts at low level (LED A flashes quickly). Repeatedly pressing ensures that the heating tube goes to full level (LED A flashes quickly).

Then the next key is activated by brief pressing, the heating tube returns to the low level (LED A flashes quickly) and programs the following confirmation, the heating tube goes to full level; LED A flashes quickly).

Then the next key is activated by brief pressing, the heating tube returns to the low level (LED A flashes quickly) and programs the following confirmation, the heating tube goes to full level; LED A flashes quickly). This process is repeated until all the desired buttons on all the desired hand-held transmitters are programmed.

The multiple programming is ended by long pressing of a key on one hand-held transmitter. The heating tube goes off and then on for 2 seconds (all three LEDs illuminate briefly).

Safety

switch-off: The radiant heater always remains switched off after a power outage.

Reprogramming

Selective

deletion: Previously programmed radio receivers can be deleted and

reprogrammed using the corresponding hand-held transmitter. To do this, press and hold buttons 1 and 2 of the hand-held transmitter simultaneously (longer than 3 seconds) until the red control lamp on the hand-held transmitter illuminates. Deletion is now enabled. Now release the buttons and directly thereafter briefly press that key with which the wireless receiver was operated up until now.

The control lamp on the hand-held transmitter flickers briefly when the deletion signal is sent. The heating tube switches to low level and then off (LED A flashes continuously). The wireless receivers enter the on-state and then switch off and on again.

These receivers can now be reprogrammed as described under „Programming“ above.

Complete

deletion:

Note:

This action deletes all receivers that are within range of the hand-held transmitter.

Programmed wireless receivers can also be deleted (reset) upon loss of a hand-held transmitter or if it becomes defective. The deletion process is only possible within 180 seconds of connection to the mains of the receiver in question. (If necessary, disconnect the receiver from the mains and then reconnect.) To delete, hold buttons 1 and 2 of the hand-held transmitter pressed down (longer than 3 seconds). When doing so, the red control lamp on the hand-held transmitter only illuminates once deletion is enabled. Now release the keys and directly thereafter briefly press both keys simultaneously for about 1 second.

The control lamp on the hand-held transmitter flickers briefly when the deletion signal is sent. The heating tube switches to low level and then off (LED A flashes continuously).

These receivers can now be reprogrammed as described under „Programming“ above.

Operation

via wireless remote control

Switching

on/off: Brief pressing of the programmed wireless channel button on the hand-held transmitter switches the connected radiant heater on or off (LED A: Operating display).

Short-term

heating: Double-clicking the programmed wireless channel key switches the radiant heater on for 15 minutes and then automatically switches it off again.

Heating level: Extended pressing of the programmed key on the hand-held transmitter switches the heat output up and down between three levels (33, 66 and 100%). The LEDs signal the selected heat levels.

Memory-

function: Upon switching back on, a short press of the key recalls the last heating level.

Timed

switch off: If a timed switch-off has been programmed, the radiant heater always switches off automatically after the specified time. The radiant heater signals as follows after the activating the set residual run time: Signal duration 2s (Quick flashing LED B) - 30 min. residual run time Signal duration 4s (Normal flashing LED B) - 60 min. residual run time Signal duration 6s (Slow flashing LED B) - 90 min. residual run time If necessary for radiant heater D2, LED B signals the remaining running time every minute by flashing intervals. Each flashing interval indicates 15 minutes remaining heating duration.

Synchronisation: If multiple radiant heaters are controlled using the same hand-held transmitter button, faults in the wireless transmission path can result in different states. For synchronisation, use the function „Heating level“ to initially set all radiant heaters in switched-on state. Then switch off all receivers by a briefly pressing the key. The „Heating level“ function can now be used to simultaneously set again all the actuated receivers.

Direct operation with device button

Warning: Risk of burns from hot housing parts.

The radiator can be directly operated via the device button on the device back as soon as the wireless remote control is programmed. The following functions are available:

Switching

on/off: Pressing the device button for a short time switches the connected radiant heater on or off (LED A: Operating display).

Heating level: Pressing the device button for an extended time switches the heat output up and down between three levels (33, 66 and 100% ). (The LEDs signal the selected heat levels).

Memory-

function: Upon switching back on, a short press of the key recalls the last heating level.

Changing the battery of the hand-held transmitter:

Warning: Do not touch the battery directly with the skin.

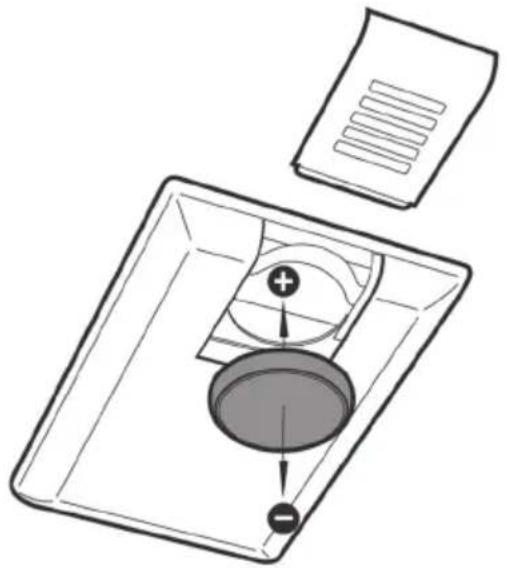

Open the housing cover. Push the battery out sideways from the clamped position and remove. Insert the new battery (plus to the top) and reassemble the unit in reverse order.

Diagram of a mechanical assembly with a tray, circular component, and paper (no text or symbols)

Cleaning instructions

• Disconnect the device from the mains.
• Allow the casing to cool.
• Wipe the casing clean with a moist, soft cloth. Do not use any detergent.

Never immerse the device in liquids nor spray-wash it.

Possible discolouration of the protective grille due to heat effects results from normal physical processes and is not a defect.

Guarantee conditions for S2/D2 devices

We guarantee this heater in accordance with the following conditions:

1. We will repair, free of charge, in accordance with the following provisions, damage or defects to the heater, which can be proven to be due to a factory defect, if they are reported to us immediately upon discovery on the heater and within 5 years of delivery to the end user. The duration of the guarantee for the heating tube is 12 months up to a maximum 5000 operating hours within this period. The guarantee does not cover minor deviations from the design properties that are irrelevant for the value and usability of the heater or damage caused by abnormal environmental conditions or unsuitable operating conditions. Likewise no guarantee can be given if the damage or defects on the heater arise from faulty installation or failure to observe the operating instructions.
2. The guarantee is fulfilled in that defective heaters will be repaired, or replaced by flawless heaters, at our discretion, and free of charge. Heaters, for which a performance of guarantee is claimed with reference to this guarantee, must be handed over or sent to the manufacturer or an authorised service centre. The sender is liable for the transport risk associated with the sending. The shipping, transport, travel and labour costs of the end user are not refunded. Proof of purchase with the date of purchase and/or delivery date plus a detailed description of the fault must always be presented. Replaced heaters become our property.
3. Any guarantee claim becomes void if repairs or adjustments are made by persons who are not authorised by us or if our heaters are provided with spare parts, supplementary parts or accessories that are not original parts, and have caused a defect. The same applies if the name plate or the device number has been removed or rendered illegible.
4. Excluded from this guarantee are damages or defects from incorrect connection, improper handling, mechanical damage, particularly to the heating tube, and failure to observe the installation and operating instructions. We accept no liability for consequential damage.
5. Guarantee performances do not extend the guarantee period nor do they initiate a new guarantee period. The guarantee period for any fitted spare parts ends with the guarantee period for the device as a whole. If a defect or deficiency cannot be eliminated or the rectification of defects is declined by us or unreasonably delayed, an equivalent replacement will be delivered, free of charge, upon request of the customer. In case of replacement, we reserve the right to enforce a reasonable usage charge for time of use up until the time of replacement.
6. The guarantee only comes into force when the customer has registered their device with the manufacturer by means of the guarantee card.

These guarantee conditions apply from 01/01/2014 for heaters purchased in a country of the European Union, even if you use it in a foreign country. The guarantee conditions have no effects on the statutory guarantee claim.

Additional instructions

Subject to technical changes.

For more products and accessories

from SOLAMAGIC ^® , see:

www.SOLAMAGIC.com

Please note the following terminology in the appendix:

Appendix 1: Technical data

0	Heater type	5	Dimensions Length x Width x Height (mm)
1	Power (W)	6	Weight (kg)
2	Power connection	7	Average service life (h)
3	Degree of protection	8	Distance (mm)
4	Protection rating	9	Approvals

Appendix 2: Safety distances

0	Heater type D Floor / heater distance
1	Wall mounting, horizontal A1		Distance to the irradiated surface
2	Minimum distances in mm A2 Distance to the socket		socket
3	Heater power A3 Distance to the side wall
4	Ceiling mounting A4 Distance to overhead ceiling		ceiling
α	Adjustment range A5 Distance to ceiling behind

Appendix 3: Radiation diagrams

1

Maximum capacity

2

Heated surface

Exterior view of a black cylindrical device with a grid-patterned panel and 'SOLA MAGIC' branding (no additional text or symbols visible)

Technical line drawing of a mechanical device with three circular insets showing close-ups of components (no text or symbols)

Isometric line drawing of a 3D mechanical bracket with mounting holes (no text or symbols)

Diagram of a mechanical assembly with a tray, circular component, and paper (no text or symbols)

Exterior view of a black cylindrical device with grid pattern and 'SOLA MAGIC' label (no other text or symbols)

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Isometric line drawing of a 3D mechanical bracket with mounting holes (no text or symbols)

Diagram of a mechanical assembly with a tray, circular component, and paper (no text or symbols)

3D rendering of a cylindrical device with a grid pattern and 'SOLA MAGIC' label, no readable text or symbols beyond the label.

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Isometric line drawing of a 3D mechanical bracket with mounting holes (no text or symbols)

Diagram of a mechanical assembly with a tray, central component, and paper (no text or symbols)

Exterior view of a black cylindrical device with a grid pattern and 'SOLA MAGIC' label (no other text or symbols visible)

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Isometric line drawing of a 3D mechanical bracket with mounting holes (no text or symbols)

Diagram of a mechanical assembly with a tray, central component, and paper (no text or symbols)

Exterior view of a black cylindrical device with a grid pattern and 'SOLAMAGIC' label (no other text or symbols)

Technical line drawing of a mechanical device with three circular insets showing different components (no text or symbols)

Isometric line drawing of a mechanical bracket with mounting holes (no text or symbols)

Programovanie dial'kového ovládania rádia

Dôležité:

Diagram of a mechanical device with a central component and two parts stacked, no visible text or symbols

Pokyny k čisteniu

Technical data, safety distances, radiation patterns

Annexes

Technical line drawing of a mechanical assembly with no visible text or symbols

Zeichen:

Marking:

05/2018

Wandmontage, horizontal – Wall mounting, horizontal ①
