USER MANUAL GWS 7100 E Professional BOSCH

GWS 7-115 E | GWS 7-125 S

(9) Mounting flange with O‑ring (10) Grinding disc/cutting disc

(11) Carbide grinding head

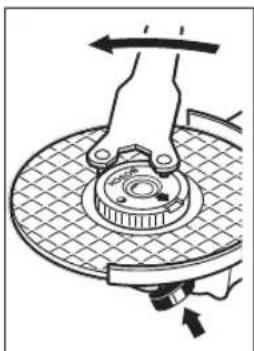

(14) Two-pin spanner for clamping nut (15) Handle (insulated gripping surface) (16) Grinding spindle (17) Hand guard

(18) Rubber sanding pad

(22) Extraction guard for cutting with a guide block

(23) Diamond cutting disc

• Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Angle grinder GWS 7-100 GWS 7-115 GWS 7-115 E GWS 7-125 GWS 7-125 S Article number 3601C881 p. 3601
• C881 p. 3601
• C882 p. 3601
• C881 C882 Rated power input W 720 720 720 720 720 Rated speed min p. 3601

11,000 11,000 2800–11,000 11,000 2800–11,000 Max. grinding disc diameter mm 100 115 115 125 125 Internal diameter of disc mm 16.0 22.2 22.2 22.2 22.2 Grinding spindle thread M 10 M 14 M 14 M 14 M 14 Max. thread length of grinding spindle mm 17 22 22 22 22 Restart protection ● ● ● ● ● Speed preselection – – ● – ● Weight according to EPTA-Procedure01:2014 – with low-vibration auxiliary handle kg 1.8 1.9 1.9 1.9 1.9 – with standard auxiliary handle kg 1.7 1.8 1.8 1.8 1.8 Protection class / II / II / II / II / II The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models. Noise/Vibration Information Noise emission values determined according to EN60745-2-3. Typically the A-weighted noise level of the power tool are: 91 dB(A); sound power level 102 dB(A). Uncertainty K = 3 dB. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN60745-2-3: Surface grinding (roughing):

The vibration level given in these instructions has been measured in accordance with a standardised measuring pro- cedure and may be used to compare power tools. It can also be used for a preliminary estimation of exposure to vibra- tion. The stated vibration level applies to the main applications of the power tool. However, if the power tool is used for differ- ent applications, with different application tools or poorly maintained, the vibration level may differ. This can signific- antly increase the exposure to vibration over the total work- ing period. To estimate the exposure to vibration accurately, the times when the tool is switched off or when it is running but not ac- tually being used should also be taken into account. This can significantly reduce the exposure to vibration over the total working period. Bosch Power Tools 1 609 92A 6KJ | (28.05.2021)20 | English Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly. Fitting Fitting Protective Equipment u Pull the plug out of the socket before carrying out any work on the power tool. Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales ser- vice immediately; see the "After-Sales Service and Applica- tion Service" section for addresses. Protective guard for grinding Place the protective guard (7) on the spindle collar. Ad- just the position of the pro- tective guard (7) to meet the requirements of the opera- tion. Lock the protective guard (7) by tightening the locking screw (6) using the hex key (3). u Adjust the protective guard (7) such that sparking in the direction of the operator is prevented. Note: The coding cams on the protective guard (7) ensure that only a protective guard that is suitable for the power tool can be fitted. Protective guard for cutting u Always use the protective guard for cutting (8) when cutting with bonded abrasives. u Provide sufficient dust extraction when cutting stone. The protective guard for cutting (8) is fitted in the same way as the protective guard for grinding (7). Extraction guard for cutting with a guide block The extraction guard for cutting with a guide block (22) is fit- ted in the same way as the protective guard for grinding (7). Side handle u Do not operate your power tool without the side handle (5). Screw the side handle (5) on the left or right of the machine head depending on how your are working. Low-vibration auxiliary handle The low-vibration auxiliary handle reduces vibration, enabling the tool to be used safely and more comfortably. u Do not make any alterations of any kind to the auxili- ary handle. Do not continue to use a damaged auxiliary handle. Hand guard u Always fit the hand guard (17) when working with the rubber sanding plate (18) or with the cup brush/disc brush/flap disc. Attach the hand guard (17) to the side handle (5). Fitting the Abrasive Tools u Pull the plug out of the socket before carrying out any work on the power tool. u Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while work- ing. Clean the grinding spindle (16) and all the parts to be fitted. Lock the grinding spindle with the spindle lock button (1) before clamping and releasing the abrasive tools. u Do not press the spindle lock button while the grind- ing spindle is moving. The power tool may become dam- aged if you do this. Grinding/cutting disc Pay attention to the dimensions of the abrasive tools. The diameter of the hole must match that of the mounting flange. Do not use an adapter or reducer. When using diamond cutting discs, ensure that the arrow in- dicating the direction of rotation on the diamond cutting disc matches the direction of rotation of the power tool (see the direction of rotation arrow on the machine head). See the graphics page for assembly instructions. To fasten the grinding/cutting disc, screw on the clamping nut(12) and tighten with the two-hole spanner. (see " Quick- clamping nut ", page21). u After fitting the abrasive tool, check that the abrasive tool is fitted correctly and can turn freely before switching on the power tool. Make sure that the abras- ive tool does not brush against the protective guard or other parts. A plastic part (O-ring) is fitted around the cent- ring collar in the mounting flange (9). If the O- ring is missing or damaged, the mounting flange (9) must be replaced before operation can resume. Mounting flange for grinding spindle M10: The mounting flange can be used on both sides. Flap disc u Always fit the hand guard (17) when working with the flap disc. Rubber sanding pad u Always fit the hand guard (17) when working with the rubber sanding pad (18). See the graphics page for fitting instructions. 1 609 92A 6KJ | (28.05.2021) Bosch Power ToolsEnglish | 21 Slide the rubber sanding pad (18) onto the grinding spindle (16). Screw on the round nut (20) and tighten with the two-pin spanner. Press the sanding sheet (19) firmly onto the underside of the rubber sanding pad (18). Cup brush/disc brush u Always fit the hand guard (17) when working with the cup brush or disc brush. See the graphics page for fitting instructions. The cup brush/disc brush must be screwed onto the grinding spindle until it rests firmly against the grinding spindle flange at the end of the grinding spindle thread. Tighten the cup brush/disc brush with an open-ended spanner. Carbide Grinding Head u A grinding head may be used only with a suitable pro- tective guard. Quick-clamping nut To change the abrasive tool easily without having to use any additional tools, you can use the quick-clamping nut (13) in- stead of the clamping nut (12). u The quick-clamping nut (13) may be used only for grinding or cutting discs. Only use quick-clamping nuts (13) that are in good work- ing order and not damaged. When screwing on, make sure that the printed side of the quick-clamping nut (13) is not facing the grinding disc; the arrow must be pointing towards the index mark (24). (24) Press the spindle lock but- ton (1) to lock the grinding spindle. To tighten the quick-clamping nut, turn the grinding disc firmly clockwise. If the quick-clamping nut has been attached correctly and is not damaged, you can loosen it by hand by turning the knurled ring an- ticlockwise. If the quick- clamping nut is stuck, do not attempt to loosen it with pliers – always use the two-pin spanner. Posi- tion the two‑pin spanner as shown in the figure. Approved abrasive tools You can use all the abrasive tools mentioned in these operat- ing instructions. The permissible speed [min

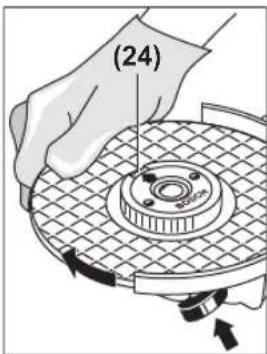

] or the circumferential speed [m/s] of the abrasive tools used must at least match the val- ues given in the table. It is therefore important to observe the permissible rota- tional/circumferential speed on the label of the abrasive tool. max. [mm] [mm] D b d [min

82 – M14 11000 80 Rotating the Machine Head u Pull the plug out of the socket before carrying out any work on the power tool. The machine head can be rotated in 90° increments. In this way, the on/off switch can be brought into a more favourable handling position for particular ap- plications, e.g. for left- handed tool users. Completely unscrew the four screws. Rotate the ma- chine head carefully, without removing it from the hous- ing, into the new position. Screw in and retighten the four screws. Dust/Chip Extraction The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reac- tions and/or cause respiratory illnesses in the user or in people in the near vicinity. Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment Bosch Power Tools 1 609 92A 6KJ | (28.05.2021)22 | English additives (chromate, wood preservative). Materials contain- ing asbestos may only be machined by specialists. – Use a dust extraction system that is suitable for the ma- terial wherever possible. – Provide good ventilation at the workplace. – It is advisable to wear a P2 filter class breathing mask. The regulations on the material being machined that apply in the country of use must be observed. u Avoid dust accumulation at the workplace. Dust can easily ignite. Operation Start-up u Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool. Power tools marked with 230V can also be operated with 220V. u Hold the tool by the insulated gripping surfaces and auxiliary handle only. The application tool could come into contact with hidden wiring or its own cord. Con- tact with live wires may make metal parts of the tool live, posing a risk of electric shock. When operating the power tool using a mobile generator that does not have sufficient reserve capacity or an adequate voltage control system with inrush current boost converter, loss of performance or atypical behaviour may occur upon switch-on. Please check the suitability of the power generator you are using, particularly with regard to the mains voltage and fre- quency. u Products that are only sold in AUS and NZ: Use a resid- ual current device (RCD) with a nominal residual current of 30 mA or less. Switching on/off To start the power tool, push the on/off switch (2) forward. To lock the on/off switch (2) in position, push the on/off switch (2) forward and down until it clicks into place. To switch off the power tool, release the on/off switch (2); or, if the switch is locked, briefly push the on/off switch (2) backward and down and then release it. u Always check abrasive tools before using them. The abrasive tool must be fitted properly and be able to move freely. Carry out a test run for at least one minute with no load. Do not use abrasive tools that are damaged, run untrue or vibrate during use. Damaged abrasive tools can burst apart and cause injuries. Speed preselection

GWS 7-115 E | GWS 7-125 S

You can preselect the required speed using the speed preselection thumbwheel (4), even during operation. The information in the table below describes the recommended values. Material Application Application tool Thumbwheel position Metal Removing paint Abrasive disc 2 − 3 Wood, metal Brushing, removing rust Cup brush, abrasive disc 3 Metal, stone Grinding Grinding disc 4 − 6 Metal Rough grinding Grinding disc 6 Metal Cutting Cutting disc 6 Stone Cutting Diamond cutting disc and cutting guide (cutting of stone is permit- ted only with a cutting guide)

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-115 E | GWS 7-125 S

GWS 7-100 GWS 7-115 GWS 7-115 E GWS 7-125 GWS 7-125 S

M 10 M 14 M 14 M 14 M 14

GWS 7-100 GWS 7-115 GWS 7-115 E GWS 7-125 GWS 7-125 S EPTA-Procedure 01:2014에 따른 중량

GWS 7-115 E | GWS 7-125 S

www.bosch-pt.com/serviceaddresses

GWS 7-100GWS 7-115GWS 7-115 EGWS 7-125GWS 7-125 S

• 3601C881 p. 3601
• C881 p. 3601
• C882 p. 3601
• C881 C882 p. 3601

GWS 7-100GWS 7-115GWS 7-115 EGWS 7-125GWS 7-125 S

• 3601C881 p. 3601
• C881 p. 3601
• C882 p. 3601
• C881 C882 p. 3601

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Angle grinder Article number

• Robert Bosch Power Tools GmbH (PT/ECS) 70538 Stuttgart GERMANY Henk Becker Chairman of Executive Management Helmut Heinzelmann Head of Product Certification Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 19.01.2021 Bosch Power Tools 1 609 92A 6KJ | (28.05.2021)IV 1 609 92A 6KJ | (28.05.2021) Bosch Power Toolsi Declaration of Conformity Angle grinder Article number GWS 7-115 GWS 7-115 3 601 C88 166 3 601 C88 176 We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Supply of Machinery (Safety) Regulations 2008 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 60745-1:2009+A11:2010 EN 60745-2-3:2011+A2:2013+ A11:2014+A12:2014+A13:2015 EN 55014-1:2017+A11:2020 EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019 EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 26/04/2021 Bosch Power Tools 1 609 92A 6KJ | (28.05.2021)
