USER MANUAL Primavera 35.1136.02 TFA

PRIMAVERA - Wireless weather station

Keep these instruments and the batteries out of the reach of children.

Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking.

Never use a combination of old and new batteries together, nor batteries of different types.

Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

Do not place your device near extreme temperatures, vibrations or shocks.

Protect it from moisture.

The outdoor transmitter is protected against splash water, but is not watertight. Choose a shady and dry position for the outdoor transmitter.

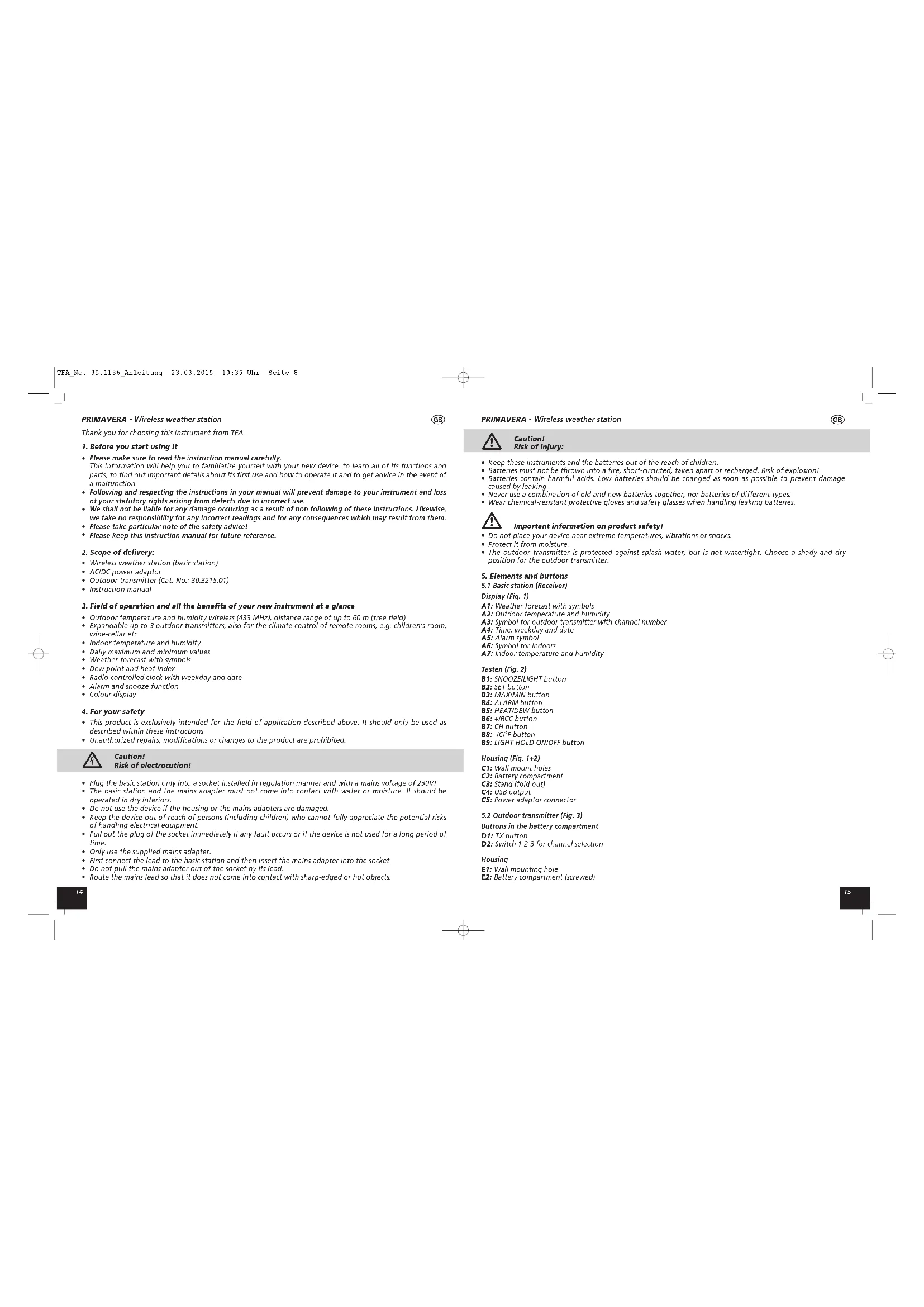

5. Elements and buttons

5.1 Basic station (Receiver)

Display (Fig. 1) A1: Weather forecast with symbols A2: Outdoor temperature and humidity A3: Symbol for outdoor transmitter with channel number A4: Time, weekday and date A5: Alarm symbol A6: Symbol for indoors A7: Indoor temperature and humidity Tasten (Fig. 2) B1: SNOOZE/LIGHT button B2: SET button B3: MAX/MIN button B4: ALARM button B5: HEAT/DEW button B6: +/RCC button B7: CH button B8: -/C/°F button B9: LIGHT HOLD ON/OFF button Housing (Fig. 1+2) C1: Wall mount holes C2: Battery compartment C3: Stand (fold out) C4: USB output C5: Power adaptor connector

5.2 Outdoor transmitter (Fig. 3)

Buttons in the battery compartment D1: TX button D2: Switch 1-2-3 for channel selection Housing E1: Wall mounting hole E2: Battery compartment (screwed) Thank you for choosing this instrument from TFA.

Please make sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.

Please take particular note of the safety advice!

Please keep this instruction manual for future reference.

2. Scope of delivery:

Wireless weather station (basic station)

3. Field of operation and all the benefits of your new instrument at a glance

Outdoor temperature and humidity wireless (433 MHz), distance range of up to 60 m (free field)

Expandable up to 3 outdoor transmitters, also for the climate control of remote rooms, e.g. children’s room, wine-cellar etc.

Indoor temperature and humidity

Weather forecast with symbols

Dew point and heat index

Radio-controlled clock with weekday and date

This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.

Unauthorized repairs, modifications or changes to the product are prohibited. Caution!

Risk of electrocution!

Plug the basic station only into a socket installed in regulation manner and with a mains voltage of 230V!

The basic station and the mains adapter must not come into contact with water or moisture. It should be operated in dry interiors.

Do not use the device if the housing or the mains adapters are damaged.

Keep the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.

Pull out the plug of the socket immediately if any fault occurs or if the device is not used for a long period of time.

First connect the lead to the basic station and then insert the mains adapter into the socket.

Do not pull the mains adapter out of the socket by its lead.

Route the mains lead so that it does not come into contact with sharp-edged or hot objects. TFA_No. 35.1136_Anleitung 23.03.2015 10:35 Uhr Seite 81716 PRIMAVERA - Wireless weather station

PRIMAVERA - Wireless weather station

If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual settings).

6.3.1 Note for radio-controlled time DCF

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a trans- mitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time “DST” is shown on the LCD. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Please take note of the following:

The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.

Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.

During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

6.4 Inserting the batteries in the basic station

The batteries will operate as a backup power source in case of power failure.

For a permanent backlight use the supplied power adapter.

Open the battery compartment at the back of the basic station.

Insert two new batteries 1,5 V AAA into the battery compartment. Make sure the polarity is correct.

Close the battery compartment again.

During the operation, all successful settings will be confirmed by a brief beep tone.

The device will automatically quit the setting mode if no button is pressed for a long period of time.

Press and hold the +/RCC or -/°C/°F button in the setting mode for fast running.

Press and hold the SET button in normal mode for two seconds, to enter the setting mode.

The continuous backlight will turn on automatically.

Press the +/RCC or -/C/°F button to make the time zone correction.

Press the SET button again.

TIME appears on the display.

The setting sequence is shown as follows: 12 or 24 hours system (24H default), the hours, the minutes, the year (YEAR appears on the display), the month and the day. Press the +/RCC or -/°C/°F to adjust it.

The weekday (MON, TUE, WED, THU, FRI, SAT or SUN appears on the display) will be calculated automatically after setting the date.

Confirm the setting with the SET button.

The manually set time will be overwritten by the DCF time when the signal is received successfully.

7.1.1 Setting of the time zone

In the setting mode you can make the time zone correction (-12/+12).

The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the German time (e.g. +1=one hour later).

7.1.2 Setting of the 12 and 24 hours display

In the setting mode you can choose between the 12 - and 24 hour system.

In the 12 HR system AM or PM (after 12 o'clock) appears on the display.

6.1 Connecting the basic station to power adapter

Place both instruments on a desk with a distance of approximately 1.5 meter. Avoid getting close to possible interference sources (Electronic devices and radio installations).

Remove the protective foil from the display of the basic station.

Connect the basic station to the attached power adapter. Insert the adapter into the jack at the basic station and connect the power adapter to a wall socket. Important! Make sure that your household voltage is 230V! Otherwise your device may be damaged.

The device will alert you with a beep and all LCD segments will be displayed for a short moment.

6.2 Inserting the batteries in the outdoor transmitter

Open the screwed battery compartment of the outdoor transmitter.

The slide switch for channel selection is at position 1 (default).

Insert two new batteries 1,5 V AAA, polarity as illustrated.

Close the battery compartment again.

The outdoor values of the outdoor transmitter will be transmitted to the basic station. The displays of the out- door values are flashing “--.-”.

On the display of the basic station appear the channel number, the outdoor humidity and the outdoor temper- ature in °C (default).

If the reception of the outdoor values fails within three minutes, “- -” appears on the display. Check the power adapter and the batteries of the transmitter and try it again. Check if there is any source of interference.

You can also start the outdoor transmitter search manually later on (for example when the outdoor transmitter is lost or the batteries are changed).

Hold the CH button on the basic station for three seconds.

“---” appears on the display.

Press the TX button in the battery compartment of the outdoor transmitter.

The device will alert you with a beep and the basic station receives the values from the outdoor transmitter.

After successful installation close the battery compartment of the outdoor transmitter carefully.

6.3 Reception of the DCF frequency signal

After the reception of the outdoor values, the device will now scan the DCF frequency signal and the DCF symbol will be flashing on the display.

To avoid interference, the backlight (and the USB output) turns off during the reception of the radio con- trolled clock.

When the time code is received successfully after 2-12 minutes, the radio-controlled time and the DCF sym- bol are displayed steadily in the display. The backlight is activated permanently.

You can start the initialization manually.

Press and hold the +/RCC button.

The DCF symbol will be flashing.

The continuous backlight will turn off automatically.

Interrupt the reception by pressing the +/RCC button again for three seconds. The DCF symbol disappears.

The DCF reception always takes place hourly between 2:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 2:00 o'clock in the morn- ing. There are three different reception symbols: flashing - reception is active stays - reception is very good no symbol - no reception / time is manually set TFA_No. 35.1136_Anleitung 23.03.2015 10:35 Uhr Seite 91918 PRIMAVERA - Wireless weather station

PRIMAVERA - Wireless weather station

You can now get the highest values for the indoor and outdoor temperature and humidity since the last reset.

Press the MAX/MIN button again.

MIN appears on the display.

You can now get the lowest values for the indoor and outdoor temperature and humidity since the last reset.

Press the MAX/MIN button once more, to go back to the present values display.

The device will automatically quit the MAX/MIN mode if no button is pressed.

Press and hold the MAX/MIN button for two seconds while the maximum or minimum values are displayed to clear the recorded readings.

10.2 Setting of the temperature unit

In the normal mode you can change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

The heat index is the temperature perception in conjunction with humidity.

Press the HEAT/DEW button in normal mode, to show the current heat index temperature.

HEATINDEX and the temperature appear on the display.

The indoor and outdoor humidity values disappear.

The display automatically switches back to the current display of temperature and humidity.

The interdependency of temperature and relative humidity is expressed by means of the dew-point: If the air is cooled continuously at constant absolute humidity, then the relative humidity will steadily increase up to a maximum of 100%. If the air is cooled further, then the excess water vapour is separated out in the form of water droplets.

Press the HEAT/DEW button, to show the current dew point.

DEWPOINT and the temperature appear on the display.

The indoor and outdoor humidity values disappear.

The display automatically switches back to the current display of temperature and humidity.

11. Additional outdoor transmitters

For having more than one additional outdoor transmitter select with the 1/2/3 switch in the battery compart- ment of the outdoor transmitter for each single outdoor transmitter a different channel. The reception of the new transmitter will be transmitted automatically to the basic station. Press and hold the CH button on the basic station or restart the basic station according to the manual.

The outdoor values will be shown on the display of the basic station. If you have installed more than one outdoor transmitter, press the CH button on the basic station to change between the channels 1 to 3.

You can also choose an alternating channel display. After the third channel, press the CH button again, AUTO appears for an alternating channel.

Press the CH button again to deactivate the alternating channel and the first outdoor transmitter will be shown permanently.

Once registered outdoor transmitters (channels), which are no longer needed, can be deleted manually by pressing the CH button for three seconds. Once a new outdoor transmitter is received, there will be another indicator.

12. Positioning and fixing of basic station and the outdoor transmitter

With the foldable leg at the back of the basic station, the basic station can be placed onto any flat surface or wall mounted at the respective location by the hanging holes at the back of the unit. Avoid the vicinity of any interfering field like computer monitors or TV sets and solid metal objects.

With the hanging hole at the back of the outdoor transmitter, the transmitter can be wall mounted at the respective location. Choose a shady and dry position for the outdoor transmitter. (Direct sunshine falsifies the measurement and continuous humidity strains the electronic components needlessly).

7.2 Setting of the alarm time

Press and hold the ALARM button.

The hour digit will be flashing.

Press the +/RCC or -/°C/°F button to adjust the hours.

Press the ALARM button again and you can adjust the minutes with the +/RCC or -/°C/°F button.

Confirm the setting with the ALARM button.

TIME, the current time and the alarm symbol appear on the display. The alarm function is activated.

When the adjusted alarm time is reached, the alarm will ring.

The alarm symbol will be flashing.

Press any button and the alarm will stop.

If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes and will be reactivated at the same time.

Once the snooze function is activated, Zz will be flashing on the display.

The alarm will be interrupted for 10 minutes.

ALARM and the last adjusted alarm time appear on the display.

Press the ALARM button again, to deactivate or activate the alarm function.

The alarm symbol disappears or appears on the display.

Press the SET button to return to normal mode.

TIME and the current time appear on the display.

Attention: Backlight in continuous operation only works with power adapter.

Press and hold the LIGHT HOLD ON/OFF button for three seconds until a beep tone is heard to deactivate or activate the backlight.

Press the LIGHT HOLD ON/OFF button once to dim the backlight.

Press the SNOOZE/LIGHT button or any button to activate the backlight for a few seconds.

With the USB output you can charge your mobile phone or other USB enabled devices. The output power is 5 Volts - 1 Ampere. The weather station cannot be operated via the USB output.

The weather station has five different weather symbols (sunny, slightly cloudy, cloudy, rainy and stormy).

The weather forecast relates to a range of 12 hours and indicates only a general weather trend. The accuracy is about 70 %.

For example, if the current weather is cloudy and the rain symbol is displayed, it does not mean the product is faulty because it is not raining. It simply means that the air pressure has dropped and the weather is expected to get worse but not necessarily rainy. The accuracy is about 70 to 75%.

The sun symbol also appears at night if there is a starry night. Note: Please note that the forecast symbol will become more defined in the course of operation. The forecast sym- bol is active right from the start, however, the reliability of the forecasts increases with the amount of data collected. The sensor must adapt initially to the reference level at the site.

The maximum and minimum values are automatically reset at midnight.

PRIMAVERA - Wireless weather station

This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury; Pb=lead This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end-of- life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal

Basic station Measuring range indoors Temperature 0 °C… +50 °C (+32 °F …+122 °F) Humidity 1 … 99% Power consumption Batteries: 3 x 1,5 V AAA (not included) Power adapter: 230 V AC / 5.0 V DC (included) USB output 5 Volt … 1 Ampere Dimensions 175 x 26 (58) x 125 mm Weight 290 g (instrument only) Outdoor transmitter Measuring range outdoors Temperature -40 °C… +60 °C (-40 °F …+140°F) Humidity 1 … 99% Range max. 60 m (free field) Transmission frequency 433 MHz Transmission time 50 seconds Power consumption Batteries: 2 x 1,5 V AAA (not included) Dimensions 45 x 20 x 108 mm Weight 45 g (instrument only) TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D-97877 Wertheim. No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of R&TTE Directive 1999/5/EC. A copy of the signed and dated Declaration of Conformity is available on request via [e-mail]. www.tfa-dostmann.de 03/15

Check the transmission of the signal from the outdoor transmitter to the basic station (transmission range of up to 60 m free field). Within ferro-concrete rooms (basements, superstructures), the received signal is natu- rally weakened.

If necessary choose another position for the outdoor transmitter and/or receiver.

Clean the devices with a soft damp cloth. Do not use solvents or scouring agents.

Remove the batteries and pull out the power adapter of the socket, if you do not use the products for a long period of time.

Keep the devices in a dry place.

13.1 Battery replacement

Change the batteries of the outdoor transmitter, when the battery symbol appears on the display of the out- door values.

Change the batteries of the basic station, when the battery symbol appears on the display of the indoor values.

Please note: When the batteries are changed, the contact between outdoor transmitter and basic station must be restored – so always insert new batteries into both devices or start a manual transmitter search.

Problems Solution No indication at the basic station ➜ Operation with mains adapter: Connect the basic station to mains adapter Activate backlight permanently Control the power adapter ➜ Operation with batteries: Ensure that the batteries polarity are correct Press any button to activate the backlight briefly Change the batteries No DCF reception ➜ Press and hold the +/RCC button for three seconds and start the initializa- tion manually ➜ Wait for attempted reception during the night ➜ Choose another place for your product ➜ Manual setting of the clock ➜ Check if there is any source of interference ➜ Restart the basic station according to the manual No reception of the ➜ No outdoor transmitter is installed outdoor transmitter ➜ Check batteries of external transmitter Indication “---” (do not use rechargeable batteries!) for channel 1/2/3 ➜ Restart the outdoor transmitter and the basic station according to the manual ➜ Start the outdoor transmitter search manually according to the manual ➜ Choose another place for the outdoor transmitter and/or the basic station ➜ Reduce the distance between the outdoor transmitter and the basic station ➜ Check if there is any source of interference Incorrect indication ➜ Change the batteries TFA_No. 35.1136_Anleitung 23.03.2015 10:35 Uhr Seite 112322 PRIMAVERA - Station météo radio-pilotée
