Brand	Thomas
Model	Quick Stick Family
Product type	Cordless stick vacuum cleaner
Net weight	2.1 kg
Dust container capacity	0.65 L gross / 0.3 L net
Power supply	Lithium-ion battery 18 V DC, 2000 mAh or 2500 mAh depending on model
Charger	Input 100-240 V~ 50/60 Hz, 500 mA; Output DC 22 V, 400 mA
Runtime	Not specified in the manual, approximately 30-40 min depending on usage
Charging time	Not specified, estimated 4-5 hours
Floor nozzle	With rotating brush
Included accessories	3-in-1 combination tool: crevice nozzle, dusting brush, upholstery nozzle
Main functions	Dry vacuuming, container emptying, cyclonic unit cleaning, motor filter cleaning, brush cleaning
Maintenance and cleaning	Regular cleaning of cyclonic unit and motor protection filter; rotating brush cleaning
Safety	Use by children from 8 years and older under supervision; do not vacuum liquids, embers, hazardous substances
Spare parts and repairability	Interchangeable battery; charger supplied; THOMAS parts only; repairs by approved after-sales service
Warranty	24 months for domestic use, 12 months for professional use
Intended use	Domestic use for dry materials only
Charging temperature	5 °C to 45 °C
Wall bracket	Included, for storage and charging

Frequently Asked Questions - Quick Stick Family THOMAS

How to charge the Thomas Quick Stick Family vacuum cleaner?

Connect the supplied charger to the device via the provided connection. Then plug the charger into a mains socket (100-240 V). The charging indicator lights up. Do not operate the vacuum cleaner while charging. Unplug after full charge.

How to empty the dust container?

Press the container unlocking button (label 12) to remove it. Open the bottom flap (label 14) to empty the dust. Close the flap and replace the container.

How to clean the motor protection filter?

Press the unlocking button of the filter cover (label 1) to access the filter. Remove it and gently clean it under cold water. Allow to dry completely before replacing.

What is the battery runtime?

The runtime depends on the battery model: 2000 mAh or 2500 mAh. Under normal use on hard floors, expect around 30 to 40 minutes. The battery recharges in a few hours (not specified, estimated 4-5 h).

Can I use the vacuum cleaner to vacuum liquids?

No, the vacuum cleaner is exclusively designed for dry materials. Never vacuum liquids, embers, ashes, or chemicals.

How to clean the rotating brush?

Unlock the floor nozzle (label 5) and remove the brush. Remove hair and fibers wrapped around it. You can wash it with clean water if necessary. Let dry before reassembling.

What to do if the vacuum cleaner does not turn on?

First check that the battery is charged. If the indicator does not light up, recharge the device. If the problem persists, contact THOMAS after-sales service.

Is the battery removable?

Yes, the battery (label 11) is removable. Press the battery unlocking button (label 10) to remove it. Replace with an original THOMAS battery.

Where can I buy accessories or spare parts?

You can contact your dealer, THOMAS after-sales service, or visit the website www.robert-thomas.net. Use only original THOMAS accessories and parts.

How to install the wall bracket?

Mark the holes plumb with the bracket, drill 8 mm holes, insert the wall plugs, then screw the bracket in place. Align it vertically for stable storage.

USER MANUAL Quick Stick Family THOMAS

Line drawing of a white vacuum cleaner with handle and base (no text or symbols)

Inhalt Seite

D

Appliance illustration 3
Parts identification 24
Intended use. 24
Charging the THOMAS quickstick/
battery charger 25
Use 25
Wall mount assembly.... 25
Information on disposal 25
Customer service 25
Technical data....25
Warranty 26

CZ

Obsah Stran

m = 311

Obsah Strah

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

1. 2.

Line drawing of a faucet with a droplet falling into a cylindrical pipe (no text or symbols)

24h

6

1. 2.

Simple line drawing of a medical procedure with tubing and a droplet shape (no text or symbols)

24h

7

1. 2.

1. 2.

Line drawing of a mechanical device with a spring-like base and handle, no text or symbols present

8

Technical line drawing of a mechanical component with multiple inserted pins (no text or symbols)

Technical line drawing of a spray gun with an inset showing the wheel and blade assembly (no text or symbols)

mind. 120 cm

1 7 8 9 2 10 11 3 2. 12 13 14 15 4 5 6 16

No.108 Shihu West Road

Wuzhong District Suzhou City

Jiangsu Province

China 215168

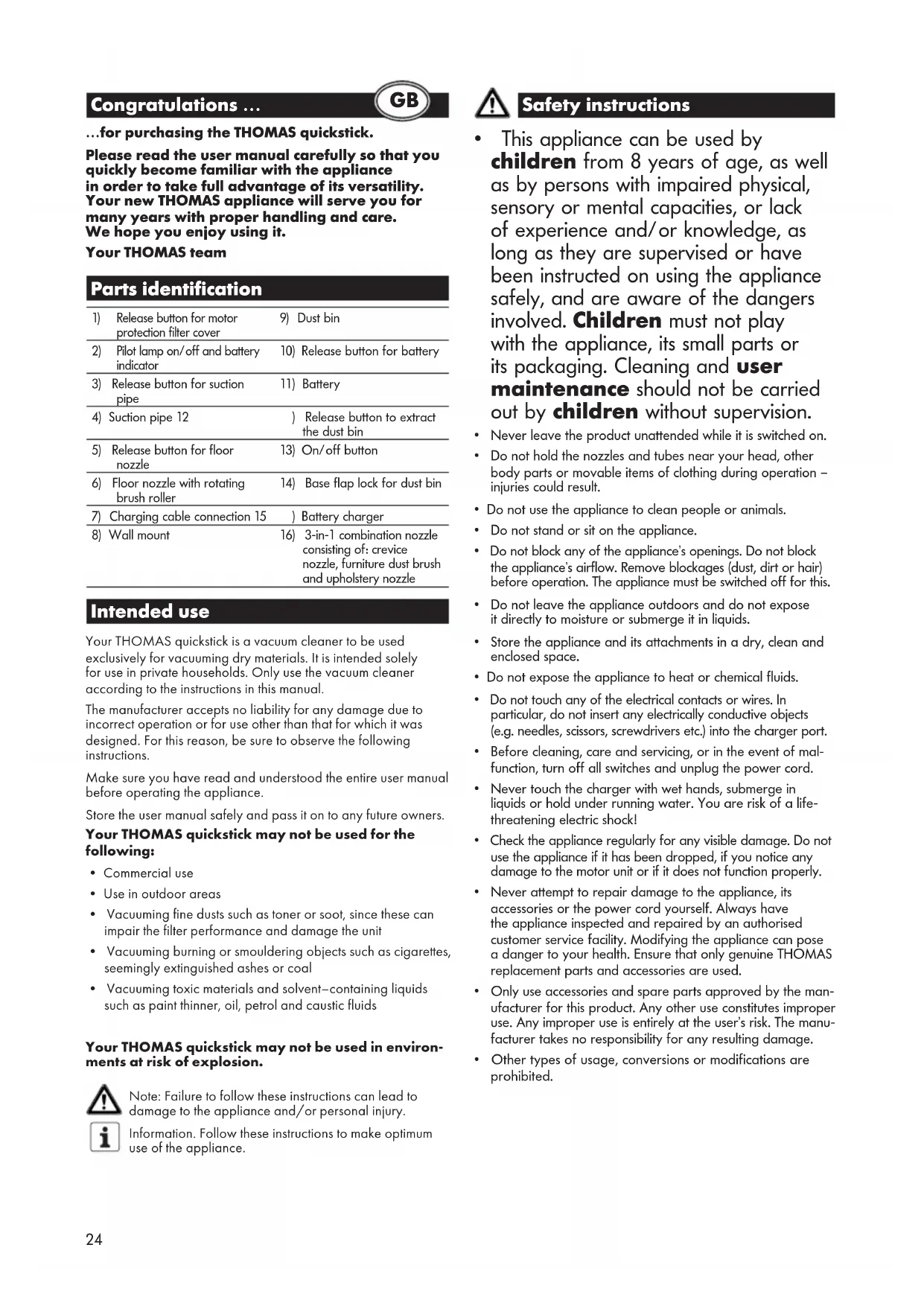

...for purchasing the THOMAS quickstick.

Please read the user manual carefully so that you quickly become familiar with the appliance in order to take full advantage of its versatility. Your new THOMAS appliance will serve you for many years with proper handling and care. We hope you enjoy using it.

Your THOMAS team

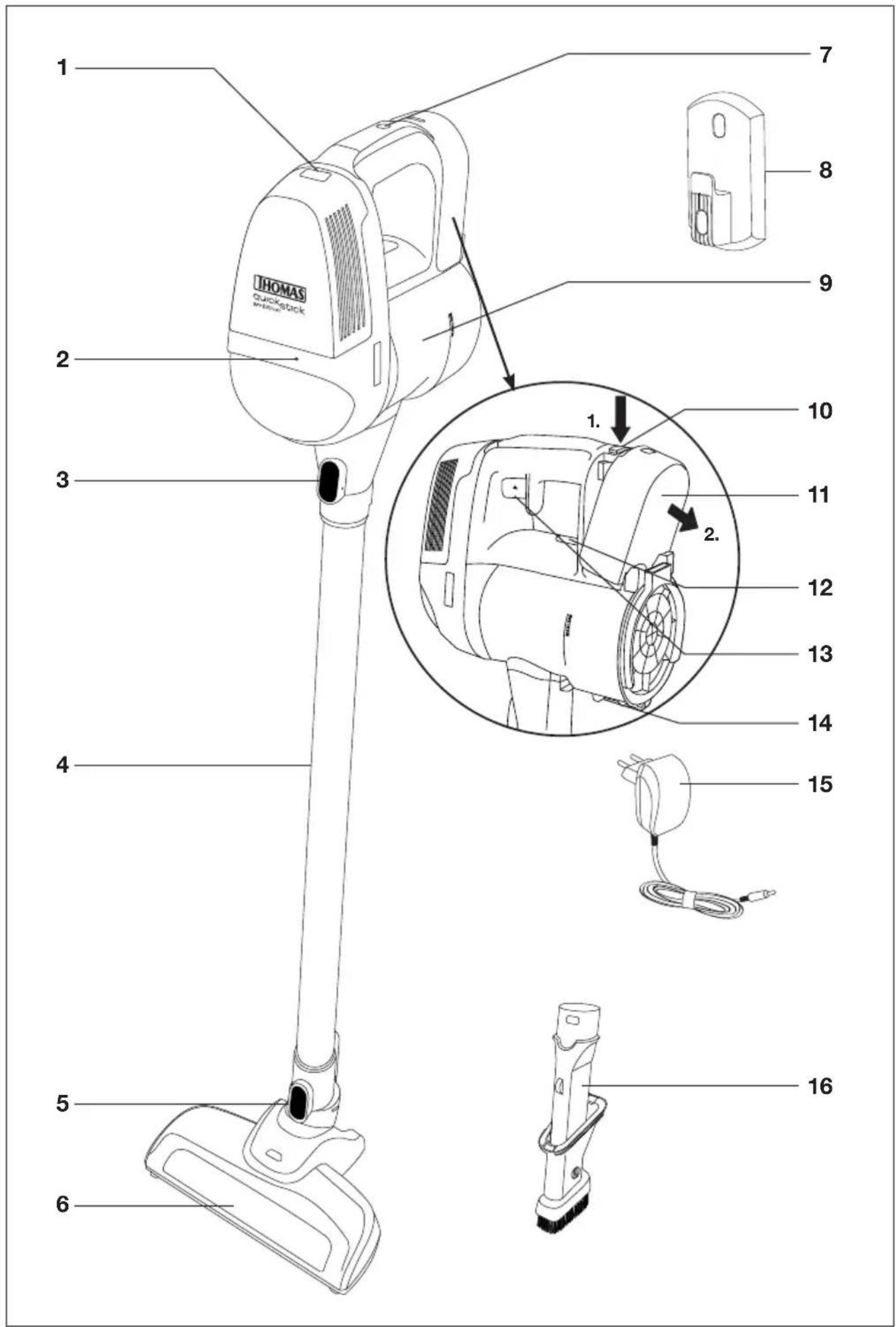

Parts identification

1)	Release button for motor protection filter cover	9)	Dust bin
2)	Pilot lamp on/off and battery indicator	10)	Release button for battery
3)	Release button for suction pipe	11)	Battery
4)	Suction pipe 12	)	Release button to extract the dust bin
5)	Release button for floor nozzle	13)	On/off button
6)	Floor nozzle with rotating brush roller	14)	Base flap lock for dust bin
7)	Charging cable connection 15	)	Battery charger
8)	Wall mount	16)	3-in-1 combination nozzle consisting of: crevice nozzle, furniture dust brush and upholstery nozzle

Intended use

Your THOMAS quickstick is a vacuum cleaner to be used exclusively for vacuuming dry materials. It is intended solely for use in private households. Only use the vacuum cleaner according to the instructions in this manual.

The manufacturer accepts no liability for any damage due to incorrect operation or for use other than that for which it was designed. For this reason, be sure to observe the following instructions.

Make sure you have read and understood the entire user manual before operating the appliance.

Store the user manual safely and pass it on to any future owners.

Your THOMAS quickstick may not be used for the following:

• Commercial use
• Use in outdoor areas
  • Vacuuming fine dusts such as toner or soot, since these can impair the filter performance and damage the unit
  • Vacuuming burning or smouldering objects such as cigarettes, seemingly extinguished ashes or coal
  • Vacuuming toxic materials and solvent-containing liquids such as paint thinner, oil, petrol and caustic fluids

Your THOMAS quickstick may not be used in environments at risk of explosion.

Note: Failure to follow these instructions can lead to damage to the appliance and/or personal injury.

Information. Follow these instructions to make optimum use of the appliance.

Safety instructions

- This appliance can be used by children from 8 years of age, as well as by persons with impaired physical, sensory or mental capacities, or lack of experience and/or knowledge, as long as they are supervised or have been instructed on using the appliance safely, and are aware of the dangers involved. Children must not play with the appliance, its small parts or its packaging. Cleaning and user maintenance should not be carried out by children without supervision.

• Never leave the product unattended while it is switched on.
- Do not hold the nozzles and tubes near your head, other body parts or movable items of clothing during operation – injuries could result.
- Do not use the appliance to clean people or animals.
• Do not stand or sit on the appliance.
- Do not block any of the appliance's openings. Do not block the appliance's airflow. Remove blockages (dust, dirt or hair) before operation. The appliance must be switched off for this.
- Do not leave the appliance outdoors and do not expose it directly to moisture or submerge it in liquids.
- Store the appliance and its attachments in a dry, clean and enclosed space.
- Do not expose the appliance to heat or chemical fluids.
- Do not touch any of the electrical contacts or wires. In particular, do not insert any electrically conductive objects (e.g. needles, scissors, screwdrivers etc.) into the charger port.
- Before cleaning, care and servicing, or in the event of malfunction, turn off all switches and unplug the power cord.
- Never touch the charger with wet hands, submerge in liquids or hold under running water. You are risk of a life-threatening electric shock!
- Check the appliance regularly for any visible damage. Do not use the appliance if it has been dropped, if you notice any damage to the motor unit or if it does not function properly.
- Never attempt to repair damage to the appliance, its accessories or the power cord yourself. Always have the appliance inspected and repaired by an authorised customer service facility. Modifying the appliance can pose a danger to your health. Ensure that only genuine THOMAS replacement parts and accessories are used.
- Only use accessories and spare parts approved by the manufacturer for this product. Any other use constitutes improper use. Any improper use is entirely at the user's risk. The manufacturer takes no responsibility for any resulting damage.
- Other types of usage, conversions or modifications are prohibited.

Charging the THOMAS quickstick/battery charger

• The voltage specified on the nameplate of the charger must match the mains supply voltage.
• Do not operate the battery charger under any circumstances if:
  • The charger plug is damaged,
  • The charger is visibly damaged.
  • Always unplug the charger from the wall socket:
• when the product is not charging
• if malfunctions occur while charging
  • before attaching/removing accessories
  • before cleaning or maintenance of the product.

- Do not switch the appliance on while it is charging.

- Unplug the power cord from the socket after charging the appliance.

- Store and use the charger only in dry rooms with an ambient temperature between 5 °C and 45 °C.

- Never touch the charger with wet hands, submerge in liquids or hold under running water. You are risk of a life-threatening electric shock!

- Keep the charger away from direct sunlight, naked flames or other heat-emitting sources. There is a risk of fire or explosion!

- Only charge the appliance with the charger supplied. Do not use any other battery chargers.

- Do not use the battery charger included in the scope of delivery to charge any other products. Danger of explosion, risk of injury and possible product damage!

Use

① Assembly
② Vacuuming

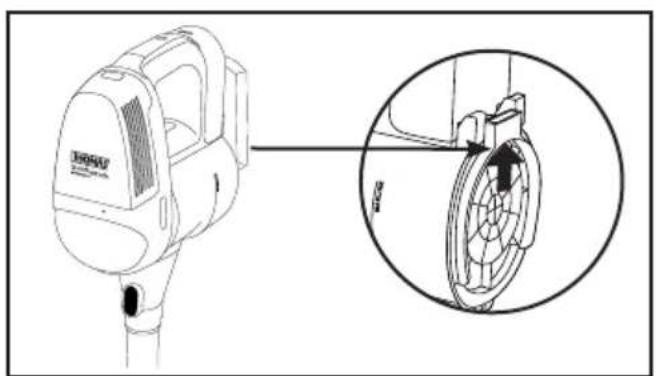

③ Emptying the dust bin
④ Charging the battery

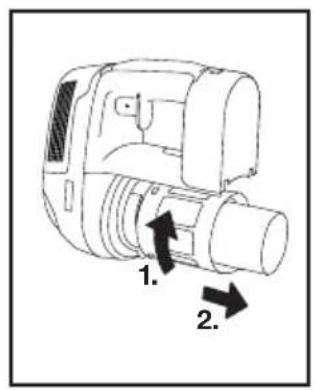

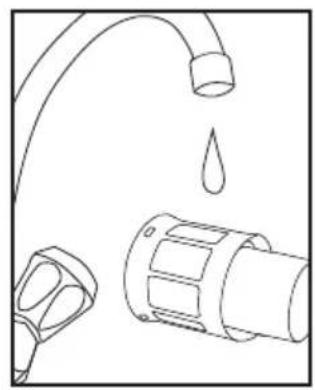

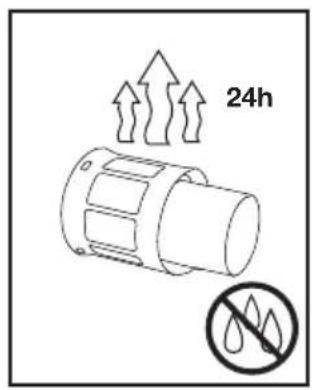

⑤ Cleaning the cyclone unit

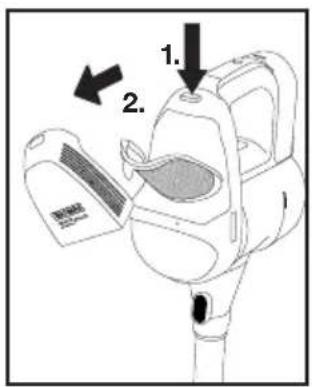

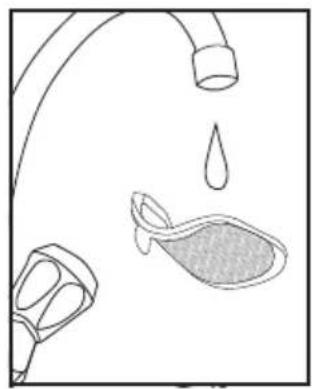

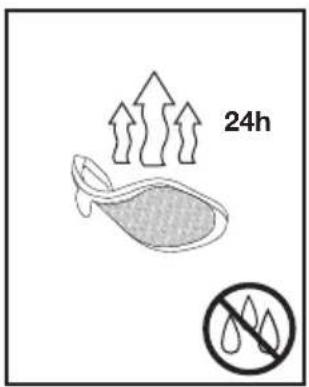

⑥ Cleaning the motor protection filter

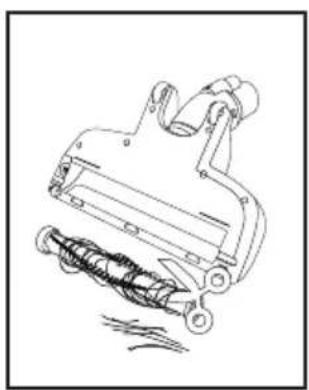

⑦ Cleaning the brush roller
⑧ Wall mount assembly

Wall mount assembly

Align the wall mount vertically to the wall and hold it in place. Draw in the drill hole positions with a pencil. The diameter of the drill holes should be approximately 8 mm. Push the dowels provided into the holes and attach the wall mount with the screws provided.

Information on disposal

Packaging

The packaging protects the THOMAS quickstick from damage during transport. It is made of environmentally friendly materials and is therefore

recyclable. Do not dispose of packaging that is no longer required in household waste but put out for recycling.

Old units

Old electrical equipment contains valuable substances and materials, which must not be released into the environment. Do not dispose of the

THOMAS quickstick and the rechargeable battery it contains

in your household waste. The appliance, the charger and the removed battery must be disposed of separately. You can dispose of it safely free of charge at your local recycling centre.

The components of the THOMAS quickstick may be hazardous to health and the environment if used improperly use or disposed of incorrectly. These components are essential for the correct functioning of the THOMAS quickstick. Appliances bearing the symbol shown must not be disposed of in household waste.

Customer service

Ask your dealer for the THOMAS customer service centre in your area.

Please also provide the information on the nameplate of your THOMAS unit.

To maintain the safety of the appliance, only have repairs, particularly those on live components, carried out by a qualified electrician.

In the event of a malfunction, consult your specialist dealer or contact the factory customer service directly. You will find details of THOMAS service centres on the back of this user manual.

THOMAS accessories are available at your specialist dealer, from THOMAS customer service and also at www.robert-thomas.net.

Technical data

Power supply input 100 - 240 ~ 50 & 60 Hz/500 mA
Power supply output DC 22 V,	400 mA
Appliance power rating See nameplate
Operating voltage	18 VDC
Li-ion battery 2000 mAh/	18 V*/2500 mAh/18 V*
Dust bag 0,65 l gross
	0,3 l net
Weight, net	2,1 kg

*) Depending on model

Warranty

Independently of the warranty obligations of the dealer arising from the sales contract, we offer the following guarantee on the appliance according to the conditions below:

1. The warranty period is 24 months from the day of delivery to the first end user. This period is limited to 12 months for commercial use or equivalent operational demands. To pursue a claim, proof of purchase must be submitted.
2. Within the warranty period we will rectify all substantial, verifiable functional inadequacies due to faulty design or material defects by either repairing the defective parts or replacing them at our discretion; the exchanged parts then become our property. The guarantee does not extend to easily broken parts such as glass, plastic, lights. Batteries and rechargeable batteries which are faulty or whose service life has been shortened as a result of normal wear, battery ageing or improper handling, are not covered by the warranty either. Defects must be reported to us immediately upon detection within the warranty period. During the warranty period, the cost of labour and of spare parts needed to rectify the malfunctions will not be billed. In the case of unwarranted claims against our customer service centre, the costs incurred will be charged to the customer. Repair work at the customer's location or installation site can only be requested in the case of large appliances. Other appliances must be sent to our nearest customer service centre, authorised repair shop, or to the factory.
3. There is no warranty obligation in the case of minor deviations from product specifications which do not affect the value or usability of the product caused by chemical or electro-chemical effects, or by water, or damage generally resulting from abnormal ambient conditions. In addition, no warranty claims are accepted for damage resulting from normal wear and tear, or from non-observance of the user manual or inappropriate use.
4. Any claim under warranty is also void if persons not authorised by us undertake any modifications or repairs to the appliance.
5. Warranty services neither extend nor renew the warranty period for the appliance or any installed replacement parts: the warranty period for installed replacement parts ends along with the warranty period for the entire appliance.
6. Additional or other claims, particularly those for compensation for damage caused outside of the appliance - providing there is no legally stipulated liability for this - are excluded.

We also offer you our customer service beyond the expiry of your warranty period. Please consult your dealer or contact our customer service department directly.
