Dynamix 551060 - Food Processor Dynamic - Free user manual and instructions

Brand	Dynamic
Model	Dynamix 551060
Product type	Professional food processor
Power supply	110-120V / 220-240V, 50-60Hz
Power (blending shaft 160)	160 W (1.2 A at 110-120V)
Power (blending shaft 190)	250 W (1.4 A at 110-120V)
Max speed (blending shaft/blender)	0 - 13,000 rpm
Max speed (Dynamix whisk)	0 - 2,500 rpm
Max speed (potato masher)	0 - 300 rpm
Max speed (cutter bowl)	0 - 2,500 rpm
Recommended usage time	0 - 3 minutes
Length of blending shaft 160	160 mm
Length of blending shaft 190	190 mm
Length of Dynamix whisk	185 mm
Length of potato masher	126 mm
Weight (blending shaft 160/190)	1.0 kg / 1.2 kg
Weight (blender shaft)	1.0 kg
Weight (Dynamix whisk)	1.3 - 1.4 kg
Weight (cutter bowl)	1.4 kg
Sound pressure level	60 dB
Electrical class	Class II (double insulation)
Main functions	Mixing, blending, whisking, mashing, chopping (cutter bowl)
Maintenance and cleaning	Damp sponge, clean bell in clear water 3s, do not immerse motor, do not use water jet
Safety	Do not run empty, turn off before removing from liquid, unplug to change accessory, sharp blade, use by children from 8 years under supervision
Spare parts	Available: knives, seals, shafts, bells, whisks, etc. (see diagrams)
Warranty	1 year against any manufacturing defect (parts and labor)

Frequently Asked Questions - Dynamix 551060 Dynamic

What accessories are supplied with the Dynamix 551060?

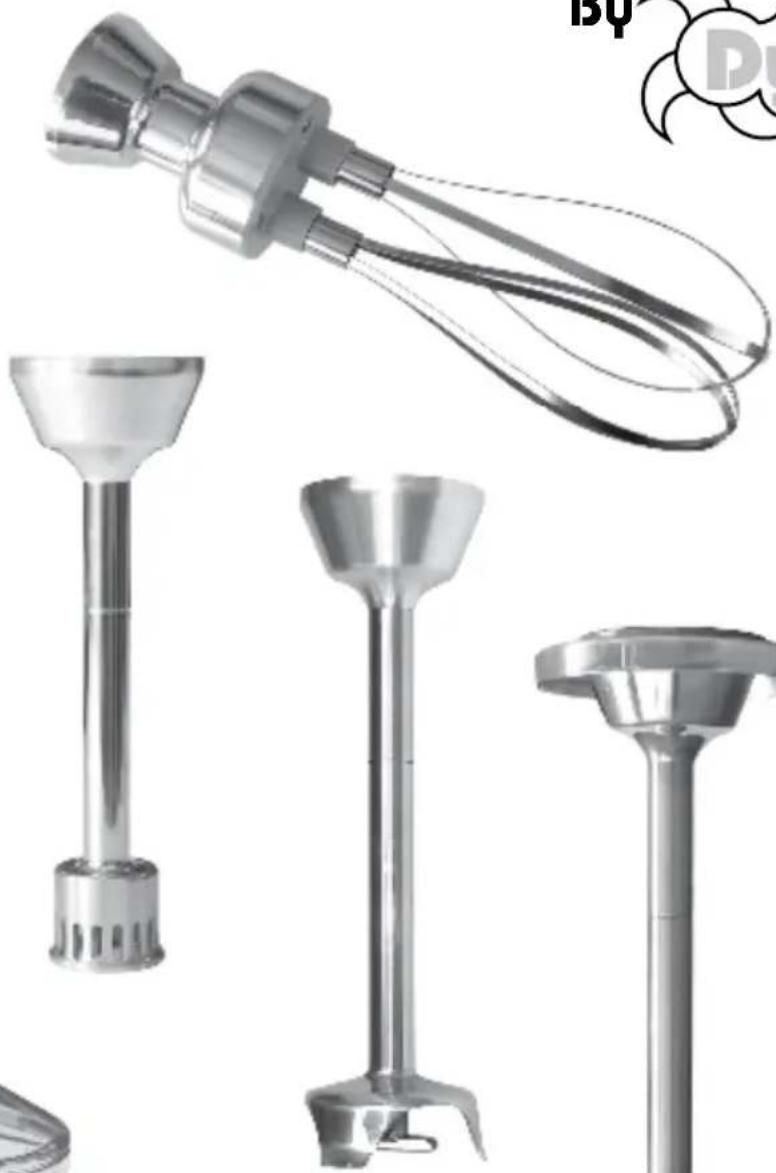

The Dynamic Dynamix 551060 food processor comes with several accessories: a blending shaft (160 or 190 mm versions), a blender shaft, a Dynamix whisk, a masher shaft, and a cutter bowl. Each accessory screws onto the motor unit.

How to use the blending shaft correctly?

Screw the accessory onto the motor unit until it stops. Hold the appliance by the handle, place a finger on the G trigger without pressing, then press to start. Release to stop. For optimal efficiency, keep the appliance vertical, about 2/3 of the liquid height, without placing the bell on the bottom of the container. Never run the appliance empty.

What is the power and supply voltage?

The appliance operates on 110-120V or 220-240V, 50-60 Hz. Power depends on the accessory: 160 W (1.2 A) for the blending shaft 160, 250 W (1.4 A) for the blending shaft 190. Check the rating plate for exact values.

How to clean the food processor?

Clean the motor unit with a damp sponge or cloth. For the inside of the bell, run the appliance in clean water for 3 seconds. Clean the shaft with clean water, possibly with dish soap. Beware of sharp blades. Never immerse the motor unit and do not use a water jet or steam cleaner.

Is the appliance suitable for professional use?

Yes, this appliance is intended for commercial use in restaurant kitchens, canteens, hospitals, bakeries, butcheries, etc. It is not designed for continuous food production.

What are the important safety precautions?

Only start the appliance when the blade is immersed. Turn off before removing the appliance from liquid. Always unplug to change accessory or clean. Do not let liquid enter the motor. Blades are dangerous: risk of cuts. This appliance can be used by children from 8 years under supervision. Never use non-recommended accessories.

How to maintain the blades and seals?

Periodically check the sharpness of the blade and replace if necessary. Check the sealing of the immersion tube by inspecting the seal after removing the blade. Also check the condition of the power cord (no exposed copper wires). For any maintenance, contact customer service.

What to do in case of breakdown or malfunction?

Contact your dealer or ship the appliance in sturdy packaging to Dynamic (address in France or Canada). Returns must be prepaid. The appliance is warranted 1 year against any manufacturing defect (parts and labor). The warranty does not cover breakage from drops, impacts, abnormal use, or failure to follow instructions.

Can the cutter bowl be used for chopping meat?

Yes, the cutter bowl can grind, mix, and chop vegetables, herbs, dried fruits, meat, parmesan, etc. It can also be used to make shortcrust or bread dough. Use it only for food preparations.

How to disassemble the blender shaft for cleaning?

The blender shaft has a specific disassembly tool (ref. 1425). Follow the procedure: first remove the hammer, then the bell, and finally the drive shaft. Refer to the exploded diagram in the manual for details. After cleaning, reassemble in reverse order.

USER MANUAL Dynamix 551060 Dynamic

Exterior view of a Dynamix brand electric shaver (no text or symbols visible on body)

Close-up of a transparent kitchen tool with a central handle and base (no text or symbols visible)

Product display of stainless steel kitchen utensils including a hand tool, flasks, and a stand (no text or symbols visible)

BY Dynamic®

Close-up of a white plastic cylindrical object with a metallic base, no visible text or symbols.

Simple line drawing of a person using a tool to measure a liquid in a beaker (no text or symbols)

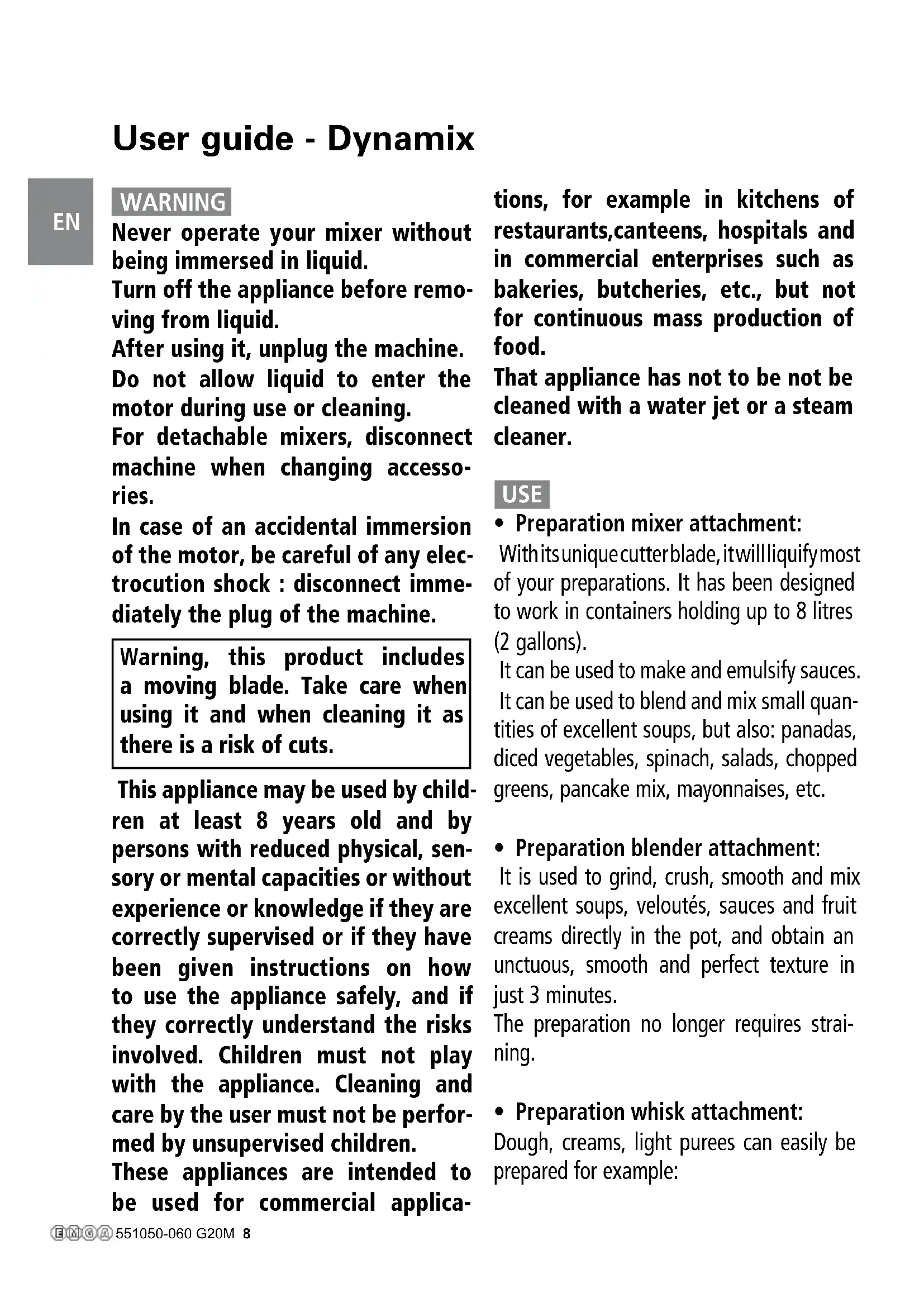

Never operate your mixer without being immersed in liquid.

Turn off the appliance before removing from liquid.

After using it, unplug the machine.

Do not allow liquid to enter the motor during use or cleaning.

For detachable mixers, disconnect machine when changing accessories.

In case of an accidental immersion of the motor, be careful of any electrocution shock : disconnect immediately the plug of the machine.

Warning, this product includes a moving blade. Take care when using it and when cleaning it as there is a risk of cuts.

This appliance may be used by children at least 8 years old and by persons with reduced physical, sensory or mental capacities or without experience or knowledge if they are correctly supervised or if they have been given instructions on how to use the appliance safely, and if they correctly understand the risks involved. Children must not play with the appliance. Cleaning and care by the user must not be performed by unsupervised children.

These appliances are intended to be used for commercial applications, for example in kitchens of restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.

That appliance has not to be not be cleaned with a water jet or a steam cleaner.

USE

• Preparation mixer attachment:

With its unique cutter blade, it will liquify most of your preparations. It has been designed to work in containers holding up to 8 litres (2 gallons).

It can be used to make and emulsify sauces. It can be used to blend and mix small quantities of excellent soups, but also: panadas, diced vegetables, spinach, salads, chopped greens, pancake mix, mayonnaises, etc.

- Preparation blender attachment: It is used to grind, crush, smooth and mix excellent soups, veloutés, sauces and fruit creams directly in the pot, and obtain an unctuous, smooth and perfect texture in just 3 minutes.

The preparation no longer requires straining.

• Preparation whisk attachment:

Dough, creams, light purees can easily be prepared for example:

User guide - Dynamix

• 2 to 12 white eggs may slowly be whisked up at reduced speed and finalized at high speed ensuring an incomparable density and uniformity.
• But also, sponge cake mixtures, almond pastes, soufflés, Chantilly whipped cream, creams and sauces, pancake mixtures, meringues, whipped cheese, mayonnaise, etc.

Precautions for the use of the appliance:

Never run the appliance outside a recipient. After each use unplug the appliance.

For higher effectiveness we recommend holding the appliance in a vertical position without the protective bell touching the bottom of the pan as shown in the sketches opposite (2/3 of the way down the tube).

• Preparation food ricer attachment:

It allows you to mix a creamy purée with entire potatoes directly in pots, avoiding decanting.

Used for many purées and vegetable creams: carrots, tomato sauce, bette, salad dressings, split peas, navet, cauliflowers.

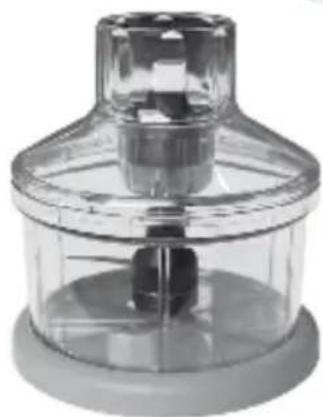

• Preparation cutter bowl:

Allows you to grind, mix, chop vegetables, garlic, onions, herbs, parsley, nuts, minced meat, Parmesan and making short crust pastry or bread dough.

This appliance is only for use for preparing food: for any other use, please contact us.

Screw the accessory onto the motorblock until it stops.

Hold the MIXER by the grip in one hand with a finger on trigger (G) (without pressing).

Then press the trigger (G), the appliance will run.

To stop the appliance, release the trigger (G).

Never use accessories not recommended by the manufacturer. They may be a hazard for the user and may damage the device. Only use original items and accessories.

The appliance can be cleaned using a sponge or a slightly damp cloth.

To clean the inside of the bell, run the appliance with the tube and its bell in clean water for 3 seconds.

Clean the stand in clean water using washing up liquid if necessary.

Be carreful : risk of cuts when cleaning the mixer attachment equipped with the blade.

NEVER clean the appliance using a hose. NEVER immerse the motor block in liquid.

User guide - Dynamix

It is preferable to regularly check:

• That the power cable is in good condition (the copper wires in the cable should not be visible).
• That the tube is watertight (by visually inspecting the seal condition after having removed the blades).
• That the blades are sharp. Replace the blade if necessary.

If the power cable is damaged, it must be replaced by the manufacturer, its after-selfs service or people of similar qualification to avoid danger.

The mixer of a class 2 category (double insulation) powered by a single phase alternating current and does not require a "u" ground plug.

The installation must be protected by a ground fault circuit breaker and a 10 A calibre fuse.

Use a standard 10/16 A single phased socket.

Check that the electricity supply voltage and the value on the charger specifications plate are compatible.

	0.1 uf
	S1
N		Variator	Motor
L

This machine is in accordance with CE standards and :

- Customer service and warranty:

Should your unit require service, contact your distributor for the nearest authorized service centre if you wish your unit to be serviced by the manufacture ship it to :

CANADA SERVICE CENTRE DYNAMIC INTERNATIONAL LTD.

3227 Boul. pitfield

Saint-Laurent - Québec H4S-1H3

Toll free phone : [phone]

Toll free fax : [phone]

Local Phone : [phone]

Local Fax : [phone]

User guide - Dynamix

USA SERVICE CENTRE DYNAMIC INTERNATIONAL LTD.

1320 route 9 # 1352 - Champlain, NY - 12919 Toll free phone : [phone] Toll free fax : [phone]

DYNAMIC FRANCE S.A.S.

518 rue Léo Baekeland – B.P.57 85290 Mortagne-sur-Sèvre Cedex - FRANCE Tél. [phone] Fax : [phone] e-mail : [e-mail]

Warranty :

Your new Dynamic product is warranted to the original purchaser, for a period of one year, from the date of purchase. DYNAMIC warrants products to be free of manufacturing defects for a period of one year from the day of original shipment, covering all parts and labor. Damage caused by improper use, accident and/or abuse are not considered to be manufacturing defects. DYNAMIC will repair or replace, at its discretion, defective products returned to an authorized warranty repair center, freight prepaid one way. Unauthorized work on the products during the warranty period will void this warranty.

The portion below must be sent to the Service Centre within 10 days from the purchase date.

Simple line drawing of a person using a tool to measure a liquid in a container (no text or symbols)

Simple line drawing of a person using a tool to measure a liquid level, with no text or symbols present.

EN Procedure for the dismantling of the foot BLENDER DYNAMIX

1- Disassembly of the blade

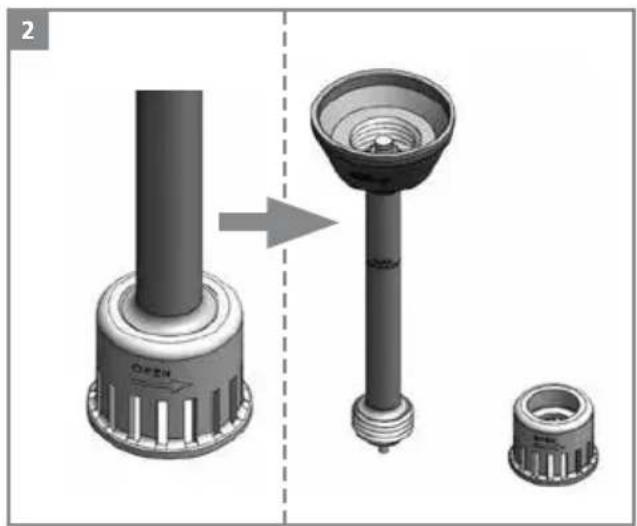

2- Disassembly of the blade protector

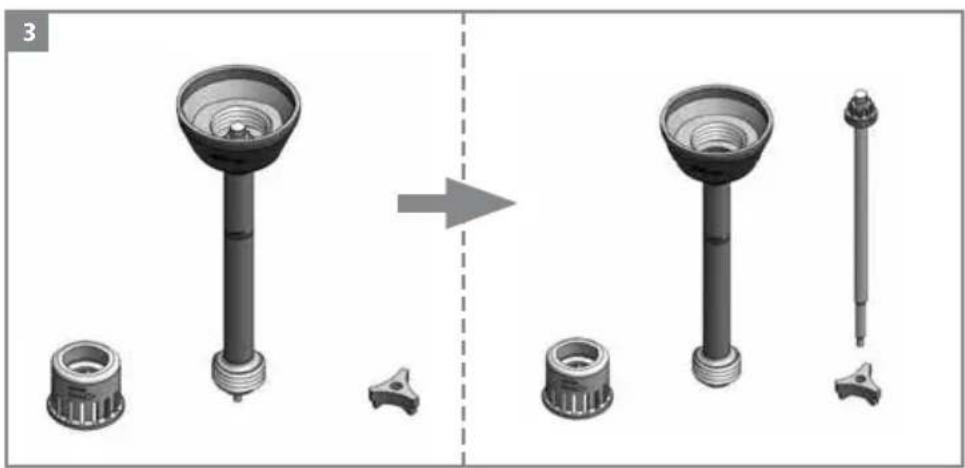

3- Disassembly of the shaft and bearing seal

Exploded view diagram of a mechanical component showing internal parts before and after assembly (no text or symbols)

Mechanical assembly diagram showing a cylindrical component being processed into a flanged and then assembled cylindrical parts (no text or symbols visible)

Mechanical assembly diagram showing a cylindrical component being added to a multi-cylinder assembly, with no visible text or symbols.
