Dynamix 551050 - Food Processor Dynamic - Free user manual and instructions

Product type	Versatile professional food processor
Brand	Dynamic
Model	Dynamix 551050
Category	Food processor
Power supply	220-240 V, 50/60 Hz, single phase, class II (double insulation)
Power	Universal anti-interference motor (estimated 400 W)
Dimensions (approx.)	Height: 40 cm, Width: 12 cm, Depth: 20 cm (excluding accessories)
Weight (approx.)	2 kg (without accessories)
Main functions	Mix, blend, whisk, mash, chop, emulsify, stir
Included accessories	Blending foot, blender foot, whisk foot, masher foot, cutter bowl
Speed control	Variable speed trigger for speed control
Safety	Double insulation, automatic stop when releasing the trigger, splash protection
Maintenance and cleaning	Clean with a damp sponge; do not immerse the motor block; rinse accessories with clear water
Spare parts available	Blades, seals, shafts, bells, bowls, whisks, etc. (references provided in the manual)
Warranty	1 year against any manufacturing defect, parts and labor
After-sales service	Contact: 518 rue Léo Baekeland, 85290 Mortagne-sur-Sèvre, France – Tel. [phone]
Standards	Compliant with standard EN 12853
Recommended use	Professional kitchens (restaurants, canteens, bakeries)
Accessory compatibility	Use only original Dynamic accessories
Materials	Stainless steel for blades and shafts, plastic for the motor block

Frequently Asked Questions - Dynamix 551050 Dynamic

How to use the Dynamix 551050 blending foot?

Screw the accessory onto the motor block until it stops. Hold the mixer by the handle, place a finger on the trigger G and press to start. Release to stop. Work in a vertical position, without placing the bell at the bottom of the container, for optimal efficiency.

Can I blend hot foods with this appliance?

Yes, the blender and blending foot can be used to make hot soups and veloutés directly in the pot. Make sure not to immerse the motor block and do not exceed the maximum capacity.

How to clean the food processor after use?

Unplug the appliance. Wipe the motor block with a damp cloth. Clean the accessories with clear water and a little dish soap. Never immerse the motor block or use a water jet. For the blending foot, run it for a few seconds in clear water to rinse.

What to do if the appliance does not start?

Check that the accessory is correctly screwed until it stops. Make sure the trigger is pressed. Check the power supply and cord. If the problem persists, contact Dynamic after-sales service.

Is it possible to chop meat with the cutter bowl?

Yes, the cutter bowl (ref. AC518) can chop meat, vegetables, herbs, dried fruits and parmesan. Use blades A and B for precise chopping.

How to change the blade of the blending foot?

Unplug the appliance. Unscrew the worn blade by turning counterclockwise. Replace it with a new blade (ref. 1423 for blender, or 08999904/08999905 for cutter bowl). Check the condition of the sealing gasket before reassembly.

Can the appliance be used by children?

This appliance can be used by children aged 8 years and above under adult supervision, provided they have received safety instructions. Children must not play with the appliance or clean it without supervision.

Which accessories are compatible with the Dynamix 551050?

Use only original Dynamic accessories referenced in the manual: blending foot, blender, whisk, masher, cutter bowl. Using non-recommended accessories may present a danger.

How to assemble the masher?

Mount the grid on the support, insert the blade, then the compression washer and secure with the nut. Screw the assembly onto the motor block. Use whole potatoes for a smooth purée.

What is the warranty period and how to activate it?

The warranty is 1 year from the date of purchase, against any manufacturing defect. To be valid, the warranty certificate must be signed and stamped by the retailer. Keep the invoice and manual.

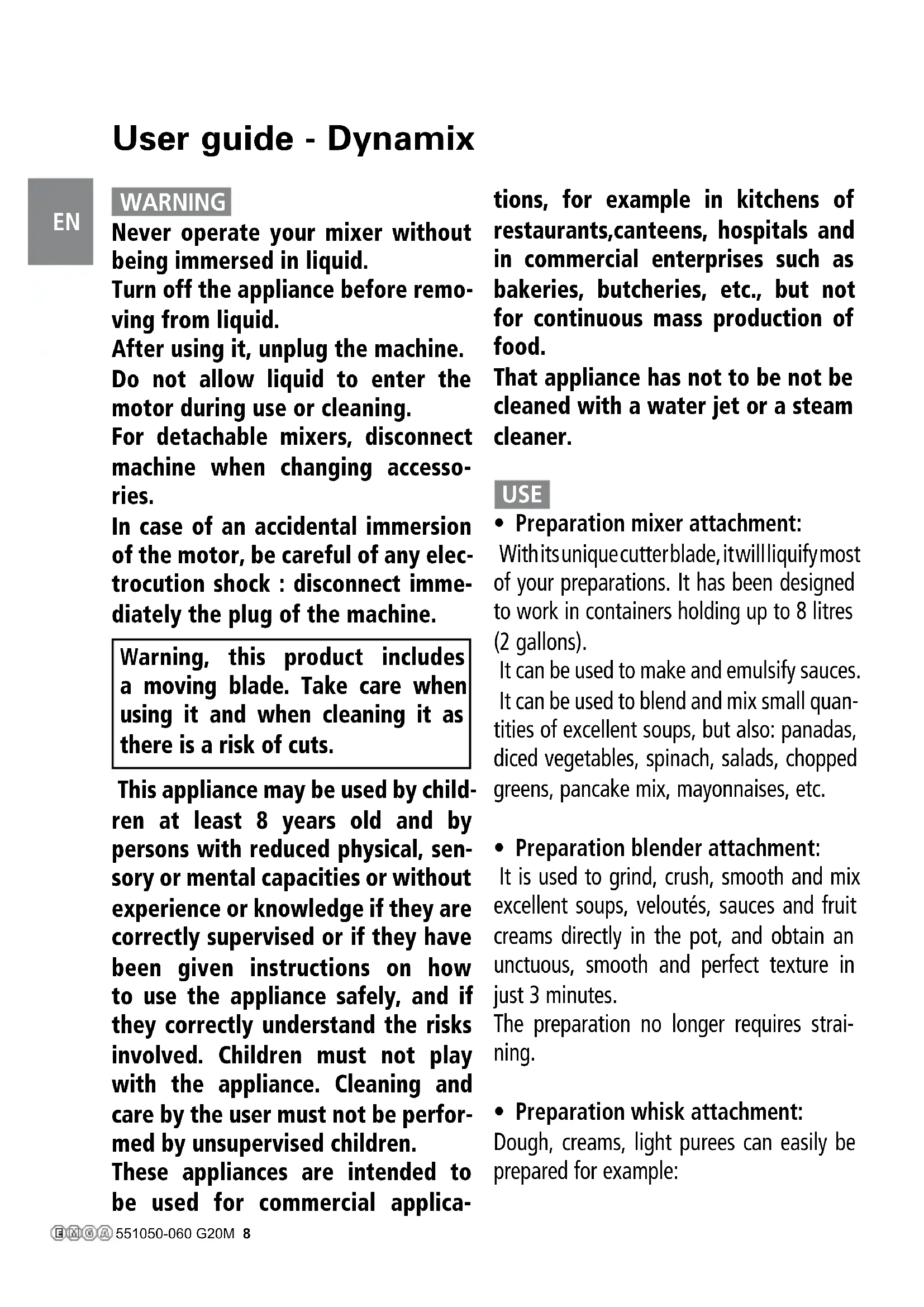

USER MANUAL Dynamix 551050 Dynamic

Never operate your mixer without being immersed in liquid.

Turn off the appliance before removing from liquid.

After using it, unplug the machine.

Do not allow liquid to enter the motor during use or cleaning.

For detachable mixers, disconnect machine when changing accessories.

In case of an accidental immersion of the motor, be careful of any electrocution shock : disconnect immediately the plug of the machine.

Warning, this product includes a moving blade. Take care when using it and when cleaning it as there is a risk of cuts.

This appliance may be used by children at least 8 years old and by persons with reduced physical, sensory or mental capacities or without experience or knowledge if they are correctly supervised or if they have been given instructions on how to use the appliance safely, and if they correctly understand the risks involved. Children must not play with the appliance. Cleaning and care by the user must not be performed by unsupervised children.

These appliances are intended to be used for commercial applica

tions, for example in kitchens of restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.

That appliance has not to be not be cleaned with a water jet or a steam cleaner.

USE

• Preparation mixer attachment:

With its unique cutter blade, it will liquify most of your preparations. It has been designed to work in containers holding up to 8 litres (2 gallons).

It can be used to make and emulsify sauces. It can be used to blend and mix small quantities of excellent soups, but also: panadas, diced vegetables, spinach, salads, chopped greens, pancake mix, mayonnaises, etc.

• Preparation blender attachment:

It is used to grind, crush, smooth and mix excellent soups, veloutés, sauces and fruit creams directly in the pot, and obtain an unctuous, smooth and perfect texture in just 3 minutes.

The preparation no longer requires straining.

• Preparation whisk attachment:

Dough, creams, light purees can easily be prepared for example:

User guide - Dynamix

• 2 to 12 white eggs may slowly be whisked up at reduced speed and finalized at high speed ensuring an incomparable density and uniformity.
• But also, sponge cake mixtures, almond pastes, souffles, Chantilly whipped cream, creams and sauces, pancake mixtures, meringues, whipped cheese, mayonnaise, etc.

- Preparation food ricer attachment:

It allows you to mix a creamy purée with entire potatoes directly in pots, avoiding decanting.

Used for many purées and vegetable creams: carrots, tomato sauce, bette, salad dressings, split peas, navet, cauliflowerers.

- Preparation cutter bowl:

Allows you to grind, mix, chop vegetables, garlic, onions, herbs, parsley, nuts, minced meat, Parmesan and making short crust pastry or bread dough.

This appliance is only for use for preparing food: for any other use, please contact us.

OPERATION

Screw the accessory onto the motorblock until it stops.

Hold the MIXER by the grip in one hand with a finger on trigger (G) (without pressing).

Then press the trigger (G), the appliance will run.

To stop the appliance, release the trigger (G).

Precautions for the use of the appliance:

Never run the appliance outside a recipient. After each use unplug the appliance.

For higher effectiveness we recommend holding the appliance in a vertical position without the protective bell touching the bottom of the pan as shown in the sketches opposite (2/3 of the way down the tube).

Never use accessories not recommended by the manufacturer. They may be a hazard for the user and may damage the device. Only use original items and accessories.

CARE

The appliance can be cleaned using a sponge or a slightly damp cloth.

To clean the inside of the bell, run the appliance with the tube and its bell in clean water for 3 seconds.

Clean the stand in clean water using washing up liquid if necessary.

Be careful: risk of cuts when cleaning the mixer attachment equipped with the blade.

NEVER clean the appliance using a hose.
NEVER immerse the motor block in liquid.

User guide - Dynamix

EN

MAINTENANCE

It is preferable to regularly check:

• That the power cable is in good condition (the copper wires in the cable should not be visible).
• That the tube is watertight (by visually inspecting the seal condition after having removed the blades).
• That the blades are sharp. Replace the blade if necessary.

If the power cable is damaged, it must be replaced by the manufacturer, its afterwards service or people of similar qualification to avoid danger.

ELECTRIC REQUIREMENTS

The mixer of a class 2 category (double insulation) powered by a single phase alternating current and does not require a "u" ground plug.

The installation must be protected by a ground fault circuit breaker and a 10 A calibre fuse.

Use a standard 10/16 A single phased socket.

Check that the electricity supply voltage and the value on the charger specifications plate are compatible.

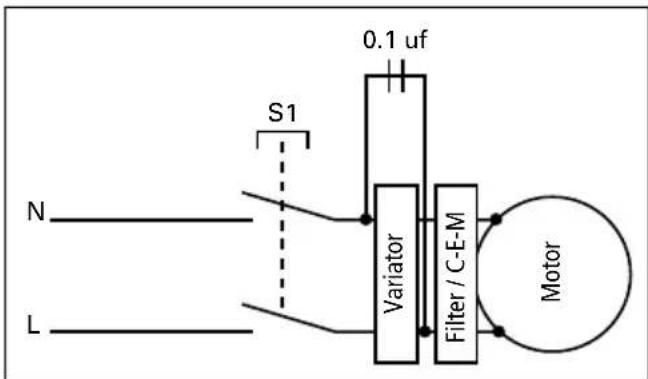

ELECTRICAL DIAGRAM

CERTIFICATE OF CONFORMITY CUSTOMER SERVICE AND WARRANTY

This machine is in accordance with CE standards and :

• Customer service and warranty:

Should your unit require service, contact your distributor for the nearest authorized service centre if you wish your unit to be serviced by the manufacture ship it to :

CANADA SERVICE CENTRE DYNAMIC INTERNATIONAL LTD.

3227 Boul. pitfield Saint-Laurent - Quebec H4S-1H3 Toll free phone : [phone] Toll free fax : [phone] Local Phone : [phone] Local Fax : [phone]

User guide - Dynamix

USA SERVICE CENTRE DYNAMIC INTERNATIONAL LTD.

1320 route 9 # 1352 - Champlain, NY - 12919
Toll free phone : [phone]
Toll free fax : [phone]

DYNAMIC FRANCE S.A.S.

518 rue Léo Baekeland - B.P.57
85290 Mortagne-sur-Sevre Cedex - FRANCE
Tél. [phone]
Fax: [phone]
e-mail: [e-mail]

Warranty :

Your new Dynamic product is warranted to the original purchaser, for a period of one year, from the date of purchase. DYNAMIC warrants products to be free of manufacturing defects for a period of one year from the day of original shipment, covering all parts and labor. Damage caused by improper use, accident and/or abuse are not considered to be manufacturing defects. DYNAMIC will repair or replace, at its discretion, defective products returned to an authorized warranty repair center, freight prepaid one way. Unauthorized work on the products during the warranty period will void this warranty.

The portion below must be sent to the Service Centre within 10 days from the purchase date.

Local Fax: [phone]

Robert Koch Straße 7

77694 Kehl - Auenheim

Tel.: [phone] / 886 45-0

Fax: [phone]

e-mail : [e-mail]

- Garantie:

Procedure for the dismantling of the foot BLENDER DYNAMIX

1- Disassembly of the blade
2- Disassembly of the blade protector
3- Disassembly of the shaft and bearing seal
