| Product type | Professional immersion blender |
| Brand | Dynamic |
| Model | Master 551001 |
| Power supply | 230 V, 50 Hz single-phase |
| Electrical class | II (double insulation) |
| Electrical protection | Residual current circuit breaker + 10 A fuse |
| Interchangeable attachments | Mixing foot, blender foot, whisk, potato masher |
| Additional accessory | Cutter bowl (chopper) |
| Main use | Blending, emulsifying, grinding, chopping, whisking, mashing |
| Safety | Safety button + control lever, continuous locking |
| Automatic stop | Release the control lever |
| Power-on indicator | Yes (red) |
| Attachment material | Stainless steel |
| Cleaning | With clean water, sponge or damp cloth |
| Cleaning precautions | Do not immerse the motor unit, do not use water jet |
| Periodic maintenance | Check power cord, tube seal, knife sharpening |
| Warranty | 1 year (parts and labor) |
| After-sales service (France) | DYNAMIC FRANCE S.A.S., Mortagne-sur-Sèvre |
| After-sales service (Canada) | DYNAMIC INTERNATIONAL LTD., Saint-Laurent (Québec) |
| Certification | EN 12853 |
Frequently Asked Questions - Master 551001 Dynamic
User questions about Master 551001 Dynamic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hand blender in PDF format for free! Find your manual Master 551001 - Dynamic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Master 551001 by Dynamic.

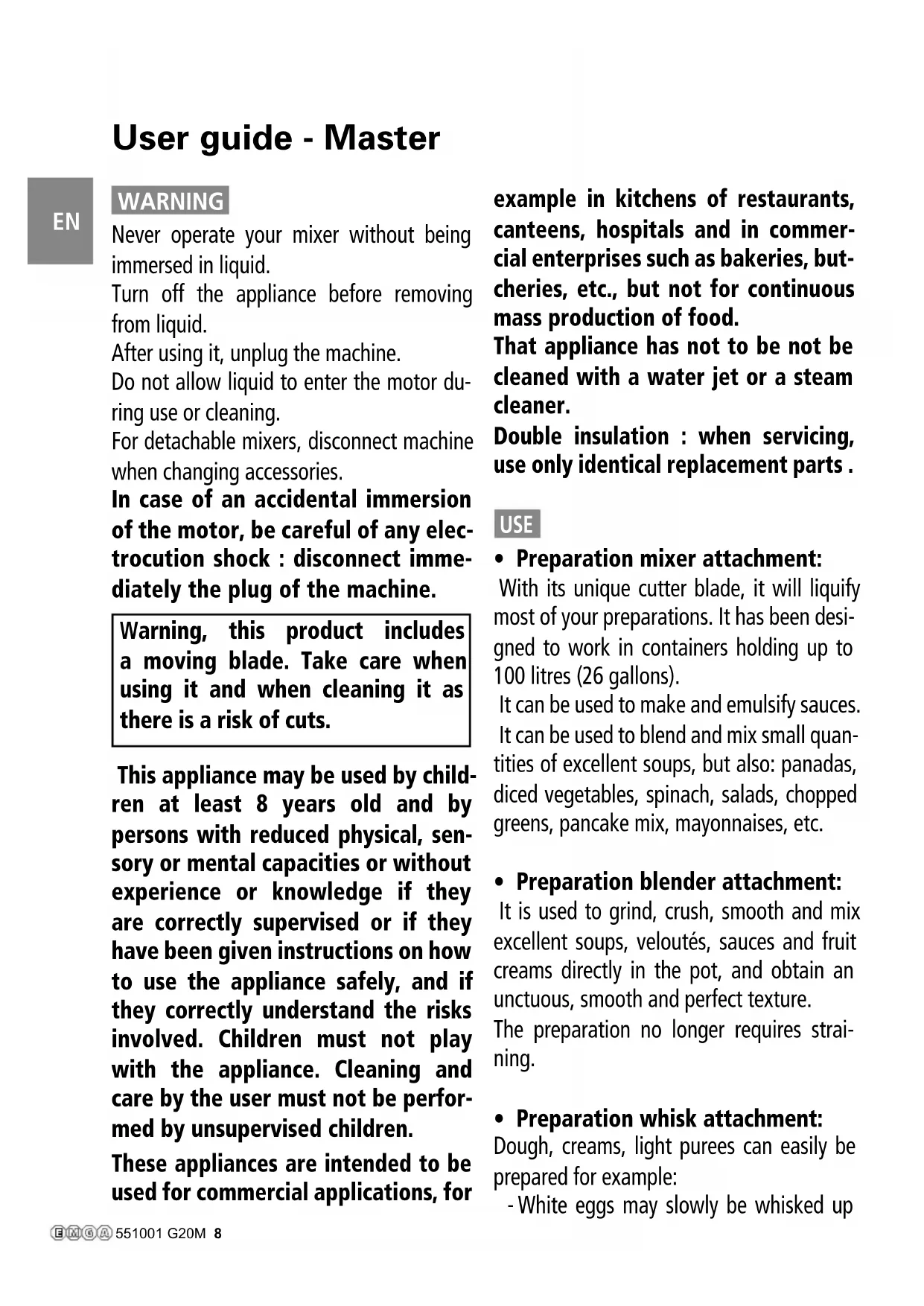

USER MANUAL Master 551001 Dynamic
Never operate your mixer without being immersed in liquid.
Turn off the appliance before removing from liquid.
After using it, unplug the machine.
Do not allow liquid to enter the motor during use or cleaning.
For detachable mixers, disconnect machine when changing accessories.
In case of an accidental immersion of the motor, be careful of any electrocution shock : disconnect immediately the plug of the machine.
Warning, this product includes a moving blade. Take care when using it and when cleaning it as there is a risk of cuts.
This appliance may be used by children at least 8 years old and by persons with reduced physical, sensory or mental capacities or without experience or knowledge if they are correctly supervised or if they have been given instructions on how to use the appliance safely, and if they correctly understand the risks involved. Children must not play with the appliance. Cleaning and care by the user must not be performed by unsupervised children.
These appliances are intended to be used for commercial applications, for
example in kitchens of restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.
That appliance has not to be not be cleaned with a water jet or a steam cleaner.
Double insulation : when servicing, use only identical replacement parts .
USE
- Preparation mixer attachment:
With its unique cutter blade, it will liquify most of your preparations. It has been designed to work in containers holding up to 100 litres (26 gallons).
It can be used to make and emulsify sauces. It can be used to blend and mix small quantities of excellent soups, but also: panadas, diced vegetables, spinach, salads, chopped greens, pancake mix, mayonnaises, etc.
- Preparation blender attachment:
It is used to grind, crush, smooth and mix excellent soups, veloutés, sauces and fruit creams directly in the pot, and obtain an unctuous, smooth and perfect texture.
The preparation no longer requires straining.
- Preparation whisk attachment:
Dough, creams, light purees can easily be prepared for example:
-White eggs may slowly be whisked up
User guide - Master
at reduced speed and finalized at high speed ensuring an incomparable density and uniformity.
- But also, sponge cake mixtures, almond pastes, soufflés, Chantilly whipped cream, creams and sauces, pancake mixtures, meringues, whipped cheese, mayonnaise, etc.
- Preparation food ricer attachment:
It allows you to mix a creamy purée with entire potatoes directly in pots, avoiding decanting.
Used for many purées and vegetable creams: carrots, tomato sauce, bette, salad dressings, split peas, navet, cauliflowerers.
- Preparation cutter bowl:
Allows you to grind, mix, chop vegetables, garlic, onions, herbs, parsley, nuts, minced meat, Parmesan and making short crust pastry or bread dough.
This appliance is only for use for preparing food: for any other use, please contact us.
OPERATION
Unit must be unplugged.

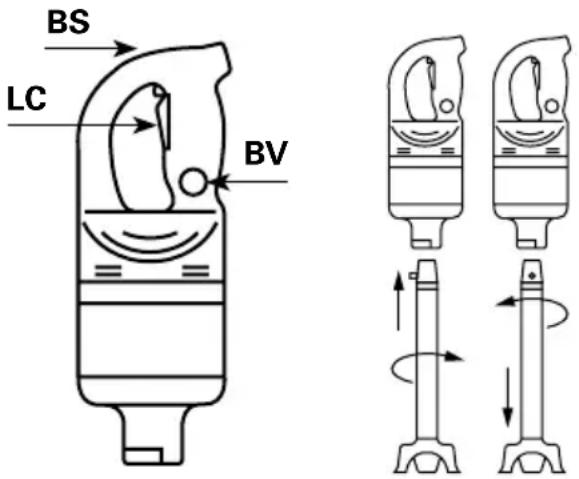

In order to install the mixer tool, whisk tool or food mill / ricer tool properly, please follow these instructions:
1- Insert the upper part of the mixer tool into the bottom slot of the power unit,
2- Turn clockwise until fully tightened,
3- To dismantle, unplug the machine and proceed backwards with previous instructions.
Plug your mixer into an electrical outlet. A red power indicator light will come on indicating that your mixer is ready to be used.
Press and hold down the security button (BS) and then press on the control lever (LC), Once the machine is started you may release the security button (BS).
If you prefer to lock the control lever for continuous use you may press the locking switch (BV),
To turn off your unit press and release the control lever (LC).
- Precautions for the use of the appliance:
Never run the appliance outside a recipient. After each use unplug the appliance.
For higher effectiveness we recommend holding the appliance in a slanting position without the protective bell touching the bottom of the pan as shown in the sketches opposite (2/3 of the way down the tube).
User guide - Master
EN
Never use accessories not recommended by the manufacturer. They may be a hazard for the user and may damage the device. Only use original items and accessories.
CARE
The appliance can be cleaned using a sponge or a slightly damp cloth.
To clean the inside of the bell, run the appliance with the tube and its bell in clean water for 3 seconds.
Clean the stand in clean water using washing up liquid if necessary.
Be careful: risk of cuts when cleaning the mixer attachment equipped with the blade.
NEVER clean the appliance using a hose.
NEVER immerse the motor block in liquid.
MAINTENANCE
It is preferable to regularly check:
- That the power cable is in good condition (the copper wires in the cable should not be visible).
-
That the tube is watertight (by visually inspecting the seal condition after having removed the blades).
-
That the blades are sharp.
If the power cable is damaged, it must be replaced by the manufacturer, its after-selves service or people of similar qualification to avoid danger.
ELECTRIC REQUIREMENTS
The mixer of a class 2 category (double insulation) powered by a single phase alternating current and does not require a "u" ground plug.
The installation must be protected by a ground fault circuit breaker and a 10 A calibre fuse.
Use a standard 10/16 A single phased socket.
Check that the electricity supply voltage and the value on the mixer specifications plate are compatible.
CERTIFICATE OF CONFORMITY
CUSTOMER SERVICE AND
WARRANTY
This machine is in accordance with CE standards and :
- Customer service and warranty:
Should your unit require service, contact your distributor for the nearest authorized service centre if you wish your unit to be serviced by the manufacture ship it to :
User guide - Master
CANADA SERVICE CENTRE DYNAMIC INTERNATIONAL LTD.
3227 boul. Pitfield
Saint-Laurent - Quebec H4S-1H3
Toll free phone: 1-800-267-7794
Toll free fax: 1-877-668-6623
Local Phone : (514) 956 0127
Local Fax : (514) 956 8983
ranty repair center, freight prepaid one way. Unauthorized work on the products during the warranty period will void this warranty. The portion below must be sent to the Service Centre within 10 days from the purchase date.
USA SERVICE CENTRE DYNAMIC USA
1320 route 9 # 1352 - Champlain, NY - 12919
Toll free phone: 1-800-267-7794
Toll free fax: 1-877-668-6623
DYNAMIC FRANCE S.A.S.
Your new Dynamic product is warranted to the original purchaser, for a period of one year, from the date of purchase. DYNAMIC warrants products to be free of manufacturing defects for a period of one year from the day of original shipment, covering all parts and labor. Damage caused by improper use, accident and/or abuse are not considered to be manufacturing defects. DYNAMIC will repair or replace, at its discretion, defective products returned to an authorized war
Robert Koch Straße 7
77694 Kehl - Auenheim
Tel.: +49 (0)7851 / 886 45-0
Fax: +49 (0)07851 / 886 45-32
e-mail:info@dynamic-professional.de
- Garantie:
1-Mains input
2-Indicator light
3-Filter
4-Variable speed circuit board
5-Motor output
6- Security
7- Control lever
8-Locking system
9- Control lever
DE
EN Procedure for the dismantling of the foot BLENDER MASTER
1- Disassembly of the blade
2- Disassembly of the blade protector
3- Disassembly of the shaft and bearing seal
Procedure om de blenderstaaf te demonteren
1- Demontage van de hamer
2- Demontage van de klok
3- Demontage van de koppelingsas
A- Install knife on the axle (bottom of bowl). Now, put your food into the bowl.
B- Install clear cover onto the bowl, respect notches placement. Gently turn cover until it locks.
C- Now, install the orange security - motor adapter over it.
D- Insert motor block on the connector.
E- Gently turn counter clockwise to lock motor block on the adaptor. (Clock wise when dismantling)
Do not attempt to open cover with motor block still attached! Remove motor block first.
