Senior 551250 - Hand blender Dynamic - Free user manual and instructions

Product type	Immersion blender
Brand	Dynamic
Model	Senior 551250
Included accessories	Mixing foot, whisk foot, masher foot, cutter bowl
Number of accessories	4
Functions	Blend, emulsify, whisk, grind, chop, mash
Speed control	Dial with continuous adjustment
Safety device	Safety button + start trigger
Power supply	Single-phase alternating current
Electrical class	Class II (double insulation)
Motor type	Anti-interference universal motor
Warranty	1 year, parts and labor
Maintenance	Clean with clear water, do not immerse the motor unit, do not clean with water jet
Recommended use	Professional (restaurants, canteens, hospitals, bakeries, butcher shops)
Usage precautions	Do not run empty, immerse the blade before starting, turn off before removing from liquid
Repairability	Manufacturer after-sales service, spare parts available

Frequently Asked Questions - Senior 551250 Dynamic

How to use the Dynamic Senior 551250 immersion blender?

To use the blender, screw the desired accessory onto the motor unit. Hold the blender by the handle, place a finger on the trigger without pressing. Press the safety button, then the trigger to start. Release the safety button after starting. To stop, release the trigger. Adjust the speed with the dial. Important: never run the appliance empty and always immerse the blade before starting.

How to clean the mixing foot?

To clean the mixing foot, run the appliance in clear water for 3 seconds, then rinse with clear water. If necessary, use dishwashing liquid. Warning: never immerse the motor unit in liquid, do not clean with water jet. Be careful as the blade is sharp.

What accessories are included with the blender?

The Dynamic Senior 551250 blender comes with four accessories: a mixing foot for blending and emulsifying, a whisk foot for whisking and beating egg whites, a masher foot for making purees, and a cutter bowl for chopping and grinding.

How to change speed?

The speed is adjusted by turning the dial located on the motor unit. The variator allows continuous speed adjustment from slow to fast, depending on the preparation.

What to do if the appliance stops working?

If the appliance stops working, first check the power supply and the power cord. If the problem persists, contact your dealer or send the appliance to DYNAMIC FRANCE S.A.S. at the address indicated in the manual. The one-year warranty covers manufacturing defects (parts and labor).

Can I use the blender in a professional environment?

Yes, this appliance is designed for professional use in kitchens of restaurants, canteens, hospitals, bakeries, butcher shops, etc. It is not intended for continuous food production.

How to start the appliance safely?

To start safely, make sure the accessory is properly screwed on, then hold the blender by the handle. First press the safety button, then the trigger. Release the safety button once running. Never start without the blade immersed in liquid.

What types of preparations can I make with the whisk foot?

The whisk foot allows you to prepare meringue (from 2 to 50 egg whites), sponge cakes, almond paste, meringues, buttercream, soufflés, whipped cream, various sauces, pancake batter, mayonnaise, etc. It ensures incomparable whisking and consistency.

Is the blender under warranty?

Yes, the appliance is guaranteed one year from the date of purchase against any manufacturing defect. The warranty covers parts and labor. To be valid, the warranty card must be certified by the seller and attached to the appliance in case of repair.

How to maintain the blender knife?

The blade should be checked periodically for sharpness. To clean the blade, run the mixing foot in clear water. Warning about the risk of cuts when cleaning. Never use accessories not recommended by the manufacturer.

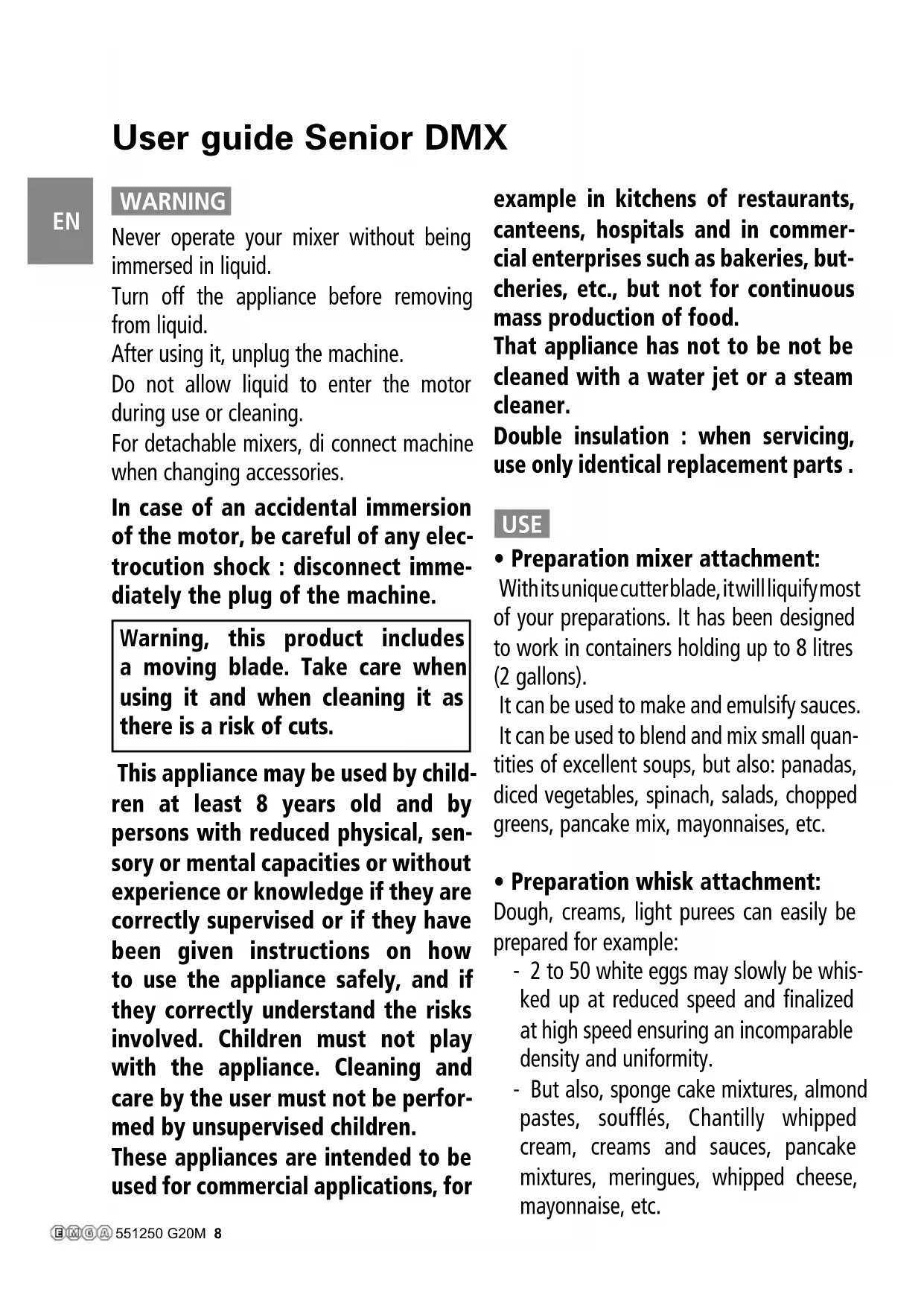

USER MANUAL Senior 551250 Dynamic

Never operate your mixer without being immersed in liquid.

Turn off the appliance before removing from liquid.

After using it, unplug the machine.

Do not allow liquid to enter the motor during use or cleaning.

For detachable mixers, di connect machine when changing accessories.

In case of an accidental immersion of the motor, be careful of any electrocution shock : disconnect immediately the plug of the machine.

Warning, this product includes a moving blade. Take care when using it and when cleaning it as there is a risk of cuts.

This appliance may be used by children at least 8 years old and by persons with reduced physical, sensory or mental capacities or without experience or knowledge if they are correctly supervised or if they have been given instructions on how to use the appliance safely, and if they correctly understand the risks involved. Children must not play with the appliance. Cleaning and care by the user must not be performed by unsupervised children.

These appliances are intended to be used for commercial applications, for

example in kitchens of restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food.

That appliance has not to be not be cleaned with a water jet or a steam cleaner.

Double insulation : when servicing, use only identical replacement parts .

USE

• Preparation mixer attachment:

With its unique cutterblade, it will liquify most of your preparations. It has been designed to work in containers holding up to 8 litres (2 gallons).

It can be used to make and emulsify sauces. It can be used to blend and mix small quantities of excellent soups, but also: panadas, diced vegetables, spinach, salads, chopped greens, pancake mix, mayonnaises, etc.

• Preparation whisk attachment:

Dough, creams, light purees can easily be prepared for example:

• 2 to 50 white eggs may slowly be whisked up at reduced speed and finalized at high speed ensuring an incomparable density and uniformity.

• But also, sponge cake mixtures, almond pastes, soufflés, Chantilly whipped cream, creams and sauces, pancake mixtures, meringues, whipped cheese, mayonnaise, etc.

User guide Senior DMX

• Preparation food ricer attachment: It allows you to mix a creamy purée with entire potatoes directly in pots, avoiding decanting.
  Used for many purées and vegetable creams: carrots, tomato sauce, bette, salad dressings, split peas, navet, cauliflowerers.
• Preparation cutter bowl:

Allows you to grind, mix, chop vegetables, garlic, onions, herbs, parsley, nuts, minced meat, Parmesan and making short crust pastry or bread dough.

This appliance is only for use for preparing food: for any other use, please contact us.

OPERATION

Assembling: turn the mixer or whisk tool counter clockwise until well tightened without blocking it.

Dismantling : make sure the mixer is unplugged and turn the mixer or whisk tool clockwise.

Hold the mixer by the handle with one hand. keep a finger on the (G) switch without pressing it.

With the other hand press the (S) safety switch.

Press and hold down the safety button then press on the control lever (G), the mixer is now working and you can release the security button.

Release the (G) switch to turn the machine off.

While using the mixer you can change the mixing speed by turning the speed variator knob V.

• Precautions for the use of the appliance:

Never run the appliance outside a recipient. After each use unplug the appliance.

For higher effectiveness we recommend holding the appliance in a slanting position without the protective bell touching the bottom of the pan as shown in the sketches opposite (2/3 of the way down the tube).

Never use accessories not recommended by the manufacturer. They may be a hazard for the user and may damage the device. Only use original items and accessories.

User guide Senior DMX

EN

CARE

The appliance can be cleaned using a sponge or a slightly damp cloth.

To clean the inside of the bell, run the appliance with the tube and its bell in clean water for 3 seconds.

Clean the stand in clean water using washing up liquid if necessary.

Be careful: risk of cuts when cleaning the mixer attachment equipped with the blade.

NEVER clean the appliance using a hose.
NEVER immerse the motor block in liquid.

MAINTENANCE

It is preferable to regularly check:

• That the power cable is in good condition (the copper wires in the cable should not be visible).
• That the tube is watertight (by visually inspecting the seal condition after having removed the blades).
• T hat the blades are sharp.

If the power cable is damaged, it must be replaced by the manufacturer, its afterwards service or people of similar qualification to avoid danger.

ELECTRIC REQUIREMENTS

The mixer of a class 2 category (double insulation) powered by a single phase alternating current and does not require a "u" ground plug.

The installation must be protected by a ground fault circuit breaker and a 10 A calibre fuse.

Use a standard 10/16 A single phased socket.

Check that the electricity supply voltage and the value on the mixer specifications plate are compatible.

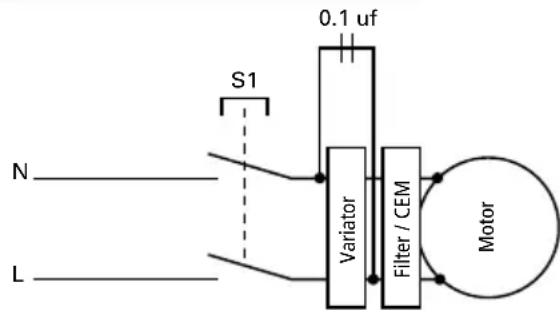

ELECTRICAL DIAGRAM

CERTIFICATE OF CONFORMITY

CUSTOMER SERVICE AND

WARRANTY

This machine is in accordance with CE standards and :

• Customer service and warranty: Should your unit require service, contact your distributor for the nearest authorized service centre if you wish your unit to be serviced by the manufacture ship it to :

CANADA SERVICE CENTRE DYNAMIC INTERNATIONAL LTD.

3227 boul. Pitfield

User guide Senior DMX

Saint-Laurent - Quebec H4S-1H3

Toll free phone : [phone]

Toll free fax: [phone]

Local Phone : [phone]

Local Fax : [phone]

will void this warranty.

The portion below must be sent to the Service Centre within 10 days from the purchase date.

USA SERVICE CENTRE DYNAMIC USA

1320 route 9 # 1352 - Champlain, NY - 12919

Toll free phone : [phone]

Toll free fax: [phone]

DYNAMIC FRANCE S.A.S.

Your new Dynamic product is warranted to the original purchaser, for a period of one year, from the date of purchase. DYNAMIC warrants products to be free of manufacturing defects for a period of one year from the day of original shipment, covering all parts and labor. Damage caused by improper use, accident and/or abuse are not considered to be manufacturing defects. DYNAMIC will repair or replace, at its discretion, defective products returned to an authorized warranty repair center, freight prepaid one way. Unauthorized work on the products during the warranty period
