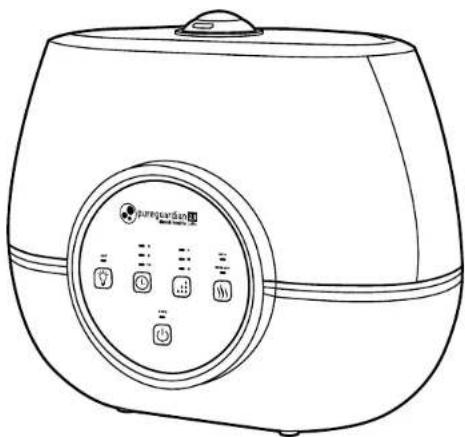

USER MANUAL H4810 PureGuardian

English E - 1 French F - 1 Spanish S - 1 Date Purchased month ________ year _________ Guardian Technologies LLC 26251 Bluestone Blvd. | Euclid, Ohio 44132

1.866.603.5900 | www.guardiantechnologies.comE-2 E-3

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.

• D isassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.

• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.

• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.

• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.

• Do not use if the plug is damaged or loose.

• Before filling or cleaning the unit, make sure it is unplugged.

• Once the humidifier has been plugged in, do not tilt or move the unit.

• Do not remove the water tank from the unit while it is on.

• Do not handle the plug with wet hands.

• Do not excessively bend, twist, pull or damage the power cord.

• Avoid placing this product where the humidity spout is pointed directly at an object or person.

• Do not inhale the mist/vapor expelled from the product or drink water from the tank.

• Do not fill the water tank with hot or boiling water.

• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.

• If the water tank becomes cracked or damaged, do not use.

• Do not keep this product running for an extended period of time.

• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.

• Do not keep water in the tank when not in use for an extended period of time.

WARNING: The cords, wires and/or cables supplied with this product contain chemicals, including lead or

lead compounds, known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after using.(California code of regulations Proposition 65)

READ AND SAVE THESE INSTRUCTIONS

WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury.

READ AND SAVE THESE INSTRUCTIONS

WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury.

• Donotcleantheunit,watertankorwaterreservoirwithdetergentsorchemicalsofanykind.

• Theuseofwateradditivesincludingethereal/essentialoils,fragrances,eucalyptus,water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives will void the manufactures warranty.

• Donotusethisproductnearanyotherelectronicdevice.

• Donotcoverthesprayspoutatanytimeduringuse.Donotputanythingonorinthetank.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.

• Donotplacecordoverobjects.

• Donotgetwaterinoronthepowercordorwhereitconnectstotheproduct.Donotusenearasink.

• Donottouchthewatertankduringoperation.

• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.E-5E-4

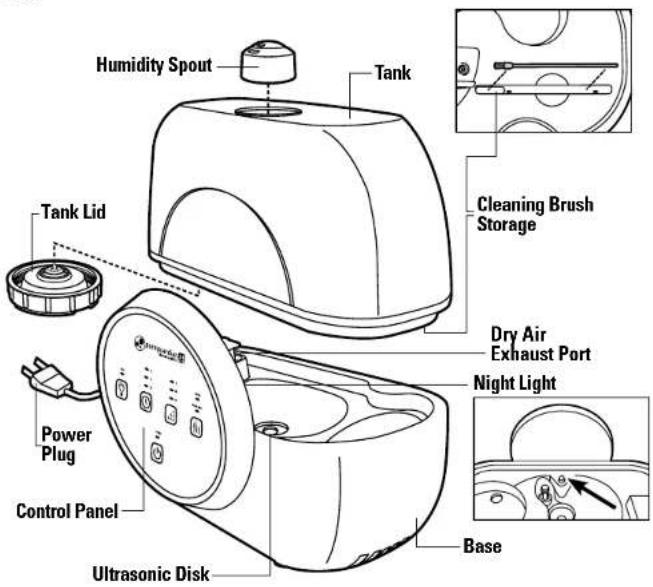

PRODUCT SPECIFICATIONS AND PARTS

FEATURE HIGHLIGHTS NIGHT LIGHT AnLEDilluminatesthetankforasoftglownightlight. TIMER Preset the humidifier to automatically turn off in 4, 8, or 12 hours. POWER TurnshumidierON/OFF. MIST CONTROL The spray volume or amount of mist that is produced by the unit can be adjusted to three levels based on need.

COOL OR WARM HUMIDIFICATION SELECTION

Select humidifying temperature based on need. Warm humidity will use more power but will humidify your room quicker.

WATER REFILL INDICATOR

When the Water Refill button lights up it is time to refill the water tank.

SILVER CLEAN TECHNOLOGY

Unlike other humidifiers that grow slimy mold and mildew, the pureguardian

technology embedded in the tank to fight the growth of mildew and mold on the surface of the water tank. Humidity Spout Tank Tank Lid Power Plug Ultrasonic Disk Night Light Base Control Panel Refill & Warm Mist Indicator Lights Cleaning Brush Storage Dry Air Exhaust PortE-6 E-7

1. Separate the tank from the

tank lid, turning it to the left.

3. Pour cool, clean water directly

intothetank.Donotpouranything but water into the tank.

4. Close the tank lid, turning it to the

right.ItisimportanttoFIRMLY secure cap after filling the tank with water.

5. Attach the tank to the base of the

Beforeturningonmakesurethere is water in the unit. Press the Power button.

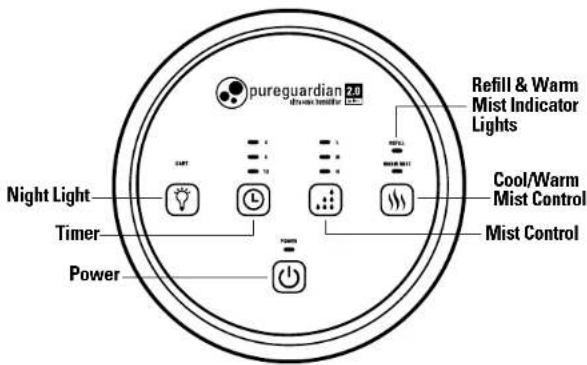

1. Night Light Feature

Press the Night Lamp button to turnnightlighton/off.

Press the Timer button to select either 4, 8, or 12 hours. The unit will turn off in that time.

3. Mist Control Button

When you press the Mist Control button there are three options: Press once for LOW PresstwiceforMEDIUM* Press three times for HIGH *Mediumisdefaultsetting.

4. Cool or Warm Humidification Indicator

Press to select cool or warm mist. When warm isselected,LEDwilllight.Water temperature is maintained at room temperature for cool setting and 80 degrees for warm. Allow 15 minutes for water to warm.

5. Water Refill Indicator

When the unit is low on water the Refill LEDonthefrontpanelwilllightup,and the unit will shut off. Simply add more water to continue use. Unit will automatically resume running when water tank has been refilled.

6. Humidity Spout Dual Direction

Broadenmistintwodifferentdirections throughout the room by rotating top section. POWER REFILL WARM MIST SET UP Selectarm,level,atlocation-atleastsixinches(15cm)fromanywallorobjectforproperair ow.Placethehumidieronawater-resistantsurface,aswatercandamagefurnitureandsome ooring.Donotplaceunitdirectlyoncarpet,towels,blanketsorotherabsorbentsurfaces. Guardian Technologies will not accept responsibility for damage caused by water spillage. FILLING Make sure unit is unplugged.

LIGHT REFILL WARM MIST NOTE: The humidifier is equipped with a safety device that will automatically shut the unit off whenactivated.Torestart,unplugfor5sec/replugthenpressthepowerbutton.Iftheunit continues to shut down, there may still be an abnormal condition and the unit may need service. Call Customer Service.If scale becomes difficult to remove with brush: 1.FilltheBasewith:mixtureof1tsp.whitevinegarand1tsp.water.

2. Let solution stand for 5 minutes.

• Pack the unit in its original carton and store in a cool, dry location. NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY. CLEANING

• Always unplug the unit before servicing in any way.

• The water temperature of the water remaining in the unit after use may be high, allow time for it to cool. GENERAL CLEANING

• Inside the base of the unit. Pourexcesswateroutoftheunit.Washouttheunitwithfresh water using the cleaning brush and a soft cloth as needed. Do not submerse the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.

• Water tank. Emptywatertank.Removemistnozzleandcleanthemisttubewithfreshwater and a light brush (bottle cleaning brush is recommended).

• Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth. DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.

• Ifyouliveinahardwaterarea,werecommendtheuseofdistilledwaterforyour humidifier. This will help reduce the precipitation of minerals or ‘white dust’.

2. Remove the tank and empty all water from unit base and tank.

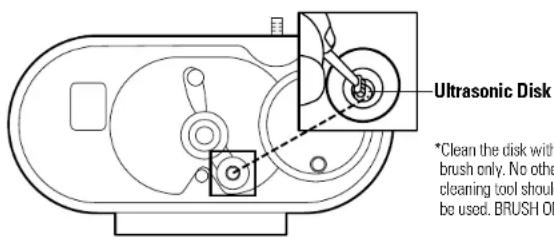

3. Locate the ultrasonic disk on the inside center of the base unit. (see pg. E-4)

4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits.

Do not scrub or scrape the ultrasonic disk. E-8 E-9 CLEANING CLEANING *Cleanthediskwiththe brush only. No other cleaning tool should beused.BRUSHONLY. Ultrasonic Disk©2007 Guardian Technologies LLC E-10 E-11 PROBLEM SOLUTION Water vapor and humidity are not produced. Power Plug: Unplug and then try again. PowerFailure:Whenthepowerisreturned,tryagain. Tank Installation: Make sure the tank is correctly attached. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) Air blows but water vapor is not produced. ExcessiveWater:Removeacertainamountofwaterfromthetank. Increase mist setting. Detergentresidueand/oroilingredientsfromcosmetics,etcmaybein tank; wash out tank and try again. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) If you use hard water, replace with softer water. Humidity level is low. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) The water in the unit is too cold: Replace with cool, but not cold water. Damageontheultrasonicdisk:ContactCustomerService1.866.603.5900 Warm humidity is not produced. It may take 10-15 minutes before warm humidity is created. The mist may not feel warm due to the fact it is so fine and is cooled rather quickly from the air in your home. Test by either feeling the base of the unit which should be warm to the touch or by allowing the unit to run for approximately30minutesonwarmsettinginaclosed200sq.footroom or smaller. The room should feel moderately warmer if the unit is working properly. The humidity has a bad smell. Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water. (see pg. E-8) White dust is forming on nearby furniture. Hardwatermaydepositacertainamountofdust.Dustintheairalso settles because of added humidity in the room. Use distilled water if this becomes a nuisance. *DecalcicationFilter(FLTDC)availableatwww.guardiantechnologies.com or through Customer Service 1.866.603.5900. Unit has stopped working. No or low water. Unplug unit and refill tank. Unitshutsoffunexpectedlyordoes not operate. Checkthatthesafetydevicetriggered.Torestart,unplugfor5sec/replug then press the power button. Call Customer Service 1.866.603.5900. Water is accumulating outside of unit or area surrounding unit. Saturation of humidity. Lower mist control setting. Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistantlevelsurface2-3feetoffofoor. Water dripping when refilling. Water remaining on bottom of tank. Wipe tank or tilt to drain before transporting. Make sure tank cap is secured tightly. Increased noise level. Unitmustbeplacedonaat,level,hardsurface.MakesureitisNOT placed on a soft or absorbent surface. TROUBLESHOOTING GUIDE To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt. If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual wear, damage resulting from accident, or unreasonable use of the product. This warranty only covers the product when used with genuine Guardian Technologies accessories. This warranty coversproductthatwaspurchasedfromauthorizeddistributors.Thiswarrantygivesyouspecic legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.) The product warranty registration can be completed online at www.guardiantechnologies.com. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and doesnotaffectyourrightstoutilizethiswarrantyaccordingtotheconditionsstatedabove.To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below. Guardian Technologies LLC 26251 Bluestone Blvd. Euclid, Ohio 44132
