Product Type	Ultrasonic Humidifier
Brand	PureGuardian
Model	H1510
Humidification Mode	Cool or Warm Mist
Power Supply	120 V, 50/60 Hz
Power Consumption (Cool Mist)	30 W
Power Consumption (Warm Mist)	110 W
Tank Capacity	5.7 L (1.5 gal)
Continuous Running Time	Up to 100 hours
Dimensions (L x W x H)	34.8 x 18.5 x 29.2 cm
Weight	2.5 kg (5.64 lb)
Key Features	LED nightlight, variable mist output, cool/warm mist selection, water refill indicator
Antimicrobial Technology	Silver Clean™ (integrated into tank)
Mist Nozzle	Dual-direction, adjustable
Recommended Water Type	Soft or distilled water (hard water → deposits)
Cleaning	Regular cleaning of ultrasonic disc with included brush; descale with white vinegar if needed
Safety Features	Auto shut-off when water level is low; dry-run protection
Warranty	3-year limited warranty
Model Number for Anti-Mineral Cartridge	FLTDC (optional)

Frequently Asked Questions - H1510 PureGuardian

How do I fill the tank of the PureGuardian H1510 humidifier?

Unplug the unit. Remove the tank from the base, open the cap by turning left, pour in cold, soft water only, close the cap tightly by turning right, then replace the tank on the base and plug in the unit.

What should I do if the humidifier emits no mist?

First check that the unit is plugged in and the outlet works. Make sure the tank is properly seated and contains water. If the problem persists, the ultrasonic disc may be dirty: gently clean it with the included brush (see manual).

How do I clean the ultrasonic disc of the H1510?

Unplug the unit and empty the base. Locate the disc in the center of the base. Use only the included cleaning brush to gently scrub the disc and remove deposits. Never scrub with an abrasive object. For stubborn deposits, you can let a solution of water and white vinegar (1 tsp vinegar to 1 tsp water) sit for 5 minutes, then rinse thoroughly.

Why is there white dust on furniture near the humidifier?

This is due to using hard water which contains minerals. To reduce this, use distilled water or install an anti-mineral cartridge (model FLTDC) available on the Guardian Technologies website. Regular cleaning of the ultrasonic disc also helps.

Can I use essential oils in the PureGuardian H1510 humidifier?

No, adding essential oils, fragrances, eucalyptus or any other additives to the water may damage the unit's materials and void the warranty. Use only cold, soft water (or distilled).

My H1510 humidifier emits a bad odor, what should I do?

This is often due to lack of maintenance or stagnant water. Empty the remaining water and thoroughly clean the unit: tank, base, ultrasonic disc, and mist nozzle. Use soft water and the included brush. Rinse well and dry before reusing.

How do I activate warm mist on the PureGuardian H1510?

Turn the mist output knob to the warm mist position. Allow the unit to heat up for 10 to 15 minutes before feeling warm mist. The water temperature will be maintained at approximately 26.5°C (80°F). Note that warm mist consumes more energy (110 W) but humidifies faster.

What should I do if the unit turns off by itself?

The humidifier automatically shuts off when the water level is too low. Check the water refill indicator (Refill). If it is lit, unplug the unit, fill the tank with cold water, then plug it back in. The unit will restart automatically after refilling.

What type of water should I use to avoid scale buildup?

It is recommended to use distilled water or soft water (low in minerals). If you use hard water, more frequent descaling will be required. You can also purchase the optional anti-mineral cartridge (model FLTDC) to reduce deposits.

Where can I find the anti-mineral cartridge for the H1510?

The anti-mineral cartridge model FLTDC is available on the official website www.guardiantechnologies.com or by contacting customer service at 1 866 603-5900.

USER MANUAL H1510 PureGuardian

USE & CARE INSTRUCTIONS

pureguardian Ultrasonic Humidifier

pureguardian _guardiantechologies.com^TM

Guardian Technologies LLC

7700 St Clair Avenue | Mentor, Ohio 44060

1.866.603.5900 | www.guardiantechnologies.com

Model No. H1510

3-Year Limited Warranty

www.guardiantechnologies.com

1.866.603.5900

REV0713

English E-1

French F-1

Spanish S-1

Date Purchased

month

year

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

WARNING: THE CORDS, WIRES AND/OR CABLES SUppLIED WITH THIS pRODUCT CONTAIN CHEMICALS, INCLUDING LEAD OR LEAD COMpOUNDS, KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND bIRTH DEFECTS OR OTHER REpRODUCTIVE HARM. WASH HANDS AFTER USING. (CALIFORNIA CODE OF REGULATIONS PROPOSITION 65)

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
  Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
  Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not remove the water tank from the unit while it is on.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
  If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives will void the manufactures warranty.
• Do not use this product near any other electronic device.
• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.
• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.
• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product. Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerge the unit in water or pour water on the unit or in the humidity spout.
• When emptying water from water tank, pour on drain side.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

PRODUCT SPECIFICATIONS AND PARTS

SPECIFICATIONS

MODEL NUMBER: H1510

HUMIDIFYING MODE: Cool/Warm Mist

POWER SUPPLY: 120V 50/60Hz

POWER CONSUMPTION: 30W (cool mist); 110W (warm mist)

TANK CAPACITY: 1.5 gallons

SUCCESSIVE HUMIDITY HOURS: Up to approximately 100 hours between tank refills

DIMENSIONS:Width-13.65 inches;Length-7.28 inches;Height-11.49 inches

WEIGHT: 5.64 pounds

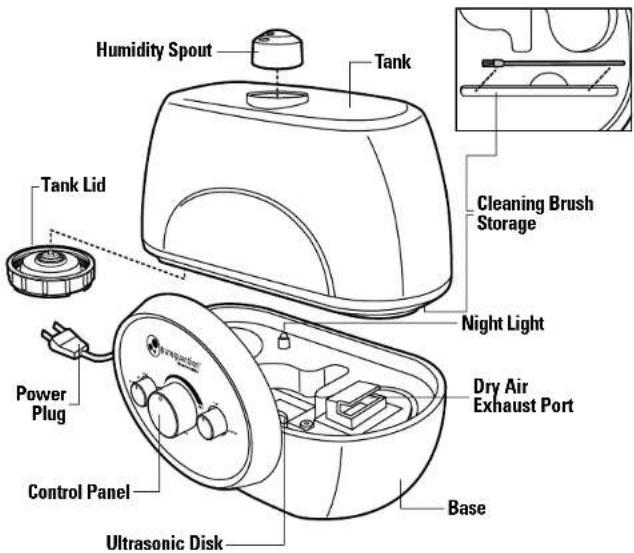

PARTS

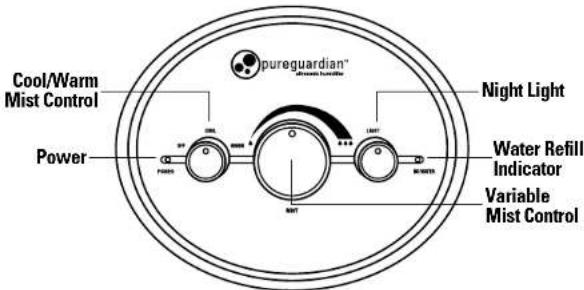

CONTROL PANEL BUTTON FUNCTIONS

FEATURE HIGHLIGHTS

NIGHT LIGHT

An LED illuminates the tank for a soft glow night light.

POWER

Turns humidifier ON/OFF.

VARIABLE MIST CONTROL

The spray volume or amount of mist that is produced by the unit can be adjusted based on need.

COOL OR WARM HUMIDIFICATION SELECTION

Select humidifying temperature based on need. Warm humidity will use more power but will humidify your room quicker.

WATER REFILL INDICATOR

When the Water Refill button lights up it is time to refill the water tank.

SILVER CLEAN TECHNOLOGY

Unlike other humidifiers that grow slimy mold and mildew, the pureguardian™ Ultrasonic Humidifier uses Silver Clean™ technology embedded in the tank to fight the growth of mildew and mold on the surface of the water tank.

DIRECTIONS FOR USE DIRECTIONS FOR USE

SETUP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.

Guardian Technologies will not accept responsibility for damage caused by water spillage.

FILLING

Make sure unit is unplugged.

1. Separate the tank from the base of the unit.

2. Flip over water tank and open the tank lid, turning it to the left.

3. Pour cool, clean water directly into the tank. Do not pour anything but water into the tank.

4. Close the tank lid, turning it to the right. It is important to FIRMLY secure cap after filling the tank with water.

5. Attach the tank to the base of the unit and plug in.

6. Power Button
Before turning on make sure there is water in the unit. Turn the Power button.

CONTROL OPERATION

1. Night Light Feature

Turn Night Lamp dial to illuminate the night light.

2. Variable Mist Control Dial

Tum the Mist Control dial to select the amount of mist you prefer.
3. Cool or Warm Humidification Indicator Select cool or warm mist. Water temperature is maintained at room temperature for cool setting and 80 degrees for warm. Allow 15 minutes for water to warm.

4. Water Refill Indicator

When the unit is low on water the Refill LED on the front panel will light up, and the unit will shut off. Simply add more water to continue use. Unit will automatically resume running when water tank has been refilled.

Broaden mist in two different directions throughout the room by rotating top section.

5. Humidity Spout Dual Direction

CLEANING CLEANING

CLEANING

Always unplug the unit before servicing in any way.
- The water temperature of the water remaining in the unit after use may be high, allow time for it to cool.

GENERAL CLEANING

• Inside the base of the unit. Pour excess water out of the unit. Wash out the unit with fresh water using the cleaning brush and a soft cloth as needed. Do not submerge the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.
• Water tank. Empty water tank. Remove mist nozzle and clean the mist tube with fresh water and a light brush (bottle cleaning brush is recommended).
• Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hardwater area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.
2. Remove the tank and empty all water from unit base and tank.

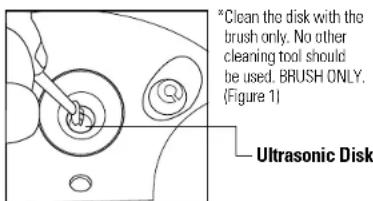

3. Locate the ultrasonic disk on the inside center of the base unit. (see pg. E-4)
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits. (Figure 1) Do not scrub or scrape the ultrasonic disk.

Figure 1

If scale becomes difficult to remove with brush:

1. Fill the Base with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the Base, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and mist tube in water tank. Clean as needed.
5. Rinse the Base thoroughly with water to remove scale and vinegar solution.

If you have frequent scale build up and/or white dust, you can consider a decalcification cartridge (model FLTDC) available at www Guardiantechnologies.com or through customer service 1.866.603.5900.

FLTDC

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLESHOOTING GUIDE

PROBLEM SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again. Power Failure: When the power is returned, try again. Tank Installation: Make sure the tank is correctly attached. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8)
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank. The desired humidity is lower than the current temperature. Increase the desired humidity. Detergent residue and/or oil ingredients from cosmetics, etc may be in tank; wash out tank and try again. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) If you use hard water, replace with softer water.
Humidity level is low. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) The water in the unit is too cold: Replace with cool, but not cold water. Damage on the ultrasonic disk: Contact Customer Service 1.886.503.5900
Warm humidity is not produced. It may take 10-15 minutes before warm humidity is created. The mist may not feel warm due to the fact it is so fine and is cooled rather quickly from the air in your home. Test by either feeling the base of the unit which should be warm to the touch or by allowing the unit to run for approximately 30 minutes on warm setting in a closed 200 sq. foot room or smaller. The room should feel moderately warmer if the unit is working properly.
The humidity has a bad smell. Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water. (see pg. E-8)
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance. * Decalcification Filter (FLTOC) available at www Guardiant Technologies.com or through Customer Service 1.866.503.5900.
Unit has stopped working. No or low water. Unplug unit and refill tank.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting. Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Water dripping when refilling. Water remaining on bottom of tank. Wipe tank or tilt to drain before transporting.
Increased noise level. Unit must be placed on a flat, level, hard surface. Make sure it is NOT placed on a scift or absorbent surface.

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual wear, damage resulting from accident, or unreasonable use of the product. This warranty only covers the product when used with genuine Guardian Technologies accessories. This warranty covers product that was purchased from authorized distributors. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

The product warranty registration can be completed online at www Guardiantechnologies.com. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above. To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

Guardian Technologies LLC

7700 St. Clair Avenue

Mentor, Ohio 44060

1.866.603.5900

www Guardiantechnologies.com

This product has been tested and complies with the requirements for Federal Communications Commission, Part 18 for Radio/TV/Communication interference. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

©2007 Guardian Technologies LLC
