Product Type	Drywall Screwdriver (Drill/Driver)
Brand	RIDGID
Model	R6000
Power	120 V, 60 Hz, AC, 6.5 A
No-load speed	0 - 4,000 RPM
Bit shank capacity	6.4 mm (1/4 in)
Net weight	1.4 kg (3.1 lb)
Double insulation	Yes
Reverse switch	Yes, by lever
Trigger lock button	Yes, for continuous operation
Magnetic bit holder	Yes, holds bit and screw
Adjustable depth nosepiece	Yes, by adjustment sleeve
Belt clip	Yes, on top of motor housing
Cushioned handle	Yes, adjustable to two positions
Included bits	#2 Phillips bit and R2 square bit
Limited warranty	3 years on material and workmanship defects, 90-day satisfaction assured
Maintenance	Clean with a dry cloth, avoid solvents. No lubrication required
Safety	Double insulation, requires eye protection

Frequently Asked Questions - R6000 RIDGID

How do I change the bit on the R6000?

To change the 6.4 mm (1/4 in) bit, simply remove the old one from the magnetic bit holder and insert a new one. It is not necessary to remove the adjustable head.

How do I adjust the screw depth?

Turn the adjustment sleeve on the head to achieve the desired depth. Test on a scrap piece to verify the setting.

What is the maximum speed of the R6000 screwdriver?

The maximum no-load speed is 4,000 RPM, with variable speed control by trigger.

How do I use the trigger lock?

Press the trigger, hold down the lock button on the side of the handle, then release the trigger. To deactivate, press the trigger again.

How do I reverse the rotation direction?

Use the lever located above the trigger. Push it left to drive screws (clockwise) and right to remove screws (counterclockwise). The motor must be stopped before changing direction.

What accessories are included with the R6000?

The screwdriver comes with a #2 Phillips bit installed, an R2 square bit, and an owner's manual.

What is the warranty on the R6000?

RIDGID offers a limited 3-year warranty on material and workmanship defects, as well as a 90-day satisfaction assured policy.

How do I clean and maintain the screwdriver?

Use a clean, dry cloth to remove dirt, dust, and grease. Never use solvents such as brake fluid, gasoline, or petroleum-based products. Bearings are lubricated for life; no additional lubrication is required.

Can I use the R6000 for drilling?

No, the R6000 is a drywall screwdriver designed specifically for driving screws into drywall. It is not suitable for drilling.

Is the screwdriver cordless or corded?

The R6000 is a corded tool (120 V, 60 Hz). It must be plugged into a wall outlet.

USER MANUAL R6000 RIDGID

To register your RIDGID product, please visit: http://register.RIDGID.com

This screwdriver has been engineered and manufactured to our high standard for dependability, ease of operation and operator safety. When properly cared for, the drill will give you years of rugged, trouble-free performance.

WARNING

To reduce the risk of injury, the user must read and understand the operator's manual before using this product.

Thank you for buying a RIDGID® product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

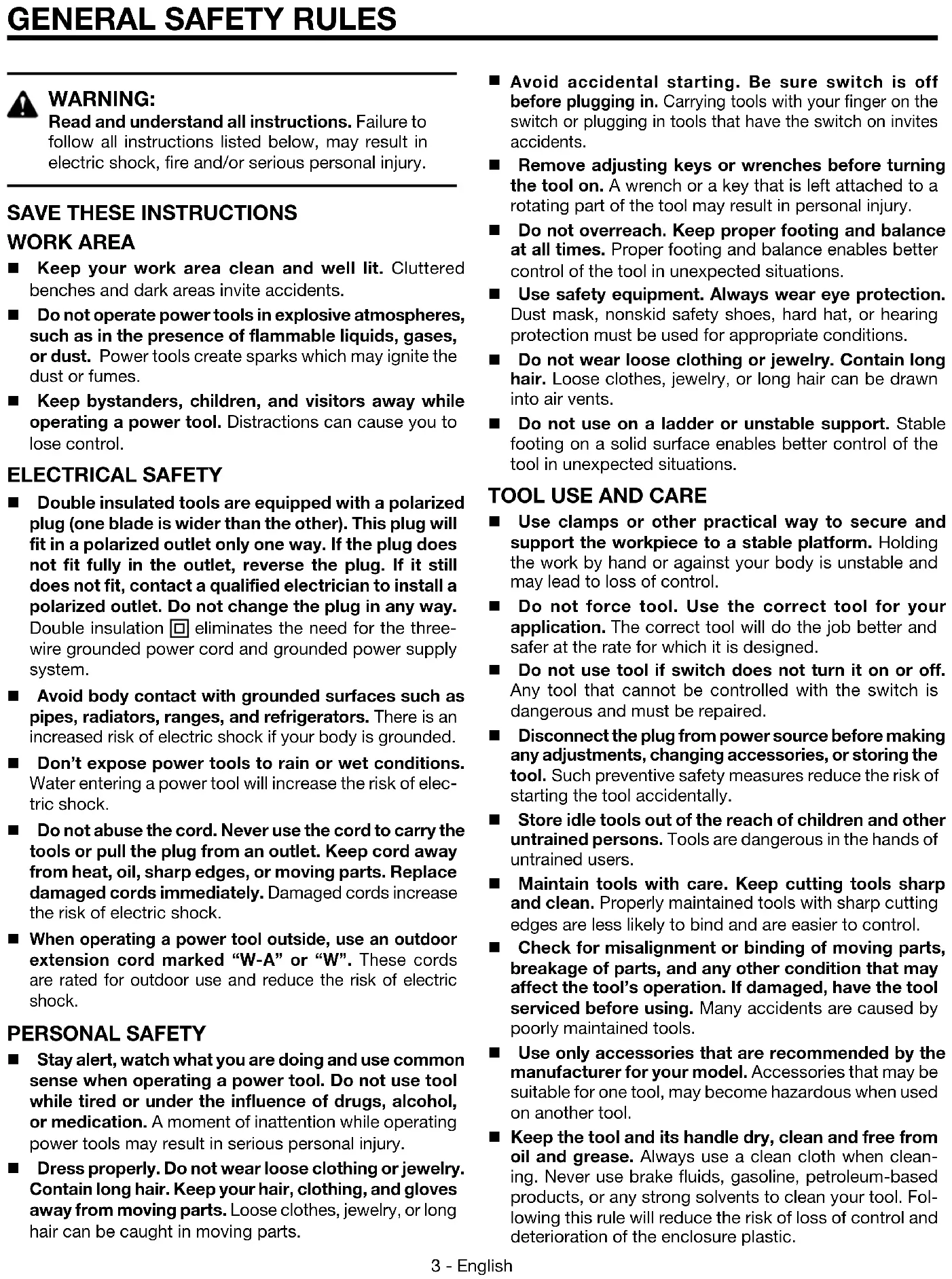

General Safety Rules 3-4

■ Figure numbers (illustrations) 11-12

Figure numeros (illustrations) / Figura numeras (ilustraciones)

Parts Ordering and Service.

INTRODUCTION/INTRODUCCION

This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

***

Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS WORK AREA

• Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

Double insulated tools are equipped with a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insulation eliminates the need for the three-wire grounded power cord and grounded power supply system.
- Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded.
- Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
- When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Dress properly. Do not wear loose clothing or jewelry.
  Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

• Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

• Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
  Use safety equipment. Always wear eye protection. Dust mask, nonskid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.
• Do not wear loose clothing or jewelry. Contain long hair. Loose clothes, jewelry, or long hair can be drawn into air vents.
• Do not use on a ladder or unstable support. Stable footing on a solid surface enables better control of the tool in unexpected situations.

TOOL USE AND CARE

Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
- Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
- Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
Store idle tools out of the reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.
- Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.
- Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool's operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.
- Keep the tool and its handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean your tool. Following this rule will reduce the risk of loss of control and deterioration of the enclosure plastic.

SERVICE

• Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.

WARNING!

To reduce the risk of injury, user must read instruction manual.

SPECIFIC SAFETY RULES

Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the cutting tool "live" and shock the operator.
- Know your power tool. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
Always wear safety glasses. Everyday eyeglasses have only impact-resistant lenses; they are NOT safety glasses. Following this rule will reduce the risk of serious personal injury.
- Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.
- Protect your hearing. Wear hearing protection during extended periods of operation. Following this rule will reduce the risk of serious personal injury.
Inspect tool cords periodically and, if damaged, have repaired at your nearest authorized service center. Constantly stay aware of cord location. Following this rule will reduce the risk of electric shock or fire.
- Check damaged parts. Before further use of the tool, a guard or other part that is damaged should

• When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of shock or injury.

be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center. Following this rule will reduce the risk of shock, fire, or serious injury.

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord 50 feet or less in length. A cord exceeding 100 feet is not recommended. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
Inspect for and remove all nails from lumber before using this tool. Following this rule will reduce the risk of serious personal injury.
Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan someone this tool, loan them these instructions also.

CALIFORNIA PROPOSITION 65

WARNING:

This product and some dust created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling. Some example of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
  Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL	MEANING
A	DANGER:	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
A	WARNING:	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
A	CAUTION:	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
	CAUTION:	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert Indicates a potential	personal injury hazard.
V Volts Voltage
A Ampere's Current
Hz Hertz Frequency (cycles per second)
min Minutes Time
~	Alternating Current Type of current
n0	No Load Speed Rotational speed, at no load
	Class II Tool Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
	Wet Conditions Alert	Do not expose to rain or use in damp locations.
	Read The Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1 and a full face shield when operating this product.
	Hot Surface	To reduce the risk of injury or damage, avoid contact with any hot surface.

DOUBLE INSULATION

Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded.

WARNING:

The double insulated system is intended to protect the user from shock resulting from a break in the tool's internal insulation. Observe all normal safety precautions to avoid electrical shock.

NOTE: Servicing of a product with double insulation requires extreme care and knowledge of the system and should be performed only by a qualified service technician. For service, we suggest you return the product to your nearest authorized service center for repair. Always use original factory replacement parts when servicing.

ELECTRICAL CONNECTION

This product has a precision-built electric motor. It should be connected to a power supply that is 120 V, AC only (normal household current), 60 Hz. Do not operate this product on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If the product does not operate when plugged into an outlet, double-check the power supply.

EXTENSION CORDS

When using a power tool at a considerable distance from a power source, be sure to use an extension cord that has the capacity to handle the current the product will draw. An undersized cord will cause a drop in line voltage, resulting in overheating and loss of power. Use the chart to determine the minimum wire size required in an extension cord. Only round jacketed cords listed by Underwriter's Laboratories (UL) should be used.

When working outdoors with a product, use an extension cord that is designed for outside use. This type of cord is designated with "W-A" or "W" on the cord's jacket.

Before using any extension cord, inspect it for loose or exposed wires and cut or worn insulation.

**Ampere rating (on product data plate)

0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0

Cord Length Wire Size (A.W.G.)

25'	16	16	16	16	14
50'	16	16	16	14	14
100'	16	16	14	12	10

**Used on 12 gauge - 20 amp circuit.

NOTE: AWG = American Wire Gauge

WARNING:

Keep the extension cord clear of the working area Position the cord so that it will not get caught on lumber, tools, or other obstructions while you are working with a power tool. Failure to do so can result in serious personal injury.

WARNING:

Check extension cords before each use. If damaged replace immediately. Never use the product with a damaged cord since touching the damaged area could cause electrical shock resulting in serious injury.

PRODUCT SPECIFICATIONS

Bit Shank. 1/4 in.

Switch.......Variable Speed

No Load Speed 0-4,000/min.

KNOW YOUR DRYWALL SCREWDRIVER

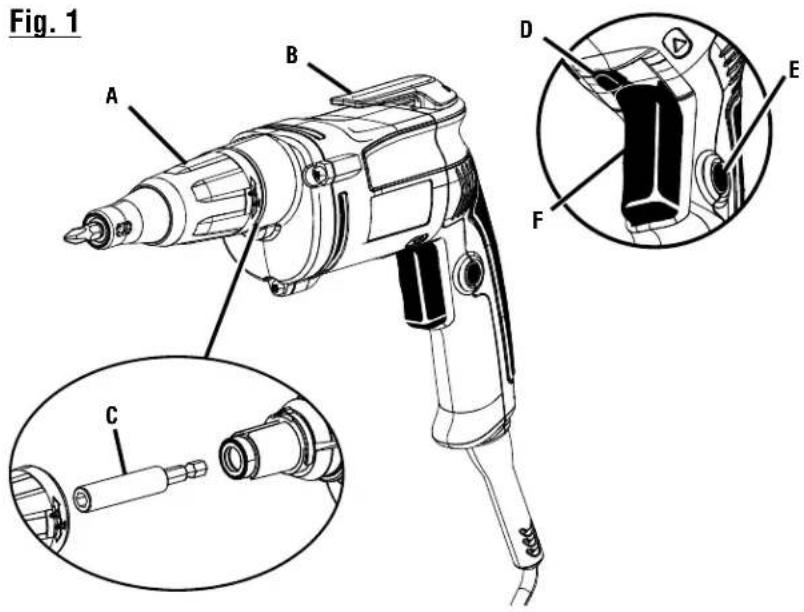

See Figure 1, page 11.

The safe use of this product requires an understanding of the information on the product and in this operator's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

ADJUSTABLE NOSEPIECE

Your screwdriver has an adjustable nosepiece for varying screw depth and easy bit changes.

BELTCLIP

A convenient belt clip is located on top of the motor housing.

DUAL GRIP HANDLE

The soft-grip handle is designed with two grip position options for operator comfort and ease of handling.

Input 120 V, 60 Hz, AC only, 6.5 Amps

Net Weight. 3.1 lbs.

FORWARD/REVERSE LEVER

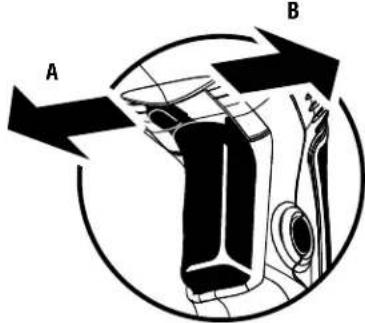

The forward/reverse lever changes the direction of bit rotation.

LOCK-ON BUTTON

The lock-on feature allows for continuous driving of screws for extended periods of time.

MAGNETIC BIT HOLDER

The magnet holds the screwdriver bit and screws until you are ready to drive them into drywall.

SWITCH TRIGGER

The switch trigger for your drywall screwdriver is conveniently located on the handle of the tool.

VARIABLE SPEED

The variable speed switch delivers higher speed with increased trigger pressure.

ASSEMBLY

UNPACKING

This product has been shipped completely assembled.

• Carefully remove the tool and any accessories from the box. Make sure that all items listed in the packing list are included.

WARNING:

Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a product that is not properly and completely assembled could result in serious personal injury.

Inspect the tool carefully to make sure no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call 1-866-539-1710 for assistance.

PACKING LIST

Drywall Screwdriver with Magnetic Bit Holder

and #2 Phillips Bit installed

R2 Square Recess Screwdriver Bit

Operator's Manual

WARNING:

If any parts are missing do not operate this tool until the missing parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

INSTALLING AND REPLACING BIT HOLDER AND BITS

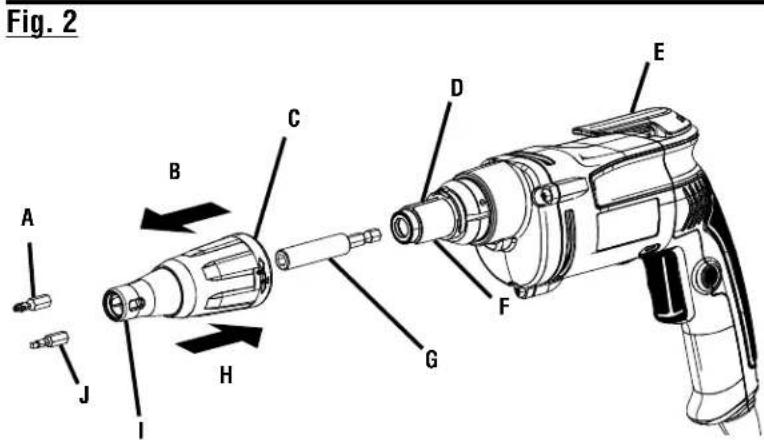

See Figure 2, page 11.

To install or replace bits:

Install 1/4 in. screwdriver bits by inserting them into the magnetic bit holder.
NOTE: It is not necessary to remove the adjustable nosepiece to install or remove bits.
- Replace 1/4 in. screwdriver bits by pulling them out of the magnetic bit holder.

To remove the magnetic bit holder:

Pull the adjusting sleeve. The adjusting sleeve and adjustable nosepiece come off the gear casing as a set.
Remove the magnetic bit holder. Pull the bit holder out with pliers if you cannot remove it by hand.

To reassemble the bit holder and nosepiece:

Push the bit holder into the hex opening of the spindle until the ball lock snaps into the groove in the bit holder shank.
- Attach the adjustable nosepiece to the gear case. Align the raised tab inside the adjustable nosepiece with the groove on the gear case and push the nosepiece until it snaps into place.

OPERATION

WARNING:

Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this tool for the purposes listed below:

Driving screws in drywall

STARTING/STOPPING THE SCREWDRIVER

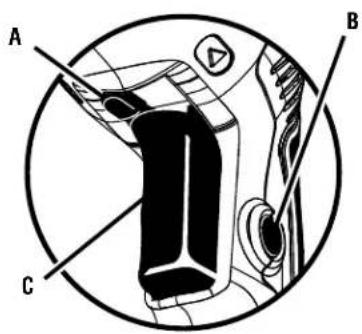

See Figure 3, page 11.

To turn the screwdriver ON, depress the switch trigger. Release the switch trigger to turn the screwdriver OFF.

VARIABLE SPEED

The screwdriver has a variable speed switch for operator control of speed and torque limits.

Depress the switch trigger all the way for maximum speed and torque. Depress the switch trigger only part of the way for less speed and torque.

Avoid running the tool at low speeds for extended periods of time. Constant use at low speeds may cause overheating. If this occurs, cool the screwdriver by running it without a load and at full speed.

LOCK-ON BUTTON

See Figure 3, page 11.

The screwdriver is equipped with a lock-on feature which is convenient for continuous driving of screws for extended periods of time. To lock-on, depress the switch trigger, push in and hold the lock-on button located on the side of the handle, then release switch trigger. Release the lock-on button and the screwdriver will continue running.

To release the lock, depress the switch trigger and release.

If you have the lock-on feature engaged during use and the screwdriver becomes disconnected from the power supply, disengage the lock-on feature immediately.

FORWARD/REVERSE LEVER

See Figure 4, page 11.

The direction of rotation of the bit is controlled by a lever located above the switch trigger. With the screwdriver held in normal operating position, the direction of rotation lever should be positioned to the left of the switch for forward driving operation. The direction of rotation is in reverse when the lever is to the right of the switch.

NOTE: The screwdriver will not run unless forward/reverse lever is pushed fully to the left or right. The design of the switch will not permit changing the direction of rotation while the screwdriver is running. Release the switch trigger and allow the screwdriver to stop before changing its direction.

SETTING DEPTH

See Figure 5, page 12.

The adjustable nosepiece of your tool will automatically drive screws to preset depths. It may be helpful to begin each new job by driving several test screws in scrap material to check and adjust the depth setting.

To make preset depth adjustments:

• Rotate the adjusting sleeve until you obtain the desired depth for the bit holder or screwdriver bit.
  Test drive a screw in scrap material to determine if it is correct.
  Adjust as necessary to increase or decrease the desired depth.

DRIVING SCREWS

See Figures 6 - 7, page 12.

There are two two options for gripping the handle of the screwdriver, determined by operator comfort and working angle.

The screwdriver has a variable speed switch for operator control of speed and torque limits.

• Be sure the screwdriver is in the OFF position before connecting it to the power supply.
  Check the direction of rotation lever for correct setting (forward or reverse).
• Secure the workpiece. Use clamps if necessary.
  Plug the screwdriver into power supply source.
  Depress the switch trigger to start the screwdriver. Do not lock the switch ON for jobs where the screwdriver may need to be stopped suddenly.
  Hold the screwdriver firmly and place the bit and screw at the point to be driven.

NOTE: The bit holder is magnetized and will hold most commercial drywall screws.

Apply quick, snap action type pressure to the bit. The pressure applied will engage the clutch and drive the screw.

MAINTENANCE

WARNING:

When servicing use only identical RIDGID replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING:

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc. Consequently, we do not recommended using this tool for extended work on these types of materials. However, if you do work with any of these materials, it is extremely important to clean the tool using compressed air.

LUBRICATION

All of the bearings in this tool are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further lubrication is required.

RIDGID® HAND HELD AND STATIONARY POWER TOOL 3 YEAR LIMITED SERVICE WARRANTY

Proof of purchase must be presented when requesting warranty service.

Limited to RIDGID® hand held and stationary power tools purchased 2/1/04 and after. This product is manufactured by One World Technologies, Inc. The trademark is licensed from RIDGID, Inc. All warranty communications should be directed to One World Technologies, Inc., attn: RIDGID Hand Held and Stationary Power Tool Technical Service at (toll free) 1-866-539-1710.

90-DAY SATISFACTION GUARANTEE POLICY

During the first 90 days after the date of purchase, if you are dissatisfied with the performance of this RIDGID® Hand Held and Stationary Power Tool for any reason you may return the tool to the dealer from which it was purchased for a full refund or exchange. To receive a replacement tool you must present proof of purchase and return all original equipment packaged with the original product. The replacement tool will be covered by the limited warranty for the balance of the 3 YEAR service warranty period.

WHAT IS COVERED UNDER THE 3 YEAR LIMITED SERVICE WARRANTY

This warranty on RIDGID® Hand Held and Stationary Power Tools covers all defects in workmanship or materials and normal wear items such as brushes, chucks, motors, switches, cords, gears and even cordless batteries in this RIDGID® tool for three years following the purchase date of the tool. Warranties for other RIDGID® products may vary.

HOW TO OBTAIN SERVICE

To obtain service for this RIDGID® tool you must return it; freight prepaid, or take it in to an authorized service center for RIDGID® branded hand held and stationary power tools. You may obtain the location of the authorized service center nearest you by calling (toll free) 1-866-539-1710 or by logging on to the RIDGID® website at www.ridgid.com. When requesting warranty service, you must present the original dated sales receipt. The authorized service center will repair any faulty workmanship, and either repair or replace any part covered under the warranty, at our option, at no charge to you.

WHAT IS NOT COVERED

This warranty applies only to the original purchaser at retail and may not be transferred. This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect resulting from misuse, abuse, neglect, alteration, modification or repair by other than an authorized service center for RIDGID® branded hand held and stationary power tools. Consumable accessories provided with the tool such as, but not limited to, blades, bits and sand paper are not covered.

RIDGID, INC. AND ONE WORLD TECHNOLOGIES, INC. MAKE NO WARRANTYES, REPRESENTATIONS OR PROMISES AS TO THE QUALITY OR PERFORMANCE OF ITS POWER TOOLS OTHER THAN THOSE SPECIFICALLY STATED IN THIS WARRANTY.

ADDITIONAL LIMITATIONS

To the extent permitted by applicable law, all implied warranties, including warranties of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, are disclaimed. Any implied warranties, including warranties of merchantability or fitness for a particular purpose, that cannot be disclaimed under state law are limited to three years from the date of purchase. One World Technologies, Inc. and RIDGID, Inc. are not responsible for direct, indirect, incidental or consequential damages. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

One World Technologies, Inc.

P.O.Box 35,Hwy.8

Pickens, SC 29671

NOTE: FIGURES (ILLUSTRATIONS) START ON PAGE 11 AFTER FRENCH AND SPANISH LANGUAGE SECTIONS.

AVERTISSEMENT :

0-2,0 2,1-3,4 3,5-5,0 5,1-7,0 7,1-12,0 12,1-16,0

NOTE: AWG = American Wire Gauge

AVERTISSEMENT :

POIGNEE DOUBLE PRISE

INSTALLATION ET REMPLACEMENT DES PORTE EMBOUTS ET EMBOUTS

Voir la figure 2, page 11.

RÉPARATIONS SOUS GARANTIE

One World Technologies, Inc.

P.O.Box 35,Hwy.8

Pickens, SC 29671, ETATS-UNIS

FIGURES (ILLUSTRATIONS) COMMENÇANT SUR 11 DE PAGE APRÈS LA SECTION ESPAGNOL.

ADVERTENCIA:

0-2,0 2,1-3,4 3,5-5,0 5,1-7,0 7,1-12,0 12,1-16,0

NOTA: AWG = American Wire Gauge

4 ADVERTENCIA:

One World Technologies, Inc.

P.O.Box 35,Hwy.8

Pickens, SC 29671, USA

A - Adjustable nosepiece (butée réglable, punta ajustable)
B-Belt clip (clip de ceinture, clip para el cinto)
C - Magnetic bit holder (porte embout magnétique, portapuntas magnétique)
D-Forward/reverse lever (inverseur de sens de rotation, palanca de marcha adelante/atras)
E - Lock-on button (bouton de verrouillage, boton del seguro de encendido)
F - Switch trigger (gachette de commutateur, gatillo del interruptor)

A - 1/4 in. phillips screwdriver bit (embout philips de 6,4 mm [1/4 po], punta de destornillador phillips de 6,4 mm [1/4 pulg.])
B - Pull to remove adjustable nosepiece (tirer pour enlever la tete réglable, para desmontar la punta ajustable, tire de la misma)
C - Adjusting sleeve (manchon de réglage, collar de ajuste)
D-Groove (rainure, ranura)
E-Belt clip (clip de ceinture, clip para el cinto)
F Gear casing (boitier d'engrenages, caja de engranajes)
G - Magnetic bit holder with 1/4 in. hex opening (portebout magnétique avec ouverture hexagonal de 6,4 mm [1/4 po]; portapuntas magnétique con abertura hexagonal de 6,4 mm [1/4 pulg.])
H-Align and push to replace adjustable nosepiece (aligner la tete reglable et appuyer pour la remetre en place, para vigor a montar la punta ajustable, alineela y empujela)
I - Adjustable nosepiece (tête régliable, punta ajustable)
J-R2 bit (embout r2, punta r2)

Fig. 3 Fig. 4

A-Forward/reverse lever (inverseur de sens de rotation, palanca de marcha adelante/atras)
B - Lock-on button (bouton de verrouillage, boton del seguro de encendido)
C - Switch trigger (gachette de commutateur, gatillo del interruptor)

A-Reverse (marche arrriere, marcha atras)
B-Forward (marche avant, marcha adelante)

Customer Service Information:

For parts or service, contact your nearest RIDGID® authorized service center. Be sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.

The model number of this tool is found on a plate attached to the motor housing. Please record the serial number in the space provided below. When ordering repair parts, always give the following information:

Model No. R6000-1

Serial No.
