Product type	USB-PD mains charger
Brand	Ansmann
Model	254PD
Input power	AC 110-240 V, 50-60 Hz, max. 1.3 A
USB-A output	5.0 V / 2.4 A / 12.0 W
USB-C output (PD)	5.0 V/3.0 A (15.0 W), 9.0 V/3.0 A (27.0 W), 12.0 V/3.0 A (36.0 W), 15.0 V/3.0 A (45.0 W), 20.0 V/3.0 A (60.0 W)
Maximum output power	60 W (PD)
Average efficiency in operation	81.4%
Efficiency at low load (10%)	77.2%
No-load consumption	0.23 W
Operating temperature	0 °C to 30 °C
Main functions	Power Delivery fast charging, automatic voltage detection, simultaneous charging of multiple devices (limited), automatic shut-off at end of charge
Maintenance	Unplug before cleaning; clean with a soft, dry cloth
Safety	Do not open, protect from moisture and rain, do not use if the casing or cable is damaged, keep out of reach of children
Warranty	3 years
General information	Usable worldwide (100-240 V), country-specific power adapter if necessary; recycle according to environmental regulations

Frequently Asked Questions - 254PD ANSMANN

Which devices can I charge with this charger?

This charger is designed to charge USB-PD compatible devices such as smartphones, tablets, laptops, game consoles, etc. Make sure your device supports one of the output voltages (5V, 9V, 12V, 15V, 20V).

Can I use a standard USB cable?

To benefit from PD fast charging, you must use a USB-C cable compatible with Power Delivery. A standard cable may limit the charging speed.

Why does my device heat up during charging?

It is normal for the charger to warm up slightly during use, especially at full power. Do not worry, this is part of normal operation. If the heat becomes excessive, unplug and check the device.

Can I charge multiple devices at the same time?

Yes, you can charge simultaneously on USB-A and USB-C ports, but the total power is shared. Simultaneous charging may reduce the charging speed depending on device requirements.

What is the maximum charging power?

The maximum power is 60 W on the USB-C port in PD mode, and 12 W on the USB-A port. The actual power depends on the connected device and the cable used.

Is the charger compatible with my laptop?

It is compatible if your laptop supports charging via USB-C PD and requires a power of 60 W or less. For laptops requiring more than 45 W, charging will be slower.

How to clean the charger?

Always unplug the charger before cleaning. Use a soft, dry cloth. Never use liquid or abrasive products.

What to do in case of malfunction?

If the charger does not work properly, first check the cable and the connected device. If the problem persists, contact ANSMANN customer service or your dealer. Never open the device yourself.

Can I use this charger abroad?

Yes, because it accepts an input voltage of 100-240 V. You may need a country-specific plug adapter. Caution: do not use a travel adapter for extended periods.

How to dispose of the charger at end of life?

Do not throw the device in household waste. Take it to a recycling center or collection point for electronic waste. Follow local regulations.

USER MANUAL 254PD ANSMANN


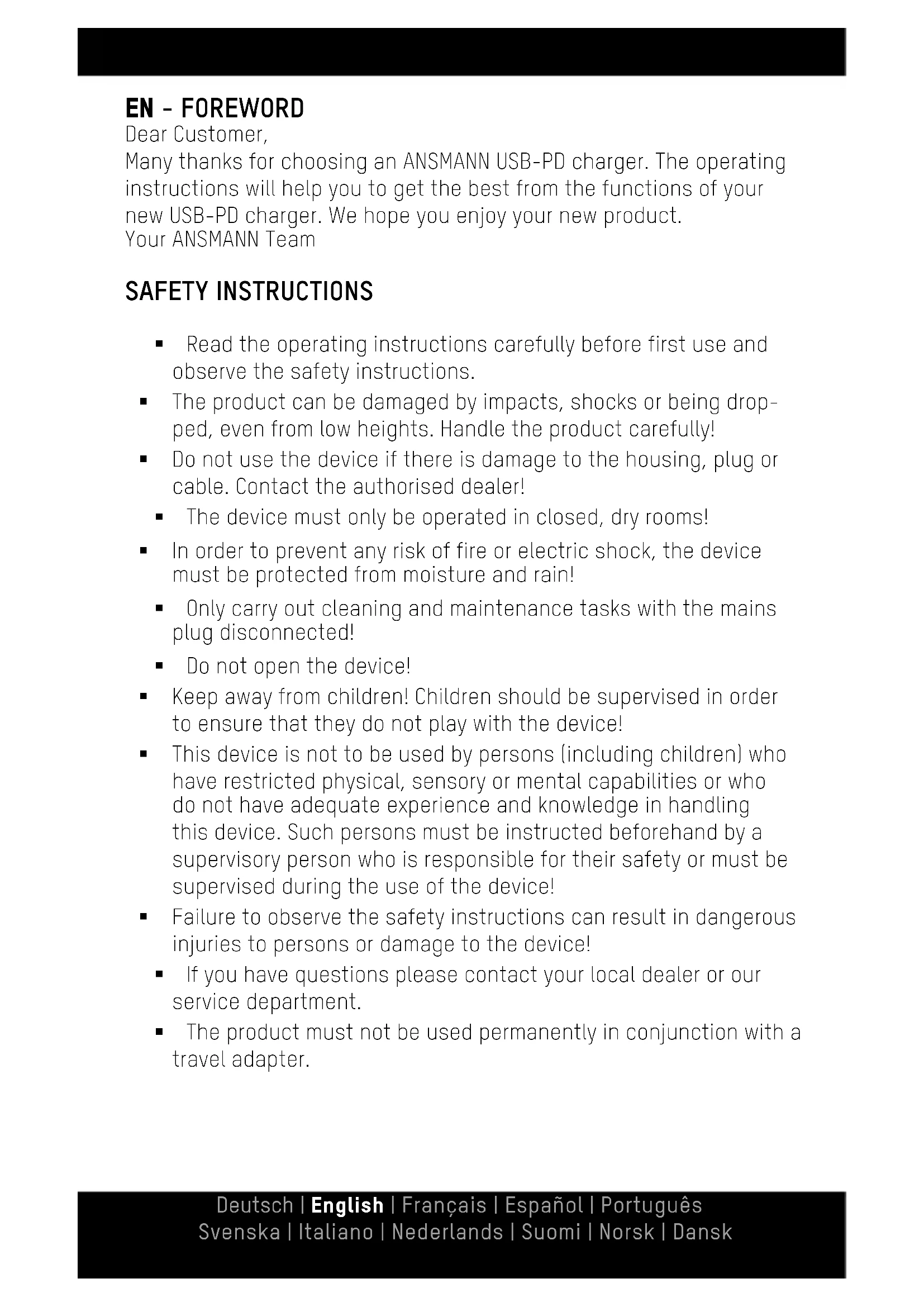

Many thanks for choosing an ANSMANN USB-PD charger. The operating instructions will help you to get the best from the functions of your new USB-PD charger. We hope you enjoy your new product.

Your ANSMANN Team

SAFETY INSTRUCTIONS

• Read the operating instructions carefully before first use and observe the safety instructions.
• The product can be damaged by impacts, shocks or being dropped, even from low heights. Handle the product carefully!
• Do not use the device if there is damage to the housing, plug or cable. Contact the authorised dealer!
  ■ The device must only be operated in closed, dry rooms!
  In order to prevent any risk of fire or electric shock, the device must be protected from moisture and rain!
• Only carry out cleaning and maintenance tasks with the mains plug disconnected!
  ■ Do not open the device!
• Keep away from children! Children should be supervised in order to ensure that they do not play with the device!
  This device is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this device. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the device!
• Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!
• If you have questions please contact your local dealer or our service department.
• The product must not be used permanently in conjunction with a travel adapter.

USE

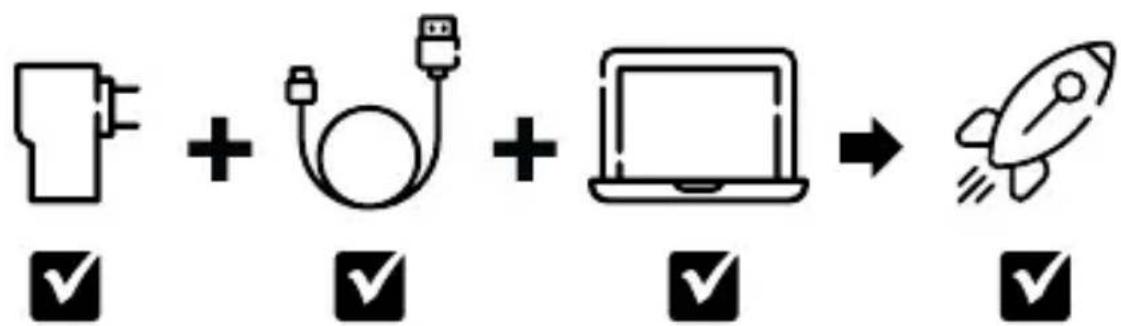

PD capable PD capableUSB Type C PD capable
Quick charging High power

CHARGING DEVICES

In order to charge a device, such as a smartphone for example, please use a suitable USB-PD cable or the original charge cable for your device. The USB-PD charger has a Type-C and USB-A output. Please use a suitable Type-C cable for this. Insert the USB / Type-C plug of the cable into the USB-PD charger and the other end into your device. The charging process starts automatically.

The USB-PD charger has both USB and Power Delivery (PD) protocols. In order to be able to use this technology, please check that your end-device is compatible.

Simultaneous charging of multiple end-devices is possible with restrictions. This is dependent on the total required charge current and charge voltage.

The USB-PD charger switches off automatically once the charging is complete. Please disconnect your device from the USB-PD charger once the charging process is complete.

The USB-PD charger may heat up a little depending on the output power required.

USE

NOTE: MAINS VOLTAGE 110-240V

The USB-PD charger is suitable for a mains voltage of 100-240V and so can be used throughout the world. Please note that a suitable country-specific adapter may be required for this.

NOTE: POWER DELIVERY

■ Automatic detection: No manual adjustments or changes required - only the correct components are required (cable and end-device must be PD-compatible).

• With the huge number of different PD end-devices and their software/ firmware versions, it is possible that the function is not detected or that it is not fully or flawlessly supported.
  ■ End-devices whose original chargers require more than 45.0W of rated output power will charge slower with this charger.

WARNING

It is important that all end-devices to be charged with the USB PD charger are suitable for the PD protocol.
■ Ensure that your end-device (smartphone, tablet, notebook, console or other applications) is suitable for one of the output voltages 5.0V/9.0V/12.0V/15.0V/20.0V.

CARE

Disconnect the device from the mains before cleaning or before storing for an extended period of time.

Clean the charger only with a dry, soft cloth.

TECHNICAL DATA

1. Input: AC110-240 V | 50-60 Hz | max. 1.3 A
2. Output: USB-A: 5.0 V/2.4 A/12.0 W
USB Type-C (PD): 5.0 V/3.0 A/15.0 W
9.0 V/3.0 A/27.0 W
12.0 V/3.0 A/36.0 W
15.0 V/3.0 A/45.0 W
20.0 V/3.0 A/60.0 W

1. Max. output power: 60.0 W (PD)
2. Max. outside temperature: 0°C...30°C
3. Average efficiency during operation: 81,4%
4. Efficiency with low load (10%): 77,2 %
5. Power consumption with no load: 0,23 W

ENVIRONMENTAL INFORMATION

The device should not be discarded in the normal household waste under any circumstances. Dispose of the device via an authorised disposal centre or your communal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising through improper handling or through disregard of the information contained within these operating instructions.

GUARANTEE

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions.

Subject to technical changes. We assume no liability for printing errors. 01/2022

You can find our warranty terms online at www.ansmann.de
