USER MANUAL A150118G BARTSCHER

ENGLISH from page 19 to 36

1.1 Key to symbols 20
1.2 Safety instructions 21
1.3 Proper use 26

2. General information 27

2.1 Liability and Warrantees 27
2.2 Copyright protection 27
2.3 Declaration of conformity 27

3. Transport, packaging and storage 28

3.1 Delivery check 28
3.2 Packaging 28
3.3 Storage 28

4. Technical data 29

4.1 Overview of parts 29
4.2 Technical specification 30

5. Installation and operation 31

5.1 Installation 31
5.2 Operation 32

6.Cleaning 34

7.Waste disposal 36

Read this instruction manual before using and keep them available at all times!

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

Please keep these instructions and give them to future owners of the device.

1. Safety

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

All persons using the device must follow the recommendations and instructions in this instruction manual.

1.1 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards which could lead to injury.

WARNING!

This symbol highlights dangerous situations which could lead to injury or death.

HOT SURFACE!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

HOT STEAM!

This symbol indicates that during the operation the hot steam escapes from the device. Risk of scalding if safety instructions are not observed!

CAUTION!

This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device.

NOTE!

This symbol highlights recommendations and information aimed for effective and trouble-free device operation.

1.2 Safety instructions

• The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
• Children should be observed to ensure that they are not playing with the device or starting the device.
• Never leave the device unattended when in use.

• Only use the device indoors.

• The device must be operated in correct and safe technical condition only. In case of operational problems disconnect the device from the power supply (pull the plug from the socket) and contact the service company.

• Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!
• Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

DANGER! Electric shock hazard!

To avoid the hazard results please follow the safety instructions below.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.

• The power cable must not be folded, bent or tangled, and must always remain fully unrolled. Never place the device or other objects on the power cable.

• Do not cover the cable. Keep away the cable from operating range.

• Check the power cord regularly for damage. Do not use the device if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers.

• The supply cable must be disconnected from the socket only by pulling the plug.

• Never carry or lift the device by the supply cable.

• In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.

• Do not immerse the device, temperature controller, power supply cable, and plug in water or other liquids; do not wash the device and the temperature controller in the dishwasher.

• Do not use any acid agents and make sure no water ingresses the device.

• Never operate the device with moist hands or standing on wet floor.

• Remove the plug from its socket:

• Do not cover the cable. Keep away the cable from operating range.

• Check the power cord regularly for damage. Do not use the device if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers.
• The supply cable must be disconnected from the socket only by pulling the plug.
• Never carry or lift the device by the supply cable.
• In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
• Do not immerse the device, temperature controller, power supply cable, and plug in water or other liquids; do not wash the device and the temperature controller in the dishwasher.

• Do not use any acid agents and make sure no water ingrasses.

• when the device is not used,

• in case of anomalies during operation,

• before cleaning.

HOT SURFACE! Burn hazard!

To avoid the hazard results please follow the safety instructions below.

• During the operation the body and glass lid of the device become very hot. Always use appropriate handles and pot holders or oven gloves.
• The temperature sensor being the part of the temperature controller is very hot after use. Before disconnecting the temperature controller from the device leave it for cooling down.
• Never place hands in the device when cooking food, always use appropriate kitchen utensils (e.g. turning spatula, wooden spoon or a spoon made of heat-resistant plastics).
• Carefully handle the device with hot dishes inside, in particular when opening the lid, removing dishes and placing food in the device.
• Also after the device has been switched off, the device remains hot for some time afterwards. Before cleaning or moving the device to another place, leave the device to cool off.

HOT STEAM! Risk of scalding!

To avoid the hazard results please follow the safety instructions below.

• During the operation the hot steam escapes through the steam vent in the glass lid. Avoid contact with the lid during the operation of the device.
• When opening the lid, hold it in such a way as to avoid contact with the escaping hot steam which may scald hands, arms or even the face. Use the pot holders or oven gloves.

WARNING! Risk of fire!

To avoid the effects of this risk, follow the safety instructions presented below.

• Oil and grease may be ignited as a result of overheating. If the flame appears, never try to extinguish it with water. Risk of electric shock! Immediately put the lid on the multi pan to suppress the flames. Before taking appropriate firefighting measures, disconnect the device from the electrical power supply (pull the plug!).
• During the use of the device, keep sufficient distance from flammable materials such as wall-mounted cabinets, curtains, tablecloths etc.
• Never use the device near the flammable materials (e.g. gasoline, spirits, alcohol, etc.). High temperature may result in their evaporation leading to the contact with the sources of combustion. This may result in deflagration leading to the personal injury and property damage.

1.3 Proper use

The operational safety of the device is assured only in case of proper use, according to the operation manual.

All technical activities like installation and maintenance must be performed by the qualified service personnel only.

The device is not designed for continuous operation in the industrial applications.

The device is intended for home use or in similar places such as:

in kitchens for store or office employees or in similar business areas;
in agricultural farms;
by guests of hotels, motels and other typical places of accomodation;
in Bed and Breakfast facilities.

The multi pan is designed only for the preparation and heating of food.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

2. General information 2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

CAUTION!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

2.3 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.

3. Transport, packaging and storage 3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• do not store outdoors,
• keep it dry and dust-free,
• do not expose it to aggressive media,
• do not expose it to direct sunlight,
• avoid mechanical shocks and vibration,
• in case of longer storage ( >3 months) make sure you check the state of the packaging and the parts regularly, if required refresh or renew.

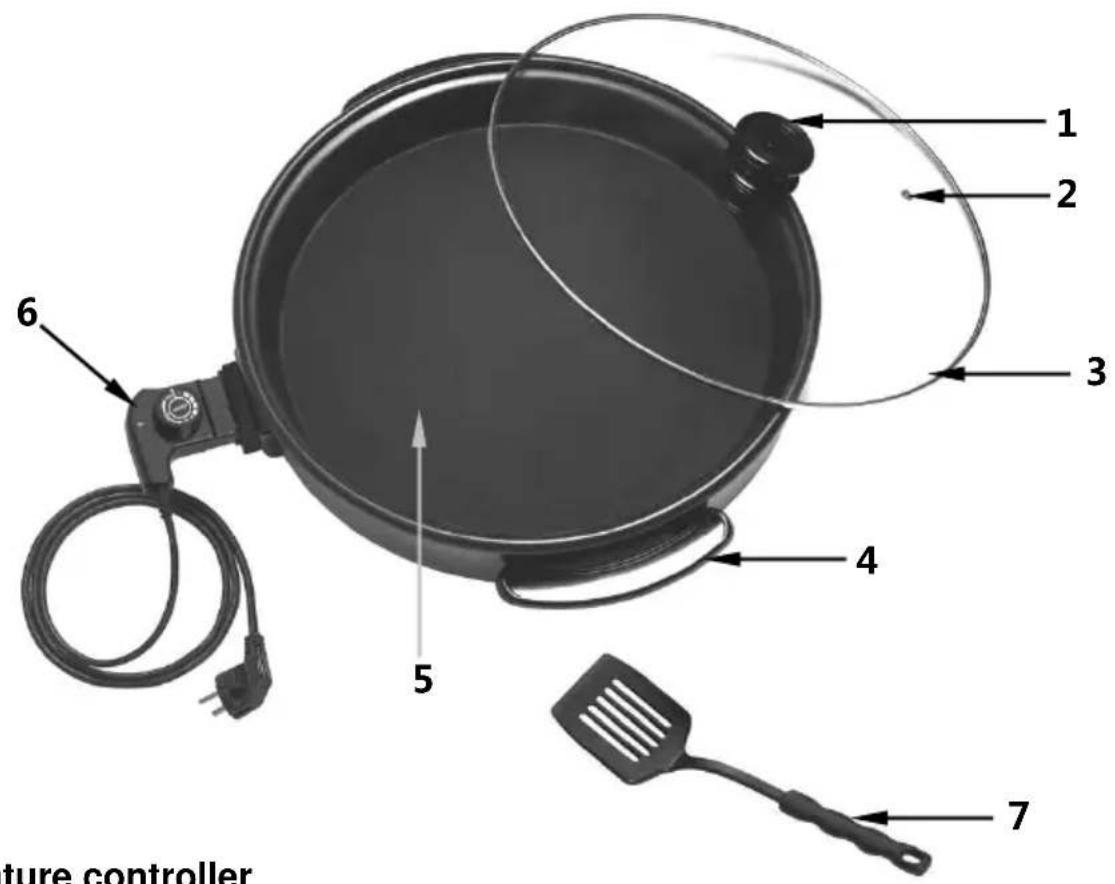

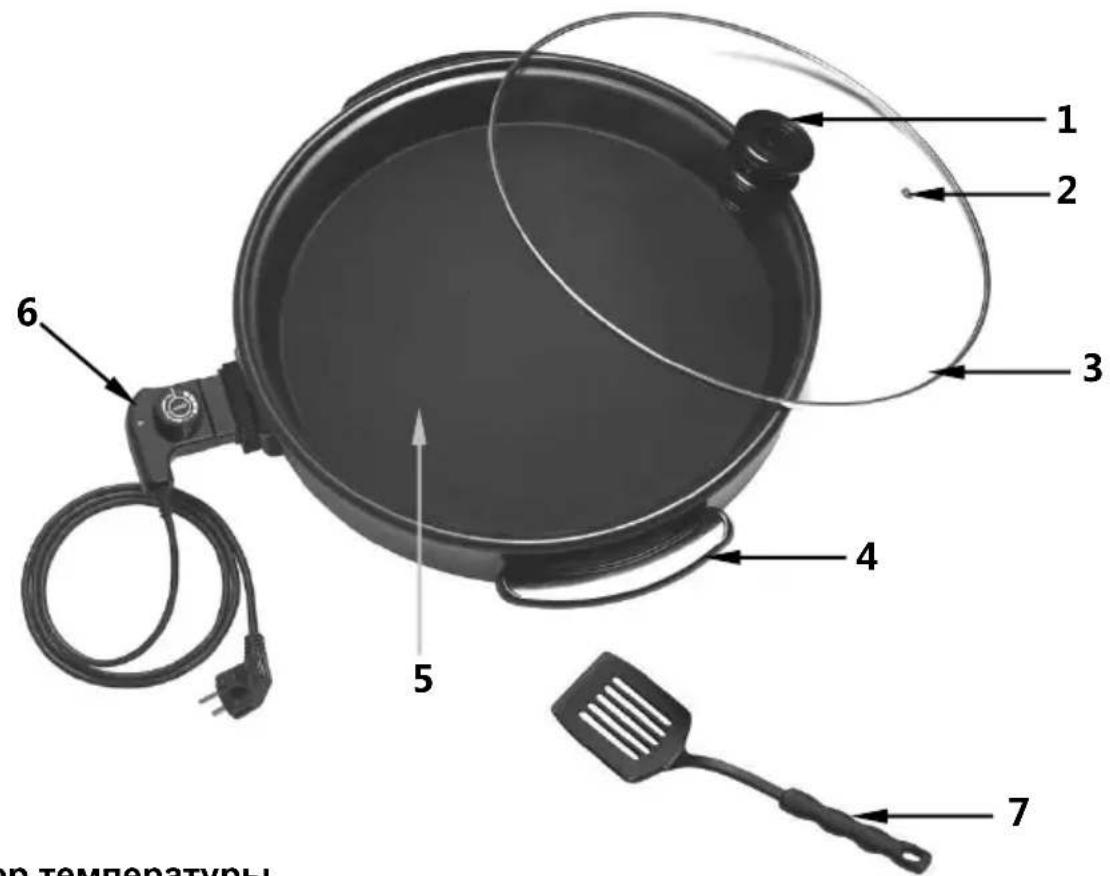

4. Technical data 4.1 Overview of parts

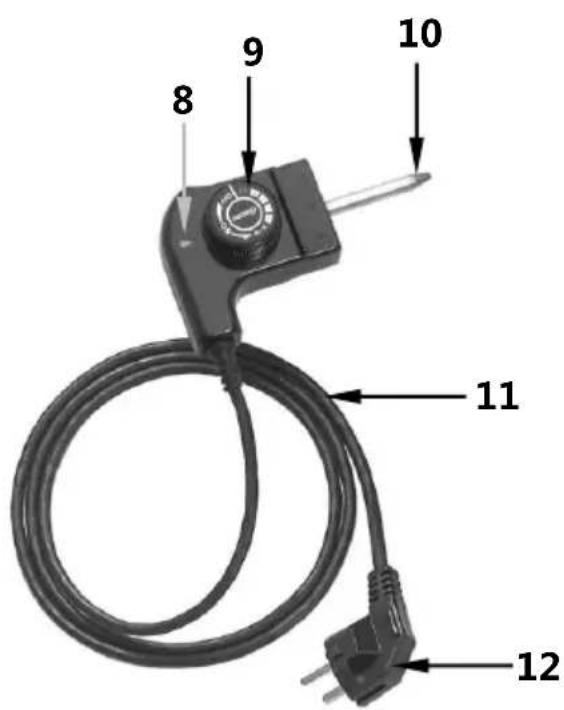

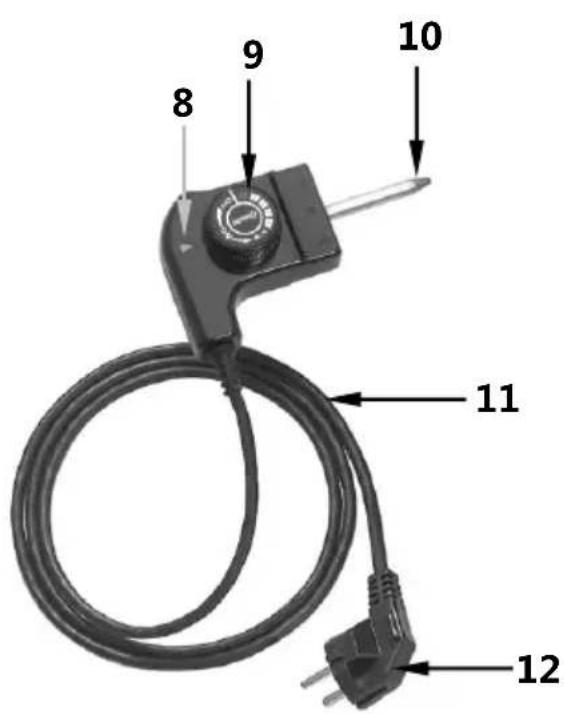

Temperature controller

1 Glass lid handle
2 Steam outlet hole
3 Glass lid
4 Handles (2)
5 Pan (cooking surface)
6 Temperature controller, detachable
7 Spatula
8 Indicator light
9 Temperature adjustment knob
10 Temperature sensor
11 Power cord
12 Plug

4.2 Technical specification

Name

Multipan

Code-No.:

A150114G

lid: glass; handles: plastic

Realization:

inside: non-stick coating

detachable temperature controller

Temperature adjustment: continuous

Power supply: 1.5kW / 230V50Hz

Diameter: outer 41~cm / inner 38~cm ;

Dimensions: total height: 16,5 cm;

depth: 4 cm / approx. 4 litres

Weight: 3.25 kg

Accessories: glass lid, spatula

We reserve the right to make technical changes!

5. Installation and operation

5.1 Installation

Positioning

• Unpack the device and remove all package materials according to the valid environment protection regulations.

CAUTION!

Never remove the nameplate and warning signs from the device.

• Put the device on an even, stable, dry and waterproof surface which is not heat sensitive.
• Never place the device on an inflammable surface.
• Never place the device near open flame, electric heaters, heating furnaces or other heat source.
• Never place the device at the edge of a table to avoid tilting or falling.
• Never put the device in a moist or wet area.
• Place the device so that the plug is easily accessible so as to quickly disconnect the device if the need arises.

Connection

DANGER! Electric shock hazard!

The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance!

Connect the device only to properly installed single socket with protective terminal.

• The electrical circuit in the socket must be secured to 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.

5.2 Operation

• Before the first use, clean the glass lid and temperature controller according to the instructions in section 6 „Cleaning".

Detachable temperature controller

CAUTION!

Always use the temperature controller supplied with the device. Never use any other temperature controller!

In case the temperature controller is not plugged in correctly, abnormal heating may occur which may lead to accidents and damages. Always make sure that temperature regulator is tightly connected to the socket.

In case of damaging or overheating of the temperature controller, pull the plug out and discontinue using the device. Contact the sales agent or technical service.

• As the temperature controller is a highly sensitive component, make sure it is protected against falling, hitting or strong shocks.
• Before connecting of disconnecting the temperature controller, make sure that the dial is set to „OFF“ position. Failure to observe this instruction may lead to interruption in the device operation or overheating.
• Make sure the temperature controller is plugged in tightly. When disconnecting the temperature controller do not pull the cord but only the plug. When connecting or disconnecting the temperature controller do not use excessive force.
• Always keep dry and clean the temperature controller and poles of the socket.
• Do not place the temperature controller on the heating place. Always make sure that it does not get into contact with the heating plate.

Precautions during operation of the multipan

• The heating surface is covered with non-stick coating therefore it is required to follow precautions listed below: Do not use sharp metallic accessories, use only wooden or heat-resistant plastic spatulas.
• Do not cut food with use of sharp knife on the pan (put them on the plate and then cut).

Switching the device on

CUATION!

Before connecting the temperature controller, set the dial to „OFF“ position. First, connect the temperature controller to the device and then to the mains socket.

• Connect the device to a single, properly installed and grounded socket.

• Set the temperature dial in the position corresponding to the temperature desired for a given dish.

	Scale (℃)	Food type
MIN - 1	to 100	keeping warm
2	above 100	roasting, preparation of hamburgers, etc.
3-4	150 - 200	pancakes, scrambled eggs, frying of ham, bacon, etc.
5	240	grilling, preparation of pizza

• After setting the temperature controller knob in selected position the controller indicator light comes on, which indicates heating of the device.

NOTE!

During operation of the device the indicator light comes on and goes off, which indicates maintaining of preset temperature.

• Preparation of food should start after reaching the preset temperature (the control light goes off).

Prepare food.

• Preparation time depend on type and amount/size of food, individual preferences, and preferred preparation method; it should be determined upon the basis of user's experience.

HOT SURFACE! Burn hazard!

The device becomes very hot during its operation, do not touch it with bare hands. Use pan and lid handles.

• After preparing dishes on the multi pan they may be kept warm, whereas the temperature dial should be set to the lowest temperature.

• If necessary, cover the multi pan with the lid.

HOT STEAM! Risk of burns!

During food preparation hot steam accumulates on the glass lid, released through the hole in the lid.

Avoid contact with the lid.

Maintain caution during lifting the lid: released hot steam may cause burns! Use protective gloves or saucepan cloth.

• When the device will not be used anymore, set the knob in "OFF" position, remove the plug from the socket, and detach the temperature controller after cooling down.

6. Cleaning

WARNING!

Before cleaning disconnect the device from the power supply (pull the plug!) and wait for cooling down.

The device is not suited for direct washing via water jets.

Never wash the device in the running water, do not immerse it in water, protect the temperature controller socket from the water penetration.

CAUTION!

Never use any aggressive cleaning agents, e.g. scouring powders, cleaning agents containing alcohol, alkaline agents, solvents, petrol; those products may damage the surface of the device.

Cleaning of multipan

Clean the device thoroughly after each use.

During cleaning cover the temperature controller socket with your hand to protect it fro, the water or moisture penetration.

○ Remove food residuals with use of soft, moistened cloth, soft sponge, or paper towel. Use soft cleaning agent when required.

In case of stubborn residuals pour some water on the pan and boil it. Soaked residuals may be later easily removed with the cloth.

• Wipe the pan with a soft, moistened cloth. Then wipe it with a cloth moistened with clean water; wipe the pan surface with a dry cloth.

o Never clean the multipan with use of nylon or metal brushes as they may damage the non-stick coating of the pan.

O Wipe the pan exterior and handles with a soft, moistened cloth.

Cleaning of temperature controller

WARNING! Risk of burns!

The temperature sensor being the part of the temperature controller is very hot after use.

Before disconnecting the temperature controller from the device leave it for cooling down.

Clean the temperature controller only with use of dry, soft cloth.

• Never clean the temperature controller using wet methods and never immerse it in water or other liquids.

DANGER! Electric shock hazard!

In case of water or moisture penetration into the temperature controller the electric shock or fire may occur.

Cleaning of lid

Clean the glass lid with use of soft cloth and gentle cleaning agent. Rinse with clean water and dry thoroughly with use of soft cloth.

Storing the device

If the device is not used for a longer time, clean the device according to the above mentioned instructions and store it in a dry, clean place protected against frost, sun and children. Do not place any heavy objects on the device

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

CAUTION!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.2 Indications techniques

Nom

Poèle multifonction

Code-No.:

A150114G

WAARSCHUWING! Brand- of explosiegevaar!

WAARSCHUWING! Verbrandingsgevaar!

WAARSCHUWING! Risico op verbranding!

ADVARSEL! Fare for brand!

He hakpbBaTb npOBoN pNTaHn. IpOBoN pNTaHn He doJxeh HaxOHTbcB 30He pa60Tbl.

• ПювOD пітань ретуларно пюверят b Ha пpeДмET NOВпжден. He nспоьзова t b пибор c NOВржденbIM пювODOM пітань. Ecni пювOD NOВрждEN, BO n36жанne onaCHOCTN, erO 3amEny cIeDyET NOPuHTb NapcoHany cepBnCHOrO obCnyKINBaHnЯ nII n əJIeKTPNKy.

• PpOBoI pHTaHnA CJIeDyET BCeRda OTCoEINHrTb OT pO3eTKN C NOMOuBIO BUNK.

HnkOrda He nepemeaTb, He nepeBnraTb n He noHMaTb np6op c NOMOsbIO npOBoDa nITaHna.

HnB Koem cnyae He OTKpbBaTb KOpnyc npnbopa. B cnyae HapuweHna 3neKtpnuecknx PrncOeHNHeHn nn MoDnФnkauN 3neKtpnuecko nnn MexaHnuecko KOHCTpykCn, NOBNTcY yrpo3a nopaxeHna 3neKtpnueckm TOKOM.

HnkOrda He norgykaTb np6op, pernyIaTOp Tempeatypbl, npOBoN pHTaHnY IN BUNKy B BOdy INIIN dpyrHe XNDKOCTN; HnkOrda He cIeDyeT MbITb np6op IN peryIaTOp Tempeatypbl B NOCyDOMoeHOn MaunHe.

He npimehaTb HnkaKne eKne YnCTaIe BeIecTba n CJeIITb 3a Tem, yTO6bI BODa He nonaJa B np6Op.

• HNKOrda He obcIyKINBaTb npI6Op BnaJHbIMn pyKaMn IJI N CTOHa MOKPOM OCHOBAHIN.

BbIHyTb BnIKy n3 rHe3da,

• ecn np6op He nCnoIb3yETc.

• ecJN BO BpeM 3KcJIyaTaUIN NOBAYTcI NOMEXN B pa6Ote np6opa,

-пегд очinctко npибopa.

TOPRAI NOBEPXHOCTb! Pnck noJyehna oxorob!

Bo n36exahanne noclendtbn yrgo3bl cneyuET co6lnoaTb yka3aHHbIe Hnke peKOMeHdaun Ha Temy 6e30napochtn.

Bo Bpempa60tbi Kopnyc n CTeKJIHHa KpbIuKa np6opacnIbHO HarpEBAOTc. Pnp6Op cJeDuYeT npNepxNBaTb TOJbKO 3a pyuKN IIOJb3OBaTbcra KyxOHhbIMn caIΦeTKaMn IJI npyKaBUncei.
- Послеснолььовая датчк Temператуbl, KOTOPыяВлЯETСАЛЕМЕNTOM peглaitopa Temператуbl, OЧЕнвторачи. Пера сныем ретунота Тмператуbl c пибора сд endуet databпрбopy octbItb.
- HNKOrda He cIeDyET BkIaIbIbATb pyKn B npi6Op BO BpeMn npiroTOBHeHn IpoDyKToB, CJIeDyET BcerDa nOJb3OBaTbcK KyxOHbIMn npi6Opamn (HaNPmep, IOnaTKa dIy IpeBopauBaHn, DepeBraHHa JIOXKa IIN JIOXKa I3 TepMOCToKOro Pnactka).
- ПюяВЯТь OCTOPOXHOCTh BO BpeMЯ NOЛьЗOBaHЯ npIb6OpOM, KOrДа В HEM HaXODЯTcR TROPYHe PpOdyKТbl; Oco6eHNo npI OTKpbITn KpbIuKn, N3BJTN NpOdyKTOB IN BKJaIbIBaHIn NpOdyKTOB B EMKoCTb.
- Tacke пол e bikluyehn np6op ehe HeKOTope Bpemr octaetc ropyHM, nepeH naHOM ouNCTKN, nepemeueHneM nIIN pepeCTaHOBko erO B dpyroe MeCTO cJeDyET noDoXdaTb, noka np6op OCTbIHet.

TOPAчI NAP! Onachoctb noJyehn oKorob!

Bo n36exahanne nocJeDCTBn yrpo3bI cJeDuET co6JIoDaTb yka3aHHbIe HnXe peKOMeHdaZn Ha Temy 6e3OpaCHOCTN.

Bo Bpempa60tbi n3 BbInyCKHOro OTBepCTnB CTeKJHHOI KpbIiKe BbIXOHT rOpAynI nap. N36eRaTb KOHTaKTa C KpbIiHKoI BO Bpempa60tbl.
OTKpbBaj KpbIshky, ee cJeDyeT DePkaTb TaK, YTO6bl He 6blIO KOHTaKTa C BbIXOJaIzIM TOpAum NapOM, KOTOpbIM MoKeT CTaTB npUHNo IOnlyueHn OXoROB JaDoHeN, pyK nIi DaJxE Nua. POnb3OBaTbcra npNXBaTKamn dIyI NocyDbI INI KxOHhbIMn pyKaBnIaMn.

OCTOPOXHO! Onachoctb noxapa nIIN B3pbBa!

Bo n36eXaHne nocJeDCTBn yrpo3bl cIeNyET co6JIoudaTb yka3aHHbIe HIXke peKOMeHdaZuHa TeMy 6e3OpaCHOCTN.

MacJHbIe I JnpoBbIe cy6ctaHcHm MOyT BocPJIaMeHITbcB B pe3yIbTaTe neperpeBa. B clyuae nOraBHeHn IplameHn HNKOrda He cJeDyET nbITaTbCraNTb erO BoDoN. OnaChocTb NopaxeHn 3JeKtpnueckn Tom! CkoBOpOdy HeMeJeHNo npIKpbITb KpbIshKO, YTObI Noracntb Plamr. Ipeed NaJalom COOTBeTCTByIOx DeIcTBn, HAnpaBHeHHbIX Ha JINKBVaCuIO ORH, cJeDyET OTKnIOUHTb Prn6Op OT nCTOCHnKa 3JeKTPo- PtTahn (BbInHyTb BNkky!).
Bo Bpem 3KcPnyatau np6opa cneDyET coxpaHrTO COOTBETCTByUoIeE pacCTOJHnE OT TOpUOHX IIN JERKO BOCPnAmEHIOUxXc MaTePnaJIOB, TaKNX KaK IODbEcHbIE WkaΦbl, 3aHaBeCKN, cKaTePTN n T.I.

HnkOrda He CneDyET NOIb3OBaTbcra Prn6Opom B6JIINrOropUHX n IeKOBocPnIaMeHJIOxxCra MaTePnaJIOB (HaNPmep, 6eH3nH, cNtPT, aNkoRoi b N T.I.). BbICOKa TeMnepaTypa MoKeT npNBecTu Knx NcnapeHNO, IN Bpe3yJbTaTe KOHTaKTa C nCTOuHNkAMn BO3ROPaHNA MoKeT PpON3OITn DeΦJaRaCaJRA. BcIeDCTBHe 3TOrO MOryt NMeT MeCTo TeJIeCHbIe NOBpeXdEHHa N NMyUeCTBeHHbI yUeP6.

1.3Испобзоване по Ha3нayehио

Бeэ�асноctь Экплуатуни пибopa rapaHTирова на ТолькВ сclуае COOTBeTCTByоцero Ha3haueHnIO npIMeHnA, B COOTBeTCTBnC ДаHHbIMN B INHCTpyKUnI NOobcnykBaHnIO.

BceTexHnueckne DeiCTBn, B TOM YIcNe MOHTaX N TexO6CnyXnBaHne, MoryT OcyuieCTBnTbCnCKJIIOHTeNbHO KBAINΦNtPOBaHHbIM NepcoHaJOM.

Ipn6op He npedHa3NaueH dIy HenpepbBHO pa6ObI B npombiJeHHo oTpacn.

Pnp6op MoKeT NcNoB3OBaTbC8 B DomaHem Xo3aICTBe I NOO6HbIX MeCTax, KaK Hnnpimep:

→ B Kuyhnx Ha npednpnaynx, B mara3nHaX, oocax n pyrnx noo6hbx Mectax pa60TbI;
→B3eMnEeJIbueCKNXXO3aIcTBax;
→ KJIeHTaMn B FOCTHnUcaX, MOTeJx N dpynx TUNuHbIX XNJbIX NOMeIeHnX;
B 3aKycOHybIX.

YHnBepcaJIbHaNcKOBOpOdaIpeHa3HaueHaToJbKOdIpynroTOBHeHnI noDorpeBaHn6IIOd.

BHIMAHHE!

JIO6oe OTKIOHeHne OT NOIb3OBaHHn IO npMOMy Ha3NaueHnO / nJIu Dpyroe HcNOJIb3OBaHne np6opa 3anpeUeHO IYBJIeTcN OJIb3OBaHHem HecOOTBeTCTBeHHo npMOMy Ha3NaueHnO.

IpeTeH3nn IIO6Oro poDa K n3rOToBnteJIu / nn erO npedCTaBNTeJIIO no NOBODY HaHecEHHoro yuepe6a B pe3yJbTaTe NOlb3OBaHnI np6Opom He no Ha3NaueHnIO NCKJIIOUeHbl.

3a BeCb yUepe6 npn noJb3OBaHnn npnbOpom He nO Ha3NaueHnO OTBeuayet cam notpe6ntelb.

2.ОБICIne cBedeHnA

2.1 OTBeTCTBeHHocTb n rapaHTnHbIe 683aTeJIbCTBa

Bce cBeHeHn yka3aHn B 3ToI IHCTpyKcnn No 3KcnJyaTaun 6bInn COCTaBneHbICyETOM DeiCTByUoX npedncaHn, AKTyAJIbHOrO ypOBn INHexeHepHO-TexHuecknxNCCNeIOBaHn, a TaKxe HaSeero MHOrOJeTHeRo ONbTA n 3HaHn.

IpeboI hNCTpykunno 3Kcnnyataun TaKke cdeHaHa ypOBHe lyuux 3HaHn.

Ondako OTBETCTBEHHOCtB 3a Own6Kn B nepeBoJe Mbl Ha ce6b B3aTb He MOxem. OchoBOI cnJXnT npInoKeHHa HemeKcA BepCn I NcHcTyKcNn No 3KcPnyatauN.

DeiCTBnTeIbHbI OsbEM NOCTaBOK MOKET OTKIOHAITbcnPcNE3aKa3ax, PpeIbYBJe

HIN DONOJIHNTeIbHbIX 3aKa3HbIX yCIOBn NOCTaBOK INI NO npUHHe HOBeIUX
TEXHNUeCKNX I3MeHEni, OTJNUaIOxxCra OT OINCAHHbIX 3deCb ObBycHEni N UepTeKHBIX
N3O6paKeHn.

BHIMAHNE!

Ipeed hauanom kaknx-nn6o deiCTBn c npnbopom, ocobehno erO BKJIoueHneM, BHNMaTeJbHo npoHTaTb daHHyIO HNCTpyKcIIO no o6cnykBaHIO!

IpoN3BOJNTeJIb He Hecet OTBETCTBeHHOCTb 3a NOBpeXJeHnY I BpeI, BO3HNKShn BCneDCTBHe:

• Heco6JIOdeHnY yKa3aHn Ha Temy o6cnyKuBaHn I OChCTKn;
• INCNoJIb3OBAHnI He No Ha3HaueHnIO;
• BBeDEHnI3MeHEnI NOJIb3OBaTeJIeM;
• npIMHeHn HeCOOTBeTCTByIOx 3aNacteI.

Mbl octabnem 3a co6oI npabo Ha texHueckne n3MeHeHna npOyKta B paMKax yIyuWeHnKaueCTB nCNoJb3OBAHnN daJIbHeJwero NCCNeDoBaHn.

2.2 3aunta aBtopcknx npab

Инстукшия NO зкплyaТаци N COdeржашеся B Hei TeKCTbl, Yeptexn I npoquee n3obpaxeHЯ 3aunuIeHbI ABTOPCKMn npabamN. Pa3mHOxKeHЯ JIO6Oro Bnda n B JIO6Oy fOpMe -ДжеЧаСТУНо - a TAKKe IcNoJIb3OBAHne n/Unn nepeDAчa COdePkaHЯ 3anpeUeHbI 6e3 NcBMeHHoro corJACn I3rOTOBITeJЯ. HapySeHne BeDet 3a CO6OINOCNEdCTBHe BO3MeUeHЯ y6bITKOB. Mbl OCTaBJIeM 3a CO6O n paboHa npeDbYBNeHne DaJIbHeiXx npeTeH3n.

YKA3AHNE!

Copexahne, TeKCTbI npOue n3o6paXeHn 3aunuEhbl aBTOpCKHM npabAMn HaxoTcN pOd 3aunToN dpyrnx npab 3aunTbI npON3BODCTBa. KaKdoe 3noynotpe6JIeHne haka3yemo.

2.3Дeкларачи O HopMaTHBHom COOTBeTCTBn

Pn6op COOTBeTCTByeT DeiCTBvUcIM HOpMaM n DnpeKtNbAm EC.

3To noTBePxJaetc HAMB 3aBJeHn O COOTBeTCTBn EC.

Ipn Heo6xOIMOCn MbI C yIOBOJIbCTBnEM BblIeM Bam 3aABJHeHne O COOTBETCTBnI.

3. TpaHcnpTnpoBka, ynaKOBka n XpaHeHne

3.1 TpaHcnpTHa nHcneKzna

IOnyuHbI rpy3 He3aMeIINTeJbHO npOBepNTb Ha KOMJIeKTHOCt b Ha TpaHCnOpTHbI yuepe6. PnBHeUHe ONo3HaBaEMOM TpaHCnOpTHOM yuepe6e rpy3 He npHIMaTb IIn npHnABy c OROBOPKO.

Pa3mep yuepe6a yka3aTb B TpaHcnpTHbIX DOkymeHTax / HaKnaIHOJ/ nepeBO3uKa. Poadtbpeknamaun.

Ckpblu yuepe peknapoBaTb cpa3y nocne oHapxHnA, TAK KaK 3aBky Ha BO3MeueHne yuepe6a MOXHO NOaTb NlUb B PpeJeIax DeIcTBYIOxpeKnaOHHbIX CpOKOB.

3.2 YnakoBka

He BbIbpaCbBaIte ynaKOBoHbI KapToH BaUero npnbopa. OH moKeT Bam noHaIObntbcra Iy XpaHEnn, npi nepee3de iIN ecnn Bbl B clyuae BO3MOxHbIX NOBpeXdHm 6yDeTe BbICbIaTb npnbop B Hau cyepBnchHyO cnyk6y. POnHOCTbIO ocBO6OJrTe npnbop nepeD BBOOM B CTOIOT BHeUHrero IN BHyTpEHHrero ynaKOBoHOrO MaTePnAna.

EcIn Bbl HamepeBaetecb BbIKHyTb ynaKOBOHbIM MaTePnA1, co6JIoudaIte npedncaHn, DeiCTByUoHne B BaWei cTpaHe.

IodBo3nTe BToPnHNo nepepa6aTbIBaEMbI yNaKOBOuHbIM MaTePnaI K MeCTy c6opa MaTePnaJOB BToPnHOn Nepepa6OTKn.

PpOBepbTe, NOJHocTbIyKOMnJIeKToBaH np6Op n 3aIacHbIe npHaIaeJxHocTn. B cnyae HeIOCTaun KaNX-Imo YoacteN CBXnTEcB c HaWeN cLyXboi CepBnca.

3.3 XpaHeHne

Pnpobj DepxaTb Do yCTaHOBKn B He pacnaKoBaHHom Bnde, co6IIOJa HaHeceHHbIe Na BHeuHei CTOpOHe MapKnipOBKn IO yCTaHOBKe I XpaHeHIO.

YnaKOBKn XpaHnTb NCKNIOHTeJIbHO npn CNeIyUOxuX yCNOBnX:

• He ČepkaTb NOI OTKpbITbIM He60m;
• XpaHHTb BCYXOM IN CBO6OHNOM OT Nbln MecTe;
• He NOBBePraTb BO3DeIeCTBnIO arpeccNBbIX BeIeCTB;
• PpeDoxpaHrTb OT BO3dEInCTBnA COJHeuHbIX JIyHei;
• n36eraTb MexaHnuecknx COTpaeHn;
• npn dHnTeBHom XpaHenn (6oJee 3 MecaeB) peryIpyHO KOHTPOINPOBaTb Ouue COCTOAHne BCex YacTeN uynakOBKn, B Cnyuae Heo6XOnMocTn OCBeKNTb NIn O6HOBtB.

4. TexHnueckne daHHbIe

4.1 OncaHne YacTei np6opa

PerynTop TemnepaTpybI

1 Puyka cTeKJIaHHoN KpbIuKn
2 OTBepCTne nIy BbIXoJa npa
3 CTeKJIaHHa KpbIuKa
4 Puykn (2)
5 CkoBOpOa (noBepxHocTb npnroTOBneHna)
6 PeryIaTOp Tempepatypbl, cbeMHbI
7 Jonoata
8 KoHTpoBHaJ lamnoUka
9 NobopoTHbI peyJrTop TeMnepaTypbI
10 DaTnK TempeatypbI
11 IpoBOD nITaHnIa
12 Bnilka

4.2 Texnueckne xapaKtepncTKN

Ha3BaHne

ApTnKyI:

yHnBepcaJIbHa cKOBOpOda

A150114G

KpbIiKa:CTeKJIO;pyuKNPiJaCTMaCCa

IcnoJIHeHne:

BHyTpEHHJI IOBepXHOCTb: aHTHIIpIrpHoe IOKpbITHe CbeMHbI peYJIaTOp TEMIIpepaTypbI

PerylnpOBka

reMnepaTypb:

becctypeHuataa

IapametpbI

PnpucoeDHHHeHn:

1,5 KBT/230B50Γu

Диametp: BHeHHHN 41 cm / BHyTpEHHN 38 cm

Pa3mepbI:

O67aBbICota:16,5cm

BbICota BHyTp. cKOBOpOdbI: 4 cm/OK. 4 IHTPOB

Bec:

3,25 K

OshaeHHe:

CTeKJIHHNa KpbIuKa, IOnaTka

TexHHueckne H3MeHeHHa BO3MOXHbI!

5. Истадлaria и облухиваиме

5.1Инсталл晋

YctaHOBKa

PacnaKOBaTb np6Op n yTuJIu3nPoBaTb BCE yNaKOBOHbI MaTePnAbl B COOTBETCTBn CnpEaNcAHmOxpaHbI OKpyKaUoSe cpebl.

BHIMAHHE!

Hnkorda He ydaTb c npnbopa Ta6nUky C HOMHaJIbHbIMN daHHbIMN nI npedynpeJdaIOuNe 06O3NaueHn.

• YctaHOBnTB npnbop Ha cTa6nIbHoi, cyxO IN BOoOTTaNKBaHOSeI NOBepXHOCTN, OTINuHOSeICr CToIKoCTbIO K Bo3DeIcTBIO BbICOKNX TeMnepaTyp.
  HnkOrda He yctaHaBnBaTb np6Op Ha JereKOBocnnaMeHryIOUeMcra OCHObaHN.
  He yctaHaBnBaTb np6op B6Jn3n OTKpbITbIX OyarOB, 3neKtponeyei, neey nn Dpynx nCTOuHKnOB Tenna.
  HnkOrda He yCTaHaBnBaTb npnbop Ha KpaIO cToJa BO n36eXaHne erOp nepeBopauHBaHn IIN paDeHn.
• Hnkorda He cIeDyeT yCTaHaBnBaTb npnbop BO BJaXhblx IMokpbix 3OHax.
• Pnp6op cneyuET yctaHOBnTb TAK, YTO6bl B Cnyuae Heo6xOIMocTN 6bln obecneueh 6ecnpenrTCTBeHHbI DOCTyn K BNJIke C ueIbHO HEmeJHeHHoro OTKJIoueHnna np6opa.

Iopdknloyehne

ONACHO! Yrpo3a nopaxeHnA 3JIeKTpNuecknM TOKOM!

B clyuae He npabnblhoy yctaHOBKn np6op MOKeT cTaTb npuHNo nolyuene TpaBM!

Ipeed yctaHOBko np6opa cJeDuYeT cpaBnHb NapametpbI IOKaJIbHOJ 3JIeKTPnuYeCKoC eTu C TexHnueCKmN DaHHbIMN np6opa (cM. HOMHaJIbHbI uNTok). Pnp6op NOkJIuOyATb TOJIbKO B cJIyuae NOnHOrO COOTBeTCTBna NapaMeTpOB!

B cnyuae Heo6xoJIMOCTN CKOBOPOy MOXHO npIKpbITb KpbIiKoN.

Regulator temperature

Regulator temperature

1 Ručka staklenogPoklopca
2 Otvor za izlaz pare
3 StakleniPoklopac
4 Rucke (2)
5 Tava (povrsina za kuhanje)
6 Regulator temperature, odspojiv
7 Okretac
8 Kontrolna lampica
9 Kotácić za regulaciju temperature
10 Senzor temperature
11 Mrežni kabel
12 Utikač

4.2 Tehnički podaci

Naziv	Višenamjenska tava
Kat. br.:	A150114G
Izvedba:	■Poklopac: staklo; ručke: plastika ■unutra: neprianjajući sloj ■odspojiv regulator temperature
Regulacija temperature:	kontinuirana
Priključna snaga:	1,5 kW / 230 V 50 Hz
Dimenzije:	Promjer: izvana 41 cm / unutra 38 cm Cjelokupna visina: 16,5 cm Visina unutrašnjosti tave: 4 cm / cca. 4 litara
Težina:	3,25 kg
Pribor u isporuci:	stakleniPoklopac, okretač
