USER MANUAL 60.2554.01 TFA

BOXX – Radio-controlled alarm clock with thermometer

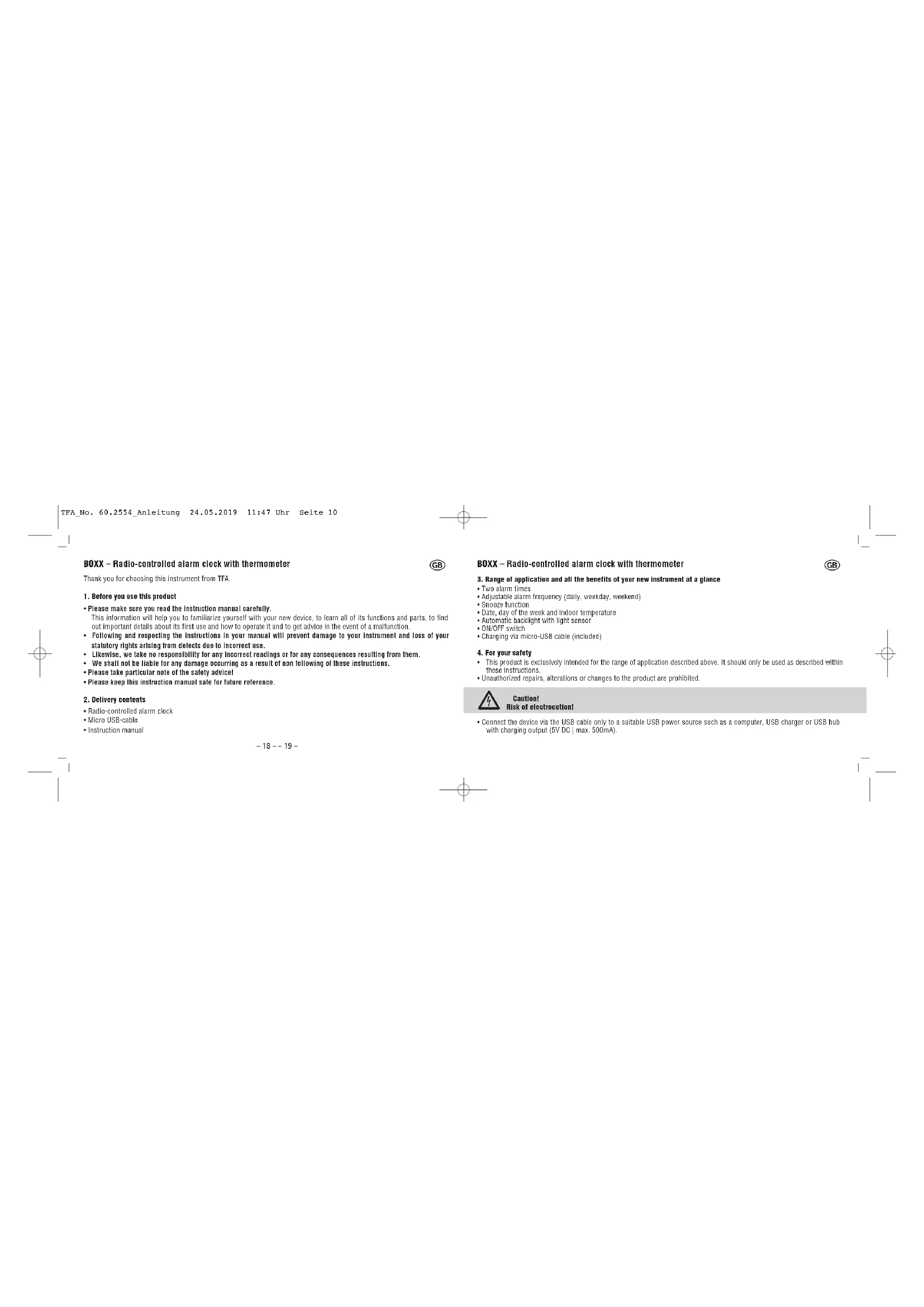

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully. This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.

• We shall not be liable for any damage occurring as a result of non following of these instructions.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future reference.

2. Delivery contents

• Radio-controlled alarm clock

• Instruction manual BOXX – Radio-controlled alarm clock with thermometer

3. Range of application and all the benefits of your new instrument at a glance

• Adjustable alarm frequency (daily, weekday, weekend)

• Date, day of the week and indoor temperature

• Automatic backlight with light sensor

• Charging via micro-USB cable (included)

• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are prohibited. Caution! Risk of electrocution!

BOXX – Radio-controlled alarm clock with thermometer

• The product must not come into contact with water or moisture.

• Do not charge the product if the housing is damaged.

• Charge the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.

• Disconnect the device from the charging power source immediately if any fault occurs. Caution! Risk of injury:

• Explosion and fire hazard! The rechargeable battery must not be thrown into a fire, short-circuited or taken apart. Do not attempt to open the device to replace the battery. The battery is permanently built-in and cannot be changed. Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks. Avoid direct sunshine.

• The instrument is not unbreakable. In case of falling down parts can break. BOXX – Radio-controlled alarm clock with thermometer

A: LCD display (Fig. 1): A 1: DCF reception symbol A 2: Daylight Saving Time symbol A 3: Time zone A 4: Day of the week A 5: Date A 6: Indoor temperature A 7: Alarm time 1 with alarm symbol A 8: Alarm time 2 with alarm symbol A 9: Alarm frequency A 10: Time with seconds A 11: AM/PM in 12-hour-format A 12: Snooze symbol B: Buttons (Fig. 2): B 1: SNOOZE/LIGHT button B 2: SET button B 3: °C/°F/

BOXX – Radio-controlled alarm clock with thermometer

• The battery symbol LED indicates that the built-in rechargeable battery has to be charged.

• Please charge the device immediately to preserve battery life.

• Insert the supplied USB cable with the micro USB plug into the provided opening on the device. Connect the device via the USB cable only to a suitable USB power source.

• Do not apply excessive force when connecting the USB cable. The USB plug fits only one way into the USB port.

• To fully charge, leave the device connected for approximately 6 - 8 hours.

• The charging symbol LED indicates that the built-in rechargeable battery is charging. Once the light is off, the built-in rechargeable battery is charged.

• Disconnect the device from the charging power source.

• Do not leave the fully-charged device connected to the charging power source as this may shorten battery life.

• Recharge the battery every six months, even if the product is not in use.

• Before the first use, please charge it fully.

• Slide the POWER ON/OFF switch to ON.

• The device will alert you with a beep and all segments will be displayed for a short moment.

• The backlight turns on for a short period. BOXX – Radio-controlled alarm clock with thermometer

7.1 Radio-controlled time reception

• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is successfully received after 3-7 minutes, the radio-controlled time, the date, the day of the week and the DCF symbol will be shown steadily on the display.

• You can also start the initialization manually.

• Press and hold the 12/24/

• The DCF reception symbol will be flashing.

• Interrupt the reception by pressing and holding the 12/24/

button again. The DCF reception symbol disappears.

• The DCF reception always takes place daily at 1:00, 2:00 and 3:00 o'clock in the morning. If the reception is not success- fully received, another DCF reception will take place the next full hour (up to 2 times).

• There are three different reception states: Symbol flashing – reception is active Symbol solid – reception is very good No symbol – no reception/ time is set manually

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manu- ally. The DCF reception symbol disappears and the clock will then work as a normal quartz clock (see: Manual setting of the clock and calendar). TFA_No. 60.2554_Anleitung 24.05.2019 11:47 Uhr Seite 12– 24 – – 25 –

BOXX – Radio-controlled alarm clock with thermometer

Note on radio-controlled time The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braunschweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio clock receives the signal, converts it and always shows the exact time. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time DST is shown on the display. The reception quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.

• Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

button in the respective setting mode for quick setting. BOXX – Radio-controlled alarm clock with thermometer

• The device will automatically quit the setting mode if no button is pressed for 30 seconds.

• Important: The device cannot be operated during the DCF time-signal reception.

8.1 Manual setting of the clock and calendar

• Press and hold the SET button in normal mode to enter the setting mode.

button to adjust the hours. Press the SET button to make the settings in the fol- lowing sequence: minutes, year, month, date and time zone (ZONE 00 - default). Press

button to adjust it.

• Confirm the setting with the SET button.

• The manually set time is overwritten once the DCF time signal is successfully received.

8.1.1 Time zone setting

• You can make the time zone correction (+12/-12) in setting mode.

• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

BOXX – Radio-controlled alarm clock with thermometer

• Press and hold the ALARM 1 button in normal mode to enter the alarm setting mode.

button to adjust the hours.

• Confirm the setting with the ALARM 1 button.

button to set the minutes.

• Confirm the setting with the ALARM 1 button.

• ALARM 2 can be adjusted in the same way.

• The last adjusted alarm time appear on the display. The alarm is activated.

• Slide the ALARM switch to choose between the three set alarms below: Monday until Friday (1-5) Saturday and Sunday (6-7) Monday until Sunday (1-7) BOXX – Radio-controlled alarm clock with thermometer

• Press ALARM 1 or ALARM 2 button again to deactivate the alarm. -:- - appears on the display.

• When the alarm is activated, the alarm starts to ring when the set alarm time is reached. The backlight turns on for a short period.

• Press any button (except SNOOZE/LIGHT) and the alarm will stop.

• If the alarm is not stopped manually, the ascending alarm tone automatically turns off after two minutes and it will be reactivated at the same set time on the following day.

• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function is activated.

• The snooze symbol flashes on the display.

• The alarm will be interrupted for 5 minutes.

button in the normal mode to change between °C (Celsius) or °F (Fahrenheit) as temperature unit.

• Press the SNOOZE/LIGHT button. The backlight turns on for 3 seconds.

• Move the SENSOR ON/OFF switch to ON, a weak backlight turns on automatically as soon as the light sensor registers darkness.

BOXX – Radio-controlled alarm clock with thermometer

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

• Turn off the device if you do not use it for a long period of time. Slide the POWER ON/OFF switch to OFF.

• Keep the device in a dry place.

Problem Solution No display on the device ➜ Slide the POWER ON/OFF switch to ON ➜ Charge the device via micro-USB cable (included) No DCF reception ➜ Press and hold the 12/24/

button for 2 seconds to activate the reception ➜ Wait for an attempt reception during the night ➜ Choose another place for your product ➜ Set the clock manually ➜ Check if there is any source of interference ➜ Restart the instrument according to the manual If your device fails to work despite these measures, contact the retailer where you purchased the product. BOXX – Radio-controlled alarm clock with thermometer

This product has been manufactured using high-grade materials and components which can be recycled and reused. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

BOXX – Radio-controlled alarm clock with thermometer

Battery runtime Up to 6 month (nightlight active and one alarm per day) Measuring range - temperature 0 °C… +50 °C (+32…+122 °F) Temperature accuracy ±1,0 °C at 0 °C…39 °C, otherwise ± 2 °C Housing dimension: 152 x 45 x 73 mm Weight: 185 g (device only) No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 60.2554 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany 05/19 BOXX – Réveil radio-piloté avec thermomètre
