USER MANUAL Mood Light 60.2023.02 TFA

www.tla-dostmann.dc/cn/service/downloads/instruction-manuals

Kat. Nr. 60.2023.02

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

Thank you for choosing this instrument from TFA.

1. Before you use this product
2. Please make sure you read the instruction manual carefully.
   This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
3. Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
4. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
   • We shall not be liable for any damage occurring as a result of non following of these instructions
5. Please take particular note of the safety advice!

6. Please keep this instruction manual safe for future reference.

7. Delivery contents

• Digital alarm clock • Power adaptor
- Backup-battery CR2032 button cell - Instruction manual

1. Range of application and all the benefits of your new instrument at a glance
2. Mood light with automatic colour change or direct colour selection (red, yellow, green, turquoise, blue, purple, white) in 5 brightness levels
3. Gentle waking up with gradual brightening light and / or nature sounds (ocean surf, forest sounds, thunder river, white noise) with increasing volume over 5 minutes (beep optional)
4. Sleep-timer (15 to 90 minutes) with nature sounds and adjustable volume
   • Charging function for mobile devices via USB port (1A)
   • Indication of date and weekday written in full letters

5. Snooze function with adjustable interval (5 to 120 minutes)
   • Nap timer (5 to 120 minutes)
   • LCD backight with 5 brightness levels
   • Non-slip stand with 4 rubber pads

6. For your safety

- This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are prohibited.

Caution!

Risk of electrocution!

• Plug the device only into a mains socket installed within your country's electrical safety regulations and with a correct mains voltage (see nameplate).
• The mains socket must be located near the equipment and it must be easily accessible.
• Unplug the device immediately if any fault occurs.
  • The device and the power adapter must not come into contact with water or moisture. Only suitable for indoor use.

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

• Do not use the device if the housing or the power adapter are damaged.
• Keep the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
  • Only use the supplied power adapter
• Connect the lead to the device first and then plug the power adapter into the socket.
• Do not pull the plug out of the socket by its cable.
• Route the mains cable so it does not come into contact with sharp-ended or hot objects.

Caution! Risk of injury

• Keep this device and the battery out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death
  within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
  • Protect it from moisture
• Do not apply excessive force when connecting a USB cable. The USB plug fits only one way into the USB port

5. Elements

Display (Fig. 1)

A 1: Selection of nature sounds A 2: Arrow to mark the selected sound
A 3: Time / wake up time A 4: Battery symbol
A 5: Day of the week A 6: Date
A 7: Light alarm symbol A 8: Sound alarm symbol

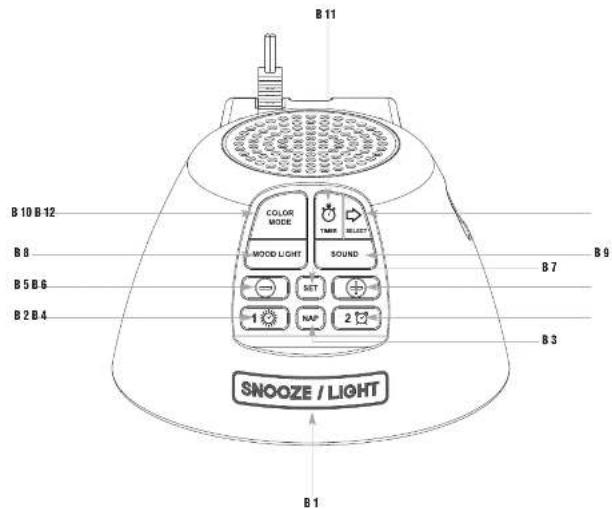

Buttons (Fig. 2)

B 1: SMOOZE/LIGHT sensor button*
B 3: NAP button
B 5: - button
B 7: SET butto
89: SOUND button
B 11: TIMER button

* Important note for the use of the SNOOZE/LIGHT sensor button:

Touch the sensor button over a large area (preferably with two fingers).

GB

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

Housing (Fig. 3)

C.1: Speaker C.2: Micro USB port
C 3: Battery compartment C 4: Power adapter jack

6. Getting started

• Connect the supplied power adapter to the alarm clock. Important! Make sure that your household voltage is no more than 240V! Otherwise your
  device may be damaged.
  • 0.03 and Montag 1.1 (default) appear on the display

• The device is ready for use.

6.1 Battery

• The CR2032 button cell is a back-up battery to keep the clock operational in the event of a blackout or other power failure.
- Remove the battery insulation strip
• Note: If no battery is inserted, the battery symbol appears permanently on the display.

7. Operation

• Press and hold the + or - button in setting mode for fast mode.
• Press the SMOOZE/LIGHT sensor button in setting mode to return to normal mode.
  • The device will automatically quit the setting mode if no button is pressed for 20 seconds.

7.1 Settings

• Press and hold the SET button in normal mode for three seconds to enter the setting mode.
  • DEUTSCH (default) flashes on the display.
• Press the + or - button to set the day-of-the-week language in the setting mode: GERMAN - DEUTSCH, ENGLISH, SPANISH - ESPANDL and
  FRENCH - FRANCAIS.
  • If you select English, the display will now appear in English.
• Press the SET button again to do the settings in the following sequence: the button tone (BEEP ON - default), the 12 - or 24 hour system (FOR-
  MAT 24 Hr - default), the hours, the minutes, the year, the month and the date, the monbr/day sequence D/M or M/D (D/M - default) and the
  snooze interval (SNOOZE 15 minutes - default). Press the + or - button to adjust it
  • Confirm the setting with the SET button.

7.1.1 24- or 12-hour system setting

• Press the + or - button in setting mode to choose the 12 HR or 24 HR system.
  • In the 12+HR system AM (before noon) or PM (after noon) appears on the display.

7.1.2 Snooze function setting

• You can set the snope interval in the setting mode.
• Press the + or - button to set the desired snooze time - it adds 5 minutes at a time (5 to 120 minutes)

GB

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

GB

7.2 Alarm functions

- This alarm clock provides a light alarm (wake-up light) and an audible alarm. Both alarms can be set for the same time or for different times. E.g.: The light alarm is set to 06:50 and the audible alarm to 07:00. At 06:50 the white light goes on and it gets brighter gradually; at 07:00, the audible alarm sound rings.

7.2.1 Light alarm (wake-up light)

- Press the LIGHT ALARM button in normal mode to enter the light alarm mode. - LIGHT ALM and 6:30 (default), or the last set alarm time, appear on the display.

- Press and hold the LIGHT ALARM button.

• The light alarm symbol will appear and the hour digit will be flashing.

- Press the + or - button to set the hours.

- Confirm with LIGHT ALARM BUTTON - Set the minutes in the same way.

- Confirm the setting with the LIGHT ALARM button and return to normal mode

• The alarm is activated.

- When the set alarm time is reached, the simulated sunrise begins with a light which becomes gradually brighter (10 stages in 5 minutes). Waking up naturally with light has a positive effect on energy hormones.

- If the light alarm is not stopped manually, the wake up light automatically turns off after another five minutes and will be reactivated at the same set time in the following day. The light alarm symbol remains on the display.

- Press any button to turn off the light alarm or press the SHOOZE/LIGHT sensor button to activate the snooze function.

- SNOCZE appears and the light alarm will be interrupted for the set time.

- The time display counts down the seconds.

- Press any button to turn on the shoote function.

7.2.2 Sound alarm

- Press the ALARM button in normal mode to enter the alarm mode.

- SOUND ALM and 7:30 (default) or the last set alarm time appear on the display.

- Press and hold the ALARM button.

• The alarm symbol will appear and the hour digit will be flashing.

- Press the + or - button to set the hours.

• Confirm with ALARM Suction. • Set the minutes in the game.

- Set the minutes in the sun is way. - Confirm the setting with the ALARM button.

• REEP (default) appears on the display.

- Press the + or - button to select the alarm sound. 6 different alarm sounds are available (BEEP, RIVER, W-NOISE, THUNDER, BACKWOODS, OCEAN).

• The mark in the upper display shows which alarm sound you have selected (BEEP without marking)

- Confirm the setting with the ALARM button and return to normal mode.

• The setting is saved.

• The alarm is activated.

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

GB

- When the set alarm time is reached, the alarm clock will wake you up with the selected settings.

- If the alarm is not stopped manually, the increasing alarm tone automatically turns off after live minutes and will be reactivated at the same set time in the following day. The alarm symbol remains on the display.

- Press any button to turn off the alarm sound or press the SNOOZE/LIGHT sensor button to activate the snooze function

• SNOOZE appears and the alarm will be interrupted for the set time

• The time display counts down the seconds

- Press any button to turn off the snooze function

7.2.3 Activate/doactivate alarm

- Press the LIGHT ALARM button or the ALARM button in the respective alarm mode, to activate or deactivate the alarm function. The respective symbol will appear or disappear on the display.

7.3 Nature sounds

7.3.1 Play mode

- Press the SOUND button in normal mode to enter the play mode.

• RIVER (default) or the last set sound is heard.

- Press the SELECT button to select the sound. 5 different sounds are available (RIVER, W-NOISE, THUNDER, BACKWOODS, OCEAN)

- Press + or - button to adjust the respective volume (10 levels).

• The setting is saved.

- Press the SOUND button again to exit the play mode.

7.3.2 Sleep mode

• This mode allows a gentle fall asleep with calming nature sounds

- Press the SOUND button in normal mode to enter the play mode.

• RIVER (default) or the last set sound is heard.

- You can now select the sound and adjust the volume (as described above).

- Press the TIMER button.

- 15 minutes (default) or the last sleep time hashes

- Press the TIMER button to set the desired time duration - 15 minutes at a time (15 to 90 minutes).

• The time display counts down the seconds

- In TIMER mode, you can press the TIMER button at any time to adjust the sleep time or turn on the timer.

- Press the SOUND Button again to exit the play mode.

- After time has expired, the sound will switch on automatically.

7.3.3 NAP timer

- Press and hold the MAP button in normal mode for three seconds, to enter the setting mode.

- NAP and 10 minutes (default) or the last nap time flashes.

- Press the + or - button to set the desired time duration - it adds 5 minutes at a time (5 to 120 minutes).

- Confirm the setting with the MAP button.

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

- Once the setting is confirmed, the NAP function is activated and the time display counts down the seconds.

• An alarm tone will sound when the set minutes expire.

• NAP 0:00 will be flashing on the display.

• Press any button and the pan functioning will stop

• To activate the nap function with the last set nap time just press the NAP button in normal mode.

8. Backlight

8.1 LCD Backlight

- Press the SMOOZE/LIGHT sensor button to adjust the brightness - 4 levels (BACKLIGHT 1-4) or to switch it off.

8.2 MOOD LIGHT mode

• Press the MOOD LIGHT button in normal mode.

• LIGHT 1 (default) appears on the display and the mode light closes red.

- Press the MOOD LIGHT button to adjust the brightness - 4 levels or to switch it off

- When the light is on, press the COLOR MODE button to choose between 7 colours (COLOR 1-7) or continuous colour change (CYCLE).

- The setting is saved.

9. Charging function

- Attention: The charging function only works with the power adapter. Plug the USB cable into the USB port on the alarm clock and connect the other end to your mobile device. Make sure that the charging rate is suitable for your mobile device.

10. Care and maintenance

- Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

- Unplug the device and remove the battery if you do not use it for a long period of time.

- Keep the device in a dry place.

10.1 Battery replacement

- Change the battery when the empty battery symbol appears on the display.

- Open the battery compartment, loses a new battery (CB 2032), plus pole upwards.

- Close the battery compartment again.

- Note: If no battery is inserted, the battery symbol appears permanently on the display.

11. Troubleshooting

Problem Solution

No display → Connect the device to the power adapter

→ Check the power adapter

→ Press the SMOOZE/LIGHT button to activate the backlight

GB

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

Incorrect indication → Remove the device from the mains, remove the battery and restart after 3 seconds

No charging function → Check the USA port connection

If your device fails to work despite these measures, contact the retailer where you purchased the product.

12. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are:

Cd=cadmium, Hg=mercury, Pb=lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

13. Specifications

Power consumption Power supply (included)

Input 100-240V AC 50/60Hz 0.6A Max

Output: 5.0 V DC 1.5A 7.5W

Average active efficiency: >70.65%

No-lead power consumption: <0.10 W

Back-up battery CR2032 (included)

Charging output 1x USB Port (1A)

Housing dimension 138 x 92 x 139 mm

Weight 337 g (device only)

GB

MOODLIGHT – Light alarm clock with nature sounds and colour changing mood light

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de

E. H. M. W. E. G. A. C. D. F. G. H. I. J. K. L. M. N. O. P. Q. R. S. T. U. V. W. X. Y. Z. A. B. C. D. E. F. G. H. I. J. K. L. M. N. O. P. Q. R. S. T. U. V. W. X. Y. Z. A. B. C. D. E. F. G. H. I. J. K. L. M. N. O. P. Q. R. S. T. U. V. W. X. Y. Z. A. B. D. E. F. G. H. I. J. K. L. M. N. O. P. Q. R. S. T. U. V. W. X. Y. Z. A. B. D. E. F. G. H. I. J. K. L. M. N. O. P. Q. R. S. T. U. V. W. X. Y. Z

TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D-97877 Wertheim, Germany

Commercial registration number: Reg. Gericht Mannheim HRA 570186 04/21

GB

Cd = cadmium, Hg = mercure, Pb = plomb

• Can thereafter consider set

- Imposals in remishe of

• 1-15 here it last to timer.

Co-cadmium, Hg-kwilkilver, Pb=1000
