USER MANUAL EL200RGB MK2 Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Black industrial laser projector with three circular vented slots and warning labels (no readable text beyond symbols)

English

Deutsch

Français

Legal notice:

Thank you for purchasing this Laserworld product. Due to continual product developments and technical improvements, Laserworld (Switzerland) AG reserves the right to make modifications to its products. This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith. The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

Attention: This device is a show laser device for commercial use. This device is not a laser pointer, not suitable for pointing purposes and must not be used as a laser pointer.

Please read manual before operation

LASERWORLD® www.laserworld.com Model: E-00RGB MK2 R = 15.5V Caution of Radiation IF COVER IS REMOVED 4 6 Year: 2022 A = 403-879-0 WARNING | Read user manual before use | Operation by quick And personnel only Never touch laser beam at people | Never lock directly into Voltage AC ■ 85-250V □ 110-120V □ 220-240V 50-60Hz Power W IEC protection (isolational class I) appliance Laserworld (Switzerland) AG, CH 8574 Langwil, Switzerland Representative in the EU: Ray Technologies GmbH, Mühlbachweg 2, OE-83626 Valley

Use in enclosed spaces only!

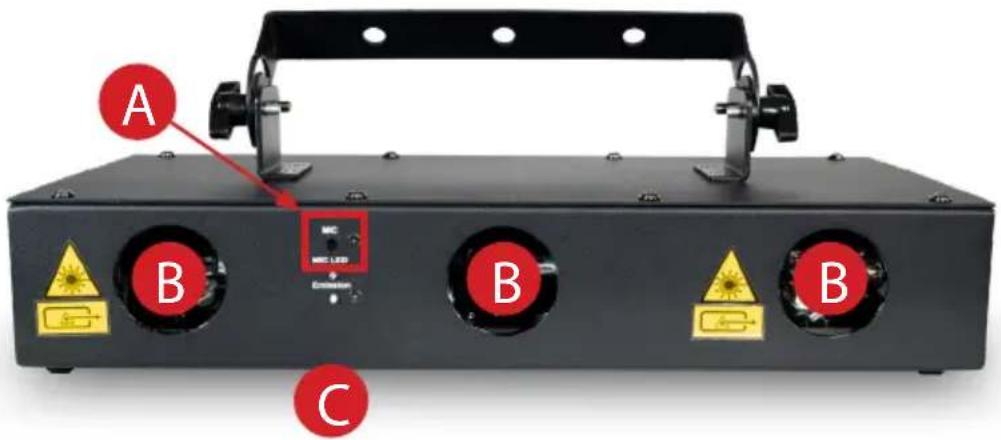

Front Panel | Frontplatte | Panneau frontal

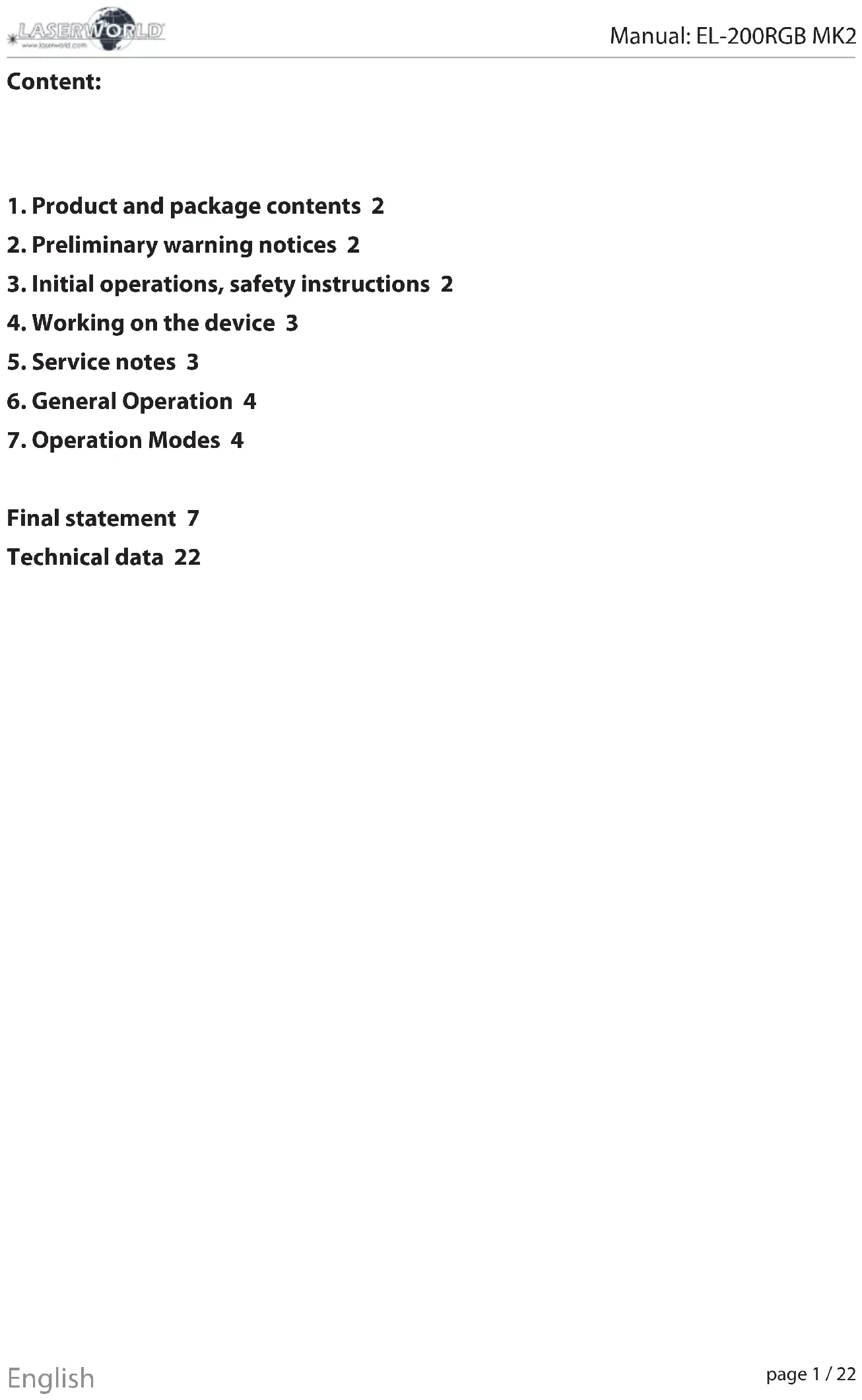

1. Product and package contents 2
2. Preliminary warning notices 2
3. Initial operations, safety instructions 2
4. Working on the device 3
5. Service notes 3
6. General Operation 4
7. Operation Modes 4

Final statement 7

Technical data 22

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery: Laser system, power cable, key, interlock bridge plug, manual, technical datasheet

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
3. This device must not be permanently connected to mains. Disconnect it from mains or use the power button to switch if off if not in use.
4. Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
5. Do not operate the device at high humidity or in the rain or in dusty environments.
6. Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information on device & in this manual.
2. Make sure that the device is not connected to mains during installation.
3. Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.
4. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.

5. In some countries an additional inspection by technical control institutes could be necessary.

6. Connect an easily accessible inter-lock connector or circuit breaker

to the projector.

1. The power supply should be easily accessible.
2. When installing the laser mount it with a minimum distance of 15 cm from walls and objects.
3. For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for accident prevention.

4. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture/water formed) may damage this device.

5. Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!

6. Ensure sufficient ventilation and do not place the device on any warm or heat radiating surface. Especially the ventilati-

4. Working on the device

1. This product has no user serviceable parts inside and should only be maintained and serviced by a qualified engineer.

2. Be sure that the mains plug is not connected to the power supply while installing the device.

3. Take off all reflecting things like rings, watches, etc. before starting to work with or at the projector.

4. Only use non-reflecting tools to work on device.

5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wavelength of the laser.

5. Service notes

- Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.

- Quick on/off switching of this device will reduce durability of the laser diode dramatically.

- Avoid sharp knocks and shocks to this device an endure sufficient protection during transportation. Look after your Laserworld product.

• To increase durability of your laser, protect device against overheating:

-Always ensure sufficient ventilation.

- Do not face spotlights (especially moving heads) to the device.

- Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a

on openings must not be covered!

1. Ensure that device does not get overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.

2. This unit is intended for indoor use only.

Yellow triangular warning sign with black radiating lines, no text or symbols present

placewithdifferenttemperatures.

- Keep the device dry. Protect it from moisture, rain and damp.

- Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.

- Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit or air inlets appear to be blocked, please contact a qualified service engineer to maintain and service the product.

- Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the safety instructions and service notes will void the warranty.

6. General Operation

1. Power

Connect the power cord to the device and to the mains. Make sure that your device is provided with the correct voltage. Wrong voltage could lead to irreparable damages. Please find the correct voltage data in the synoptical table at the end of this manual. Make sure that the device is not directed to people or inflammable objects during installation. To start the device, connect the interlock bridge, insert the key and switch it on, and switch the device on. The “Emission - Laser on” LED at the front side of the device begins to light up when the device is ready for use.

2. Key Switch

There is a key switch at the back of the laser system. Please plug the key to the switch and turn it on. The laser device only runs when the key is inserted and switched on. Prevent misuse! Unplug the key when the laser is unattended to prevent misuse of the system.

3. Modes / Functions

The different operation modes can be selected by using the DIP switches at the back of the device. Do not change any settings during operation, as random and dangerous laser output can occur.

4. Turn device off

To turn off the device, use the power button („OFF“), turn the key to ,OFF' and disconnect the power cable from the mains.

7. Operation Modes

7.1 Turn on the Laser system

- Connect the power cable to the device and then to the mains

- Insert key and turn it to „ON“

- Press the "ON" switch to turn on the device

- An Interlock bridge adapter is included in delivery (small network plug). Attach an E-Stop to the interlock interface or use the bridge connector to enable laser output

7.2 SOUND-TO-LIGHT

Sound-to-light operation allows for playing back the integrated patterns to the beat of the music:

ON KIQ 1 2 3 4 5 6 7 8 9 10

Control the music-sensitivity by the trim pot at the rear side of the device. The LED is flashing when the device is triggered.

7.3 STAND-ALONE / AUTO

Stand-alone, or Auto, operation allows for playback of the internal patterns without any control. They are played back according to the internal system settings.

ON KIQ 1 2 3 4 5 6 7 8 9 10

7.4 DMX512

Your device runs in DMX mode if '10' is switched off:

ON KIQ 1 2 3 4 5 6 7 8 9 10

Connect a DMX controller to operate the laser.

Use the switches 1 - 9 to set the DMX address of the laser. Each switch represents a number. To define a number use the preceding number and multiply it by 2:

Switch 1	2	3	4	5	6	7	8	9	10
Number	1	2	4	8	16	6	32	64	1	28	256	Mode	S	witch

The laser uses 11 DMX channels, so make sure that the next device uses an address that doesn't overlap with this range.

Channel Value Function
1 0 - 70 Laser off
	71 - 142 Sound mode
	143 - 214 Automatic mode
	215 - 255 DMX mode
2 0 - 255 Pattern selection
3 0 - 255 Animation (not with all patterns); strobe effect
4 0 - 255 Display mode
5 0 - 255 Horizontal movement
6 0 - 255 Vertical movement
7 0 - 255 Zoom
8 0 - 32 Red, green and blue
	33 - 64 Green and blue
	65 - 97 Red and blue
	98 - 130 Red and green
	131 - 162 Blue
	163 - 195 Red
	196 - 228 Green
	229 - 255 Audio controls color change
9 0 - 255 Rotation X-axis
10 0 - 255 Rotation Y-axis
11 0 - 255 Rotation

Please note that not each pattern can be combined with each effect.

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse.

Users must to follow the local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products.

Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website.

For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and Omissions excepted and products are subject to change.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil

Switzerland

Registered office:

8574 Lengwil / Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683 180

UID (Switzerland): CHE-113.954.889

VAT no. (Germany): DE 258030001

WEEE-Reg.-No. (Germany): DE 90759352

www.laserworld.com

[e-mail]

representative according to EMVG:

Managing Director: Martin Werner

Mühlbachweg 2

83626 Valley / Germany

C€

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Inhaltverzeichnis:

representative according to EMVG:

Managing Director: Martin Werner

Mühlbachweg 2

83626 Valley / Germany

C€

Table des matières:

Managing Director: Martin Werner

Mühlbachweg 2

83626 Valley / Germany

C€

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Laser sources: Laserquellen: Sources laser:	DPSS (green), Diode (red and blue) DPSS (grün), Diode (Rot und Blau) DPSS (vert), diode (rouge, bleu)
Laser class: Laserklasse: Classe laser	3B
Scanner:	high-speed stepper motors, 2-5 kpps, Highspeed Schrittmotoren, 2-5 kpps moteurs pas à pas haute performance, 2-5 kpps
Scan angle: Strahlauslenkung: Angle de scan max.	30° max
Operation modes: Betriebsmodi: Mode de fonctionnement:	auto, music, DMX Auto, Musik, DMX automatique, musique, DMX
Beam: ca. 3 mm / 2 mrad
Power supply: Stromversorgung: Alimentation:	85 V - 250 V AC
Power consumption: Stromaufnahme: Consommation:	60 W
Operating temperature: Betriebstemperatur: température d'opération:	+10° to +35°C
Dimensions: Abmessungen:	175 x 395 x 85 mm (L x W x H)/(B x T x H)/(H x L x P)
Weight: Gewicht: Poids:	3.9 kg

Power specifications (at laser module) / Laserleistung (am Modul) / Puissance

	guar. - typ.	tot / Rouge (638 nm) Green / Grün / Vert (532 nm) Blue / Blau / Bleu (450nm)
EL-200RGB MK2 155 - 200 mW		5 mW 60 mW
