USER MANUAL BrematicPRO UPMS868 01 W400 BRENNENSTUHL

Wireless Flush-Mount Actuator with Switch Wiring

Instructions for use

EN Instruction....Page 9

Line drawing of a mechanical component with no visible text or symbols

LEARN L N N L N PE

LEARN L N N

LEARN L N N

www.brematic.com/de/service.

Tel.: [phone] (kostenlos)

Hersteller

EN Wireless flush-mount actuator with switch wiring 868.3 MHz

List of pictograms used....Page 10

Safety instructions....Page 10

Intended use Page 10

Information about Wireless Operation....Page 11

Duty Cycle....Page 11

Included in delivery Page 11

Technical data....Page 11

Device overview Page 11

Front Page 11

Connections......Page 11

Function Page 12

Installation Page 12

Download app / PC software BrematicPRO....Page 12

Pairing the wireless flush-mount actuator with switch wiring with the BrematicPRO Wireless Remote Control Page 13

Unpair Page 13

Pairing the wireless flush-mount actuator with switch wiring with the BrematicPRO Gateway....Page 13

Factory Reset......Page 14

Cleaning the Device....Page 14

Action......Page 14

Disposal Page 14

Service Page 14

Manufacturer Page 14

Declaration of conformity....Page 14

List of pictograms used
	Please read the instructions for use! Caution! Fire hazard!
	Observe the warnings and safety instructions!		Dispose of the packaging and device in an environmentally friendly manner!
	Caution! Danger of electric shock!

Safety instructions

The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instructions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
- Only operate this device in a dry, dust-free environment.
- Only operate this device indoors.
- Do not expose the device to adverse conditions, such as - moisture,

- continuous sunlight,

- heat radiation,

• cold,
- vibrations.

CAUTION! RISK OF INJURY!

We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty / guarantee!

- Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.

DANGER OF ELECTRIC SHOCK!

Do not open the housing. This device has no parts which require maintenance. In the event of a malfunction, please contact Service.
- Work on the mains must be performed by an electrician whilst de-energised.
- If you do not have any expertise in this area, do not perform the installation of the product yourself. Commission a trained electrician.

- Do not use the device if it is visibly damaged.

FIRE HAZARD!

Installation of the product may only be carried out by a qualified professional (e.g. an electrician), who is familiar with the relevant specifications (e.g. VDE).

• Do not connect any terminal devices to the device which could cause a fire or other damage when switched on unattended (e.g. iron).
• Do not switch the device uncontrolled or whilst unattended.
  Do not overload the device.
  Overloads may result in fire hazards or product damage. The maximum load is approx. 400 W.

Intended use

The wireless flush-mount actuator with switch wiring is solely intended to switch consumers connected to the wireless actuator on and off in dry indoor locations.

Information about Wireless Operation

This device uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded.

The range in buildings may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.

The range can be significantly reduced in part due to:

• wood, gypsum, concrete, reinforced concrete walls
• proximity to metal and conductive objects
- broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
• proximity to electric motors, transformers, mains adapters, computers

Duty Cycle

Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1% of an hour (corresponding to 36 seconds / hour). Once the 1% limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.

Included in delivery

1 x Wireless flush-mount actuator with switch wiring
1 x Quick start guide
1 x Instructions for use (digital, available for download)

Technical data

Product designation: UPMS 868 01 W400 3726

Item no.: 1294710

Radio frequency: 868.3 MHz

Frequency: 868.1 - 868.5 MHz

Max. transmitting power: < 20 mW

Duty cycle: < 1 % per h

Supply voltage: 230 V/AC, 50 Hz

Max. switching capacity: 400 W

Power input: 1.3 W

Ambient temperature: 0 °C to 35 °C

Protection type: IP00

Open area range: approx. 100 m

Dimensions (W x H x D): 52 x 49.5 x 16.9 mm

Weight: 30 g

Subject to technical changes without notice.

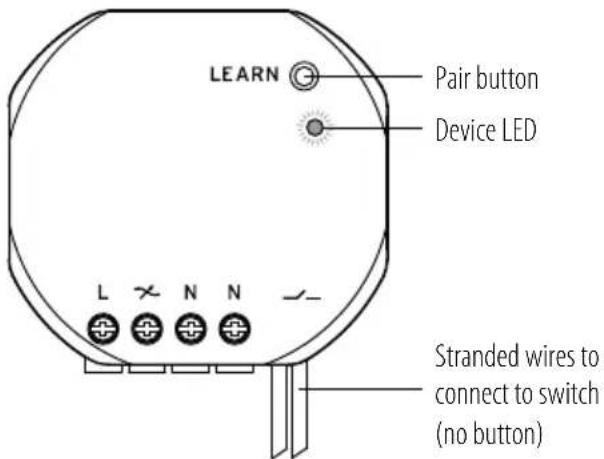

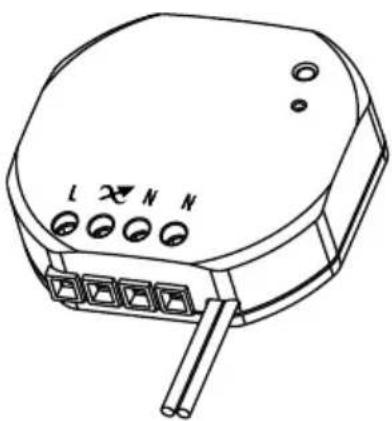

Device overview

Front

LEARN Pair button Device LED L N N Stranded wires to connect to switch (no button)

Connections

Line drawing of a mechanical component with no visible text or symbols

L External conductor connection L 230 V phase (input)

N Neutral conductor connection N 230 V (consumer)

Switched external conductor L 230 V phase (consumer)

N Neutral conductor connection N 230 V (input)

Function

The wireless flush-mount actuator with switch wiring is part of the Brennenstuhl Home Automation Systems BrematicPRO, controlled via app or the BrematicPRO PC software. The wireless flush-mount actuator with switch wiring can be connected and controlled directly with the BrematicPRO wireless remote control. It can be directly linked with the Brennenstuhl Home Automation Systems BrematicPRO via the BrematicPRO Gateway to use other software-based functions (e.g. timer control, theme control, astro function).

For information on which components are compatible with the wireless flush-mount actuator with switch wiring, please visit: www.brematic.com/gb/service.

For additional information on components, please refer to the instructions for use of the respective BrematicPRO wireless component.

Installation

Note: Check before installation whether the product is located within the range of the Gateway.

CAUTION! DANGER OF ELECTRIC SHOCK!

Only install the device in a de-energised state! Disconnect the electrical mains supply line by switching off the circuit breakers connected to it or unscrewing the fuse. Prevent this from being unintentionally re-started e.g. with a warning sign.
Before installation, check the mains supply line with a suitable measuring device to see that it is de-energised.
The mains voltage on site must correspond with the technical data of the device (see "Technical data").
- Check the power input of the consumer you intend to connect to the device prior to installation.

The maximum load is approx. 400 W.

The device must be operated in a suitable flush-mounted box or surface mount box or assembled in another suitable casing to guarantee the necessary electric shock protection.

Only operate the device when it is stationary.

ATTENTION! Risk of short circuit for switch connection! Insulate the cable ends of the braid pair to prevent short circuits.

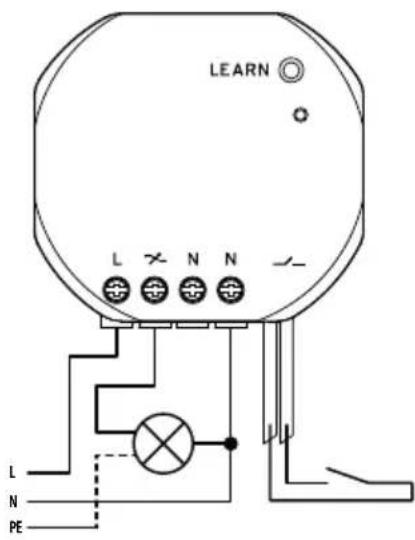

LEARN L N N L N PE

○ Connect the supply voltage cable to the screw terminals L and N (N = neutral conductor, L = phase) (see Fig.).
○ Connect the consumer to the both of the centre screw terminals (see Fig.).
For consumers with a PE / ground conductor connection, the ground conductor must be connected.

An external potential-free switch (no button) can be connected to the multi-wire cable. In addition, the wireless actuator can be switched on or off via the external switch.

The multi-wire cables are insulated with insulating sleeves in their delivery state. Remove the insulating sleeves, i.e. using a knife, before connecting an external switch to the multi-wire cables.
○ Ensure during installation that the pair button on the housing front is not covered and that it is not pressed by accident.

Download app / PC software BrematicPRO

The Brennenstuhl Home Automation Systems BrematicPRO is controlled via the BrematicPRO app / PC software. The app can be downloaded for free from the App Store and Google Play. The PC software is available for download at www.brematic.com/gb/service.

Please follow the on-screen instructions for download and installation.

Download on the

App Store

GET IT ON

Google Play

For more information about the app and how to use it, please visit www.brematic.com/gb/service.

Pairing the wireless flush-mount actuator with switch wiring with the BrematicPRO Wireless Remote Control

The wireless flush-mount actuator with switch wiring can be paired directly with the BrematicPRO wireless remote control. For further options, see the compatibility list at: www.brematic.com/gb/service.

LEARN L N N

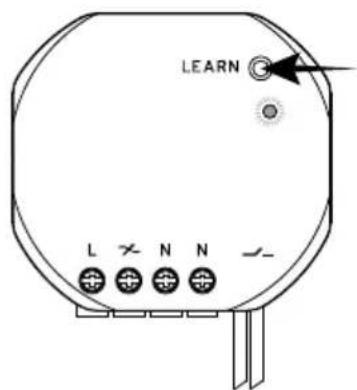

○ Press and hold the pair button for 3 seconds. The LED will flash red.

A B C D E

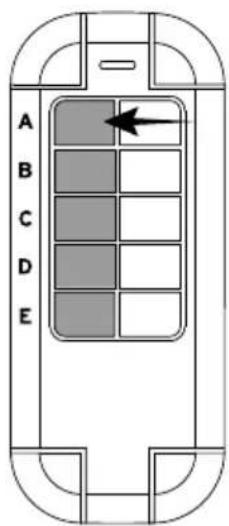

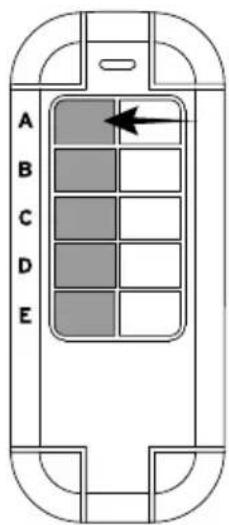

Whilst the LED is flashing, press a button on the left of the BrematicPRO wireless remote control you wish to program for the device.

Once the devices have been paired the LED of the actuator will light up green. The pairing process is now completed and the actuator is switched on.

Unpair

LEARN L X N N -

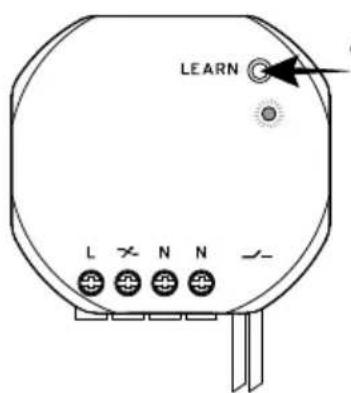

Press and hold the pair button for 3 seconds. The LED will flash red.

A B C D E

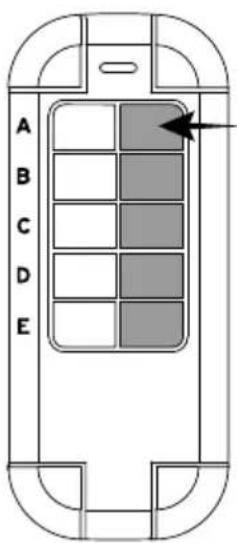

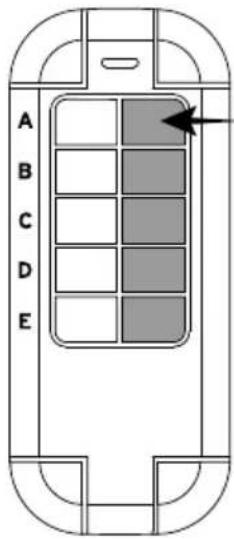

Whilst the LED is flashing, press the respective button on the right of the BrematicPRO wireless remote control you wish to unpair. This completes the unpairing process.

Pairing the wireless flush-mount actuator with switch wiring with the BrematicPRO Gateway

When linked with the Home Automation Systems BrematicPRO via the BrematicPRO Gateway, you can use the app / BrematicPRO PC software to use additional functions, e.g. timer control, theme control, astro function (dawn / dusk control).

The app or BrematicPRO PC software is installed and open. The BrematicPRO Gateway is ready for use.

• Keep the device at least 50 cm from the Gateway.
  ○ Open the "Settings" menu.
  ○ Select the room where you wish to use the device.
  ○ Select the frequency "868 MHz".
  ○ Select "Add Device".
  Under "New Device", select "Switch / Socket" and click "Continue" to confirm your selection.
  ○ Follow the on-screen instructions.
  ○ Press and hold the pair button on the device for 3 seconds.
  ○ Enter a device name, e.g. "Living Room Lamp".
  ○ Select "Add" to assign the device to the room.
• First tap "Back" to leave the room, then "Done" to complete the pairing process.

The wireless flush-mount actuator with switch wiring is now connected to the Home Automation Systems BrematicPRO.

Use "Test Device" to switch the consumer on and off to ensure the wireless flush-mount actuator with switch wiring is working properly.

In this submenu you can also add the device to your favourites.

For more information about the app and how to use it, please visit our homepage at: www.brematic.com/gb/service.

Factory Reset

The device can be restored to the factory settings at any time. A reset will be required if malfunctions occur.

○ Press the pair button for at least 6 seconds.

The LED will flash rapidly and go out after approx. 3 seconds.

The device has been reset.

Cleaning the Device

DANGER! RISK OF ELECTRIC SHOCK!

Disconnect the device from the mains before cleaning.

Do not allow liquids to enter the device. Liquids entering can result in a short circuit.

○ Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
Do not clean with solvent-based cleaners. These could damage the device surface and markings.
Never immerse the device in water or other liquids. The product may otherwise be damaged.
○ Ensure the device is completely dry before using it again.

Action

Problem Possible cause Action
LED doesn't flash. Device has not been installed correctly.The circuit breaker is not switched on.		Have installation carried out correctly. Check if there is power.Switch on the circuit breaker.
Device not detected.	The device is outside the Gateway range.	Reduce the distance to the Gateway.

Disposal

The packaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.

Service

For questions related to the product, please contact us at

www.brematic.com/gb/service.

Tel.: [phone] (toll-free)

Manufacturer

Declaration of conformity

Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model UPMS 868 01 W400 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brennenstuhl.com/gb/service/konformitaetserklaerung/ke_1294710.pdf

This product complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners.

All rights reserved.
