Product Type	Flush-mounted wireless switch
Brand	Brennenstuhl
Model	BrematicPRO UPWS 868 01 W1000
Radio Frequency	868.3 MHz
Max. Transmission Power	< 20 mW
Duty Cycle	< 1% per hour
Supply Voltage	230 V / AC, 50 Hz
Max. Switching Power	1000 W
Power Consumption	0.7 W
Ambient Temperature	0 °C to 35 °C
Protection Rating	IP20
Range in Open Area	Approx. 100 m
Dimensions (W x H x D)	79.3 x 79.3 x 45.3 mm
Weight	83 g
Main Functions	Turn consumers on/off, programmable via BrematicPRO radio remote control or Gateway, integration into BrematicPRO smart home system (app or PC software)
Mounting	Flush-mounted in a suitable box, connection to screw terminals L-IN, N-IN, L-OUT, N-OUT. Installation by a qualified electrician, mandatory de-energization.
Care and Cleaning	Clean with a dry, lint-free cloth. Do not immerse, do not use solvents. Disconnect before cleaning.
Safety	Do not open the housing (risk of electric shock). Use only in dry indoor areas. Do not connect devices that could pose a risk if turned on unattended. Max. load 1000 W.
Spare Parts and Repairability	The product contains no user-serviceable parts. In case of problems, contact service (toll-free 0080048720743).
General Information	Manufacturer: Hugo Brennenstuhl GmbH & Co. KG. Declaration of conformity available at www.brematic.com. Complete manual available for free download.

Frequently Asked Questions - BrematicPRO UPWS 868 01 W1000 BRENNENSTUHL

How to install the flush-mounted wireless switch?

Installation must be carried out by a qualified electrician. Cut the power at the circuit breaker, check for absence of voltage, then connect the cables to the screw terminals L-IN, N-IN (phase and neutral), and L-OUT, N-OUT to the consumer. Fix the switch in a flush-mounted box (60 mm center distance) and snap on the cover.

What is the maximum power supported by the switch?

The maximum switching power is 1000 W. Ensure that the connected consumer does not exceed this value to avoid any risk of fire or damage.

How to pair the switch with a BrematicPRO remote control?

Press the programming button on the switch for 3 seconds until the LED flashes red. During this flashing, press the left button on the remote control you want to pair. The LED lights up green to confirm pairing.

How to delete the pairing with a remote control?

Press the programming button for 3 seconds (LED flashes red). During the flashing, press the right button of the remote control you want to unpair. Unpairing is immediate.

How to integrate the switch into the BrematicPRO smart home system via the Gateway?

Open the BrematicPRO app or PC software (Gateway ready). Go to 'Settings', choose the room, select the 868 MHz band, then 'Add device'. Choose 'Switch/Socket', follow the instructions, toggle the switch, and name the device (e.g., 'Living room lamp'). Confirm with 'Add' and 'Done'.

How to restore factory settings?

Press the programming button for at least 6 seconds. The LED flashes quickly then turns off after about 3 seconds. The product returns to its delivery state. This operation can resolve malfunctions.

What is the radio range of the switch?

In an open area, the range is approximately 100 meters. Indoors, it can be reduced by walls (wood, plaster, reinforced concrete), metal objects and interference from other devices (DECT, WiFi, etc.).

What does Duty Cycle mean and what is its limit?

Duty Cycle is a legal limitation on transmission time for 868 MHz devices. It is limited to 1% per hour, i.e. 36 seconds per hour. Beyond that, transmission is blocked until the next hour.

How to clean the wireless switch?

Disconnect the device from the mains. Use a dry, lint-free cloth. For stubborn dirt, slightly dampen the cloth (do not use solvents). Never immerse the product in water. Make sure it is dry before reconnecting.

What to do if the LED does not flash or the switch does not turn on?

Check that the circuit breaker is on and the electrical installation is correct. If the LED does not flash, the product may not be powered. If the switch does not turn on, bring the remote control or Gateway closer (insufficient range). Refer to the troubleshooting table in the manual.

USER MANUAL BrematicPRO UPWS 868 01 W1000 BRENNENSTUHL

Blank white square button with rounded corners, no text or symbols present

Wireless Direct Wire Wall Switch

Instructions for use

Draadloze verzonken wandschakelaar

Gebruiksaanwijzing

EN Instruction....Page 9

Top-down schematic of a mechanical or electrical component with no visible text, numbers, or symbols.

IN

Technical line drawing of a mechanical housing assembly with internal components (no text or symbols)

www.brematic.com/de/service.

Tel.: [phone] (kostenlos)

Hersteller

Safety instructions....Page 10

Intended use....Page 10

Information about Wireless Operation Page 10

Duty Cycle....Page 11

Included in delivery....Page 11

Technical data....Page 11

Device overview Page 11

Front Page 11

Back Page 11

Function......Page 11

Installation Page 11

Download app / PC software BrematicPRO Page 12

Pairing the Wireless Direct Wire Wall Switch with the BrematicPRO

Wireless Remote Control......Page 12

Unpair Page 13

Pairing the Wireless Direct Wire Wall Switch with the BrematicPRO Gateway Page 13

Factory Reset......Page 13

Cleaning the Device....Page 13

Action......Page 13

Disposal Page 14

Service Page 14

Manufacturer Page 14

Declaration of conformity....Page 14

List of pictograms used
	Please read the instructions for use! Caution! Fire hazard!
	Observe the warnings and safety instructions!		Dispose of the packaging and device in an environmentally friendly manner!
	Caution! Danger of electric shock!

Safety instructions

The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instructions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.
- Only operate this device in a dry, dust-free environment.
- Only operate this device indoors.
Do not expose the device to adverse conditions, such as moisture,

- continuous sunlight,

- heat radiation,

• cold,
- vibrations.

CAUTION! RISK OF INJURY!

We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty / guarantee!

- Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.

DANGER OF ELECTRIC SHOCK!

Do not open the housing. This device has no parts which require maintenance. In the event of a malfunction, please contact Service.
- Work on the mains must be performed by an electrician whilst de-energised.
- If you do not have any expertise in this area, do not perform the installation of the product yourself. Commission a trained electrician.
- Do not use the device if it is visibly damaged.

FIRE HAZARD!

Installation of the device may only be carried out by a qualified professional (e.g. an electrician), who is familiar with the relevant specifications (e.g. VDE).

• Do not connect any terminal devices to the device which could cause a fire or other damage when switched on unattended (e.g. iron).
  Do not switch the device unsupervised or whilst unattended.
  Do not overload the device.
  Overloads may result in fire hazards or device damage. The maximum load is approx. 1000 W.

Intended use

The wireless direct wire wall switch is solely intended to switch consumers connected to the wireless direct wire wall switch on and off in dry indoor locations.

Information about Wireless Operation

This product uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded.

The range in buildings may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.

The range can be significantly reduced in part due to:

• wood, gypsum, concrete, reinforced concrete walls
• proximity to metal and conductive objects
- broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
• proximity to electric motors, transformers, mains adapters, computers

Duty Cycle

Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1 % of an hour (corresponding to 36 seconds / hour). Once the 1 % limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.

Included in delivery

1 x Wireless direct wire wall switch
1 x Quick start guide
1 x Instructions for use (digital, available for download)

Technical data

Product designation: UPWS 868 01 W1000 3726

Item no.: 1294700

Radio frequency: 868.3 MHz

Frequency: 868.1 - 868.5 MHz

Max. transmitting power: < 20 mW

Duty cycle: < 1 % per h

Supply voltage: 230 V / AC, 50 Hz

Max. switching capacity: 1000 W

Power input: 0.7W

Ambient temperature: 0 °C to 35 °C
Protection type: IP20
Open area range: approx. 100 m
Dimensions (W x H x D): 79.3 x 79.3 x 45.3 mm
Weight: 83 g

Subject to technical changes without notice.

Device overview

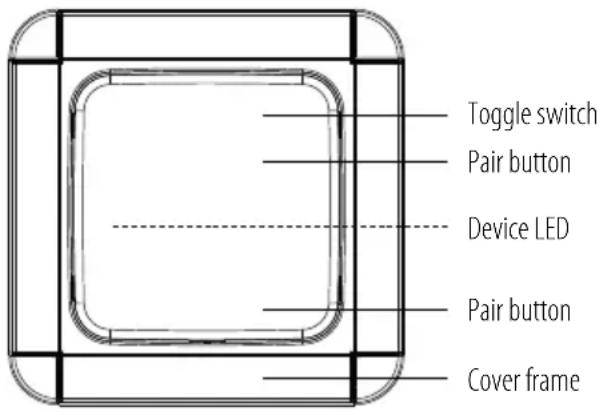

Front

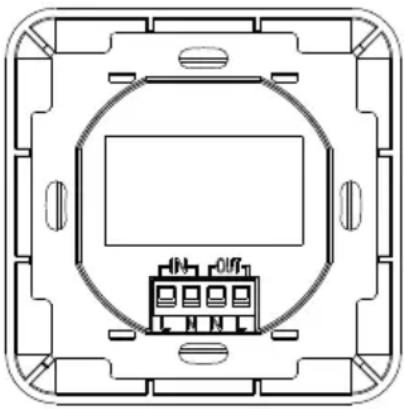

Back

Top-down schematic of a rectangular electronic component with internal circuitry and mounting holes (no text or symbols)

IN

L External conductor connection L1 230 V phase
N Neutral conductor connection N 230 V

OUT

N Neutral conductor connection N 230 V
L Switched external conductor L1 230 V phase

Function

The wireless direct wire wall switch is part of the Brennenstuhl Home Automation Systems BrematicPRO, controlled via app or the BrematicPRO PC software. The wireless direct wire wall switch can be connected and controlled directly with the BrematicPRO wireless remote control. To use other software-based functions (i.e. control actions (tasks), switch on / off devices) it must be linked with the Brennenstuhl Home Automation Systems BrematicPRO via the BrematicPRO Gateway.

Installation

Note: Check before installation whether the product is located within the range of the Gateway.

CAUTION! DANGER OF ELECTRIC SHOCK!

Only install the device in a de-energised state! Disconnect the electrical mains supply line by switching off the circuit breakers connected to it or unscrewing the fuse. Prevent this from being unintentionally re-started e.g. with a warning sign.
Before installation, check the mains supply line with a suitable measuring device to see that it is de-energised.
The mains voltage on site must correspond with the technical data of the device (see "Technical data").
- Check the power input of the consumer you intend to connect to the device prior to installation. The maximum load is approx. 1000 W.
The device must be operated in a suitable flush-mounted box or surface mount box or assembled in another suitable casing to guarantee the necessary electric shock protection.
- Only operate the device when it is stationary.

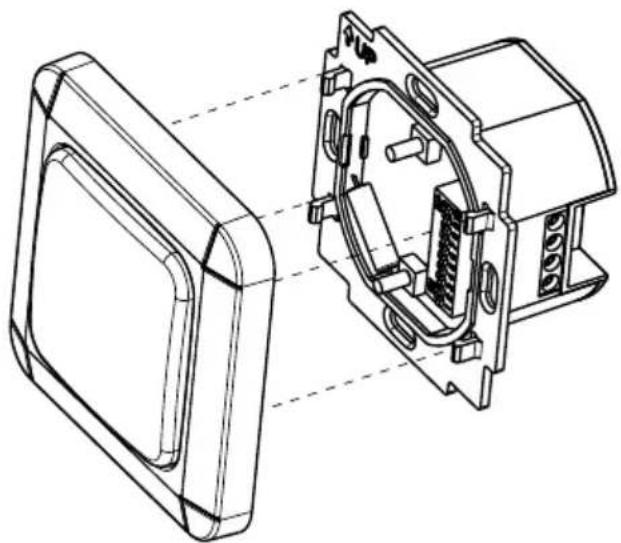

Remove the cover frame from the electronic unit.

Technical line drawing of an electronic component with internal structure and housing (no text or symbols)

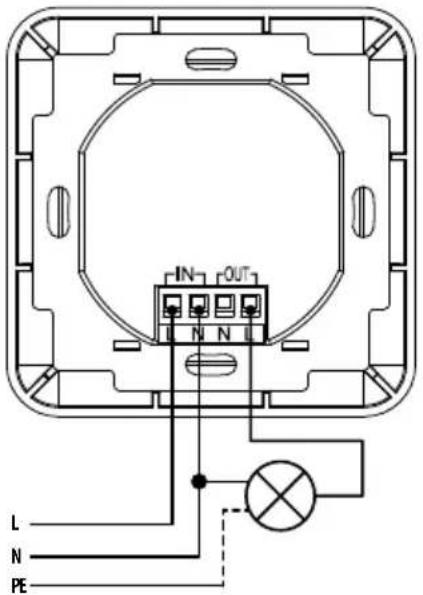

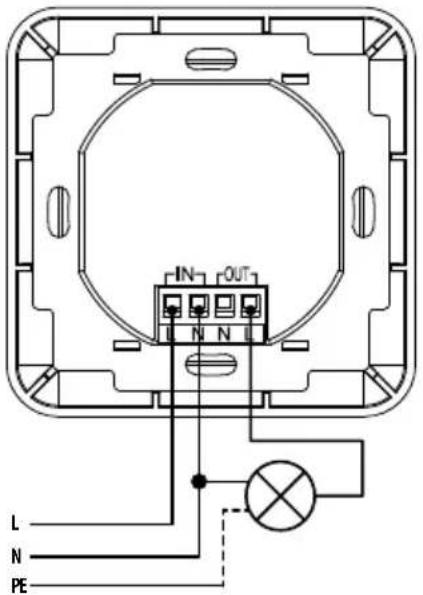

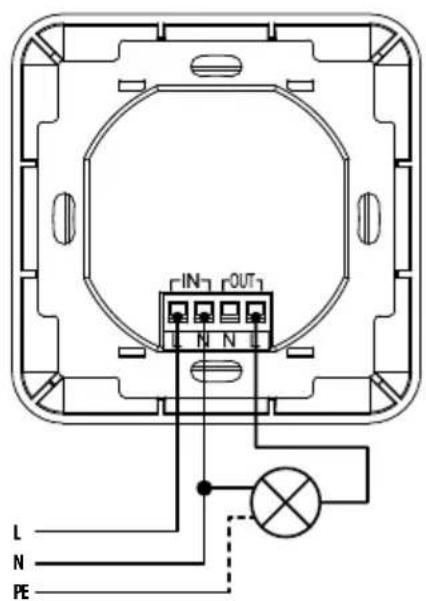

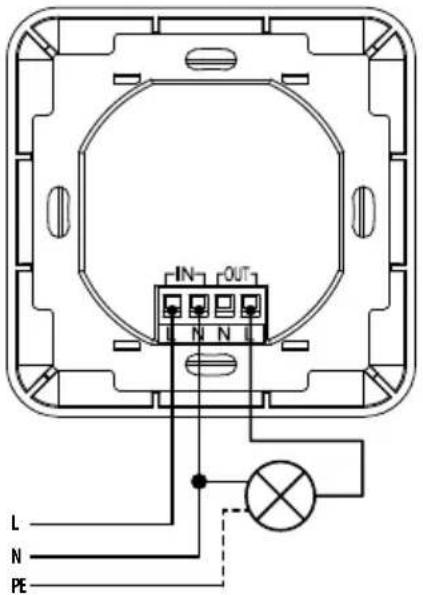

○ Connect the supply voltage cable to the screw terminals L-IN and N-IN (N = neutral conductor, L = phase) (see Fig.).
Connect the consumer to the screw terminal L-OUT. The N conductor can alternatively be connected to the wall switch N-OUT.
☐ For consumers with a PE / ground conductor connection, the ground conductor must be connected.
Attach the wireless direct wire wall switch to the flush-mounted box using screws (hole spacing for mounting eyes = 60 mm).
○ Latch the switch cover onto the electronics casing.

Download app / PC software BrematicPRO

The Brennenstuhl Home Automation Systems BrematicPRO is controlled via the BrematicPRO app/PC software. The app can be downloaded for free from the App Store and Google Play. The PC software is available for download at www.brematic.com/gb/service.

Please follow the on-screen instructions for download and installation.

Download on the App Store

GET IT ON Google Play

For more information about the app and how to use it, please visit www.brematic.com/gb/service.

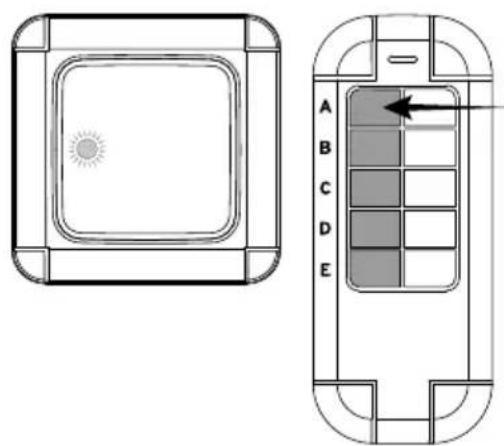

Pairing the Wireless direct wire wall switch with the BrematicPRO Wireless Remote Control

The wireless direct wire wall switch can be paired directly with the BrematicPRO wireless remote control.

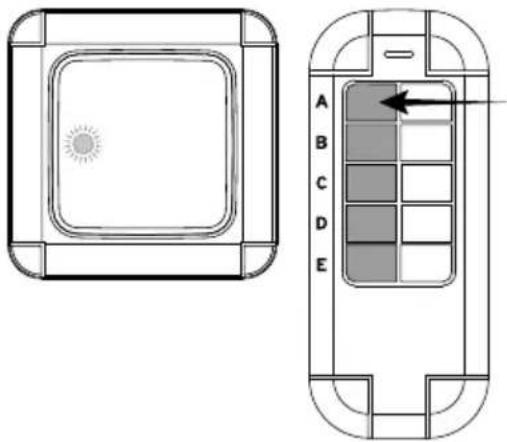

○ Press and hold the pair button for 3 seconds. The LED will flash red.
Whilst the LED is flashing, press a button on the left of the BrematicPRO wireless remote control you wish to programme for the device. Once the devices have been paired, the LED will light up green and the wall switch will be switched on. This completes the pairing process.

Unpair

○ Press and hold the pair button for 3 seconds.

The LED will flash red.

Whilst the LED is flashing, press the respective button on the right of the BrematicPRO wireless remote control you wish to unfair. This completes the unpairing process.

Pairing the Wireless direct wire wall switch with the BrematicPRO Gateway

When linked with the Home Automation Systems BrematicPRO via the BrematicPRO Gateway, you can use the app / BrematicPRO PC software to use additional software-based functions, e.g. functions such as controlling actions (tasks), switching devices on / off.

The app or BrematicPRO PC software is installed and open.

The BrematicPRO Gateway is ready for use.

• Keep the device at least 50 cm from the Gateway.
  ○ Open the "Settings" menu.
  ○ Select the room where you wish to use the device.
  ○ Select the frequency "868 MHz".
  ○ Select "Add Device".
  Under "New Device", select "Switch / Socket" and click "Continue" to confirm your selection.
  ○ Follow the on-screen instructions.
  Press the upper or lower part of the rocker switch on the wall switch. Only one rocker switch has to be programmed for the wall switch to be fully integrated within the system.
  ○ Enter a device name, e.g. "Living Room Lamp".
  ○ Select "Add" to assign the device to the room.
• First tap "Back" to leave the room, then "Done" to complete the pairing process.

The wireless direct wire wall switch is now connected to the Home Automation Systems BrematicPRO.

Use "Test Device" to switch the consumer on and off to ensure the wireless direct wire wall switch is working properly. In this submenu you can also add the device to your favourites.

For more information about the app and how to use it, please visit our homepage at: www.brematic.com/gb/service.

Factory Reset

The device can be restored to the factory settings at any time. A reset will be required if malfunctions occur.

○ Press the pair button for at least 6 seconds.

The LED will flash rapidly and go out after approx. 3 seconds.

The device has been reset.

Cleaning the Device

DANGER! RISK OF ELECTRIC SHOCK!

Disconnect the device from the mains before cleaning.

Do not allow liquids to enter the device. Liquids entering can result in a short circuit.

○ Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
Do not clean with solvent-based cleaners. These could damage the device surface and markings.
Never immerse the device in water or other liquids. The product may otherwise be damaged.
○ Ensure the device is completely dry before using it again.

Action

Problem Possible cause Action
LED doesn't flash. Device has not been installed correctly.The circuit breaker is not switched on.		Have installation carried out correctly.Check if there is power. Switch on the circuit breaker.
The device won't switch on.	The remote control is outside the range of the Gateway / the wireless component.	Reduce the distance to the Gateway / wireless component.
Device not detected.	The device is outside the Gateway range.	Reduce the distance to the Gateway.

Disposal

The packaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.

Service

For questions related to the product, please contact us at www.brematic.com/gb/service. Tel.: [phone] (toll-free)

Manufacturer

Declaration of conformity

Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model UPWS 868 01 W1000 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brematic.com/gb/service/konformitaetserklaerung/ke_1294700.pdf

This product complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners. All rights reserved.
