Wireless door / window contact

Instructions for use

Pure technical line drawing of a door panel and adjacent rectangular frame (no text or symbols)

Position Klebepad

Technical line drawing of a dual-pin electrical socket with internal components and mounting points (no text or symbols)

Technical line drawing of a two-part electronic device with internal components and directional arrows (no text or symbols)

Diagram showing three components: a cylindrical device with internal structure, a vertical cylindrical component, and a light bulb symbol (no text or labels)

Diagram showing a battery cell with internal structure and a light bulb, no text or symbols present

www.brematic.com/de/service.

Tel.: [phone] (kostenlos)

Hersteller

Safety instructions Page 12

Special safety instructions for handling batteries....Page 12

Intended use Page 13

Information about Wireless Operation Page 13

Duty cycle....Page 13

Included in delivery Page 13

Technical data Page 13

Device overview Page 14

Front Page 14

Back Page 14

Control elements Page 14

Sabotage switch....Page 14

Pair button....Page 14

Inserting / replacing the battery....Page 14

Function......Page 14

Installation Page 15

Installation without drilling....Page 15

Installation using screws....Page 15

Balancing out the assembly level of the magnet unit....Page 15

Pairing the wireless door/ window contact directly with BrematicPRO devices....Page 16

Removing a direct connection....Page 17

Pairing the wireless door/ window contact with the BrematicPRO Gateway....Page 17

Cleaning the device....Page 17

Action Page 18

Disposal Page 18

Service Page 18

Manufacturer Page 18

Declaration of conformity....Page 18

List of pictograms used

Please read the instructions for use! Observe the warnings and safety instructions!

Caution! Danger of explosion!

Dispose of the packaging and device in an environmentally friendly manner!

Safety instructions

The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using this device, please familiarise yourself with all instructions for use and safety instructions. Only use the device as described and for the indicated purpose. Be sure to include all documentation when passing this device on to others.

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children alone and unsupervised with the packaging material. It poses a risk of suffocation as children may swallow or inhale small parts or plastic film. Children frequently underestimate the dangers. Always keep children away from the device. It is not a toy.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

• Only operate this device in a dry, dust-free environment.
• Only operate this device indoors.
  Do not expose the device to adverse conditions, such as moisture,

• continuous sunlight,

- heat radiation,

• cold,

- vibrations.

CAUTION! RISK OF INJURY!

• Do not open the housing. This device has no parts which require maintenance.

• Do not use the device if it is visibly damaged.
  We assume no liability for property damage or personal injury due to improper use or failure to observe the safety instructions! This will void the warranty / guarantee!

• Any use not specified in these instructions for use will damage the device. Do not modify the device. Otherwise safe operation is not guaranteed.

• You will have to replace the device if water enters it.

Special safety instructions for handling batteries

WARNING! DANGER TO LIFE!

Batteries are not intended for children. Seek immediate medical attention if swallowed!

CAUTION! DANGER OF EXPLOSION! Never

recharge disposable batteries, do not short-circuit and / or open batteries!

• Never throw batteries into fire or water!
  Do not exert mechanical loads on batteries!

Risk of battery leakage

In the event of a battery leak, immediately remove it from the device to prevent damage!
Avoid contact with the eyes, skin and mucous membranes! In the event of contact with battery acid, flush the affected areas with clean water and seek immediate medical attention!
Only use the same type of batteries! Do not mix used and new batteries!
- Avoid extreme conditions and temperatures which may affect batteries, e.g. radiators/direct sunlight.
- Remove the batteries if the device will not be used for extended periods!

Risk of device damage

Only use the specified battery type!
Please note the correct polarity when inserting the battery! You can find out how to insert the battery in the section "Inserting / replacing the battery".
- If necessary, clean the battery and device contacts before inserting the battery!
- Remove drained batteries from the device immediately!

WARNING! CHEMICAL BURNS!

Keep batteries away from children.

The device contains a lithium button cell. If a new or drained button cell is swallowed or enters the body it can lead to severe internal chemical burns and can cause death within two hours of ingestion. Always ensure that the battery compartment is securely shut. If the battery compartment does not close correctly, stop using the device, remove the battery and keep it away from children.

If you believe that a button cell has been swallowed or has entered someone's body, seek immediate medical attention.
The batteries must be disposed of correctly, even if they have been kept away from children.
- Even used batteries can cause injuries.

Intended use

The wireless door / window contact is solely intended to notify the BrematicPRO Gateway or a BrematicPRO wireless component when windows and doors in dry indoor areas have been opened and closed.

Information about Wireless Operation

This device uses the 868.3 MHz proprietary wireless protocol. Wireless transmission is implemented using a non-exclusive channel, interference can therefore not be excluded. The range in building may vary greatly from open areas. In addition to the transmission power and the reception characteristics of the receivers, ambient conditions, e.g. humidity in addition to the structural conditions on site, are important factors.

The range can be significantly reduced in part due to:

• wood, gypsum, concrete, reinforced concrete walls
  • proximity to metal and conductive objects
• broadband interference, e.g. in residential areas (DECT phones, mobiles, wireless headphones, wireless speakers, wireless weather stations, baby monitors)
• proximity to electric motors, transformers, mains adapters, computers

Duty cycle

Duty cycle refers to a transmission time limit regulated by law for devices transmitting in the 868 MHz range. It is intended to ensure smooth operation of devices operating in the 868 MHz range. The maximum transmission time of each device is 1 % of an hour (corresponding to 36 seconds / hour). Once the 1 % limit has been reached it cannot transmit until the time limit of the duty cycle has ended, so after one hour.

Included in delivery

1 x Wireless door / window contact
1 x Magnet unit
1 x 3V button cell batteries CR2450
1 x Installation kit (6 x screws + 2 x adhesive pads)
3 x Spacers
1 x Quick start guide
1 x Instructions for use (digital, available for download)

Technical data

Product designation: TFK 868 01 3726

Item no.: 1294250

Radio frequency: 868.3 MHz

Frequency: 868.1 - 868.5 MHz

Max. transmitting power: < 20 mW

Duty cycle: < 1 % per h

Supply voltage: 1 x 3 V button cell CR2450

Power consumption: 30 mA max.

Battery life span: approx. 2 years (typically)

Ambient temperature: 0 °C to 35 °C

Protection type: IP20

Open area range: approx. 100 m

Dimensions (W x H x D): Electronics unit: 80.6 x 36.8 x 16.5 mm Magnet unit: 80.6 x 11.8 x 15.3 mm

Weight: 56.8 g

Subject to technical changes without notice.

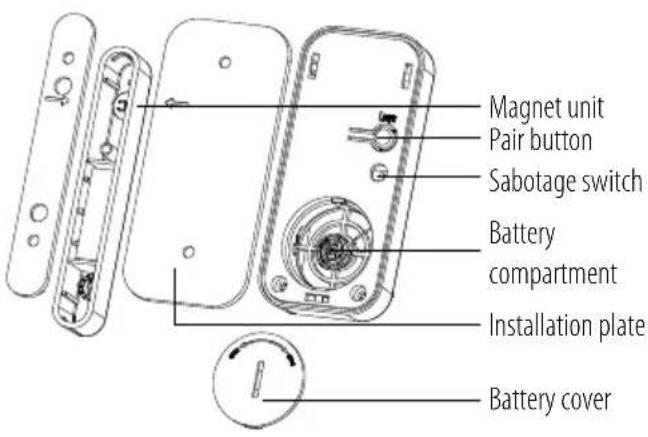

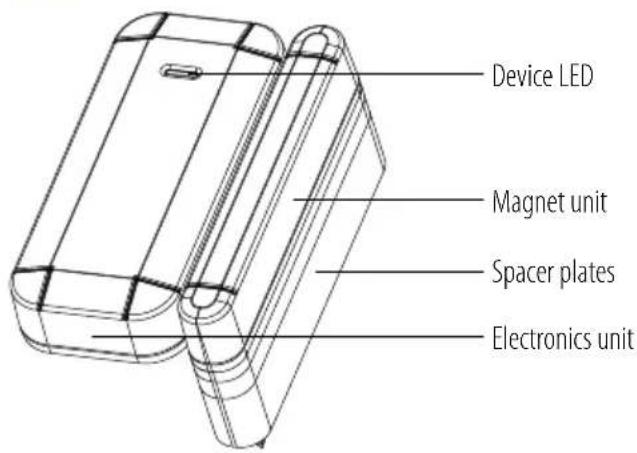

Device overview Front

Device LED Magnet unit Spacer plates Electronics unit

Back

Magnet unit Pair button Sabotage switch Battery compartment Installation plate Battery cover

Control elements Sabotage switch

The sabotage switch is intended to prevent misuse or the removal of the device by strangers.

The sabotage switch notifies the BrematicPRO Gateway and the device LED flashes 1 x for 0.5 seconds as soon as the wireless door / window contact is removed from the installation plate.

The device LED flashes for 1 second when the housing is closed as soon as the sabotage switch is in the OK position.

Pair button

By pressing the pair button, the device is put into pairing mode to link the Home Automation Systems BrematicPRO via the BrematicPRO Gateway.

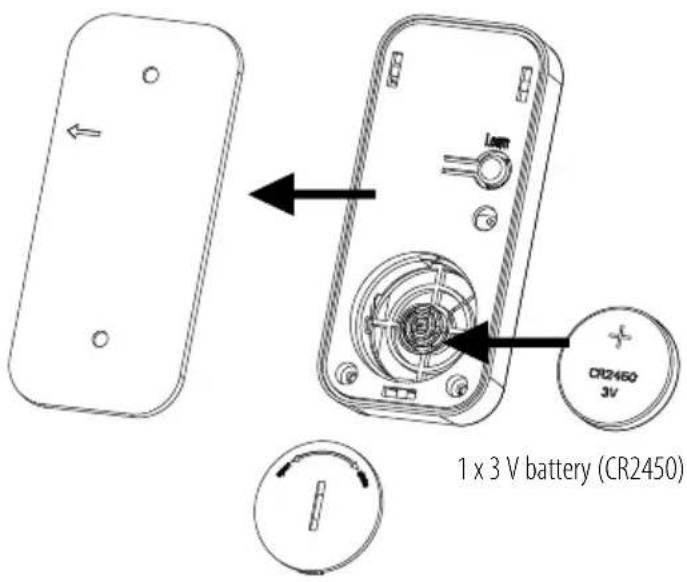

Inserting / replacing the battery

1 x 3 V battery (CR2450)

○ Remove the installation plate.
○ Rotate the battery cover into the OPEN position using a coin, for example, to open the battery compartment.
○ Remove the drained battery if required.
Insert the battery into the battery compartment with correct polarity. Ensure that the battery contact on the side also fits on the side.
- Close the battery cover and secure it by rotating it into the CLOSE position.
○ Press the pair button on the device back.

The battery status is fine if the device LED on the device front briefly flashes 3 x.

The electronics unit is ready for use.

Note: If the battery is drained, the device LED will flash once every second.

Function

The wireless door / window contact is part of the Brennenstuhl Home Automation Systems BrematicPRO, controlled via app or the BrematicPRO PC software.

The wireless door/window contact notifies the BrematicPRO Gateway when windows and doors in dry indoor areas have been opened and closed. When linked with the Home Automation Systems BrematicPRO, you can monitor if windows are open or closed.

You can find out which devices can be paired with the wireless door / window contact from the BrematicPRO compatibility list at www.brematic.com/gb/service.

For additional information on components, please refer to the instructions for use of the respective BrematicPRO wireless component.

Note: The door and window contact's sensitivity can be limited by the distance between the electronics unit and magnet unit. The electronics unit's reactivity can be checked using the integrated LED.

If even leaning on the door or window means it is recognised as being open, the magnet unit must be moved in the direction of the opening and affixed to the electronics unit.

Installation

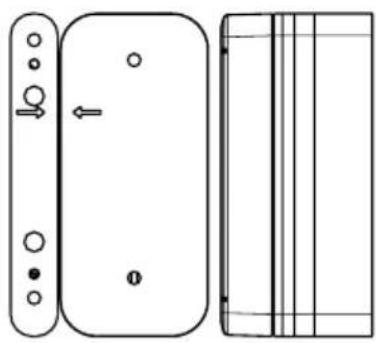

Installation without drilling

Note: Check before installation whether the product is located within the range of the Gateway.

Use both adhesive pads to attach the wireless door / window contact to the window / to the door without drilling.

The arrows on the electronics and installation unit should be pointing each other.

○ Ensure that the installation area is clean, dust-free and dry.
○ Avoid installation locations which are under the strong influence of heat (e.g. sunlight) as the adhesive tape can come unstuck.
Do not use any spacers as the device to be installed using the adhesive pads will become too heavy.

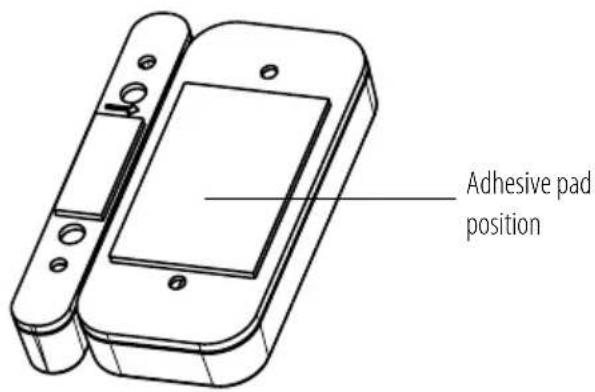

Pure technical line drawing of a door panel and adjacent rectangular frame (no text or symbols)

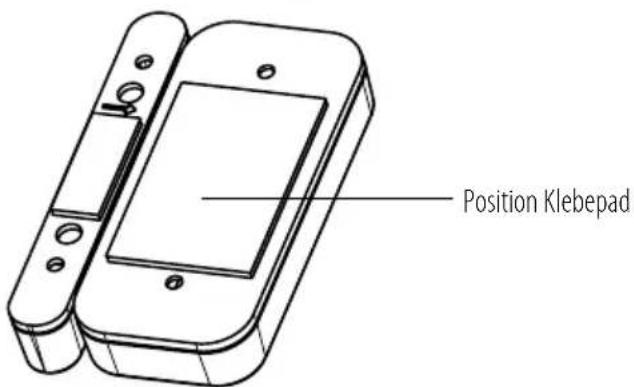

Adhesive pad position

Installation using screws

Note: By attaching the device using screws, the window frame will be damaged. If you live in rented accommodation, this may result in a claim for damages or your deposit being withheld.

○ Install the electronics unit and the magnet unit parallel to one another at a maximum distance of 8 mm. Ensure that the arrows depicted on the back of the device are at the same height.
Note: As there are only spacers for the magnet unit, as a general rule, the electronics unit must be installed on the higher or prominent part.
○ Remove the installation plate from the electronics unit and the magnet unit respectively.
Draw the drill holes onto the door/ onto the window using a pencil, with the help of the installation plates.
Drill the marked holes using a suitable drill.
- Screw the installation plates using the screws provided to the door/ to the window.
Press the electronics unit and the magnet unit onto the respective installation plate until it audibly clicks into place.

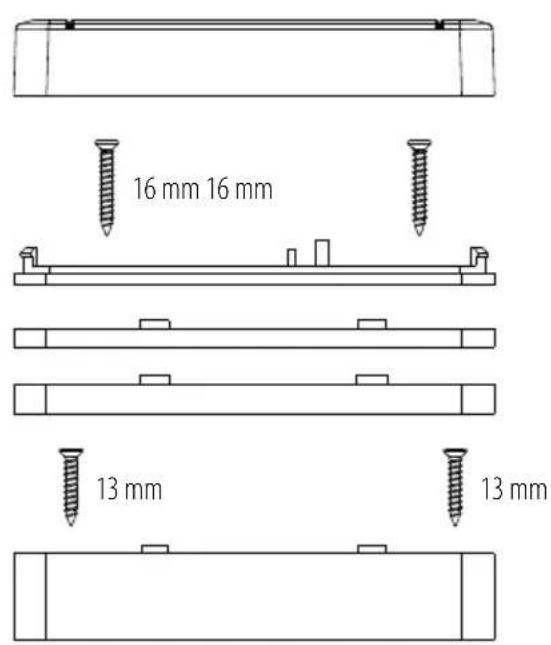

Balancing out the assembly level of the magnet unit

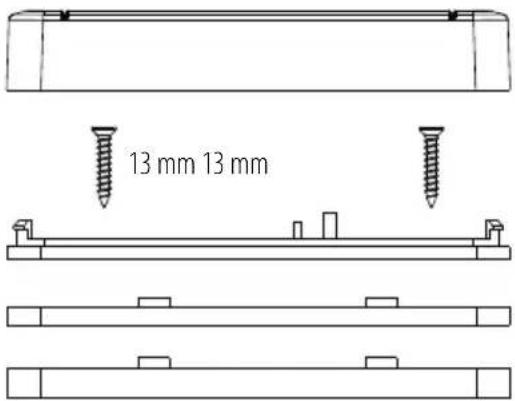

13 mm 13 mm

If you are not using any spacer or are only using one (3 mm or 5 mm) use 2 x 13 mm screws.

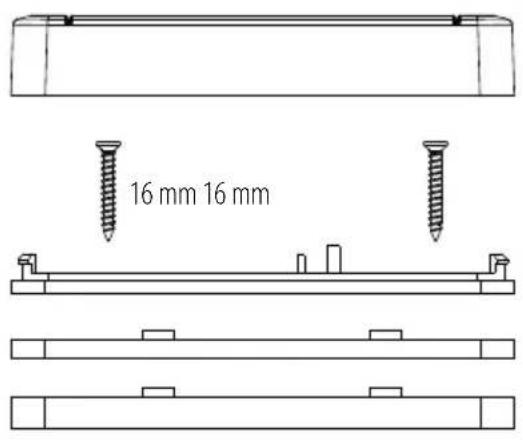

16 mm 16 mm

☐ If you are using both spacers (3 mm and 5 mm) use 2 x 16 mm screws.

16 mm 16 mm 13 mm 13 mm

☐ If you are using the high spacer (14.5 mm) screw the installation plate using 2 x 13 mm screws.
Both spacers (3 mm and 5 mm) can also be installed.
○ Then, affix the spacers using 2 further 16 mm screws.

Pairing the wireless door / window contact directly with BrematicPRO devices

The door/window contact can be paired directly with the BrematicPRO wireless switch adapter or flush-mounted actuators.

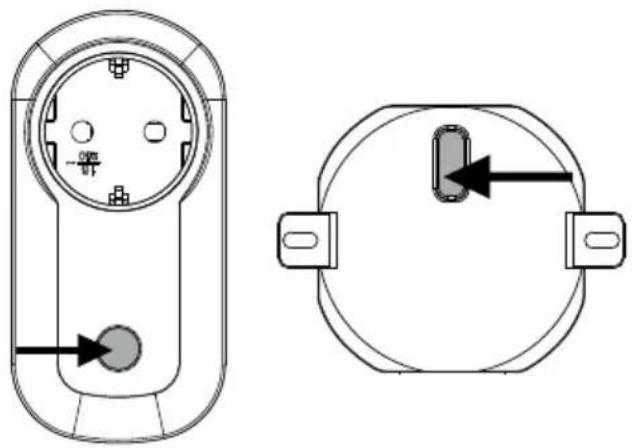

Technical line drawing of a dual-pin electrical socket with internal components and mounting points (no text or symbols)

Note: Before you begin the pairing process, ensure that the door and window contact is closed.
Press and hold the pair button of the wireless switch adapter or flush-mounted actuator for 3 seconds until the device LED flashes.

Optionally, pairing via the pair button is possible.

You can find an overview of which devices can be directly paired at www.brematic.com/gb/service

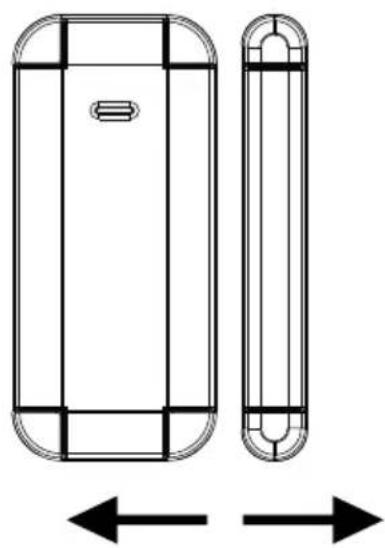

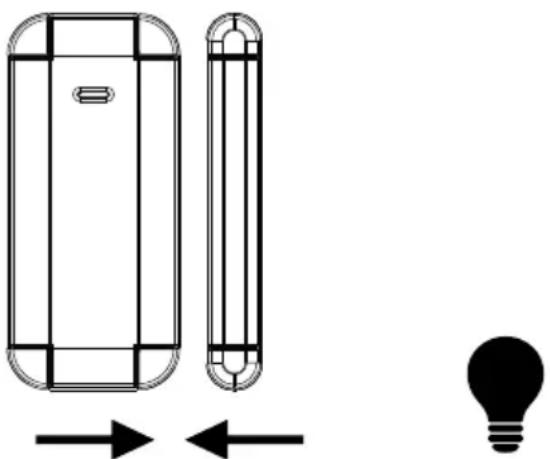

Technical line drawing of a two-part electronic device with internal components and directional arrows (no text or symbols)

○ Firstly, the electronics unit and magnet unit are closed (see diagram). Remove the magnet unit from the electronics unit while the device LED of the wireless switch adapter or flush-mounted actuator flashes to couple both devices to one another.
Once the devices have been paired successfully the device LED of the wireless switch adapter or flush-mounted actuator will light up continuously. This completes the pairing process.

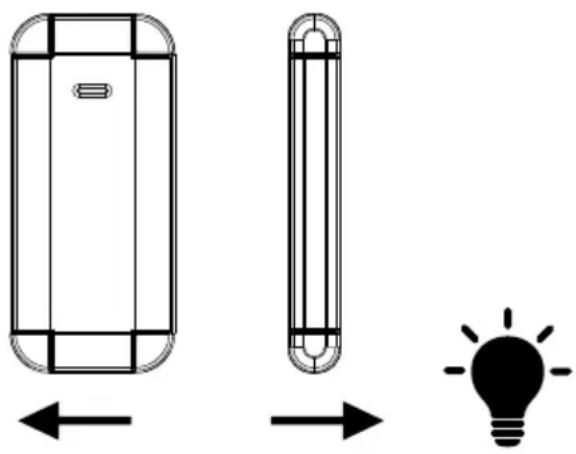

Diagram showing three components: a cylindrical device with internal structure, a vertical cylindrical device, and a light bulb symbol (no text or labels)

If the door / window contact is opened, the actuator will be switched on.

Technical line drawing of a battery with internal components and a light bulb, showing no text or symbols.

If the door/window contact is closed, the actuator will be switched off.

Note: If you reset to the default settings the wireless switch adapter and flush-mounted actuator will be deleted from the Gateway.

Removing a direct connection

To remove the pairing between the wireless door / window contact and wireless switch adapter or flush-mounted actuator, reset the paired device to the default settings (see instructions for use of the paired device).

Note: If you reset to the default settings the wireless switch adapter and flush-mounted actuator will be deleted from the Gateway.

Pairing the wireless door / window contact with the BrematicPRO Gateway

When linked with the Home Automation Systems BrematicPRO via the BrematicPRO Gateway, you can use the app/BrematicPRO PC software to use additional software-based functions, e.g. switching

and controlling other components or to be informed on the status of the wireless door / window contact.

The app or BrematicPRO PC software is installed and open.

The BrematicPRO Gateway is ready for use.

Keep the device at least 50 cm from the Gateway.
Open the "Settings" menu.

Select the room where you wish to use the device. Note: If no rooms have been added, use the + button to add and name a room, e.g. "Living Room".

Select "Add Device".

○ Select the frequency "868 MHz".

Under "New Device", select "Sensor / Detector" and click "Continue" to confirm your selection.

- Follow the on-screen instructions.

Press and hold the pair button on the device for 3 seconds.

Enter a device name, e.g. "Living Room Window".

Select "Add" to assign the device to the room.

Select "Display status" if the device should be displayed as a tile in the app.

In this submenu you can also add the device to your favourites.

First tap "Back" to leave the room, then "Done" to complete the pairing process.
The wireless door/window contact is now connected to the Home Automation Systems BrematicPRO.
☐ Check that the wireless door/window contact works perfectly by opening and closing it.

For more information about the app and how to use it, please visit the homepage at: www.brematic.com/gb/service

Cleaning the device

○ Clean the device with a dry, lint-free cloth. For tough dirt, you may also slightly dampen the cloth.
Do not clean with solvent-based cleaners. These could damage the device surface and markings.
Never immerse the device in water or other liquids. The device may otherwise be damaged.

Action

Problem Possible cause Action
LED does not flash when the door / window contact is opened or closed	The battery is drained.	Insert a new battery.
LED flashes every second	The battery is empty.	Insert a new battery
Device not detected. The device is outside the Gateway range.		Reduce the distance to the Gateway.

Disposal

The packaging is made from environmentally-friendly materials which can be disposed of through your local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life, not in the household waste. Please contact your municipality for information on collection facilities and their opening hours.

Faulty or drained batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and / or the device to the provided recycling facilities.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of drained batteries through your local collection facilities.

Service

For questions related to the product, please contact us at www.brematic.com/gb/service. Tel.: [phone] (toll-free)

Manufacturer

Declaration of conformity

Hugo Brennenstuhl GmbH & Co.KG, hereby declares the wireless system model TFK 868 01 3726 to comply with directives 2014/53/EU and 2011/65/EU (RoHS II). The full text of the EU declaration of conformity is available at the following internet address: www.brematic.com/gb/service/konformitaetserklaerung/ke_1294250.pdf

This device complies with the legal, national and European requirements. All company names and product names are trademarks of the respective owners.

All rights reserved.

Touche anti-sabotage Page 22

Touche de programmation....Page 22

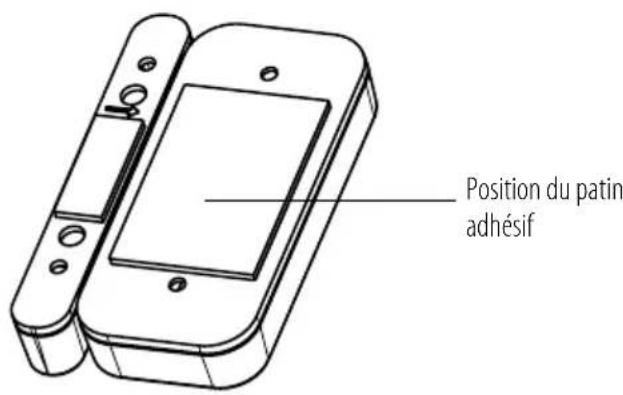

Touche anti-sabotage

Pure technical line drawing of a door panel and adjacent rectangular frame (no text or symbols)

Technical line drawing of two electrical socket components with no text or symbols

Technical line drawing of a two-part electronic device with internal components and directional arrows (no text or symbols)

Diagram showing three components: a cylindrical device with internal structure, a vertical cylindrical component, and a light bulb symbol (no text or labels)

Diagram showing a cylindrical device with internal components and an arrow pointing to it, alongside a light bulb symbol (no text or labels)

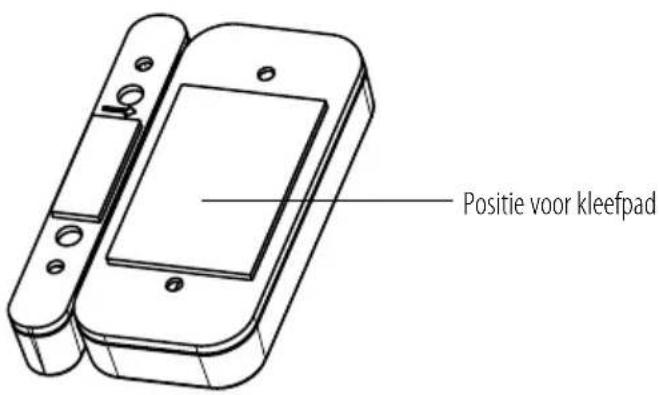

WAARSCHUWING! LEVENSGEVAAR!

Pure technical line drawing of a door panel and adjacent rectangular frame (no text or symbols)

Technical line drawing of a dual-pin electrical socket with internal components and mounting points (no text or symbols)

Technical line drawing of a two-part electronic device with internal components and directional arrows (no text or symbols)

Diagram showing three components: a cylindrical device with internal structure, a vertical cylindrical component, and a light bulb symbol (no text or labels)

Diagram showing a battery cell with internal structure and a light bulb, no text or symbols present

Pure technical line drawing of a door panel and adjacent rectangular panel (no text or symbols)

Technical line drawing of a dual-pin electrical socket with internal components and mounting points (no text or symbols)

Technical line drawing of a two-part electronic device with internal components and directional arrows (no text or symbols)

Diagram showing three components: a cylindrical device with internal structure, a vertical cylindrical component, and a light bulb symbol (no text or labels)

Diagram showing a cylindrical device with internal components and an arrow pointing to it, alongside a light bulb symbol (no text or labels)
